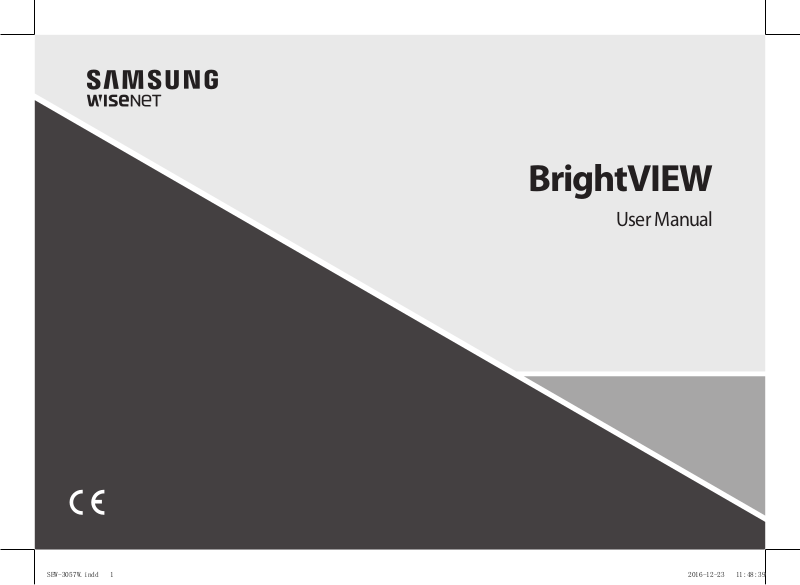

BrightVIEW

User Manual

SEW-3057W.indd 1 2016-12-23 11:48:39

BrightVIEW

User Manual

Hanwha Techwin

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Techwin

document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. contents of this document without prior notice.

Co., Ltd. All righ ts reserve d.

makes the best to verify the integrity and correctness of the contents in this

Hanwha Techwin

reserves the right to change the

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SEW-3057W.indd 2 2016-12-23 11:48:40

SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS

FCC Caution :

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and monitor.

• Connect the equipment into an outlet on a circuit different from that to which the monitor is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING

• STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 3 feet of crib or playpen. Never use extension cords with AC Adapters. Only use the AC Adapters provided.

• Some adult assembly or installation required.

• This product contains small parts that may cause choking. Keep small parts away from children.

• This product is NOT intended to replace proper supervision of children. You MUST check your

child’s activity regularly, as this product will not alert parents to silent activities of a child.

• Before using this product, read and follow all instructions contained in this booklet, and read and follow all instructions and warnings on the product.

• NEVER use the transmitter or monitor near water, including near a bathtub, sink, laundry tub, wet basement, etc.

• This product is intended for indoor use only.

• This product is not intended for use as a medical monitor and its use should not replace adult

supervision.

• The transmitter detects normal sound levels within a range of 2 to 3 meters (6 to 10 feet) from a child. If the child moves outside of this range, if may not be able to detect sounds from him or her.

• It is essential that you check the operating range and condition of the transmitter monitor on initial installation, and on a regular basis after that.

• Check reception regularly. Test monitor before use and after changing camera location.

The wireless signal transfer range may be shortened if an obstacle such as a concrete wall is in between the camera and monitor.

• To prevent overheating, keep the product and AC power adapters away from any direct sunlight and heat sources such as radiators, heat registers, cooking devices (e.g., stoves and ovens) and other appliances that produce heat (e.g., amplifiers, televisions and stereos).

• Ensure that the product is well ventilated during use. Avoid contact with pillows and furniture that may block ventilation.

• Use only the AC adapters provided with the product, as other adapters may damage the product. Plug the adapters only into standard household current (100~240 volts AC). Place the AC adapters avoiding pinch points otherwise you can damage the adapters.

• When an AC adapter is plugged into a power source, DO NOT touch the exposed end of the AC adapter’s cord.

• Do not use extension cords with the AC power adapters to avoid entanglement.

• This product should only be serviced by qualified and authorized Hanwha Techwin service centers.

• Images and sounds are transmitted by the product over public airwaves and transmissions may

be picked up by other units. (Although the transmission distance is 100m or longer, it may vary depending on whether there are obstacles between the camera and the monitor.)

• Caution if you use the system to watch a young child, do not place the camera where the child can reach.

• When using the system with only battery power and the charge is low, then the picture and or sound may affected.

• If this occurs then please connect the AC power adapter.

CAUTION

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

SEW-3057W.indd 3 2016-12-23 11:48:40

Contents

WHAT’S INCLUDED

Package Contents ………………………………………………… 5

GETTING STARTED

Functional Description ……………………………………………… 6

Powering your monitor ……………………………………………………… 6

Operating the System ……………………………………………………… 6

VIEWING MODE DISPLAY

Indicator Description ……………………………………………… 8

How to use the indicator …………………………………………………… 8

Menu Operation ………………………………………………… 10

How to use the function tools ……………………………………………… 10

How to use the setup icon ………………………………………………… 11

OVERVIEW

Getting to know your Monitoring system ……………………… 12

Wireless Monitor …………………………………………………………… 12

Wireless Camera …………………………………………………………… 14

Wireless Wrist Band ………………………………………………………… 15

Sensor ……………………………………………………………………… 15

INSTALLATION

How to Install ……………………………………………………… 15

Wireless Monitor …………………………………………………………… 15

Wireless Camera …………………………………………………………… 15

REMOTE VIEW

Remote …………………………………………………………… 16

APPENDIX

Specifications …………………………………………………… 18

Troubleshooting ………………………………………………… 19

SEW-3057W.indd 4 2016-12-23 11:48:40

What’s Included

Package Contents

The system comes with the following components:

Wireless camera Wireless monitor User Manual & Warranty Card

Camera Adapter Monitor Adapter Plastic anchor (1EA) & Screw (1EA)

Wireless wrist band Wrist band Adapter Sensor

Check your package to confirm that you have received the complete system, including all components shown above.

English ·

SEW-3057W.indd 5 2016-12-23 11:48:45

GettInG started

PAIR

Functional Description

Powering your monitor

After opening the box, fully charge the monitor before use. After initial charge, recharge as needed.

Wireless Monitor

You can use the device while charging with connected adapter, and the device is portable if charged.

Wireless Camera

The Wireless Camera must be plugged in at all times in order to view.

Wireless wrist band

The wireless wrist band must be charging with adapter and the device is portable if charged.

negative

positive

negative

Operating the System

The basic operation is as follows:

Camera and Monitor pairing

The units already come paired for your convenience. This button is used to add an additional camera. User can select camera number to assign. Up to 4 Cameras may be paired.

1. Power on wireless monitor and wireless camera.

2. Touch the live view screen on the monitor, and then the settings icon will appear.

3. Press the [ ] button on the monitor.

4. Select [ ] icon.

5. Select camera number.

The monitor search a camera which sets to pairing mode. A count down clock appears at the middle of screen which starts counting from 30 to 0.

6. Press the [PAIR] button on the camera bottom.

7. Within 30 seconds, if the monitor successfully pairs with the camera, the monitor

will automatically switch to the camera's current view.

Monitor and wrist band pairing

1. Make sure the monitor should be power.

2. Touch the view screen on the monitor, and then the setting icon will appear.

3. Press the [ ] button on the monitor, come into "Menu" interface.

4. Select [ ] icon, mark sure the Bluetooth should be show [ ] .

5. The monitor will search the Bluetooth device. Choose the Bluetooth and if pairing

success, the monitor will show Paired and the Bluetooth will show “ [ ] “ icon in the wrist band.

· Getting Started

SEW-3057W.indd 6 2016-12-23 11:48:48

Getting Started

Voice activated (VOX)

Select to monitor significant sound with reduced ambient noise. The screen goes off in “VOX” mode if there is no significant sound louder than a certain level about 30 seconds. Meanwhile, the monitor screen turns on as soon as detecting sound around the camera. In “VOX” mode, you can set the sensitivity.

• Low Sound Level Detection : Sets to higher sensitivity.

• High Sound Level Detection : Sets to lower sensitivity.

Remark:VOX on, and once VOX trigger, the Bluetooth will alert and shake for Dozens of seconds. You can stop the alert by press the Bluetooth button at the side of Bluetooth. Once the wristband go beyond of the limit distant of Bluetooth, it will alert for several seconds, then you can stop alert by pressing the Bluetooth button.

Sound level

The louder the sound around the camera, the more LEDs turn on.

Night Light

Touch the [ ] button on the camera to remotely activate or deactivate the night light on the camera.

[Camera]

Multi camera mode

Press [ / ] switch the split mode. According to the paired camera, screen split mode is different. When two cameras are paired, it displays as 2-split mode. When there are more than 2 cameras are paired, it displays as 4 split mode. Up to 4 cameras can be paired.

Remote PTZ and Zoom

You can remotely control the camera to pan, tilt and digital zoom. Use [ ] icons on the wireless monitor to control the camera. Use [ ]

icon

to zoom in and out.

Sequence View

Out of Range

If the monitor is outside of transmission range with the paired camera, the “Out of Range” message appears with warning beeps at regular intervals.

Press the "Sequence View"button, it switches to cam1 viewing.After 10 seconds, it automatically switches to cam2 for another 10 second. Util largest cam number is viewed for 10 seconds, then it loops back to view cam1 again.

Two-way talk

Press the [ ] icon while talking.

English ·

SEW-3057W.indd 7 2016-12-23 11:48:51
