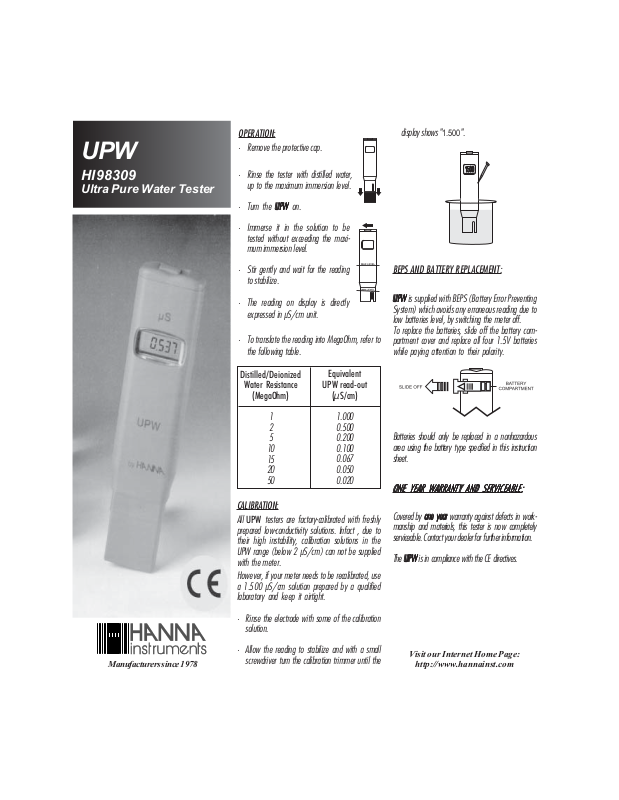

Hanna Instruments HI 98309 User Manual
UPW
OPERATION:
• Remove the protective cap.
display shows "1.500".
HI98309
Ultra Pure Water Tester
• Rinse the tester with distilled water,
up to the maximum immersion level.
• Turn the
• Immerse it in the solution to be
• Stir gently and wait for the reading
• The reading on display is directly
• To translate the reading into MegaOhm, refer to
Distilled/Deionized
Water Resistance
CALIBRATION:
All UPW testers are factory-calibrated with freshly
prepared low-conductivity solutions. Infact , due to
their high instability, calibration solutions in the
UPW range (below 2 µS/cm) can not be supplied
with the meter.
However, if your meter needs to be recalibrated, use
a 1.500 µS/cm solution prepared by a qualified
laboratory and keep it airtight.
UPWUPW
UPW on.
UPWUPW
tested without exceeding the maximum immersion level.
to stabilize.
expressed in µS/cm unit.
the following table.
Equivalent
UPW read-out
(MegaOhm)
1
2
5
10
15
20
50
(µS/cm)
1.000
0.500
0.200
0.100
0.067
0.050
0.020
BEPS AND BATTERY REPLACEMENT:
UPW UPW
UPW is supplied with BEPS (Battery Error Preventing
UPW UPW
System) which avoids any erroneous reading due to
low batteries level, by switching the meter off.
To replace the batteries, slide off the battery compartment cover and replace all four 1.5V batteries
while paying attention to their polarity.
Batteries should only be replaced in a nonhazardous
area using the battery type specified in this instruction
sheet.
ONE YEAR WARRANTY AND SERVICEABLE:ONE YEAR WARRANTY AND SERVICEABLE:
ONE YEAR WARRANTY AND SERVICEABLE:
ONE YEAR WARRANTY AND SERVICEABLE:ONE YEAR WARRANTY AND SERVICEABLE:
Covered by
manship and materials, this tester is now completely
serviceable. Contact your dealer for further information.
The
one yearone year
one year warranty against defects in work-
one yearone year
UPW UPW
UPW is in compliance with the CE directives.
UPW UPW
Manufacturers since 1978
• Rinse the electrode with some of the calibration
solution.
• Allow the reading to stabilize and with a small
screwdriver turn the calibration trimmer until the
Visit our Internet Home Page:
http://www.hannainst.com
UPW
HI98309
Ultra Pure Water Tester
ELECTRODE REPLACEMENT:
Internal circuit:
The electrode is built-in inside the plastic casing and
can be easily replaced in the following way:
• Slide off the battery cover.
SPECIFICATIONS:
RANGE 0.000 1.999 µS/cm
RESOLUTION 0.001 µS/cm
ACCURACY (@20°C/68°F) ±2% f.s.
TYPICAL EMC DEVIATION ±0.5% f.s.
ENVIRONMENT 0 to 50C (32 to 122F);
95% RH not condensing
BATTERY TYPE 4 x 1.5V alkaline (included)
BATTERY LIFE approx. 120 hours
of continuous use
DIMENSIONS 175 x 41 x 23 mm
(7.9 x 1.8 x 1")
WEIGHT 78 g (2.7 oz.)
ACCESSORIES:
HI 73309 Spare electrode
HI 731326 Calibration screwdriver (20 pcs)
• Remove the screw on the back of the
located below the battery compartment and slide
off the whole internal part of the tester.
• Replace the built-in electrode with a new
HI73309.
• Before reinserting the internal circuit into the
new plastic casing, make sure the O-rings (2)
of the metal tube (3) are properly seated (see
drawing).
To avoid bending the connections to the conductivity sensors (1), do not apply excessive
force while inserting the circuit. In case of any
problem, reslide and reinsert it.
UPWUPW
UPW
UPWUPW
• Fasten the screw on the back, below the
battery compartment.
• Reinsert the battery compartment cover.
IS98309-R4 07/01
