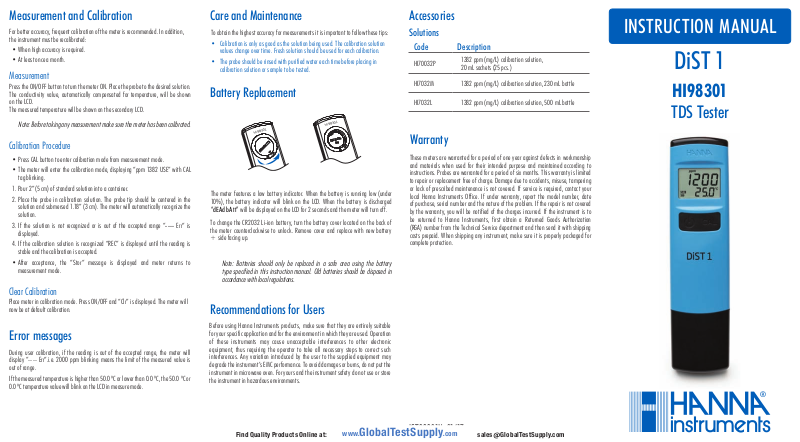

Measurement and Calibration
For bet ter accuracy, f requent calibra tion of the meter i s recommended. In a ddition,
the inst rument must be re calibrated:
• When hi gh accuracy is req uired.
• At least once a mon th.
Measurement
Press t he ON/OFF but ton to turn the m eter ON. Place th e probe to the de sired soluti on.
The conductivity value, automatically compensated for temperature, will be shown
on the LCD.
The meas ured temperat ure will be shown o n the secondar y LCD.
Note: Befor e taking any mea surement make su re the meter has bee n calibrated.
Calibration Procedure
• Pres s CAL button to enter calibration mode from measur ement mode.
• The meter will enter the calibration mode, displaying “ppm 1382 USE” with CAL
tag blinking.
1. Pour 2” (5 cm) of standard solution int o a container.
2. Place the probe in calibration solution. The probe tip should be centered in the
solution and submersed 1.18” (3 cm). The meter will automatically recognize the
solution.
3. If the solution is not recognized or is out of the accepted range “---- Err“ is
displayed.
4. If the calibration solution is recognized “REC“ is displayed until the reading is
stable and the calibration is accepted.
• After acceptance, the “Stor“ message is displayed and meter returns to
measurement mode.
Clear Calibration
Place met er in calibratio n mode. Press ON/OFF and “Clr ” is displayed. Th e meter will
now be at default calibration.
Error messages
During user calibration, if the reading is out of the accepted range, the meter will
display “---- Err“.i.e. 2000 ppm blinking means the limit of the measured value is
out of range.
If the me asured temper ature is higher than 50.0 ºC or low er than 0.0 ºC, the 50.0 º C or
0.0 ºC tempe rature value wi ll blink on the LCD in me asure mode.
Care and Maintenance
To obtain th e highest accurac y for measurem ents it is impor tant to follow th ese tips:
• Calibra tion is only as good a s the solution be ing used. The cali bration solut ion
values change over t ime. Fresh solution shou ld be used for eac h calibration.
• The prob e should be rinse d with purifie d water each time b efore placing in
calibration solu tion or sample to b e tested.
Battery Replacement
0
The meter features a low bat tery indicator. When the battery is running low (under
10%), the battery indicator will blink on the LCD. When the battery is discharged
“dEAd bAtt” will be displa yed on the LCD for 2 s econds and the meter will t urn off.
To change the CR2032 Li-ion battery, turn the bat tery cover located on the back of
the meter counterclockwise to unlock. Remove cover and replace with new batter y
+ side fac ing up.
Note: Batteries should only be replaced in a safe area using the battery
type specified in this instruction manual. Old batteries should be disposed in
accordance with local regulations.
0
Recommendations for Users
Before using Hanna Instruments products, make sure that they are entirely suitable
for your s pecific appli cation and for t he environmen t in which they are us ed. Operatio n
of these instruments may cause unacceptable interferences to other electronic
equipment, thus requiring the operator to take all necessary steps to correct such
interferences. Any variation introduced by the user to the supplied equipment may
degrade t he instrume nt’s EMC perfo rmance. To avoid dam ages or burns, do n ot put the
instru ment in microwav e oven. For yours an d the instrumen t safety do no t use or store
the instrument in hazardous environments.
Accessories
Solutions
Code Description
HI70032P
HI7032M 1382 ppm (mg/ L) calibration s olution, 230 mL bot tle
HI7032L 1382 ppm (mg /L) calibrat ion solution, 5 00 mL bottle
1382 ppm (mg/ L) calibration s olution,
20 mL sache ts (25 pcs.)
Warranty
These meters are warranted for a period of one year against defects in workmanship
and materials when used for their intended purpose and maintained according to
instructions. Probes are warranted for a period of six months. This warranty is limited
to repair or replacement free of charge. Damage due to accident s, misuse, tampering
or lack of prescribed maintenance is not covered. If service is required, contact your
local Hanna Instruments Office. If under warranty, report the model number, date
of purchase, serial number and the nature of the problem. If the repair is not covered
by the warranty, you will be notified of the charges incurred. If the instrument is to
be returned to Hanna Instruments, first obtain a Returned Goods Authorization
(RGA) number from the Technical Service department and then send it with shipping
costs prepaid. When shipping any instrument, make sure it is properly packaged for
complete protection.
INSTRUCTION MANUAL
DiST 1
HI98301
TDS Tester
Find Q uality Pr oducts Onl ine at: sales@ GlobalTestSupp ly.com
www.GlobalTestSupply.com
IST98301N 01/17
DiST 1
ppm
CAL
Preliminary Examination
Remove t he meter from t he packing m aterial and ex amine it caref ully to make sur e that
no damage h as occurred du ring shipment. I f noticeabl e damage is evid ent, contact y our
local Hann a Instrument s Office.
Each mete r is supplied wit h:
• CR2032 bat tery (1 pc.)
• Storage / Protection sleeve
• Instruction manual
• Quality Certificate
• 1382 ppm calibration solution sa chet (4 pcs.)
Note: Save al l packing material until you are sure that the instrument functions
correctly. All defective items must be ret urned in the original packaging with the
supplied accessories.
Preparation
The prob e is shipped dry. Bef ore using the ele ctrode, remo ve the protect ive cap. Then
follow the calibration procedure.
• Turn the t ester on by pres sing ON/OFF but ton.
• Remov e the protective cap and imm erse the tip of t he probe in the sam ple to
be tested.
• Stir ge ntly and wait for a s tability tag t o disappear.
• The electrode automatically compensates for temperat ure variations.
• The re ading on display is dir ectly expre ssed in: ppm.
• For best results, recalibrate periodically.
• After use rin se the probe wit h water.
• Alwa ys replace the protect ive cap after e ach use.
Operation
Liquid Crystal
Display
CAL button
ON/OFF button
Specifications
Range
Resolution
Accuracy
(@25 °C/77 ° F)
TDS Conv ersion fact or (CF) 0.5
Calibration
Solutions
Calibration automatic, single point (1382 ppm)
Temperature Compensation automatic, 0.0 to 5 0.0 ºC (32.0 to 122.0 ºF)
Batte ry type CR2032 L i-Ion 3V (1 pc.)
Batte ry life approximate ly 250 hours of continuous us e
Environment
Weight
(without battery)
0 to 2000 pp m
0.0 to 50.0 ˚C (32.0 to 122.0 ˚F)
1 ppm
0.1 ˚C (0.1 ˚F)
±2% F.S.
±0.5 °C (±1.0 °F )
HI70032
(1382 ppm)
0 to 50 ºC (32 to 122 ºF);
RH 100% max
68 g (2.4 oz.)
Recommended
Immersion
Level
Probe
Temperature
Sensor (inside)
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Find Q uality Pr oducts Onl ine at: sales@ GlobalTestSupp ly.com
www.GlobalTestSupply.com
Hanna Instruments reserves the right to modify the design,
construction, or appearance of its products without advance notice.
Operational Guide
To turn the meter ON and check the battery status
Press the ON/OFF button to turn the meter on. At start-up, all the LCD segments are
displayed for 1 second, then the percent indication of the remaining battery life is
display ed for another s econd. The mete r then enters th e normal measuri ng mode.
Note: Keeping the ON/OFF button pressed while turning the meter on will
display all LCD segments as long as the button is pressed.
To enter calibration mode
Press t he CAL butt on. “CAL“ messag e is displayed.
To enter setup mode
Remove t he batter y cover and pre ss the Setup b utton loc ated on the sid e of the batt ery.
Meter Setup
While in measurement mode, remove the battery cover. Press the Setup button
located on the side of the bat tery in the battery compartment. The meter will enter
in setup mode. Press the ON/OFF button to move through setup parameters. Change
option by pressing CAL button. The default settings are: “Set t” measure unit - °C,
“AOFF” - 8 min.
Setup
Button
To select the temperature unit (°C/°F)
To select the temperature unit when “SET t” is displayed press the CAL but ton to
change be tween °C or °F.
To select the Auto-Off time
To selec t the AUTO OFF when “AOF F” is displayed pre ss the CAL but ton to change
betw een 8 min, 60 min or --- (dis abled).
To return to measurement mode
Press t he ON/OFF but ton.
