Instruction Manual

HI 96811, HI 96812
HI 96813, HI 96814

Refractometers for Wine and Grape

Product Measurements

www.hannainst.com

1

Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you with the necessary

information for the correct use of these instruments. Please read it carefully before using the meters.
If you need additional technical information, do not hesitate to e-mail us at [e-mail].

These instruments are in compliance with

directives.

TABLE OF CONTENTS

PRELIMINARY EXAMINATION ............................................................................................. 2

GENERAL DESCRIPTION .....................................................................................................3

SPECIFICATIONS .................................................................................................................. 4

PRINCIPLE OF OPERATION ................................................................................................5

MEASUREMENT UNITS ........................................................................................................ 6

FUNCTIONAL DESCRIPTION................................................................................................ 7

DISPLAY ELEMENTS............................................................................................................ 8

MEASUREMENT GUIDELINES .............................................................................................. 9

CALIBRATION PROCEDURE ................................................................................................ 9

MEASUREMENT PROCEDURE ...........................................................................................10

TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814) ..............................................11

TO CHANGE TEMPERATURE UNIT....................................................................................12

TO CHANGE POTENTIAL ALCOHOL CONVERSION FACTOR (HI 96813 only) ................13

MAKING A STANDARD %BRIX SOLUTION ......................................................................13

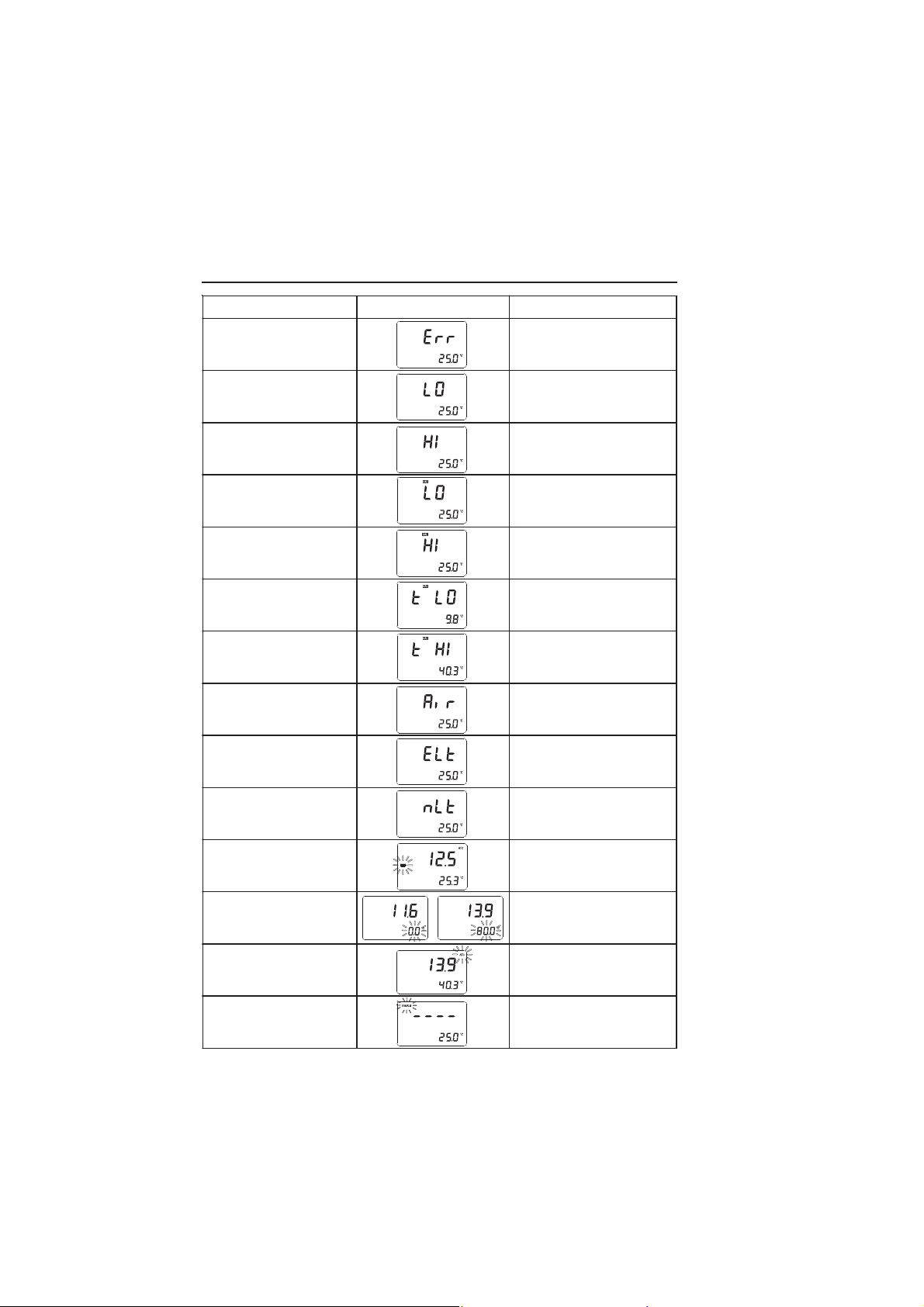

ERROR MESSAGES ............................................................................................................14

BATTERY REPLACEMENT .................................................................................................15

WARRANTY ........................................................................................................................ 15

PRELIMINARY EXAMINATION

Remove the instrument from the packing materials and examine carefully to ensure no
damage has occurred during shipping. If any damage has occurred, notify your Dealer
or closest Hanna Customer Service Center.

Each instrument is supplied with:

• 9 V battery

• Instruction manual

Note:Save all packing material until you are sure that the instrument functions

correctly. A defective instrument must be returned in its original packing.

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the
copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.

2

GENERAL DESCRIPTION

The HI 96811, HI 96812, HI 96813 and HI 96814 Digital Wine Refractometers are rugged
portable, water resistant devices that benefit from Hanna’s years of experience as a manufacturer of
analytical instruments. Hanna offers four related wine refractometers to fill the differing requirements
found in the industry. All are equally valid ways to measure the sugar content of grape or must
samples in the field or winery.

The HI 96811, HI 96812, HI 96813 and HI 96814 are optical instruments that are based on the
measurement of the refractive index of a solution. The measurement of refractive index is simple
and quick and provides the vintner a standard accepted method for sugar content analysis. Samples
are measured after a simple user calibration with deionized or distilled water. Within seconds the
instrument measures the refractive index of the grape. These digital refractometers eliminate the
uncertainty associated with mechanical refractometers and are easily portable for measurements in
the field.

The four instruments utilize internationally recognized references for unit conversion and temperature
compensation.

HI 96811 measures %Brix
HI 96812 measures °Baumé
HI 96813 measures %Brix

Potential Alcohol (% vol)

HI 96814 measures %Brix

°Oechsle (°Oe)
°KMW (°Babo)

Temperature (in °C or °F) is displayed simultaneously with the measurement on the large dual level
display along with icons for Low Power and other helpful message codes.

Key features include:

• Dual-level LCD

• Automatic Temperature Compensation (ATC)

• Easy setup and storage

• Battery operation with Low Power indicator (BEPS)

• Automatically turns off after 3 minutes of non-use

• Single-point calibration with distilled or deionized water

• Waterproof models offers IP65 waterproof protection

• Quick, precise results readings are displayed in approximately 1.5 seconds

• Small sample size as small as 2 metric drops.

3

SPECIFICATIONS

HI 96811

Range: 0 to 50 %Brix / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±0.3°C (±0.5°F)

HI 96812

Range: 0 to 28 °Baumé / 0 to 80°C (32 to 176°F)
Resolution: 0.1 °Baumé / 0.1°C (0.1°F)
Accuracy: ±0.1 °Baumé / ±0.3°C (±0.5°F)

HI 96813

Range: 0 to 50 %Brix / 0 to 25 % v/v Potential Alcohol / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 0.1 % v/v Potential Alcohol / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±0.2 % v/v Potential Alcohol / ±0.3°C (±0.5°F)

HI 96814

Range: 0 to 50 %Brix / 0 to 230 °Oechsle / 0 to 42 °KMW / 0 to 80°C (32 to 176°F)
Resolution: 0.1 %Brix / 1 °Oechsle / 0.1 °KMW / 0.1°C (0.1°F)
Accuracy: ±0.2 %Brix / ±1 °Oechsle / ±0.2 °KMW / ±0.3°C (±0.5°F)

COMMON SPECIFICATIONS

Temperature Compensation: Automatic between 10 and 40°C (50 - 104°F)
Measurement Time: Approximately 1.5 seconds
Minimum Sample Volume: 100μL (cover prism totally)
Light Source: Yellow LED
Sample Cell: Stainless Steel ring and flint glass prism
Case Material: ABS
Enclosure Rating: IP 65
Battery Type / Life: 1 X 9V / 5000 readings
Auto-Off: After 3 minutes of non-use
Dimensions: 19.2(W) x 10.2(D) x 6.7(H) cm
Mass: 420 g

4

PRINCIPLE OF OPERATION

%Brix, °Baumé, °Oechsle, °KMW and % potential alcohol determinations are made by measuring
the refractive index of a solution. Refractive Index is an optical characteristic of a substance and the
number of dissolved particles in it. Refractive Index is defined as the ratio of the speed of light in
empty space to the speed of light in the substance. A result of this property is that light will “bend”,
or change direction, when it travels through a substance of different refractive index. This is called
refraction.
When passing from a material with a higher to lower refractive index, there is a critical angle at
which an incoming beam of light can no longer refract, but will instead be reflected off the interface.
The critical angle can be used to easily calculate the refractive index according to the equation:

sin (θ

) = n2 / n

critical

1

Where n2 is the refractive index of the lower-density medium; n1 is the refractive index of the
higher-density medium.

In the Hanna wine measurement refractometers, light from an LED passes through a prism in contact
with the sample. An image sensor determines the critical angle at which the light is no longer
refracted through the sample.

Specialized algorithms then apply temperature compensation to the measurement and convert this
refractive index to the model specific measurement unit.

5

MEASUREMENT UNITSMEASUREMENT UNITS

MEASUREMENT UNITS

MEASUREMENT UNITSMEASUREMENT UNITS

HI 96811, HI 96812, HI 96813 and HI 96814 measure sugar content in several units to meet the
differing requirements found in the wine industry.
HI 96811, HI 96813 and HI 96814 convert the refractive index of the sample to sucrose concentration
in units of percent by weight, %Brix (also referred to as °Brix). The conversion used is based on the
ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Since
the majority of sugar in grape juice is fructose and glucose and not sucrose, the reading is
sometimes referred to as “Apparent Brix”.
HI 96812 has units of °Baumé. The °Baumé scale is based on density and was originally designed
to measure the mass of sodium chloride in water. °Baumé is used in wine making to measure the
sugar in must. The HI 96812 converts the %Brix reading to °Baumé based on the table found in the
Official Methods of Analysis of AOAC International, 18
to 1.8 %Brix, and 1 °Baumé is roughly equivalent to 1 % alcohol when the wine is fully fermented.
In addition to %Brix, HI 96814 includes two other scales used in the wine industry: °Oechsle and
°KMW.
°Oechsle (°Oe) is mainly used in the German, Swiss and Luxenburgish winemaking industry to
measure the sugar content of must. The °Oe scale is based on specific gravity at 20°C (SG20/20)
and is the first 3 digits following the decimal point. 1 °Oe is roughly equal to 0.2 %Brix.

°Oe = [(SG20/20) - 1] x 1000
°Klosterneuburger Mostwaage (°KMW) is used in Austria to measure the sugar content of must.
°KMW is related to °Oe by the following equation:

°Oe = °KMW x [(0.022 x °KMW) + 4.54]

1 °KMW is roughly equivalent to 1 %Brix or 5 °Oe. °KMW is also known as °Babo.
In addition to %Brix, HI 96813 also has a second scale that estimates the alcohol content in the
finished wine in (% vol/vol). This is known as “potential” or “probable“ alcohol since the
conversion between sugar and alcohol depends on many factors such as the type of grapes, the grape
maturity, the growing region and yeast fermentation efficiency and temperature.
Since no fixed conversion factor is universally applicable, HI 96813 allows the user to taylor the
instrument to their specific needs based on their experience.
The first conversion is based on the %Brix value, with an adjustable conversion factor anywhere
between 0.50 and 0.70 (0.55 is a common value).

Potential alcohol (% v/v) = (0.50 to 0.70) x %Brix
One drawback of the above equation is that it does not take into account the nonfermentable sugars
and extract.
A second equation was also added that takes these factors into account and can give a more accurate
estimate of the alcohol content in the finished wine. This conversion is named “C1” on the meter,
and uses the following equation:

Potential Alcohol (% v/v) = 0.059 x [(2.66 x °Oe) - 30] (C1)

Th

Edition. 1 °Baumé is approximately equal

6

FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION

FUNCTIONAL DESCRIPTION

FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION

TOP VIEW

1. Liquid Crystal Display (LCD)

2. READ Key (User Measurement)

3. ZERO Key (User Calibration)

4. ON/OFF

5. Primary Display

6. Secondary Display

7. Stainless Steel Sample Well and Prism

8. RANGE (HI 96813 and HI 96814 only)

BOTTOM

9. Battery Cover

10.Battery Compartment

7

DISPLAY ELEMENTSDISPLAY ELEMENTS

DISPLAY ELEMENTS

DISPLAY ELEMENTSDISPLAY ELEMENTS

1. SETUP: Factory Calibration Tag

2. Measurement in Progress Tag

3. Battery (blinks when low battery condition detected)

4. CAL: Calibration Tag

5. Automatic Temperature Compensation
(blinks when temperature exceeds 10-40°C / 50-104°F range)

6 Primary Display (displays measurement and error messages)

7. Temperature Units

8. Secondary Display (displays temperature measurements; when blinking,
temperature has exceeded operation range: 0-80°C / 32-176°F)

9. Range indicator (HI 96813 and HI 96814 only)

8

MEASUREMENT GUIDELINESMEASUREMENT GUIDELINES

MEASUREMENT GUIDELINES

MEASUREMENT GUIDELINESMEASUREMENT GUIDELINES

• Handle instrument carefully. Do not drop.

• Do not immerse instrument under water.

• Do not spray water to any part of instrument except the “sample well” located over the prism.

• The instrument is intended to measure grape/wine solutions. Do not expose instrument or
prism to solvents that will damage it. This includes most organic solvents and extremely hot
or cold solutions.

• Particulate matter in a sample may scratch the prism. Absorb sample on soft tissue and rinse
sample well with deionized or distilled water between samples.

• Use plastic pipettes to transfer all solutions. Do not use metallic tools such as needles, spoons
or tweezers as these will scratch the prism.

• Cover sample well with hand if measuring in direct sun.

CALIBRATION PROCEDURECALIBRATION PROCEDURE

CALIBRATION PROCEDURE

CALIBRATION PROCEDURECALIBRATION PROCEDURE

Calibration should be performed daily, before measurements are made, when the battery has
been replaced, or between a long series of measurements.

1. Press the ON/OFF key, then release. Two instrument test screens will be displayed briefly;

all LCD segments followed by the percentage of remaining battery life. When the LCD
displays dashes, the instrument is ready.

2. Using a plastic pipette, fill the sample well with distilled or deionized water. Make sure the

prism is completely covered.

Note: If the ZERO sample is subject to intense light such as sunlight or another strong source,

cover the sample well with your hand or other shade during the calibration.

9

3. Press the ZERO key. If no error messages appear, your unit is calibrated.

(For a description of ERROR MESSAGES see page 14).

Note: The 0.0 screen will remain until a sample is measured or the instrument is turned off.

4. Gently absorb the ZERO water standard with a soft tissue. Use care not to scratch the prism
surface. Dry the surface completely. The instrument is ready for sample measurement.

Note: If instrument is turned off the calibration will not be lost.

MEASUREMENT PROCEDUREMEASUREMENT PROCEDURE

MEASUREMENT PROCEDURE

MEASUREMENT PROCEDUREMEASUREMENT PROCEDURE

Verify the instrument has been calibrated before taking measurements.

For HI 96813 and HI 96814 select the desired measurement unit (see page 11).

1. Wipe off prism surface located at the bottom of the sample well. Make sure the prism and
sample well are completely dry.

2. Using a plastic pipette, drip sample onto the prism surface. Fill the well completely.

Note: If the temperature of the sample differs significantly from the temperature of the

instrument, wait approximately 1 minute to allow thermal equilibration.

3. Press the READ key. The results are displayed in unit of interest.

10

Note: The last measurement value will be displayed until the next sample is measured or the

instrument is turned off. Temperature will be continuously updated.

Note: The ”ATC” tag blinks and automatic temperature compensation is disabled if the

temperature exceeds the 10-40 °C / 50-104 °F range.

4. Remove sample from the sample well by absorbing on a soft tissue.

5. Using a plastic pipette, rinse prism and sample well with distilled or deionized water. Wipe
dry. The instrument is ready for the next sample.

TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814)TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814)

TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814)

TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814)TO CHANGE MEASUREMENT UNIT (HI 96813, HI 96814)

For HI 96813 only:

1. Press the RANGE key to select measurement units of %Brix or % potential alcohol. The
instrument toggles between the two measurement scales each time the key is pressed and
the primary display indicates “bri” for %Brix or “P.ALc” for potential alcohol. When the
instrument displays the screen with 4 dashes, the instrument is ready for measurement. A
number on the display indicates the selected unit: “1” denotes %Brix and “2” denotes
potential alcohol as indicated on the instrument cover.

2. The potential alcohol scale also indicates the conversion factor chosen for the potential
alcohol reading. See TO CHANGE POTENTIAL ALCOHOL CONVERSION FACTOR (page 13) to
change the current factor.

Note: When changing ranges the presently configured conversion factor will be displayed in the

lower display. (See page 13)

11

For HI 96814 only:

1. Press the RANGE key to select measurement units %Brix, °Oechsle (°Oe) or °KMW (°Babo).

The instrument toggles between the three scales each time the key is pressed and the
primary display indicates “bri” for %Brix, “OE” for °Oechsle or “bAbo” for °KMW. When
the instrument displays the screen with 4 dashes the instrument is ready for measurement.
A number on the display indicates the selected unit: “1” denotes %Brix, “2” denotes °Oe
and “3” denotes °KMW as indicated on the instrument cover.

TO CHANGE TEMPERATURE UNITTO CHANGE TEMPERATURE UNIT

TO CHANGE TEMPERATURE UNIT

TO CHANGE TEMPERATURE UNITTO CHANGE TEMPERATURE UNIT

To change the temperature measurement unit from Celsius to Fahrenheit (or vice versa), follow this
procedure.

1. Press and hold the ON/OFF key continuously for approximately 8 seconds. The LCD will
display the “all segment” screen followed by a screen with the model number on the primary
display and the version number on the secondary display. Continue pressing the ON/OFF key.

8 seconds

2. While continuing to hold the ON/OFF key, press the ZERO key. The temperature unit will
change from °C to °F or vice versa.

°C or °F

12

TO CHANGE POTENTO CHANGE POTEN

TO CHANGE POTEN

TO CHANGE POTENTO CHANGE POTEN

To change the potential alcohol conversion factor, follow this procedure.

1. Press and hold ON/OFF key continuously for approximately 8 seconds. The LCD will display
all segments screen followed by a screen with the model number on the primary display and
the version number on the secondary display. Continue pressing the ON/OFF key.

TT

IAL ALCOHOL CONVERSION FACTOR (HI 96813 IAL ALCOHOL CONVERSION FACTOR (HI 96813

T

IAL ALCOHOL CONVERSION FACTOR (HI 96813

TT

IAL ALCOHOL CONVERSION FACTOR (HI 96813 IAL ALCOHOL CONVERSION FACTOR (HI 96813

onlyonly

only

onlyonly

8 seconds

2. While continuing to hold ON/OFF, press the RANGE key. The LCD will show the current
conversion factor on the primary display and “P.ALc” on the secondary display. Continue
holding the ON/OFF key. Press the ZERO key to increase this number. The number will
continually increase until “0.70” is reached then wrap back to “C1”. The user selectable
conversion range is 0.50 to 0.70. C1 stands for “curve 1” (see page 6). When you reach the
conversion factor you desire release the ON/OFF key. The new conversion factor will be
used.

))

)

))

MAKING A STANDARD %BRIX SOLUTIONMAKING A STANDARD %BRIX SOLUTION

MAKING A STANDARD %BRIX SOLUTION

MAKING A STANDARD %BRIX SOLUTIONMAKING A STANDARD %BRIX SOLUTION

To make a Brix Solution, follow the procedure below:

• Place container (such as a

• Tare the balance.

• To make an X BRIX solution weigh out X grams of high purity Sucrose (CAS #: 57-50-1)

directly into the container.

• Add distilled or deionized water to the container so the total weight of the solution is 100 g.

• Note: Solutions above 60 %Brix need to be vigorously stirred or shaken and heated in a water

bath. Remove solution from bath when sucrose has dissolved. The total quantity can be

scaled proportionally for smaller containers but accuracy may be sacrificed.
Example with 25 %Brix:
%Brix%Brix

%Brix

%Brix%Brix
25 25.000 75.000 100.000

glass vial or dropper bottle that has a cover) on an analytical balance.

g Sucroseg Sucrose

g Sucrose

g Sucroseg Sucrose

13

g Waterg Water

g Water

g Waterg Water

g Tg T

g T

g Tg T

otalotal

otal

otalotal

ERROR MESSAGESERROR MESSAGES

ERROR MESSAGES

ERROR MESSAGESERROR MESSAGES

edoCrorrEDCLnoitpircseD

“rrE“

“OL“ yalp

sidyramirP

otrewopelcyC.eruliaflareneG
tcatnoc,stsisreprorrefI.tnemurtsni

.annaH

ehtnahtrewolgnidaersielpmaS

retemrofdesudradnats%0

.noitarbilac

“IH“ yalpsidyramirP

“OL“ yalpsidyramirP

“LAC“ NOtnemges

“IH“ yalpsidyramirP

“LAC“ NOtnemges

“OLt“ yalpsidyramirP

“LAC“ NOtnemges

“IHt“ yalpsidyramirP

“LAC“ NOtnemges

“riA“ .derevocyltneiciffusniecafrusmsirP

“tLE“

“tLn“

gniknilbtnemgesyrettaB.gniniamersiefilyrettabfo%5<

xeelpmaS

.egnartnemerusaem

tsni

°04(

ahhtiw

sserP.retawdellitsid OREZ .

emurtsni

sserP.retawdellitsid OREZ .

rbilacgnirud)C°01(

.dn

.annaHtcatnoC

mumixamsdeec

orezotdesunoitulosgnorW
rodezinoiedesU.tnemur

orezotdesunoitulosgnorW
rodezinoiedesU.tn

timilwolCTAsdeecxeerutarepmeT

.noita

timilhgihCTAsdeecxeerutarepmeT

.noitarbilacgnirud)C

rofthgillanretxehcumooT

llewelpmasrevoC.tnemerusaem

.detcetedtonsithgilDEL

“ C°0.0 “ro“ C°0.08 “

“ CTA “gnik

“ PUTES “gniknilbtnemges

lberaseulaverutarepmeT

gnikni

nilbtnemges

.)C°04ot01(egnar

.tsolnoitarbilacyrotcaF

.annaHtcatnoC

fotuotnemerusaemerutarepmeT

.)C°0.08ot0.0(egnargnilpmas

noitasnepmocerutarepmetedistuO

14

BATTERY REPLACEMENTBATTERY REPLACEMENT

BATTERY REPLACEMENT

BATTERY REPLACEMENTBATTERY REPLACEMENT

To replace the instrument’s battery, follow these steps:

• Make sure the instrument is off.

• Turn instrument upside down and remove the battery cover by turning it counterclockwise.

• Extract the battery from its location.

• Replace with a new 9V battery making sure to observe polarity.

• Insert the back battery cover and fasten it by turning clockwise to engage.

WARRANTYWARRANTY

WARRANTY

WARRANTYWARRANTY

HI 96811, HI 96812, HI 96813 and HI 96814 are warranted for two years against defects in
workmanship and materials when used for its intended purpose and maintained according to the
instructions.

This warranty is limited to repair or replacement free of charge.
Damage due to accident, misuse, tampering or lack of prescribed maintenance is not covered.
If service is required, contact your dealer. If under warranty, report the model number, date of

purchase, serial number and the nature of the failure. If the repair is not covered by the warranty,
you will be notified of the charges incurred.

If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods
Authorization Number from the Customer Service Department and then send it with shipment
costs prepaid. When shipping any instrument, make sure it is properly packaged for complete
protection.

To validate your warranty, fill out and return the enclosed warranty card within 14 days from the
date of purchase.

15

SALES AND TECHNICAL SERVICE CONTACTSSALES AND TECHNICAL SERVICE CONTACTS

SALES AND TECHNICAL SERVICE CONTACTS

SALES AND TECHNICAL SERVICE CONTACTSSALES AND TECHNICAL SERVICE CONTACTS

Australia:

Tel. [phone] • Fax [phone]

China:

Tel. [phone] • Fax [phone]

Egypt:

Tel. & Fax [phone]

Germany:

Tel. [phone] • Fax [phone]

Greece:

Tel. [phone] • Fax [phone]

Indonesia:

Tel. [phone] • Fax [phone]

Japan:

Tel. [phone] • Fax [phone]

Korea:

Tel. [phone] • Fax [phone]

Malaysia:

Tel. [phone] • Fax [phone]

Singapore:

Tel. [phone] • Fax [phone]

South Africa:

Tel. [phone] • Fax [phone]

Taiwan:

Tel. [phone] • Fax [phone]

Thailand:

Tel. [phone] • Fax [phone]

03/09

United Kingdom:

Tel. [phone] • Fax [phone]

USA:

Tel. [phone] • Fax [phone]

For e-mail contacts and a complete list of Sales and Technical offices, please see

www.hannainst.com

.

16

MAN96811
