Hanna Instruments HI 96748 User Manual

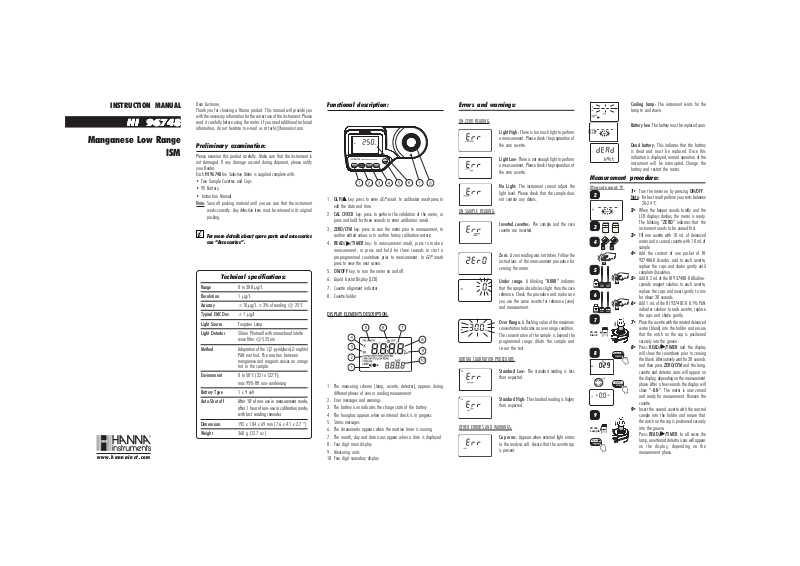

INSTRUCTION MANUAL

HI 96748HI 96748

HI 96748

HI 96748HI 96748

Manganese Low Range

ISM

www.hannainst.com

Dear Customer, Thank you for choosing a Hanna product. This manual will provide you with the necessary information for the correct use of the instrument. Please read it carefully before using the meter. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com.

Preliminary examination:

Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occured during shipment, please notify your Dealer. Each HI 96748 Ion Selective Meter is supplied complete with:

• Two Sample Cuvettes and Caps

• 9V Battery

• Instruction Manual Note: Save all packing material until you are sure that the instrument

works correctly. Any defective item must be returned in its original packing.

For more details about spare parts and accessories see “Accessories”.

Technical specifications:

Range 0 to 300 µg/L

Resolution 1 µg/L

Accuracy ±10 µg/L ±3% of reading @ 25°C

Typical EMC Dev. ±1 µg/L

Light Source Tungsten Lamp

Light Detector Silicon Photocell with narrow band interfe

Method Adaptation of the 1-(2-pyridylazo)-2-naphtol

Environment 0 to 50°C (32 to 122°F);

Battery Type 1 x 9 volt

Auto-Shut off After 10' of non-use in measurement mode;

Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7 ”)

Weight 360 g (12.7 oz.).

rence filter @ 525 nm

PAN method. The reaction between manganese and reagents causes an orange tint in the sample.

max 95% RH non-condensing

after 1 hour of non-use in calibration mode; with last reading reminder.

Functional description:

1. GLP/ key: press to enter edit the date and time.

2. CAL CHECK key: press to perform the validation of the meter, or press and hold for three seconds to enter

3. ZERO/CFM key: press to zero the meter prior to measurement, to confirm edited values or to confirm factory calibration restore.

4. READ/ /TIMER key: In measurement, or press and hold for three seconds to start a pre-programmed countdown prior to measurement. In press to view the next screen.

5. ON/OFF key: to turn the meter on and off.

6. Liquid Crystal Display (LCD)

7. Cuvette alignment indicator

8. Cuvette holder

DISPLAY ELEMENTS DESCRIPTION:

1. The measuring scheme (lamp, cuvette, detector), appears during different phases of zero or reading measurement

2. Error messages and warnings

3. The battery icon indicates the charge state of the battery

4. The hourglass appears when an internal check is in progress

5. Status messages

6. The chronometer appears when the reaction timer is running

7. The month, day and date icons appear when a date is displayed

8. Four digit main display

9. Measuring units

10. Four digit secondary display

GLP mode

. In

calibration mode

measurement mode

press to

, press to make a

GLP mode

Errors and warnings:

ON ZERO READING:

Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette.

Light Low: There is not enough light to perform a measurement. Please check the preparation of the zero cuvette.

No Light: The instrument cannot adjust the light level. Please check that the sample does not contain any debris.

ON SAMPLE READING:

Inverted cuvettes: The sample and the zero cuvette are inverted.

Zero: A zero reading was not taken. Follow the instructions of the measurement procedure for zeroing the meter.

Under range: A blinking “0.000” indicates that the sample absorbs less light than the zero reference. Check the procedure and make sure you use the same cuvette for reference (zero) and measurement.

Over Range: A flashing value of the maximum concentration indicates an over range condition. The concentration of the sample is beyond the programmed range: dilute the sample and re-run the test.

DURING CALIBRATION PROCEDURE:

Standard Low: The standard reading is less than expected.

Standard High: The standard reading is higher than expected.

OTHER ERRORS AND WARNINGS:

Cap error: Appears when external light enters in the analysis cell. Assure that the cuvette cap is present.

Cooling lamp: The instrument waits for the lamp to cool down.

Battery low: The battery must be replaced soon.

Dead battery: This indicates that the battery

is dead and must be replaced. Once this indication is displayed, normal operation of the instrument will be interrupted. Change the battery and restart the meter.

Measurement procedure:

Measurement

10 mL blank

10 mL sample

1• Turn the meter on by pressing ON/OFF. Note: For best result perform your tests between

20-24 °C.

2• When the beeper sounds briefly and the

LCD displays dashes, the meter is ready. The blinking “ZERO” indicates that the instrument needs to be zeroed first.

3• Fill one cuvette with 10 mL of deionized

water and a second cuvette with 10 mL of sample.

4• Add the content of one packet of HI

93748A-0 Ascorbic acid to each cuvette, replace the caps and shake gently until complete dissolution.

5• Add 0.2 mL of the HI 93748B-0 Alkaline-

cyanide reagent solution to each cuvette, replace the caps and invert gently to mix for about 30 seconds.

6• Add 1 mL of the HI 93748C-0 0.1% PAN

indicator solution to each cuvette, replace the caps and shake gently.

7• Place the cuvette with the reacted deionized

water (blank) into the holder and ensure that the notch on the cap is positioned securely into the groove.

8• Press READ/ /TIMER and the display

will show the countdown prior to zeroing the blank. Alternatively wait for 30 seconds and then press ZERO/CFM and the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase. After a few seconds the display will show “-0.0-”. The meter is now zeroed and ready for measurement. Remove the cuvette.

9• Insert the second cuvette with the reacted

sample into the holder and ensure that the notch on the cap is positioned securely into the groove. Press READ/ /TIMER. In all cases the lamp, cuvette and detector icons will appear on the display, depending on the measurement phase.

10•At the end of measurement, the instrument

directly displays concentration in µg/L of manganese on the LCD.

Note: A temperature above 30 °C may cause

turbidity. In this case, before zeroing and taking readings, add 2-3 drops of Dispersing agent (HI 93703-51) to each cuvette and swirl until complete dissolution of turbidity.

INTERFERENCES:

Interference may be caused by: Aluminum above 20 mg/L Cadmium above 10 mg/L Calcium above 200 mg/L as CaCO Cobalt above 20 mg/L Copper above 50 mg/L Iron above 10 mg/L Lead above 0.5 mg/L Magnesium above 100 mg/L as CaCO Nickel above 40 mg/L Zinc above 15 mg/L.

Validation and Calibration procedures

Warning: do not validate or calibrate the instrument with standard solutions other than the Hanna CAL CHECK™ Standards, otherwise erroneous results will be obtained. For accurate validation and calibration results, please perform tests at room temperature (18 to 25°C; 64.5 to 77.0°F).

Use the Hanna CAL CHECK™ cuvettes (see “Accessories”) to validate or calibrate instruments.

VALIDATION

1• Turn the meter on by pressing ON/OFF. 2• When the beeper sounds briefly and the

LCD displays dashes, the meter is ready.

3• Place the CAL CHECK™ Standard

HI 96748-11 Cuvette A into the holder

and ensure that the notch on the cap is positioned securely into the groove.

4• Press ZERO/CFM and the lamp, cuvette

and detector icons will appear on the display, depending on the measurement phase.

5• After a few seconds the display will show

“-0.0-”. The meter is now zeroed and ready for validation.

6• Remove the cuvette. 7• Place the CAL CHECK™ Standard

HI 96748-11 Cuvette B into the holder and ensure that the notch on the cap is positioned securely into the groove.

8• Press CAL CHECK key and the lamp,

cuvette and detector icons together with “CAL CHECK” will appear on the display, depending on the measurement phase.

Validation

4-5

9• At the end of the measurement the display

will show the validation standard value. The reading should be within specifications as reported on the CAL CHECK™ Standard Certificate. If the value is found out of specifications, please check that the cuvettes are free of fingerprints, oil or dirt and repeat validation. If results are still found out of specifications then recalibrate the instrument.

CALIBRATION

Note: It is possible to interrupt the calibration

procedure at any time by pressing CAL CHECK or ON/OFF keys.

1• Turn the meter on by pressing ON/OFF.

2• When the beeper sounds briefly and the

LCD displays dashes, the meter is ready.

3• Press and hold CAL CHECK for three seconds

to enter

calibration mode.

show “CAL” during calibration procedure. The blinking “ZERO” asks for instrument zeroing.

4• Place the CAL CHECK™ Standard

HI 96748-11 Cuvette A into the cuvette

holder and ensure that the notch on the cap is positioned securely into the groove.

5• Press ZERO/CFM and the lamp, cuvette

and detector icons will appear on the display, depending on the measurement phase.

6• After a few seconds the display will show

“-0.0-”. The meter is now zeroed and ready for calibration. The blinking “READ” asks for reading calibration standard.

The display will

7• Remove the cuvette.

8• Place the CAL CHECK™ Standard

HI 96748-11 Cuvette B into the holder and ensure that the notch on the cap is positioned securely into the groove.

9• Press READ/ /TIMER and the lamp,

cuvette and detector icons will appear on the display, depending on the measurement phase.

10• The instrument will show for three seconds

the CAL CHECK™ standard value.

Note: If the display shows “STD HIGH”, the

standard value was too high. If the display shows “STD LOW”, the standard value was too low. Verify that both CAL CHECK™ Standard HI 96748-11 Cuvettes, A and B are free from fingerprints or dirt and that they are inserted cor-

Calibration

5-6

9-10

11• Then the date of last calibration (e.g.:

“01.08.2009”) appears on the display, or “01.01.2009” if the factory calibration

was selected before. In both cases the year number is blinking, ready for date input.

12• Press GLP/ to edit the desired year

(2009-2099). If the key is kept pressed, the year number is automatically increased.

13• When the correct year has been set, press

ZERO/CFM or READ/ /TIMER to confirm. Now the display will show the month blinking.

14• Press GLP/ to edit the desired month

(01-12). If the key is kept pressed, the month number is automatically increased.

15• When the correct month has been set,

press ZERO/CFM or READ/ /TIMER to confirm. Now the display will show the day blinking.

16• Press GLP/ to edit the desired day

(01-31). If the key is kept pressed, the day number is automatically increased.

Note: It is possible to change the editing from

day to year and to month by pressing

READ/ /TIMER.

17• Press ZERO/CFM to save the calibration

date.

18• The instrument displays “Stor” for one

second and the calibration is saved.

19• The instrument will return automatically

measurement mode

on the LCD.

by displaying dashes

GLP

GLP mode

, the last calibration date can be verified and the factory

calibration can be restored.

LAST CALIBRATION DATE

1• Press GLP/ to enter

calibration month and day will appear on the main display and the year on the secondary display.

2• If no calibration was performed, the factory

calibration message, “F.CAL” will appear on the main display and the instrument returns to seconds.

GLP mode

measurement mode

. The

after three

11-13

14-15

Last

Calibration

Date

3-4

Factory

Calibration

Restore

FACTORY CALIBRATION RESTORE

It is possible to delete the calibration and restore factory calibration.

1• Press GLP/ to enter

2• Press READ/ /TIMER to enter in the

factory calibration restore screen. The instrument asks for confirmation of user calibration delete.

3• Press ZERO/CFM to restore the factory

calibration or press GLP/ again to abort factory calibration restore.

4• The instrument briefly indicates “donE”

upon restoration of factory calibration prior returning to

GLP mode

measurement mode

Battery management

To save the battery, the instrument shuts down after 10 minutes of non-use in

measurement mode

If a valid measurement was displayed before auto-shut off, the value is displayed when the instrument is switched on. The blinking “ZERO” means that a new zero has to be performed. One fresh battery lasts for arround 750 measurements, depending on the light level. The remaining battery capacity is evaluated at the instrument startup and after each measurement. The instrument displays a battery indicator with three levels as follows:

• 3 lines for 100 % capacity

• 2 lines for 66 % capacity

• 1 line for 33 % capacity

• Battery icon blinking if the capacity is under 10 %. If the battery is empty and accurate measurements can’t be taken any more, the instrument shows “dEAd bAtt” and turns off. To restart the instrument, the battery must be replaced with a fresh one. To replace the instrument’s battery, follow the steps:

• Turn the instrument off by pressing ON/OFF.

• Turn the instrument upside down and remove the battery cover by turning it counterclockwise.

• Extract the battery from its location and replace it with a fresh one.

• Insert back the battery cover and turn it clockwise to close.

and after 1 hour of non-use in

calibration mode.

Accessories:

REAGENT SETS

HI 93748-01 Reagents for 50 tests HI 93748-03 Reagents for 150 tests

OTHER ACCESSORIES

HI 96748-11 CAL CHECK™ Standard Cuvettes (1 set)

HI 721310 9V battery (10 pcs) HI 731318 Cloth for wiping cuvettes (4 pcs) HI 731331 Glass cuvettes (4 pcs) HI 731335 Caps for cuvettes (4 pcs) HI 93703-50 Cuvette cleaning solution (230 mL).

Warranty

HI 96748 is warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact your dealer. If under warranty, report the model number, date of purchase, serial number and the nature of the failure. If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service Department and then send it with shipment costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protection. To validate your warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase.

Recommendations for Users

Before using these products, make sure that they are entirely suitable for your specific application and for the environment in which they are used. Operation of these instruments may cause unacceptable interferences to other electronic equipments, this requiring the operator to take all necessary steps to correct interferences. Any variation introduced by the user to the supplied equipment may degrade the instrument’s EMC performance. To avoid damages or burns, do not put the instrument in microwave oven. For yours and the instrument safety do not use or store the instrument in hazardous environments.

Hanna Instruments reserves the right to modify the

design, construction and appearance of its products

without advance notice.

For additional information, contact your

dealer or the nearest

Hanna Customer Service Center.

To find the Hanna Office in your area,

IST96748 11/10

visit our web site

www.hannainst.com
