Hanna Instruments HI 955501 User Manual

Instruction Manual

HI 955501 • HI 955502

Portable

Pt100 Thermometers

www.hannainst.com

Dear Customer,
Thank you for choosing a HANNA instruments

product.
Please read this instruction manual carefully

before using the instrument.
This manual will provide you with all the neces-

sary information for a correct use.
If you need additional technical support, do

not hesitate to e-mail us at

[e-mail]

Thes instruments are in compliance with the

directives.

PRELIMINARY EXAMINATION

®

Remove the instrument from the packing ma­terial and examine it carefully to make
sure that no damage has occurred during
shipment. If noticeable damage is evident,
immediately notify your dealer.

HI 955501 is supplied complete with battery
and instructions.

HI 955502 is supplied complete with fixed
temperature probe (general purpose), battery
and instructions.

Note: Save all packing material until you are

sure that the instrument functions cor­rectly. All defective items must be re­turned in their original packing.

TABLE OF CONTENTS

Preliminary Examination............................ 3

General Description ................................... 3

Functional Description &

Specifications............................................ 4

Operational Guide ..................................... 5

Display Code Guide .................................. 6

Calibration................................................. 6

Battery Replacement ................................. 7

Accessories............................................... 8

Warranty .................................................... 9

CE Declaration of Conformity .................. 10

GENERAL DESCRIPTION

HI 955501 and HI 955502 are accurate ther-

mometers that perform highly stable,
repeteable and linear temperature measure­ments using 4-wire Pt100 probes.

HI 955501 works with HI 768 series of Pt100
temperature probes, while the HI 955502 model
is supplied with fixed general-purpose probe.

Both models measure temperatures with 0.1°C
resolution in the -199.9 to 199.9°C range and
then automatically switch to 1°C from 200 to
850°C. Press RANGE and the resolution
switches to 1°C at any time.

A compact, ergonomic design and a wrist-strap
make it easy to carry them anywhere in the lab
or plant.

The shockproof rubber boot is recommended to
protect the meter during field measurements.

32

FUNCTIONAL DESCRIPTION

AND SPECIFICATIONS

OPERATIONAL GUIDE

INITIAL PREPARATION

1. Liquid Crystal Display

2. ON/OFF Key

3. Range Key

HI 955501 HI 955502

Range -199.9 to 199.9°C / -200 to 850°C
Resolution 0.1°C (±199.9°C)

1°C (-200 to 850°C)

Accuracy ±0.2°C & ±1 digit (-120 to 199°C)

±1°C & ±1 digit (-170 to 450°C)

±1% F.S. & ±1 digit (outside)

for one year, excluding probe error

Typical EMC Deviation ±0.5°C
Probe Pt100, stainless steel, 1 m cable

HI 768 series fixed

(not included)

Battery Type / Life

1 x 9V / approx. 150 hours of use

Environment

0 to 50°C (32 to 122°F); RH max 95%

Dimensions 143x80x38 mm (5.6x3.2x1.5")
Weight 320 g (11.3 oz.)

Each meter is supplied com­plete with a 9V battery. Slide
off the battery cover on the

9 VOLT BATTERY

Battery

Compartment

rear of the thermometer, in­stall the battery and reattach
the cover.

SLIDE OFF

With HI 955501, connect a Pt100 tempera-
ture probe (HI 768 series) to the instrument.

Switch the thermometer on
by pressing the ON/OFF key.

ON

OFF

The temperature value will be
displayed on the LCD.

If no temperature probe is
plugged in (HI 955501 only),

°C

the display will show "- 1 .".
To switch the meter off, press the ON/OFF

key again.

MEASUREMENT RESOLUTION

When switched on, the instrument defaults to
the last selected resolution.

To change the resolution, press RANGE.
The instrument automatically changes its reso-

lution to 1 degree when it passes the limit of
the lower range (±200°C).

LOW BATTERY DETECTION

When the battery becomes
weak, the display shows the
"V" symbol to advise the user.

V

It is recommended to replace
the battery soon.

54

DISPLAY CODE GUIDE

Display Description

-1. Reading out of range or temperature
probe not connected (HI 955501)

V Weak battery, needs to be replaced
°C Measure unit (Centigrade scale)

CALIBRATION

All HANNA instruments® thermometers have
been accurately pre-calibrated at the factory.

It is generally recommended to have all ther­mometers recalibrated at least once a year.

For an accurate annual recalibration, contact
the nearest HANNA Service Center.

BATTERY REPLACEMENT

When the battery becomes
weak, the "V" symbol is
displayed to warn the user

V

that the battery needs to
be replaced soon.

Battery replacement must only take place in
a safe area and using a 9V alkaline battery.

Remove the battery compartment cover on
the rear of the meter and replace the battery
with a new one. Make sure the battery con­tacts are tight before reattaching the cover.

9 VOLT BATTERY

Battery

Compartment

SLIDE OFF

76

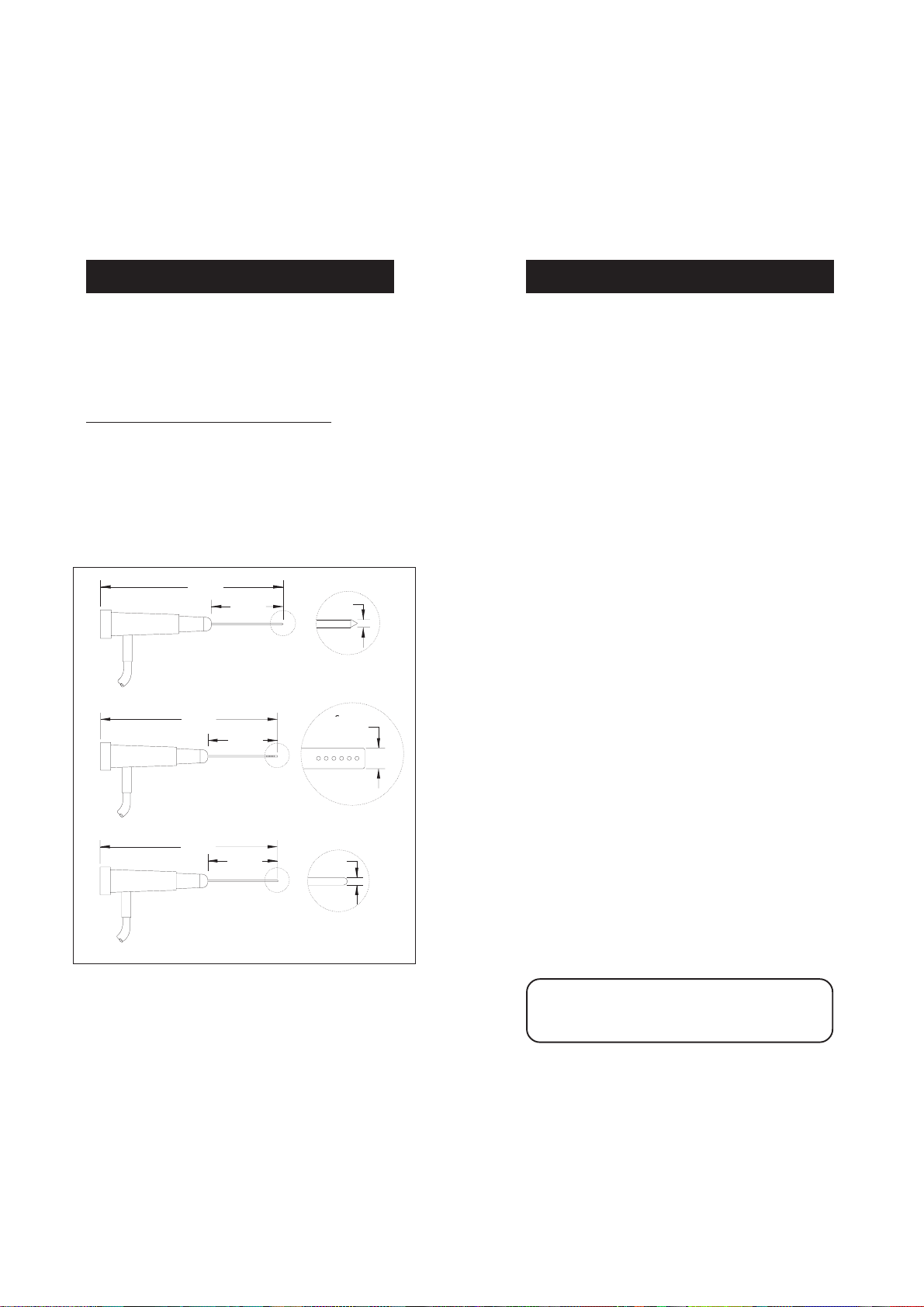

ACCESSORIES

WARRANTY

HI 710004 Soft carrying case
HI 710007 Shockproof rubber boot, blue
HI 710008 Shockproof rubber boot, orange

4-wire Pt100 Probes (for HI 955501)

HI 768A Air/gas probe, with 1 m (3.3')

cable

HI 768L General purpose/liquid probe,

with 1 m (3.3') cable

HI 768P Penetration probe with 1 m (3.3')

cable

205mm

8.1"

205mm

8.1"

100mm

3.9"

HI 768P

100mm

3.9"

3mm

0.12"

6mm

3 mm

0.24"

0.12"

All Hanna Instruments meters are warranted
for two years against defects in workman­ship and materials when used for their in­tended purpose and maintained according to
instructions.

The probes are warranted for six months.

This warranty is limited to repair or replace­ment free of charge.
Damages due to accident, misuse, tamper­ing or lack of prescribed maintenance are not
covered.
If service is required, contact the dealer from
whom you purchased the instrument. If under
warranty, report the model number, date of
purchase, serial number and the nature of the
failure. If the repair is not covered by the
warranty, you will be notified of the charges
incurred. If the instrument is to be returned to
Hanna Instruments, first obtain a Returned
Goods Authorization Number from the Cus­tomer Service department and then send it
with shipment costs prepaid. When shipping
any instrument, make sure it is properly pack­aged for complete protection.

205mm

8.1"

HI 768A

100mm

3.9"

HI 768L

3mm

0.12"

All rights are reserved. Reproduction in whole
or in part is prohibited without the written
consent of the copyright owner.

Hanna Instruments reserves the right to modify

the design, construction and appearance of its

products without advance notice.

98

CE DECLARATION OF CONFORMITY

Recommendations for Users

Before using these products, make sure that they are
entirely suitable for the environment in which they are
used. Operation of these instruments in residential area
could cause unacceptable interferences to radio and TV
equipments, requiring the operator to take all necessary
steps to correct interferences.
Any variation introduced by the user to the supplied
equipment may degrade the instrument's EMC perfor­mance.
To avoid electrical shock, do not use these instruments
when voltages at the measurement surface exceed 24
Vac or 60 Vdc .
To avoid damages or burns, do not perform any measure­ment in microwave ovens.

1110
