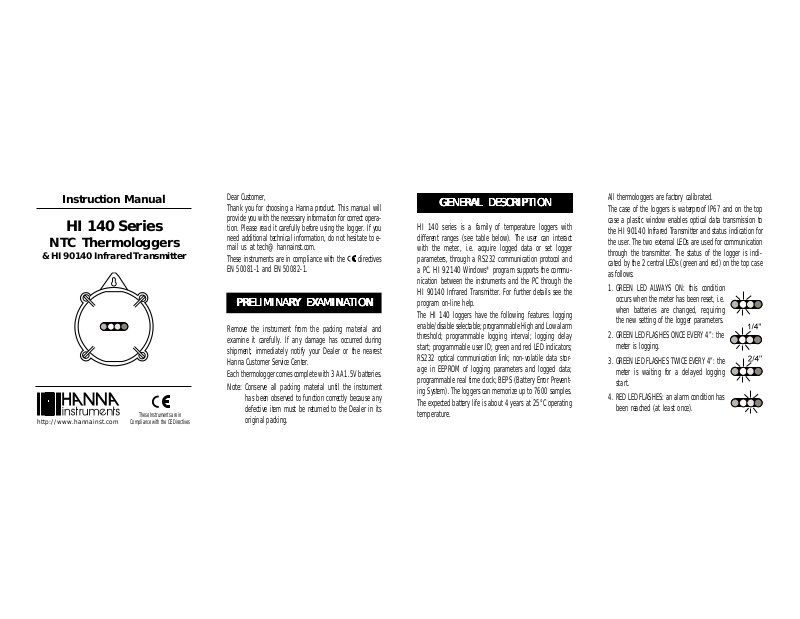

Instruction Manual
HI 140 Series
NTC Thermologgers
& HI 90140 Infrared Transmitter
http://www.hannainst.com
These Instruments are in
Compliance with the CE Directives
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for correct operation. Please read it carefully before using the logger. If you
need additional technical information, do not hesitate to email us at tech@hannainst.com.
These instruments are in compliance with the
EN 50081-1 and EN 50082-1.
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
Remove the instrument from the packing material and
examine it carefully. If any damage has occurred during
shipment, immediately notify your Dealer or the nearest
Hanna Customer Service Center.
Each thermologger comes complete with 3 AA 1.5V batteries.
Note: Conserve all packing material until the instrument
has been observed to function correctly because any
defective item must be returned to the Dealer in its
original packing.
directives
GENERAL DESCRIPTIONGENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTIONGENERAL DESCRIPTION
HI 140 series is a family of temperature loggers with
different ranges (see table below). The user can interact
with the meter., i.e. acquire logged data or set logger
parameters, through a RS232 communication protocol and
a PC. HI 92140 Windows
nication between the instruments and the PC through the
HI 90140 Infrared Transmitter. For further details see the
program on-line help.
The HI 140 loggers have the following features: logging
enable/disable selectable; programmable High and Low alarm
threshold; programmable logging interval; logging delay
start; programmable user ID; green and red LED indicators;
RS232 optical communication link; non-volatile data storage in EEPROM of logging parameters and logged data;
programmable real time clock; BEPS (Battery Error Preventing System). The loggers can memorize up to 7600 samples.
The expected battery life is about 4 years at 25°C operating
temperature.
®
program supports the commu-
All thermologgers are factory calibrated.
The case of the loggers is waterproof IP67 and on the top
case a plastic window enables optical data transmission to
the HI 90140 Infrared Transmitter and status indication for
the user. The two external LEDs are used for communication
through the transmitter. The status of the logger is indicated by the 2 central LEDs (green and red) on the top case
as follows:
1. GREEN LED ALWAYS ON: this condition
occurs when the meter has been reset, i.e.
when batteries are changed, requiring
the new setting of the logger parameters.
2. GREEN LED FLASHES ONCE EVERY 4”: the
meter is logging.
3. GREEN LED FLASHES TWICE EVERY 4”: the
meter is waiting for a delayed logging
start.
4. RED LED FLASHES: an alarm condition has
been reached (at least once).
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
Model Range Resolution Accuracy Hook
HI 140A -30.0 to 70.0°C 0.5°C ±1.5
HI 140B -10.0 to 30.0°C 0.2°C ±0.5
HI 140C -30.0 to 10.0°C 0.2°C ±0.5°C No
HI 140D 20.0 to 60.0°C 0.2°C ±0.5°C No
HI 140E -30.0 to -10.0°C 0.1°C ±0.3°C No
HI 140F 20.0 to 40.0°C 0.1°C ±0.3°C No
HI 140G -5.0 to 15.0°C 0.1°C ±0.3°C No
HI 140H* 10 to 120°C 1°C ±2°C No
HI 140AH -30.0 to 70.0°C 0.5 °C ±1.5°C Yes
HI 140BH -10.0 to 30.0°C 0.2°C ±0.5°C Yes
HI 140CH -30.0 to 10.0°C 0.2°C ±0.5°C Ye s
HI 140DH 20.0 to 60.0°C 0.2°C ±0.5°C Yes
HI 140EH -30.0 to -10.0°C 0.1°C ±0.3°C Yes
HI 140FH 20.0 to 40.0°C 0.1°C ±0.3°C Ye s
HI 140GH -5.0 to 15.0°C 0.1°C ±0.3°C Yes
HI 140HH* 10 to 120°C 1°C ±2°C Yes
* The models HI 140H and HI 140 HH are provided with a stainless
steel external probe and 1.5 m (5’) P TFE coated cable.
o
CNo
o
CNo
HI 140 HI 90140
EXTERNAL DIAMETER 86.5 mm (3.4”) 159 mm (6.3”)
HEIGHT 35 mm (1.4”) 47.5 mm (1.9”)
WEIGHT 150 g (5.54 oz.) 150 g (5.54 oz.)
START UPSTART UP
START UP
START UPSTART UP
In order to communicate with the
HI 140 thermologger the HI 92140
application software must be already
installed on your PC.
Connect the HI 90140 Infrared Transmitter to your computer through an
available RS232 port.
Place the HI 140 on the cradle
of the transmitter.
Run HI 92140 software and re-
fer to the on-line help for any
further information about setting the parameters of the
logger, acquire logged data, etc.
BATTERY REPLACEMENTBATTERY REPLACEMENT
BATTERY REPLACEMENT
BATTERY REPLACEMENTBATTERY REPLACEMENT
Battery replacement must only take place in a non hazardous area using the appropriate battery type (1.5V AA).
When the batteries need to be replaced, simply remove the four screws
on the rear cover of the logger and
replace the three batteries with new
ones paying attention to the correct
polarity. After replacing the batteries, press the reset button on the
printed circuit board. The red LED blinks and then the
green LED stays on. Replace the cover and tighten the four
screws.
Note: When batteries are replaced all logger parameters
have to be set again by the user as soon as possible
to avoid draining the batteries.
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
Recommendations for users
Before using these products, make sure
that they are entirely suitable for the environment in which they are used.
Operation of these instruments in residential areas could cause unacceptable
interferences to radio and TV equipments,
requiring the operator to take all necessary steps to correct interferences.
Any variation introduced by the user to
the supplied equipment may degrade the
instruments’ EMC performance.
To avoid damages or burns, do not perform any measurement in microwave
ovens.
WARRANTYWARRANTY
WARRANTY
WARRANTYWARRANTY
HI 140 loggers are warranted for one year against defects in workmanship and materials
when used for their intended purpose and maintained according to instructions. This warranty
is limited to repair or replacement free of charge. Damages due to accident, misuse,
tampering or lack of prescribed maintenance are not covered. If service is required, contact
the dealer from whom you purchased the instrument. If under warranty, report the model
number, date of purchase, serial number and the nature of the failure. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If the instrument is to
be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number
from the Customer Service department and then send it with shipment costs prepaid. When
shipping any instrument, make sure it is properly packaged for complete protection. To
validate your warranty, fill out and return the enclosed warranty card within 14 days from
the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of
the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.
Hanna Instruments reserves the right to modify the design, construction and appearance of its
products without advance notice.
ISTR140R2 10/98 PRINTED IN PORTUGAL
