Handy THLS-6G User Manual

03-09-2018

2200W ELECTRIC

HORIZONTAL

6-TON LOGSPLITTER

WITH GUARD

MODEL NO: THLS-6G -- PRODUCT NO: 1938181001

EN - ORIGINAL INSTRUCTIONS

ASSEMBLY REQUIRED – TWO PERSON LIFT

SAVE THESE INSTRUCTIONS

SPARES & SUPPORT: 01793 333212

FOR YOUR SAFETY

Please read & understand this manual, paying attention to the safety instructions, before use.

Incorrect use of the product could put the operator or machine in danger.

Whilst every effort has been made to ensure the accuracy of information contained in this manual, our

policy of continuous improvement determines the right to make modifications without prior warning.

Images used are for illustration purposes only

INSTRUCTION MANUAL

Copyright Notice

Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.

In all cases this copyright notice must remain intact.

CONTENTS

SPECIFICATIONS
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
SET UP & PREPARATION FOR OPERATION

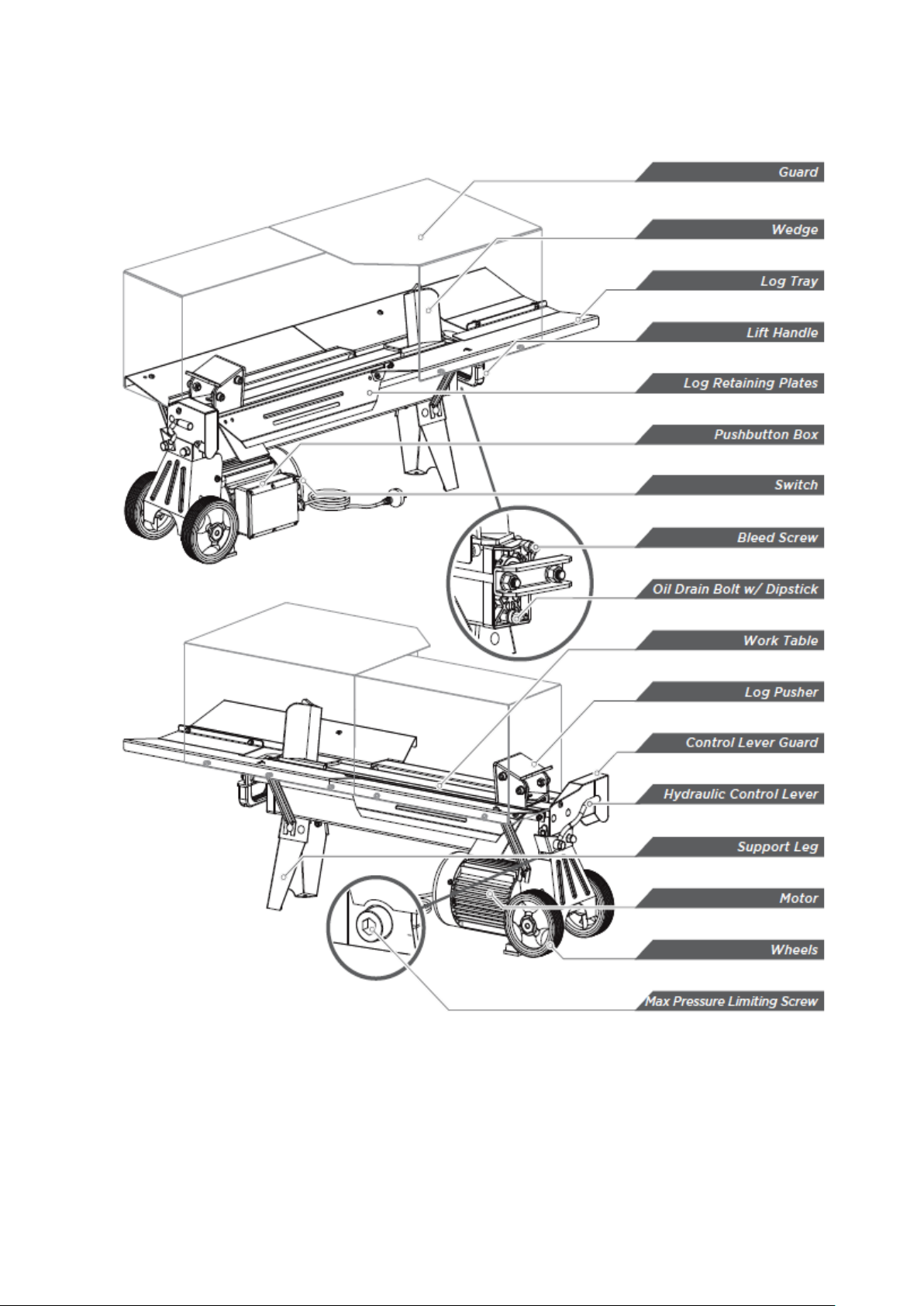

KNOW YOUR MACHINE

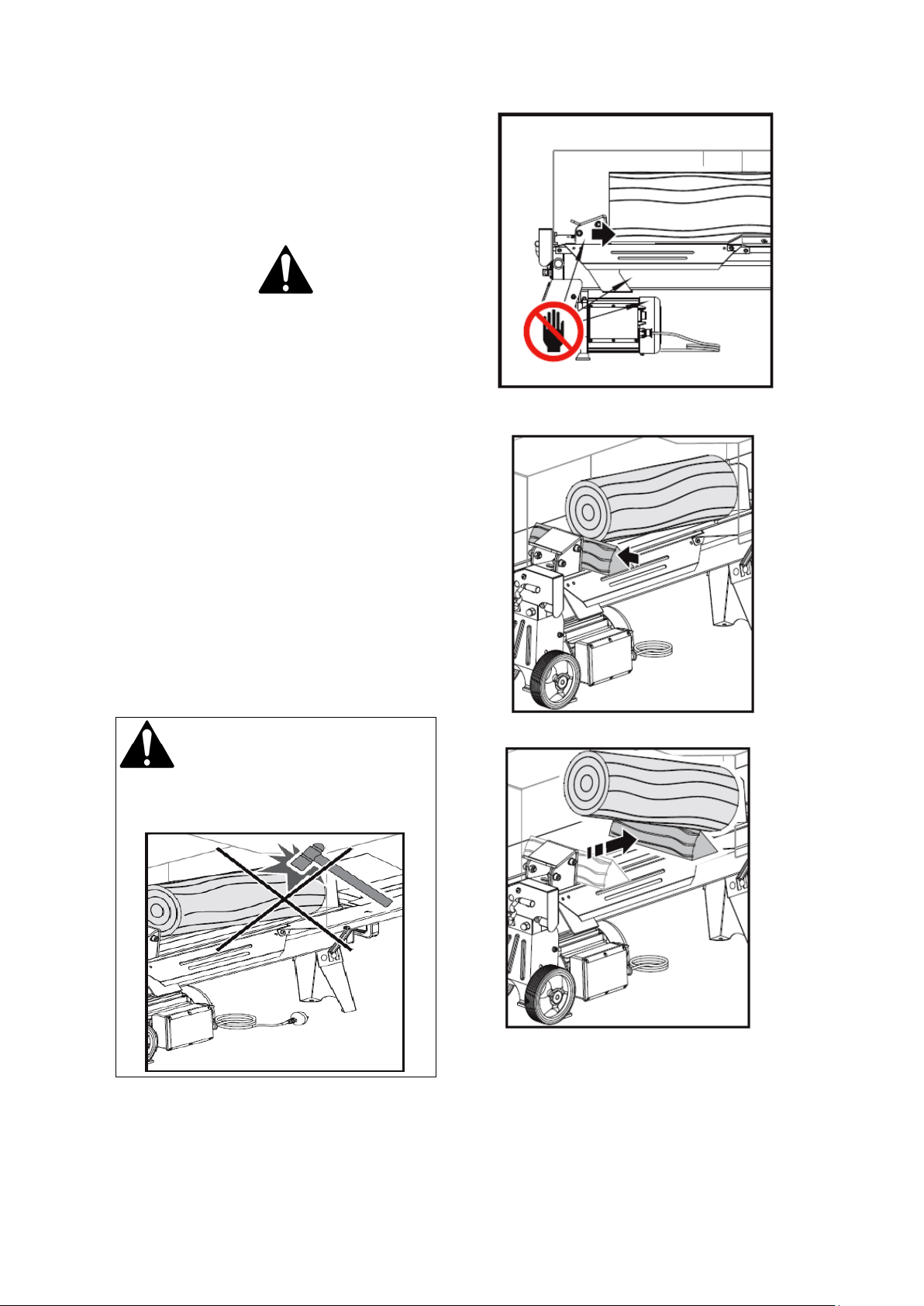

OPERATION

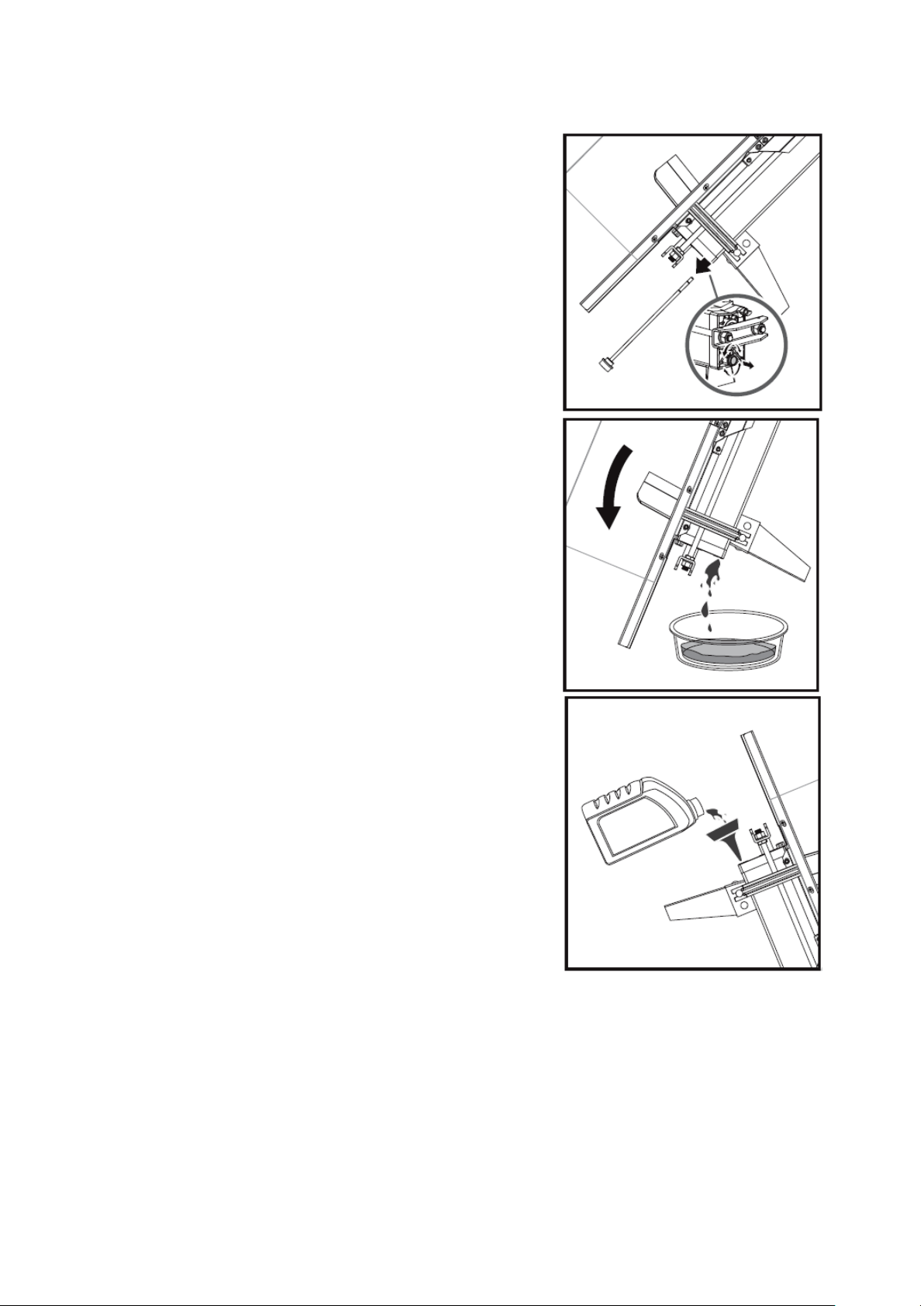

CHECKING & REPLACING HYDRAULIC OIL
TROUBLE SHOOTING
MAINTENANCE & STORAGE

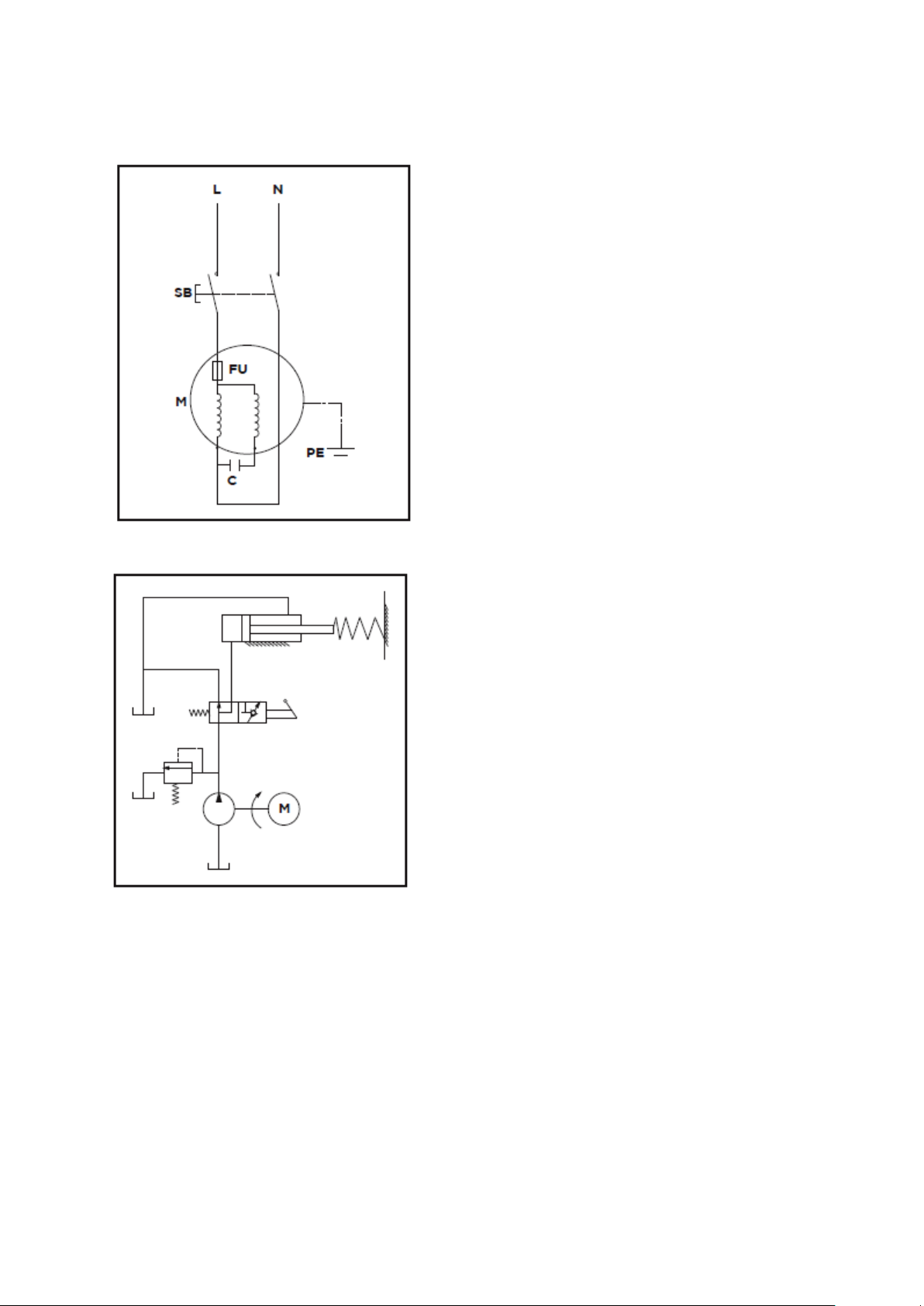

WIRING & HYDRAULIC SYSTEM DIAGRAMS
EC DECLARATION OF CONFORMITY

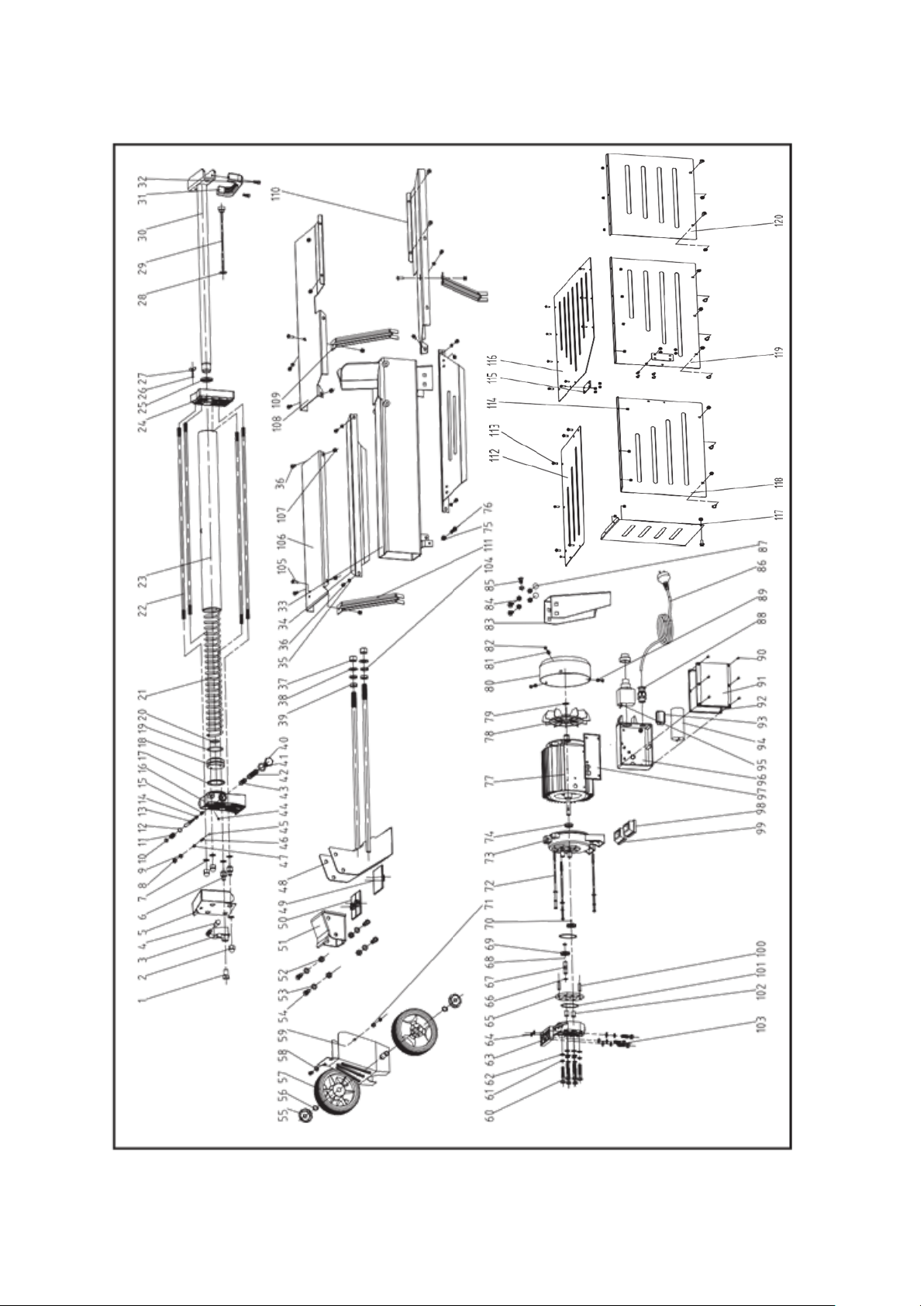

PARTS DIAGRAM & LIST
WARRANTY
NOTES

ASSEMBLY IS REQUIRED – TWO PERSON LIFT

This product requires assembly before use. See the “Assembly” section for instructions.
Please check that all parts required for the assembly of this spreader are included. If for any reason you
believe a part for the assembly is missing or damaged, please contact us.

If you require any assistance with regards to the contents or operation of

your machine, please contact us:

TEL: [phone]

EMAIL: [e-mail]

(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)

SPECIAL WARNINGS & INSTRUCTIONS

• The splitting operation of the machine is designed to be activated by one person. While there is the

possibility that additional operators could be working with the machine (e.g. for loading and unloading),
only one operator should activate splitting operations;

• The machine shall not be used by children;

• Description of functional tests of the machine;

• The installation and maintenance requirements including a list of those devices e.g. two-hand control

device which should be verified, how frequently the verification shall be carried out and by what method;

• Do not remove jammed logs with your hands. Never use another person to help you with freeing jammed

logs. Push the wedge until the log is split open.

SPECIFICATIONS

The manufacturer reserves the right to change the product specification and livery according to continued
product improvements.

Model Number

THLS-6G

Product Number

1938181001

Motor*

(220-240V ~50Hz 9.6A), 2200W, S3 25%,

Splitting Force

6 Ton

Forward Speed

3.08cm/s

Retract Speed

5.29cm/s

Hydraulic Pressure

20.8 Mpa

Hydraulic Oil Tank Capacity

3.5L

Hydraulic Oil

Type 22

Stroke Length (mm)

370

Log Capacity Diameter (mm)**

Min 50 – 250 Max

Log Capacity Length (mm)

Min 200 – 520 Max

Overall Size (cm)

L 116, W 42.5, H 61

Weight (kg)

N.W 59 – G.W 63

Noise Pressure Level (LpA)

78.8 dbA under no load;

89.8 dbA under full load

Vibration

< 2.5 m/s²

* S3 25%, Intermittent periodic duty: time of one load cycle is 10 minutes, operation time at constant load is

2.5 minutes, de-energized and at rest is 7.5 minutes.

** The diameter of the log is not the only factor that determines how easy it will be to split. A small log can

be difficult to split when it has knots or is a particularly hard wood.

IMPORTANT INFORMATION

HYDRAULIC OIL

This machine is supplied with hydraulic oil from the factory, to allow the machine to be used straight from the carton
following assembly. Do check the oil level (instructions available in the manual) prior to the first use and periodically
thereafter. Type 22 hydraulic oil is recommended.

ELECTRICAL REQUIREMENTS

Connect the main leads to a standard 220-240V±10% (50Hz±1Hz) electrical supply which has protection devices of
under-voltage, over-voltage, over-current as well as a residual current device (RCD) which
maximum residual current rated at 0.03A.

EXTENSIONS LEADS

Improper use of extension cords may cause inefficient operation of the logsplitter which can result in overheating. Be
sure the extension cord is no longer than 10m and its section is no less than 2.5mm² to allow sufficient current flow to
the motor. Avoid use of free and inadequately insulated connections. Connections must be made with protected
material suitable for outdoor use.

WORKING CONDITIONS

This log splitter is for domestic use only (commercial usage will reduce the warranty period of the machine – see
warranty pages for details). It is designed for operating under ambient temperatures between +5°C and 40°C and for
installation at altitudes no more than 1000m above M.S.L. The surrounding humidity should be less than 50% at 40°C.
It can be stored or transported under ambient temperatures between -25°C and 55°C.
INSPECT YOUR LOG
Make sure there are no nails or foreign objects in logs to be split. The ends of the logs must be cut square.
Branches must be cut off entirely so that the trunk is relatively smooth.

GENERAL SAFETY INSTRUCTIONS

It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its
application and limitations as well as the specific potential hazards. Retain these instructions for future
reference. The operator is responsible for following the warnings & instructions in this manual and on the
product.

Read & understand operator’s

manual before using the

machine. Failure to follow

instructions could result in death

or serious injury.

DANGER

Keep clear of all moving

parts.

Wear protective gloves to

protect your hands

Do not remove jammed

logs with your hands

Whenever the machine is in use,

eye protection must be worn to
safeguard against flying objects.
Hearing protection must also be

used to protect the operators

hearing.

Before making

adjustments, changing

parts, cleaning, or working

on the log splitter, always

disconnect the power.

Consult the technical

manual before servicing.

Wear protective footwear

Dispose of all oil at an

authorised collection point

or follow the local

stipulations that apply

where the log splitter is

being used.

Dispose of used oil in an

environmentally friendly

way.

Check your logsplitter before

turning it on. Keep guards in

place and in working order.

Replace damaged, missing or

failed parts before using it.

10m

Keep all bystanders &

animals at least 10 metres

away from the machine

during operation.

If approached, stop the

machine immediately.

Do not use in the rain.

WARNING

Stay clear of moving parts.

Safety alert symbol. Used to alert

you to potential personal injury

hazards. Obey all safety

messages that follow this symbol

to avoid possible injury.

DANGER

Indicates an imminently

hazardous situation which,

if not avoided, will result

in serious injury.

WARNING

Indicates a potentially hazardous

situation which, if not avoided,

could result in serious injury

CAUTION

Indicates a potentially

hazardous situation which,

if not avoided, may result

in minor or moderate

injury.

CAUTION

Used without the safety alert

symbol indicates a potentially

hazardous situation which, if not

avoided, may result in property

damage.

STAY ALERT

Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect
your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand.
Always be aware of what you are doing at all times. Use common sense.

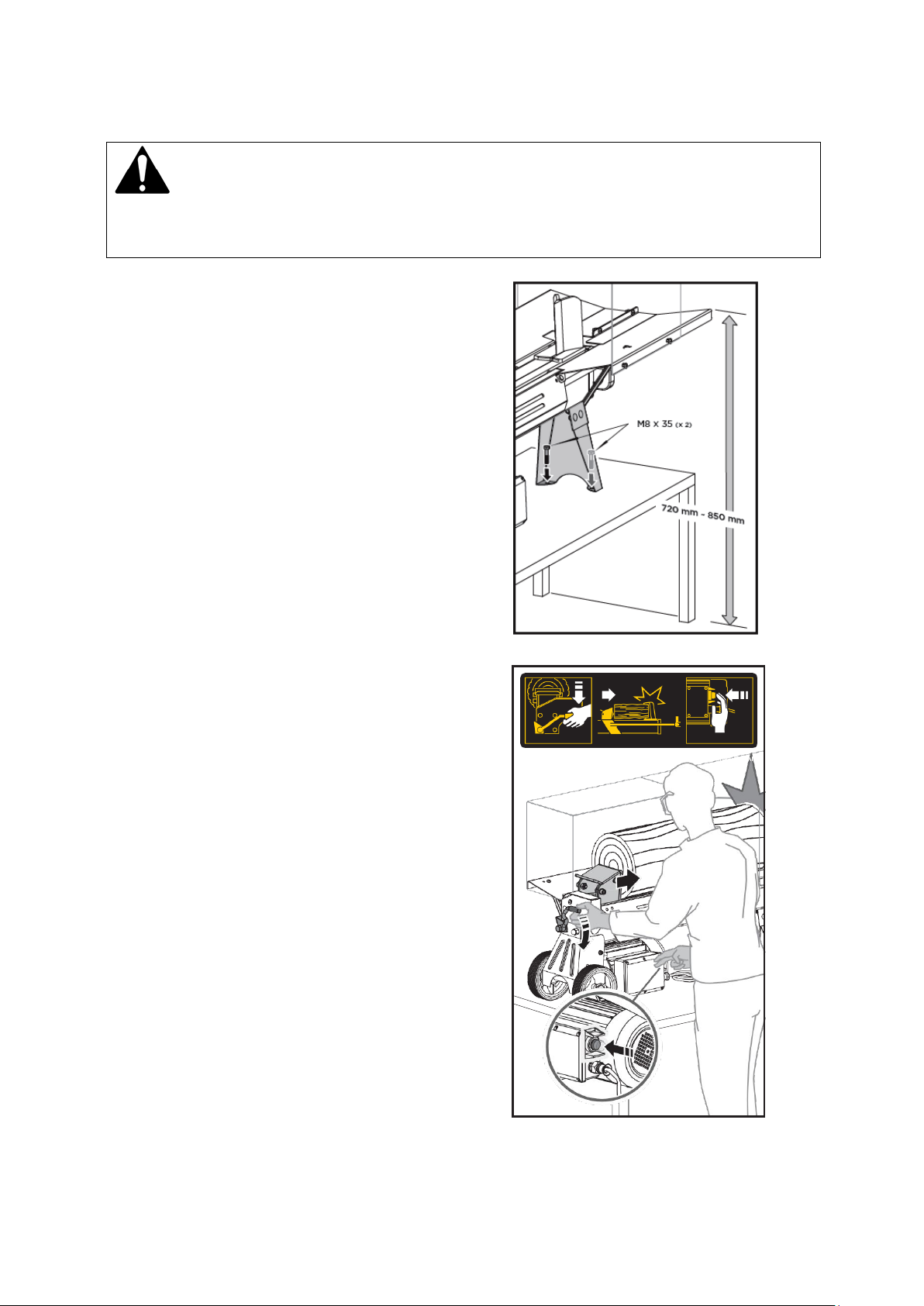

AVOID DANGEROUS CONDITIONS
We do not recommend using the logsplitter on the ground for operation. This is an awkward operating
position, bringing the operators face close to the machine, and thus risking being struck by wood chips or
debris. Put the logsplitter on a 72-85 cm high, stable, flat, and level work bench where there is plenty of room
for handling, and help the operator stay alert. Bolt the logsplitter to the work surface if it tends to slip, walk, or
slide. Keep your work area clean and well light. Cluttered areas invite injuries. Do not use the logsplitter in wet
or damp areas or expose it to rain. Do not use it in areas where fumes from paint, solvents or flammable
liquids pose a potential hazard.

INSPECT YOUR MACHINE

Check your logsplitter before turning it on. Keep guards in place and in working order. Form a habit of checking
tools are removed from the working area before turning it on. Replace damaged, missing or failed parts before
operating the machine.
DRESS PROPERLY
Do not wear loose clothing, gloves, neckties or jewellery (rings, wrist watches). They can be caught in moving
parts. Protective electrically nonconductive gloves and non-skid footwear are recommended when working.
Wear protective hair covering to contain long hair, preventing it from getting caught in machinery.

PROTECT EYES & FACE

Any logsplitter may throw foreign objects into the eyes. This can cause permanent eye damage. Always wear
safety goggles. Everyday eye-glasses have only impact resistant lenses. They are not safety glasses.
We do not recommend using the logsplitter on the ground for operation. This is an awkward operating
position, bringing the operators face close to the machine, and thus risking being struck by wood chips or
debris.
AVOID ELECTRICAL SHOCK
Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and
frequency of the motor. Check that there is a ground connection and a regulation differential switch upstream.
Ground the logsplitter. Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator
enclosures. Never open the switch box on the motor. Should this be necessary, contact a qualified electrician.
Make sure your fingers do not touch the plug's metal prongs when plugging or unplugging the logsplitter.
KEEP BYSTANDERS AND CHILDREN AWAY
The logsplitter must be always operated by one person only. Other people should keep a safe distance from
the work area (10 metres recommended), especially when the logsplitter is under operation. Never use
another person to help you with freeing a jammed log.

INSPECT YOUR LOG

Make sure there are no nails or foreign objects in logs to be split. The ends of the logs must be cut square.
Branches must be cut flush with the trunk.

DO NOT OVERREACH

The operating floor must not be slippery. Always keep proper footing and balance. Never stand on the
logsplitter. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted. Do
not store anything above or near the logsplitter where anyone might stand on the tool to reach them.

AVOID INJURY FROM UNEXPECTED ACCIDENT

Always pay full attention to the movement of the log pusher. Do not attempt to load the log on until the log
pusher has stopped. Keep hands out of the way of all moving parts.

PROTECT YOUR HANDS

Keep your hands away from splits and cracks which open in the log; They may close suddenly and crush or
amputate your hands or fingers. Do not remove jammed logs with your hands.

DO NOT FORCE TOOL

It will do a better and safer job at its designed rate. Never try to split logs larger than those indicated in the
specifications table. This could be dangerous and may damage the machine. Don't use the logsplitter for a
purpose for which it was not intended.

NEVER LEAVE MACHINE RUNNING UNATTENDED

Do not leave the machine unattended, until it has come to a complete stop and the power removed from the
electrical source.

DISCONNECT POWER

Unplug from the electrical supply when not in use, before adjusting, changing parts, cleaning or working on the
logsplitter. All servicing and repairs are recommended to be undertaken by an approved service dealer.

MAINTAIN YOUR MACHINE WITH CARE

Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full & safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.

PROTECT THE ENVIRONMENT

Take used oil to an authorised collection point or follow the stipulations in the country where the logsplitter
is used. Do not discharge into drains, soil or water.

STORE IDLE EQUIPMENT

When not in use, the machine should be stored in a dry location. Keep the machine away from children and
others not qualified to use it.

This symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
For more detailed information about recycling of this product, please contact your local
council office, your household waste disposal service or shop where you purchased the
product.

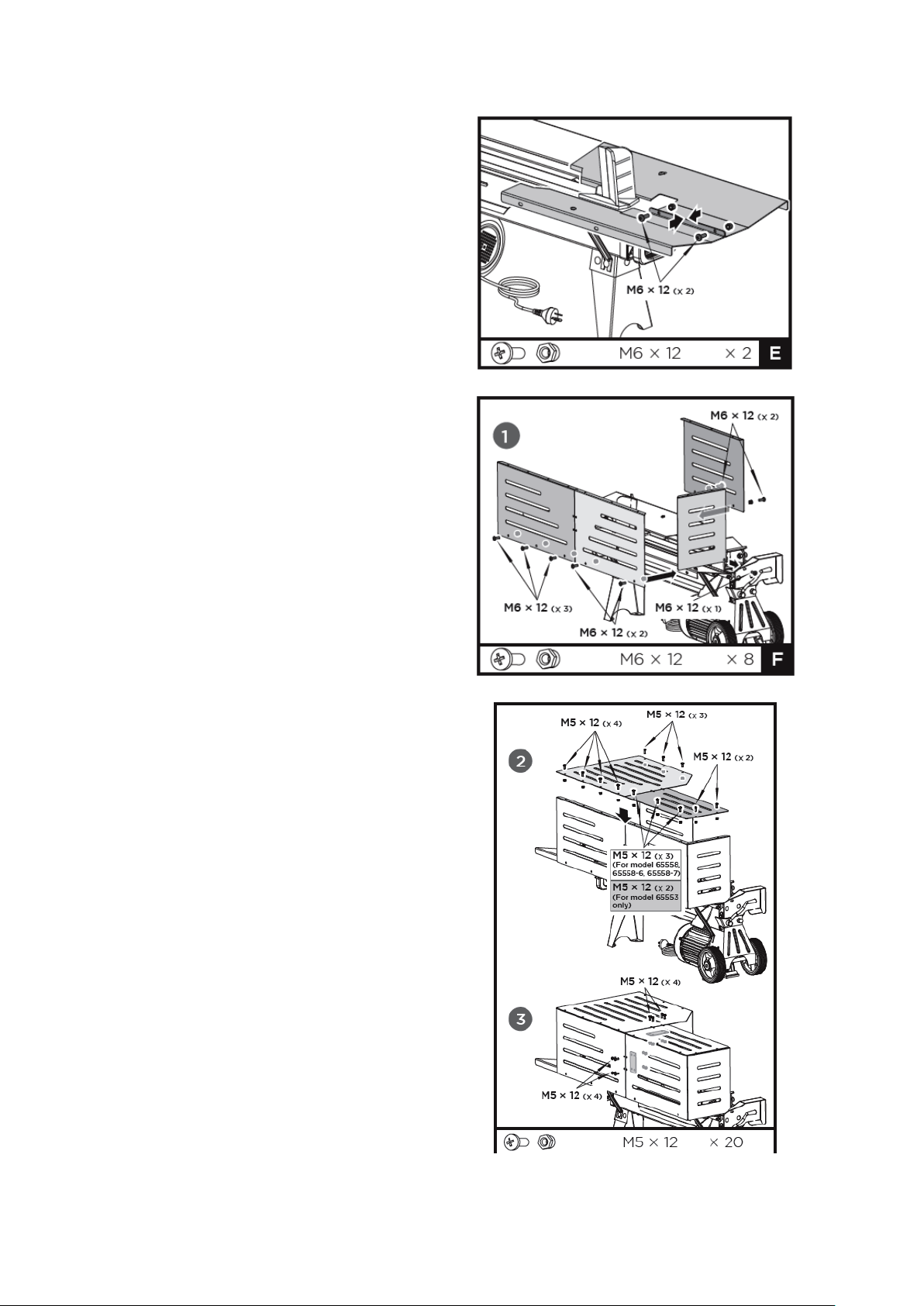

SET UP & PREPARATION FOR OPERATION

Familiarise yourself with the assembly components of this logsplitter. If you believe you are missing any
components, please contact us:

TEL: [phone] or EMAIL: [e-mail]
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)

1. Log Splitter Frame

2. Transport Handle

3. Support Strut A (x2)

4. Support Strut B

5. Guard Bottom Plate

6. Log Tray A

7. Log Tray B

8. Plate Connector (x2)

9. Top Guard Plate A

10. Top Guard Plate B

11. Rear Guard Plate A

12. Rear Guard Plate B

13. Front Guard Plate

14. Left Guard Plate

Fixing Kit Contents

ASSEMBLY

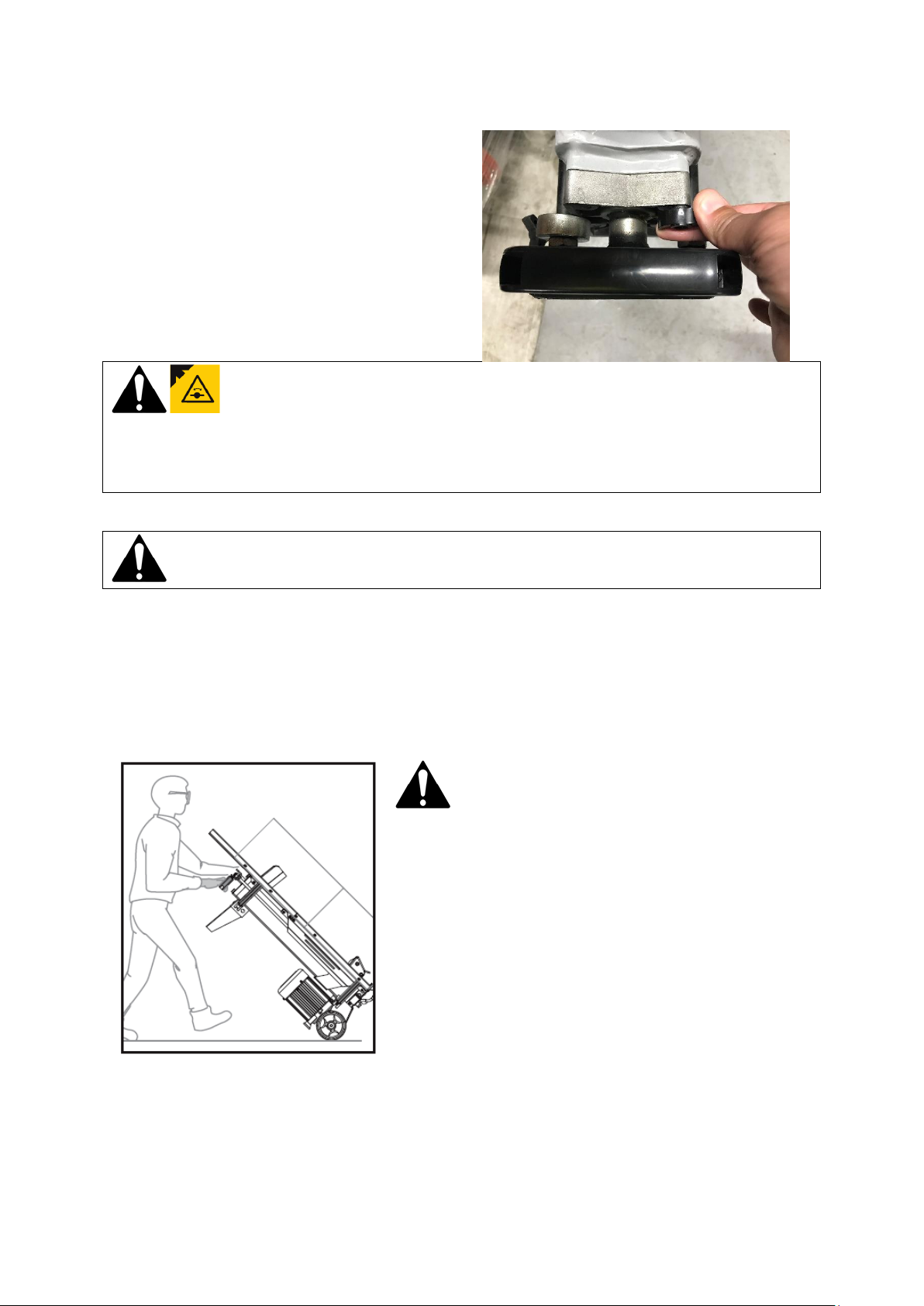

LIFTING HANDLE

Mount the lifting handle to the U bracket with two
M6×16 bolts.

LOG TRAY

1. Mount the guard bottom plate to the rear

guiding plate and secure with two M6×12
socket head cap screws and locknuts. Loosen
the socket head cap screw and big washer on
the wheel bracket, insert the open end of
support strut B between the big washer and
wheel bracket and tighten screw.

Connect the upper end of support strut B to
the guard bottom plate with cross recessed
pan head screw M6×12 and locknut M6 and
then tighten it.

2. Align the two mounting holes of the log tray A

to the holes on rear side of the splitter. Insert
one socket head cap screw M6×12 and spring
washer 6 into the mounting hole on left side
and the other socket head cap screw M16×12
and locknut M6 on right side and securely
tighten both.

Loosen the cup head bolt and nut on left side of
the front leg, insert the open end of support
strut A onto the bolt and then tighten the nut.
Connect the upper end of support strut A to log
tray A with cross recessed pan head screw
M6×12 and locknut M6 and then tighten it.

3. Align the two mounting holes of the log tray B

to the holes on front side of the splitter. Insert
one socket head cap screw M6×12 and spring
washer 6 into the mounting hole on right side
and the other socket head cap screw M6×12
and locknut M6 on left side and securely tighten
both.

Loosen the cup head bolt and nut on right side
of the front leg, insert the open end of support
strut A onto the bolt and then tighten the nut.
Connect the upper end of support strut A to the
log tray B with cross recessed pan head screw
M6×12 and locknut M6 and then tighten it.
