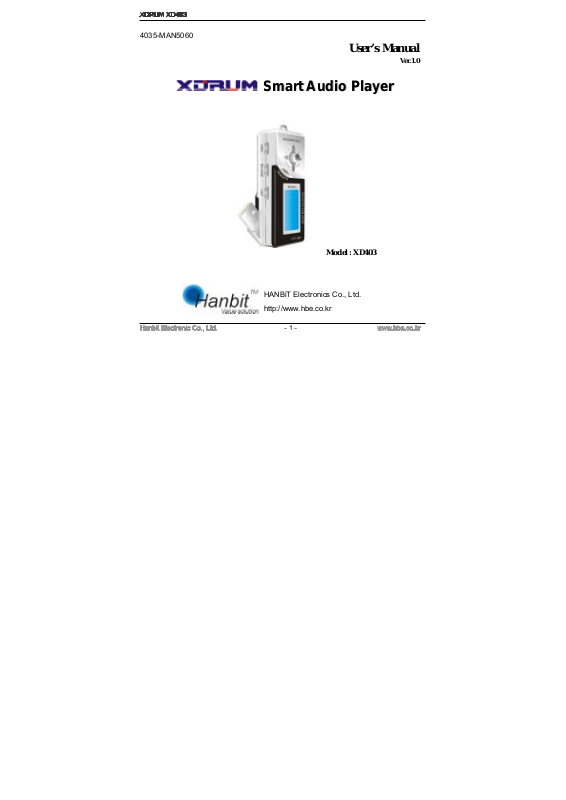

Hanbit Electronics XD403 Users Manual
r
r
4035-MAN5060
User’s Manual
Ver.1.0
SSmmaarrtt AAuuddiioo PPllaayye
Model : XD403
HANBiT Electronics Co., Ltd.
http://www.hbe.co.kr
1
e
2
1. Preparations ------------------------------------------------------------ 2
Features ---------------------------------------------------- 4
Safety instruction ---------------------------------------- 5
Inserting battery ---------------------------------------------------- 6
Appearance --------------------------------------------------------------- 7
2. Drive installation for Windows 98 ---------------------------------------- 9
3. Basic function
----------------------------------------------------------- 12
4. Setup menu description
5. Firmware upgrade ------------------------------------------------------- 40
6. Application software ---------------------------------------------------- 48

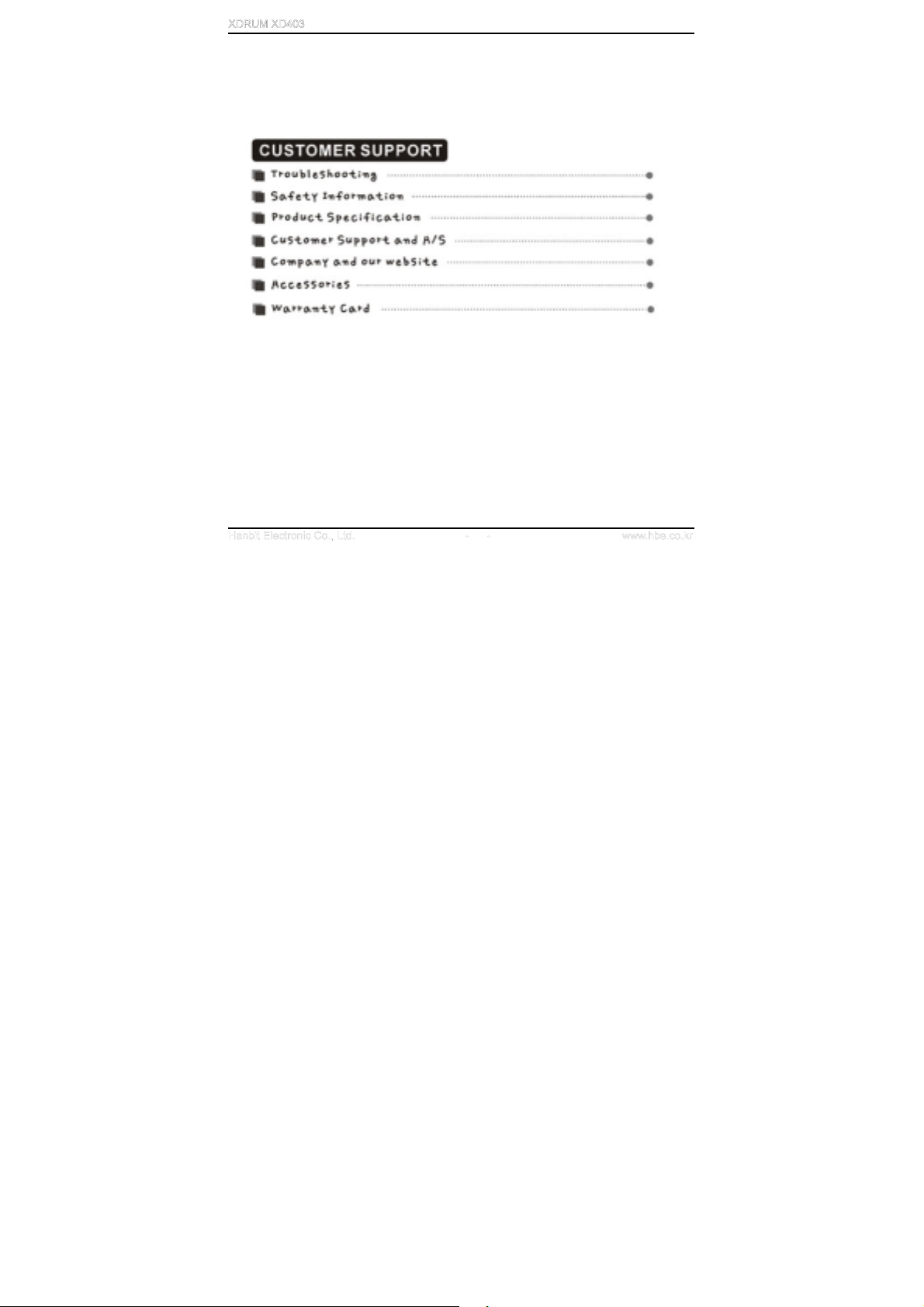

7. Customer Support ----------------------------------------------------------- 49
Troubleshooting --------------------------------------------------------------- 50
------------------------------------------------ 27
Safety ------------------------------------------------------------------------ 51
Customer support and A/S ------------------------------------------------ 53
Company and website ---------------------------------------------------- 53

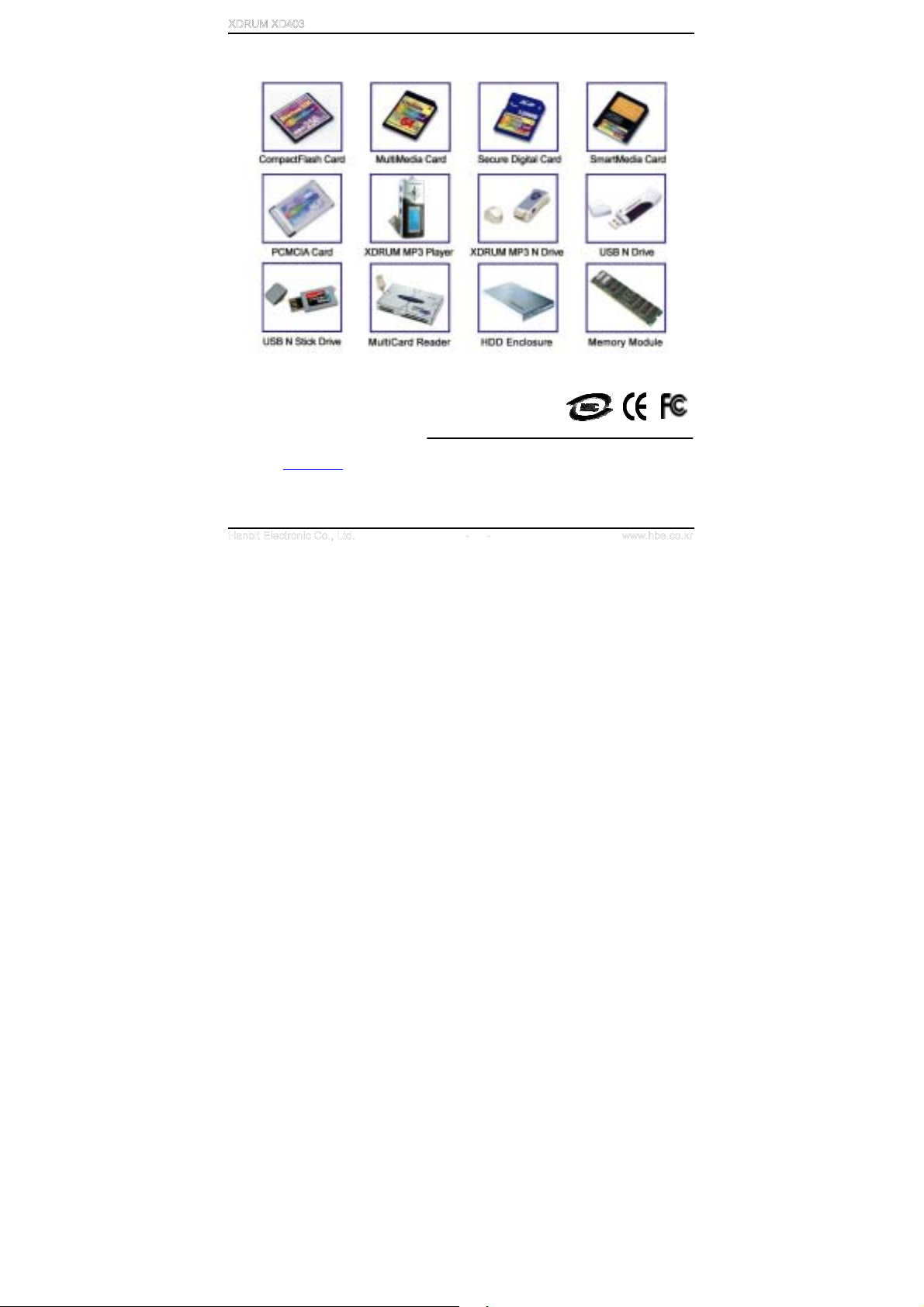

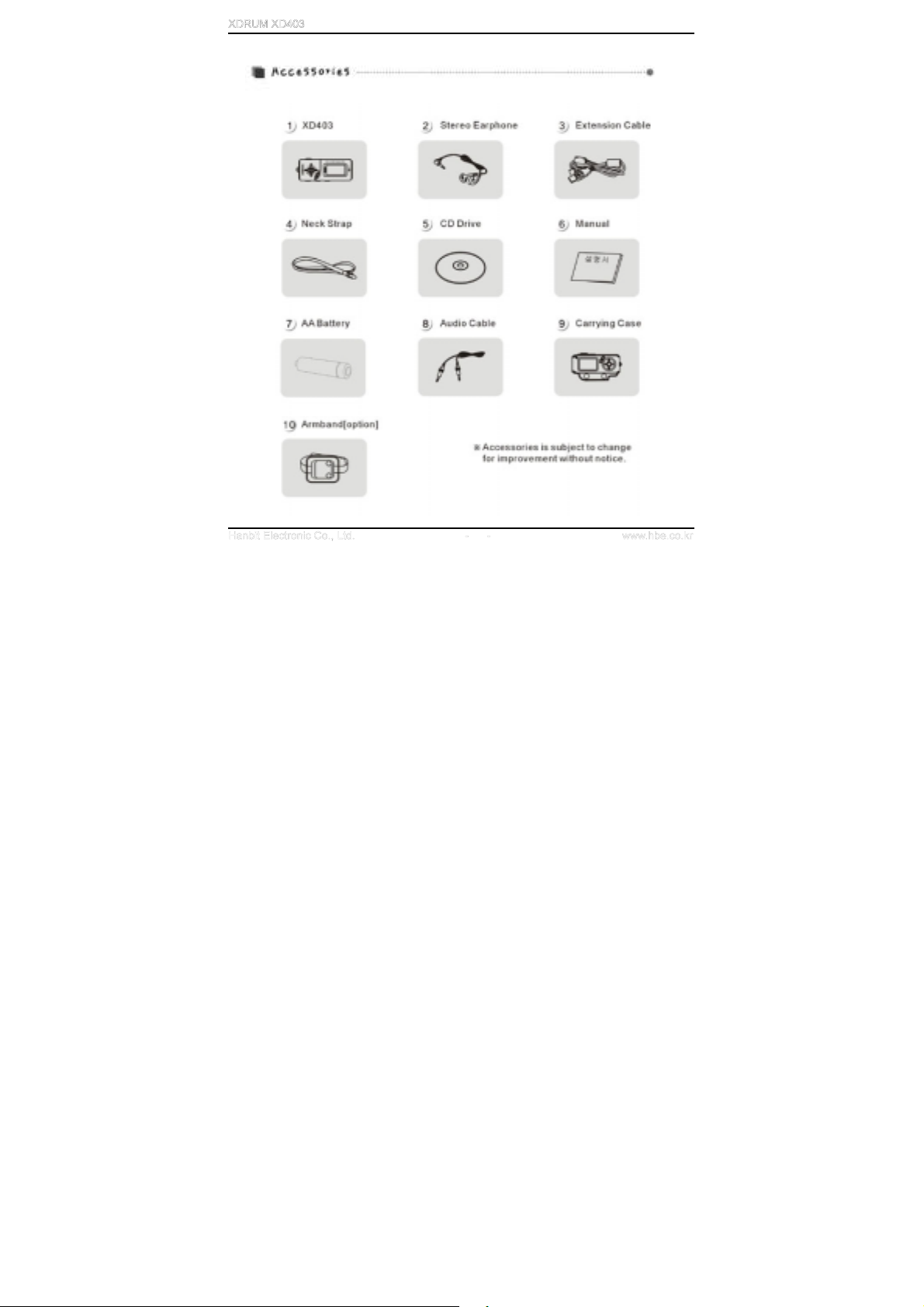

Accessories ------------------------------------------------------------------- 54
3
USB portable memory storage device
Worldwide FM Tuner / Recorder
LCD back light and 4 line display (4 Line LCD)
Firmware upgradeable
User friendly navigation design
Direct MP3 encoding function: convert external audio files into MP3 files
6 Band 6 EQ / User EQ mode support
Adjustable playback speed and repeat function
Line-in auto sync. function
MP3, WMA, ASF format support
Digital voice recorder
Sleep power off / Stop power off function
Sound balance function
TTS (Text to Speech) function (option)
Playlist function
10 FM Preset / Auto-scan function
Built-In speaker
VAD (Voice Activity Detect) function
Long-lasting playback time only with a AA battery (more than 20 hours)
High-brightness LED flashlight
5 application software : E-mail, PC Lock, Time Lock, File Lock, My-AD
4
r
f
Don’t try to disassemble and repair the
device yourself.
Don’t spray or put water directly on the
surface of the device for cleaning. Just
smoothly wipe its surface with dry towel. Don’t
use chemicals or cleaner as they may
damage its surface and color.
Don’t push two buttons at the same
time or disjoint the machine.
Don’t drop or put pressure on the device.
Keep it away from a magnet or a place with
strong vibration
Don’t expose to extreme temperatures
(above 95F or below 23F) Don’t expose to
moisture.
Please contact customer service cente
when the player is wet or dropped in water. I
you operate the player when it’s wet, it will
cause malfunctioning.
5
1. Slide the battery cover in the
direction of arrow and open it like
the picture.
2. Insert battery properly in
accordance with the plus (+) and
minus (-) directions.
3. Slide the battery cover in the
direction of arrow and close it like
the picture.
NOTE : Do not place heavy objects on the cover
6
7
8
9
Please install the drive before connecting XD403 to PC.
1. Insert the installation CD into CD-ROM Drive.
2. Select Windows 98 Driver folder in the XDRUM XD403 folder in the CD.
3. Execute Win98Driver_XD403_En.exe in the folder.
4. Click “Next” button to continue and complete the installation
10
5. Restart your Computer (PC) after completing installation.
6. Connect the USB extension cable to PC’s USB port.
7. If you see “USB CONNECTED!” message on LCD screen,
it’s successfully connected.
Copy and paste files like a USB disk drive as shown below
11
12
● Press and hold PLAY/STOP button to turn on / off the power.
● Lightly press PLAY/STOP button to play or stop music file.
● Push OK button in the direction of + / - to adjust VOLUME.
● Push OK button to or direction to play next or previous music
● Push and hold PLAY/STOP button to play fast forward or rewind.
● Press OK button on its center to select Music/Menu/Folder

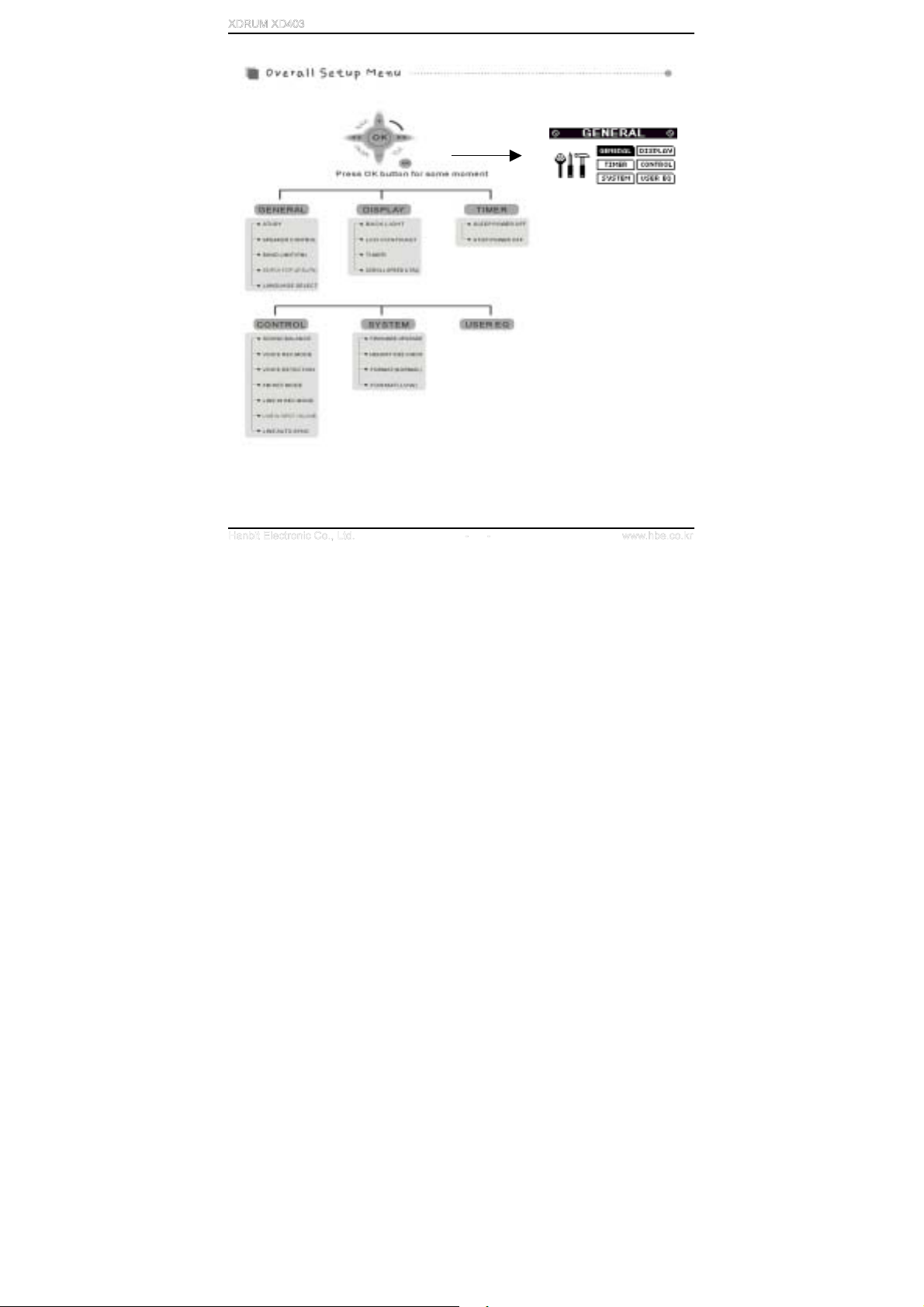

● Press and hold OK button to display Setup Menu when stop playing.
13
You can easily search songs or folders in MP3 mode by using the NAVIGATION function. To
use the NAVIGATION function, lightly press OK button in MP3 mode and search files by pushing
the OK button toward plus (+) or minus (-) directions. Then, if you press OK button again, the
song you found is selected.
After selection, you can enjoy the song by pressing PLAY/STOP button.
Press and hold REC/MODE button to display FUNCTION MENU.
- Move between menus: pushing OK button to or direction.
- Select Menu/Function: pressing OK button.
14
To use Repeating track function for folders or songs selected, lightly press REC/MODE button
and select Repeating track options one-by-one when MP3 file is in Play or Stop mode.
Repeats the whole track in the folder
Repeats only one song
Stops when all songs in the folder are played
Deleting FILE/FOLDER function is only available when Play is stopped (in Stop mode).
In NAVIGATION function, go to the file or folder you want to delete and press A-B/EQ button to
display the message of ‘FILE DELETE, ARE YOU SURE?’, Upon seeing the message, push OK
button to or direction to select YES or NO, and press the OK button to delete the file or
folder selected.
Before deleting a folder, data within the folder must be deleted in advance.
15
Use LOOP REPEATING function when you want to repeat a certain range of file in play.
1. Define Start point of repeat range: define start point (A point) of the repeat range for the
music/voice file in play by pressing A-B/EQ button (A is displayed on the LCD screen).
2. Define End point of repeat range: press A-B/ EQ button again at the point where you want to
stop REPEAT. (AB will be displayed on LCD screen. The defined range is repeatedly played)
3. To release REPEAT RANGE function, lightly press A-B/EQ button again.
16
EQ function is only operational when MP3 Mode is in Play or Stop.
1. If you press and hold A-B/EQ button when MP3 Mode is in Play or Stop, EQ will be displayed.
If you push the button again and again, the following Timbre will be displayed consecutively.
(NORMAL - CLASSIC - LIVE - POP - ROCK - USER EQ)
EQ function is only activated when Study Mode of Setup Menu is off.
If you want to define Timbre to your liking, press and hold OK button and select User EQ in
2.
Setup Menu (Please refer to User EQ in Setup Menu section, later)
17
