Hanbit Electronics STORIUM Users Manual

Portable Flash Memory Disk Drive

USER’S MANUAL

USB STORiUM D RIVE

HANBiT Electronics Co., LTD. [www.hbe.co.kr]

[ INDEX ]

1. Installation for Windows98 ……...…………………………..3

2. Format …………………..………………………………………5

3. Password …………………………….……………………….. 6

4. Change password …………………………………………….8

5. USB STORiUM N Drive Specification …………………….. 9

6. Warranty Card …………………………………………………10

■

Contents

Please check whether the package contains following items !

1. USB STORiUM N DRIVE x 1EA

2. Installation CD-ROM x 1EA

3. Neck Strap x 1EA

4. User’s Manual & Warranty Card x 1EA

.

1. Driver Installation

1.1 Windows2000/ME/XP,Linux 2.4X,Mac OS9.X/Mac OS X operating system:

Just insert STORiUM NDrive into USB port, then system will install the hardware
automatically .

* Notice

* Please wait for 3~5minutes until a pointer of a mouse is stopped before you insert

STORiUM N Drive into USB port or remove it from USB port.
When you insert STORiUM NDrive into USB port before the pointer of mouse is
stopped, the functions of STORiUM NDrive would be damaged.

* The write protect switch must be on the "open" position in all procedures to install

the STORiUM NDrive.

1.2 Installation Method for Windows 98.

* Installation Method 1.

The procedures to install before plugging STORiUM NDrive into USB port.

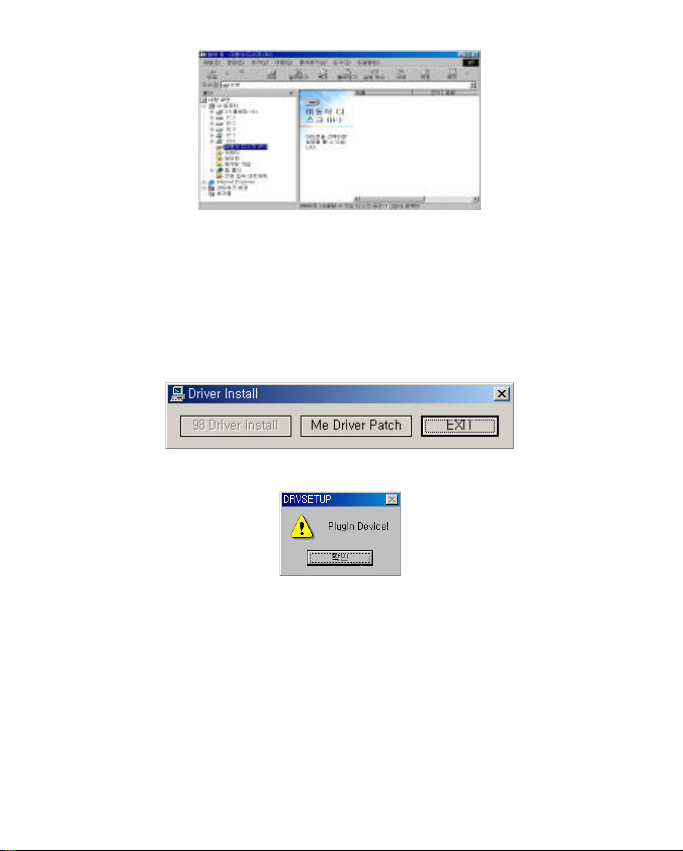

1.2.1 Please insert your STORiUM NDriver CD,then you can find the folder named
"Win98DRIVE" in the folder named “N DRIVE” and double click the "DrvSetup” file
required for installation.

1.2.2 Click "98 Driver Install" button.

1.2.3 Press “OK”button to continue.

1.2.4 Plug USB STORiUM NDrive into the USB port.

1.2.5 Press again “OK”button on the “PlugIn Device" wizard and then click “EXIT”button
on the “Drive Install" wizard.

1.2.6 Now all the drivers have been installed into your system, you should see the
Removable Disk icon appearing in the window when you activate "My Computer"
icon.

* Installation Method 2.

The procedures to install after plugging STORiUM NDrive into USB port.

1.2.7 Plug STORiUM NDrive into USB port,then add new hardware wizard occurs.

1.2.8 Select “Search for the best driver for your device.(Recommended)” and click
“Next”button.

1.2.9 Check “Specify a location”, click “Browse..” and select the driver folder named

"Win98DRIVE" in the folder named “N DRIVE” from driver CD.

1.2.10 After searching driver, click “Next” button.

1.2.11 When Windows has finished the installation of STORiUM NDrive, the wizard as
below appears. If installation is to be continued,press “Finish”button.

1.2.12 Open “My Computer” to check the new storage exist. "Removable Disk"will appear

in "My Computer"automatically,then you can operate USB STORiUM NDrive just as
your local hard disk.
