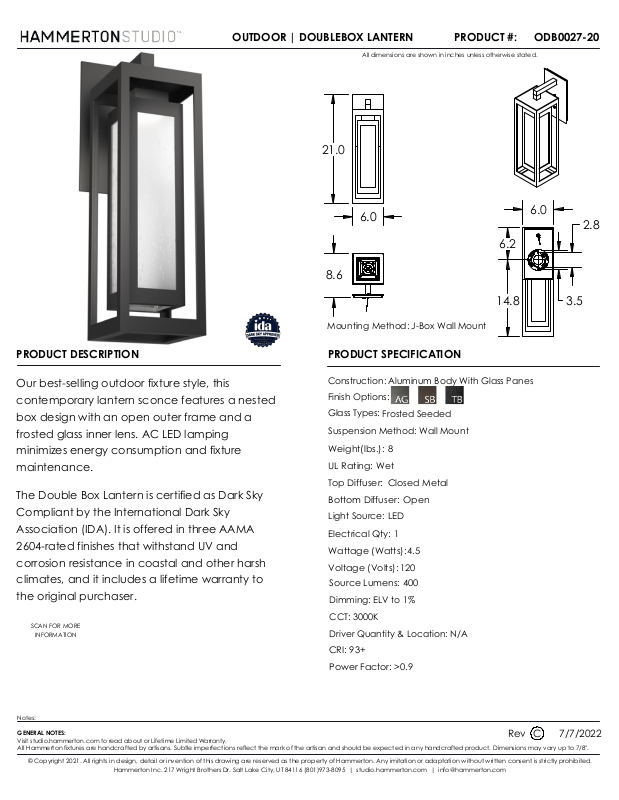

OUTDOOR | DOUBLEBOX LANTERN
All dimensions are shown in inches unless otherwise stated.
21.0
PRODUCT #:
ODB0027-20
PRODUCT DESCRIPTION
Our best-selling outdoor fixture style, this
contemporary lantern sconce features a nested
box design with an open outer frame and a
frosted glass inner lens. AC LED lamping
minimizes energy consumption and fixture
maintenance.
The Double Box Lantern is certified as Dark Sky
Compliant by the International Dark Sky
Association (IDA). It is offered in three AAMA
2604-rated finishes that withstand UV and
corrosion resistance in coastal and other harsh
climates, and it includes a lifetime warranty to
the original purchaser.
SCAN FOR MORE
INFORMATION
6.0
8.6
Mounting Method:
PRODUCT SPECIFICATION
Construction:
Finish Options:
Glass Types:
Suspension Method:
Weight(lbs.):
UL Rating:
Top Diffuser:
Bottom Diffuser:
Light Source:
Electrical Qty:
Wattage (Watts):
Voltage (Volts):
Source Lumens:
Dimming:
CCT:
Driver Quantity & Location:
CRI: 93+
Power Factor: >0.9
Wet
ELV to 1%
3000K
J-Box Wall Mount
Aluminum Body With Glass Panes
Frosted Seeded
Wall Mount
8
Closed Metal
Open
LED
1
4.5
120
400
6.0
2.8
6.2
3.5 14.8
N/A
Notes:
GENERAL NOTES:
Visit studio.hammerton.com to read about or Lifetime Limited Warranty.
All Hammerton fixtures are handcrafted by artisans. Subtle imperfections reflect the mark of the artisan and should be expected in any handcrafted product. Dimensions may vary up to 7/8".
© Copyright 2021. All rights in design, detail or invention of this drawing are reserved as the property of Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095 | studio.hammerton.com | info@hammerton.com
Rev
C
7/7/2022
