Hamilton Beach 97510 Parts List

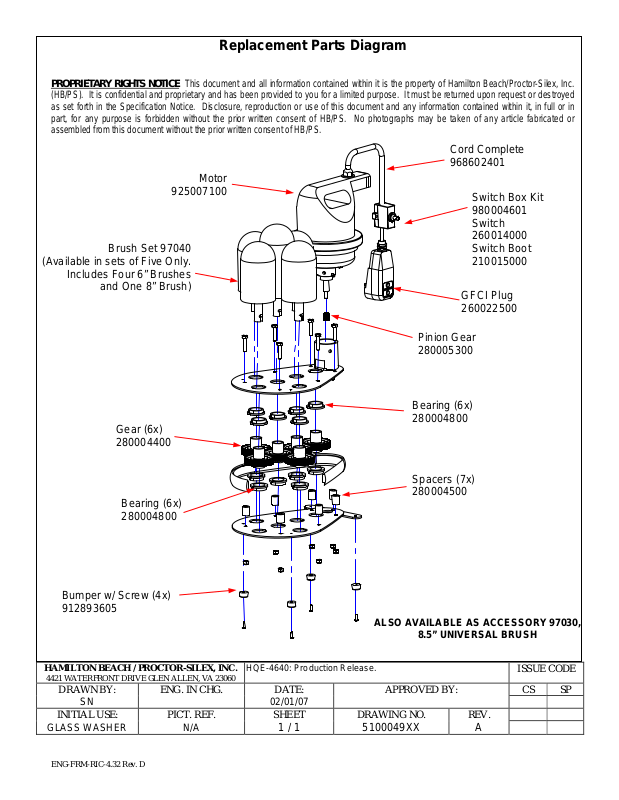

Replacement Parts Diagram

PROPRIETARY RIGHTS NOTICE This document and all information contained within it is the property of Hamilton Beach/Proctor-Silex, Inc. (HB/PS). It is confidential and proprietary and has been provided to you for a limited purpose. It must be returned upon request or destroyed as set forth in the Specification Notice. Disclosure, reproduction or use of this document and any information contained within it, in full or in part, for any purpose is forbidden without the prior written consent of HB/PS. No photographs may be taken of any article fabricated or assembled from this document without the prior written consent of HB/PS.

(Available in sets of Five Only.

Includes Four 6” Brushes

Brush Set 97040

and One 8” Brush)

Motor

925007100

Pinion Gear 280005300

Gear (6x) 280004400

Bearing (6x) 280004800

Spacers (7x) 280004500

Bumper w/ Screw (4x) 912893605

HAMILTON BEACH / PROCTOR-SILEX, INC.

4421 WATERFRONT DRIVE GLEN ALLEN, VA 23060

DRAWN BY: ENG. IN CHG. DATE: APPROVED BY: CS SP

SN 02/01/07

INITIAL USE: PICT. REF. SHEET DRAWING NO. REV.

GLASS WASHER N/A

HQE-4640: Production Release.

1 / 1 5100049XX A

ALSO AVAILABLE AS ACCESSORY 97030,

8.5” UNIVERSAL BRUSH

Cord Complete 968602401

Switch Box Kit 980004601 Switch 260014000 Switch Boot 210015000

GFCI Plug 260022500
