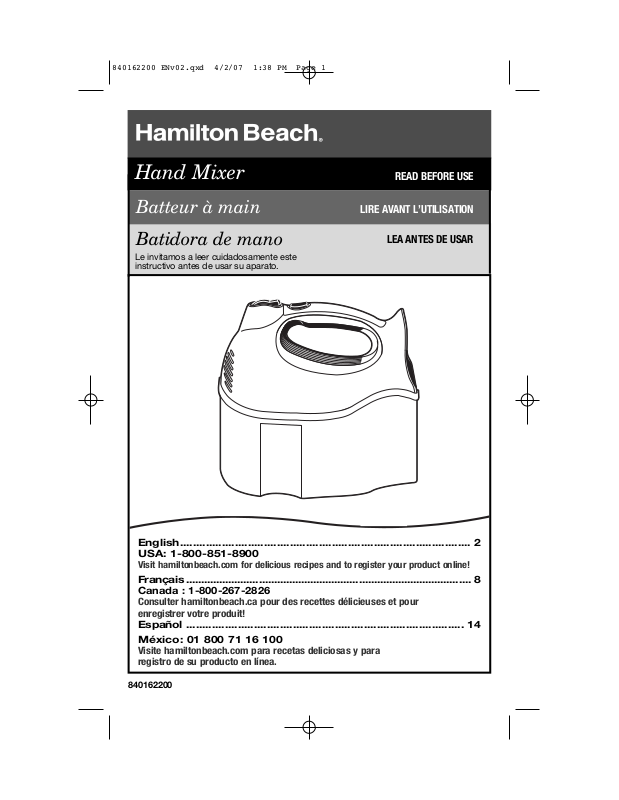

Hamilton Beach 62695NC User Manual

Batidora de mano

Hand Mixer

840162200

Batteur à main

English.......................................................................................... 2

USA: 1-800-851-8900

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Français .............................................................................................. 8

Canada : 1-800-267-2826

Consulter hamiltonbeach.ca pour des recettes délicieuses et pour
enregistrer votre produit!

Español ...................................................................................... 14

México: 01 800 71 16 100

Visite hamiltonbeach.com para recetas deliciosas y para
registro de su producto en línea.

Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.

READ BEFORE USE

LIRE AVANT L’UTILISATION

LEA ANTES DE USAR

840162200 ENv02.qxd 4/2/07 1:38 PM Page 1

2

Other Consumer Safety Information

IMPORTANT SAFEGUARDS

When using electric appliances, basic safety
precautions should always be followed,
including the following:

1. Read all instructions.

2. To protect against risk of electrical shock,

do not put cord, plug, or mixer body in
water or other liquid.

3. Close supervision is necessary when any

appliance is used by or near children.

4. Unplug from outlet when not in use,

before putting on or taking off parts, and
before cleaning.

5. Avoid contacting moving parts. Keep

hands, hair, and clothing, as well as spatu­las and other utensils, away from beaters
during operation to reduce risk of injury to
persons, and/or damage to mixer.

6. Remove beaters from mixer before washing.

7. Do not let cord hang over edge of table

or counter, or touch hot surfaces, includ­ing stove.

8. Do not operate any appliance with

a damaged cord or plug, or after the
appliance malfunctions or is dropped
or damaged in any manner. Call our
toll-free customer service number for
information on examination, repair, or
electrical or mechadjustment.

9. The use of attachments not

recommended or sold by Hamilton
Beach/Proctor-Silex, Inc. for use with
this model may cause fire, electric
shock or injury.

10. Do not use outdoors.

11. Do not place on or near a hot gas or

electric burner, or in a heated oven.

12. Check that control is off before plugging

cord into wall outlet. To disconnect, turn
control to OFF, then remove plug from
wall outlet.

13. Do not use appliance for other than

intended purpose.

SAVE THESE INSTRUCTIONS

This appliance is intended for household
use only.

This appliance has a polarized plug (one
blade is wider than the other). To reduce the
risk of electric shock, this plug is intended
to fit into a polarized outlet only one way. If
the plug does not fit fully into the outlet,
reverse the plug. If it still does not fit, con­tact a qualified electrician. Do not attempt to
modify the plug in any way.

BEFORE FIRST USE: Wash bowl and
beaters in hot, soapy water. Rinse and dry.

Wattage/Peak Power Information

The marked rating of the hand mixer is
determined by Underwriter’s Laboratory as
the maximum stabilized power consumption
of the hand mixer at high speed under a
loaded condition.

Peak power is an average of the maximum
wattage a hand mixer may consume during
initial operation at high speed.

840162200 ENv02.qxd 4/2/07 1:38 PM Page 2

3

Parts and Features

DESCRIPTION

The flat beaters are designed for general
mixing purposes.

The straight wire beaters, which have
no center post for ease in cleaning, are
designed for mixing thick batters and
cookie dough.

The single whisk is perfect for whipping
cream. The whisk may be inserted into
either opening.

ATTACHMENT

Optional Attachments and Features

(Available on selected models)

Before first use, wash attachments in warm, sudsy water; rinse and dry.
To ensure safety, unplug mixer from electrical outlet before inserting or

removing attachments.
This mixer comes with 1 or more of the following attachments:

Mixer
Body

Bowl Rest

™

Speed Control
(ON/OFF)
and Eject

Power
Burst

Snap On

Storage Case

Cord Wrap

and Clip

840162200 ENv02.qxd 4/2/07 1:38 PM Page 3

4

Snap On Case

When finished using the mixer, clean

as instructed.
Then store the
cord in the snap
on storage case
along with the
accessories.

To remove snap on case, squeeze the

case on both
sides (toward the
back of the case)
and pull down.

Power Burst

Press and hold down the button for
additional power at any speed.

NOTE: Do not use Power Burst for
more than two minutes at a time or
motor may overheat.

Bowl Rest

™

This feature can be used on most large

mixing bowls.
Use the Bowl
Rest while adding
ingredients or
checking a
recipe. To use,
TURN MIXER
OFF, then set
the mixer on the
edge of the bowl.

CAUTION:

• Never use Bowl Rest when the
mixer is on.

• Do not use Bowl Rest on small
(11⁄2 quart) mixing bowls or plastic
mixing bowls.

Optional Attachments and Features (continued)

DESCRIPTION

The twisted wire beaters, which have
no center post for ease in cleaning, are
designed for mixing thick batters and
cookie dough.

The dough hooks can perfectly knead
a one loaf bread recipe. Always use dough
hooks on speed 4, 5, or 6.

ATTACHMENT

Cord Wrap and Clip

The mixer can also be stored separately

from the snap on
case. When fin­ished using the
mixer, clean as
instructed. Then
wrap cord around
mixer body as illus­trated and secure
cord in clip.

840162200 ENv02.qxd 4/2/07 1:38 PM Page 4

5

Flat Beaters, Straight Wire
Beaters and Whisk

1. Make sure mixer is unplugged and

speed control is set to OFF.

2. Insert a beater or attachment into an

opening on the
bottom of the
mixer. Push
until it clicks
into place.
Repeat with
other beater or
attachment.

Twisted Wire Beaters and Dough
Hooks

1. Insert the wire beater or the dough

hook with the
collar into the
opening indi­cated by the
illustration on
the mixer.

2. Align tabs on the beater or dough

hook with the
slots in the
opening. Push
until it clicks
into place.
Repeat with
other beater or
dough hook.

To Insert Attachments

Collar

Tab

Slot

1. Make sure mixer is unplugged and

speed control is set to 0 (OFF).
Insert beaters.

2. Plug mixer into electrical outlet.

Place beaters into bowl.

3. Move the speed control to desired

speed, starting at 1 and increasing to
a higher speed as necessary.

Using Your Mixer

4. When finished mixing, move the

speed control to 0 (OFF) and
unplug mixer.

5. To eject beaters, push straight down

on the eject
button.

840162200 ENv02.qxd 4/2/07 1:38 PM Page 5

6

Cookie dough is one of the thickest
doughs to mix. Make it easier by
following these tips:

• Use a large mixing bowl so that
ingredients spread out for easier
mixing.

• Have butter or margarine at room
temperature.

Mixing Tips

• Add ingredients one at a time and
thoroughly mix after each addition.

• Add flour one cup at a time.

• To add chips or nuts to a very thick

dough or batter, we recommend
stirring them in by hand at the very
end of the recipe.

The following mixing guide is a suggestion for selecting mixing speeds for the
6 speed mixers. Begin on speed 1 and increase to desired speed depending
on the recipe consistency.

FUNCTION

OFF and/or Eject
LOW speed for folding or mixing in dry ingredients, muffins,

or quick breads
To cream butter and sugar; most cookie dough

MEDIUM speed for most packaged cake mixes

Frosting and mashed potatoes; kneading dough
Beating egg whites; kneading dough

HIGH speed for whipping cream; kneading dough

6 SPEED

0
1

2

3
4
5
6

Mixing Guide

840162200 ENv02.qxd 4/2/07 1:38 PM Page 6
