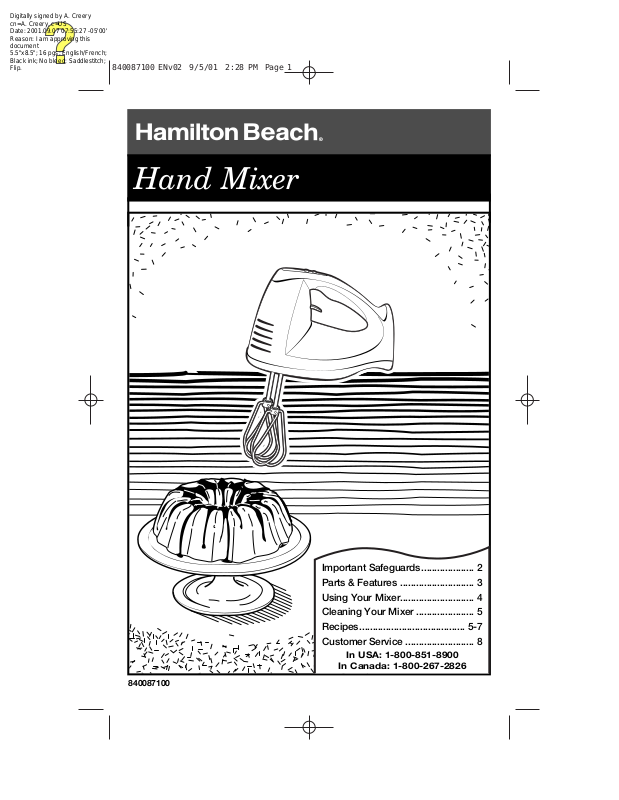

Hamilton Beach 62000 User Manual

Hand Mixer

840087100

Important Safeguards.................... 2

Parts & Features ............................ 3

Using Your Mixer............................ 4

Cleaning Your Mixer ...................... 5

Recipes........................................ 5-7

Customer Service .......................... 8

In USA: 1-800-851-8900

In Canada: 1-800-267-2826

840087100 ENv02 9/5/01 2:28 PM Page 1

Digitally signed by A. Creery cn=A. Creery, c=US Date: 2001.09.07 07:55:27 -05'00' Reason: I am approving this document

5.5"x8.5"; 16 pgs; English/French; Black ink; No bleed; Saddlestitch; Flip.

IMPORTANT SAFEGUARDS

1. Read all instructions.

2. To reduce the risk of electrical shock,

do not put cord, plug, or mixer body in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons, and/or damage to mixer.

Remove beaters from mixer before washing.

7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair or electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

Consumer Safety Information

This appliance is intended for household use only.

This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

8. The use of attachments not recommended or sold by Hamilton Beach/Proctor-Silex, Inc. for use with this model may cause fire, electric shock or injury.

9. Do not use outdoors.

10. Do not let cord hang over edge of

table or counter. Do not let cord contact hot surfaces, including stove.

11. Do not place on or near a hot gas or electric burner, or in a heated oven.

12.

Check that control is off before plugging cord into wall outlet. To disconnect, turn control to OFF, then remove plug from wall outlet.

13. Do not use appliance for other than intended purpose.

WARNING: To reduce risk of personal injury, always unplug mixer before inserting or removing beaters.

BEFORE FIRST USE: Wash attachments in hot, soapy water. Rinse and dry.

When using electric appliances, basic safety precautions should always be followed, including the following:

840087100 ENv02 9/5/01 2:28 PM Page 2

Parts and Features

NOTES:

• Before first use, wash beaters or other attachments in warm, sudsy water. Then rinse and dry. Beaters and attachments are also dishwasher safe.

• To ensure safety, unplug mixer from electrical outlet before inserting or removing attachments.

1. Timer – will begin to count up when

the mixer is turned on. It will count up in seconds to 9:59 (9 minutes and 59 seconds). When the mixer is turned off, the timer will return to zero.

2. Speed Indicator – will display the

selected speed from 1 to 10.

3. Increase Speed – press to reach desired speed for mixing.

4. Decrease Speed – press to reach desired speed for mixing.

5. ON/OFF Power Switch

6. Eject Trigger

7. Beaters

8. Whisk

Cookie dough is one of the thickest doughs to mix. Make it easier by following these tips:

• Use a large mixing bowl so that the ingredients spread out for easier mixing.

• Have butter or margarine at room temperature.

Mixing Tips

• Add ingredients one at a time and thoroughly mix after each addition.

• Add flour one cup at a time.

• To add chips or nuts to a very thick

dough or batter, we recommend stirring them in by hand at the very end of the recipe.

840087100 ENv02 9/5/01 2:28 PM Page 3

The following mixing guide is a suggestion for selecting mixing speeds for the mixer. Begin on speed 1 and increase to desired speed depending on the recipe consistency.

FUNCTION

LOW speed for folding or mixing in dry ingredients, muffins,

or quick breads

To cream butter and sugar; most cookie dough

MEDIUM speed for most packaged cake mixes

Frosting and mashed potatoes

Beating egg whites

HIGH speed for whipping cream

10 SPEED

2-3

4-5

6-7

8-9

Mixing Guide

1. Make sure mixer is unplugged and

Power Switch is set to OFF.

2. Insert beaters or whisk. Plug mixer into outlet.

3. When ready to mix, slide Power

Switch ON.

4. The mixer will start and 1 will be displayed on the Speed Indicator. The Timer will start to count up from 1 second (0:01).

5. To increase the speed of the mixer,

press the Increase Speed ▲ button

until desired speed is reached.

Using Your Mixer

6. To decrease speed, press the

Decrease Speed ▼ button.

7. To turn mixer off, slide Power Switch OFF.

8. To eject beaters, pull up on the

Eject Trigger.

Eject Trigger

1. Make sure mixer is unplugged and

Power Switch is set to OFF.

2. Insert a beater or attachment into an opening on the bottom of the mixer.

Push until it clicks into place. Repeat with other beater or attachment.

NOTE: The whisk may be inserted into either opening.

To Insert Attachments

840087100 ENv02 9/5/01 2:28 PM Page 4

1. Always turn off and unplug mixer

from electrical outlet before ejecting the attachments.

2. Wash attachments in hot, soapy water; rinse and dry. Attachments are also dishwasher safe.

Cleaning Your Mixer

3. Wipe the mixer body and cord with

a clean, damp cloth.

NOTE: Do not use abrasive cleaners or scouring pads. To reduce the risk of electrical shock do not immerse the mixer body or cord in water or other liquid.

Recipes

Check our Web site at www.hamiltonbeach.com for more recipes.

Baked Spinach-Parmesan Dip

10-ounce package frozen

chopped spinach, thawed 1 cup mayonnaise 3-ounce package cream

cheese, room temperature

⁄2 cup onion, minced

Squeeze spinach to remove liquid. In a medium bowl combine spinach, mayonnaise, cream cheese, onion, garlic, Parmesan, and pepper. Beat ingredients at speed 4 until well blended, about one minute. Spoon the mixture into a three or four cup baking dish that has been sprayed with vegetable spray. Sprinkle evenly with paprika. Bake at 350°F until hot in center and lightly browned on top, about 25 to 30 minutes. Serve hot to spread on baguette slices. Makes about 4 cups.

Tex-Mex Dip

16-ounce container sour cream 1 cup shredded pepperjack cheese

In a small mixing bowl, combine all ingredients and mix on speed 1 for about 30 seconds. Makes about 2 cups dip.

Zesty Mashed Potatoes

8 large baking potatoes

(peeled, cubed, cooked, and drained)

⁄2 cup sour cream

8-ounce package cream cheese,

room temperature

Place hot potatoes into a large bowl. Start mixing the potatoes at speed 2 until they are smooth. Add sour cream, cream cheese, butter, milk, garlic, salt, and pepper and beat at speed 6 until thoroughly mixed. Pour into a greased 9x13-inch baking dish. Baked uncovered for 30 minutes at 400ºF.

Makes 8 servings.

1 clove garlic, minced 1 cup grated Parmesan cheese

⁄8 teaspoon pepper

⁄2 teaspoon paprika

2 baguettes, thinly sliced

⁄2 cup butter, room temperature

⁄2 cup milk

⁄2 to 1 teaspoon minced garlic

Salt and pepper to taste

4-ounce can chopped green chilies,

with juice

1-ounce package taco seasoning mix

840087100 ENv02 9/5/01 2:28 PM Page 5
