Hamilton Beach 47334H, 47334 User Manual

BrewStation

®

Deluxe

de lujo

English ...................... 2

Français .................. 12

Español .................. 22

READ BEFORE USE
LIRE AVANT D’UTILISER
LEA ANTES DE USAR

Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900

¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100

Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.

Visit hamiltonbeach.com for
delicious recipes, tips, and to register
your product online!

Consulter hamiltonbeach.ca pour les
recettes délicieuses, conseils pratiques,
et pour enregistrer votre produit!

¡Visite hamiltonbeach.com.mx para
recetas deliciosas, consejos, y para
registrar su producto en línea!

Questions?
N'hésitez pas à nous appeler –
nos associés s'empresseront
de vous aider.
CAN: 1.800.267.2826

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 1

2

IMPORTANT SAFEGUARDS

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs. Care must

be taken, as burns can occur from touching hot parts or from
spilled, hot liquid.

3. To protect against electric shock, do not place cord, plug, or

BrewStation

®

in water or other liquid.

4. Close supervision is necessary when any appliance is used by

or near children.

5. Unplug from outlet when either the BrewStation

®

or clock is
not in use and before cleaning. Allow to cool before putting
on or taking off parts and before cleaning the appliance.

6. Scalding may occur if the lid is lifted during brewing cycle.

Do not open lid until coffeemaker has cooled completely.

7. BrewStation

®

must be operated on a flat surface away from

the edge of counter to prevent accidental tipping.

8. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.

9. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

10. Do not use outdoors.

11. Do not let cord hang over edge of table or counter or touch

hot surfaces, including stove.

12. The coffee tank is designed for use with this BrewStation

®

. It

must never be used on a range top or in a microwave oven.

13. Do not place BrewStation

®

on or near a hot gas or electric

burner or in a heated oven.

14. To disconnect BrewStation

®

, turn controls to OFF , then

remove plug from wall outlet.

15. WARNING! To reduce the risk of fire or electric shock,

do not remove the bottom cover. No user-serviceable parts
are inside. Repair should be done by authorized service
personnel only.

16. Do not use appliance for other than intended use.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:

SAVE THESE INSTRUCTIONS!

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 2

3

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug

(one wide blade) that reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or using
an adapter. If the plug does not fit, reverse the plug. If it still does
not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping over a
longer cord. If a longer cord is necessary, an approved extension
cord may be used. The electrical rating of the extension cord
must be equal to or greater than the rating of the BrewStation

®

.
Care must be taken to arrange the extension cord so that it will
not drape over the countertop or tabletop where it can be pulled
on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high­wattage appliance on the same circuit with your BrewStation

®

.

IMPORTANT

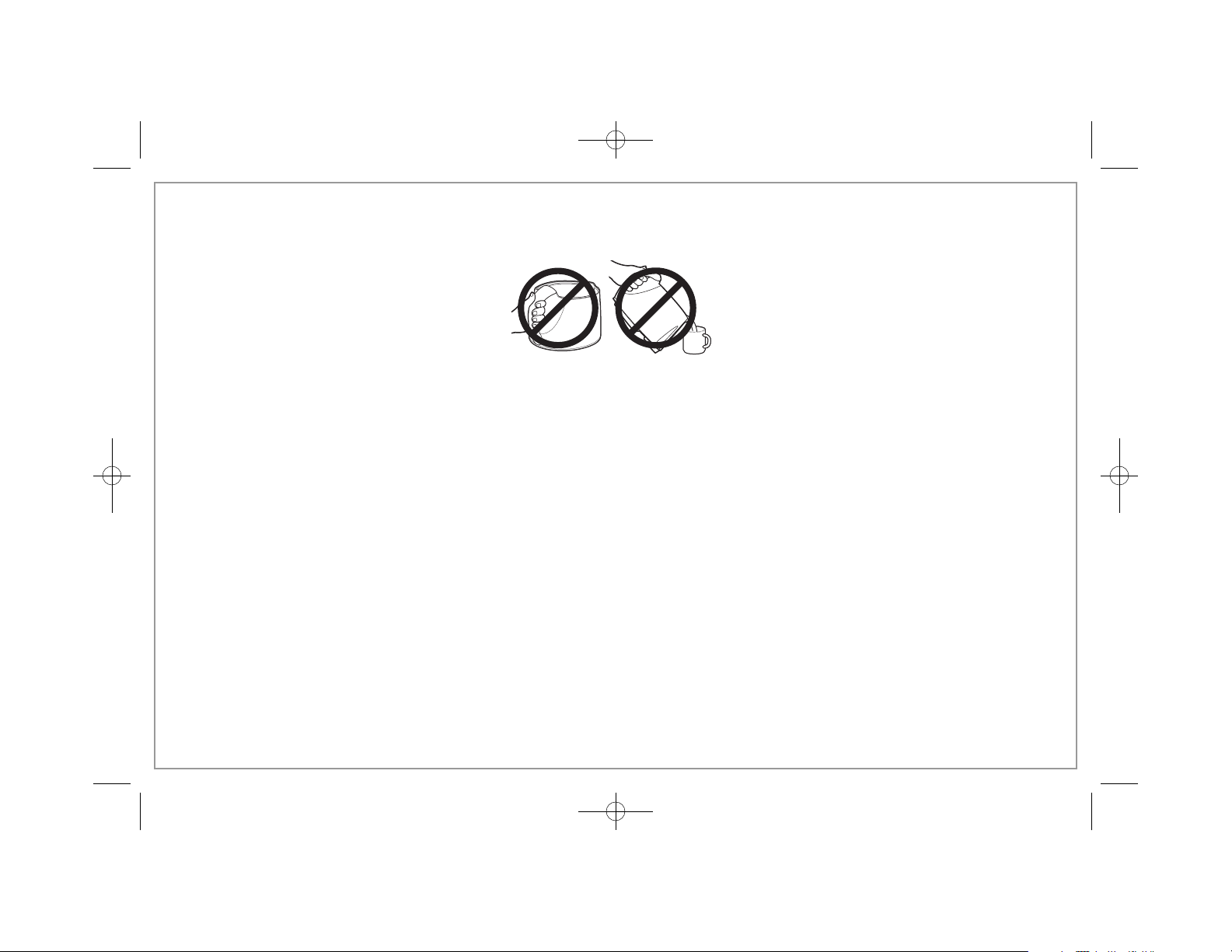

Never use coffee tank to pour hot coffee or carry hot coffee.

Handle coffee tank when it holds only cold water.

Additional Information

• If overflow occurs: Let unit, coffee, and grounds cool completely before attempting any cleanup.

• Use only brand-name, high-quality filters.

• Use only 3/4 tablespoon of ground coffee for each cup of coffee.

• Use coffeemaker cleaner to prevent hard water deposits that affect coffeemaker performance. Clean monthly.

• Do not clean coffee tank in dishwasher.

• Read instructions before using.

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 3

4

Parts and Features

Filter Basket

Coffee
Tank

Coffee and
Water Level
Guide

Coffee
Dispenser

Bar

Removable Drip Tray

Water
Reservoir

Keep
Warm
Plate

To Order Call:

1.800.851.8900 (U.S.)

1.800.267.2826 (Canada)

01.800.71.16.100 (Mexico)
or visit hamiltonbeach.com

Gold Tone

Permanent

Coffee Filter

Optional Accessories

Water Filter

Cover

Control
Panel

ON/OFF ( )
Button

Coffee Scoop

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 4

5

How to Make Coffee

1 2

4 5

Avoid getting coffee grounds in any
other areas of BrewStation

®

.

Before first use: Wash coffee tank, filter basket, and drip tray
in hot, soapy water. NEVER put water reservoir in dishwasher.

BrewStation

®

can be programmed to automatically shut off in
0 (for Iced Coffee), 1, 2, 3, or 4 hours as desired. Default is 2
hours for automatic shutoff.

Maximum Amount of Automatic

Drip Coffee to Use in BrewStation

®

Coffee Scoops* Tablespoons

Regular 13 11

Decaf 11 9

Normal Amount of Coffee Per Cup

1 scoop* or 3/4 tablespoon per cup

3

Brew Options

FLAVOR+

Enhanced full/strong-flavored coffee Press Brew Options Button until

Flavor+ is displayed.

1–4 CUPS

When brewing 1–4 cups of coffee or Press Brew Options Button until
when using decaffeinated coffee 1–4 Cups is displayed.

Burn Hazard.

• Never use coffee tank to pour or carry hot coffee.

• Handle coffee tank only when holding cold water for filling water reservoir
and to clean tank after BrewStation

®

has been shut off and the coffee is cool.

• If BrewStation

®

overflows, unplug unit. Allow unit, coffee, and grounds to

cool before cleaning unit, coffee, or grounds.

*optional feature on select models

w WARNING

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 5

6

6 7

Set Auto Off hours to 1, 2, 3, or 4.

How to Make Coffee

(cont.)

Permanent Gold Tone Filter

(Optional Accessory)

The Permanent Gold Tone Filter takes
the place of disposable paper filters.

Rinse in hot water before first use.
Then simply place in the filter basket.

Clean under hot, running water and let
dry, or place on top rack of dishwasher.

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 6

7

1

3

6 7

Fill coffee tank with water to the

M

AX FILL WATER line.

Fill coffee tank with ice to the

M

AX FILL ICE line.

Set Auto Off Hours to 0.

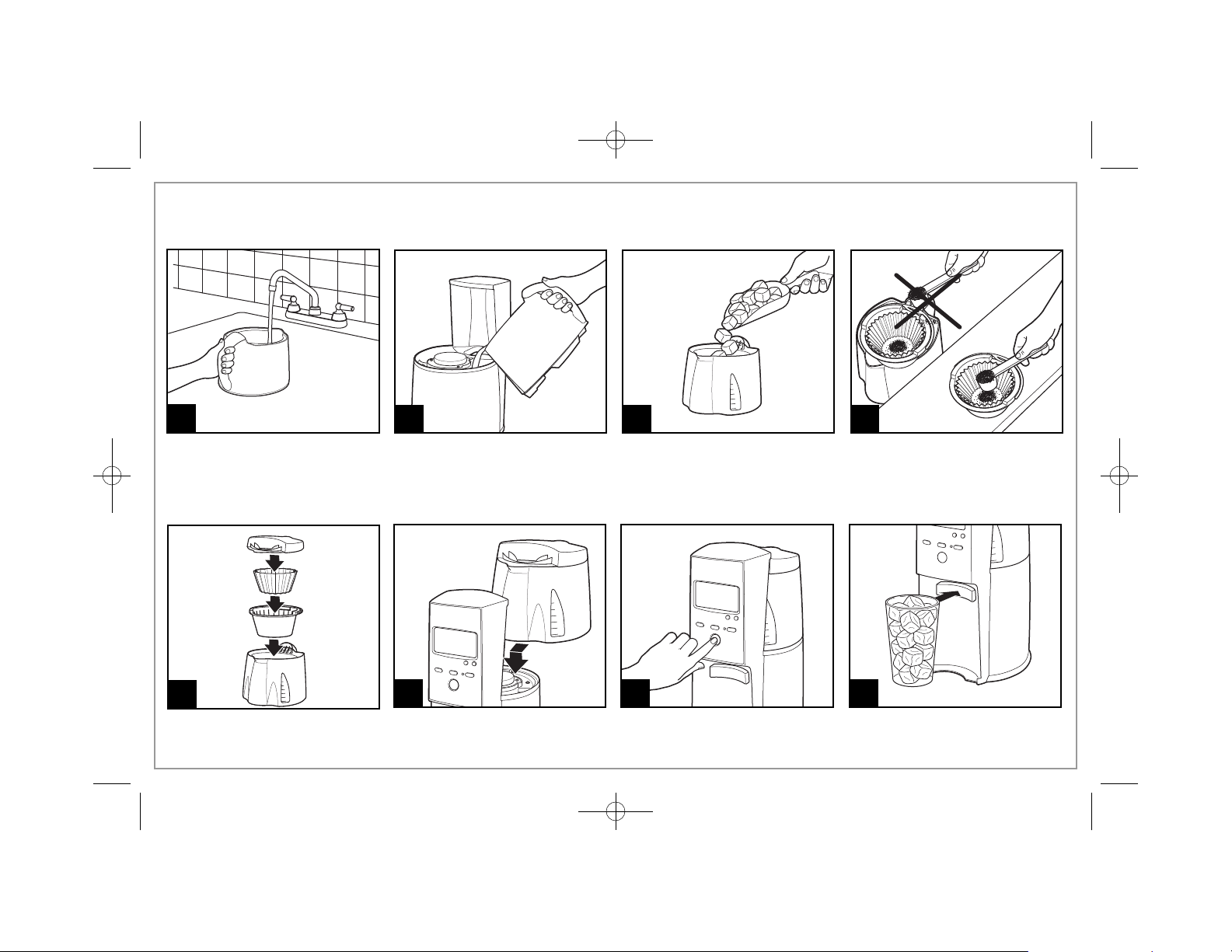

How to Make Iced Coffee

8

5

4

Brew double-strength coffee for
Iced Coffee. Add 2 scoops* or
2

3

/4 tablespoons of ground coffee

per cup.

2

*optional feature on select models

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 7

8

Programming

1 2 3 4

Press H and then M to set clock. Hold PROG until clock flashes. Continue holding PROG button;

press H and M until the desired
brewing start time is reached.

Press PROG momentarily to
activate automatic brewing.

Water Filter

(optional accessory)

2

3

Water Filter (Optional Accessory)

Every 60 cycles, will appear to
indicate a new water filter is
needed. It will only stay illuminated
for 2 cycles.

For better tasting coffee, use a water filter.
Filter replacement is recommended every 60 cycles.

To Order Water Filter Call:

1.800.851.8900 (U.S.)

1.800.267.2826 (Canada)

01.800.71.16.100 (Mexico)
or visit hamiltonbeach.com

1

15 min.

840157402 ENnv04.qxd 9/8/08 9:22 AM Page 8

9

Cleaning with Vinegar

1 2 3

Remove optional water filter. Pour 1 pint (2 cups/500 ml)

vinegar into water reservoir.

Press ON ( ). Turn OFF ( )

after 20 seconds and wait 30
minutes. Press ON ( ). Turn

OFF ( ) when finished.

Clean BrewStation

®

at least once a month (once a week for areas with hard water).

5

Run 2–3 more brew cycles with
CLEAN WATER only. Allow to
cool between cycles.

4

When cool, dispense several cups
before emptying and rinsing
reservoir.

Cleaning

Every 30 cycles, will appear
to indicate cleaning of coffeemaker
is needed. It will only stay illumi­nated for 2 cycles.

NOTE: A power failure or unplug­ging the unit will reset cycles to
zero.

840157402 ENnv04.qxd 9/12/08 10:16 AM Page 9

10

PROBLEM

Coffee leaks from dispenser.

appears on clock.

appears on clock.

Coffee tastes bad.

Coffee not brewing/coffee
stops brewing/unit will not
turn on.

Coffee brews slowly.

Coffee overflows basket.

PROBABLE CAUSE

• Coffee grounds trapped in coffee tank dispensing mechanism under seal in coffee tank.
See “Cleaning with Vinegar.”

• This is a reminder to clean every 30 cycles. It will disappear after 2 cycles.

• Mineral deposits have built up. Clean the coffeemaker following Cleaning Instructions.

• Coffeemaker needs cleaning.

• Coffee ground too coarsely or too finely. Set to automatic drip grind.

• Coffee-to-water ratio unbalanced. Adjust for personal preference.

• Poor water quality. Use water filter or bottled water to make coffee.

• Mineral deposits have built up. Clean the coffeemaker following “Cleaning with Vinegar.”

• Water reservoir is empty.

• Unit is unplugged.

• Power outage.

• Power surge. Unplug; then plug the unit back in.

• Coffeemaker needs cleaning. Clean the coffeemaker at least every 30 days to maintain
proper performance.

• Excessive amounts of coffee grounds. See Table on page 5.

• Coffee ground too finely. Set to automatic drip grind.

• More than one paper filter in filter basket.

• Poor quality paper filter or wrong size paper filter.

• Coffee is decaffeinated blend. Use 1–4 Cups Brew Options when brewing with
decaffeinated coffee.

Troubleshooting
