HAMEG HZ42, HZ43, HZ45, HZ46 Assembly Instructions

19“ Rackmount-Kit

HZ42, HZ43, HZ45, HZ46

Assembly Instructions

English

Assembly Instructions

HZ42 / HZ43 Assembly Instrucions

HZ42: 19“-Rackmount-kit 2HE (75 mm)

for: HM7042-5, HM8001-2, Serie 8100, Serie
HMF, HMP2020, HMP2030, HM8143

HZ43: 19“-Rackmount-kit 3HE (125 mm)
for: HM2005, HM303-6, HM504-2, HM507,
HM5510, HM5014-2, HM5530, HM6050-2,
HM7044, HMP4030, HMP4040,

9

10

6

5

7

8

11

Hameg Gerät

12

13

1

Advice concerning the frame-feet of the instrument
used in HZ42 and HZ43:

The frame-feet of the instrument to be mounted will cause
an overlap of the 2 Rack-Units (HZ42: 89mm) repective 3RU
(HZ43 133mm) height if no space is used between 2 mounted
instruments. In this case the removal of the frame-feet of the
instrument (opening of the instrument, break the warranty
seal, removal of 4 rivets) is necessary. We recommend to order
the instrument(s) to be rack mounted to specify to be delivered
without the feet. In this case the instrument(s) will be supplied
with the feet removed in the factory, allowing the warranty seal
to remain in place.

2

4

3

1 Handle (Griff)
2 Front Panel (Frontplatte)
3 Distance Plate (Distanzblech)
4 Side Frame (Seitenteil)
5 Rear Panel (Rückplatte)
6 Flat headed Screw (Flachkopfschraube)
7 Toothed lock washer (Zahnscheibe)
8 Hex Nut (Sechskant Mutter)
9 Flat headed Screw (Flachkopfschraube)
10 Toothed lock washer (Zahnscheibe)
11 Washer (Unterlegscheibe)
12 Washer (Unterlegscheibe)
13 Flat headed Screw (Flachkopfschraube)

2

Änderungen vorbehalten

Mounted Frame-Feet exeed 2RU (=89mm HZ42)
respective 3RU (=133m HZ43) height’

Assembly Instructions

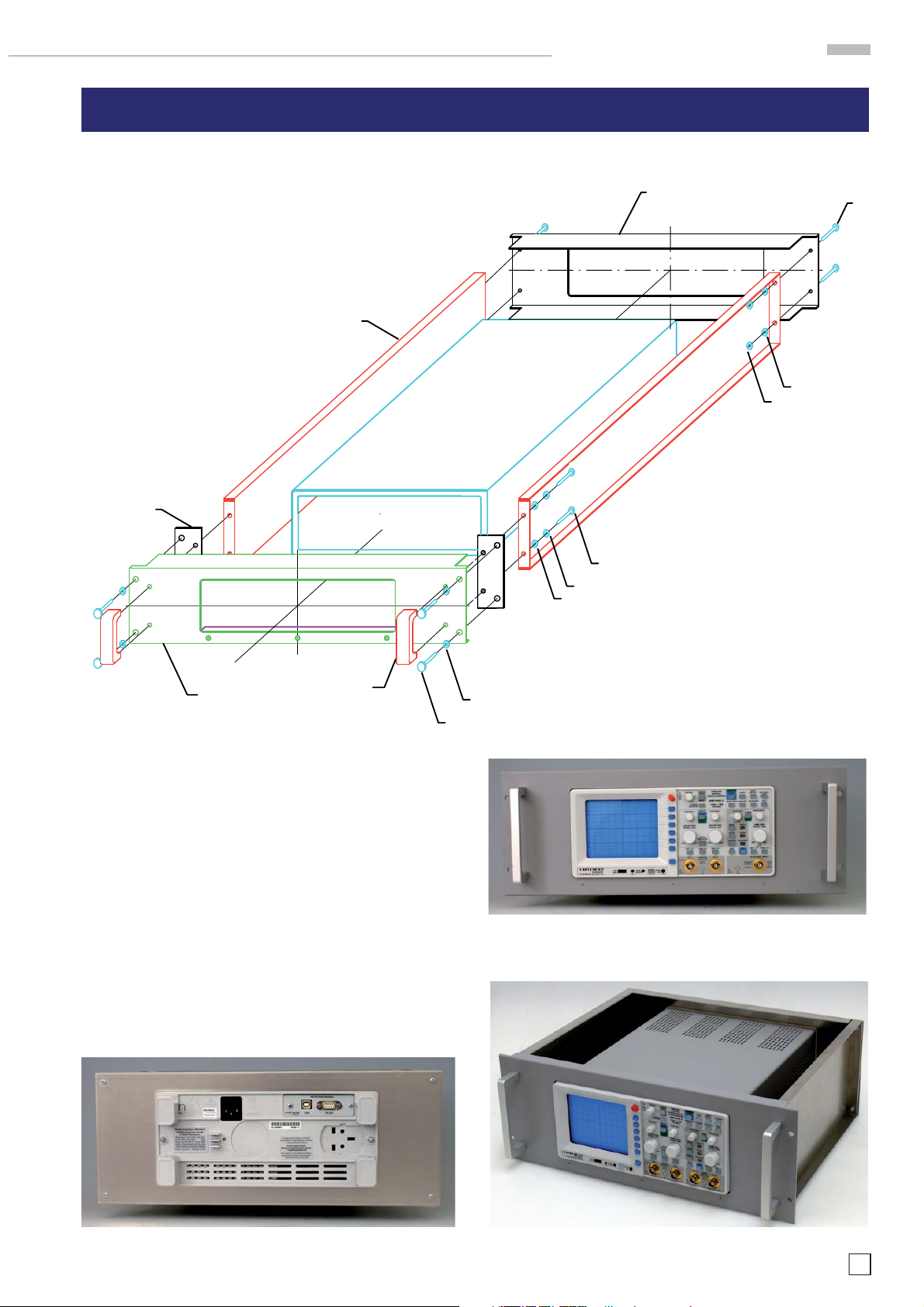

HZ45 Assembly Instructions

HZ45: 19“-Rackmount-kit 4HE (125 mm)

for: HM400, HM1000, HM1000-2, HM1008, HM1008-2,
HM1500, HM1500-2, HM1508, HM1508-2, HM2005-2,
HM2008

4

3

Hameg Gerät

11

10

5

6

7

8

9

2

1 Handle (Griff)
2 Front Panel (Frontplatte)
3 Distance Plate (Distanzblech)
4 Side Frame (Seitenteil)
5 Rear Panel (Rückplatte)
6 Flat headed Screw (Flachkopfschraube)
7 Toothed lock washer (Zahnscheibe)
8 Hex Nut (Sechskant Mutter)
9 Flat headed Screw (Flachkopfschraube)
10 Toothed lock washer (Zahnscheibe)
11 Washer (Unterlegscheibe)
12 Washer (Unterlegscheibe)
13 Flat headed Screw (Flachkopfschraube)

1

12

13

Änderungen vorbehalten

3

Assembly Instructions

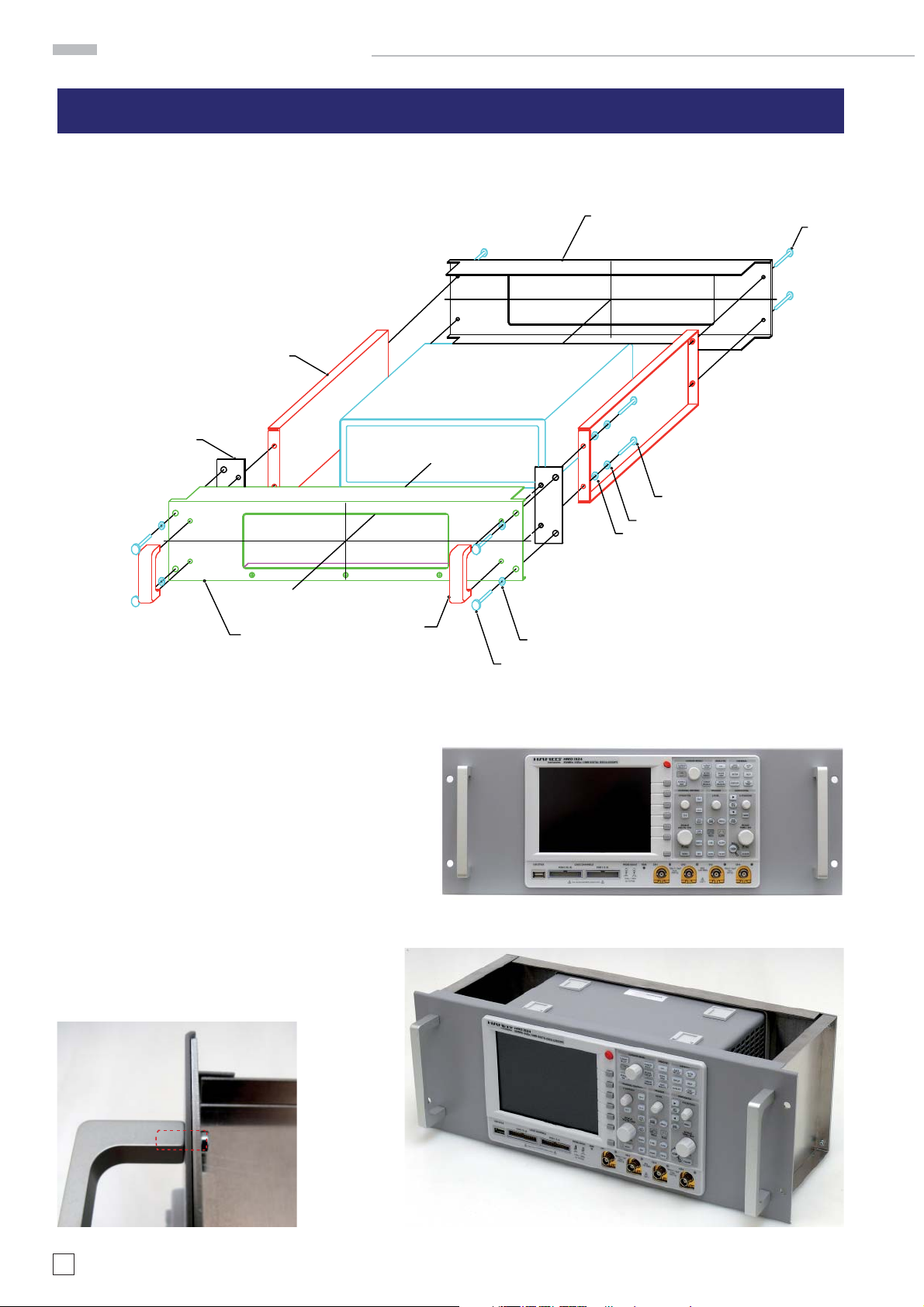

HZ46: 19“-Rackmount-kit 4HE (175 mm)

for series HMO und HMS

4

HZ46 Assembly Instructions

5

6

3

2

1 Handle (Griff)
2 Front Panel (Frontplatte)
3 Distance Plate (Distanzblech)
4 Side Frame (Seitenteil)
5 Rear Panel (Rückplatte)
6 Flat headed Screw (Flachkopfschraube)
7 Toothed lock washer (Zahnscheibe)
8 Hex Nut (Sechskant Mutter)
9 Flat headed Screw (Flachkopfschraube)
10 Toothed lock washer (Zahnscheibe)
11 Washer (Unterlegscheibe)
12 Washer (Unterlegscheibe)
13 Flat headed Screw (Flachkopfschraube)

Hameg Gerät

7

8

9

1

10

11

4

Änderungen vorbehalten

Different Perspectives

Assembly Instructions

Front View HZ42/43

Bottom View HZ45

Rear View HZ42/43

Side View (right)

Side View HZ46

Top View

Rear View HZ46

Änderungen vorbehalten
