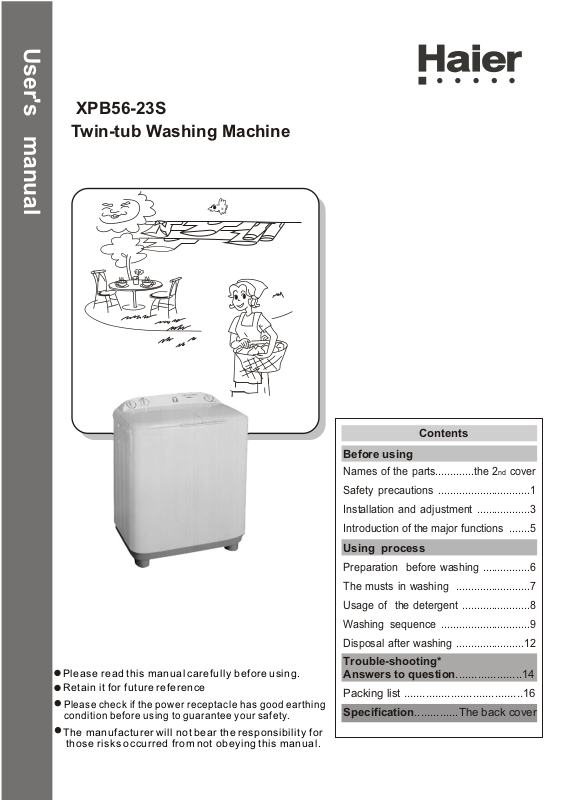

Haier XPB56-23S User Manual

User's manual

XPB56-23S
Twin-tub Washing Machine

Please read this manual carefully before using.
Retain it for future reference

Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

Contents

Before using

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Using process

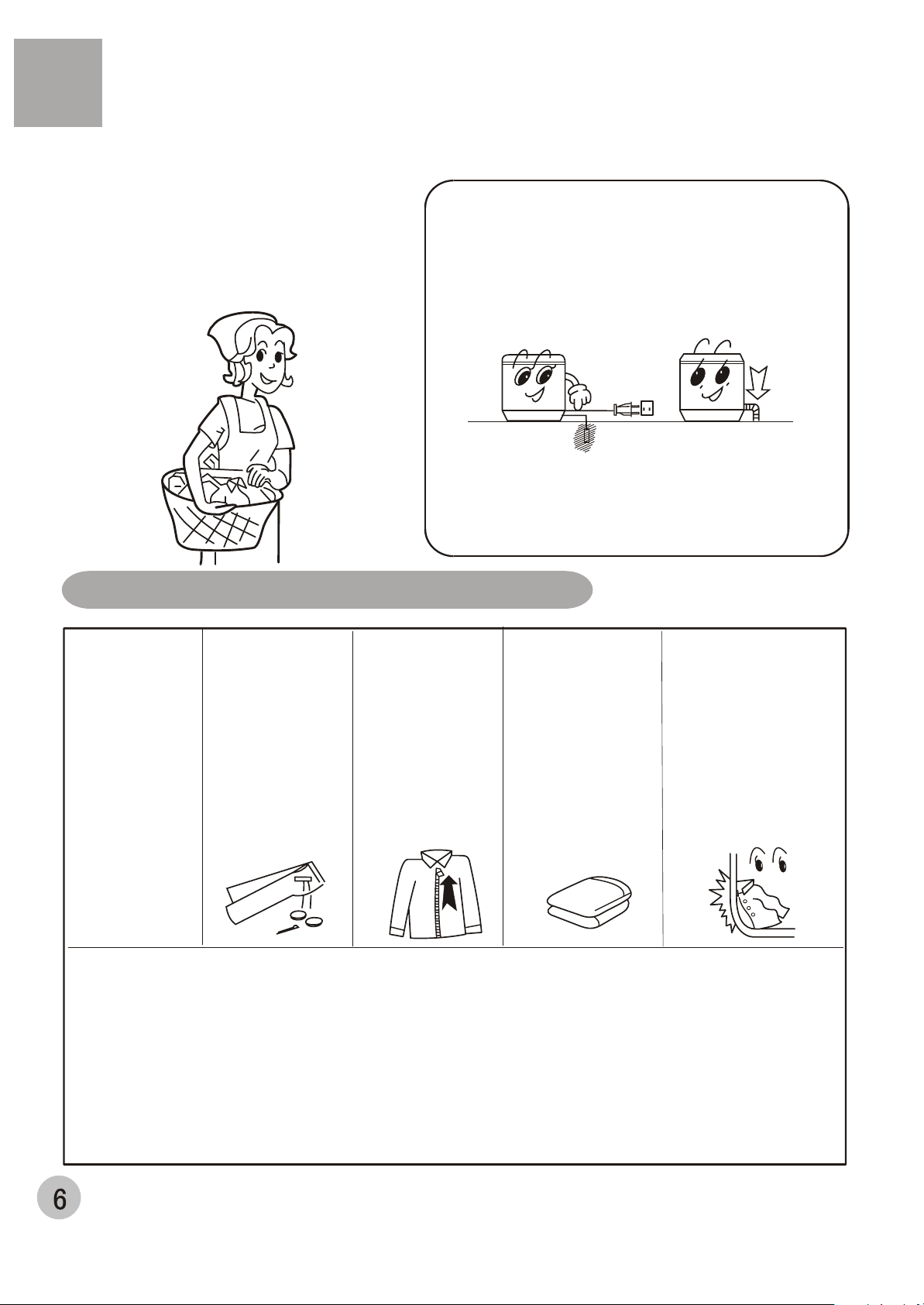

Preparation before washing ................6

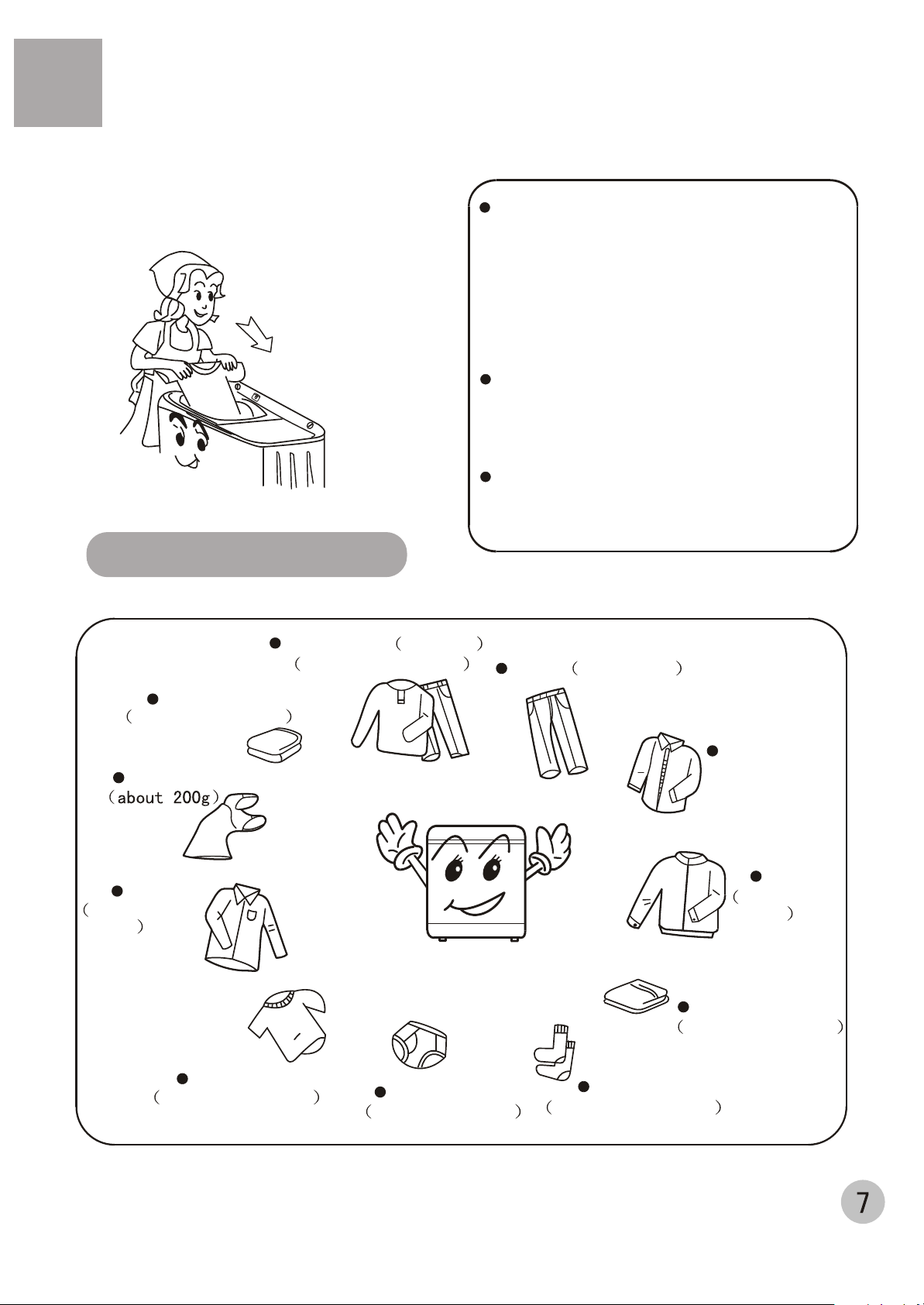

The musts in washing .........................7

Usage of the detergent .......................8

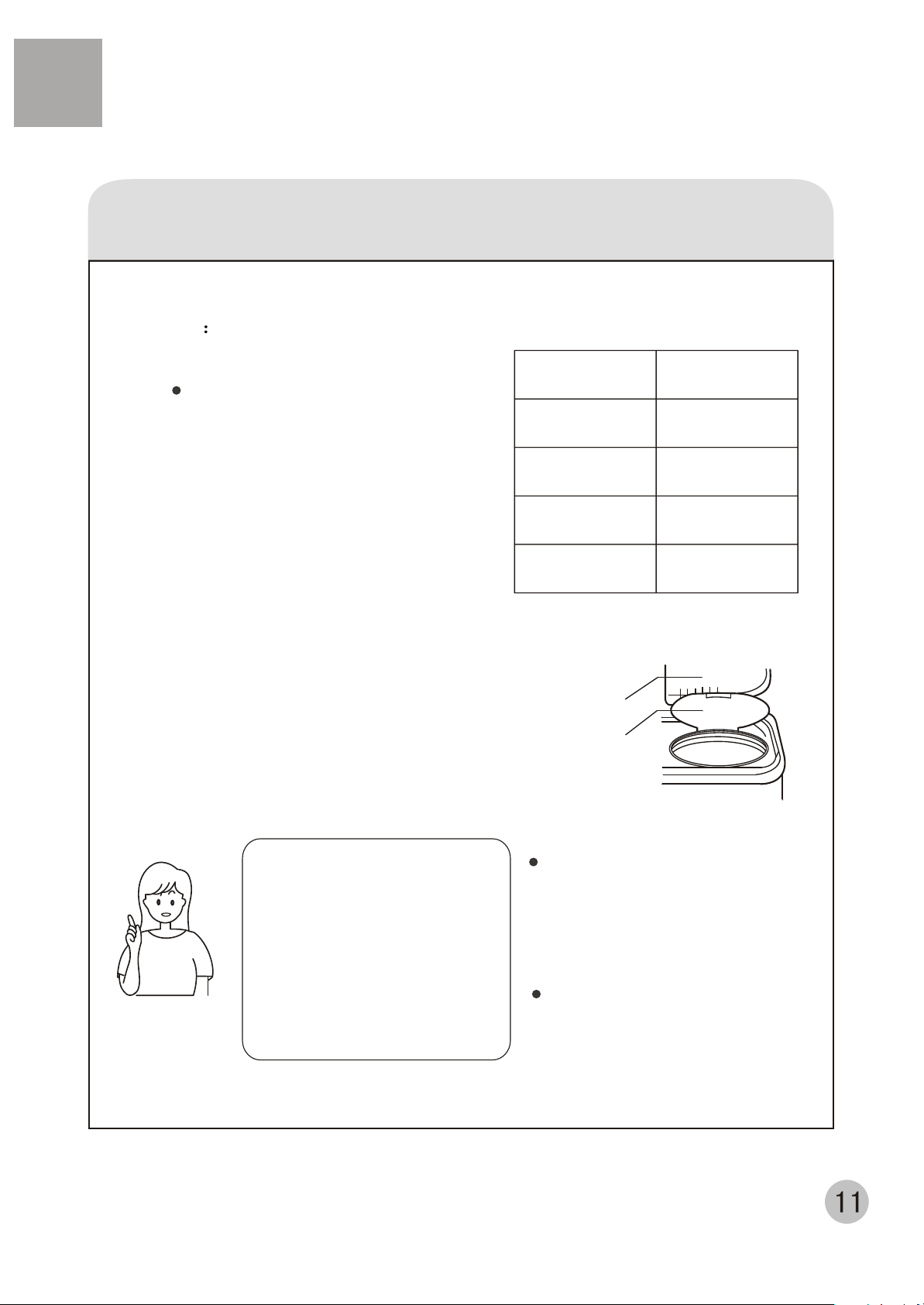

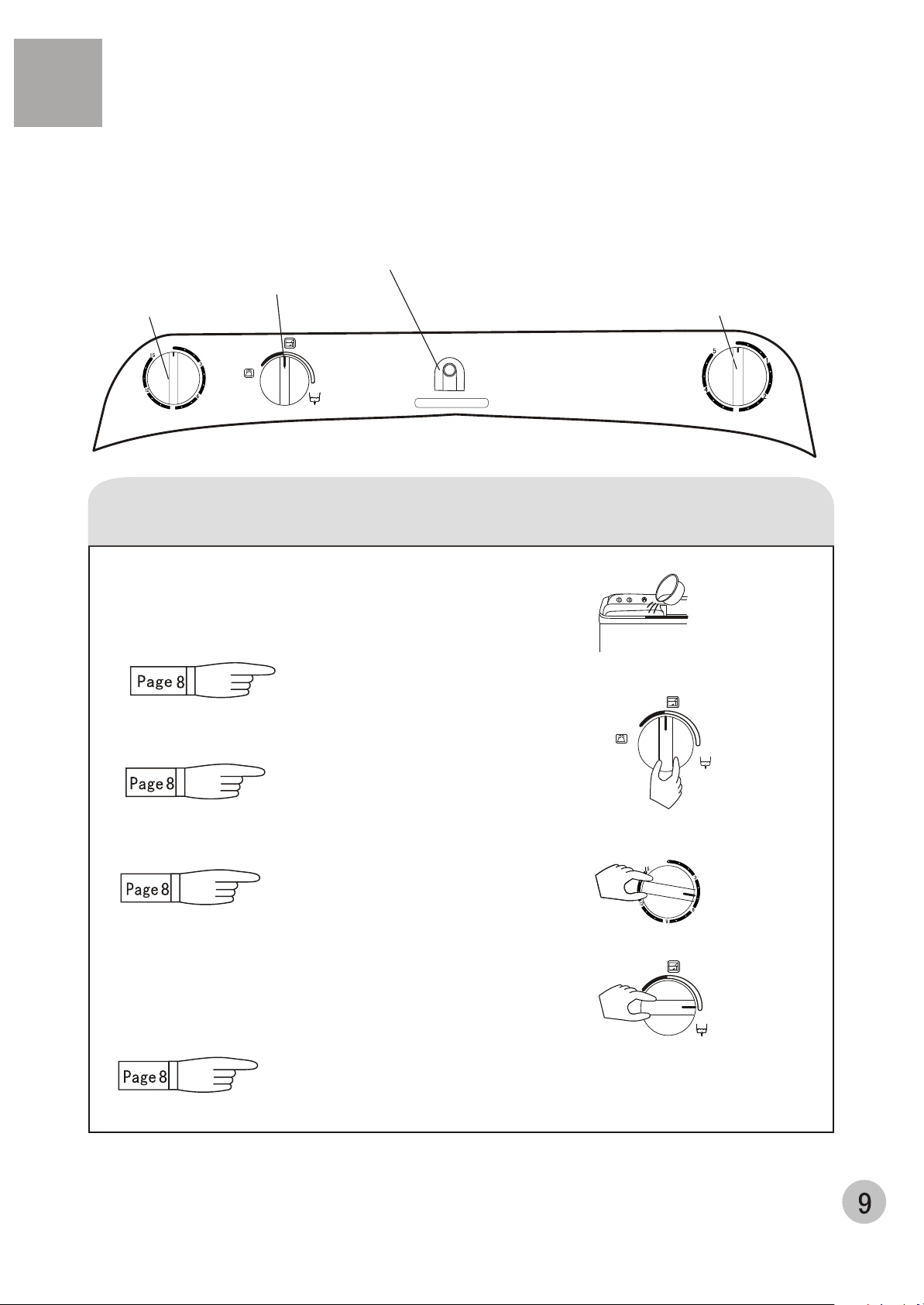

Washing sequence ..............................9

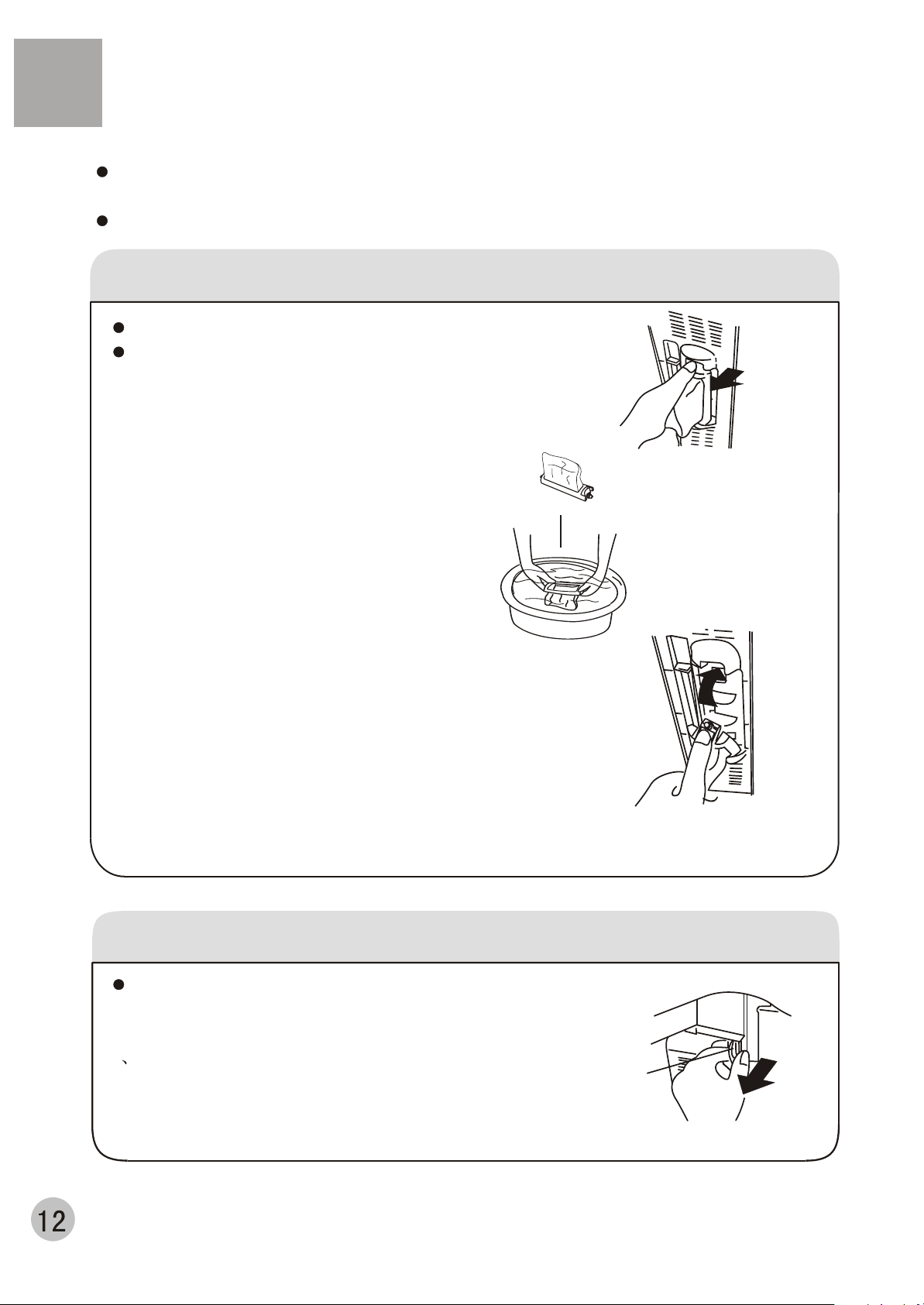

Disposal after washing .......................12

Trouble-shooting*

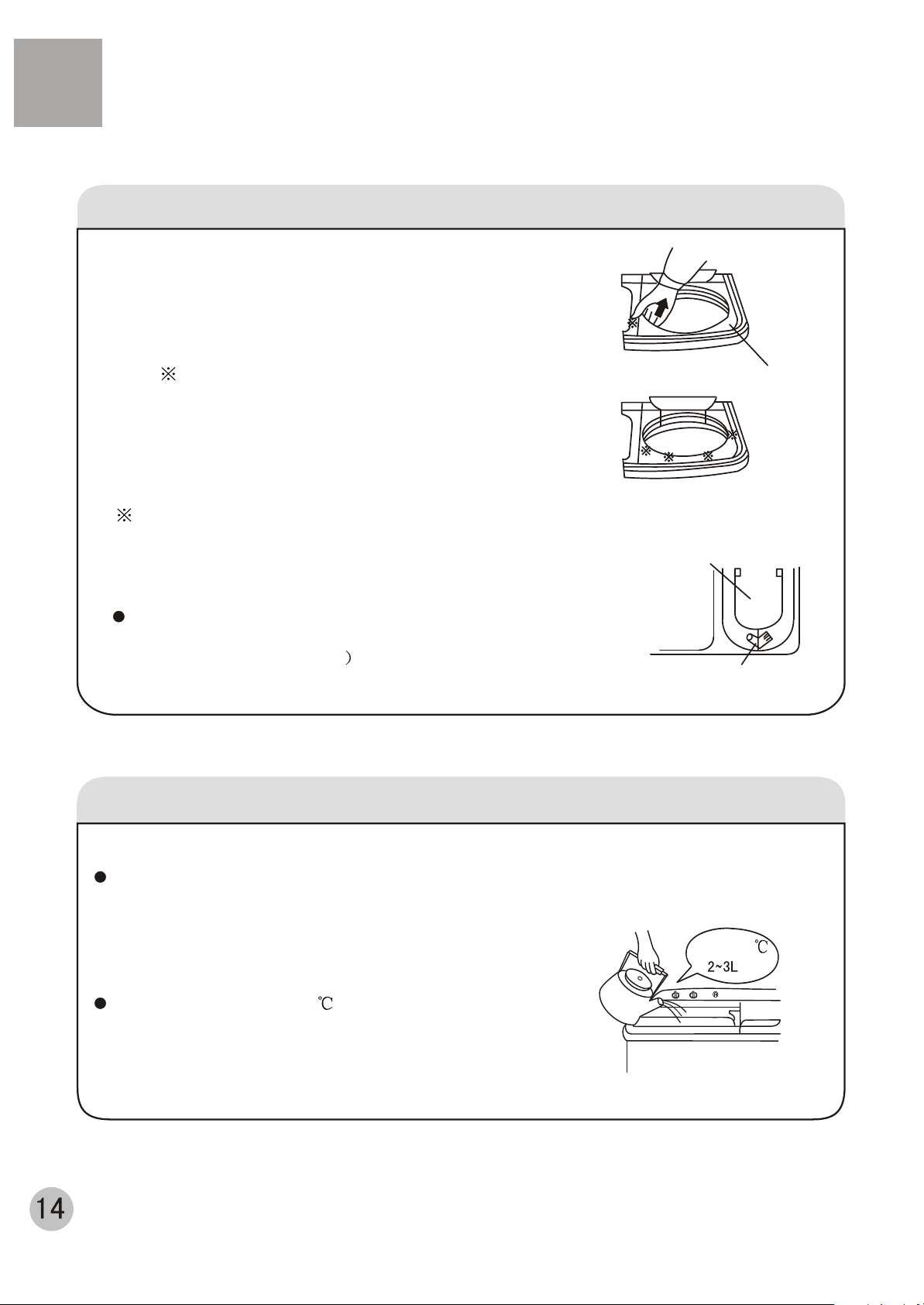

Answers to question.....................14

Packing list ......................................16

Specification..............The back cover

The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.

Names of the parts

Water-filling entrance

Water selector

Wash timer

Control panel

Overflow filter
Quick water-filling entrance

Water level adjusting lever
Drain hose hanging hole

Lint filter(Installed by user)

Valve cover
Pulsator
Wash tub

Wash tub cover

Drain hose

Before Using

Before Using

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Earthing line

Power cord

Base frame

Accessories

Water-filling jointer
(one piece)

Lint Filter
(one piece)

Water inlet hose
(one piece)

Gland
(one piece)

Meaning and description of the symbols

Contents marked with that symbol

Warning sign

Forbidding sign

are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.

Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.

Safety precautions

Before Using

Before Using

Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase two pins receptacle.
The earthing line must be earthed reliably.
If possible,please adopt electric leakage
protector.

Earth

If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.

In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.

Be sure to pull the plug off when there's
power failure, or the machine is being
moved, cleaned or when it is idle.

Do not use water hotter than 50 C .

Ventilation hole at
the bottom of the
washing machine

Do not put the machine at damp place
like the bathroom . Never wash it with
water.

Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.

Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.

Safety precautions

Before Using

Before Using

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.

Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.

Do not decompose, repair or alter the
machine by yourself.

Do not wash laundries with volatile
materials (such as thinner, petrol etc.).

Petrol

Thinner

Handicapped or children without care
shall not use the machine.

To protect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.

Keep the machine away from direct
sunlight and heat source like the
heater.

Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.

Before Using

Installation and adjustment

Before Using

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.

2.Do not tramp or press the drain hose.

3 If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.

<10cm

4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.

If the extra hose is too long, cut it either
at point A or B.

Install the lint filter

After opening the package,pllease take out the lint filter from

After opening the package,please take out the lint filter from
the document bag,install it to the overflow filter of the wash

the document bag,install it to the overflow filter of the wash
tub.See to the figure.

tub.See to the figure.

> 30mm

<1.5m

BA

Overflow filter

Lint filter

Before Using

Before Using

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation
position of the drain hose.

Soft item

Extend the drain hose from the side of spin tub

Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).

Embed the drain hose into the groove along the side

Soft item

of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.

Extend to the
spin tub side

Extend the drain hose from the rear side

Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).

Embed into the
groove in turn

Back

Front

Figure 1

Figure 2

Figure 3

Figure 4

Install the water inlet hose; Select the water level

Insert the water inlet hose into the water-filling
entrance on the control panel.

Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.

Page8

Maximum

about 43L

Medium

about 36L

Minimum

about 30L

Water inlet hose

Water level
indicator

Max

Med

Min

Water inlet

Using process

Introduction of the major function

The machine has good comprehensive performance, and nice appearance.
For the design on safety and reliability, it adopts the wash shelf, spin shelf and water
inlet vessel design, and reduces the unfavorable influence on the electrical component
by the vapor. Therefore it guarantees more safe and reliable washing..
It adopts complete enclosed base frame and low-noise motor, and thus reduces the
working noise significantly. We can guarantee that the purchase of this machine will bring
you a clean world without disturbing your quiet life.

Using process

Quick water-filling entrance

You can fill water into the wash tub directly

through this entrance. It can reduce the

humidity inside the control panel significantly

and prolong the operating life of the components.

Insert the water inlet hose into the water-filling
entrance, then push the water-filling jointer into
the quick water- filling entrance. (To dismantle
the water inlet pipe, just push the control handle
as indicated in the figure and pull it out)

Quick water-filling entrance

Water inlet hose

Water inlet jointer

Push

Control handle

Quick water-filling entrance
