Haier WM220 User Manual

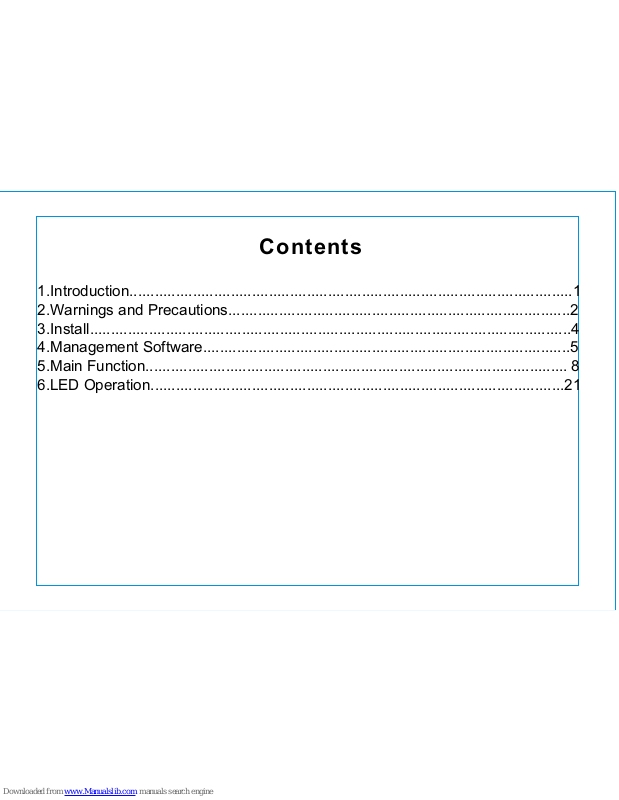

Contents

1.Introduction.........................................................................................................1

2.Warnings and Precautions.................................................................................2

3.Install..................................................................................................................4

4.Management Software.......................................................................................5

5.Main Function.................................................................................................... 8

6.LED Operation..................................................................................................21

1

1.Introduction

Thank you for using WM220 USB Modem. To guarantee the WM220 always in
its best condition, please read this manual carefully and keep it for further use.
The pictures, symbols and contents in this manual are just for your reference.
They might not be completely identical with your WM220.
Your WM220 packing box includes:
USB modem, extension line, user manual & warranty card
With the WM220, you can easily:

Access the Internet
View the statistics
SMS
Support for USSD Feature
Use the phonebook

Features

Technical Standard: GPRS/EDGE/HSDPA/WCDMA
USB Interface Standard: USB Version 2.0 High Speed
Maximum Transmit Power: GSM 900: 32dBm; GSM 1800: 29dBm; GPRS/EDGE:
27dBm; HSDPA/WCDMA: 24dBm
Data Rate: GPRS: Uplink 64 Kbps (maximum), Downlink 64 Kbps
(maximum).EDGE: Uplink 64 Kbps (maximum), Downlink 114 Kbps (maximum).
3G: Uplink 64 Kbps (maximum), Downlink 384 (maximum). HSDPA: Uplink 64
Kbps (maximum), Downlink 3.6 Mbps (maximum)

2

Frequency Band: GSM 900/1800; WCDMA 2100
Dimensions: 89mm*28mm*10.5
Weight: 20.60g
Operating Temperature: 0-40
Storage Temperature: -25 -62
Operating Humidity: 10% - 85% RH
Storage Humidity: 10% - 90% RH
System requirements
To use the WM220, the following requirements are recommended for your computer:
CPU: Pentium4 1GHz or above
Memory: 256MB or above
Hard Disk: 50MB free disk space
OS: Windows 2000/XP/Vista/Macintosh Operating System (10.4 and above) or
Linux
Interface: USB1.1 or above
Note: If the configuration of your computer is inferior to the recommended
configuration, the running performance of the USB Modem may be affected.

2.Warnings and Precautions

Read the safety precautions carefully to ensure the correct and safe use of your
WM220.

3

Do not switch your wireless device on when the use of wireless devices is

prohibited or when the wireless device may cause interference or danger.

Observe the relevant regulation of the area or country where you are. Do not

use your wireless data card while driving to avoid traffic accident.

Follow relevant rules or regulations in hospitals and health care facilities.

Switch your wireless device off near medical devices.

Observe the rules and regulations of airline companies. Switch your wireless
device off in aircraft. The radio signal from it may cause interference to control
signals of the aircraft.

Switch your wireless device off near high-precision electronic devices. It may
affect the performance of these devices.

Do not attempt to disassemble your wireless device or its accessories.
Only qualified personnel may service or repair the wireless device.

Do not place your wireless device and its accessories in containers with strong
electromagnetic field.

Do not place magnetic storage media near your wireless device.
Radiation from the wireless device may erase the information stored on them.

Do not put your wireless device in a high-temperature place or use it in a place
with flammable gas such as a gas station.

The wireless data card is not water-resistant. Keep it dry. Protect the wireless

4

data card from water or vapor. Do not touch the wireless data card with a wet hand.
Otherwise, short-circuit and malfunction of the product or electric shock can be
caused.

Keep your wireless device and its accessories away from children. Do not allow
children to use your wireless device without guidance.

Observe any laws or regulations on the use of wireless device. Respect others'
privacy and legal rights when using your wireless device.

3.Install

Open the back cover

Insert the UIM card

5

Insert the T-Flash card (micro SD)

4.Management Software

Installation & Uninstalling

The installation process is subject to different operating systems, such as Windows
2000, Windows XP, Windows Vista, Macintosh, Linux. During the
actual installation, if any step differs from what is described here, follow the
specific installation instructions.

Installation

1.Put the WM220 into the USB interface;

2.The setup program starts automatically, and the WM220 installation interface is
displayed later.

3.Follow the instructions of the program;

4.Once the installation completes, the shortcut icon for WM220 Manager appears
on the desktop;

6

5.When the system prompts you that the installation is finished, click <Finish> to
finish the installation of the WM220 Manager.

Uninstalling

Uninstalling the WM220 Manager through the Add / Remove in the Windows.

Note

Only enable the windows CD-ROM auto-run feature the USB modem can install
automatically.

Accessing & Exiting
Accessing the WM220 Manager GUI

1. To start program, double-click the shortcut icon of the WM220 Manager on
the desktop;

2. If you are prompted to enter PIN code, enter the correct one and click <OK>;
You can try 3 times to enter your PIN code. If you failed to do that after 3 times,
your USIM card would be locked, if this happens, use the PUK code to unlock it.
You can try 10 times to enter your PUK code. If you failed to do that after 10 times,
your USIM card cannot be used, if this happens, please contact your network
operator.
If you failed to enter PIN or PUK code, the WM220 Manager is not available for
you.

Exiting the WM220 Manager

Click the button on the right corner on the interface.

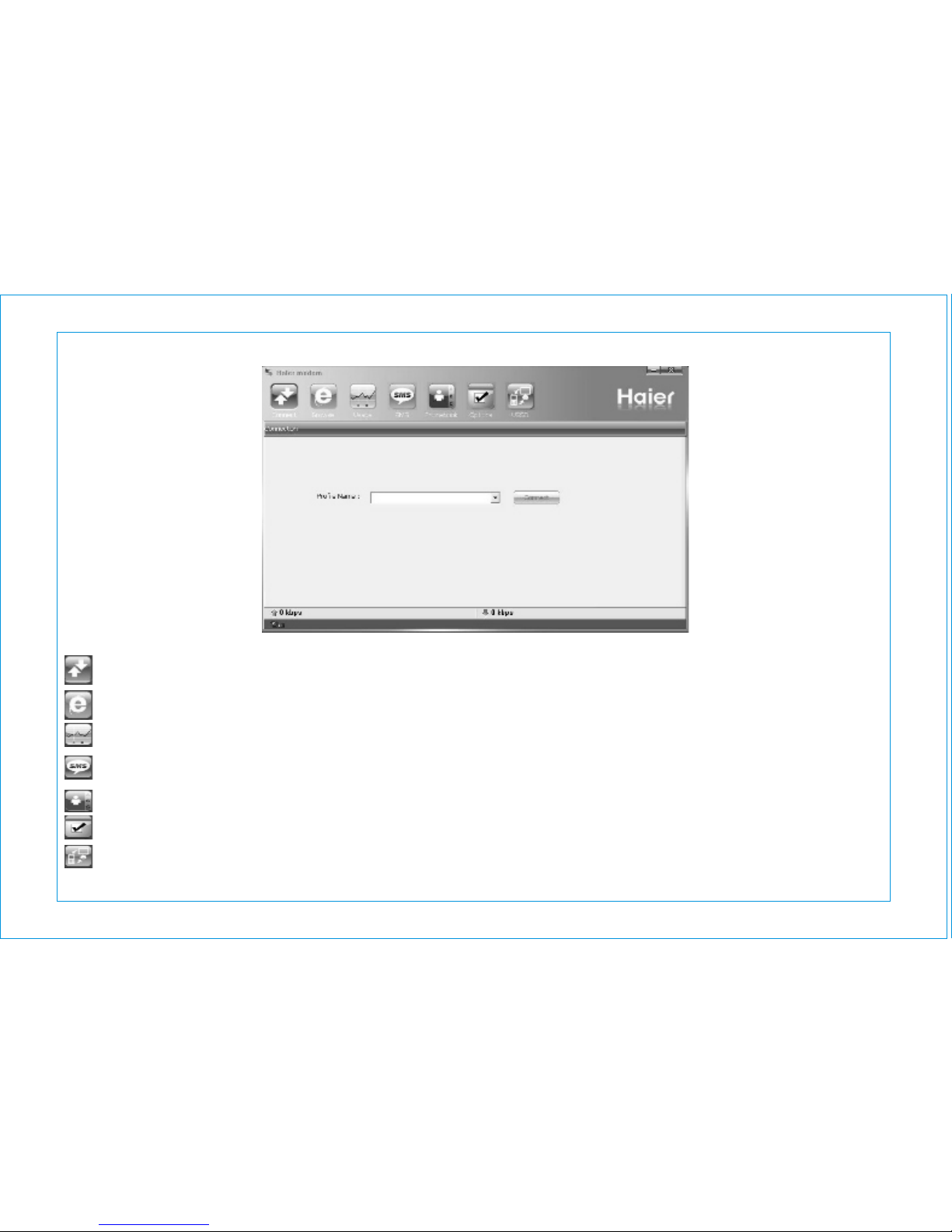

Instruction to the main interface
