TFT-LED LCD TV

LEC19B1320 LEC22B1380 LEC22B1380W LEC24B1380

Contents

Safety and warnings.......................................................................................2-3

Introduction..................................................................................................4

Stand installation guide................................................................................. 5

Installation................................................................................................... 6-9

Remote Control............................................................................................10

Operation..................................................................................................... 11-15

Trouble Shooting...........................................................................................16

DVD Operation............................................................................................. 17-20

DVD Trouble Shooting...................................................................................21

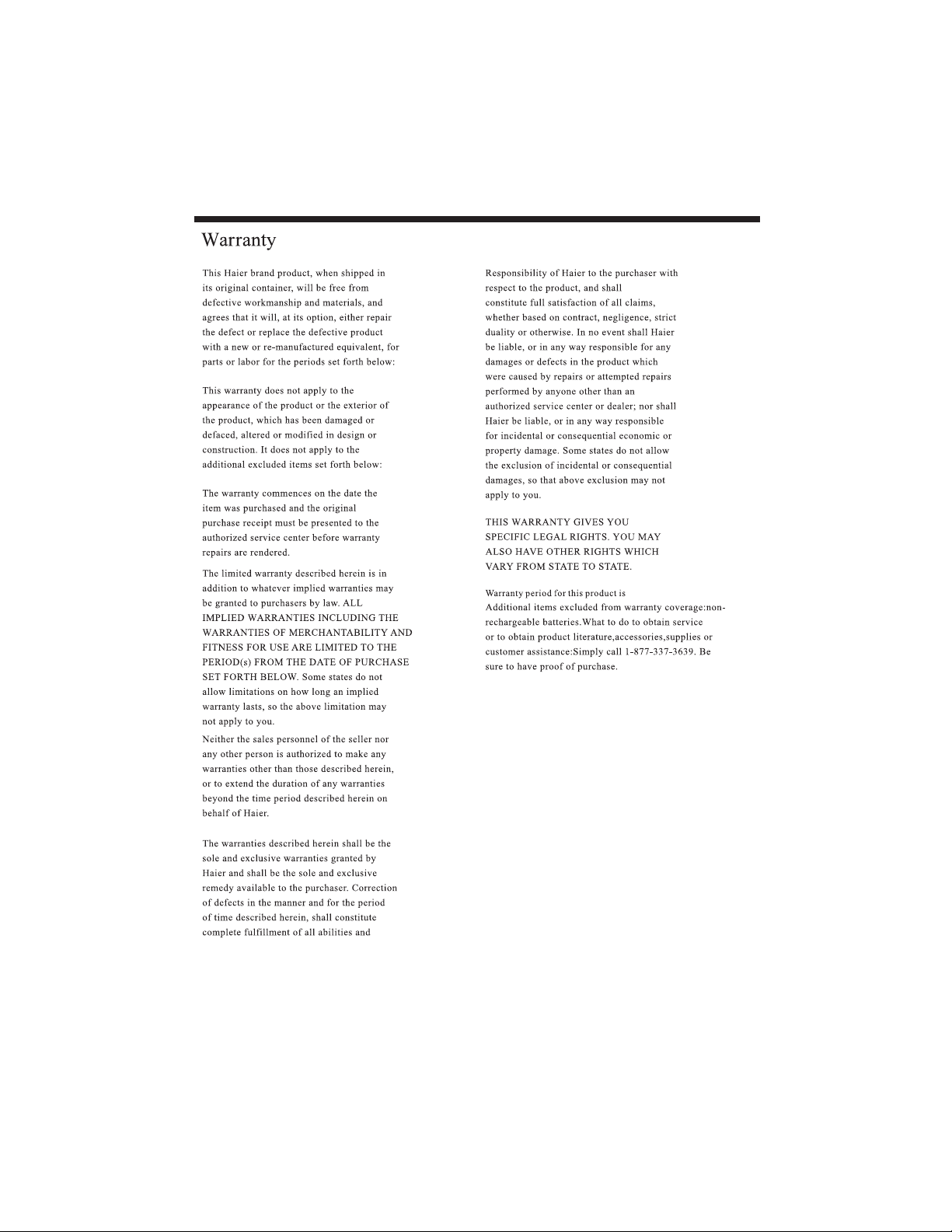

Warranty.......................................................................................................22

-1-

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this near water.

Television

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiations, heat registers, stoves, or other

Television

(including amplifiers) that produce

heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the .

Television

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this during lighting

Television

storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the

Television

has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

Television Television

, the has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Only use attachments/accessories specified provided by the manufacturer, the product is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the .

Television

17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of in moderate climate.

Television

SAFETY AND WARNINGS

WARNING:

To reduce the risk of fire or electric shock, do not expose this to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING:

Never place heavy or sharp objects on the LCD panel or frame.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM or call 1.800.RECYCLING.

Television

-2-

SAFETY AND WARNINGS

High voltages are used in the operation of this television receiver. Do not the cabinet. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes on the back cover . Adequate ventilation is essential to prevent failure of electrical components.

open

of the TV

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and damage to the television may result if it falls.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on

the television.or near

/or

Do not trap the power supply cord under the television receiver .s' stand

Dim:515*320mm(

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.

-3-

Main features

Accessories

INTRODUCTION

Integrated ATSC TV tuner for HDTV broadcast reception High brightness provides a vivid and brilliant picture Deeper blacks and brighter whites with high contrast Wide Screen aspect ratio (16:9) for a complete home theater experience HDMI input for true digital connection VGA port for connection to PC Built-in stereo speaker system Full-function Remote Control

Main parameter

Viewing Picture Size (diagonal)

Resolution:

Power supply

Audio Output Power (THD 7%):

Aspect Ratio:

TV System:

Video Signal System:

Receiving Channel:

High-Definition Multimedia Interface (HDMI) Input

YCb(Pb)Cr(Pr) Input

Composite Video Input

Analog RGB (VGA) Input

Audio Input x 2

Headphone Output

Coaxial Output

USB Input

Horizontal definition (TV line)

19 inches

1366x768

DC 12V,3A(Power adaptor supplied)

2x3W

16:9

ATSC Digital system and NTSC Analog system

NTSC

Cable :1-135/ Air: 2-69 (ATV&DTV)

Composite Video Input >=350

Video Input >=400

YCb(Pb)Cr(Pr) >=400

Power adapter...................................

Infrared Remote Control....................

User s Manual .................................

Battery(AAA)................................... 2

22 inches

1920x1080

24 inches

1920x1080

-4-

Base Stand Assembly Instruction

1. Place the TV with the display side down on a flat surface. Use a cloth to protect .the display Position the stand base plate onto the bottom of the stand pole.

2. Attach the stand base plate to the stand pole by firmly tightening the supplied screw.

-5-

INSTALLATION

Front panel

30 30

1: Remote control sensor.

2: Indicator LED: BLUE POWER ON.

RED STANDBY.

3: Side panel keys

REAR Connections

Side panel

1. SOURCE:

2. MENU:

3. CH+/CH-:

change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items in standby mode, press "CH+" or "CH-" to turn on the TV.

4. VOL+/VOL-:

press "VOL+ " or "VOL- " to adjust the item that you selected.

5. STANDBY:

from STANDBY mode. Press it again to turn the set back to STANDBY.

Display the input source menu.

Display main MENU.

In TV mode, press "CH+" or "CH-" to

Adjust sound level. In MENU mode,

Press this button to turn the unit ON

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

POWER

COMPOSITE COMPONENT

LYPbPr

VIDEO R

All the terminals are (from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT Note: AV and YPbPr share one audio channel.

SIDE Connections

VGA

HDMI1 HDMI2

USB

All the terminals are (from left to right): HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF. Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must be

connected to the PC audio input.

2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must be connected to the YPbPr/AV audio input.

-6-

HEADPHONERFPCAUDIO COAXIAL

ANTENNA

Note: Aerial connections: IEC (female). Input impendance:75 unbalanced.

STEPS:

Be sure both the TV and computer are set to Power off.

1.Connect VGA and audio cable.

2.Connect the power cord.

3.Power on the TV, switch to PC mode.

4.Power on the PC. This sequence is very important.

INSTALLATION

HDMI1 HDMI2

VGA

USB

HEADPHONERFPCAUDIO COAXIAL

-7-

INSTALLATION

Apply power to the TV by connecting the includedAC adaptor to the power input on the back of the set. Make sure when plugging the adaptor into anAC receptacle that the polarized plug is properly inserted. Do not attempt to file or cut the blade.

PRESET MODE

RESOLUTION

720*400

640*480

800*600

1024*768

1280*1024

POWER

COMPOSITE COMPONENT

L Y Pb Pr

VIDEO R

V.Freq.(Hz) H.Freq.(KHz)

31.47

37.50

37.88

46.88

48.36

56.48

60.02

63.98

80.00

-8-

AV EQUIPMENT

You can use the input terminals on TV set rear as follows.

HDMI1 HDMI2

HDMI

VIDEO EQUIPMENT with YPbPr

USB

VGA

HEADPHONERFPCAUDIO COAXIAL

INSTALLATION

Yellow (video)

White(audio L)

Red(audio R or Pr)

Blue(Pb)

Green(Y)

POWER

COMPOSITE COMPONENT

L Y Pb Pr

VIDEO R

W R

VIDEO EQUIPMENT

W R

TO AUDIOOUTPUTS

TO VIDEO OUTPUTS

The television's inputs can be connected to the following types of equipment: VCR, multi disc player,

DVD, camcorder, video game or stereo system, etc.....

YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.

-9-

RETURN DISPLAY AUDIO SUBTITLE

MTS/

CC/

GOTO

EPG/

FAV/

SETUP

ASPECT

REPEAT

CH LIST/

3 8

DISPLAY

S.M

VOL

P. M

REMOTE CONTROL

POWER

To set the TV standbyor on.

NUMBER KEY

For direct access to program.

Displays the main on-screen menu.

CURSOR

To move within themenu.

EXIT

Used to exit menu.

VOL+/VOL-

To adjust sound level.

7: P

To switch picture mode.

Press to display and select the available video sources.

MUTE

To disable or enablethe sound.

RECALL

10:

To access the previouslyviewed program.

ENTER

11:

Confirms selection.

TV DISPLAY

12:

Displays/removes the program Information

S.M

13:

To switch sound mode.

CH+/CH-

14:

To access the nextor previous Program.

ASPECT

15:

To change picture aspect.

CH LIST /

16:

Used to display the channel list / Eject or Insert the disc.

EPG

17:

Display all the information of DTVprograms.

FAV

18:

Used to access your favourite channels in digital TV mode.

19:

Enable or disable the CC function.

MTS

20:

Switch the sound stereo.

For a description of the DVD player function buttons on the remote, please refer to page 20 of this manual.

-10-

1. PICTURE MENU

The first item of the MENU is PICTURE MENU. This menu provides several video adjustment options for fine tuning the video display. Press to select, press to adjust, press MENU to exit.

1).

Picture Mode: Select the user picture mode (Standard, Sports, Movie, Custom, Vivid).

2). Brightness: This will adjust the light output of the complete picture, which will mainly affect the dark areas of the picture.

3). Contrast: This will adjust the intensity of bright parts

in the picture but keep the dark parts unchanged.

4). Color: This will adjust the saturation level of the colors to suit your personal preference.

5). Tint: Allows you to select color mix (tint) of the

picture.

6). Sharpness: This will adjust sharpness of fine details

in the picture.

the

OPERATION

2. AUDIO menu

The second item of the MENU is the AUDIO MENU. You can adjust sound options here. Press to select, press to adjust, press MENU to exit.

1). Sound Mode: Select the user sound mode (Standard, News, Music, Theater, Sports, Custom).

2). Bass: Adjust to increase or decrease lower-pitched sounds.

3). Treble: Adjust to increase or decrease higher-pitched sounds.

4). Balance: Adjust to emphasize left or right speaker balance.

5). Surround: Turn on or off the simulated surround sound feature.

6). AVL: Auto Volume Level, this will reduce the differences in volume level between TV programming.

7). Digital Output: Select the digital sound signal that will output from the coaxial audio output.

8). Audio Language: Select the audio language (English,

French, Spanish).

Picture Mode

Contrast

Brightness

Color

Tint

Sharpness

Advanced Video

Adjust

Note:

If you want to adjust contrast, brightness, color, and sharpness, the picture mode must to

"Custom".

Standard

Select

Exit

be set

Advanced Video:

Press to select Advanced Video, press , and the screen shown below will be displayed.

1). Color Temp: This will adjust color temperature (Cool, Normal, Warm) to suit your preference.

2). Aspect:This will vary the size of the image on the TV screen. There are four modes which can be selected (Wide, Zoom, Cinema and Normal).

3). Noise Reduction: Adjust to reducethe appearance of noise in the picture (dots). There are five modes to choose from (Strong,Auto, Off, Weakand Middle).

Color Temp. Normal

Aspect Wide

Noise Reduction Middle

Adjust

<> <> <>

Select

Exit

Sound Mode Standard

Bass

Treble

Balance

Surround

AVL

Digital Output PCM

Audio Language English

Adjust

Note: The Audio language is available for ATSC (DTV) programs.

<> <> <> <>

Select

50 50

Exit

Off Off

option only

3. SETUP MENU

The third item of the MENU is the SETUP MENU. You can here.

set system settings

Press to select, press to adjust, press MENU to exit.

Parental Controls

Timer

Closed Caption

Menu Settings

VGASettings

Restore Default

Adjust

Note:

Restore Default: Reset all settings to the factory default value. Channel names that have been changed through the option in the Channel Menu are not reset when a restore default is initiated.

Select

3.1. Parental Controls:

Press to select , press , and the screen

shown below will be displayed.

-11-

Parental Controls

> > > > > >

Exit

Enter Password ----

Adjust

Input the password, and you will

menu. The factory default password is 0000.

Control

Change password

P.G switch

Canada

RRT setting

Reset RRT

Adjust

Select

Exit

enter the Parental

Off

<> <> <> <> <>

Select

Exit

Change Password: Press , and the screen shown below willbe

displayed.

Old password

New password

Confirm password

Adjust

Select

----

Exit

1). Old password: Input the old password

2). New password: Input the new password

3). Confirm password: Input the new password again

P.G switch: When the is ON, the options below

Parental Control shown

can be adjusted.

US: Press , andthe screen shown belowwill be displayed.

OPERATION

1): TV: Press , and the screen shown below will be displayed.

ALL

Adjust

Rating Content

Suggested age

TV-Y(All children)

TV-Y7(Directto order children) TV-G(General audience)

TV-PG(Parental Guidance suggested)

TV-14(Parents strongly cautioned)

TV-MA(Mature audience only)

(Fantasy violence)

V (Violence)

Press the ENTER key to lock/unlock .Parental Controls

2). MPAA: switch the movie-rating control level: N/A, G, PG, PG-13, R, NC-17, X.

Rating

G General audiences,All Agesadmitted

Parental Guidancesuggested. Some materialmay not be

Suitable forchildren.

Parents stronglycautioned. Some material.may be

PG-13

Age

Canada: Press , and the screen shown below will be displayed.

Inappropriate forchildren under 13.

Restrict. Under17 requires accompanyingparent or adult

guardian (agevaries in somejurisdictions).

NC-17

No one 17 andunder admitted.

X is an orderrating that isunified with NC-17but may be

encoded inthe data ofolder movies.

Description

Select

Content

S (Sexual situation)

Exit

L (Adult language)

D (Sexually suggestive dialog)

MPAA N/A

Adjust

< >

Select

Canada English

Exit

Canada French

Adjust

1): Canada English: switch the English-rating control level: EXEMPT,C,C8+,G,PG,14+,18+.

-12-

EXEMPT

<>< >

EXEMPT

<>< >

Select

Exit

OPERATION

Rating

E Exempt: Includes news,sports, documents andother information

programming: talkshows, music videos,and variety programming.

C Children: Intended foryounger children underthe age of8 years.

Pays carefulattention to themesthat could threatentheir sense of securityand well-being.

C8+ Childrenover 8 yearsold: Contains noportrayal of violenceas the

preferred, acceptable,or only wayto resolve conflict;nor encourage children toimitate dangerous actswhich they maysee on thescreen .

G General: Consideredacceptable for allage groups, Appropriate

viewing forthe entire family, contains verylittle violence, physical, verbal oremotional.

PG Parental Guidance: Intendedfor a generalaudience, but maynot be

Age

suitable foryounger children (underthe age of8) because itcould contain controversialthemes or issues.

14+ Over 14 Years: Could containthemes where violenceis one ofthe

dominant elementsof the storyline,but it mustbe integral tothe development ofplot or character. Language usagecould be profane and nudity, present withinthe context ofthe theme.

18+ Adults: Intended for viewers18 years andolder and mightcontain

depictions of violence, which whilerelated to thedevelopment of plot, character or themes,are intended foradult viewing. Could contain graphiclanguage and portrayalsof nudity.

2).Canada French: switch the French-rating control level: E, G,8ANS+,13ANS+,16ANS+,18ANS+.

Rating

E Exempt programming

G General: Allages and children,contains minimal directviolence,

but maybe integrated intothe plot ina humorous orunrealistic manner .

8ans+ General but inadvisablefor young children:May be viewedby a

Age

wide publicaudience, but couldcontain scenes disturbingto children under8 who cannotdistinguish between imaginaryand real situations.Recommended for viewingwith paren .tal guidance

13ans+ Over13 years: Couldcontain scenes offrequent violent scenes

and intenseviolence.

16ans+ Over 16 years:Could contain frequentviolent scenes andviolence.

18ans+ Over 18 years:Only for adultviewing. Could containfrequent

violent scenes and extremeviolence.

Description

3.2 Timer

You can adjust sleep timer and time related settings here. Press to select, press to adjust, press MENU to exit.

Sleep timer

Time zone

DST

Clock

Adjust

Off

<>< >

Pacific

<>< >

Off

<>< >

1999/12/31 04:03PM

Select

Exit

Sleep Timer: You can set the sleep timer.

Note: Time zone, DST and Clock are available in ATSC , and the Clock can't be adjust .

mode

3.3 Closed Caption: switch the closed caption mode.

Press to select Closed Caption, press , and the screen shown below will be displayed.

CC Mode

Basic Selection

Advanced Selection

Option

Adjust

Off

<>< >

CC1

<>< >

Service 1

<>< >

Select

Exit

RRT setting: in ATSC digital TV mode, itcould be adjusted

Reset RRT: Press , and thescreen shown below will be displayed.

Are yousure?

YES

Press ENTERK eyTo Select

Adjust

Select

Exit

1): Advanced selection: only ATSC mode.available in

2): Option: You can edit the closed caption options.

Press , and the screen shown below will be displayed.

Mode

Font style Font size Default Font Edgestyle Default

Font Edgecolor Default FG color Default BG color Default FG opacity Default

BG opacity Default

Adjust

Custom

<>< >

Default

<>< > <>< > <>< > <>< > <>< > <>< > <>< >

Select

Exit

NOTE: Only available in ATSC mode.

-13-

3.4 Menu Settings

You can adjust Menu Settings here. Press to select, press to adjust, press MENU to exit.

OPERATION

1). Air/Cable: Select Air TV signal or Cable TV signal.

2). Auto Scan: should perform a full channel scan in order to capture and store all available channels. Press the to confirm shown below will be displayed.

If it's the first time using the TV, you

, and the screen

Menu Language English

Adjust

3.5 VGA Settings: Only available in VGA (PC input) mode.

Press to selectVGASettings, press , and the screen shown below will be displayed.

H-pos

V-pos

Clock

Phase

Auto

Adjust

1). H-Pos: Adjust the horizontal position of the screen.

2). V-Pos:Adjust the vertical positionof the screen.

3). Clock: Fine tune the screen width.

4). Phase: Fine tune the phase of the screen. Usually don't adjust thisitem .

you need to option

5). Auto: Auto adjust tofit the screen.

Select

Exit

Select

Exit

4. Channel MENU

Here you add/skip TV channels and customize displayed channel info. Press to select, press to adjust.

Are yousure?

YES

Press ENTERK eyTo Select

Adjust

Select "YES" and and the screen which indicates that the auto search is progressing.

press the to confirm,

shown below will be displayed,

RF CH: 4 Found: 4 Analog: 1 Digital: 3

Adjust

Select

ENTER

Exit

3). Favorite: Press to /delete favorite channels.add

4). Show/Hide: Press the ENTER button to display or hide channels.

5). Channel NO. : Display the current channel number. Press to change the channel.

6). Channel label: Press to edit the current channel name.

7). DTV signal: Display DTV signal strength.

Signal strength indicator is for reference only, it cannot be selected or adjusted.

Air/cable

Auto Scan

Favorite

Show/Hide

Channel NO.

Channel Lable.

DTV signal: Good

Adjust

Air

2-1

Select

Exit

> > >

-14-

OPERATION

5. Multimedia MENU

With an external storage device attached to the USB input, you can use the Multimedia Menu to display JPEG pictures andplayMP3music.

Before starting operation, verify USB storage device is of FAT32 filesystem format. This television does not support NTFS or other formats. Please use a high-speed USB 2.0 device with a maximum capacity of 50GB.

1. Select a Photo The screen shown below will be displayed.

USB

Photo Music










Totalsize:3.7 GB 1024 x 768 372.72KB Unused size:3.7 GB 2006:07:14 15:37:42

Use select the. Jpg files or folders, to play, EXIT to stop playing or go to the

press previous

menu.

2. Select Music

The screen shown below will be displayed.

:17 001/018

C:\photo\


press ENTER

:play

:pause

:stop

: fast backward

: previous

:next

: fast forward

: repeat all

Random

: random play

USB

Photo Music

Everything Ido.mp3

Sealed WithA Kiss.mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .mp3 .mp3

Totalsize:3.7 GB Unused size:3.7 GB

Use select the. MP3 files or folders, to play, EXIT to go to menu.

press the previous

:17 001/018

C:\laoge\

Everything Ido.mp3

Title:

Artist:

Album:

Year:

Bit Rate:128kbps

Play 05:49 06:33

press ENTER

Random

-15-

TROUBLE SHOOTING

Trouble phenomenon Symptom

Picture Audio

Snow Noise

Ghost

Interference

Normal Picture

No picture Mute

No color Normal audio Color control

Normal audio

Noise

Mute

Inspection Check

antenna position, direction or connection

antenna position, direction

or connection

electronic equipment,car/

motorcycle,fluorescent light

Volume (check if mute is activated or if the audio system connections are not correct)

Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting

Picture breaking up

No color

Normal audio

or weak

Noise

Retune channel

TVsystem

The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. Please note this does not affect the performance of the product.

-16-

DVD SIDE PANEL (LEC19B1320)

OPEN/CLOSE

PLAY/PAUSE

Disc withits content side (shiny side)facing the front of theunit, insert vertically into thedisc tray

MPEG4 files on discs

Dolby Digital

DVD OPERATION

Multi-angle

Subtitle choices

DVD SIDE PANEL ()LEC22B1380 / LEC22B1380W / LEC24B1380

OPEN/CLOSE

PLAY/PAUSE

Disc withits content side (shiny side)facing the front of theunit, insert vertically into thedisc tray

How to play a DVD disc

1. Change TV input source to "DVD" mode by pressing button on remote or Source button

SOURCE

on the side of the TV.

2. Place DVD disc in player with the content side

(shiny side) facing the front of the unit.

3. DVD disc will automatically be loaded in to the player

and begin to play.

4. To eject the DVD disc, press Eject/Insert

button on remote or the button on the side of the unit

CH LIST/

OPEN/CLOSE

PLAY/PAUSE

Caution

KODAK picture CD

MP3 fileson CD-R/CD-RW

DVD video

Audio choices

16:9

TV Aspect Ratio modes

RESTRICTED

Parental Lock

This product incorporates copyright protection technology that is protected by method claims of certain U.S.patents and other intellectual property rights owned by Macro vision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only. Unless otherwise authorized by Macro vision Corporation. Reverse engineering or disassembly is prohibited.

The product complies with the KODAK Picture CD format and will display KODAK Picture CDs. The "KODAK Picture CD Compatible" logo is a trademark of Eastman Kodak Company and is used with permission.

This DVD Player has a Class 1 laser which may be harmful to your eyes. Do not attempt to disassemble the cabinet or make any adjustments. Refer all servicing to a qualified professional.

Features

Disc formats supported by this player:

Manufactured under license from Dolby Laboratories."Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

-17-

DVD OPERATION

MENU OPERATION

Press the SETUPbutton on the remote control, the SETUP MENU will be displayed. After accessing the setup menu, press the direction buttons for up and down movement to select an item desired, and press RIGHT direction button to select the SUBMENU item. Then press the ENTER/OK button to confirm. Press LEFT direction button return to the menu of upper level. To exit the setup, press the SETUP button again. In the SETUP MENU, you may choose any of the following options as you like.

LANGUAGE SETUP

Select Language in the setup menu, and display the Language submenu:

OSD Language

Use this item to select the language for the setup menu and screen display.

Subtitle

This option provides the preset subtitle language.

MPEG4 Subtitle(optional)

Select different MPEG4 subtitle encoding option.

Not all players support this item.

Note:

Audio

Select the built-in disc dubbing language options.

DVD Menu

This option provides the film's menu language options.

VIDEO SETUP

Video

Select in the setup menu, and display the

Video

submenu:

desired

SYSTEM SETUP

Aspect Ratio

Select the aspect ratio.

Notes:

The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screenTV, black bars will appear on the left and right side of the screen.You must adjust the screen setting depending on the type of the television you have.

TV System

Select the differentTV system.

Note: The DVD player setting should be matched to your TV set.

refer to the instructions or yourTV set.

For more information of output format,

RATING SETUP

RatingSelect in the setup menu, and display

the Rating submenu:

Parental Control

Set the parental control feature of the player

Password is needed before setting Parental

Note

Control.

Set Password

Input four digits (password), then press

/Ok

to confirm.

If you forget your password, please use the

Note:

universal password 6666 to unlock.

ENTER

MISC SETUP

Select in the setup menu, and display

MISC

the submenu:

Use Default Settings

Reset setup data to factory default value.

-18-

DVD OPERATION

MP3/WMA/JPEG PLAYBACK

The MP3/WMA disc has such a directory structure as shown picture above.

Press to choose the root directory and

Direction key

then press ENTER/OK button to enter into the sub directory. Press to choose the desired track and then press or to enjoy the music or movie. If you want to return to the upper menu, press to choose the icon and press button.

Filter: Allows selecting the categories of files displayed in the browser list. Repeat: To switch different repeatplaying mode Mode: Select different playing mode as follows: Normal: Shuffle mode is cancelled. Shuffle: Shuffle mode enabled. When playback reaches the end of the currentchapter/track, playback jumps to a random chapter/track. As the end of each chapter/track is reached, another random chapter/track will be played until all tracks/chapters have been played or the Shuffle mode is cancelled by toggling to a different Option.

Edit Mode:

When you select the mode, press Direction

to directory and press to choose the

key ENTER/OK

desired track and press and press

Program view Edit mode

edit mode. At last press to display program track and press to start program playback.

Program view: Brower view

Add to program: Choice the track press

program

directory.

Clear program STOP

the edit mode. Press Left key to program track and press ENTER/OK to cancel the desired track. press

Clear program

play directory.

Direction key

ENTER/OK PLAY

Direction key

ENTER/OK

To enable programmed playbackmode.

to add the track of the program play

button twice), First press Edit mode to enable

Mode

LEFT

Add to program

and press the to cancel the

Left key

ENTER/OK

Display program track.

: Display track directory.

: In the complete stop state(press the

to delete the track of the program

Add to

PICTURE CD PLAYBACK

The PICTURE CD disc has such a directory structure structure as shown in the following picture.

Press to choose the root

Direction key

directory and then press ENTER/OK button to enter into the sub directory. Press

to choose the desired picture and then

key

press or to enjoy the

ENTER/OK PLAY

Direction

picture. If you want to return to the upper menu, press to choose the icon and

Direction key

press button.

ENTER/OK

Image rotation

In picture play state, press to

Direction key

rotate the picture.

-19-

DVD OPERATION

Function Buttons

INSERT/EJECT

Eject the disc, press the INSERT/EJECT key; Insert the disc, press the INSERT/EJECT key again. Insert a disc into the DVD player but could not get it to work press the INSERT/EJECT keyontheremoteorontheTVunittoeject thedisc. Whenadiscisejectingorisejected but not take out, press the INSERT/EJECT keyontheremoteorontheTVunittoinsert the disc.

SUBTITLE

Press the button to choose different captions

(Requires support from disc)

GOTO

For DVD discs, press the button to choose the desired title and chapter andsearch the desired title time and chapter time.For Super VCD,VCD,CD discs, press this button to search the desired disc time and track time and choose the desired track. Note: During VCD playback, the PBC mode must be set to OFF.

0-9 keys

These keys are used to input the time, as well as title, chapter and track numbers.When a numeric item is displayed on the screen, press the 0-9 keys to select the desired entry, and press ENTER/OK to confirm. When a VCD is playing(with PBC off), press the 0-9 keys to select a track directly.

During DVD playback, press MENU to display the disc menu of the current title. During VCD/SVCD playback, press MENU to control PBC ON/OFF.

SETUP

Press the button to enter the system setting menu. Press the button again to exit the menu.

RETURN

When DVD/SVCD/VCD displaying, press RETURN button to the menu(PBC ON only).

DISPLAY

Press the button to show the information of the current playing disc.

ENTER

Press the button to confirm your choice on screen.

REV

During DVD, CD Mp3 or VCD playback, press REV to scan in reverse. The player will review the disc at different times speed. Press PLAY/PAUSE to resume normal playback.

FWD

During DVD, CD,MP3, or VCD playback, press FWD to scan forward.The player will cue the disc at different speed. Press PLAY/PAUSE to resume normal playback.

During DVD, CD,MP3, or VCD playback,

press to play the previous chapter, title or track.

During DVD,CD,MP3, or VCD playback, press toplay the next chapter, title

or track.

STOP

Press the button once and the player will be in memory stop state. Continuously press this button twice and the player will be in complete stop state.

Play/Pause

In pause state or stop state, press the button, the player will be in playing state.In play state, press the button the player will be in pause state.

REPEAT

Press to select between different repeat modes Repeat Chapter / Repeat Title / Repeat Off for DVD discs , Repeat Single/ Repeat Folder/All/ Repeat Off(for VCD/CD/MP3 discs)

AUDIO

Changes the audio language or audio channel.

-20-

DVD TROUBLE SHOOTING

If you have any questions, please consult the troubleshooting guide below:

NO PICTURE OR SOUND

Ensure the power button is on.

Ensure the power outlet is operational.

Ensure the power cord is not damaged.

Ensure the power plug is connected

firmly to the outlet.

PICTURE BUT NO SOUND

Ensure the audio is not set to mute.

Ensure you have set the player s AUDIO settings correctly.

POOR PICTURE OR SOUND

Ensure you have set the player s AUDIO settings correctly

Ensure the disc is not scratched or stained.

BAD DISC DISPLAYED

Ensure the disc is not warped, damaged or deformed.

Ensure the disc is not badly stained or damaged.

Ensure the disc format is compatible with the player.

Please check whether you have tried to play a software CD. If so, please restart the player.

REMOTE NOT WORKING

Make sure the Main unit s POWER button is on

Ensure the remote batteries are working.

Point the remote control directly at the player s

IRsensor.

Remove any obstacles between the remote and

theIR sensor.

UNIT NOT WORKING

Turn off the power, and then turn it on again.

NO DISC DISPLAYED

Ensure you have put the disc on the tray.

Ensure the disc is not upside down.

Ensure the disc is not distorted, stained or

scratched.

-21-

WARRANTY

90 dayslabor, 1 year parts.

-22-

Haier LEC24B1380, LEC22B1380W, LEC19B1320, LEC22B1380 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
