TFT-LCD TELEVISION
OWNER`S MANUAL
MODEL: L40A9-AD
Please READ this manual carefully before
operating your TV, and retain it for future
reference.
Congratulations on your purchase, and welcome to the family !
Dear Haier product owner:
Thank you for your confidence in Haier. You`ve selected one of the
best-built, best-backed products available today. We`ll do everything
in our power to keep you happy with your purchase for many years to
come.
As a member of the Haier family, you`re entitled to protection by
one of the most comprehensive warranties and outstanding service
networks in the industry.
thanks for investing in a Haier product.
CONTENT
BEFORE OPERATING
Warning.................................................................................................................1
Important Safety Instructions................................................................................2
Buttons and interface location............................................................................. 4
Remote controller.................................................................................................6
Remote controller key function.............................................................................7
Effective range of remote controller......................................................................8
External equipment connections..........................................................................9
BASIC OPERATING
Switching on/off the TV set................................................................................ 14
Watching TV program........................................................................................15
Searching channel............................................................................................ 17
Picture control functions.................................................................................. .19
Sound control functions.....................................................................................21
Time functions....................................................................................................23
Multiple aspect ratio and language....................................................................25
Multiple OSD position........................................................................................26
Calendar search and time skip..........................................................................27
OTHERS
Others functions.................................................................................................28
PC setting..........................................................................................................29
Stream media broadcast system.......................................................................31
Specifications and functions..............................................................................41
Maintenance
......................................................................................................42
Troubleshooting.................................................................................................43
Accessories
L40A9-AD
Color.SYS
Sound.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prew Forward USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Remote controller
User's manual
User's manual
Alkaline battery(AA) 2
Screws 8
Power cable
Bracket 4
Warning
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: A potentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
Warning:
To avoid fire or electric hazards, never place your television receiver in an area
with heavy moisture. Attention should be paid to avoid accidental scratches or
impacts onto the LCD screen.
Caution:
Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Caution:
Unauthorized disassembly of this product is prohibited.
1
Important Safety Instructions
The product should be tightly fixed to avoid
drop damages and even fire.
Do not locate the product close to water
or oil, which may cause fire hazards.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Keep the product away from a transformer
or heat source to avoid fire hazards.
2
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.
Buttons and interface location
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
Front panel Control
- CH + - VOL +
TV/AV MENU
POWER
Buttons and functions
1 Channel number increase and decrease.
2 Volume decrease:for lowering the volume or adjusting the menu.
Volume increase: for enhancing the volume or adjusting the menu.
3 TV/AVbutton
4 Menu button
5 Power and indicator: for turning on or off the power supply.
6 Remote receiving window
7 Card jack
4
Buttons and interface location
Rear panel Control
USB Socket
Connects the video signal
This TV operates on AC power.
Never attempt to operate the
VIDEO2 Input
from a video device.
AUDIO2 Input
connect to hear
stereo sound from an
external device.
Switch power on/off
Power Cord Socket
The voltage is indicated on
the specifications page.
TV on DC power
VIDEO
L
AUDIO
R
POWER
PC VIDEO Input
Connect the monitor output
connector from a PC to the jack
EXT Subwoofer:
Subwoofer audio output
terminal.
WOOFER
DVI RS-232
DVI Input
Connect the monitor output
connector from a PC to the
appropriate input port.
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.
PC
Audio input
for linking DVI, PC or
other appliance audio
frequency output terminals.
RS-232 INPUT
(CONTROL/SERVICE
PORT)
Connect to the RS232 port on a PC.
Antenna Input
Connect cable or antenna signals to
the TV, either directly or through your
cable box.
COMPONENT
Pr/Cr
L-AUDIO-R
L-AUDIO-R
Pb/Cb
Y
PC
VIDEOIN
L-AUDIOIN-R
Audio/Video Input
Connect audio/video
output from an external
device to these jacks.
Video/Audio output
terminal
Connect ordinary video/audio
or other appliance
audio input terminals.
LRL
VIDEOOUT
S-VIDEO
AUDIOOUT
SPEAKER
R
ANTIN
External Speaker
(8 ohm Output)
Connect to optional
external speaker(s).
S-Video Input
Connect S-Video out from
an S-VIDEO device to the
S-VIDEO input.
5
Remote controller
Battery loading
1.Slide open the cover of the battery compartment on the back of the remote controller.
2.Load two 5# alkaline batteries in the compartment. (plus and minus poles to respective
mark)
3.Replace the cover of the battery compartment.
1
2
Precautions
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller away from
heat source or humid area to ensure
effective performance of the remote
controller.
3
Make sure that two AA alkaline batteries
are loaded. The batteries must be of the
same type. The batteries must be
located properly. The batteries are not
rechargeable.
Make sure that there is no obstacle
between the remote controller and
television set.
6
Remote controller key function
Picture still
MUTE
Switches the sound on or off.
S-Video mode
select S-Video.
TV/VIDEO
Selects: TV, Video
NUMBER buttons
CHANNEL select
is not available
OK button
VOLUME UP/DOWN
Increases/decreases
the sound level.
Picture mode option
standard, Soft,
Bright, Personal
Zoom
Auto adjustment
(PC status only)
Color system option
Program edit
PIP system buttons
are not available
Scan
for searching the
favorite program
USB system buttons
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
UP
DOWN
Pause Enter ZOOM HELP
Zoom/Move Sleep
Left/Prev USB
F
WD
Right/Next REV EXIT
Sound.SYS
Calendar
Display of year/month/date
POWER
Turns your TV or any other
programmed equipment on
or off, depending on mode.
PC/DVI mode
select PC/DVI mode.
DVD mode
select DVD mode
Q.VIEW
Return to the last channel
viewed.
Information display
Display of current channel
signals, program and systems
CHANNEL UP/DOWN
Selects available channels
found with Auto program.
MENU
Brings up the main menu
to the screen.
Sound system option
, Personal,
Theater
standard, news
Sound system option
OSD Position button
Time skip button
Nicam select button
Sleep button
is not available
Shuttle button
7
Effective range of remote controller
Effective range
above
20
20
below
45
left
45
front 8m
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prew Forward USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Ensure the remote controller is pointed toward the remote controller
windows on the display.
No obstacles should be placed between the remote controller and
the remote controller window.
The effective receiving scope for the signal is 8 meters to the front of
the remote controller windows, and 45 to the left or right side and 20
above or below the control windows.
right
Sound.SYS
Use of remote controller:
1. To ensure a normal operation, the remote controller should not be
dropped or damaged in any way .
It should also be kept dry and away from all heat sources.
2. Battery replacement is necessary when the remote controller acts
inconsistently or stops operating the plasma display.
8
External Equipment Connections
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
outdoor
antenna
Antenna input
75 standard
coaxial type
300 twin-lead cable
Antenna adapter
75 coaxial cable
Plug
(additional purchase)
Note
* It is recommended that you'd better use 75
disturbance caused by airwave.
* Don't bind antenna cable and electric wire together.
To improve picture quality in a poor signal area, purchase
and install a signal amplifier.
If the antenna needs to be split for two Tv`s, install a 2-
WaySignal Splitter in the connections.
If the antenna is not installed properly, contact your dealer
for assistance.
coaxial cable to remove the
9
External Equipment Connections
DVD setup
How to connect
1. Connect the DVD video outputs (Y, Pb/Cb,
Pr/Cr) to the COMPONENT (Y, Pb/Cb, Pr/Cr)
INPUT jacks on the TV and connect the DVD
audio outputs to the AUDIO INPUT jacks on
the TV, as shown in the figure.
2. If your DVD only has an S-Video output
jack, connect this to the S-VIDEO input on
the TV and Connect the DVD audio outputs
to the AUDIO INPUT jacks on the TV, as
shown in the figure.
NOTE: If your DVD player does not have
component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the S-Video button on the remote
control to select S-VIDEO mode.
3. Press Play button on external equipment
for program play.
4. Refer to the DVD player's manual for
operating instructions.
L-AUDIO-R
L-AUDIO-R
COMPONENT
Pr/Cr
Pb/Cb
Y
PC
VIDEOIN
L-AUDIOIN-R
or
DVD
ANTIN
VIDEOOUT
S-VIDEO
AUDIOOUT
LRL
SPEAKER
R
DTV setup
-To watch digitally broadcast programs,
purchase and connect a digital set-top box.
How to connect
Use the TV`s COMPONENT (Y, Pb/Cb,
Pr/Cr) INPUT jacks, RGB or DVI port for
video connections, depending on your settop box connections available. Then, make
the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to
the owner`s manual for the digital set-top
box.)
2. Use YUV on the remote control to select
YUV (Y, Pb/Cb, Pr/Cr) mode.
3. Press Play button on external
equipment for program play.
10
DVI RS-232
PC
DVI-DTV OUTPUT R AUDEO L
L-AUDIO-R
PC
L-AUDIO-R
or
RGB-DTV OUTPUT R AUDEO L
Digital Set-top Box
COMPONENT
VIDEOIN
or
Y
Pr/Cr
Pb/Cb
L-AUDIOIN-R
YPbPr
R AUDEO
External Equipment Connections
PC setup
How to connect
1. To get the best picture quality, adjust the PC graphics card to ( 60Hz.
2. Use the TV`s RGB INPUT or DVI (Digital Visual Interface) INPUT port for video connections,
depending on your PC connector.
If the graphic card on the PC does not output analog and digital RGB simultaneously, connect only
one of either RGB INPUT or DVI INPUT to display the PC on the TV.
If the graphic card on the PC does output analog and digital RGB simultaneously, set the TV to either
RGB or DVI; (the other mode is set to Plug and Play automatically by the TV.)
3. Then, make the corresponding audio connection. If using a sound card, adjust the PC sound as
required.
L40A9-AD->1024x768),
How to use
1. Turn on the PC and the TV.
2. Turn on the display by pressing the POWER button on the TV's remote control.
3. Use PC/DVI on the remote control to select PC or DVI source.
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is present, change the PC mode to another resolution,
change the refresh rate to another rate or adjust the brightness and contrast on the menu until the
picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic
card or consult the manufacturer of the PC graphic card.
NOTES:
1 Use a DVI cable.
2 Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may
become permanently imprinted on the screen.
3 The synchronization input form for Horizontal and Vertical frequencies is separate.
DVI RS-232
PC
L-AUDIO-R
L-AUDIO-R
PC
COMPONENT
VIDEOIN
Pr/Cr
Pb/Cb
Y
L-AUDIOIN-R
ANTIN
11
External Equipment Connections
Connect Loudhailer
1. Face the LCD screen upside down on a
clean blanket or a bracket and pay
attention not to indent the casing. Lay the
two speaker aside of the LCD.
2. Lay a bracket on the speaker
nnectent
and hind rind, Fix 8 ST4X8 screws to the
speaker and hind rind.
3. Connect the speaker cable to the
speaker terminal of LCD TV and the
speaker terminal, and insert the
connecting cable into the terminal slot,
Release the speaker terminal, and ensure
that the white connecting cable is inserted
in the terminal slot marked red and black
connecting cable is inserted in the black
terminal slot, and that anode and cathode
poles are correctly connected.
Connect Woofer
Loudhailer
Annectent
bracket
Screw hole
LRL
AUDIOOUT
SPEAKER
R
1. Take the woofer out, and place it the hind rind. (See picture)
2. Connect cable to the woofer terminal and
LCD TV terminal, and insert the connecting
cable into the terminal slot.
12
Woofer
WOOFER
External Equipment Connections
Power source

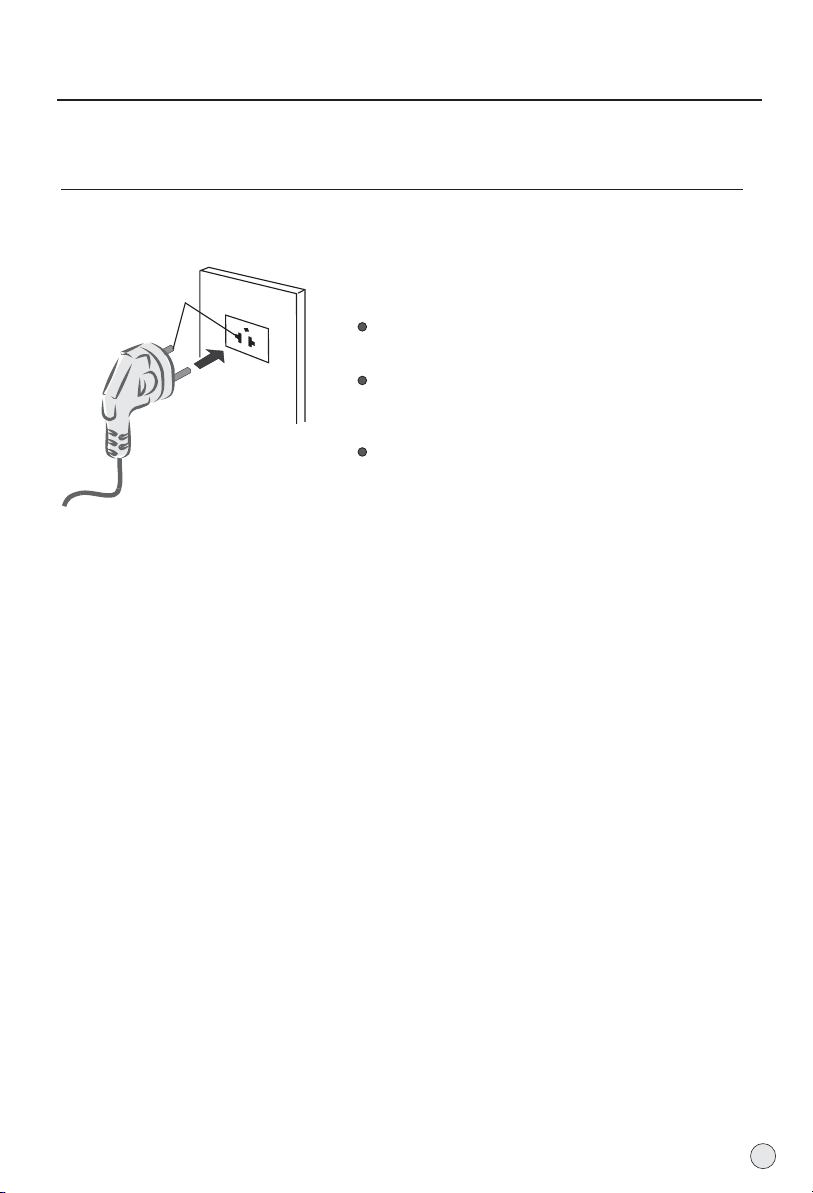

TO USE AC POWER SOURCE
Wider Hole
and Blade
Polarized AC Cord Plug
AC Outlet
Use the AC polarized line cord provided for
operation on AC. Insert the AC cord plug into
a standard polarized AC outlet.
NOTES:
Never connect the AC line cord plug to other
than the specified voltage. Use the attached power
cord only.
If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut
the blade. It is the user`s responsibility to have
an electrician replace the obsolete outlet.
If you cause a static discharge when touching
the unit and the unit fails to function, simply
unplug the unit from the AC outlet and plug it
back in. The unit should return to normal operation.
Polarized AC Cord Plug.
13

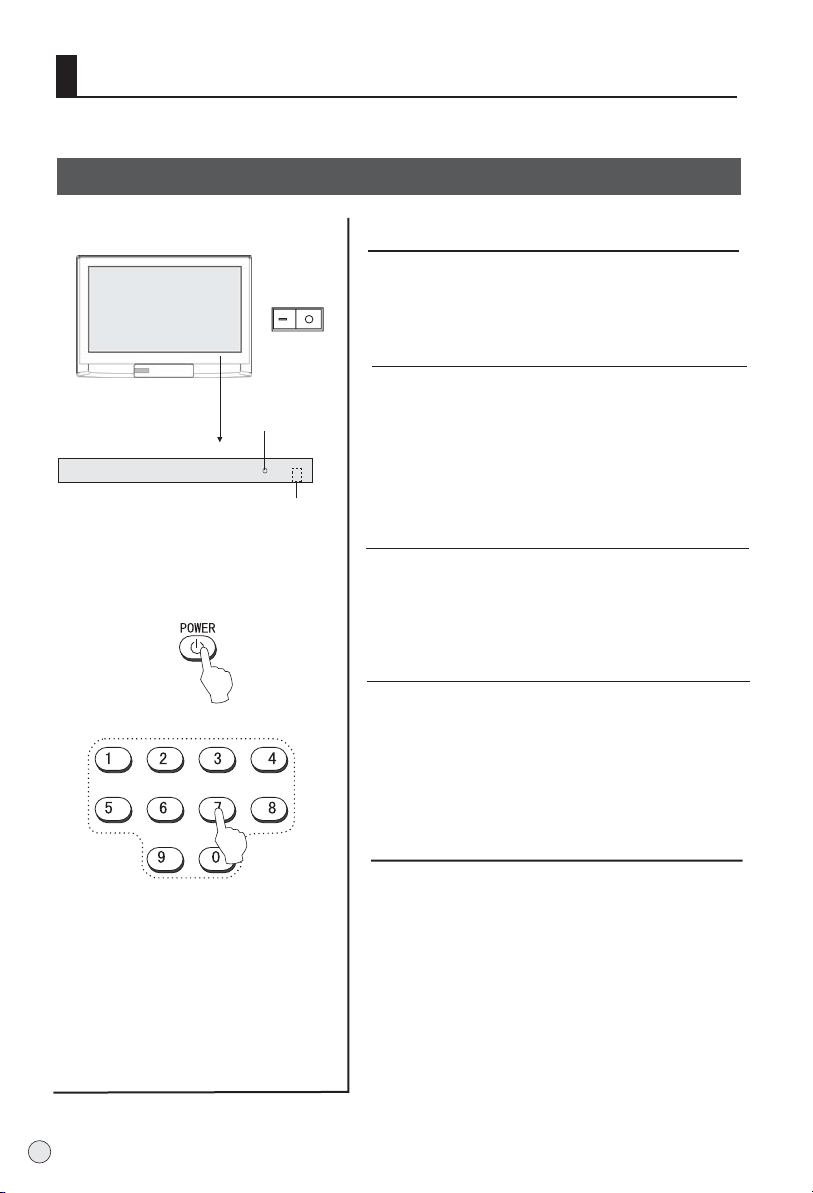

Switching ON/OFF the TV set
In the manual, the OSD (on screen display) may be different from your TV`s because it
is just an example to help you with the TV operation.
Power ON/OFF
Switching ON/OFF the TV set
1 Please press down the power switch to switch
on AC power supply and the power indicator will
light .
2 If the indicator is lighting in red, press POWER
Indicator
button on the remote control again.
- CH + - VOL +
TV/AV MENU
POWER
Remote receiving
window
3 If you want to exchange to standing by status,
please press down POWER button on the
remote controller.
4 If you want to fully switch off the power
supply for the TV set, please press down the
power switch button on the TV set.
Auto switch-off function
If an empty channel is selected or the
TV programs are ended for the day, the
power will be switched off 5 minutes later
automatically. If the "OFF TIME" is setting,
it will be switched off according to the
presetting time. The auto power off
function does not work under video input.
14
(Note:
it will be switched off automatically to the
presetting time. )
If the "Off timer" is less than 5 minutes,

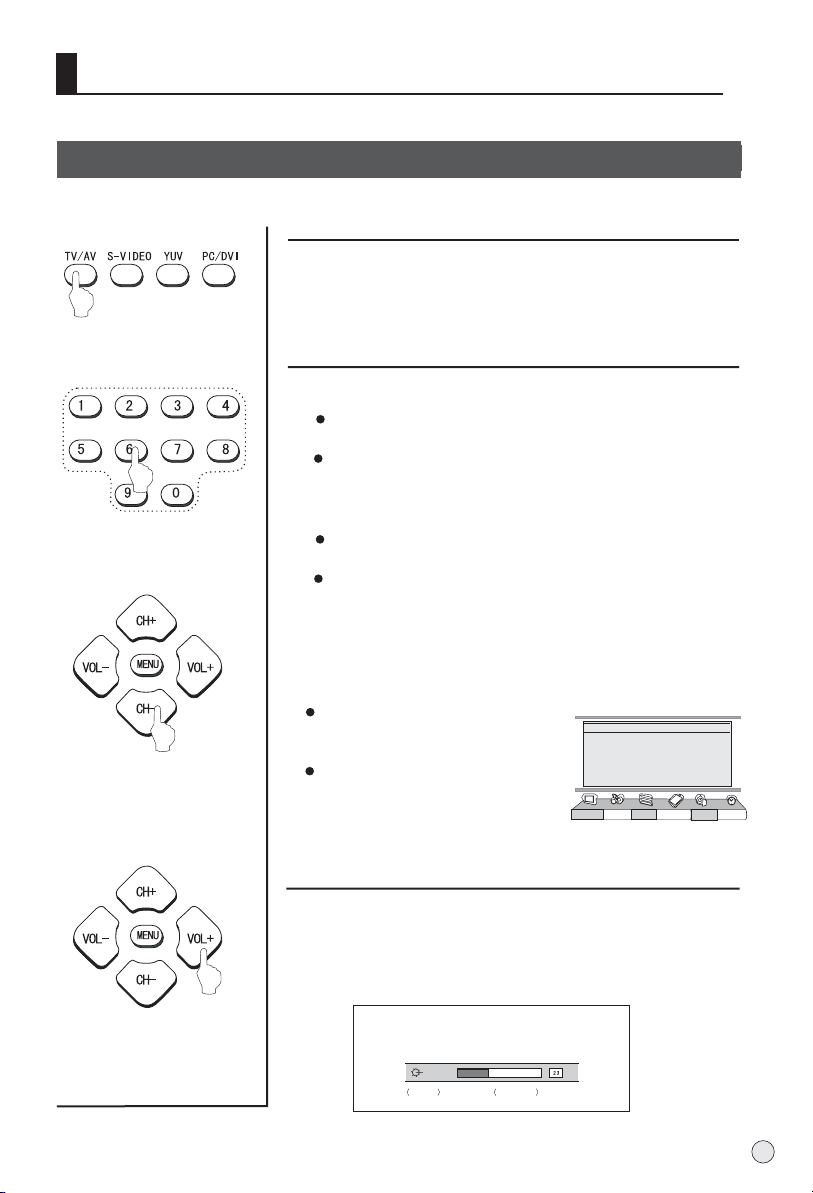

Watching TV Program
You can watch TV program in a presetting channel.
Watching TV program
To select the TV mode
Before watching TV program, you may ensure your tv in
TV mode.
Press TV/AV button to select tv mode.
How to select the desired program
1 Using "Program number" buttons.
Directly enter the channel number with the numeric keypad
on the remote control.
To select channel numbers from 10 ~ 99 ,press continuously
the numeric buttons.
2 Using the CH+/- buttons.
Press the CH+ button to select a channel number in number
increasing direction.
Press the CH- button to select a channel number in number
decreasing direction.
3 Using Prog. NO. Function.
press the MENU button and VOL+/- button, till picture
menu shown on the right display on the screen.
Press the VOL+ button to select a
channel number in number
increasing direction.
Press the VOL- button to select a
channel number in number
decreasing direction.
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
AUTO
527.27 MHz
<Vol+>Adjust
26
D/K
00
How to select the desired sound
Press the VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~100.
When the volume buttons are pressed the volume level is
displayed automatically on the TV screen.
Volume
MENU to Exit Vol+/Vol- to Adjust
15
Watching TV Program continued
Watching TV program
If the colour of some channel is abnormal
Usually this should be set in the auto
position. However if the colour
displayed on the screen are incorrect,
you can manually select the correct
colour system.
Press the menu and VOL+/- button, till
the picture menu shown on the right will
display on the screen.
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
AUTO
527.27 MHz
<Vol+>Adjust
26
D/K
00
If picture color is abnormal
Press the CH+/- buttons to select
"color system", then press the VOL-/+
buttons to select the correct color
system. In general, you can set it as
"AUTO".
If sound is abnormal
Press the CH+/- buttons to select
"sound system", then press the VOL/+ buttons to select the correct sound
system. In general, you can set it as
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
527.27 MHz
<Vol+>Adjust
527.27 MHz
<Vol+>Adjust
"D/K ."
Program swap
Swap function enables quick swap to the last watched program.
1 Suppose the channel number you
used just now is 8 and the channel
number you are using is 18 (as shown
in the figure).
2
If you want to return to the last
watched program channel 8, you can
simply press the Q.View button.
3
If you want to return to channel 18,
press the button again. Through this
function, you can easily change
between the channel you are using
and the channel you used last time.
AUTO
AUTO
26
D/K
00
26
D/K
00
16

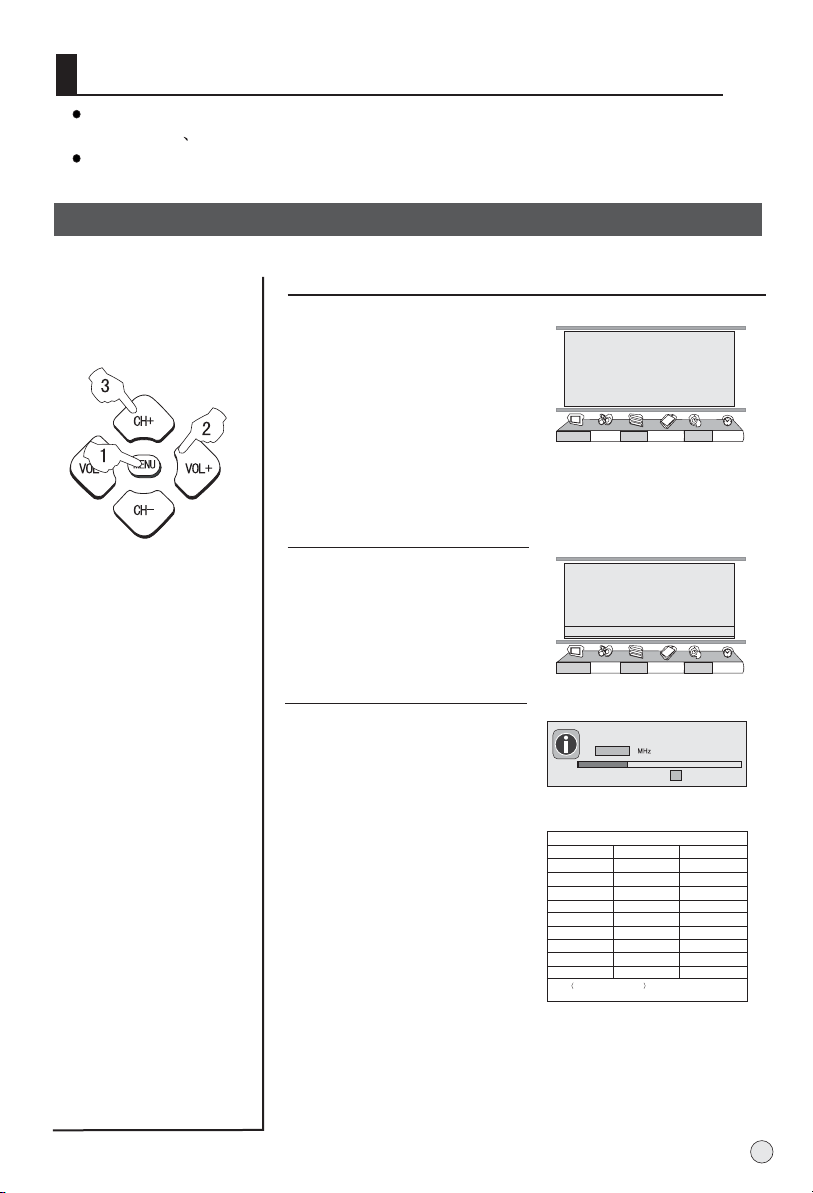

Searching Channel
This TV set has three methods to set channels, which are respectively full automatic,
manual search fine tune.
In this section, how to use the remote control to set channel is explained. You can also use
buttons on the TV set to set channel.
Full automatic search mode
Automatic search
1 Press the MENU button and
VOL+/- button, till tuner menu
shown on the right display on
the screen.
Note : the tuner menu will be
in normal TV mode.only operated
2 Press the CH+/- buttons to
select "Auto Search" item.
3 Press the VOL+ button to
ensure automatic search
function work.
After the s arch has finished,
the Program Table will display
on the screen.
All channels now playing
program will be automatically
preset in order.
e
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto search
picture sound tuner function signal timer
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto search
picture sound tuner function signal timer
Program Searching
Press <OK> to Cancel
073.25
Programs Found 01
Program Table
00 @0497
01 @0622
02 @0832
03 @1442
04 @1842
05 @2112
06 @2322
07 -- --08 -- --09 -- ---
10 ----11 ----12 ----13 ----14 ----15 ----16 -- --17 ----18 ----19 -----
Vol+/Vol- Ch+/Ch- to Select Program
1=Del 2=Change 3=Rename 4=Favorite 5=Skip
527.27 MHz
<Vol+> Adjust
527.27 MHz
<Vol+> Adjust
20 ----21 ----22 ----23 ----24 ----25 ----26 -- --27 ----28 ----29 -----
D/K
AUTO
D/K
AUTO
26
00
26
00
17

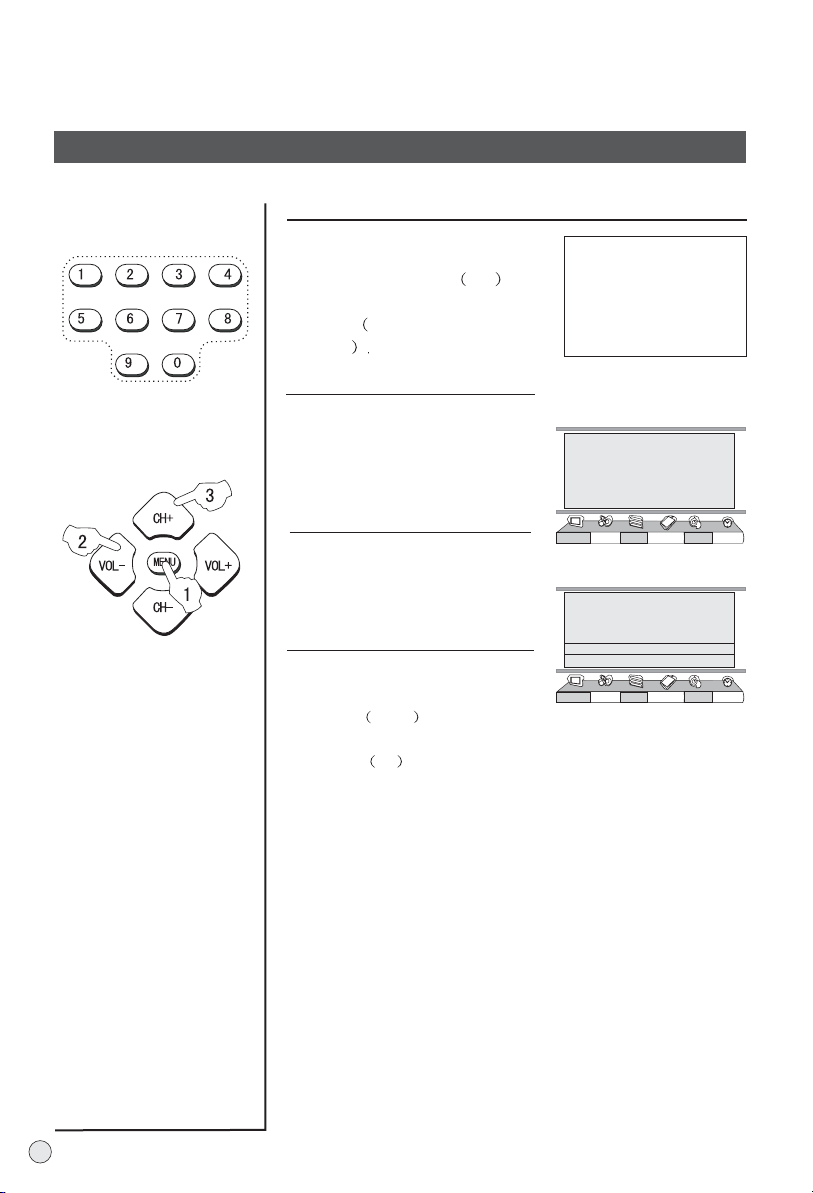

Manual search
Manual search
1
Press the CH+/- buttons or the
PROGRAM NUMBER 0-9
button to choose desired
channels regard channel 1 as
example
2 Press the MENU button and
VOL+/- button, till the tuner
menu shown on the right display
on the screen.
3 buttons to
Press the CH+/-
select " Search" item.
4 Press the VOL-/+ buttons to
start searching.
The VOL- down button is used
for lower side program search.
The VOL+ up button is used for
higher side program search.
Repeat this step, till find the
desired channel.
TV01
AUTO
D/K
AUTO
527.27 MHz
<Vol+> Adjust
AUTO
527.27 MHz
<Vol+> Adjust
01
D/K
00
01
D/K
00
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
18
Fine tune
Fine tune
If the picture and/or sound are poor, try using the FINE
TUNE feature. Do not use this feature unless reception
is poor.
1
Press the CH+/- buttons or
NUMBER 0-9 button to
choose desired channels
regard channel 8 as example
2 Press the MENU button and
VOL+/VOL- button, till the tuner
menu shown on the right display
on the screen.
3 buttons to
Press the CH+/-
select "Fine Tune" item.
4 Press the VOL-/+ buttons all
through to carry out fine tune,
till the best picture and sound
are obtained, then loosen the
button.
TV08
AUTO
BG
AUTO
527.27 MHz
<Vol+> Adjust
AUTO
527.27 MHz
<Vol+> Adjust
08
D/K
00
08
D/K
+05
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
Prog.No.
Sound System
Color System
Fine Tune
Search
Auto Search
picture sound tuner function signal timer
19
Picture Control Functions
Multiple picture modes
How to select picture modes
You can quickly select the desired picture mode from
three preset modes and one customized mode.
Press the PSM button to select the
desired picture quality. Four kinds
of picture modes (i.e.,
"Standard",
"Soft", "Bright","Personal", )
can be selected in turn.
Standard
Soft
Bright
Personal
The 4 modes are
Picture mode
Personal
Standard
Soft
Bright
Picture quality
A spare setting that can be adjusted to
personal tastes
Designed for rooms that have good all round
lighting
Designed for night time low light viewing
Designed for rooms with high ambient
lighting such as daytime sport;
How to customize your own picture status
1 Press the MENU button and
VOL+/VOL- button , till the
menu shown on the
right display on the screen.
Brightness
Contrast
Sharpness
Chroma
Tint
Picture mode
picture sound tuner function signal timer
Personal
50
50
50
50
50
2 Press the CH+/- buttons to
select the item to be adjusted,
then press the VOL-/+ buttons
to obtain the desired effect.
Brightness
MENU to Return Vol+/Vol- to Adjust
20
ITEM
Brightness
Contrast
Sharpness
Chroma
Tint
(only in NTSC mode)
Press VOL-
Dark
Weak
Soft
Shallow
More purple
Press VOL+
Bright
Strong
Sharp
Deep
More green
NOTE these items are adjustable only under the personal setting.
Sound Control Functions
Multiple sound modes
How to choose sound mode
Press the SSM button to select the
desired sound quality. Four kinds
of sound modes (i.e.,
Theater ,
Personal , Standard and
Theater
Personal
Standard
News ) can be selected in turn.
News
Sound mode
Personal
Standard
News
Theater
Sound quality
A spare setting that can be adjusted to
personal tastes
normal sound with moderate bass and treble
setting
Designed to reduce the bass and treble which
enhances the voice for news programs
Enables extra bass and treble to enhance the
movie experience;
How to customize you own sound quality
1 Press the MENU button and
VOL+/VOL- button , till the
sound menu shown on the
right display on the screen.
2 Press the CH+/- buttons to
move select the item to be
adjusted, then press the VOL-/+
buttons to obtain the desired
effect.
Balance
Woof er vol
Woofer
Equalizer
Sound mode
picture sound tuner function signal timer
Balance
Woofer vol
Woofer
Equalizer
Sound mode
picture sound tuner function signal timer
Person al
Personal
00
50
On
+04
50
On
ITEM
Balance
Press VOL-
Press VOL+
R down L down
NOTE these items are adjustable only under the personal setting.
21
Equalizer and mute
How to use Equalizer
MUTE
1 Press the MENU and VOL+/
VOl- button , till the sound menu
shown on the right display on
the screen.
2 Press the CH+/- buttons to
Balance
Woofer vol
Woofer
Equalizer
Sound mode
picture sound tuner function signal timer
EQUALIZER
+04
Personal
50
On
select "Equalizer", then press
the VOL+ buttons, the menu
shown on the right display on
the screen.
3 Press the VOL+/- buttons to
select frequency to adjust, then
press the CH+/- buttons to adjust
the value data.
How to eliminate sound
When you need to pay attention to surrounded sounds, or
there is a telephone calling you or there are some guests
visiting you, the sound elimination (mute) function is very
convenient.
1 Press the MUTE button on
the remote control and "MUTE"
type face will display on the
lower part of the screen. At this
time, the sound of the TV set
is turned off.
Mute
22
2 If you want to recover the
sound, press the MUTE
button again or directly press
the VOL-/+ buttons.
Time Functions
Clock setting and timer on/off functions
Clock setting
The clock will only work if the TV set is turned on or in
standby. When the set is disconnect from the power
supply or is turned off by the main power on the rear
panel, the clock loses power and will need to be reset
when the power is reconnected.
Clock
1 Press the button and
MENU
VOL+/VOL- button, and the timer
menu display on the screen.
2 Press the CH+/- buttons select
"Clock",press the VOL -/+
buttons to select hour position;
then press the CH+/- buttons to
set the value of hour; press again
the VOL +/- buttons to select the
minutes position, then press the
CH+/- buttons to set the value of
minute.
On/off timer
Using on/off timer function, the TV set can automatically
turn on to a preset program or shut down in a preset time.
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
00:00
00:00
00:00
00:00
DVI
00:00
00:00
00:00
00:00
DVI
AV
AV
1 Press the
MENU and VOL+/-
button to call up the timer menu on
the screen.
2 Press the CH+/- buttons to select
"On time", press the VOL-/+buttons
to select hour position; then press
the CH+/- buttons to set the value of
hours; press again the VOL +/buttons to select the minute position,
then press the CH+/- buttons to set
the value of minute..(take 18:00 as
an example)
3 Press the CH+/- buttons to select
"On prog", then press the VOL-/+ or
program direct number buttons to
select your desired channel (take 8
as an example).
4 Repeat step 1-2 to set Off
time .(take 23:00 as an example)
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
00:00
18:00
00:00
00:00
00:00
00:00
23:00
00:00
00:00
00:00
00:00
00:00
DVI
AV
DVI
08
DVI
AV
23
Time Functions
Remind Time and Remind Program setting
How to use the remind time and program
Program remind timer, that displays an on-screen
reminder prompt, when a program on a different
channel is due to start.
Clock
1 Press the
MENU and VOL+/-
button to call up the timer
menu on the screen.
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
2 Press the CH+/- buttons to
select "Remind Time", then
press the VOL -/+ buttons to
select hour position; then press
CH+/- to set the value of hour.
Repeat 2 step to select the
minute position and set the
value of the minute.(take 19:30
as an example)
3 Press the CH+/- buttons to
move the cursor to "REMIND
PROG", then press the VOL -/+
buttons or the program direct
number buttons to set the
desired channel or source
(take DVI as an example).
NOTE the TV offers multi-remind program.
i.e., "PC", "AV","SV", "DVI", "YUV", "USB", "00",
"01", "02",......."99") can be selected in turn.
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
Clock
On Time
On Prog.
Off Time
Remind Time
Remind Prog.
picture sound tuner function signal timer
00:00
00:00
00:00
00:00
00:00
00:00
00:00
19:30
00:00
00:00
00:00
00:00
AV
DVI
AV
DVI
AV
DVI
24
Multiple aspect ratio and language
Multiple aspect ratio and language setting
How to choose picture aspect ratio
1 Using ZOOM buttons.
Press the ZOOM button to select the
desired picture ratio. Four kinds
of models (i.e., Fill all
aspect ratio ,
Normal
, Wide and Zoom )
can be selected in turn.
Aspect ratio
Fill all
Normal
Wide
Zoom
Picture effect
no cut out on input signal ,screen is filled
by picture
no cut out on input signal picture with
un-changed scale displayed on the screen
(to keep the scale, maybe only the center
area of the screen is active)
input signal is vertically cut out by 10% and
picture's center area is non-linear zoomed
to fill the whole screen
input signal is vertically cut out by 15.3%
no non-linear zoomed to fill the screen
2 Using buttons.the MENU
1 Press the MENU button and
VOL+/VOL- button , till the
function menu shown on the
right display on the screen.
Fill All
Normal
Wide
Zoom
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
English
Small
Center
00:00
2 Press the CH+/- buttons to
select
then press the VOL+ buttons
to select the item to desired.
To choose language
Repeat step 1. to select
"Language item, then
press the VOL+ buttons to
select language to desired.
Aspect Ratio item,
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
Language
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
English
Small
Center
00:00
English
Center
00:00
25
Multiple OSD position
Multiple OSD position setting
How to choose OSD position
1 Using "OSD posi" buttons.
Press the to select the desired
OSD posi" buttons
"
picture position. Five kinds of position models (i.e.,
Center , Right T Right B and
, Left T
Left B ) can be selected in turn.
OSD position
Center Left T Right T
OSD position OSD position
OSD position
Left B Right B
OSD position
2 Using buttons.the MENU
1 Press the MENU button and
VOL+/VOL- button , till the
function menu shown on the
right display on the screen.
2 Press the CH+/- buttons to
select
then press the VOL+ buttons
to select the item to desired
position.
OSD Position item,
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
English
Small
Center
00:00
English
Small
Center
00:00
26
Calendar search and time skip
This TV set has been designed to search the calendar from the year 1901 to 2100.
Calendar search and time skip
To choose calendar search
1 Press the MENU button and
VOL+/VOL- button , till the
function menu shown on the
right display on the screen.
2 Press the CH+/- buttons to
select
"Calendar item, then
press the VOL+ buttons to
display the calendar menu on
the screen.
3. Press VOL+ button to
search the desired year or
month.
4. Press CH+/CH- button
to adjust the desired year
or month.
5. Press the TIME or
MENU button to return to
previous mode.
Jan
English
Small
Center
00:00
English
Small
Center
00:00
1
8765432
1514131211109
2229212820271926182517
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
00:05:52
S M T W T F S
16
24
23
31
30
To choose time skip function
Repeat step 1. to select
"Time Skip item, then
press the VOL+/VOL- buttons
to set the desired time.
Language
OSD Size
OSD Position
Time Skip
Aspect Ratio
Calendar
picture sound tuner function signal timer
English
Small
Center
00:00
27

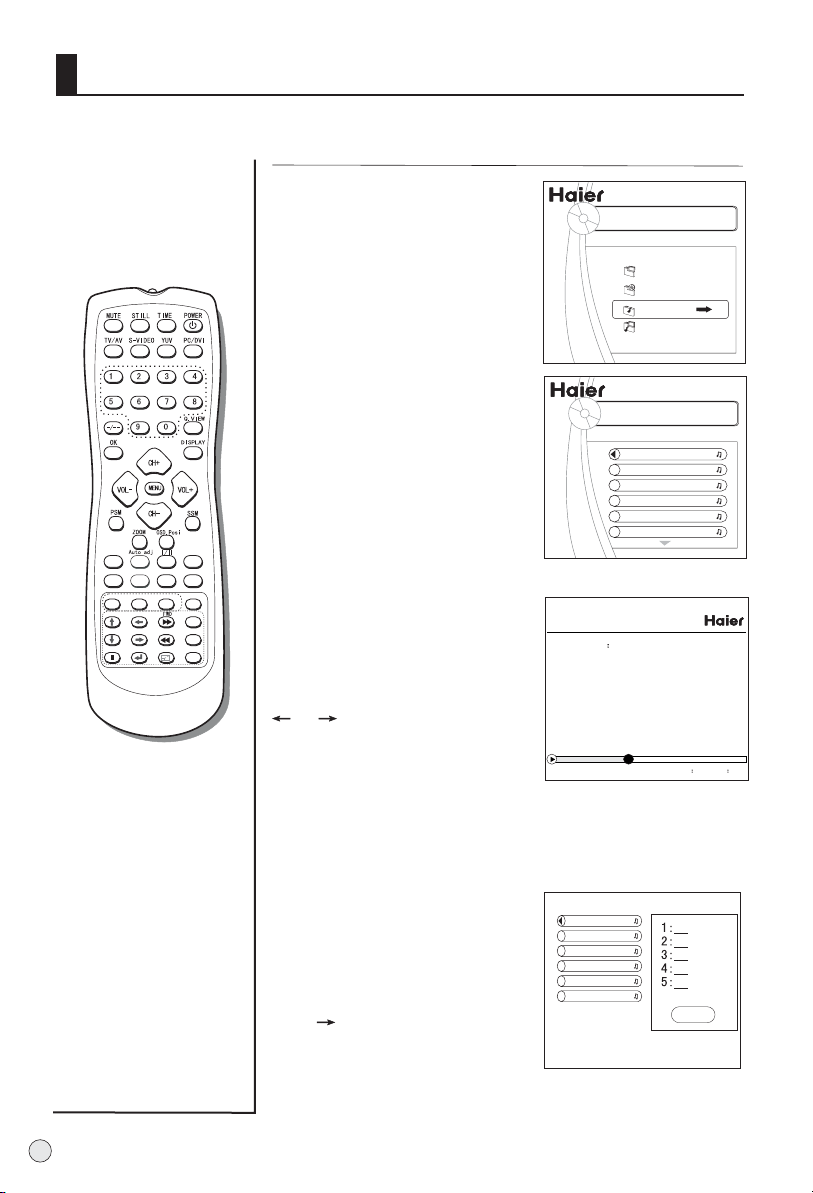

Others functions
Program Edit Scan Nicam and display functions
Program edit and Scan
Edit Scan
Edit Scan
DISPLAY
1 Press the Edit button, the
,
calender menu display on the
screen.
2 Press CH+/- or VOL+/-
button to select program, then
press the number buttons 4
Program Table
00 @0497
01 @0622
02 @0832
03 @1442
04 @1842
05 @2112
06 @2322
07 ----08 ----09 -----
10 ----11 ----12 ----13 ----14 ----15 ----16 ----17 ----18 ----19 -----
Vol+/Vol- Ch+/Ch- to Select Program
1=Del 2=Change 3=Rename 4=Favorite 5=Skip
to set favorite program.
Favorite TV04
3 Repeat step ,you may set
multiple favorite program.
4 Press SCAN button to enjoy
desired program.
NICAM
Press the I/II button will result in fast swap of NICAM
function of current program.
Display function
Press the DISPLAY button, then
the channel number and system
will be displayed on the screen.
the DISPLAY button
Press again,
it is disappear.
TV03
AUTO
BG
20 ----21 ----22 ----23 ----24 ----25 ----26 ----27 ----28 ----29 -----
AUTO
D/K
28
Shuttle
Shuttle function
Shuttle function enables quick swap to setting program.
Press Shuttle button about 3 second,
and the display Shuttle on the screen,
at the time, you may operate other, then
if you scan over program, you may press
again shuttle button to return to the
setting program.
Shuttle
TV03
AUTO
BG
PC setting
PC setting
PC setting
Press PV/DVI button to select PC mode.
1 Press the MENU button
and VOL+/VOL- button , till
the signal menu shown on the
right display on the screen.
2 Press the CH+/- buttons to
select the item to adjusted,
then press the VOL+/buttons to adjust.
ITEM
Red
Green
Buel
Note
Recommendatory frequency as follow:
Sequence frequency
Press VOL-
Weaker
Weaker
Weaker
H-frequency
KHz
31.5
37.88
48.36
Red
Green
Blue
H position
V position
Auto Adjust <Vol+ > Adjust
picture sound tuner function signal timer
50
50
50
50
50
Press VOL+
Stronger
Stronger
Stronger
V-frequency
Hz
60
60
60
Remark
DOS
VESA
VESA
NOTE As the frequency of display differ in PC device you may
select the appropriate frequency to obtain desired effect.
If the signal of receive is excess, the picture can be not displayed
or wrong on the screen.
29
PC setting continued
In VGA and DVI input mode, H-Position and V-Position can be adjusted to eliminate
transverse line interference.
Multiple picture position setting
PC setting
1 Press the MENU button
and VOL+/VOL- button , till
the signal menu shown on the
right display on the screen.
2 Press the CH+/- buttons to
select the item to adjusted,
then press the VOL-/+
buttons to obtain the desired
effect.
Red
Green
Blue
H position
V position
Auto Adjust <Vol+ > Adjust
picture sound tuner function signal timer
50
50
50
50
50
30
Note:
1. A It is natural
s adjusting H position or V position ,
he picture will have faintness once in a while if the range is
that t
more, then to adjust contrarily to normal position.
2. H-position,V-position,Auto Adjust are not available in TV
mode.
3. Auto Adjust is not available in AV and S-VIDEO mode.
parameter
Stream media broadcast system
Stream media play prepare
1. Supporting equipment
1.Equipment supporting Mass and
Storage agreements include USB,
mobile hard disk, card reader, some
MP3 and digital camera.
2.Equipment supporting PTP
agreement includes some digital
camera.
2. 1 Supporting media:
picture, music, MPEG4, MPEG2
and MPEG1;
Supporting file format
*.Avi, *.DIVX, *.MPEG,*.DAT, *.MP3,
*.WHA, *.JPG and *.JPEG. Due to
particularity of file code and file mode,
It is possible that some files cannot be
read.
2 If Pic & Music mode is activated,
relative media file format will include
JPEG and MP3 files. After Picture is
selected, MP3 files set for play will
open both music and picture files for
sync play performance. As some files
must be read while music is being
played, the speed of picture
operation response might be
affected.
3.Before starting operation, verify USB
storage device is of FAT32 and FAT file
system format. At present, this
television does not support NTFS and
the file systems of other format.
4.Many movie files use suffix of AVI and
MPG. However, many kinds of format
are used for internal files. This
television can only play some AVI
and MPG files of this format. Those
files with suffix of dat are not movie
files, but data files used by
computers, and cannot be played
for movies.
5.External card reader supports
most digital cards available in the
market. Readable digital cards are
classified according to the property
of card readers and can be
connected to mobile hard disks
(working voltage 5.0V, working
current not over 500mA).
6 . Some time the television
operation may be halted due to
excessive rate of information code
errors. In such case, restart the
system. As there are many
nonstandard USB mobile devices in
the market. If this kind of USB mobile
devices are used in the stream
media play system, the problem of
identification failure might occur.
The same problem may also
happen with computers, not
televisions.
7.It is suggested that the external
devices with USB2.0 interface be
used to improve velocity of
information reading and continuity
of information play.
31
Stream media broadcast system

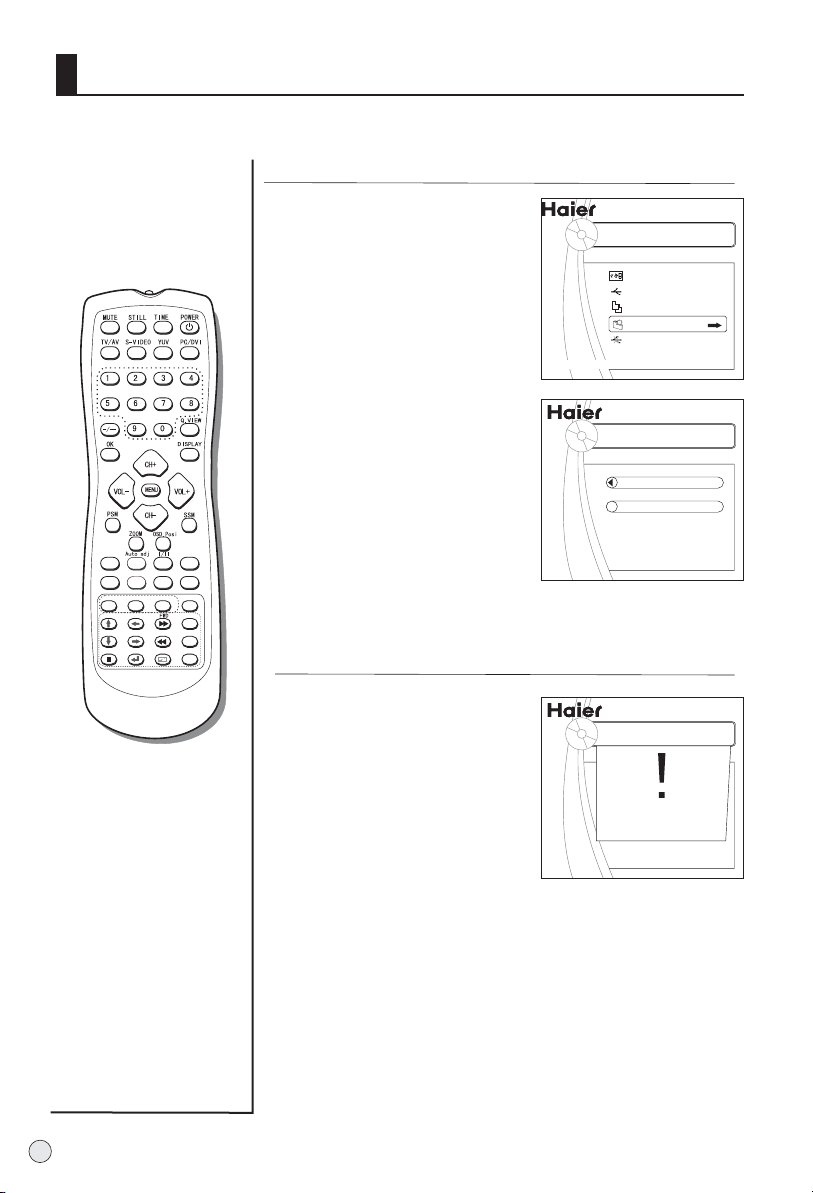

Stream media system setup
Note: Memory cards or USB devices are not
supplied with this TV.
USB setup
1 Insert USB in the card slots at the right side the TV.
2 Insert it to be clicked in.
3 Press USB button on the remote controller to enter
the stream media system.
CARD setup
This TV is Compatible with the card of SD/MMC/CF/MS/SM
format.
How to use
Press ENTER key to play this devices
AAA Multimedia Player
Card
USB
File copy
SETUP
Remove USB
1 Jack of card Instructions
Jack of SM card
Jacks of SD MMC MS card
Jack 1
Jack 2
Jack of CFcard
2 Insert the card as right direction. As following Card in common use
1 CF card
jack
COMPACT FLASH
DIGITAL MEMORY CARD
2 MMC card
jack jack jack jack
MULTIMEDIA
CARD
128
128
MB
Note:
1.the card insertion time, after the flows media system starts 2s , insert the card
to numerical code card reader , do not bring card to start flow media system.
2. After card insertion, indicator light will shines, and enters glitters condition,
after period of time , indicator light enters constant bright condition, indicates
already distinguishes finished, this time carries on play operation and so on .
3, In the market ,the digital card type are very many, please uses standard
product of the standard factory , meets reads takes difficult or reads speed
limits, please replaces the digital card.
3 MS card
128MB
MB
Note
1.Please note chooses uses
the digital memory card with
you corresponds the receptacle
2.Card reader in 1 cannot
simultaneously insert two kind
of cards in the graphical
representation position
4 SM card
128MB
MEMORY STICK
ID
SD
128MB
32

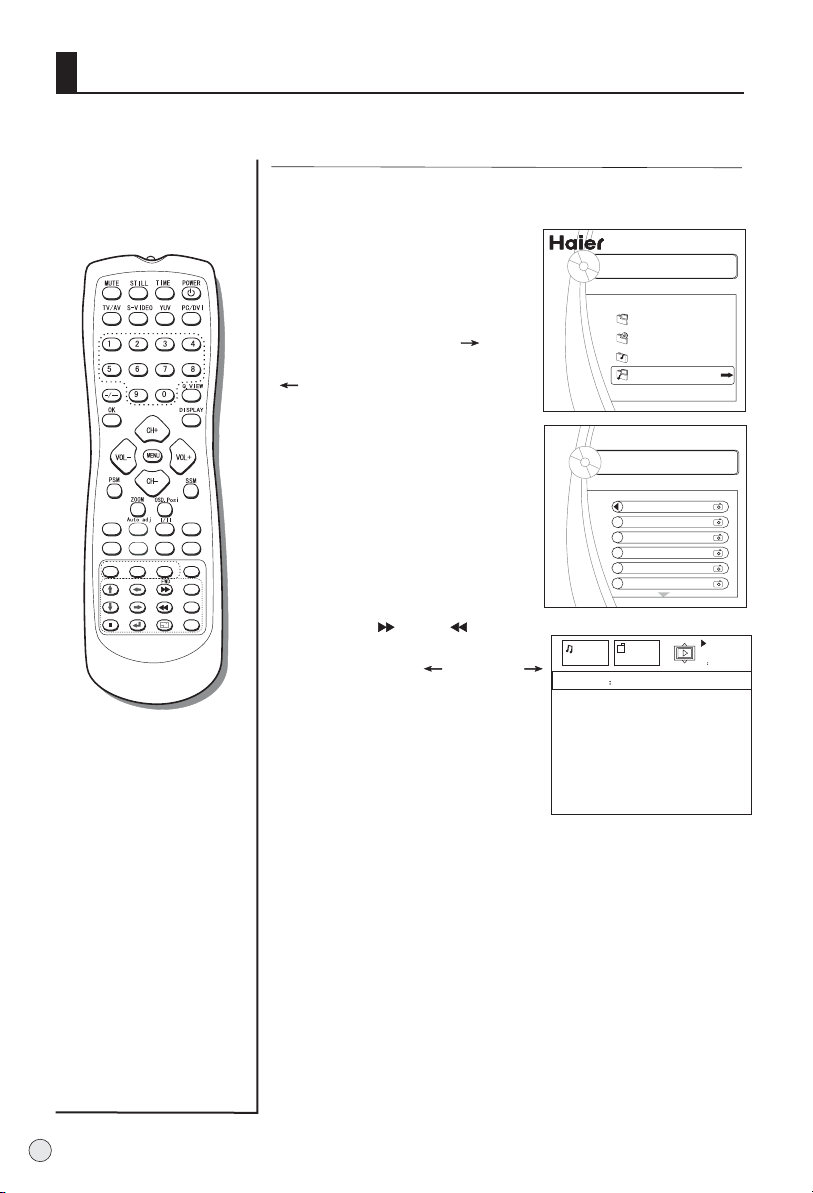

Stream media broadcast system
Removing USB device
1
Press Up or DOWN to select Remove USB,
and press ENTER button to ensure it.
press EXIT button to exit menu.
2
3 Remove the memory card/USB device.
4 If to remove the card device, press EXIT
button to return to the main menu, and
remove the card.
Card data protection
- Do not remove the card/USB device when the content is being read or when
browsing. Such action may damage the memory card/USB device.
- Do not touch the terminals on the back of the card.
- Always insert a card in the correct direction. Failure to do so may result in
damage to the card and the unit.
- Do not subject the card to excessive pressure or strong impacts.
- Malfunctions of the unit or card may result in data loss or damage to the card.
- Haier shall not accept any liability for damage or loss of stored data.
Warning:
Memory cards can be swallowed
by young children. Do not allow
children to handle memory cards.
Please remove the memory card
immediately after use.
AAA Multimedia Player
Card
USB
File copy
SETUP
Remove USB
Press ENTER key to remove USB devices
33
Stream media broadcast system
To start the media play
1. Press USB button to enter media play system.
2. Press Up or DOWN button
to select the desired option.
AAA Multimedia Player
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
3. Press ENTER button to
enter desired option.
4. Press EXIT to return the
Press ENTER key to play this devices
Card
USB
File copy
SETUP
Remove USB
previous menu.
5. If to exit USB system, you need to return to the main
menu to protection card data..
Note: If there are no operation two minute later, the
TV will enter the saver automatically, at the time, press
any button of USB system to exit the saver menu.
To operate the menu
1. Press Up or DOWN to select the item with up or down.
2 Press LEFT or RIGHT to select the desired item of
submenu with left or right.
3 Press ENTER button to ensure the desired option to
enter the submenu to resume the speed of standard.
4. Press FWD or REV button to operate play quickly or
slowly.
5.Press PAUSE button to make the program stop and press
again to resume it.
34
6.Press ZOOM button to make zoom, and press Left/Right
or UP/DOWN button to enjoy the detail.
7 Press HELP button to call up or exit the OSD information.
And press HELP button to call up or exit the OSD during
operating file copy.
8 press EXIT button to return to previous menu and stop play,
press EXIT button repeatedly to return to main menu.
Stream media broadcast system
To select stream media broadcast system
Color.SYS
Edit Scan Shuttle Time.Skip
PIP
UP
DOWN
Pause Enter ZOOM HELP
Sound.SYS
Swap
Zoom/Move Sleep
Left/Prev USB
Right/Next REV EXIT
Note:
the play file menu are
different with your USB
devices.
1.Press Up or DOWN button
to select "card"or "USB".
(The device be inserted
and identified).
2. Press ENTER button to
enter adjusted option.
AAA Multimedia Player
Card
USB
File copy
SETUP
Remove USB
Press ENTER key to play this devices
To play picture
1. Press Up or DOWN
AAA Multimedia Player
button to select Picture item.
2. Press ENTER button to
enter the menu of play.
3. Press again Up or DOWN
button to select desired
enjoy picture, and then
ENTER button to enter
press
the play menu.
4. On screen display, Press Up
or DOWN to select the speed
of play.(Normal, slow, fast).
5. Press LEFT or RIGHT
button to swap the picture of
next and previous.
Press EXIT button to return.
JPEG
Slideshow speed standard
Movie
Music
Music andPIC
AAA Multimedia Player
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
Play
To enjoy the picture detail
1
. After selecting the picture to play, press ZOOM to
select desired zoom.
2. Press HELP button to exit the display, and then
press Up or DOWN or LEFT or RIGHT to move and
enjoy the picture detail.
To make the picture overturn
Each press of FWD button to make overturn 90 with right,
press
ENTER button to resume the program playing.
0
35
Stream media broadcast system
To enjoy music
1. Press UP/DOWN button
to select "Music" option.
AAA Multimedia Player
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
2. Press ENTER button to enter
play menu.
3. Press UP/DOWN button to
Movie
Music
Music andPIC
select desired music, and
then press ENTER button to
play music.
AAA Multimedia Player
Note: the play file menu are
different with your USB device.
The day went away .MP3
4. When playing music,
press UP/DOWN to select
play mode, (play mode:
standard, program, Random;
Repeat mode: Disc Repeat,
Folder Repeat, File Repeat)
and press ENTER button to
ensure the mode.
The day you went away.MP3
Play mode standard
5. When playing music, press
or button to swap the
next and previous music
6. Press EXIT button to exit
the playing.
Note: 1. DISC Repeat mode: press UP/DOWN button,
the DISC Repeat will appear on the screen, and then
press ENTER to ensure it.
2. Program mode:
press UP/DOWN button to
select the music in left list,
and press ENTER button to
program in turn, and then
the DISC Repeat will appear
on the screen, and then
press button to select
"Done", and then press
ENTER button to ensure it.
The day went .MP3
Soft .MP3
01 07 / 04 20
Soft .MP3
The day went .MP3
Done
36
Stream media broadcast system
To play Movie
1. Press UP/DOWN button to
select "Movie" option.
AAA Multimedia Player
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
2. Press ENTER to enter play
menu.
3. Press again UP/DOWN
button to select desired
music, and press again
ENTER button to play it.
4. On screen display, press
or button to select in
turn:
File-Play Back Control-Auto
channel-Play Mode
5. Press FWD or REV button
to set speed, press ENTER button
to resume to standard mode.
6. Press or button to
select the next movie or
previous.
7. Press EXIT button repeatedly
to return.
Movie
Music
Music andPIC
AAA Multimedia Player
E08-8SOBTILES-1
37
Stream media broadcast system
To select the Music and PIC item
1. Press UP/DOWN button
to select "Music and PIC"
option, and press ENTER
button to enter menu.
AAA Multimedia Player
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
2. Press UP/DOWN to select
desired file, and press
button to ensure it.
( to cancel). Repeat step
2 to select more file, and
press ENTER button to enter
play menu.
3. On screen display menu,
press UP/DOWN to select the
speed to play.( Normal,
slow, fast).
4. Press FWD or REV button
to swap the next and previous
picture, press LEFT or RINGHT
button to select the music.
Note: press PAUSE button to
stop playing the picture.
5. Press repeatedly EXIT button
to return.
Movie
Music
Music andPIC
AAA Multimedia Player
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
JPEG
MP3
The day you went away .MP3
Play mode standard
Play
00 01:43
38
Note: on the music and picture, the playing music
is *.mp3 format.
Stream media broadcast system
Copy file function
1. Press UP/DOWN to select
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
"File Copy" item.
2. Press ENTER button to enter
the copy menu.
3. Press ENTER button to
enter the file menu, and
press UP/DOWN button to
select "Card" or "USB"
4. Press ENTER button to enter
card or USB, and select the
files to copy, then press
HELP button to call up COPY
and PASTE, and then press
UP/DOWN button to select
COPY, and press ENTER button
to confirm, press again
UP/DOWN button to select
PASTE, then press
ENTER button to paste, in this
time, the File already exits,
overwrite it will appears
on the screen, and press
LEFT/RIGHT button to select
YES/NO, and then press
ENTER button to confirm.
AAA Multimedia Player
Card
USB
File copy
SETUP
Remove USB
Press ENTER key to enter COPY menu
Select source Port:
Card
USB
Root
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
Root
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
COPY
PASTE
Note:
RIGHT button to select
the all files;
LEFT button to cancel
5. Press ENTER to cancel.
.
39
Stream media broadcast system
To select language
Color.SYS
Edit Scan Shuttle Time.Skip
Swap
PIP
Zoom/Move Sleep
Left/Prev USB
UP
Right/Next REV EXIT
DOWN
Pause Enter ZOOM HELP
Sound.SYS
1. Press UP/DOWN to select
"SETUP " item.
2. Press ENTER button to enter
the SETUP menu,
3.and press again ENTER
button to enter language
option.
4. Press UP/DOWN to select
desired language, and
press ENTER to ensure it.
5. Press EXIT button to return.
To display the version
1
. Repeat steps 1-2, and
then press UP/DOWN to
select version.
2. Press ENTER button to
display the version number.
AAA Multimedia Player
Card
USB
File copy
SETUP
Remove USB
Press ENTER button to SETUP menu
AAA Multimedia Player
Languages
Version
AAA Multimedia Player
V2.1.04252
40
Specifications and functions
Screen diagonal line 40 inches
Picture proportions 4:3/16:9: (4 modes)
Panorama picture: 16:9
Picture element: 1366 768
Multi-input compatibility
Advanced technology for motion picture processing
Two speakers/optional
Complex component: RCA-pin 3
Component video signal: YUV 1
S terminal: Mini DIN 4-pin 1
RGB input: D-sub 15-pin 1 (480i/p, 720p, 1080i, 1080p)
Audio input: RCA-pin TYPE (L/R) 4: full support
separate audio frequency input
Audio system: stereo
Control port: RS-232 D-sub 9-pin 1
Size: WXHXD unit(mm): main component
Net : 29kg
Weight main component
1065 742 100
Working conditions
Power: 150V-240V, 50/60Hz
Power consumption: 250W
Temperature
Working: 0 35 Storage: -25 45
Humidity
Working: 20 80% Storage: 5 90%
41
Maintenance
- Early malfunctions can be prevented. Careful and regular cleaning can
extend the amount of time you will have your new TV. Be sure to turn the power
off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
1. Here`s a great way to keep the dust off your screen for a while. Wet a soft cloth in a
mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring
the cloth until it`s almost dry, and then use it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on
your TV.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure
not to use a wet cloth.
Extended Absence
If you expect to leave your TV dormant for a long time (such as a vacation), it`s a good
idea to unplug the power cord to protect against possible damage from lightning or
power surges.
42
Troubleshooting
For the sake of time and cost, it is strongly recommended that you check out
the problem by yourself according to the instructions listed hereunder before
contacting the after-sales service for technical assistance.
Problem
No picture,
no sound
Good picture,
no sound
Failure of remote
controller
No color, weak
color or poor picture
Excessive brightness
or darkness
Picture too big or small
One speaker failure
Slight sound from display
Turn on the power supply;
Properly plug the TV set to the power socket;
Check to see if the power cable of other appliance is
plugged in the TV set. Make sure that the power cable
of the TV set is properly connected.
Depress the volume button;
Check out the audio frequency input signals.
Check to see if the remote controller display
receiving window are blocked by other objects and
if batteries are properly loaded.
Designate the item of color from the Picture menu
and depress the volume button;
Keep the display and VCR separate a reasonable space;
Activate some functions to store picture brightness;
Make sure that the display and signal source are
available and turned on.
Adjust brightness or contrast.
Adjust the setup of sizes.
Balance the sound in the menu.
It is a normal phenomenon.
Possible remedies
Note: Do not leave the television with static picture in an extended period as it may
result in residual image on your television screen.
Note: Production of the screen requires high and precision technologies. However,
there might be some dark or bright (red, blue or green) spots, or some anomalistic stripes or
spots. This is not defect. If the TV set is used in an area 2,400 meters above the sea level where
the air pressure is below 750hpa, the picture on the screen may be affected and a muffled sound
might be produced. These phenomena might happen in the area 1,500 meters above the sea
level. This is resulted from difference between air pressures inside and outside the display. This
is not a defect covered by the limited warranty.
NOTE
Design and specifications are subject to change without notice.
The dimension in this manual is a approximation.
43
Loading...
