Sound menu

To choose sound modes

You can quickly select the desired sound mode from three preset modes and one customized mode.

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL- VOL+MENU

CH.LIST EXIT

SWAP

CH+

CH-

H.LOCK

TIMERZOOM

Press the S.STD button to call up Audio mode menu, and press CH+/- button to select the desired sound quality. Four kinds of sound models (i.e.,Music

Personal,Standardand Hall) can be selected in turn.

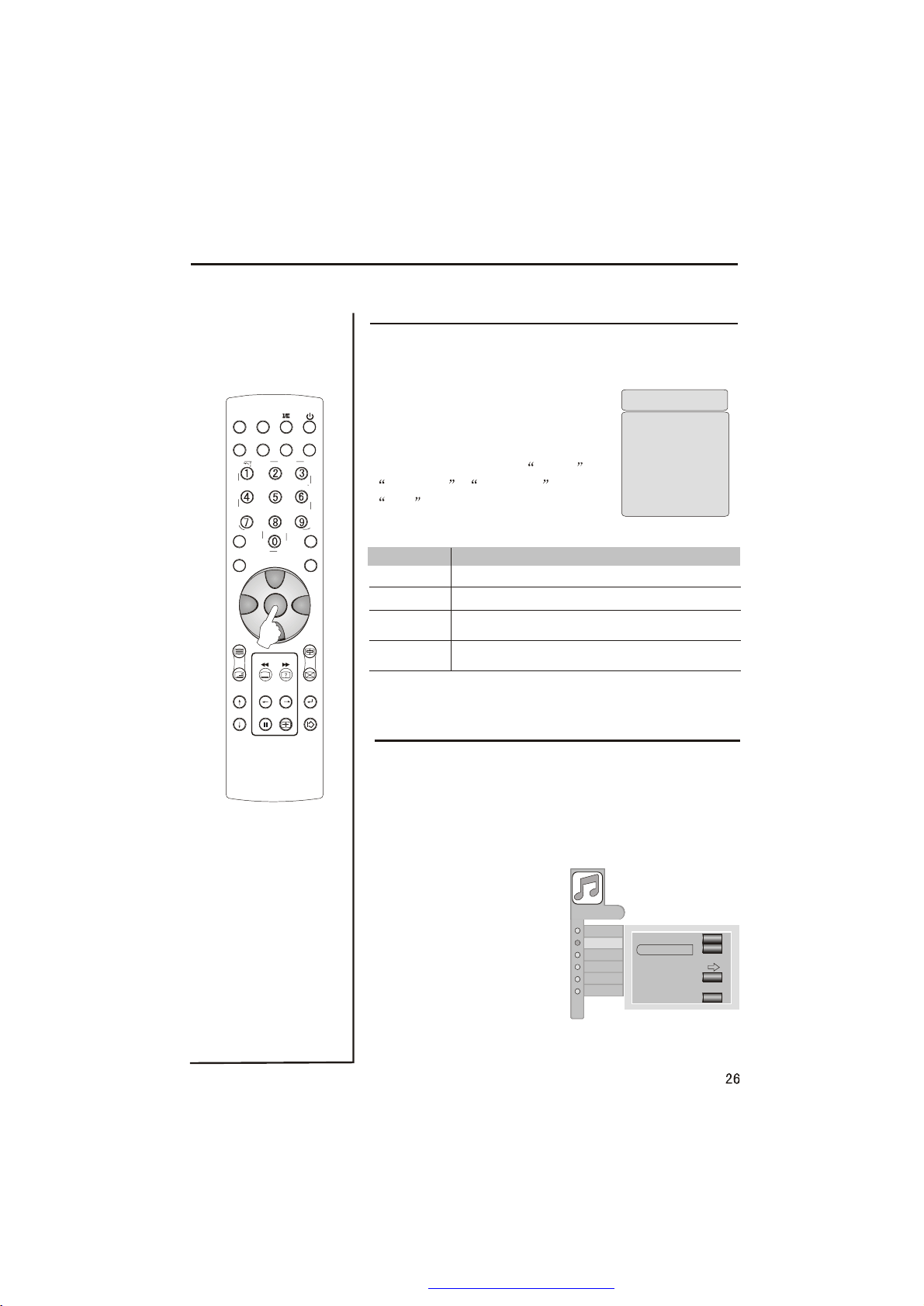

Sound mode

Personal Standard Hall Music

Sound quality

A spare setting that can be adjusted to personal tastes

Normal sound with moderate bass and treble setting Designed to reduce the bass and treble which

enhances the voice for news programs Enables extra bass and treble to enhance the movie

experience

Audio Mode

Music Standard Hall Personal

Balance

To balance right and left sound of the television.

The intermediate value is 0. When indication value of Balance increases toward+50, sound of the right and left speaker becomes stronger and weaker, respectively. When indication value of Balance decreases toward -50, sound of the right and left speaker becomes weaker and stronger.

Press MENU button and

then CH+/- buttonto select AUDIO menu.

Press VOL+ to enter the

submenu. Press CH+/- button to select Balance item.Press VOL+/- to adjust the desired level.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

3 Press MENU return

to the picture menu.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Volume Balance Audio Mode Five Equalizer Surround Auto Volume Woofer

Music

0 0

Off

Sound menu

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH.LIST EXIT

CH+

CH-

TIMERZOOM

SWAP

VOL+

H.LOCK

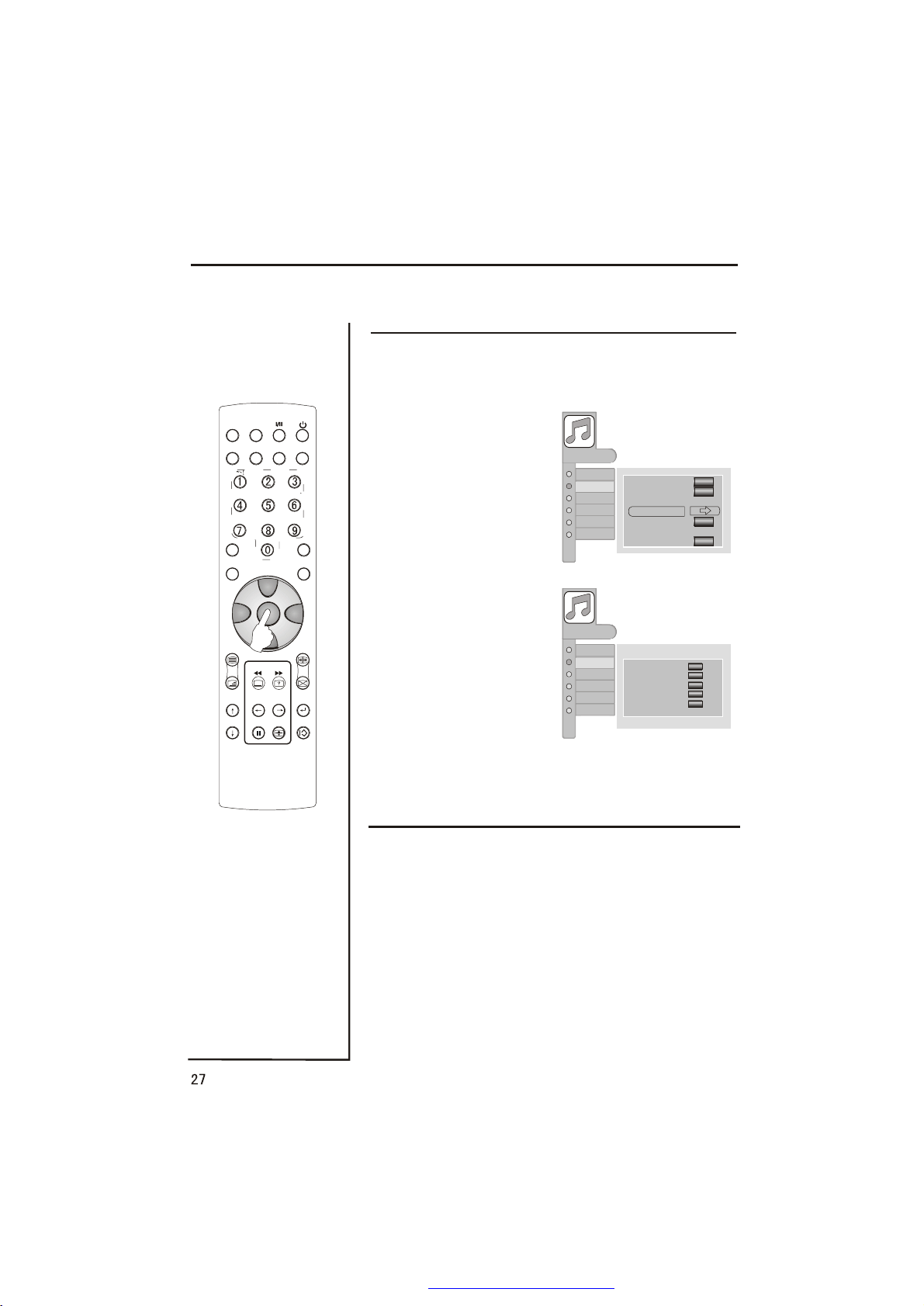

Setting Five Equalizer sound

The sound settings can be adjusted to suit your personal preferences.

Press MENU button and

then CH+/- buttonto select AUDIO menu.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Volume Balance Audio Mode Five Equalizer Surround Auto Volume Woofer

Five Equalizer

120Hz 500Hz 1500Hz 5000Hz 10000Hz

Music

0 0

0 0 0

Press CH+/- button to

select "FiveEqualizer ", then press VOL+ buttons to enter the submenu.

Press CH+/- button to select frequency to adjust, then press VOL+/- buttons to adjust the value data.

When you are satisfied with

the setting,press MENU button to return to the previous menu.

0 0

Off

Setting the surround sound

The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TV`s speakers.

SelectSurround from -50 to +50 . When intermediate value toward +50, the effect will be distinctness.

Repeated step 1-2, and press CH+/- to select surround, and thenpress VOL+/- to set the desired value.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Sound menu

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH+

CH-

SWAP

VOL+

Setting theAuto Volume

Each broadcasting station has its own signal conditions, and so it is not easy for you to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel and reduces the volume differences between channels and programs, providing a more constant overall level. This will also reduce the dynamics of sound.

Repeated step 1-2, and press CH+/- to select ,

Auto Volume

and thenpress VOL+/- to set as Off or On.

Setting the woofer sound

Woofer is a speaker that complements front speaker`s reproduction capability of low-pitched sound. Select Woofer to set the value of woofer from 0 to 100.

Repeated step 1-2, and press CH+/- to select Woofer, and thenpress VOL+/- to adjust the desired level.

H.LOCK

CH.LIST EXIT

TIMERZOOM

How to eliminate sound

When you need to pay attention to surrounded sounds, or there is a telephone calling you or there are some guests visiting you, the sound elimination (mute) function is very convenient.

1Press the MUTE button on

the remote control and "Mute" type face will display on the lower part of the screen. At this time, the sound of the TV set

Mute

is turned off.

2If you want to recover the

sound, press the MUTE button again or directly press the VOL-/+ buttons.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Timer menu

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH+

CH-

SWAP

VOL+

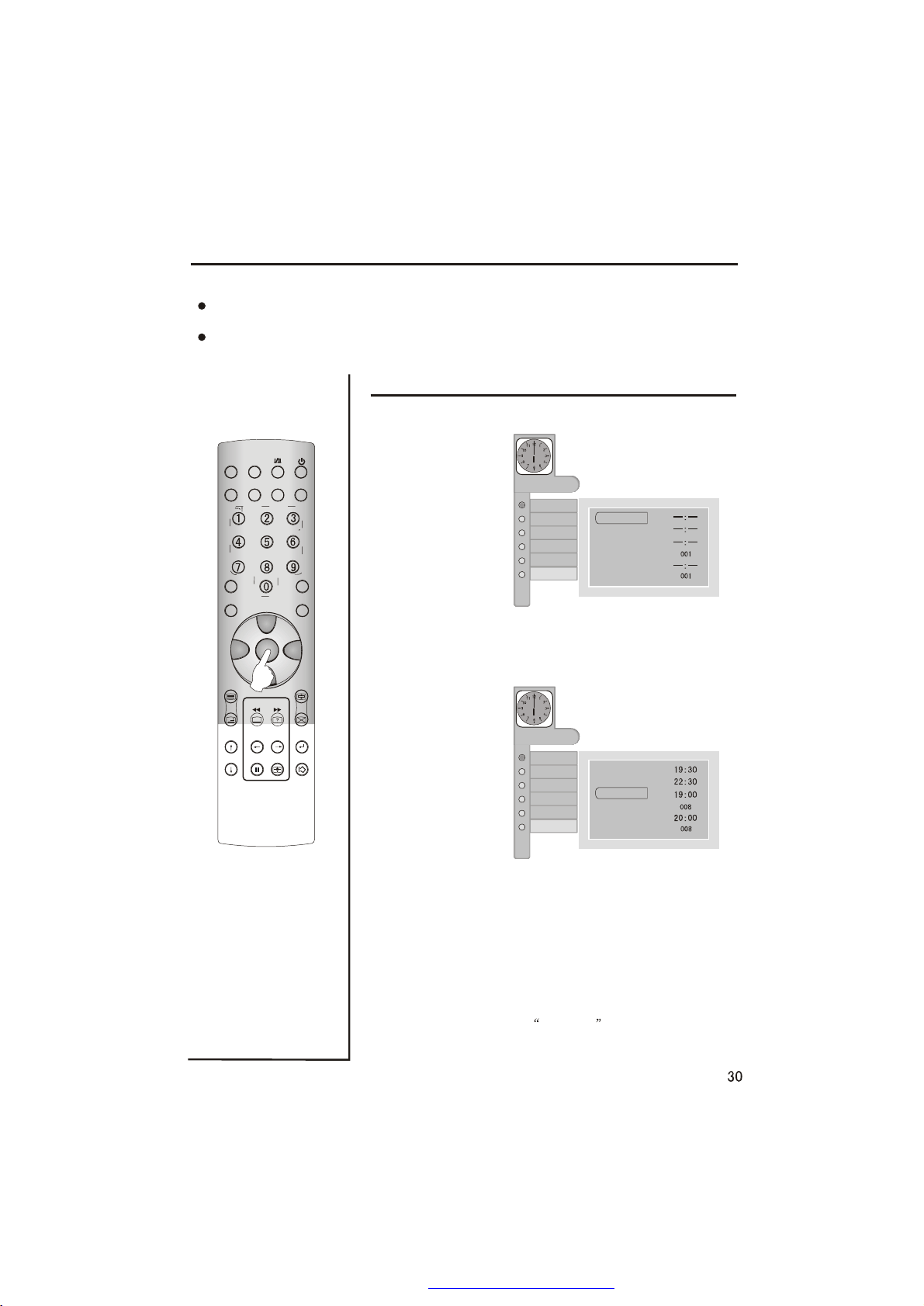

Timer setting

The clock will only work if the TV set is turned on or in standby. When the set is disconnect from the power supply or is turned off by the main power on the rear panel, the clock loses power and will need to be reset when the power

1 Press the MENU button and CH+/- button, till the TIMER

menu display on the screen.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Timer Time Off Time On TimerOn Prog Timer Prog Prog Num

H.LOCK

CH.LIST EXIT

TIMERZOOM

NOTE:

1.If Timer option is setting,

the time you set for Time Off/Time On will be a point of time. Otherwise, if Timer is not set, the time you set for Time Off/Time On will be a period of time.

2.Sleep Off/ Time Off can

not be set at simultaneously. If both of the two are set, the later setup will be operation.

2 Press CH+/- button select "Timer", press VOL -/+

buttons to select hour or minute position; then press digits buttons to set the value of hour or minute;

3 Press MENU button to return the previous menu.

Indication will appear on the screen 1 minute prior to expiry of set time. Suppose Time Off is set, and indication is as follows:

Time Off

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Timer menu

You can set the On/Off timers so that the set will :

Switch on automatically and tune to the channel of your choice at the time

you select.

Switch off automatically at the time you select.

On/off timer \Timer on Prog\ Timer Prog

1Press MENU and VOL+/- button to call up theTIMER menu

on the screen.

STILL

MUTE

SLEEPPIP

ABC@

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

CH+

CH-

DISPLAY

DEF

SWAP

VOL+

SCAN

TV/AV

P.STD S.STD

VOL-

2Press CH+/- button to select "Time On",press VOL-/+

buttons to select hour or minute position; then press digits buttons to set the value of hours or minutes. (take 19:00 as an example)

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Timer Time Off Time On TimerOn Prog Timer Prog Prog Num

H.LOCK

CH.LIST EXIT

TIMERZOOM

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Timer Time Off Time On TimerOn Prog Timer Prog Prog Num

3Press CH+/- button to select "Timer On Prog", then

press VOL-/+ and program direct number buttons to select your desired channel (take 8 as an example).

4 press CH+/- button to select "Timer Prog", press VOL-/+

buttons to select hour or minute position; then press digits buttons to set the value of hours or minutes.

5Repeat step 1-2 to set Time Off .(Take 22:30 as an

example)

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Function menu

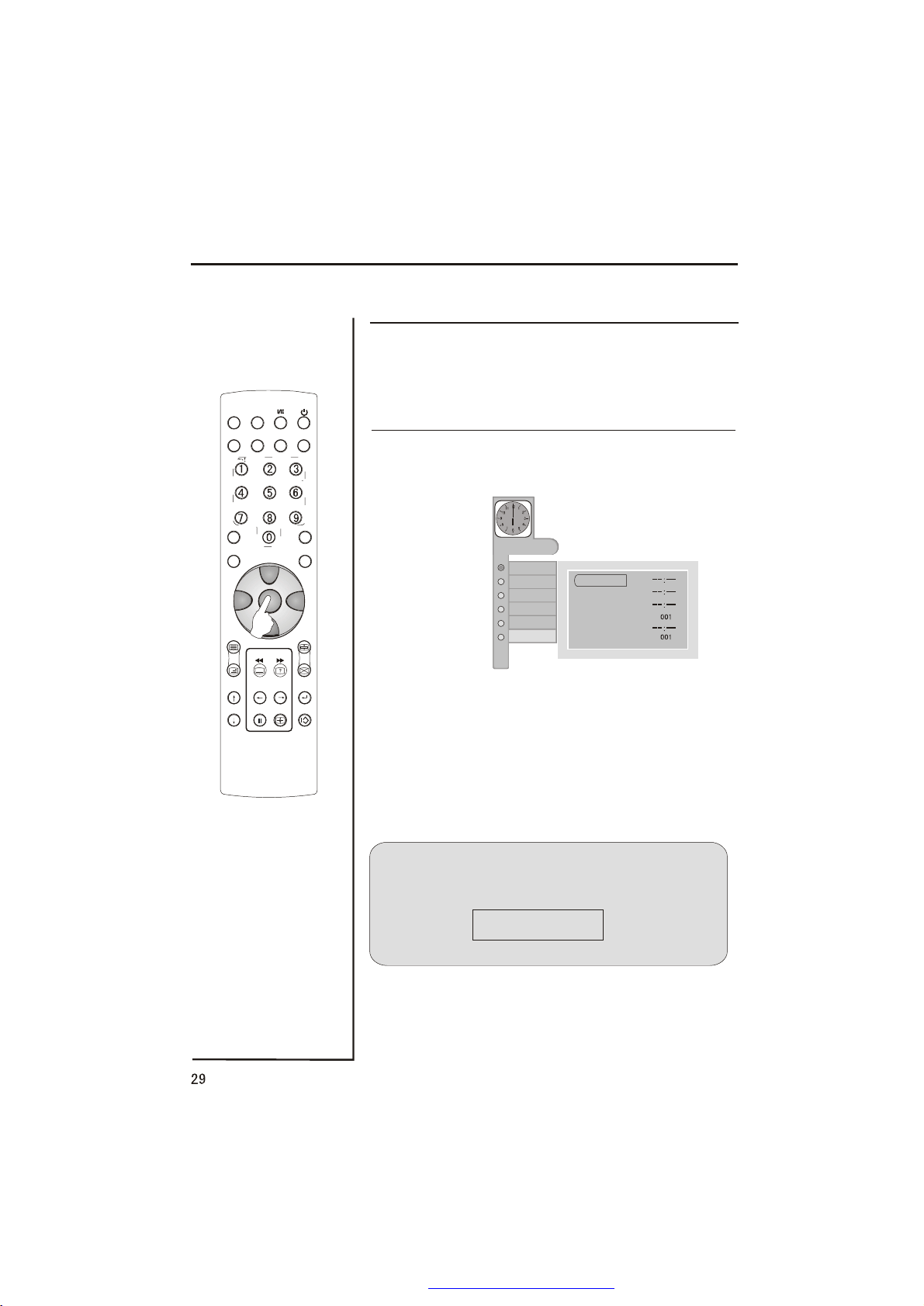

It is possible to select language, OSD transparent, position and screen display of the menu as follows:

Function setup

1. Press MENU button once, and the CH+/- button until the

following menu appears on the screen:

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH.LIST EXIT

CH+

CH-

TIMERZOOM

SWAP

VOL+

H.LOCK

2. Press VOL+ button on the remote controller to call up the

FUNCTION menu.

3. Press CH+/- to select desired item on the menu.

4.Press VOL+/- to adjust the item you have selected.

OSD language option

Repeat step 3 and 4 to select the language you wanted from the 13 kinds of languages.

Menu Timeout

Repeat step 3 and 4 to select the time of the OSD display in sequence as follows: 5 seconds,10 seconds, 15seconds, 20seconds, 25seconds, 30 seconds and 40 seconds.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Language Menu Timeout Menu Backgroud BlueScreen Calendar TeleText Language Restore Default Value

English

15 seconds

Transparent

Off

West Europe

MenuBackground

Repeat step 3 and 4 to select Transparent / Opaque background of OSD.

Blue Screen

Repeat step 3 and 4 to select Blue Screen On/Off.If you

select ON, when no signal, the background is blue; if you select OFF, when no signal, the background is snownoises.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Function menu

Function setup (continue)

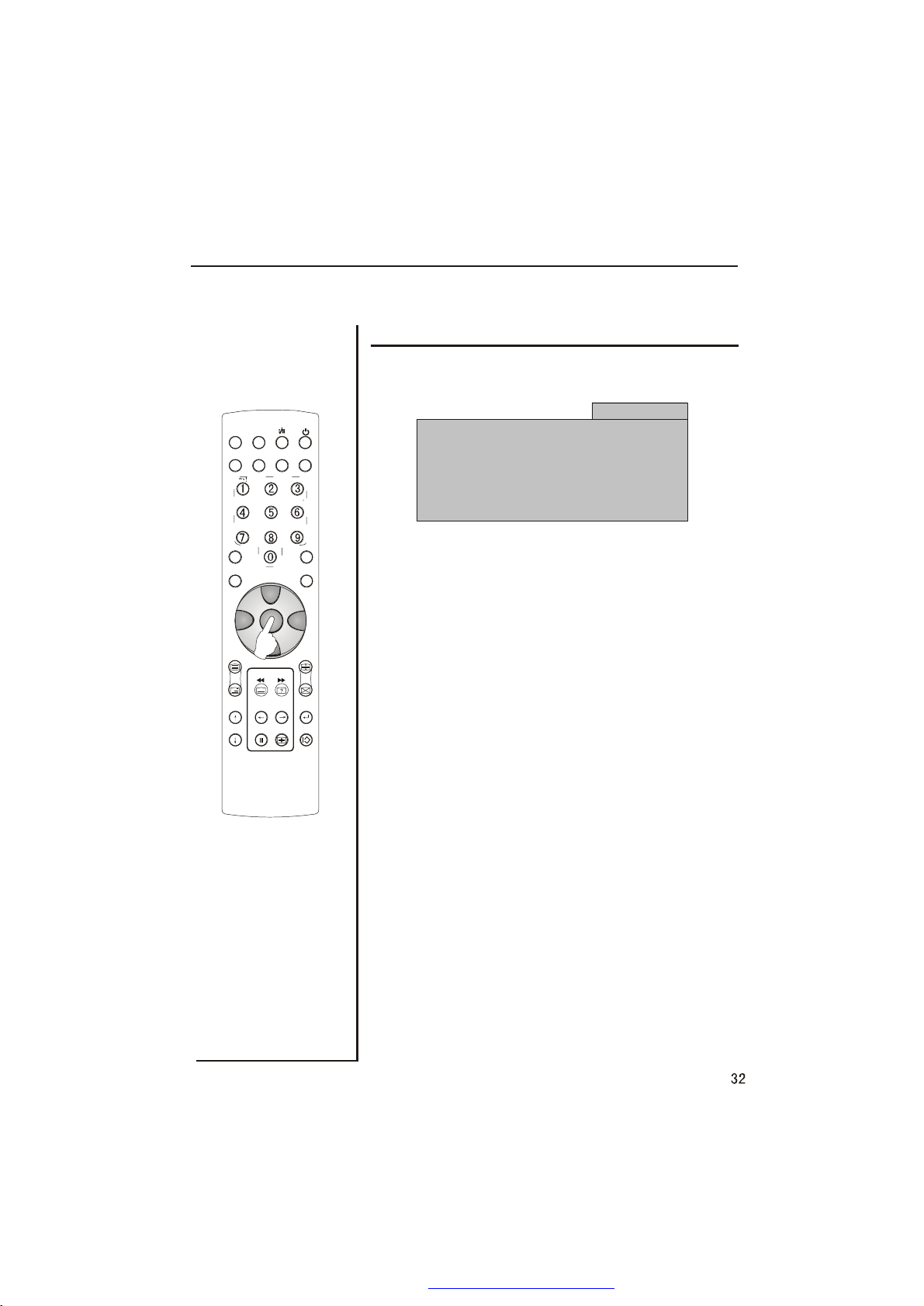

Calendar display and check

Repeat step 3 and 4 to enter Calendar menu as follows:

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH.LIST EXIT

CH+

CH-

TIMERZOOM

SWAP

VOL+

H.LOCK

Press VOL+/- to select among year, month and day, and then CH+/- to adjust them.

TeleText Language

Repeat step 3 and 4 to select from 6 kinds of languages. (West Europe/East Europe/Cyrillic/Greek/Arabic/Persian.)

Restore Default Value

Repeat step 3 and 4 to return the factory mode.

2005-01-01

Sun.Mon.Tue.Wed.Thu.Fri.

10 16 23 30

19 26

20 27

14 21 28

Sat.

8765432 15 22 29

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Adjust menu

To choose picture aspect ratio

1 Using ZOOM button.

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH.LIST EXIT

CH+

CH-

TIMERZOOM

SWAP

VOL+

H.LOCK

Note: Under the HDTV

VGA and HDMI signal, there are only Normal and 4:3 mode to adjust.

Press ZOOM button to select the

Normal

desired picture ratio. Three kinds of models (i.e.,

aspect ratio

"Normal","""

Mode) can be selected in turn.

Wide Screen and 4:3

Wide Screen

4:3 Mode

Aspect ratio Picture effect

no cut out on input signalpicture with un-changed

Normal

WideScreen

4:3 Mode

scale displayed on the screen(to keep the scale, maybe only the center area of the screen is active)

input signal is vertically cut out by 10% and picture's center area is non-linear zoomed to fill the whole screen

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the left and right sides.

2 Using button.the MENU

1Press MENU button and then CH+/- button , till the ADJUST

menu shown on the right display on the screen.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Display Mode Adjust RGB Default Auto Sync Color Temperature Black Stretch

Normal

Off

It does not work on the TV mode.

2Press CH+/- button to select Display Modeoption,

then press VOL+ button to select the desired option.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Adjust menu

In PC input mode, H-Position and V-Position can be adjusted to eliminate transverse line interference and decentered picture as follows:

H-Position and V-Position adjust

Adjust is opted for adjusting H-Position and V-Position as well as relative parameters in VGA and HDMI modes.

1. Press MENU button and CH+/- to call up the ADJUST

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH+

SWAP

VOL+

CH-

menu. as follows:

VGA, HDMI:

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Display Mode Adjust RGB Default Auto Sync Color Temperature Black Stretch

Normal

Off

Only be adjustable in the VGA mode.

2. Press VOL+ button on television or remote controller

to enter the adjust menu of picture position setup.

H.LOCK

CH.LIST EXIT

TIMERZOOM

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Adjust

H Size H Position V Size V Position Fine Tune Smoothing

3. Press CH+/- button for desired adjust parameter option.

4. Press VOL+/- for desired adjust parameter option until

satisfactory value is achieved. When VGA signals are received, the automatic mode is used for parameter adjustment.

H SizeHorizontal size of picture can be adjusted in this item. H Position: Horizontal position of picture can be adjusted in this item.

V Size: Vertical size of picture can be adjusted in this item. V Position: Vertical position of picture can be adjusted in this item. Fine Tune: Adjust phase to the best effect suiting for VGA signal.

Smoothing: make the line of the picture smooth.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Adjust menu

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH.LIST EXIT

CH+

CH-

TIMERZOOM

SWAP

VOL+

H.LOCK

RGB/Default/Auto Sync

1) RGB is opted for adjustment of the numerical value of red, green and blue in VGA,HDMI mode.

2) Default is opted for adjustment of parameters to delivery setup in PC mode.(After the operation, complete will be on the right of the operation)

3) Auto Sync is opted for adjustment of picture location frequency and phase parameters in VGA mode.(After the operation, complete will be on the right of the operation)

Color Temperature

Press CH+/- to makethe iconto ColorTemperature, andpress VOL+/- button to select.

There are four kinds of modes (i.e., "Normal", "Warm","Cold" ,"Green" ) can be selected in turn.

PICTURE AUDIO ADJUST TUNING FUNCTION TIMER

Display Mode Adjust RGB Default Auto Sync Color Temperature Black Stretch

Normal

Off

This will increase or decrease Warm (red) and Cold (blue) colors to suit personal preferences. Select Cold to give the white colors a blue tint, Normal to give the white colors a neutral tint, Warm to give the white colors a red tint. Green to give the white colors a green tint.

Black Stretch

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

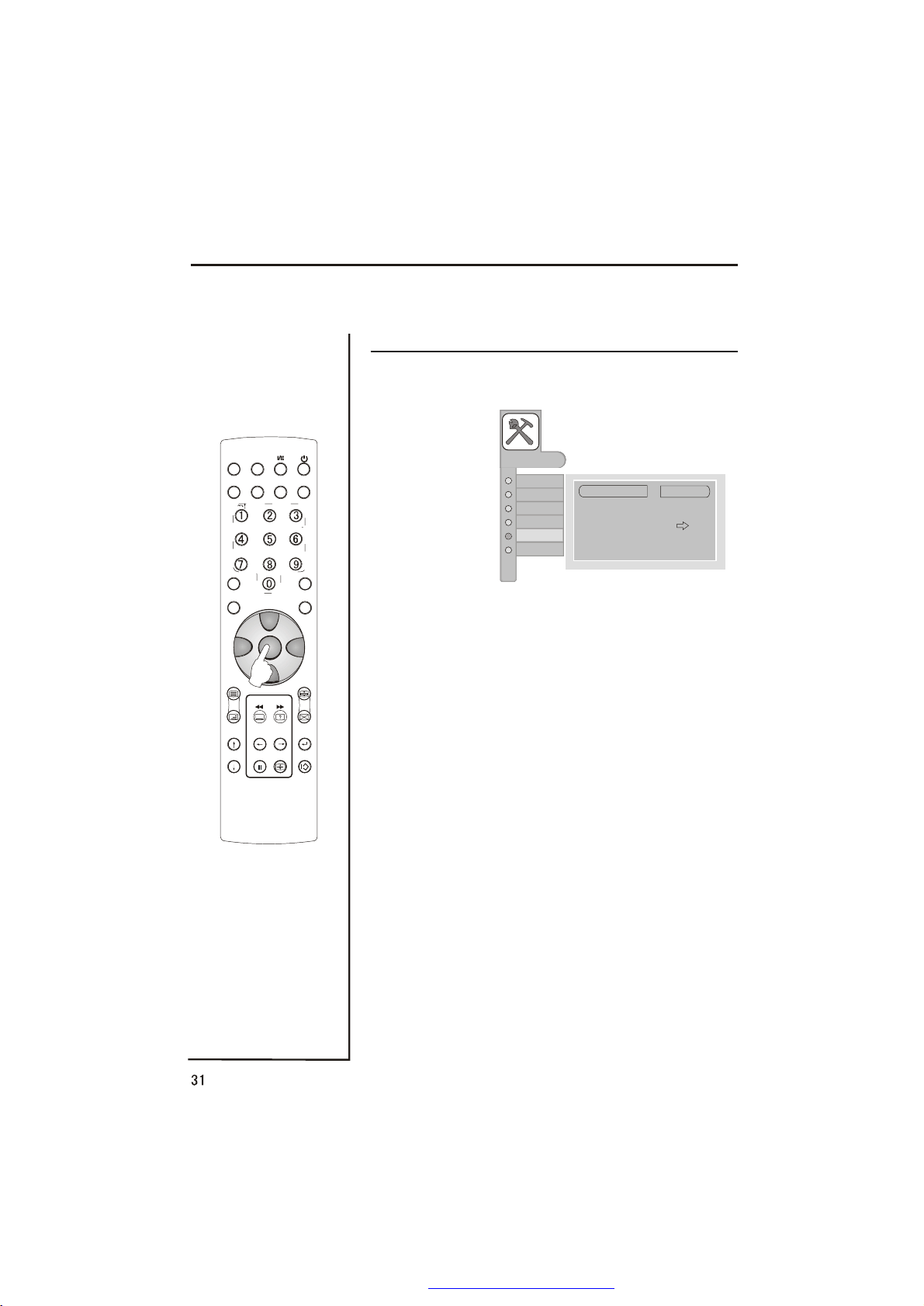

Lock setup

The television has the function of security default lock. Password needs to be entered when the program lock mode is to be set.

STILL

MUTE

SLEEPPIP

ABC@

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

CH+

CH-

DISPLAY

DEF

SWAP

SCAN

TV/AV

P.STD S.STD

VOL- VOL+MENU

How to use the password function

Press H.LOCK button, Password will appear on the screen.

The initial password of the television is 0000 and security default password is 9443. then enter Lock Set menu.(as follow)

LOCK SET

Password Tuner Lock

Prog Set Prog Num Source Lock Child Lock Max Volume Clear Lock

The television has the function of security default lock. Password needs to be entered when the program lock mode is to be set.

Note: If the password is not correctly entered, you will be required to reenter the password and the cursor will stay at the first place. The security default password is 9443. Press EXIT to cancel the window.

Off Off

Off 100

H.LOCK

CH.LIST EXIT

TIMERZOOM

Note:

If Clear Lock is activated, the password setup cannot be changed.

To set new Password

The password can be changed. After entering the Lock set menu, Press CH+/- to select

password, Press vol+/-, the screen will display the follow.

Old ----

If correct password is entered, the screen will display the follow.

New ----

Press digital button to set the new desired password, and the screen will display the follow.

Repeat ----

If the desired password is entered correctly twice, the old password will be changed. If the desired password is not correctly entered twice, the screen will display New ----, then you have to reenter the password.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Lock setup

STILL

MUTE

SLEEPPIP

ABC@

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

CH+

CH-

DISPLAY

DEF

SWAP

VOL+

SCAN

TV/AV

P.STD S.STD

VOL-

Tuner Lock

Press CH+/- to select Tuner Lock and VOL+/- to set On/ Off. (To set On, some operation such as search will be not available. When enter the TUNING menu, Tuner Lock will be on the screen, and the time will be the same with the main menu if no operation. If you want to operate TUNING menu, you need to enter the Lock menu to set Tuner Lock Off or operate Clear Lock.

Prog Set

Prog Set is opted for setting up start channel. Press CH+/- button to select Prog Set. Press VOL+ button, sources can be

swapped in TV/SCART1/SCART2/AV/HDTV/VGA/HDMI mode. After setup, the set mode will be entered if the television is switched off and on again. To set Off, the television will memory the off-channel.

Prog Num

Prog Num is opted for setting up preset channel. Press CH+/- button to select Prog Num. Press VOL/- button, to select channel number.(The item is not available except TV signal.)

H.LOCK

CH.LIST EXIT

TIMERZOOM

Source Lock

Source Lock is opted to hinder external input modes, such as AV, Scart and VGA. Press CH+/- button to select the option, and press VOL+/- button to display Source Lock menu as follows:

Source Lock

SCART1 SCART2 AV

HDTV VGA HDMI

Press CH+/- button to select desired option. Press VOL+/- button to set up the mode of Source Lock. If some Source Lock is set ON, the mode will be entered and the screen will display blue background with the mute mode activated and Lock. In lock on mode, when screen is blank, icon Lock will be always displayed on the screen. If lock mode is to be verified, enter Source Lock submenu and set relative mode off, or select Clear Lock in the Lock Set Menu.

Off Off

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Lock setup

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL- VOL+MENU

CH.LIST EXIT

SWAP

CH+

CH-

H.LOCK

TIMERZOOM

Child Lock

Press CH+/- button to select Child Lock. Press VOL+/- button to set On or Off mode. If lock on mode is set, Child Lock is in activated automatically. In such case, if Child Lock button (button on the television) is pressed, the screen will display Child Lock, which can be erased by press ofEXIT button. 5 seconds later after the latest press, the screen display will disappear automatically. The Child Lock mode can be resumed by entering Lock Set menu, set Child Lock On or Off.

Max Volume

Press CH+/- button to select Max Volume. Press VOL+/- button for adjustment between 0100. If a

certain value is set, when volume is being adjusted, the sound value can not exceed maximum volume value. If current volume is over Max Volume, when Lock Set menu is set, current volume will become set maximum volume. If current volume is below maximum volume, customer set volume will stay unchanged.

Clear Lock

Press CH+/- button to select Unlock mode. Press VOL+/- button to unlock all set modes, setting all lock

options to off, and the maximum volume returns to 100.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

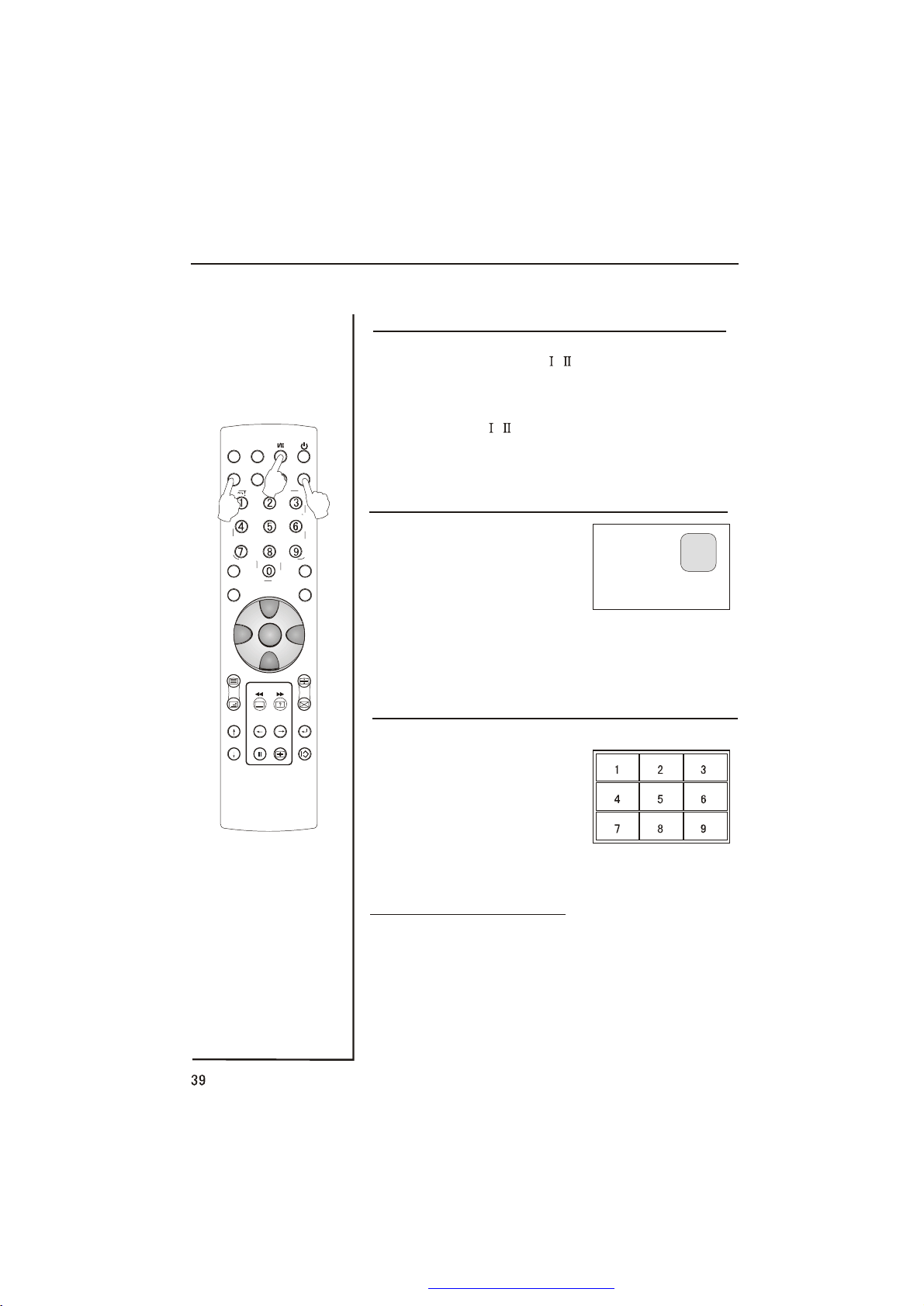

Others functions

NICAM

If the broadcaster is transmitting Bilingual sound service. The button on the remote controller will allow up to 2 separate languages to be selected.

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL-

CH+

CH-

SWAP

VOL+

You can press the button to make a choice.

Display function

If current program number, color system and sound system are to be displayed on the screen, press DISPLAY button, and all the related information will appear at right up corner of the screen. If the DISPLAY button is pressed again, the displayed information will disappear. (If the program is named, its name will also appear ).

AUTO B/G

H.LOCK

CH.LIST EXIT

TIMERZOOM

Auto program scan

1 If you want to select a

desirable program, you may scan all the TV programs in memory. You can simply press SCAN button to do this. Press scan button once, there are nine pictures on the screen. Press scan button again, there are sixteen pictures on the screen.

2 If you want to stop the

function during auto tunning, simply press SCAN button again.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Others functions

Sleep

Note:

The Time On setup and the SLEEP setup is absolute one another.

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

JKL%GHI$ MNO

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

VOL- VOL+MENU

SWAP

CH+

CH-

The TV set will switch automatically to standby at the preset time with the SLEEP time on. You may set the sleep time, Operate as follows:

1. Press SLEEP button repeatedly to select the number

of preset minutes, the timer will be set in sequence:

0Min5Min15Min30Min60Min

90Min120Min0Min

2. After the sleep time is set, the Indication will appear

on the screen 1minute prior to expiry of set time.

3If remaining time of set timer is to be displayed, press

SLEEP button again.

The TV set will switch off automatically at the preset time, press CH+/- button to turn on again.

4 If to cancel sleep time, press SLEEP button repeatedly to

set as 0.

Time off

H.LOCK

CH.LIST EXIT

TIMERZOOM

Picture Still

Press Still button, the picture will be still; if to cancel, press Still button again, the picture will resume.

Auto switch-off function

If an empty channel is selected or the TV programs are ended for the day, the power will be switched off 5 minutes later automatically. If the "Time Off" is setting, it will be switched off according to the presetting time. The auto power off function does not work under input.

Under PC state, if no signals input, the television will

enter standby status 1minutes later automatically.

video

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

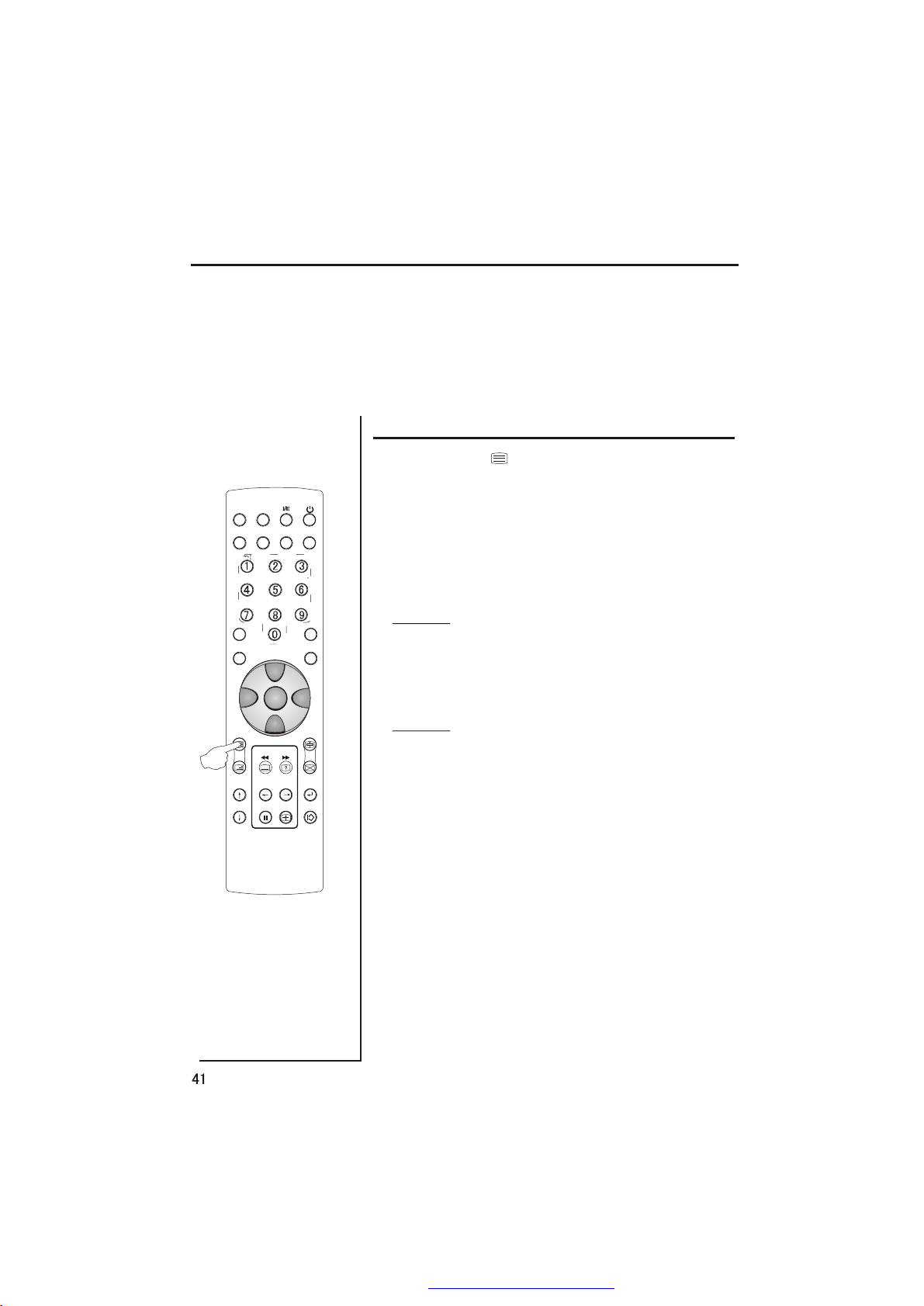

Teletext functions

Teletext is an information system, broadcast by certain channels, which can be read like a newspaper . It also provides subtitles for people with hearing difficulties or those who are unfamiliar with the language in which a particular programme is being broadcast (cable networks, satellite channels, etc.).

Teletext function operation

You can press button into TEXT mode, press again to leave TEXT mode. All menu

STILL

MUTE

DISPLAY

SLEEPPIP

SCAN

ABC@

DEF

GHI$ MNO

JKL%

STUVPOR& WXYZ

*#()

TV/AV

P.STD S.STD

CH+

VOL-

VOL+

CH-

H.LOCK

CH.LIST EXIT

TIMERZOOM

SWAP

related functions are not available in TEXT mode. Only a few direct button control functions are available in TEXT mode, they are:

1 Page up/down

Result: Use the CH+/- buttons to browse next or previous page.

2 Page number entering

Result: To select a teletext page either directly

enter the page number using the numeric button pad on the remote control or use CH+/- buttons, or the colored Fast Text buttons.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Teletext functions

(MIX)

While in Teletext mode press the button will show the teletext data superimposed on top of the TV picture. Press the button again to revert back to Full text.

(HOLD)

Pressing the button will stop the teletext page automatically updating. This feature is very useful where there are several teletext pages or data on the same page number.

(SIZE)

Pressing the button to change from different screen display size. This feature is very useful as it magnifies the image making the characters easier to read.

(REVEAL)

Pressing the button will reveal hidden text. This feature is used to reveal information such as answers to Teletext on-line interactive puzzles.

TIMER

While in normal TV mode only, pressing the buttonTIMER will display the teletext time in the top right corner for a few seconds.

(TEXT)

Press the button on the remote control to turn teletext On/Off.

(SUBTITLE)

Pressing the button will get the teletext decoder to automatically search for the subtitle page. In NZ the subtitle is usually page 801.

(INDEX)

Press the button to show the list of teletext contents

(Fast text colored buttons)

Fast text automatically displays the four most commonly used pages that the broadcaster thinks that you may want to choose next. Press the same coloured button on the remote control as the coloured link at the bottom of the teletext page to go directly to that page.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Maintenance

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1. Here`s a great way to keep the dust off your screen for a while. Wet a soft cloth in a

mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it`s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on

your TV.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it`s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Specifications and functions

External Antenna Impedance

Storage Temperature

Storage Humidity

Model

Size (Wxx) unit: mm main component

Net Weight(Kg)

L26A9A L32A9A L37A9A

679246525

L26A9A

12.5kg

L32A9A L37A9A

1366X768(Dot)1366X768(Dot)

~100-240V , 50/60Hz

PAL, SECAM, NTSC

75 ohm

535

20% 80%

-10 45

5% 90%, non-condensing

811246621

16kg

1366X768(Dot)

946310710

23kg

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Troubleshooting

For the sake of time and cost, it is strongly recommended that you check out the problem by yourself according to the instructions listed hereunder before contacting the after-sales service for technical assistance.

No picture, no sound

Blank screen

No sound

Verify if the television is properly plugged. Verify if the television is properly supplied power. Verify if electricity is available.

Verify if correct signals are input. PressTV/AV button to change signal input to TV input. Restart the television of power supply is interrupted.

Press Mute button and verify if Mute mode is set. Switchto other channel and verify if the same problem happens. Press VOL+ button to see if the problem can be solved.

Poor sound

No picture in some channel

No color for some channel program (black and white)

Spots with some or all pictures

Horizontal/vertical bars or picture shaking

Television out of control

Note: Do not leave the television with static picture in an extended period as it may result in

residual image on your television screen.

Note: Production of the screen requires high and precision technologies. However, there might be some dark or bright (red, blue or green) spots, or some anomalistic stripes or spots. This is not defect. If the TV set is used in an area 2,400 meters above the sea level where the air pressure is below 750hpa, the picture on the screen may be affected and a muffled sound might be produced. These phenomena might happen in the area 1,500 meters above the sea level. This is resulted from difference between air pressures inside and outside the display. This is not a defect covered by the limited warranty.

Verify if sound system is correct. Refer to some chapter for adjust.

Verify if correct channel is selected. Adjustthe antenna. Make adjustments by Fine Tune and Manual Search.

Verify if the same problemexists in other channels. Check out of picture and sound systems. Refer to relative instructions in the Manual for color adjust.

Verify if the antenna is correctly connected. Verify if the antenna is in good condition. Make fine adjustment of channel.

Checkfor local interference such as an electrical appliance or power tool.

Disconnect the television from power supply and, 10 seconds later, connect the television to the power supply. If the problem still exists, contact authorized after-sales service for technical assistance.

NOTE: Design and specifications are subject to change without notice.

The dimension in this manual is a approximation.

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

0090506971H01

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Haier L37A9A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
