Haier L32A10A User Manual
L32A10AL32A10A
LCD COLOR TELEVISION
OPERATING
INSTRUCTIONS
◆Wide view-angle display, high contrast
◆PIP function
◆AAA function
◆HDMI input
01
0090508891
CONTENTS
Warning and caution.....................................................................................................2
Buttons and interface position......................................................................................5
Front control panel................................................................................................... 5
Back interface...........................................................................................................5
Wall mount switching support assembly instructions................................................. 6
Preparation for remote control................................................................................. ..........7
Remote control panel............................................................................................... ..........8
Basic operation.............................................................................................................9
Power on/off TV........................................................................................................ 9
TV program selection and volume adjustment..........................................................9
Recall.........................................................................................................................9
Mute function............................................................................................................ 9
OSD language selection........................................................................................... .9
Screen display.............................................................................................................10
TV program setting.....................................................................................................11
Auto search............................................................................................................. 11
Manual search.........................................................................................................11
Fine tune.................................................................................................................12
Skip.........................................................................................................................12
Exchange................................................................................................................. 13
Image control............................................................................................................. 13
Set your favourite picture mode.............................................................................13
Noise reduce............................................................................................................13
Picture mode /sound mode selection.......................................................................14
Sound control............................................................................................................. 14
Sound effect control................................................................................................ 14
System setting function.............................................................................................. 15
OSD background setting......................................................................................... 15
Signal source setting............................................................................................... 15
Screen display picture zoom setting........................................................................15
Other setting function.................................................................................................15
Sleep timer setting...................................................................................................15
PIP setting................................................................................................................16
Sound source setting................................................................................................16
Color temperature....................................................................................................17
Digital filter setting................................................................................................. 17
AAA setting.............................................................................................................17
HDMI.......................................................................................................................18

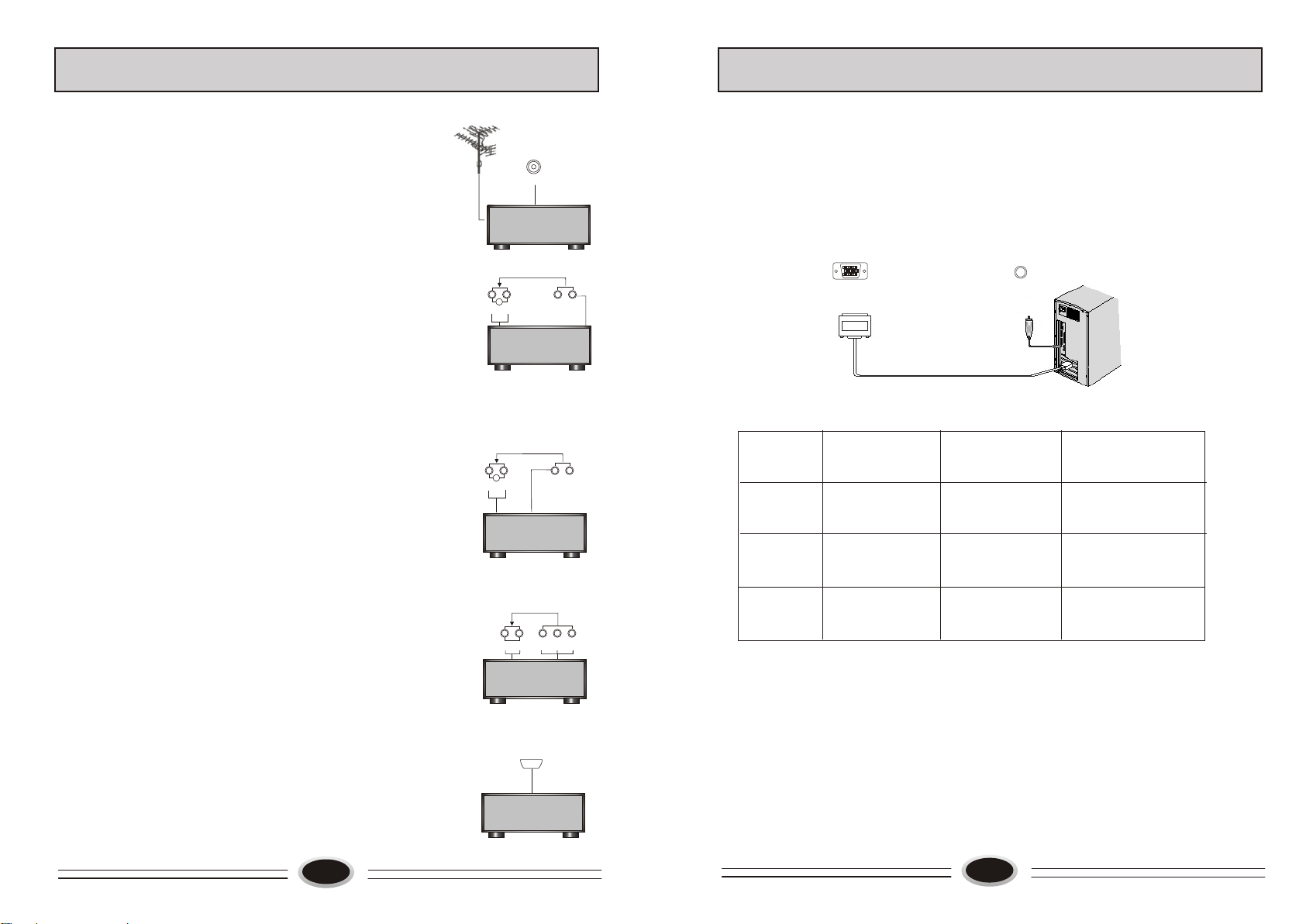

External audio and video equipment connection....................................................... 19
Using your TV as a computer display........................................................................ 20
Specifications............................................................................................................. 21
Trouble shooting guide...............................................................................................22
WARNING AND CAUTION
CAUTION
!!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.FOR
ANY PROBLEM, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE:
THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE.
IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.
THERE IS A EXCALMATION MARK IN THE TRIANGLE: THIS
SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING. OPERATION AND MAINTENANCE HAS BEEN
INCLUDED WITH THIS PRODUCT.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,
DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANSERS WHICH MAY
SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT
WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED
!!
AND COULD LEAD TO INJURY OR PRODUCT DAMAGE.
RIS K OF ELEC TRIC SH OCK RIS K OF ELEC TRIC SH OCK
DO NO T OPENDO NO T OPEN
1
2
BUTTONS AND INTERFACE POSITION
Front control panel
WALL MOUNT SWITCHING SUPPORT ASSEMBLY INSTRUCTIONS
Power indicator
Remote sensor
Back interface
HDMI
11
1
10
9
1. Power input socket
2. Antenna input
3. AV2 input
4. AV1 input
5. S-VIDEO input
6. YPbPr or S-VIDEO audio input
7. Video output
8. YPbPr input
9. VGA audio input interface
10. VGA input
11. HDMI input
MENU
TV/AV
CH-
CH+
VOL-
VOL+
Menu button
TV/AV switch button
Program down/up button
Volume down/up button
Switching support
Switching support
Power button
Airproof board
Base
8
6
3
(1) In order not to scratch the TV set, it is recommended putting the TV set
(Y/Pb/Pr)- L-IN R-IN
AV2 L R
with face down on the soft and clean blanket.
(2)Disassemble the six screws from base and remove the base.(This item will be
V-OUT L-OUT R-OUT
AV1 L R
457
2
cancelled if the product is without base.)
(3)Mount the airproof board (included in the accessory bag).
(4)Take out the switching support from the accessory bag, and use four M5×16
screws(included in the accessory bag) to fix the switching support on the
back of complete set.
(5)The remaining four M5×16 screws in the accessory bag are used to mount the
wall mount parts.(The wall mount parts are in the wall mount box, the four
M5×16 screws replace the four M4×20 screws in the carton of wall mount
bracket.)
(6)After completing the above operations, the complete set can be mounted
on the wall mount bracket.(Wall mount bracket operations refer to the
assembly instructions of it.)
Note: 1. The arrow indicates the position of screw.
2. This operation is only used before mounting the bracket.
3. Wall mount bracket is additional purchase.
5
6
