HWC-22BW
Beverage Cooler
Page 2
Table of Contents
Maintenance Your beverage center -----------------------------------------
Technical Specifications --------------------------------------------------------
Troubleshooting -------------------------------------------------------------------
Moving Your beverage center--------------------------------------------------
Vacation Time----------------------------------------------------------------------
Care and Maintenance--------------------------------------------------------- Change The Light Bulb--------------------------------------------------------- Cleaning Your beverage center-----------------------------------------------
How To Use The Thermostat -----------------------------------------------
Operating Your beverage center----------------------------------------------------
Reversing the Door Swing of Your beverage center---------------------------
Installation of Your beverage center---------------------------------------------
Before Using Your beverage center---------------------------------------------
Installation Instructions----------------------------------------------------------
Important Safety Instructions---------------------------------------------------
Parts and Features----------------------------------------------------------------
1
3
3
3
3
5
2
4
5
6
6
6
6
7
7
7
8
Page 3
REVERSIBLE DOOR
1
2
3
4
5
6
7
7. THERMOSTAT KNOB
6. INTERIOR LAMP
5. SHELVES
4. GLASS DOOR
3. LEVELLING LEGS
2. CABINET
1. LAMP SWITCH
PARTS AND FEATURESPARTS AND FEATURES
2
Page 4
3
Important Safety Instructions
Read all instructions before using the appliance.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapours and liquids
in the vicinity of this or any other appliance. The fumes can create a
fire or explosion.
easily climb inside.
take off the door, leave the shelves in place, so that children may not
Before you throw away your old beverage center:
INSTALLATION INSTRUCTIONS
Before Using Your beverage center
Clean the interior surface with lukewarm water using a soft cloth.
Before connecting the appliance to the power source, let it stand
upright for approximately 2 hours. This will reduce the possibility
of a malfunction in the cooling system from handling during
transportation.
user manual
shelves
Check to be sure the following parts are included:
Remove the exterior and interior packing, including protective foam on
door panels .
Installation of Your beverage center
Place your appliance on a floor that is strong enough to support the
appliance when it is fully loaded. To level your appliance, adjust the
legs at the front of the appliance.
Plug the appliance into an exclusive properly installed-grounded wall
outlet. Do not under any circumstances cut or remove the third
(ground) prong from the power cord. Any questions concerning
power and or grounding should be directed toward a certified
electrician or an authorized products service center.
Avoid locating the appliance in moist areas. Too much moisture in
the air will cause frost to form quickly on the evaporator.
Locate the appliance away from direct sunlight and sources of heat
(stove, heater, radiator, etc.). Direct sunlight may affect the acrylic
coating and heat sources may increase electrical consumption.
Extreme cold ambient temperatures may also cause the appliance
not to perform properly.
Allow 5 inches of space between the back and sides of the appliance
,which allows the proper air circulation to cool the compressor.
Warning: Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced by an
authorized products service center.
Page 5
Before Reversing the door ,the power must be shut off.
All parts removed must be saved to do the reinstallation of the door.
NOTE:
This beverage center has the capability of either opening the door from the left
or right side. The unit is delivered to you with the door opening from the
left side. Should you desire to reverse the opening direction, please
follow these instructions.

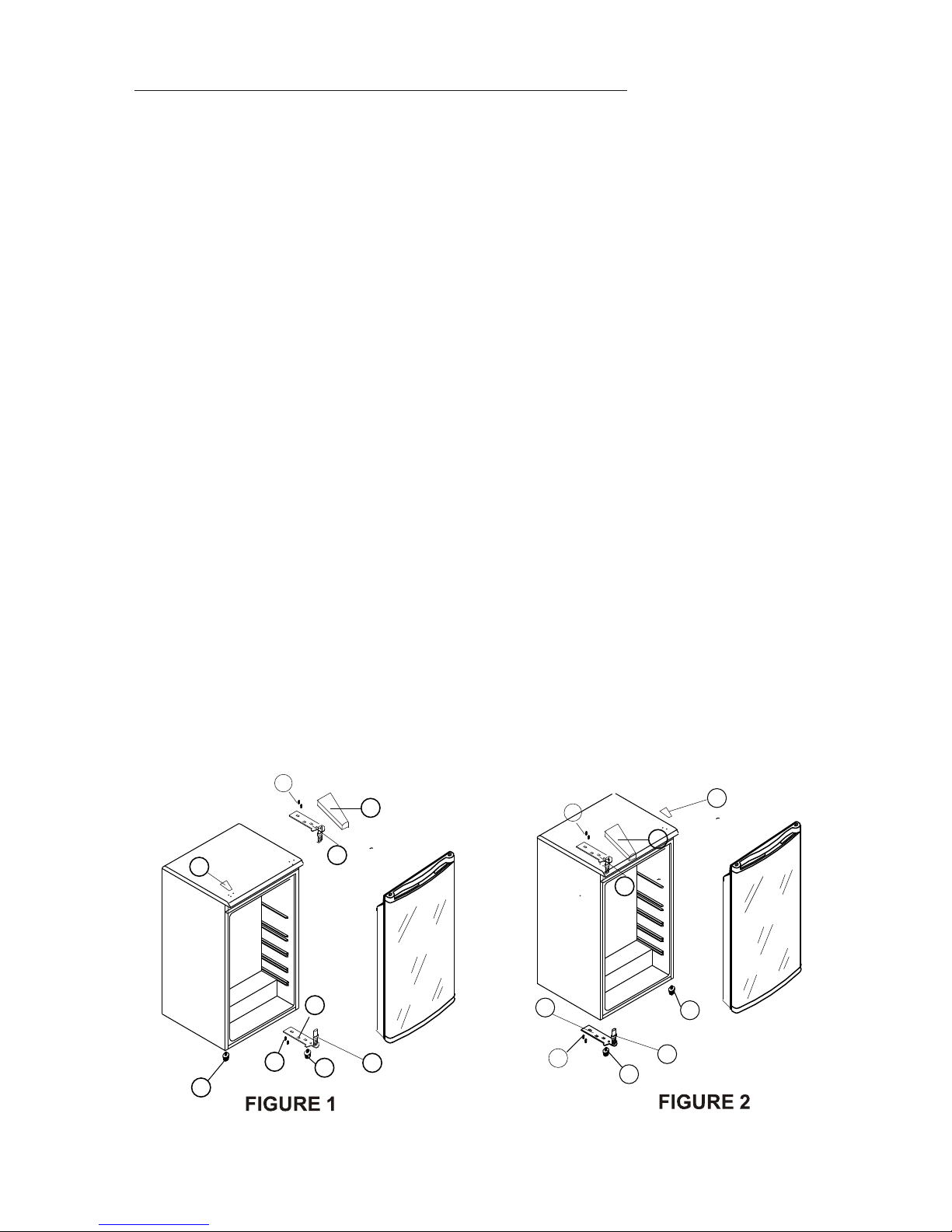

Reversing the Door Swing of Your beverage center
4
This beverage center has been built with the door hinges on the right. If you wish
to change the opening direction, follow the instructions below:
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the
frame. Take away the upper hinge (5).
3.Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws(8) that hold the lower hinge(2) and Make sure to
Remove the lower hinge(2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate(7) to the right side.
7.
Before placing this lower hinge(2), remove the bolt-pin (9) and reverse
the direction of the lower hinge(2). Then install the lower hinge (2) onto
the left side of the lower frame with two screws (8).
9. Set the door to its place making sure the door seat at the lower hinge(2)
.
10. While holding the door in the closed position secure the upper hinge (5) in the
top frame of left side with two screws (1). Please remember that do not tighten
the two screws(1) until the top of the door is levelled with the counter top.
1. Remove the upper hinge cover(6) first
11. Install the upper hinge cover(6) on the upper hinge..
8. Insert the bolt-pin(9) to the lower hinge (2).
44
88
33
77
22
99
11
66
55
88
33
99
22
44
77
11
66
55
Door opening from left side
Door opening from right side
Page 6
Do not store food in beverage center, as interior temperature may not get cool
enough to prevent spoilage. As a natural result of condensation, in summer
months or area of high humidity, the glass door may built up moisture on
the outside. Just wipe it away.
IMPORTANT SAFEGUARDS
It is recommended you install the beverage center in a place where the ambient
temperature is between 22 -25 degree Celsius .If the ambient temperature
in above of below the recommended temperature ,conditions may cause
interior temperature to fluctuate.
OPERATING YOUR BEVERAGE CENTER

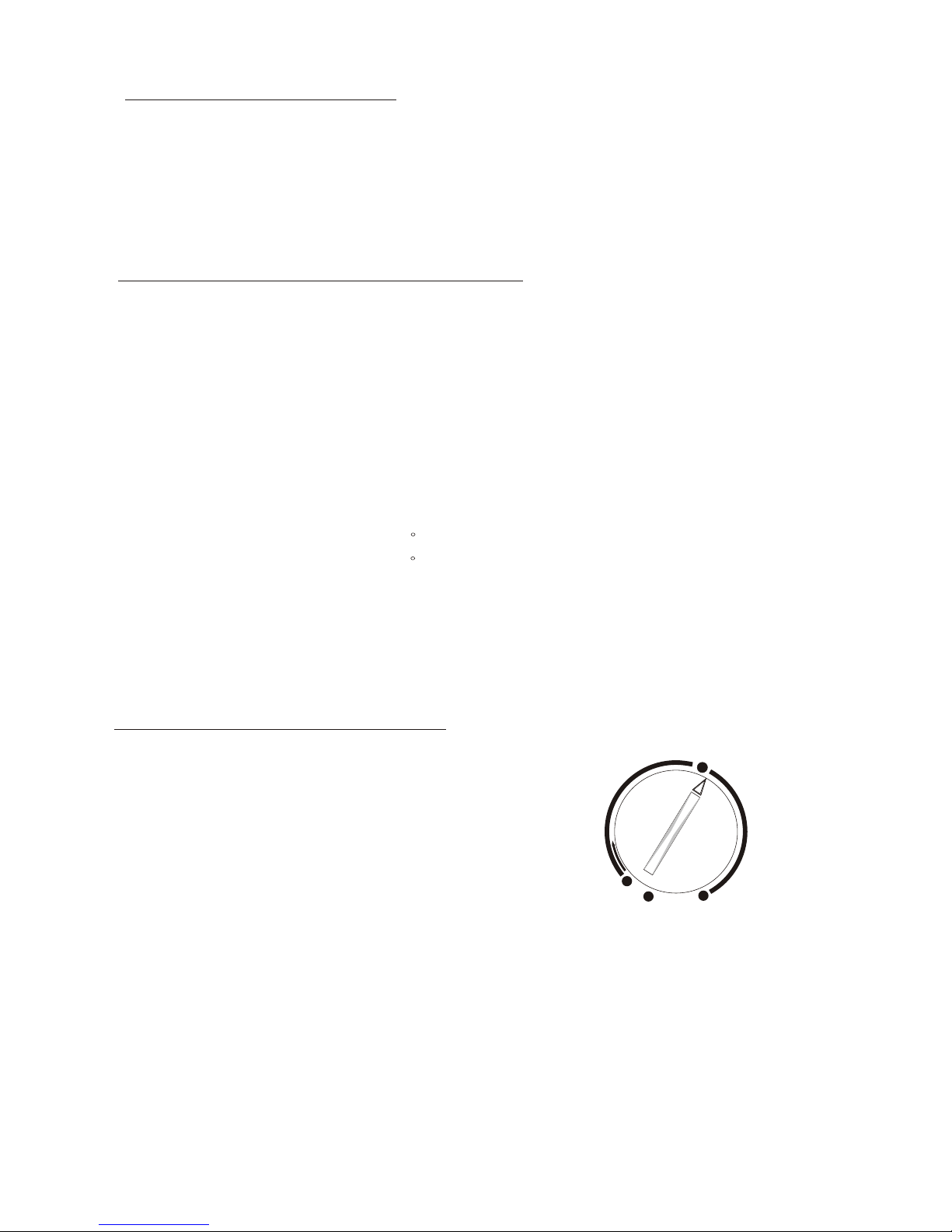

HOW TO USE THE THERMOSTAT
5
If the interior light is left on, the temperature inside the beverage center will be higher.
The above temperatures may fluctuate depending on whether or not the interior
bulb is on or off of whether the bottles are located on the lower/middle or lower
section.
Recommended Temperatures for chilling beverage
Turn the thermostat knob, you can
adjust the temperature of the
compartment you desired. Turn it
clockwise, the temperature of the
compartment will become cooler
and cooler. To store red beverage you
can adjust it anti-clockwise, to store
white beverage you can adjust it clockwise.
WARM
NORMAL
COLD
OFF
Warmer beverage 7-9 C
Colder beverage 3-6 C
Page 7
CHANGING THE LIGHT BULB
CARE AND MAINTENANCE
To accommodate different size bottles, the shelves
can be moved up or down by sliding them out the tracks first. Shelves are
designed to accommodate maximum amount of bottles.
Shelves
6
Before removing the light bulb, either unplug the refrigerator or disconnect
the electricity leading into the refrigerator at the main power supply. Failure
to do so could result in electrical shock or personal injury.
All parts removed must be saved to do the replacement of the light bulb.
NOTE:
Light bulb should not exceed 5 watts.
It may also be necessary to periodically wipe the bottom part of the storage
area,as the beverage center is designed to retain humidity, and condensation
may collect there.
Most power failures are corrected within a few hours and should not
affect the temperature of your beverage center if you minimize the number
of times the door is opened. If the power is going to be off for a longer
period of time, you need to take the proper steps to protect your contents.
Power Failure
MAINTENANCE OF YOUR BEVERAGE CENTER
The outside of the beverage center should be cleaned with mild detergent and
warm water.
Wash the shelves and trays with a mild detergent solution.
Wash the inside with a warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to a liter of water.
Unplug the beverage center, and remove the bottles.
CLEANING YOUR BEVERAGE CENTER
Also, there is a 4 to 6 C variance between the top and bottom shelves of
the beverage center. Therefore, If you have set the beverage center for
beer only and you want to place a sparkling wines, you should place the
wine bottles on the top shelves and the beers on the bottom shelves.
Page 8
Be sure the beverage center stays in the upright position during transportation.
Tape the doors shut.
Turn the levelling screws up to the base to avoid damage.
Securely tape down all loose items inside your beverage center.
Remove all the bottles.
MOVING YOUR BEVERAGE CENTER
During long absences, remove all the bottles; unplug your beverage center, clean
your beverage center, and leave the door open slightly to avoid possible formation
of condensation, mold, or odors.
VACATION TIME
7
You can solve many common beverage center problems easily, saving you the
cost of a possible service call. Try the suggestions below to see if you can
solve the problem before calling the servicer.
TROUBLESHOOTING
Page 9
8
The switch is in the "OFF" position.
The bulb has burned out.
The beverage center is unplugged.
The home circuit breaker or fuse has tripped.
The beverage center does not have the correct clearances.
The door gasket does not seal properly.
The temperature control is not set correctly.
The door is not closed completely.
The door is opened too often.
A large amount of contents has been added to the
beverage center.
The room temperature is hotter than normal.
The beverage center does not have the correct
clearances.
The door gasket does not seal properly.
The door is not closed completely.
The door is opened too often.
External environment may require a higher setting.
Beverage center is
not cold enough.
The circuit breaker tripped or blown fuse.
Beverage center
does not operate.
PROBLEM
TROUBLESHOOTING GUIDE
POSSIBLE CAUSE
Not plugged in.
Check to be sure the temperature control setting.
The light does
not work.
The shelves are out of position.
The gasket is dirty.
The doors were reversed and not properly installed.
The beverage center is not level.
The beverage center is not level.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your beverage center.
The rattling noise may come from the flow of the
refrigerant,which is normal.
Check to assure that the beverage center is level.
Vibrations.
The beverage
center seems
to make too
much noise.
The door will not
close properly.
Compressor turns
on and off
frequently
Page 10
Technical specifications:
For detailed specifications, please refer to the nameplate at the back of the beverage center.
The specifications are subject to change without prior notice due to products improvement.
Warnings:
Drink storage, not suitable for food storage.
9
Page 11
