Haier HSVCD24, HSVCE24 User Manual

Built-In/Freestanding Wine Cellar

Cave à Vin Encastrable ou en Pose Libre

Enfriador de Vinos para Empotrar o sin Empotrar

User Manual

Model # HSVCE24, HSVCD24

Guide de l’Utilisateur

Modéle # HSVCE24, HSVCD24

Manual del Usuario

Para Modelo de # HSVCE24, HSVCD24

Quality ß Innovation ß Style

HSVCD24ABH

When using this appliance, always exercise basic safety precautions, including the following:

1) Read all of the instructions before using this appliance.

2) Use this appliance only for its intended purpose as described in this use and care guide.

3) This wine cellar must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.

4) Never unplug your wine cellar by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

5) Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.

6) Unplug your wine cellar before cleaning or before making any repairs. Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

7) If your old wine cellar is not being used, we recommend that you remove the door and leave the shelves in place. This will reduce the possibility of danger to children.

8) Do not operate your wine cellar in the presence of explosive fumes.

9) Do not store foods in wine cellar as interior temperature may not be cool enough to prevent spoilage.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

SAFETY PRECAUTIONS

English

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your wine cellar.

Remember to record the model and serial number. They are on a label in back of the wine cooler.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

DANGER

Risk of child entrapment. Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not

easily climb inside.

English

PAGE

Safety Precautions ...................................................................................................................... 1

Parts And Features ..................................................................................................................... 4

Installing Your wine Cellar ......................................................................................................... 5

Unpacking Your wine Cellar ............................................................................................... 5

Leveling Your wine Cellar ................................................................................................... 5

Electrical Requirements ....................................................................................................... 5

Use of Extension Cord ........................................................................................................ 5

Wine Cellar Features And Use ................................................................................................ 6-7

Initial Set Up ..................................................................................................................... 6

Shelving ............................................................................................................................ 7

Interior Light ...................................................................................................................... 7

Normal Operating Sounds .................................................................................................. 7

Wine Cellar Installation ..........................................................................................................8-11

Installation Limitations ......................................................................................................... 8

Dimensions ........................................................................................................................ 8

Choices ............................................................................................................................ 8

Door Handle Installation ..................................................................................................... 9

Door Reversal .................................................................................................................. 10

Replace Light Bulbs .......................................................................................................... 11

Proper Wine Cellar Care and Cleaning ................................................................................... 12

Cleaning and Maintenance ............................................................................................... 12

Power Interruptions ........................................................................................................... 12

Vacation and Moving Care ............................................................................................... 12

Troubleshooting ........................................................................................................................ 13

Limited Warranty ....................................................................................................................... 14

TABLE OF CONTENTS

English

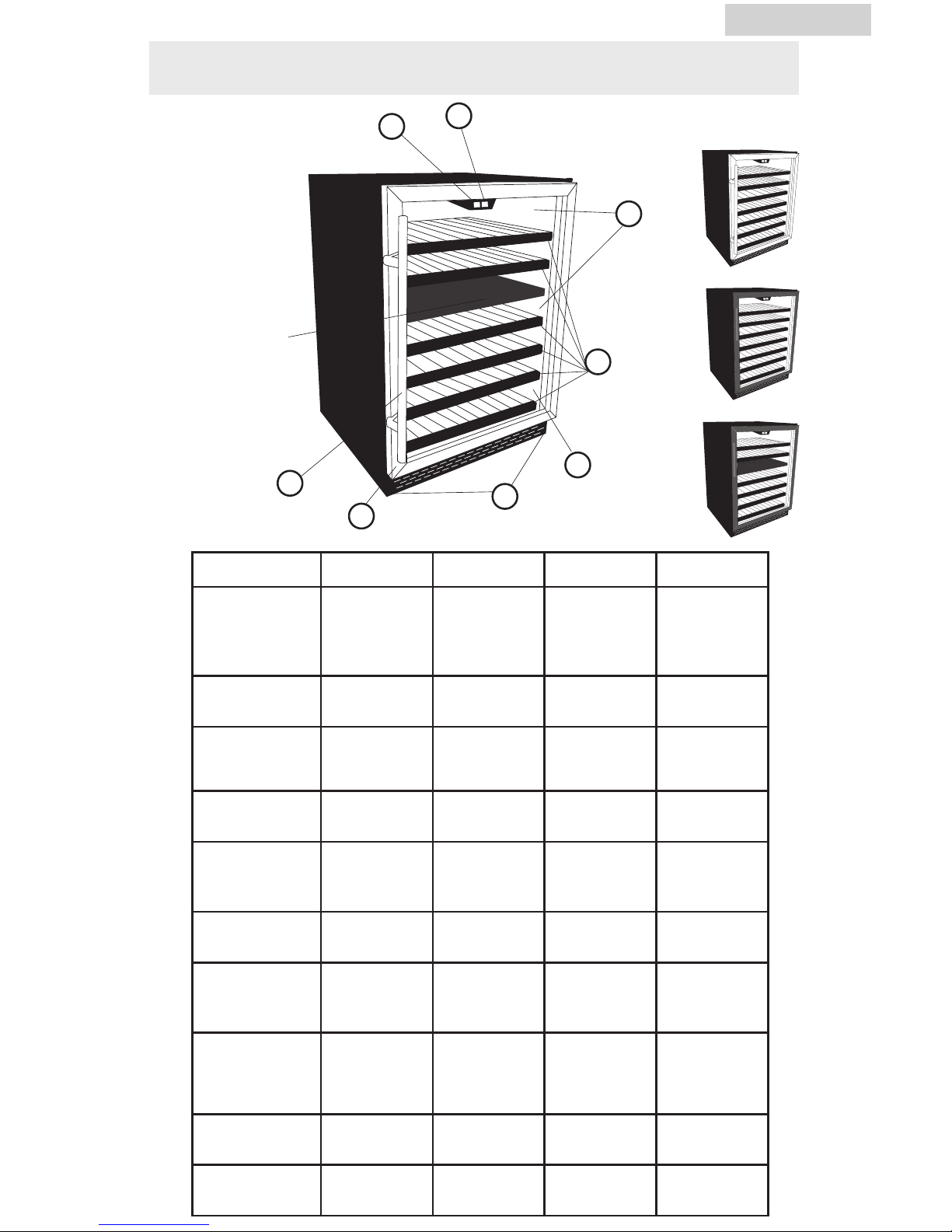

PARTS AND FEATURES

English

features HSVCE24ABH HSVCD24ABH HSVCE24BBB HSVCD24BBB

1. Electronic Adjustable

Temperature

Control

P P P P

2. Interior Light (not shown)

P P P P

3. Door Handle

Stainless Steel

Grip

Stainless Steel

Grip

Recessed Recessed

4. Door Trim

Stainless Steel Stainless Steel Black Black

5. Leveling Legs (not shown)

4 4 4 4

6. Reversible Door

P P P P

7. Tinted Glass UV Blue Gray

P P P P

8. Racks

6 Glide-Out

Plus Bottom

Shelf

5 Glide-Out

Plus Bottom

Shelf

6 Glide-Out

Plus Bottom

Shelf

5 Glide-Out

Plus Bottom

Shelf

9. Cooling Zones

Single Dual Single Dual

10. Bottle Capacity

54 46 54 46

HSVCD24ABH

HSVCE24ABH

Cooling Zone Divider (only on HSVCD24ABH and HSVCD24BBB)

HSVCE24BBB

HSVCD24BBB

UNPACKING YOUR WINE CELLAR

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar.

LEVELING YOUR WINE CELLAR

• Your wine cellar has four leveling legs which are located in the front and rear corners of your wine

cellar. After properly placing your wine cellar in its final position, you can level your wine cellar.

• Leveling legs can be adjusted by turning them clockwise to raise your wine cellar or by turning them

counterclockwise to lower your wine cellar. The wine cellar door will close easier when the leveling legs are extended.

ELECTRICAL REQUIREMENT

• Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with proper grounding to power

the wine cellar.

• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two

plug outlet. This is a dangerous practice since it provides no effective grounding for the wine cellar and may result in shock hazard.

USE OF EXTENSION CORDS

• Avoid the use of an extension cord because of potential safety hazards under certain conditions.

If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

INSTALLING YOUR WINE CELLAR

English

INITIAL SETUP FOR HSVCE24ABH AND THE HSVCE24BBB

Run

• Indicator light illuminates to signify the cooling mode is currently in operation.

Light Button

• To control the inner light turn on/off.

Power Button

• To control this appliance turn on/off (press and hold this button for approximately 5 seconds)

Set Upper Button

• Used to raise (warm) the temperature in 1˚ increments.

Set Lower Button

• Used to lower (cool) the temperature in 1˚ increments.

Marking “SET”

• Show the setting temperature.

Marking “TEMP”

• Show the interior temperature of the chamber.

The temperature preset at the factory is 54˚ F.

This unit has the option to display temperatures in either Celsius or Fahrenheit. To change the setting press and hold both buttons ( / ) simultaneously for approximately 5 seconds, a prompt (beep) will sound and the blue pilot light adjacent to the C or F mode illuminates.

The temperature setting can be adjusted from 41˚ F to 64˚ F.

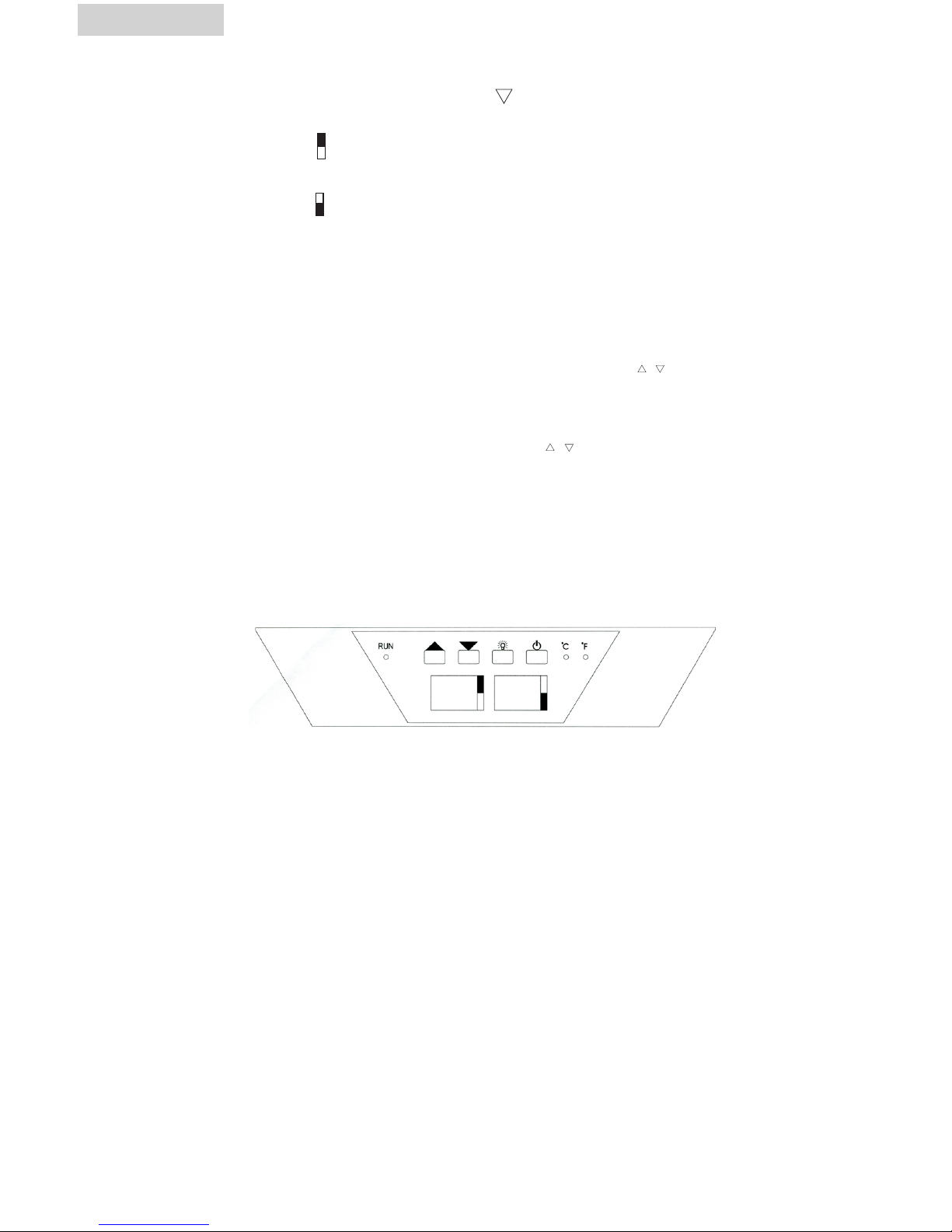

INITIAL SETUP FOR HSVCD24ABH AND THE HSVCD24BBB

Run

• Indicator light illuminates to signify the cooling mode is currently in operation.

Light Button

• To control the inner light turn on/off.

Power Button

• To control this appliance turn on/off (Press and hold this button for approximately 5 seconds).

Set Upper Button

• To set the temperature of the upper compartment.

Set Lower Button

• To set the temperature of the lower compartment.

WINE CELLAR FEATURES AND USE

English

SHELVING (Quantity will vary per model purchased)

• The shelves are glide-out with wood trim. They are designed for flexibility and easy cleaning.

The shelves are designed to allow free air movement and provide more space.

INTERIOR LIGHT

• To complement the look of your wine collection, a soft light has been built into the wine cellar.

The light switch is on the control panel.

NORMAL OPERATING SOUNDS YOU MAY HEAR

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating

through the cooling coils.

• The thermostat control will click when it cycles on and off.

Marking

• Show the temperature of the upper compartment.

Marking

• Show the temperature of the lower compartment.

The temperature preset at the factory are: Upper compartment 43˚ F. Lower compartment 54˚ F.

Set the desired cooling temperature by pressing “ / .” Each depression of the buttons will scroll through the available temperature settings (for each compartment) in increments of 1 degree. The temperature selected will flash in the LED display for approximately 5 seconds, then revert back to display the temperature of the internal cabinet.

The temperature setting can be adjusted from 41˚ F to 64˚ F. Upper compartment 41˚ F - 50˚ F. Lower compartment 50˚ F - 64˚ F.

English

INSTALLATION LIMITATIONS

• Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc.

Your wine cellar was not designed to operate in temperature settings below 60˚ F or above 90˚ F.

• Select a suitable location for the wine cellar on a hard even surface away from direct sunlight or

heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the wine cellar.

DIMENSIONS

• Built-in wine cellars need to be ventilated from the front. This feature allows the unit to be built in an

enclosed area. The bottom front grille should be clear of all obstructions. This is absolutely necessary for the air to circulate and for the unit to operate efficiently. The dimensions for installation are as follows. (W x D x H)

Unit Dimensions: 23-7/16” x 24-1/2” x 33-11/16”

CHOICES

• As the doors of the built-in wine cellars are reversible, 2 wine cellars could be placed side by side

with the doors opening from the middle. This would not only allow you more storage space but also better placement of your wine collection. The red wines could be separate from the white wines. Before installing make sure there is enough space for installation and that both the units are plugged into separate power receptacles.

(picture for reference only)

33-11/16”

24-1/2”

23-7/16”

WINE CELLAR INSTALLATIONS

English

HSVCE24ABH

1. Remove the 4 screws from the door frame as shown in fig.1.

2. Take the door handle and align the handle with the screw holes on door as shown in fig. 2.

3. Now take the 4 screws and install the handle to the door as shown in fig. 2.

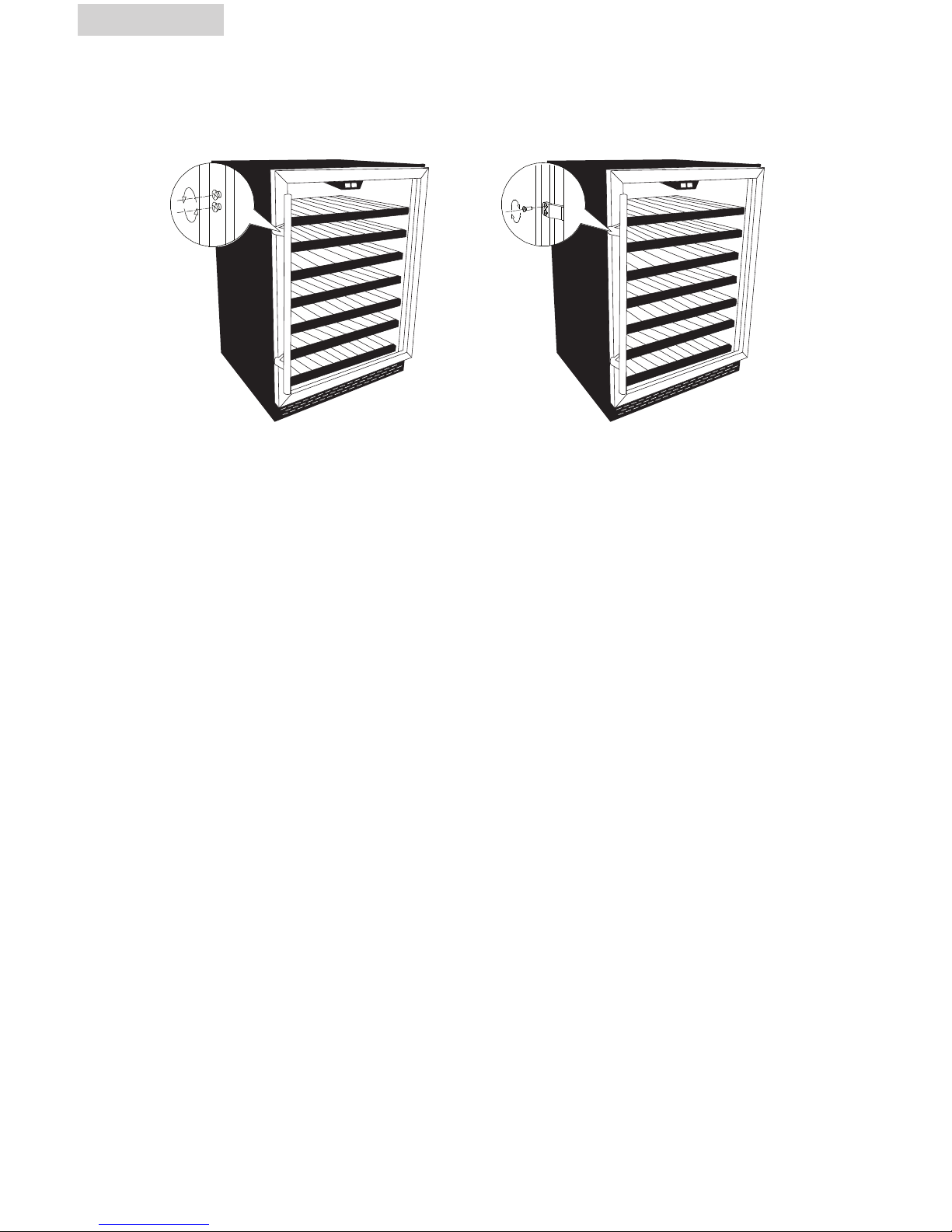

DOOR HANDLE INSTALLATION (only on HSVCE24ABH and HSVCD24ABH)

Fig.1

Fig.2

English

1 Lock Screw 2 Lower Hinge (Right) 3 Door Axis 4 Upper Hinge (Right) 5 Door 6 Cabinet 7 Upper Hinge (Left) 8 Lower Hinge (Left)

Door Reversal

1. Remove the lock screws (1) from the bottom of the door. (Figure 1)

2. Remove the door in the direction of the arrow.(Figures1a &b) Remove and attach the door axis (3) to the opposite side.

3. Remove the right side lower hinge (2).

4. Unscrew the 3 screws and remove the upper right hinge (4). (Figure 2)

5. Install the upper left hinge (7) and the lower left hinge (8). (Figures 2a & 2b)

6. Now attach the door on the upper left hinge and use the door axis to fasten the door to the lower hinge on the left side.

7. Remove and reinstall the door handle on the opposite side (for HSVCE24ABH and HSVCD24ABH only).

DOOR REVERSAL

English

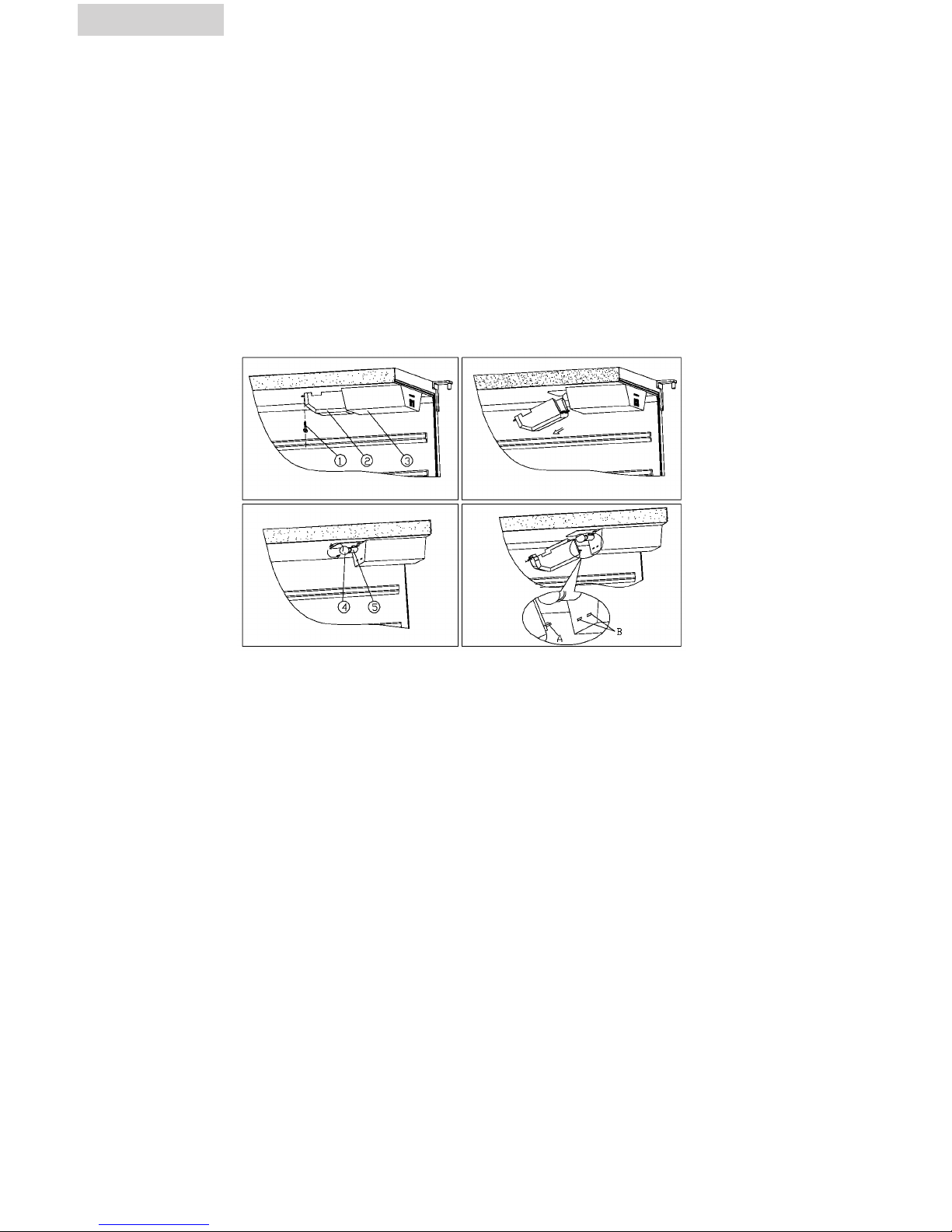

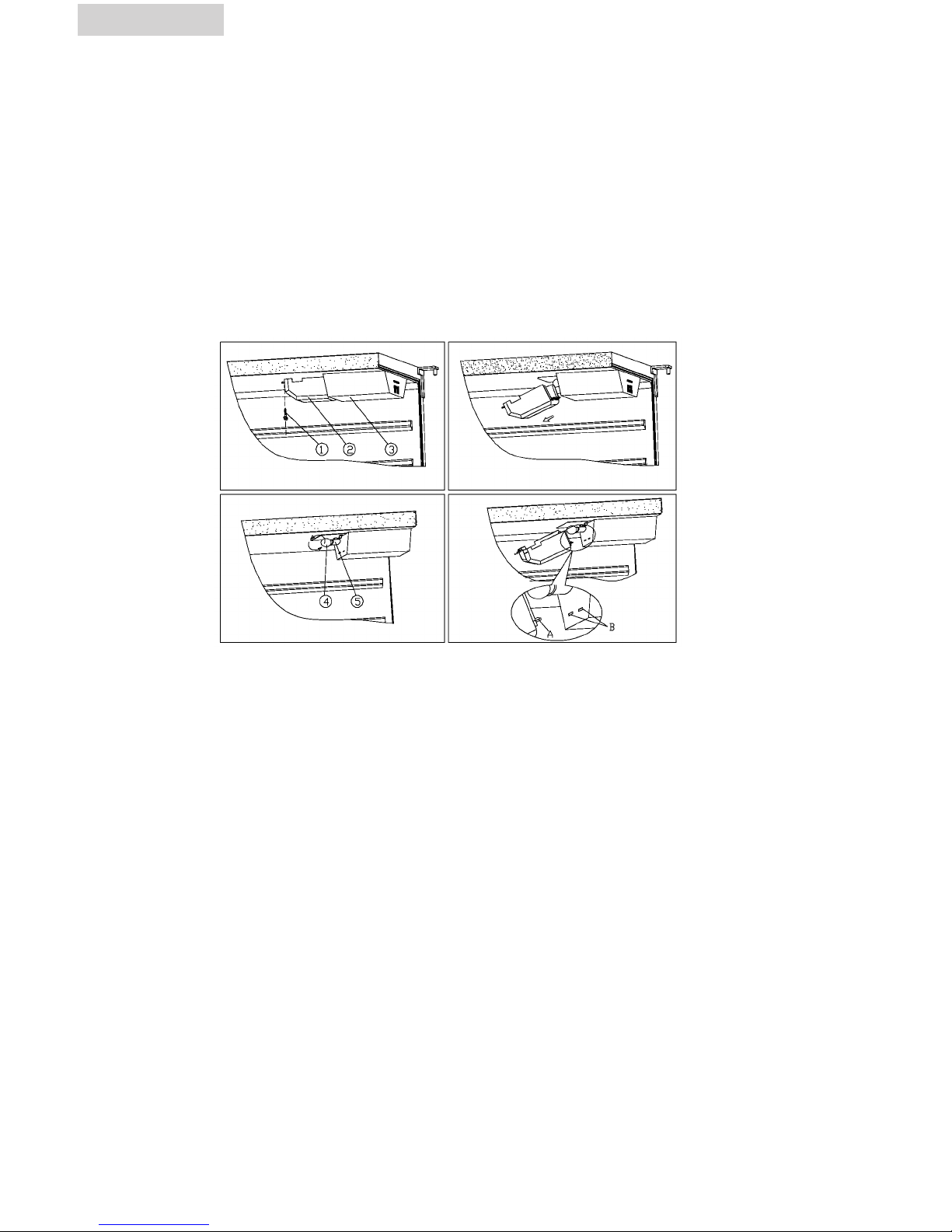

Replacing Light Bulb

All parts must be saved when replacing the light bulb. Before removing the light bulb, either turn off the appliance or disconnect the power source. Failure to do so could result in electrical shock or personal injury.

• Remove the screw (1). (Fig 1)

• Remove the lamp cover (2) in the direction of the arrows. (Fig 1a)

• Unscrew the bulb (4). (Fig 2)

• Replace with equivalent 15-watt bulb.

• Reassemble the lamp cover (2): Insert tab “A” on lamp cover into slot “B” on electrical box,

then fasten with a screw.

1) Screw

2) Lamp Cover

3) Electrical Box

4) Bulb

5) Lamp Holder

1 1a

2 2a

English

CLEANING AND MAINTENANCE

Warning: • To avoid electric shock always unplug your wine cellar before cleaning

Ignoring this warning may result in death or injury.

Caution: • Before using cleaning products, always read and follow manufacturer’s

instructions and warnings to avoid personal injury or product damage

General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with

warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cellar.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasive, ammonia, chlorine bleach,

concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your wine cellar.

Door Gaskets: • Clean door gaskets every three months according to general instructions.

Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the

gasket pliable and assure a good seal.

POWER INTERRUPTIONS

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the

power cord from AC outlet when a power outage occurs. When power has been restored, re-plug power cord to AC outlet.

VACATION AND MOVING CARE

• For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets

according to “General cleaning” section. Prop doors open, so air can circulate inside. When moving always move the wine cellar vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur.

PROPER WINE CELLAR CARE AND CLEANING

English

Wine Cellar does not operate

• Check if wine cellar is plugged in.

• Check if there is power at the AC outlet by checking the circuit breaker.

Wine appears too warm

• Frequent door openings.

• Allow time for recently added wine to reach desired temperature.

• Check gaskets for proper seal.

• Adjust temperature control to colder setting.

Wine temperature is too cold

• If temperature control setting is too cold, adjust to a warmer setting.

Wine Cellar runs too frequently

• This may be normal to maintain constant temperature during high temperature and humid days.

• Doors may have been opened frequently or for an extended period of time.

• Check gasket for proper seal.

• Check to see if doors are completely closed.

Moisture build-up on interior or exterior of the Wine Cellar:

• This is normal during high humidity periods.

• Prolonged or frequent door openings.

• Check door gaskets for proper seal.

Wine Cellar door does not shut properly:

• Level the wine cellar.

• Check for blockages e.g. wine bottles, shelves.

TROUBLESHOOTING

+ 30 hidden pages

Haier HSVCD24, HSVCE24 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
