Air Conditioner
Edition:2006/02/07

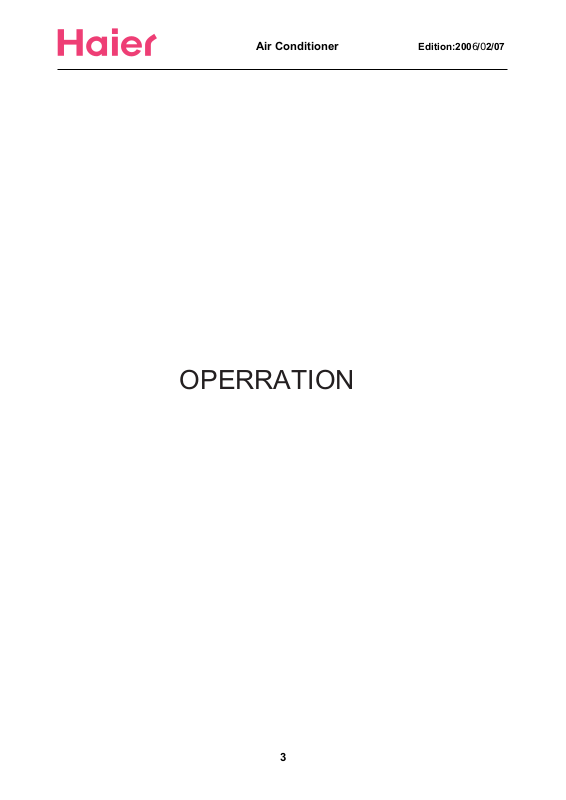

OPERRATION
3
r
FAN SPEED indicator
It indicates the set fan speed.
During AUTO mode , the fan speed
can t be selected. And the indicator is
off during DRY running.
Air Conditione
Edition:2006/02/07
MODE indicator
It indicates the operation mode.
The operation mode indicator selected
by the remote controller will also be on
during AUTO mode.
TIMER indicator
It turns on during TIMER running.
TEMP. / TIMER display
Display room temp. , setting temp.
and timer time.
ON/OFF button
TEMP. set
4
Air Conditione
r
Edition:2006/02/07
Display
Signal indicator
Lights up when sending a
signal to the unit
Temp.indicator
To show temp.setting selected
Timer indicator
To show time mode display
Time display
To show the number of hour
selected to timer ON/OFF
Operation
Temp.Set
Used to select temp setting
Timer
Used to set timer setting
SLEEP
TIMER OFF
Mode
Used to select operation mode
AUTO
COOL DRY FAN
Fan
Used to select desired fan speed
AUTO
HI
TIMER ON
LOW
BLANK
Operation mode indicator
To show mode selected
Fan speed indicator
To show Fan speed selected
ON/OFF
Press it to start unit and press
it again to stop
5
r
Cool Operation
1. Unit start
Press ON/OFF on the remote controller, unit starts.
2.Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
AUTO COOL DRY FAN
Then Select COOL operation
3.Select temp.setting
Press TEMP. button
Every time the button is pressed, temp.setting
increase 1
rapidly
Every time the button is pressed, temp.setting
increase 1
rapidly
Select a desired temperature.
4.Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
o
C,if kept depressed, it will increase
o
C,if kept depressed, it will decrease
AUTO
Air Conditione
HI
LOW
Edition:2006/02/07
Remote Controller
3
1
3
2
4
5
When FAN is set to AUTO, the air conditioner
automatically adjusts the fan speed according to room
temperature.
5.Unit stop
Press ON/OFF button, the unit stops.
Cautions
To protect unit system, don`t restart until 3 minutes have elapsed
If the unit has been running under large humidity for a long time, dew might occur
at outlet grating
6
Air Conditione
r
Auto mode
1. Unit start
Press ON/OFF on the remote controller, unit starts.
2.Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
AUTO
Then
Select Auto operation
3.Select temp.setting
Press TEMP. button
Every time the button is pressed, temp.setting
increase 1 C,if kept depressed, it will increase
rapidly
Every time the button is pressed, temp.setting
increase 1 C,if kept depressed, it will decrease
rapidly
Select a desired temperature.
COOL DRY FAN
Edition:2006/02/07
Remote Controller
3
3
2
4
4.Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
AUTO
HI
LOW
Air conditioner is running under displayed fan speed.
When FAN is set to AUTO, the air conditioner
automatically adjusts the fan speed according to room
temperature.
5.Unit stop
Press ON/OFF button, the unit stops.
About Auto Operation
Under the mode of auto operation, air conditioner will
automatically select Cool or Heat operation according
to room temperature.
Cautions
In Auto mode, the unit will select operation mode automatically according to room temp.
Auto mode:Air conditioner automatically changes between COOL and DRY and from mode.
when room, temp. is over 26 C,in COOL mode; when room temp. is between 26 C and 22 C,in
DRY mode.(more details in DRY operation).
when below 22 C, in FAN mode, fan speed automatically changs according to operation mode.
In AUTO mode, no temp. figure is displayed
FAN mode:when air conditioner is only in FAN mode,temp.setting is invalid, fan speed can be set
as desired.
1
5
7
Air Conditione
r
Timer operation
Set clock correctly before starting TIMER operation.
1. After unit starts, select your desired operation mode
Operation mode will be displayed on LCD.
2. Timer mode selection
Press TIMER button to change TIMER mode. Every
time the button is pressed, display changes as follows:
Remote controller:
SLEEP
TIMER OFF
TIMER ON
BLANK
Edition:2006/02/07
Remote Controller
2
Then select your desired TIMER mode (TIMER ON or
TIMER OFF).
3.Time setting
Press HOUR button.
Every time the button is pressed, time setting
increases 1 min, if kept depressed, it will increase
rapidly.
Every time the button is pressed, time setting
decreases 1 min, if kept depressed, it will decrease
rapidly.
Time setting is available within 1-12Hrs.
Time displayed shows how many hours later unit
will start of stop
4.Cancel TIMER mode
Just press TIMER button several times until TIMER
mode disappears.
3
1
3
4
Cautions
TIMER function is not available in SLEEP mode.
8
Air Conditione
r
Dry Mode
1. Unit start
Press ON/OFF on the remote controller, unit starts.
2.Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
AUTO COOL DRY FAN
Then Select DRY operation
Edition:2006/02/07
Remote Controller
3
3
3.Select temp.setting
Press TEMP. button
Every time the button is pressed, temp.setting
increase 1 C,if kept depressed, it will increase
rapidly
Every time the button is pressed, temp.setting
increase 1 C,if kept depressed, it will decrease
rapidly
Select a desired temperature.
4.Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
AUTO
HI
LOW
Air conditioner is running under displayed fan speed.
5.Unit stop
Press ON/OFF button, the unit stops.
Cautions
2
4
1
5
Unit will run intermittently in Dry mode with fan speed at "LOW",regardless of its setting.
Air blown out will be very cold at relatively low room temp.
DRY mode: When room temp. is higher than set temp. unit will in COOL mode:
When room temp. drops to set temp. compressor runs intermittently ,fan motor
will be in low speed.
9
Air Conditione
r
Fan operation
1. Unit start
Press ON/OFF on the remote controller, unit starts.
2.Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
AUTO COOL DRY FAN
Then Select FAN operation
Edition:2006/02/07
Remote Controller
3.Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
Select desired fan speed. Change air
flow if necessary
HI
LOW
4.Unit stop
Press ON/OFF button, the unit stops.
Hints
2
3
1
4
In FAN operation mode, the unit will not operate in
COOL mode but only in FAN mode ,AUTO is
not available in FAN mode.And temp.setting is disabled.
In FAN mode,SLEEP operation is not available.
10
Air Conditione
r
Sleep operation
1. Start unit and confirm its operation mode
2. Select SLEEP function
Press TIMER button to change TIMER mode. Every
time the button is pressed, display changes as follows:
Remote controller:
SLEEP
TIMER OFF
Select "SLEEP" function
TIMER ON
BLANK
Edition:2006/02/07
Remote Controller
2
Hints
Before going to bed, you can simply press the
SLEEP button and unit will operate in SLEEP
mode and bring you a sound sleep.
Use of SLEEP function
After the unit starts, set the operation status,
then press SLEEP button before which the
clock must be adjusted and time being set.
1. In COOL,DRY mode
1 hours after SLEEP mode starts, temp. will
become 1
another 1 hours, temp. rises by 1
The unit will run for further 6 hours then stops.
Temp. is higher than temp. setting so that room
temperature won't be too Iow for your sleep.
In AUTO mode
2.
The unit operates in corresponding sleep
mode adapted to the automatically selected
operation mode.
3. In FAN mode
It has no SLEEP function.
4.Set the wind speed change when sleeping
If the wind speed is high or middle before
setting for the sleep, set for lowing the wind
speed after sleeping.
If it is low wind, no change.
O
C higher than temp. setting. After
O
C further.
1
11
Air Conditione
r
Adjusting of the air direction
Edition:2006/02/07
Vertical blade
Horizontal guide blade
Turn the vertical guide blade gently to
adjust the left/right air direction.
Turn the horizontal guide blade gently to
adjust the upward/downward air direction.
Vertical guide blade shall be opened to correct position
before use.
Vertical guide blade and horizontal guide blade must be
opened during use
When air outlet long time covered by Vertical guide blade
and horizontal guide blade in COOL or DRY mode,
condensate water might occur.
