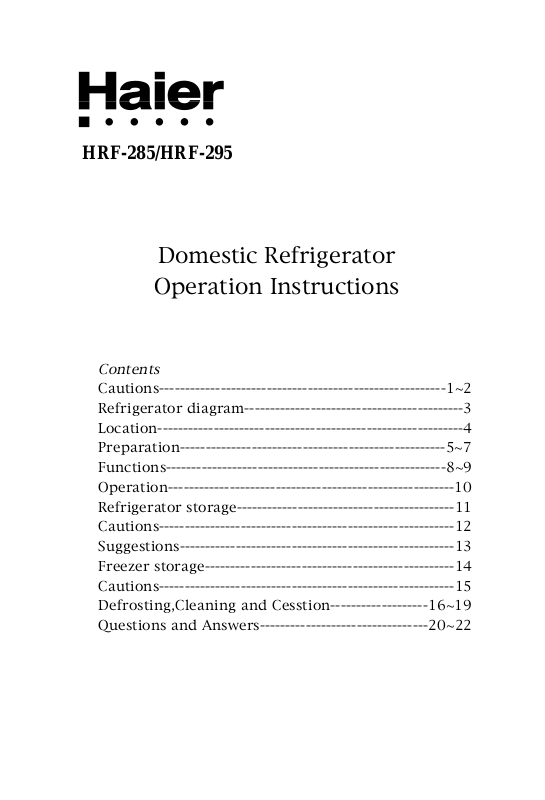

HRF-285/HRF-295
Domestic Refrigerator
Operation Instructions
Contents |
|
Cautions-------------------------------------------------------- |
1~2 |
Refrigerator diagram------------------------------------------- |
3 |
Location------------------------------------------------------------ |
4 |
Preparation---------------------------------------------------- |
5~7 |
Functions------------------------------------------------------- |
8~9 |
Operation-------------------------------------------------------- |
10 |
Refrigerator storage------------------------------------------- |
11 |
Cautions---------------------------------------------------------- |
12 |
Suggestions------------------------------------------------------ |
13 |
Freezer storage------------------------------------------------- |
14 |
Cautions---------------------------------------------------------- |
15 |
Defrosting,Cleaning and Cesstion------------------- |
16~19 |
Questions and Answers--------------------------------- |
20~22 |
Cautions
Disposal of the old appliance
Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to avoid the risk of child entrapment.
It must be noted that the refrigeration system contains insulating gases and refrigerants, which require specialized waste disposal. The valuable materials contained in a refrigerator can be recycled. Contact your local waste disposal center for proper disposal of an old appliance and contact your local authority or your dealer if you have any question. Please ensure that the pipe work of your refrigerator dose not get damaged prior to being picked up by the relevant waste disposal center, and contribute to environmental awareness by insisting on an appropriate, any-pollution method of disposal.
Disposal of the packaging of your new appliance
All the packaging materials employed in the package of your new appliance may be disposed without any danger to the environment.
The cardboard box may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping foil is made of polyethylene and the polyethylene pads and stuffing contain no fluorochloric hydrocarbon.
All these valuable materials may be taken to a waste collecting center and used again after adequate recycling.
Consult your local authorities for the name and address of the waste materials collecting centers and waste paper disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the appliance, read the information given in the User’s Guide carefully. The User’s Guide contains very important observations relating to the assembly, operation and maintenance of the appliance.
Keep the User’s Guide in a safe place and remember to hand it over to the subsequent owner, if you ever sell the appliance.
The manufacturer does not accept responsibility for any damages that may arise due to non-observation of the following instruction.
1
Cautions
*Damaged appliances are not to be put into operation. In case of doubt ,consult your supplier.
*Connection and installation of the appliance are not to be carried out in strict compliance with the relative instructions set forth in the Use’s Guide.
*For the purpose of safety ,the appliance must be properly grounded in accordance with specifications.
*The plug should be accessible after the appliance positioned.
*Power cable should inly be replaced by factory authorized service shop.
*Always remember to unplug the appliance before cleaning.To disconnect the appliance, pull at the plug itself not the cord.
*Keep alcoholic beverages in airtight bottles or containers and always store in an upright position. In addition, do not store any explosive substances inside the appliance-Danger of explosion!
*Do not damage any parts of the appliance that carry refrigerant by piercing or perforating the refrigerant’s grooves with sharp or pointed items,crushing or twisting any tubes, or scraping the coatings off the surfaces. If the refrigerant spurts out and gets into eyes, it may result in serious eye injuries.
*Do not obstruct or cover the ventilation grille of the appliance.
*Do not allow children to play with the appliance. In no case should children be allowed to sit on the drawers or hang onto the door.
*Warning: Keep ventilation openings in the appliance enclosure or in the structure for building in ,clear of obstruction.
*Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
*Warning: Do not damage the refrigerant circuit.
*Warning: Do not use electrical appliances inside the food storage of the appliance.
*If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
Specifications
*This appliance is designed for food refrigeration, ice making and frozen food storage. *It is intended strictly for household use. If using it for industrial or commercial purpose , be sure to observe the relevant norms and regulations.
*The refrigerating circuit is leak-proof.
2
Refrigerator Diagram
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Control panel |
|
|
|
|
Lamp |
|||||
Food shelf |
|
|
|
|
Fresh food container |
|||||
Egg holder |
|
|
|
|
Bottle holder |
|||||
Bottle fence |
|
|
|
|
Drawers |
|||||
This diagram may very slightly with the layout of the refrigerator you have just purchased due to technical improvements.
3
Location
*The refrigerator should be placed on a flat and solid surface. If the refrigerator is placed on a plinth, flat, strong and fire-resistant materials must be used. The front black foot of the refrigerator can be adjusted clockwise or anti-clockwise to lift or lower the refrigerator if it is placed on an uneven surface.
*Prevent the refrigerator from heat sources or direct sunlight.
anti-clockwise
Adjustable Foot
Spanner
clockwise
>6cm
*The area for built-in refrigerator should be well ventilated with a space over 6cm around the refrigerator.
*Never place the refrigerator near to a water source. Clean and dry any water splashes and stains with soft cloth.
*Never place the refrigerator in an area with an ambient temperature below zero. Never operate the refrigerator in an open area.
>6cm
>6cm
4
Preparation
1.Unpacking
Remove all packing materials.
2.Check attached accessories and materials.
Checking should be conducted with reference to the Packing
List. Contact the local distributor if shortage is found.
3.Ensure that the refrigerator is properly located.
(Refer to the section of "Location")
4.Clean the refrigerator before using.
(Refer to the section of "Cleaning")
5.Standby status
Connect the power source a minimum of 30 minutes after the refrigerator has been sited and cleaned.
Caution:
After unpacking, write down the model and delivery number of the refrigerator on
the Warranty for future inquiries.
5
Preparation
Left/Right Door Opening
The door of the refrigerator can be opened both from the left or right as required. The following are the steps required to position the door to open to the right.
1. Firmly hold the refrigerator door and remove the screws from the right lower hinge. Remove the door and place aside. Remove the lower pivot pin and install it in the left lower hinge hole.
Pivot pin hole
2.Remove the middle hinge and the washer on the middle connection and then the freezer door. Put the door aside.
3.Remove the upper right hinge cover and the hinge screws. Install the right upper hinge cover.
4.Fix the left upper hinge to the left side and then the left upper hinge cover.
5.Mount the refrigerator door to the left of the housing with the middle hinge connected.
Middle hinge
Middle pivot pin
Washer
Lower hinge
Lower pivot pin
Lower pivot pin hole
Middle pivot pin
Washer
Upper hinge
Hinge cover
Hole stoppers
Middle hinge
6. Mount the refrigerator door with the top left hole on the down pivot pin of the middle hinge.
Lower hinge
7. After installation, open and close the door several
times and fix tighten the hinge screws when the door Lower pivot pin operates normally.
6
