Haier HPRD12XC7, HPRD12XH7 User Manual

PORTABLE AIR CONDITIONER CLIMATISEUR PORTATIF ACONDICIONADOR DE AIRE PORTATIL

User Manual Model # HPRD12XC7, HPRD12XH7

Guide de l’Utilisateur Modéle # HPRD12XC7, HPRD12XH7

Manual del Usuario Para Modelo de # HPRD12XC7, HPRD12XH7

Before operating this air conditioner, please read these instructions completely.

Quality

■

Innovation ■ Style

A Word From Haier

Thank you for buying a dependable, energy-saving and easy-to-operate HAIER air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort. Please read instructions carefully before using the product. Also, do not forget to fill out and mail the

Product Registration Card.

Product Registration

Record Your Model and Serial Number.

Attach the sales receipt to this guide and keep for future reference. Model and serial number can be obtained from the serial label, which is on your air conditioner. For all your service calls during the warranty period the following information will be needed:

English

Model Number: ..............................................................................................................

Serial Number: ...............................................................................................................

Date of Purchase: ............................................................................................................

Dealer’s Name: ..............................................................................................................

Dealer’s Address: ............................................................................................................

Dealer’s Phone Number: ..................................................................................................

T A B L E

R E C E P T A C L E A N D F U S E T Y P E S

RATED VOLTS 125/60 250/60

AMPS 15 20 15 20 30

WALL OUTLET

FUSE SIZE 15 20 15 20 30

TIME DELAY FUSE Plug Plug Plug Plug Plug

(or circuit braker)

English

SAFETY PRECAUTIONS

WARNING: Following these basic precautions will reduce the risk

of fire, electrical shock, injury or death when using your air conditioner.

1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply. (see table previous page)

2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded.

3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length or plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service for examination, repairs or adjustments.

4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) Do not block airflow around the air conditioner. The exhaust hose should be free of any obstructions.

6) Always unplug the air conditioner before servicing it or moving it.

7) Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with your air conditioner.

8) Do not place any object on the top of the unit.

9) Never operate the air conditioner without the filters in place.

10) Do not use the air conditioner near a bathtub, shower or wash basin.

SAVE THESE INSTRUCTIONS

English

Important Instructions

• Please keep this manual in a safe place.

• Do not use liquid or a spray to clean this product. Use a damp cloth.

• Do not place the product in an insecure or elevated place as it may fall and cause damage or

injury.

• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside

and disable them or cause them to function improperly.

• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly

of the inside of the back cover may damage the electrical circuit and affect its performance. When maintenance is required, please contact the local service center or local distributor.

Thank you for purchasing our Haier product. Please read this manual carefully before operating and store for future reference

Staple your receipt to your manual. You will need it to obtain warranty service.

Model number

Serial number

Date of purchase

English

Table Of Contents

PAGE

A Word From Haier .................................................................................................................1

Product Registration ..................................................................................................................1

Safety Precautions ....................................................................................................................2

Advantages .............................................................................................................................4

Parts and Features....................................................................................................................5

Assembly and Installation ..........................................................................................................6

Operation ...............................................................................................................................9

Product Specification ..............................................................................................................12

Care and Cleaning ................................................................................................................13

Storage .................................................................................................................................13

Troubleshooting .....................................................................................................................13

Warranty Information .............................................................................................................14

Advantages of this Model

1. Unique dual-hose design, providing more powerful and faster cooling than the single-hose design.

2. Adjustable airflow direction for convenient and effective cooling.

3. Heat and cool functions for HPRD12XH7.

4. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed

cooling speeds, three fan speeds and one speed dehumidification function (dry).

5. This portable air conditioner does not require water to be added.

6. The unit has a unique design which evaporates the water.Therefore there is no condensation tank

and no need to empty a tank overnight.

7. An easy-to-install window kit is included which consists of the exhaust hose, 2 hose nozzles, the

window panel kit, exhaust hose connector and cover for the exhaust hose connector.

8. Full directional casters are included to help move the unit as needed.

9. The filter screen is designed for easily accessibility of the filter.

10. Portable air conditioners are easy to store when not in use.

Parts and Features

RESET

TEST

TEST: WHEN THIS BUTTON IS PRESSED OR WHEN THERE IS A CURRENT LEAK, THE INDICATOR LIGHT WILL TURN OFF AND THE UNIT WILL NOT RUN.

RESET: AFTER SOLVING THE PROBLEM, PLEASE PRESS THE BUTTON AND THE UNIT WILL START OPERATING.

English

1. Control Panel

2. Cold Air Outlet

3. Signal Receptor

4. Transport Handle

5. Air Outlet Hose

6. Evaporator Air Intake

7. Air Intake Hose

8. Drain Port

9. Power Supply

Front

Rear

English

Assembly and Installation

Assembly Instruction

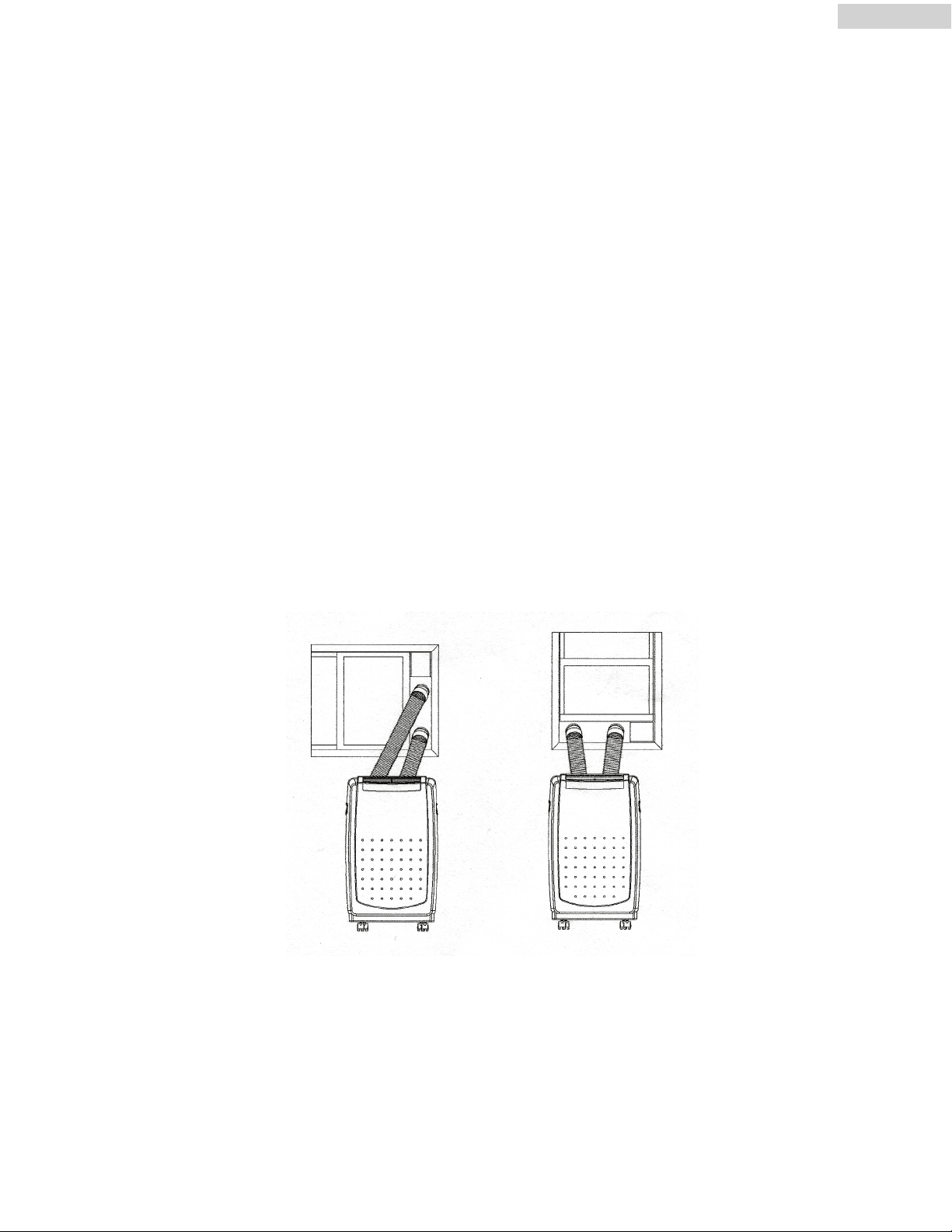

A. Connect exhaust hose to the back of the unit. Extend hose to desired length and connect with window kit.

USING EXHAUST DUCT SET

1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust duct “A” by

twisting until it stops.

2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of the unit.

This is achieved by sliding the appropriate connector downward over the exhaust outlet ensuring that the lugs on the outlet are engaged with the grooves on the connector.

3. The exhaust hose is snap-fit to the unit. To take it off, turn it clockwise and remove.

Note: Air outlet hose should be mounted at right side (see fig. 1)

4. Extend the Exhaust hose and close the Window as far as possible, trapping the air outlet nozzle.

B. Repeat same steps for the air intake hose.

USING WINDOW PANEL KIT

1. Air Inlet Hose - 1 set

2. Air Outlet Hose - 1 set

3. Window Exhaust Adapter - 2 pieces

4. Window/Patio Door Slider Kit -

1 set Window Kit Installation

Indoor

English

Your window kit has been designed to ﬁt most standard vertical and horizontal window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain type windows. Please refer to for minimum and maximum window openings

Note: Window kit is only available for some models.

Installation Instructions

• Air outlet intake indoor side can not be blocked by curtains or anything else.

• The end of air hose cannot be blocked by shutters or anything else.

• Do not bend the air hose when assembling, keep it straight.

• When appliance is in cool or dry mode, condensate will concentrate in water box of chassis. When the box is full, water full indicator lights up (red), and the LCD window shows the error sign E. The appliance will stop running at the same time. Now the power supply should be shut. Pull out the rubber plug in drain port underside the appliance, and drain the water into a prepared container, or drain the water by moving the appliance to a suitable place.

Note: Water should be drained out when the water full light is on. Otherwise, the

appliance will not work.

• Select the best location for the air conditioner. It must be beside a window, door to the outside, or French window.

• Keep the required distance from the return air outlet to the wall or other obstacles at least 20”.

• Fix one end of the air hose on the air intake or outlet under the appliance.

• Extend the air hose to ensure that it is long enough to clear the window, door, French window, or wall hole that you have chosen as a vent.

• Air outlet or intake cannot be blocked by protective grid or anything else.

• The distance between two ends of the air hose should be at least 8".

Note: The cooling capacity will decrease when using a single air hose. Fig. 3

English

Installation Sequence

Before Starting this Unit

1. Select a suitable location, making sure you have easy access to an electrical outlet.

2. Install the ﬂexible exhaust hose and adjustable window slider kit as depicted in

Fig. 2 & 3.

Note: 1. Step 2 is required only while using cooling or dry mode. In cooling

mode you can select to install two hoses or air outlet hose only. In dry mode you may install air outlet hose only.

2. While running or installing the hoses, the unit cannot be blocked by

curtains and so on.

3. Plug the appliance into a grounded electrical outlet. Please select an appropriate

power supply based on the nameplate sticker found on the unit.

Note: Do not use a regular extension cord.

4. To turn the appliance on, press ON/OFF button.

English

Operation

NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any reason. This is

for the oils and the coolants to settle and level off.

1. Wait for 3 minutes before restarting the unit after a normal shut down to complete the compressor cycle.

2. Use a 115v 15 amp outlet for the air conditioner. Do not use any other electrical appliances on this line or you may trip the fuse. Use a dedicated line for this air conditioner.

3. Do not place the air conditioner in direct sunlight or close to any heating appliances. ex. baseboard heaters, stoves, etc.

4. Operate on a flat surface only.

5. Keep the unit free of any obstructures such as drapes, curtains, blinds, etc.

6. Keep unit at least 1 foot away from the wall.

7. Check and clean the filter once every week to get the highest efficiency. NOTE: Do not use unit without filter.

8. If the unit is not being used for a long period of time remove the plug from the water drain pipe and drain out any condensed water. When turning on the unit first time after plugging it into an electrical outlet the unit will start in a low fan cool mode. The temperature read out on the LED will be the room temperature. When turning on the unit in regular usage it will remember the last shut off setting.

Control Panel

Cooling Mode Dehumidify Mode Fan only Mode Heating Mode High Fan Mode Medium Fan Mode Low Fan Mode

Model HPRD12XH7 Only

Display set temperature Warning light the machine will stop

running

Display timer setting of auto switch

on/off

English

Control Panel (continued)

Power Control

The power control turns the unit on and off.

Warning Light

Condensed water may accumalate in the unit. If the internal tank becomes full, the Warning signal in the LCD Display will light the unit

Mode Control

The mode control has 3 settings:

• Cool • Dehumidiﬁer • Heating (only HPRD12XH7)/Fan The settings are adjusted with Mode Control button. A green light will indicate which setting is currently being used.

Cooling Mode

When the cool mode is selected, " " will show in the LCD Display. During the cooling mode the air is cooled and hot air is exhausted to the outiside through the exhaust tube adjust fan speed and air temperature to suit your desired comfort level. Note: The air exhaust hoses must vent outside the room when using cool mode.

Dehumidiﬁer Mode

When dhumidify mode is selected, " " will show inthe LCD display. Air is dehumidiﬁed as it passes through the unit, without being in full cooling mode. If room temperature is higher than 77˚ C, fan speed can be adjusted: otherwise fan speed is ﬁxed to "Low". Note: The warm air exchange hoses must vent inside the room when using Dehumidify Mode, not outside as it does when cooling. If the unit is vented outside some cooling will occur.

Heating Mode

In heating mode " ", the air ﬂow is selectable.

(Note: Heating is activated only when the ambient temperature is below 77° F.)

Fan Speed Control (Led in Yellow) The Fan Speed Control has 3 settings: High, Medium. and low.

Timer

Auto turn off: With machine in running mode, press timer button for setting timer control. Press “ “ or “ “ to select number of hours you would like the unit to run before it automatically shuts off. Auto turn off: With machine in stand by mode, press timer button for setting timer control. Press “ “ or “ “ to select number of hours before the unit automatically starts running in air conditioning mode. Note: The time is adjustable between 1-24 hours.

Temperature Controls

• Used for adjusting the thermostat

• The default display is room temperature

• In cooling mode, when “ “ or “ “ button is pressed, the set temperature is displayed and may be adjusted. After 15 seconds the display will revert back to room temperature. Temperature is only adjustable in cool mode. Note: by pressing both “ “ / “ “ buttons at the same time for more than 3 seconds, the display will toggle between Celsius and Fahrenheit.

(Led in Red) (only HPRD12XH7)

Fan Mode (Led in Yellow) When fan mode is selected " ", " ", " " will be shown in the LCD display, air is circulated throughout the room with no cooling.

Remote Control Operations

English

Timer

Auto turn off: With machine in fan mode, press timer button to select number of hours you would like the unit to run in air conditioning mode until it automatically shuts off. Auto turn on: With machine powered off, press timer button to select number of hours until you would like the unit to automatically start running in air conditioning mode.

a) LCD Screen b) Power On/Off Button c) Timer and Thermostat Setting Buttons d) Mode Button (Select A/C, Fan or Dehumidifier)

Timer / Temperature Buttons

• Used for adjusting the timer and thermostat.

• The default display is room temperature.

• When “ “ or “ “ button is pressed, the set temperature is displayed and may be adjusted. After 15 seconds the display will revert back to room temperature.

• The temperature can be raised or lowered in the cool and dehumidiﬁer or dry mode. The temperature cannot be adjusted in the fan mode.

e) A/C Fan Speed Button (High, Medium, or Low) f) Timer On/Off Button g) Fahrenheit/Celsius Selector

TIMER PROGRAMMING

1. Press the ( ) button on the remote or the “Timer Setting” button on the control panel to turn on the Timer Function.

2. Press the ( ) or ( ) buttons on the remote or the ( ) or ( ) buttons on the control panel to set the desired shut-off time.

3. The unit will shut off when the set time elapses.

DEHUMIDIFICATION OPERATION

Press the ( ) button on the remote or the “MODE” button on the control panel to sleect the dehumidifier mode. When the dehumidifier mode is on, the temperature buttons and the fan speed buttons do not function and the fan will operate on low speed. An image on the LCD display will indicate that the unit is dehumidifying. Remember, the exhaust hose does not need to be used in dehumidifier mode.

English

Air Conditioner Remote Control

The functions work the same as your air conditioner’s touch controls.

Batteries: Remove the cover on the back of the remote control and insert the batteries with the (+) and (-) poles pointing in the proper direction.

CAUTION

Use only AAA or IEC R03 1.5V batteries. Remove the batteries if the remote control is not used for a month or longer. Do not attempt to recharge the supplied batteries. All batteries should be replaced at the same time. Do not dispose of the batteries in a ﬁre as they may explode.

Product Specification

Voltage and Frequency 115V / 60Hz Input Power 1200/1000W Cooling Capacity 12,000 BTU Cool 6,200 BTU Heat Moisture Removal (pints/day) 100 Refrigerant R-22/19.1 OZ. Timer 24 Hours Operating Temperature Range 61˚F - 100˚F Unit Dimensions (WxDxH) 19-11/16" x 15-3/4" x 33-1/4" Net Weight approximate 80 lbs. Power Cord 6 Feet Exhaust Hose 5 Feet

(Modèle HPRD12XH7 Seulement)
