PORTABLE AIR CONDITIONER CLIMATISEUR PORTATIF ACONDICIONADOR DE AIRE PORTATIL
User Manual
Model # HPRB07XC7, HPRB07XC7-B, HPRB07XC7-W
Guide de l’Utilisateur
Modéle # HPRB07XC7, HPRB07XC7-B, HPRB07XC7-W
Manual del Usuario
Para Modelo de # HPRB07XC7, HPRB07XC7-B, HPRB07XC7-W
Before operating this air conditioner, please read these instructions completely.
Quality ■ Innovation ■ Style
English
A Word From Haier
Thank you for buying a dependable, energy-saving and easy-to-operate HAIER air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort. Please read instructions carefully before using the product. Also, do not forget to fill out and mail the Product Registration Card.
Product Registration
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can
be obtained from the serial label, which is on your air conditioner. For all your service calls during
the warranty period the following information will be needed:
Model Number:...............................................................................................................
Serial Number:................................................................................................................
Date of Purchase:............................................................................................................
Dealer’s Name:...............................................................................................................
Dealer’s Address:............................................................................................................
Dealer’s Phone Number:...................................................................................................
T A B L E

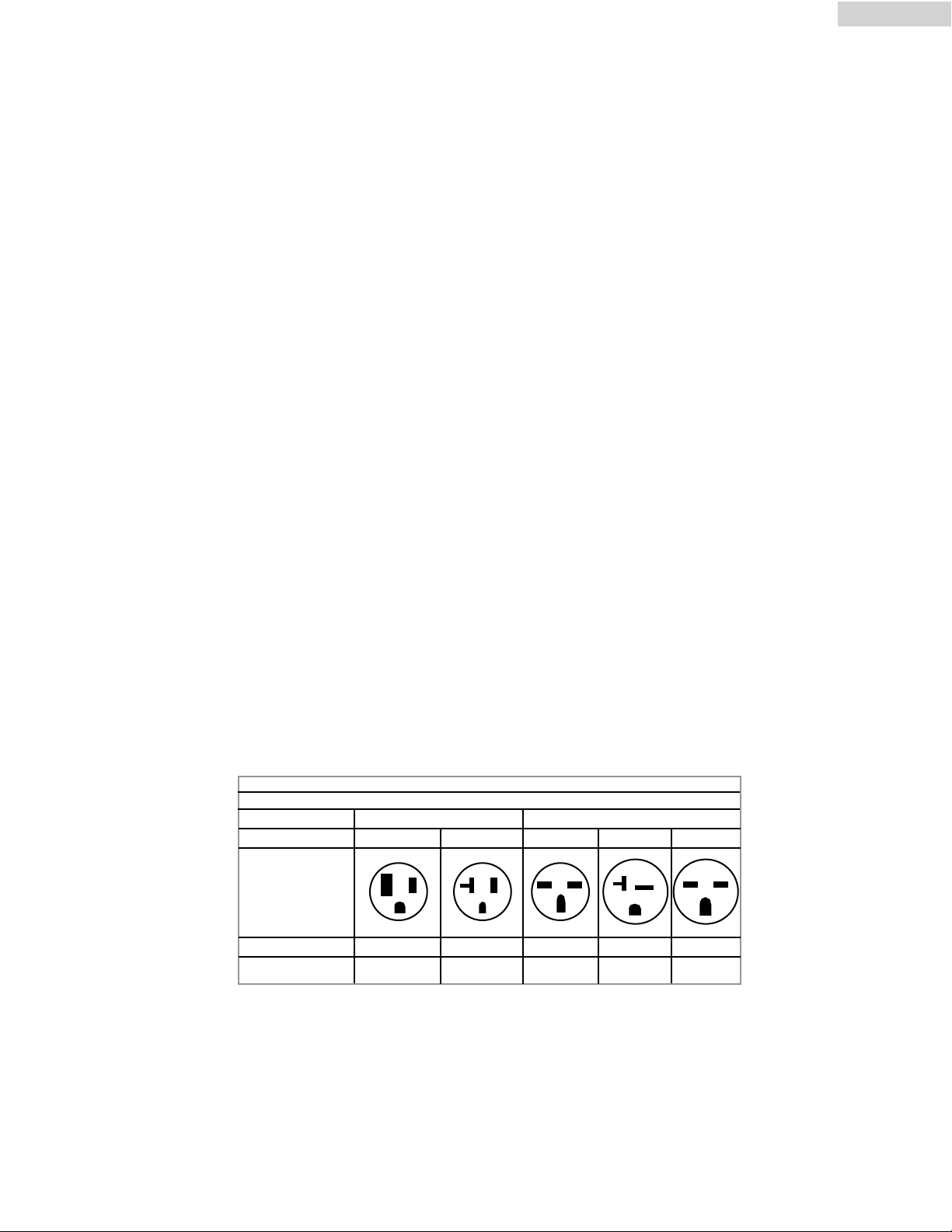

R E C E P T A C L E A N D F U S E T Y P E S
RATED VOLTS |
|
|
|
125/60 |
|
|
|
|
|
|
|
|
250/60 |
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
AMPS |
|
15 |
|
|
20 |
|
|
|
15 |
|
|
|
|
|
|
|
30 |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WALL OUTLET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
FUSE SIZE |
|
15 |
|
|
20 |
|
|
|
15 |
|
|
|
30 |
|
|
30 |
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
TIME DELAY FUSE |
|
Plug |
|
|
|
Plug |
|
Plug |
|
|
Plug |
|
|
Plug |
|
|
||||||||||||
(or circuit braker) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
English
SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk of fire, electrical shock, injury or death when using your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle.
The wall receptacle MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length or plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service for examination, repairs or adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5)Do not block airflow around the air conditioner. Also, the exhaust hose should be free of any obstructions.
6)Always unplug the air conditioner before servicing it or moving it.
7)Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with your air conditioner.
8)Do not place any object on the top of the unit.
9)Never operate the air conditioner without the filters in place.
10)Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
2
English
Important Instructions
•Please keep this manual in a safe place.
•Do not use liquid or a spray to clean this product. Use a damp cloth.
•Do not place the product in an insecure or elevated place as it may fall and cause damage or injury.
•Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside and disable them or cause them to function improperly.
•Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassembly of the inside of the back cover may damage the electrical circuit and affect its performance.
When maintenance is required, please contact the local service center or local distributor.
Thank you for purchasing our Haier product. Please read this manual carefully before operating and store for future reference
Staple your receipt to your manual. You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
3
|
English |
Table Of Contents |
|
|
PAGE |
A Word From Haier............................................................................................................... |
1 |
Product Registration............................................................................................................... |
1 |
Safety Precautions................................................................................................................. |
2 |
Advantages.......................................................................................................................... |
4 |
Parts and Features................................................................................................................. |
5 |
Assembly and Installation....................................................................................................... |
6 |
Operation............................................................................................................................. |
7 |
Product Specification.............................................................................................................. |
9 |
Care and Cleaning................................................................................................................ |
9 |
Storage................................................................................................................................ |
9 |
Troubleshooting................................................................................................................... |
10 |
Warranty Information........................................................................................................... |
11 |
Advantages of this Model
1.This model is easy to operate. The electronic control panel has a timer, thermostat, three speed cooling speeds, three fan speeds and one speed dehumidification function (dry).
2.This portable air conditioner does not require water to be added.
3.The unit has a unique design which evaporates water. Therefore no condensation tank is necessary, thus avoiding the need to empty the bucket and turn on the unit in the middle of the night.
4.Easy-to-install window kit is included, which consists of the exhaust hose, 2 hose adaptors, the window panel kit and window panel adaptor.
5.Full-directional casters are included to help remove the unit to be conveniently used in almost any area.
6.The filter screen is designed for easy accessibility of the filter.
7.Portable air conditioners are easy to store when not in use.
4
English
Parts and Features
HPRB07XC7
1. |
Control Panel |
|
|
Front |
|||
2. |
Air Outlet |
||
|
|||
|
(To be opened manually) |
|
|
|
|
||
3. |
Handle Hole |
|
|
4. |
Caster |
|
|
5. |
Air Filter |
|
|
6. |
Air Outlet (Heat Exhaust) |
|
|
7. |
Air Intake (Evaporator) |
|
|
8. |
Remote Control Storage Facility |
|
|
9. |
Water Outlet Drain |
|
10. Power Supply Cord
RESET
TEST
TEST: WHEN THIS BUTTON IS PRESSED OR WHEN THERE IS A CURRENT LEAK, THE INDICATOR LIGHT WILL TURN OFF AND THE UNIT WILL NOT RUN.
RESET: AFTER SOLVING THE PROBLEM, PLEASE PRESS THE BUTTON AND THE UNIT WILL START OPERATING.
Rear
Note: Please manually open the air outlet (Item 2) to desired position.
5
English
Assembly and Installation
Accessories Include |
1 |
2 |
3 |
1. Plastic panel - 2 pieces
2. Window Panel adapter - 1 piece
3. Screws - 4 pieces
4.Heat Exhaust hose connector - 2 pieces
5.Heat Exhaust hose - 1 piece
1.Push the round Window Panel Adapter through the rear of the Plastic Panel. Line up the holes and tighten the Adapter with 4 screws that are included in the kit. (Tighten screws from the front.)
2.Adjust the Plastic Panel to the width or height of your window and tighten the 2 screws that are attached to the panel.
3.Install the Window Plastic Panel into the window. If necessary use duct tape to better secure the panel.
4.Connect exhaust hose to the unit by inserting the hose connector that is attached to the hose into the exhaust. (See Illustration A)
5.Move the unit to the window, extend the hose and attach the other end of the hose to the window. Align the tabs on the hose and window panel adapters and fasten them together.
6.Plug into wall outlet to get ready for operation.
* NOTE: Use on Single Outlet Circuit Only.
A
B
4 Hose Connector |
5 Exhaust Hose |
4 Hose Connector |
6
English
Operation
Control Panel
Mode Light
Power Control
The power control turns the unit on and off. When you press power control, the unit begins to operate. Its operation mode is auto and fan speed is auto.
Warning Light
Condensed water may accumulate in the unit. If the internal tank becomes full, the Warning
Light will shine and the unit will not operate until the unit has been drained.
Operating mode indicator
Indicator color of operating mode and LED : When cooling mode is selected, the indicator light will be blue.
When dehumidify mode is selected, indicator light will be yellow.
When fan mode is selected, indicator light will be green.
When auto mode is selected, indicator light will be based on the operating mode.
Temp. and Time Setting Indicator
•During operation, the unit displays “present room temperature.”
•When setting temperature, the unit will display set temperature.
•When setting the time it displays “set time” and indicator flashes.
•5 seconds after "set temperature" and "set time", it goes back to "present room temperature".
•Temperature display ranges from 64˚F to 89˚F.
•When environmental temperature is higher than the temperature display range, the display shows "HI".
•When environmental temperature is lower than the temperature display range, the display shows "LO".
•When the unit stops operating, indicator light goes off.
After switching the air conditioner off, you must wait 3 minutes before switching it back on again.
7
Operation
Remote Control
Power Control
The power control turns the unit on and off.
Mode Control
The Mode Control has 4 settings:
• Cool • Dehumidify • Fan • Auto The settings are adjusted by Mode Control button.
•Cooling Mode
During the cooling mode the air is cooled and hot air is exhausted to the outside air through the air exhaust hose. Adjust fan speed and temperature to suit your desired comfort level. Note: The air exchange hoses must vent outside the room when using Cool Mode.
•Dehumidify Mode
Air is dehumidified as it passes through air conditioner, without being in full cooling mode. If room temperature is greater than 77˚F, fan speed can be adjusted; otherwise fan speed is fixed to “low.”
Note: The warm air exchange hose must vent inside the room when using Dehumidify Mode, not outside as it does when cooling. If the unit is vented outside when using Dehumify Mode some cooling will occur.
•Fan Mode
Air is circulating throughout the room with no cooling.
Note: Unit does not need to be vented in Fan Mode.
English
•Auto Mode
Turn on the unit and choose “Auto” mode. The unit will switch its mode and fan speed automatically based on the environment temperature.
Fan Speed Control
The Fan Speed Control has 4 settings: Auto, High, Medium and Low.
Temp Set Controls
Press “Up” or “Down” to set temperature. The setting range is from 64˚ to 89˚F.
Note: When using Auto, Dehumidify or Fan Mode, temperature setting button is invalid.
Fahrenheit / Celsius Selector
Press the ˚C / ˚F switch button, to switch between ˚F and ˚C.
Note: Initial setting is ˚F.
Timer Setting Control
•When you use the timer setting button while the unit is operating, you can preset a time for the unit to turn off.
•When you use the timer setting button while the unit is on standby, you can present a time for the unit to turn on.
•If you press the "ON/OFF" button, the preset timer function will be cancelled.
•Timer setting range is 1~24 hours.
Timer Cancel Control
•You can cancel the timer setting at any time by pressing the "Cancel" button.
8
English
Product Specification
Voltage and Frequency |
115V / 60Hz |
Input Power |
800 W |
|
|
Cooling Capacity |
7000 BTU |
|
|
Moisture Removal (pints/day) |
70 |
|
|
Refrigerant |
R-22/14.1 Oz. |
|
|
Timer |
24 Hours |
|
|
Operating Temperature Range |
61˚F - 100˚F |
|
|
Unit Dimensions (WxDxH) |
17-15/16” x 13-1/8” x 24-3/8” |
|
|
Net Weight (approximate) |
55.1 lbs. |
|
|
Exhaust Hose |
5 Feet |
|
|
Care and Cleaning Guide
•Always unplug your air conditioner before cleaning.
•Air filter needs to be cleaned at least once a week for your unit to operate at optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter may be washed or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT use your air conditioner without the air filter in place.
•To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your air conditioner.
•Always use a soft cloth dampened with water or a mild soap and water solution to wipe the front of the cabinet. Wipe dry with a soft cloth.
Storage
•To store your air conditioner when not in use for a long period of time, drain condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover with plastic bag and store.
9
English
Troubleshooting
If air conditioner does not operate:
•Check if unit is plugged in. The plug may have come loose.
•Check if the electrical wall receptacle is of proper voltage.
•Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
•Check if the unit is in “Off” mode.
•If the warning light is on, drain the water drain pipe by removing the plug.
Air conditioner is working but room is not cooling:
•Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
•Check exhaust hose for proper installation.
•Redirect the airflow. Remove any obstacles.
•All doors and windows need to be closed so that cool air does not escape the room.
•Air filter may be blocked or may need cleaning.
•Unit BTU may be too low for the required cooling area.
•On extremely hot & humid days, air conditioners may take a little longer to cool.
•Drain the water drain pipe by removing the plug.
•Unit may be in fan or dry mode. Put air conditioner in cool mode.
10
