Haier hlp140e, HLP141E User Manual 2
.
Electric Vented Tumble Dryer
Sécheuse Électrique Ventilée
Secadora eléctrica de ropa con
ventilación
User Manual
Model HLP141E, HLP140E
Guide de l’Utilisateur
Modéle HLP141E, HLP140E
Manual del Usuario
Para Modelo de HLP141E, HLP140E
English
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of fire, electric shock, or injury to persons
when using your appliance, follow the basic precautions, including the
following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4 Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water and/or to the
weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user repair instructions that you understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
11. Clean lint screen before or after each load. DO NOT OPERATE THE DRYER WITHOUT
THE LINT FILTER IN PLACE.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust and dirt.
13. The interior of the appliance and the exhaust duct should be cleaned periodically,
preferably by qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
15. If material has been used with any flammable liquids or solids it should not be used in
the dryer until all traces of the flammable liquids and its fumes have been removed.
16. This dryer must be properly installed in accordance with the installation instructions
before it is used.
17. Proper grounding must be ensured to reduce the risk of electric shock and fire. Check
with a qualified electrician or service personnel if you are in doubt as to whether the
dryer is properly grounded. See grounding instructions in the installation section.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any service.
Disconnect power cord by grasping the plug, not the cord.
20. Replace worn power cords and/or loose plugs.
SAVE THESE INSTRUCTIONS
1
English
HOUSEHOLD USE ONLY
DANGER
Risk of child entrapment. Before you throw away your old
appliance, take off the door so that children may
not easily get trapped inside.
WARNING!
As dry cleaning solvents, gasoline, vegetable and cooking oil are
highly hazardous materials, items soaked in or spotted with such should
not be used in the dryer. Items may still contain a substantial amount of
the hazardous material after being washed. When such items are exposed
to heat they could ignite. As clothes are stacked and piled up the dryer
the heat cannot escape. Due to this, items become hot enough to possibly
ignite. Washing in hot water with extra detergent would reduce
but not eliminate the risk of fire.
Thank you for purchasing our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your washer.
Remember to record the model and
serial number. They are on a label
in back of the washer.
Staple your receipt to your manual. You will need it to obtain
warranty service.
Please register online at www.prodregister.com/Haier
Model number
Serial number
Date of purchase
2
English
ELECTRICAL REQUIREMENTS

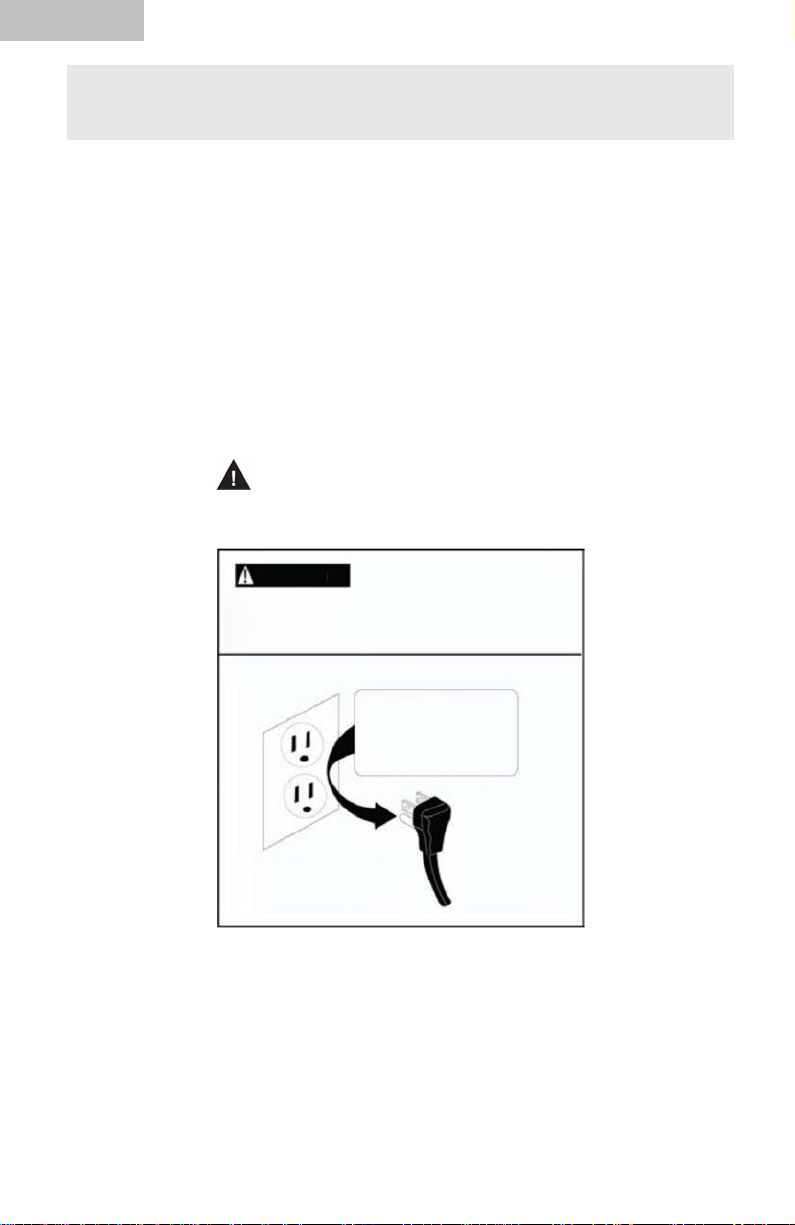

Grounding Instructions:
This appliance must be grounded. It is equipped with a 3-wire cord having
a grounded plug. The plug must be plugged into an outlet which is properly
installed and grounded
Warning – Improper use of the grounded wire can result in the risk of electric
shock. Consult a qualified electrician if necessary. Do not attempt to defeat this
safety feature by modifying the plug. Avoid the use of an extension cord because
it may overheat and cause a risk of fire. However, if it is necessary to use an
extension cord:
A. Use only 3-wire extension cord with 3-blade grounding plug.
B. The marked rating of the extension cord must be equal to or greater than the
rating of this appliance.
WARNING!
Avoid fire hazard or electric shock. Do not use an extension cord or an
adapter plug. Do not remove any prong from the power cord.
Attempting any maintenance or cleaning:
To minimize the possibility of electric shock, unplug this appliance from the power
supply or disconnect the dryer at the household distribution panel by removing
the fuse or switching off the circuit breaker before attempting any maintenance or
cleaning (except the removal and cleaning of the lint filter).
NOTE: Pressing the Power ON/OFF button to an off position or pressing Start /
PAUSE button, does NOT disconnect the appliance from the power supply.
3
English
UNPACKING YOUR DRYER
1. Inspect and remove all packing materials. This includes the foam and any
adhesive tape both inside and outside of the unit.
2. Inspect and remove any remains of packing, tape or printed materials before
powering on the dryer.
TABLE OF CONTENTS
Safety Instructions ...............................................................................1
Product Registration
Electrical Requirements
Unpacking Your Dryer
Parts and Features
............................................................................2
.......................................................................3
.........................................................................4
...............................................................................5
SET UP INSTRUCTIONS
Location of Your Dryer
Assemble Dryer for Installation
Venting the Dryer
INSTALLATION INSTRUCTIONS
Wall Mounting Instructions
Completing Installation
OPERATIONAL INSTRUCTIONS
Control Panel
Quick Start
Timed Dry
Drying Tips and Precautions
Moving and Vacationing and Storage
Troubleshooting
Limited Warranty
................................................................................8
...................................................................................12
..................................................................................13-14
........................................................................................15
................................................................................19
..............................................................................20
...............................................................6-8
........................................................................6
.............................................................7
................................................9-11
............................................................ 10-11
......................................................................11
............................................. 12-17
...............................................................17
.................................................18
4
English
Cycles
Dry
Tim e
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Lint
Normal
Time d Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dr y
150
Status
A
U
T
O
D
R
Y
HLP141E
PARTS AND FEATURES
Front
Windows
(HLP141E Only)
Drum
Door
Door Gasket
Back
Dryer Hanging Wall Hook
Exhaust and Lint Filters
Air Intake
Digital Control Panel
Hose Clamp Exhaust Housing
5
Power Cord
Casing
Exhaust Vent
Back Cover
Spacer
English
16.73”
26.97
”
24.8”
SET UP INSTRUCTIONS
Tools and Parts Required for Installation:
Philips Head Screw Driver•
Flat Head Screw Driver•
Electric Drill and 1/8 inch drill bit•
Stud finder (optional)•
(6) Wood screws for mounting plywood•
Plywood board; size 30 (h) by 24(w) inches or wood slats•
Venting materials:
4 inch diameter metal exhaust rigid ducting and fittings or UL flexible metal •
dryer vent hose, that should not exceed 6 feet.
2 additional hose clamps for ducting outside exhaust vent hose•
Metal Elbows or outdoor vents as needed.•
Location of Your Dryer
First find a suitable location where you can mount the dryer on the wall and still
have access to 120 Volt outlets and exterior venting.
Vent to outside
Type: Electric dryer
Rating: Please refer to the rating label regarding detailed information
Size: 26.97x24.8x16.73(inch)
Capacity: 2.6 cu.ft.
Weight: 52.9lbs(24kg)
Check dryer size and ensure a good location for the dryer installation on a •
wall where you can mount the unit using wall studs or beams.

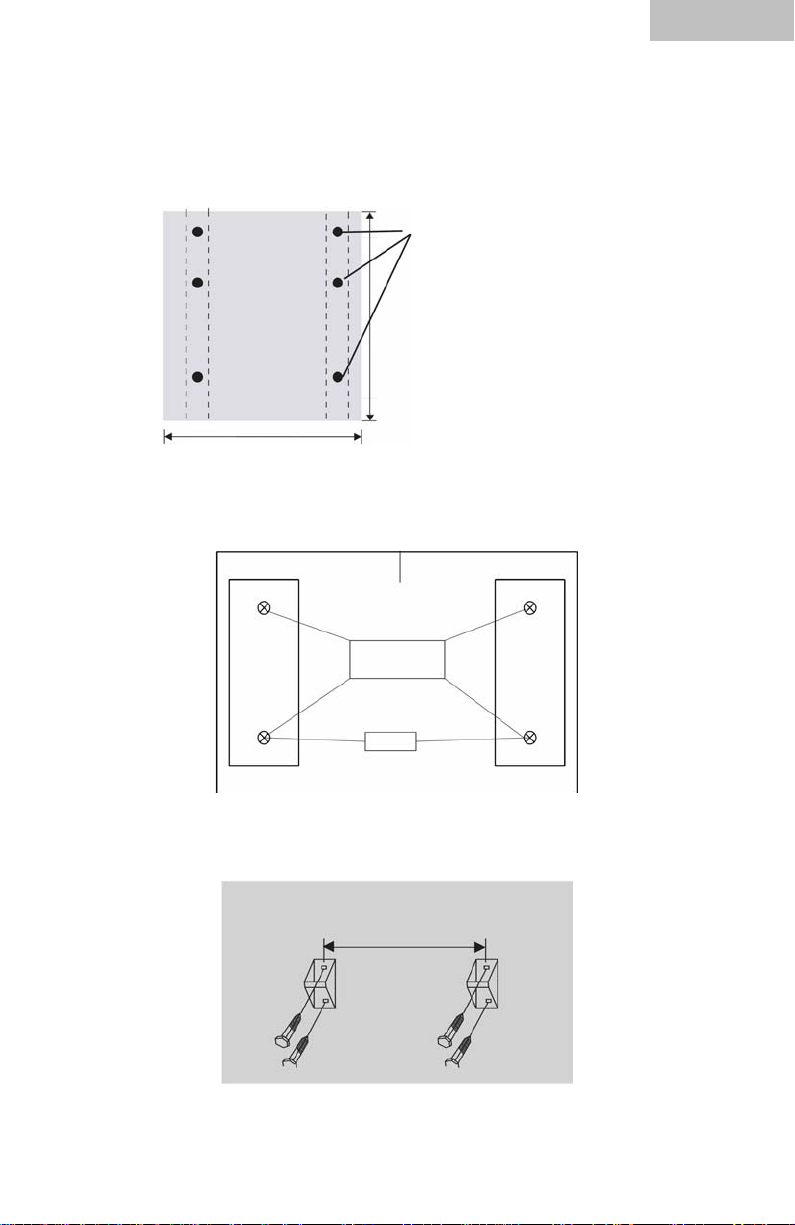

It is recommended to use a plywood board (30 by 24 inches) to mount the •
dryer using the walls beams and studs as support, rather than just wood slats.
Make sure the dryer power cord can reach a 120 Volt outlet.•
Make sure you can connect the exhaust vent to the outside or designated •
dryer vent (in a laundry room).
The length of exhaust ducting should not exceed 6 feet.•
Please read the additional ducting information and warnings in this manual.•
Nearest 120 Volt
AC outlet
6
English
Assemble Dryer for Installation
Screw mounting hook bracket and wall spacer to dryer with screws provided.
1. Attach Hanging hook bracket
using the 4 screws.
3. Attach Exhaust Housing. Connect vent housing to dryer using hose clamp
provided to the exhaust pipe.
Exhaust Pipe
2. Attach the 2 wall spacers to the bottom
of the dryer, using the 2 screws.
Spacers
Exhaust Vent Housing
Hose Clam
4. You have two choices of the exhaust pipe housing direction.
7
Venting The Dryer
Proper venting of the dryer is very important. Determine the best and safest
ducting for the dryer.
WARNING!
Clothes dryer installation must be performed by qualified installer.1.
Install the clothes dryer according to the manufacturer’s instructions and local codes.2.
Do not install a clothes dryer with flexible plastic venting materials. If flexible metal 3.
(foil type) duct is installed, it must be of a specific type identified by the flexible duct
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
Clean old ducts before installing this dryer.4.
Outside
Vent
English
Correct Incorrect
Exhaust Requirements and Maintenance.
Venting must conform to local building codes.•
Do not use thin plastic or foil ducting.•
Use 4 inches (10.2cm) diameter rigid or flexible metal duct (note: venting •
materials are not supplied with the dryer, and you should obtain the venting
materials necessary for proper installation at your local hardware store).
Position the Dryer such that the exhaust duct run is as short as possible. •
Make sure there is no more than 6 feet of exhaust ducting.
Clean old ducts before installing this dryer•
Never bend or collapse ducting flex hose. Use few elbows joints as needed.•
Use duct tape on all duct joints.•
Insulate ductwork that runs through unheated areas in order to reduce •
condensation and lint build-up on pipe walls.
WARNING!
To reduce the risk of fire and combustion, the dryer must be vented outdoors. Lint
accumulation can cause fires. Check and clean vents and ducting as often as possible.
PLEASE BE AWARE THAT FAILURE TO EXHAUST THE DRYER CORRECTLY WILL VOID THE
DRYER’S WARRANTY.
8
English
INSTALLATION INSTRUCTIONS
Location for installation and options for various walls
1. There are 2 mounting options- either using wood slats or a whole plywood
board. The dryer installation to the wall should be able to accommodate the
weight of the unit of 52 lbs. plus about 10 lbs. for clothing (or approximately
62 lbs). We suggest you use a plywood board for added support and safety,
this is the best way to mount.
2. Determine dryer position on the wall. A minimum of 6”(Inches) is needed
between the top of the dryer and the ceiling for installation.
3. If mounting the dryer above a washing machine, allow sufficient space to
open the top lid of the washer.
4. The Best installation is to add a plywood board to the wall studs. As a
second option- you can use two (2) slats (2 by 4 “) and attach to studs.
9
Wall Mounting Instructions
5. For the best installation
Locate the wall studs in order to securely mount the unit on the wall. Use 1
plywood board size 30 (h) by 24(w) inches and mount into the wall studs
using (6) wood screws (not provided)
English
for supporting
Use wood screwsPlywood board
the dryer
Stud
30 inches
Stud
24 inches
6. Mark the required dryer bracket position and holes using the template provided.
HLP141E Mounting template
Center and level template
Mounting
bracket
Drill holes for dryer
mounting bracket
6 inches
Mounting
bracket
7. Using the 4 supplied screws attach the 2 wall hanging mounting brackets onto
the plywood. The distance between each bracket should be 6” apart.
6 inches
You are now ready to hang the dryer to the wall.
10
English
8. Hanging dryer on wall
Lift the dryer (with the help of an assistant) and insert the hanging hook onto
the 2 mounting brackets on the wall. The wall spacer will distance the dryer
from the bottom.
Hang dryer onto
mounting brackets
on the wall
Completing Installation
9. Connect ducting to the dryer
Connect the exhaust ducting (not provided) from the dryer venting housing to
external outside dryer vent using a hose clamp (not provided).
Note
Exhaust
Housing
10. Competed final installation, on wall with ducting.
Must purchase these parts from local hardware store.
hose clamp
Exhaust Ducting
hose clamp
Outside Vent
Note
Vent to the outside only. Improper taping
to vent or unstable installation to vent will
cause undesirable drying performance.
11
Outside
Vent
OPERATIONAL INSTRUCTIONS
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Tim ed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
Control Panel Function
LED Indicator lights
Flashing LED - indicates the program is functioning
LED )n - indicates function selected or the program, that is going to begin.
English
Status Indicator Lights
Dry
The dryer is on.
‘PowerOn/Off’ Button
Press in the ‘PowerOn/Off’ button
to turn on the power of the dryer.
Cooling
The final drying cycle will be completed soon,
and the dryer stoped heating and is cooling down.
End Cycle
The cycle is completed; take out laundry.
Clean Filter
LED reminds you to clean the lint filter each time
you finish drying your clothes.
‘Dry Time’ Button
When in Timed Dry- Use
the Dry Time button to
manually select drying
time in a range of 30, 60,
90,120, or 150 minutes.
Note
If ‘Temp’ function is set to
‘Air-Dry’, the ‘Dry Time’ is
pre-set to select only 30 or 60
minutes.
Use the Timed Dry Cycle for manual selecting Dry times and Temperatures
‘Cycle’ Button
Choose Drying Cycle
Normal Normal Drying
Heavy Huge and heavy garments
Delicat Low level heat drying
Timed
Dry
You can manually set
the drying time and
temperature
‘Startr/Pause’ Button
With Power ‘ON’, press the
‘Start/Pause’ button to start
Drying Cycle, pause
operation,or resume
operation.
‘Temp’ Button
When in Timed DryUse the Temp button
to manually select the
temperature range
to High, Low and
Air Dry temperature
settings. (Air Dry is
without any heat)
‘Normal’ and ‘Heavy’
Cycles are pre-set to
the ‘High’ temperature
setting. ‘Delicate’ is preset to ‘Low’ temperature
setting.
Note
12
English
.
Quick Start
Normal, Heavy and Delicate Cycle Laundry Loads
1. Connect plug to 120 Volt outlet.
2. Load your dryer with clothing;
Note
Do not overload the Dryer
It is suggested that 2/3 the capacity of drum be filled to allow for tumbling and
proper drying.
13
3. Set Cycle and Start
Power
On/Off
Cycles
Start
Pause
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Tim ed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
To start drying a laundry load using Auto Dry with presets for Temperature
and Time, there are 3 easy steps:
1. Turn ‘Power ON’ 2. Choose drying Cycle –
Normal, Heavy or Delicate
3. Press ‘Start’
2 3 1
English
Note
Normal , Heavy and Delicate Cycles are auto-set for Temperature and Time to dry
a regular load. Timed Dry Cycle is for manual selecting Dry times and Temperatures. (See next page for instructions)
4. Cooling Status.
When ‘Cooling’ Status LED is ON, the Cooling down time takes 10 minutes
for dryer along with the garments.
If you want to take out clothes in the middle of drying cycle, please use
caution and carefully take out the HOT clothes.
5. End Dry Cycle
A beeper alarm alerts you when the Drying Cycle ends, then the dryer will
power off. Take out the clothes as soon as possible.
6. Clean Filter
‘Clean Filter’ Status LED reminder goes ON. After drying each load of
clothing, always clean the lint filters.
Exhaust Vent
Casing
14
English
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Tim ed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
Power
On/Off
Cycles
Temp
Start
Pause
Dry
Time
Timed Dry Cycle Manual
23 4 5 1
The Timed Dry Cycle is for manual selecting Dry times and Temperatures.
For Timed Dry operation.
1. Turn ‘Power ON’
3. Press Dry Time button to
manually select drying time
in a range of 30, 60,90,
120, or 150 minutes.
2. Choose dry Cycle –
Set Cycle to ‘Timed Dry’.
4. Press Temp button to manually
select the temperature range to
High, Low and Air Dry
temperature settings.
5. Press ‘Start’
6. Cooling Status.
When ‘Cooling’ Status LED is ON, the Cooling down time takes 10 minutes
for dryer along with the garments.
If you want to take out clothes in the middle of drying cycle, please use
caution and carefully take out the HOT clothes.
7. End Dry Cycle
A beeper alarm alerts you when the Drying Cycle ends, then the dryer will
power off. Take out the clothes as soon as possible.
8. Clean Filter
‘Clean Filter’ Status LED reminder goes ON. After drying each load of
clothing, always clean the lint filters.
15
Exhaust Vent
Casing
CAUTION!
The tumble dryer is intended only for drying textile material •
washed in water.
Disconnect this appliance from the power supply before •
attempting any user maintenance other than cleaning the lint trap.
Connect to individual AC power outlet .•
Do not allow children to play on or in the dryer.•
Only place damp clothes in your dryer.•
This dryer is not to be used for clothing or fabrics cleaned •
by chemicals.
Do not allow lint to collect around the dryer or exhaust vents.•
WARNING: CLEAN THE LINT TRAP REGULARLY
Cleaning the Exhaust Filters
Clean lint screen after each drying load.•
NEVER use your dryer without the filter.•
Assembly sequence
Lint
English
Exhaust Filter Lint Filter
Exhaust Vent Casing
Refer to User Manual for all instructions
CAUTION! Risk of Fire
All clothing dryers produce combustible lint. The dryer must •
be connected to an external exhaust vent outdoors. Regularly
inspect the outdoor exhaust vent opening and remove any of
lint around the exhaust opening and the surrounding area.
To reduce the risk of fire, do not use heat when drying articles •
containing foam rubber or similarly textured rubber-like materials.
WARNING!
Do not install your dryer in a place with heavy moisture, like the •
bathroom, near water taps and places where it could easily be
sprayed.
Only place damp clothing into your dryer. Sufficiently wring out •
wet clothes with washer spin cycle to prevent longer drying time.
Do not place any wet laundry, liquid detergent or bleach on the •
control panel of your dryer.
Do not leave washed wet clothes in your dryer for a long time. •
WARNING!
To reduce the risk of electric shock or fire, do not use an •
extension cord with this appliance.
16
English
DRYING TIPS AND PRECAUTIONS
Delicate clothes especially those with ribbon or lace, should be placed in a nylon
mesh bag before drying to prevent tangling.
Clothes with zippers
Zippers, buckles, buttons and fasteners should be closed or clothing should be
turn inside out to reduce the impact of noise between metal and the drum.
Solvents
Do not wash or dry articles that have been cleaned in, washed in, soaked in •
or spotted with combustible or explosive substances (such as wax, oil, paint,
gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). These substances
give off vapors that may ignite or explode. Do not add these substances to
the wash water. Do not use or place these substances around your washer or
dryer during operation.
Do not place items exposed to cooking oils in your dryer. Items contaminated •
with cooking oils may contribute to a chemical reaction that could cause a
clothes load to catch fire.
Any article on which you have used a cleaning solvent or that contains •
flammable materials (such as cleaning cloths, mops, towels used in beauty
salons, restaurants or barber shops, etc.) must not be placed in or near the
dryer until solvents or flammable materials have been removed. There are
many highly flammable items used in homes such as acetone, denatured
alcohol, gasoline, kerosene, some household cleaners, some spot removers,
turpentines, waxes, wax removers and products containing petroleum distillates.
Elastics
Do not dry articles containing rubber, plastic or similar materials such as padded
bras, tennis shoes, rubber galoshes, bath mats, rugs, bibs, baby pants, plastic
bags, pillows, etc. that may melt or burn. Some rubber materials, when heated,
can under certain circumstances produce fire by spontaneous combustion.
Fabrics
Make sure to check if there are any special requirements or warning labels •
on garments before drying. Carefully follow the garment manufacturer’s care
instructions.
Avoid clothes being caught by the door which will cause clothes to tangle •
and damage the door gasket.
Separate dark and light colored items, like you do for washing.•
Check for stains that may not have been removed in washing.•
Dryer heat may permanently set some stains. Properly dried clothes will need •
minimum care when removed from dryer.
For optimum results,use dryer load with cloths of similar fabric, weight and •
construction.
Always remove the clothing from the dryer as soon as possible.
17
CARE AND CLEANING GUIDE
Oil
Thinner
Benzene
Clean buildup such as lint on filters after each use, otherwise it will affect the
performance of your dryer.
Cleaning of Lint Trap and Filters
English
The lint filter must be always used for drying.•
It must be cleaned each time before or after each use.•
1. Remove the Exhaust venting casing
containing the filters.
Use four finger grabbing holes in middle of the
exhaust vent casing center to pull from the drum.
Remove the filters by pulling straight out.
Exhaust
vent casing
The exhaust vent casing contains the ‘Lint
filter’ and ‘Exhaust filter’, as shown in figure 1.
2. Cleaning the filters from lint
Separate ‘exhaust vent casing’,’lint filter’ and ‘exhaust
filter’ and clean the lint off the filter and exhaust filter
with a soft brush or a small vacuum cleaner. (as shown
in figure 2) or wash it with water if still dirty.
Dry completely before use and do not damage the filters.
3. Install the filters
After cleaning the filters, assemble filters in the
order of ‘exhaust vent casing’,’lint filter’ and
‘exhaust filter’ (as shown in figure 3).
4. Align the recesses center of the ‘exhaust vent
casing’ to the center of drum and make sure that
it is firmly inserted.
WARNING!
NEVER USE YOUR DRYER WITHOUT
THE LINT FILTERS INSTALLED.
Exhaust
vent casing
The filter is in the rear
of the drum
Lint
Exhaust
filter
filter
Lint Filter Exhaust Filter Small Vacuum
Brush Lint
Figure 1
Figure 2
Figure 3
cleaner
Please unplug the power cord when cleaning the Dryer.•
Clean the interior drum or dryer housing with a damp soft cloth.•
WARNING!
Do not put water directly on dryer.•
Do not use thinner, gasolene or alcohol.•
Do not use any type of spray cleaner to clean the interior.•
Remove everything from drum before dr ying the next load.•
Clean cabinet with mild soap and water only. Do not use •
harsh or abrasive cleaners, as this could damage the dryer.
18
Loading...
