Haier HLC32 User Manual

TFT-LCD TV/DVD Combo

OWNER S MANUAL'

Please READ this manual carefully before operating your TV, and retain it for future reference.

MODEL :

HLC26 HLC32

S

A

Warning

WARNING

RISK ELECTRIC SHOCK DO NOT OPEN

WARNING : To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside refer service to qualified service personnel.

Operator Safety has been taken into consideration at the design and manufacture phase, but inappropriate operation may

cause electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the

installation, use and maintenanceof th product. Read the following safety instruction before starting the operation. The User Manual uses the following symbols to ensure a safe operation and prevent any damage to operators

or properties:

THIS SYMBOL INDICATES THAT HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY INSIDE PART OF THIS PRODUCT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

guarantee that interference will not occur in particular installation

to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to

try to correct the interference by one or more of the following measures:

*Reorient or relocate the receiving antenna.

*Increase the separation between the equipment and receiver.

*Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

*Consult the dealer or an experienced radio/TV technician for help.

This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may be not cause harmful interference.

(2) this device must accept any interference received, including interference that may cause undesired

operation.

FCC CAUTION:

To assure continued compliance and possible undesirable interference, the provided ferrite cores must be

used when connecting this display to video equipment; and maintain at least 40cm spacing to other

peripheral device.

CANADIAN NOTICE:

This Class B digital apparatus compiles with Canadian ICES-003.

LCD

. If this equipment does cause harmful interference

However there is no

2 TV LCD-TFT

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer`s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) WARNING-To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,

shall be placed on the apparatus.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

The mains plug is used as the disconnect device, remain it readily operable during the apparatus normal use.

Owner s Manual 3

Safety Instructions

SAVE THESE INSTRUCTIONS

Thank you for purchasing the Haier product. This easy-to-use manual will guide you in getting the best use of your product. Remember to record the model and serial number. They are on label in back of the unit.

Model number

serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

4 TV LCD-TFT

Contents

Introduction

War ni ng . . . . . . . ... .... .. .... . . . . . . . . . . . . . . . . . . . . . .

Safe ty Ins tr ucti ons . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

Cont rols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .... .. .

Conn ecti on O ptio ns . . . . . . . . . . . . . . . . . . . . . ... .. ....

Universal Remote Control . ............ . . . . . . . . ........

Installation

Acce ssor ie s . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... .. ..

Antenna Connection . . . . . . . . . . ..........................

VCR Connection. . . . . . . . . . . . . . . . . . . . . ..............

External A/V Source Setup . . . . .. . . . . ..................

DVD Connection . . . . . ...... . . . . . . . . . . . . . ...........

DTV Connection..................................................

Digital Audio Output . . . . . . . . . . . . . . . . . . . . ...........

PC Connection. . . . . . . . . . . . . . . . . . . . . . . .............

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. .... .. ..

Cable sample.....................................................

Connecting Headphones . . . . . . . . . . . . . . . . . . . .....

Power source................ . . . . . . . . . . . . . . . . . . . . . .

Take the table stand off

Operation

Switching On/Off the TV set . . . . . ... . . . . . . . . . . ....

Choose the Menu Language . . . . ..... ...................

Choose the input source......................................

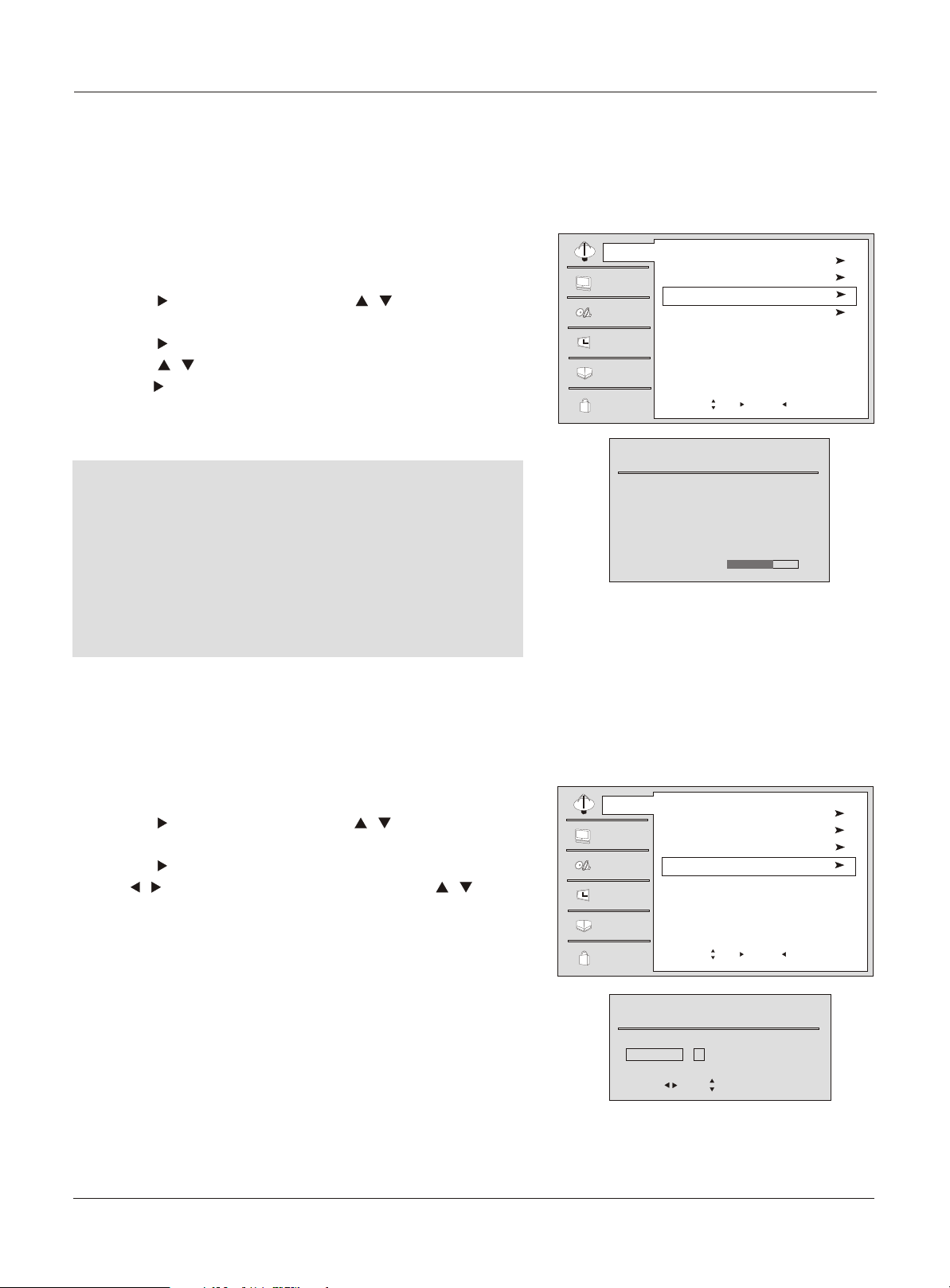

Channel Menu

Auto mati c Sc an . . . ... .... . . . . . . . . . . . . . . . . . . . . . .. .

Add Channel Scan............... . . . . . . . . . . . . . . . . . . .

Rena me ... .. .... .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Select the desired program Select the desired sound Mute

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Video Menu

How to select picture mode..................................

How to customize your own picture status .............

Audio Menu

How to select audio mode.....................................

How to customize your own audio status ...............

SAP Broadcasts Setup.........................................

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .. . . .

2 3

6 7 8

9 9 10 11 11 12 12 13 14 15 16 16 17

18 18 18

19 20 20 21 21 21

22 22

23 23 24

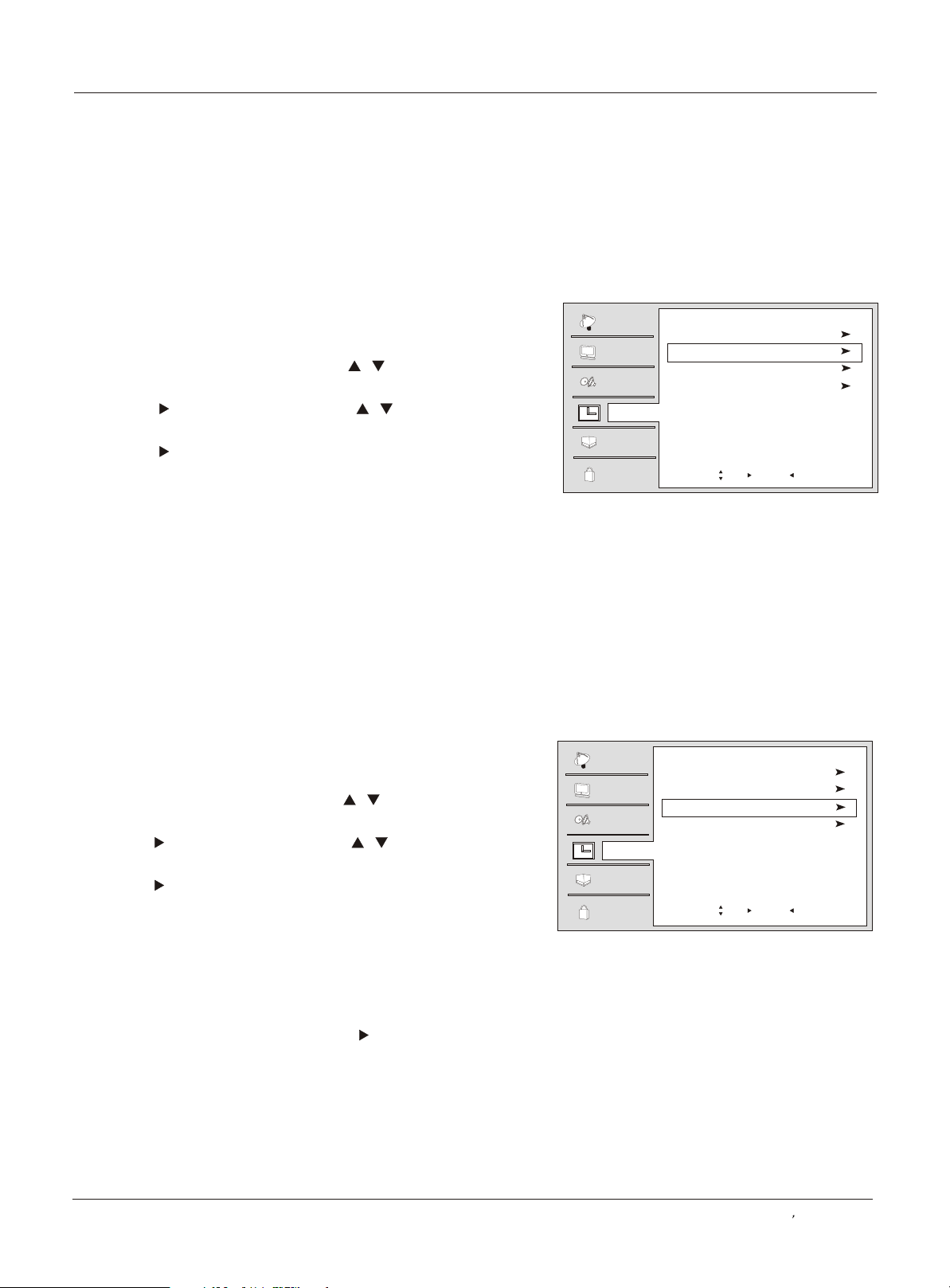

Time Menu

Date /Time setting................................................

Time zone setting.................................................

Sleep Timer setting..............................................

Timer on setting...................................................

Timer off setting...................................................

Function Menu

Menu Language...................................................

DTV Caption Style...............................................

OSD Timeout.......................................................

OSD Transparency...............................................

DNR...................................................................

Adjust Menu

Screen Setup for Component or PC mode..............

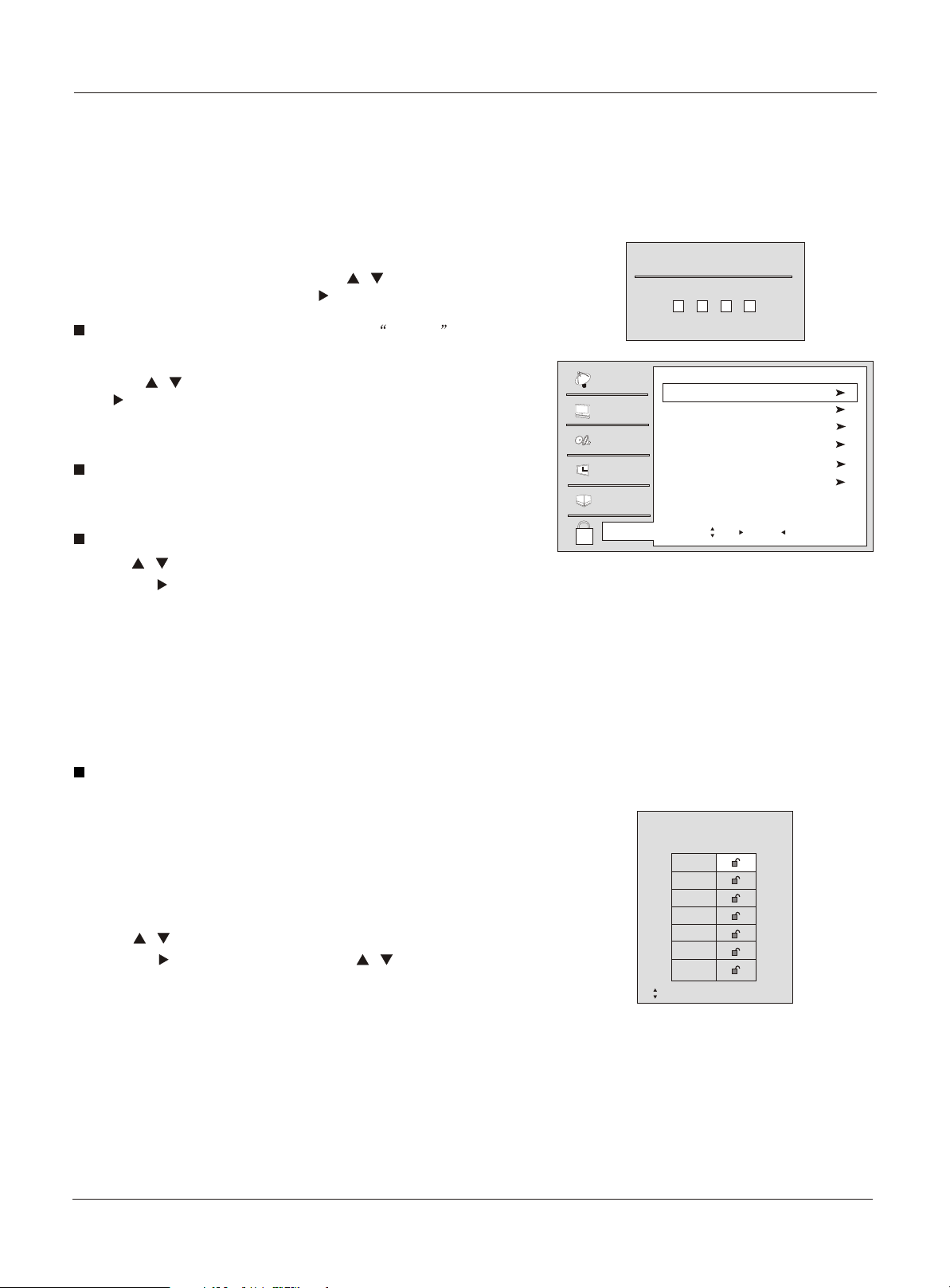

Lock Menu

Parental Control rating and categories...................

Lock setup...........................................................

Other Functions

Brie f Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .... .. .. ..

Quick program view.............................................

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .. . . .. . .

CC (Closed Caption Display) . . . . . . . . . . . . . ... . .. .

Remote Control

Setting up your remote control .............................

Remote Control Codes ........................................

DVD Operation

Basic Playback......................................................

Advanced Playback...............................................

Special Function Playback.....................................

DVD System Setup.................................................

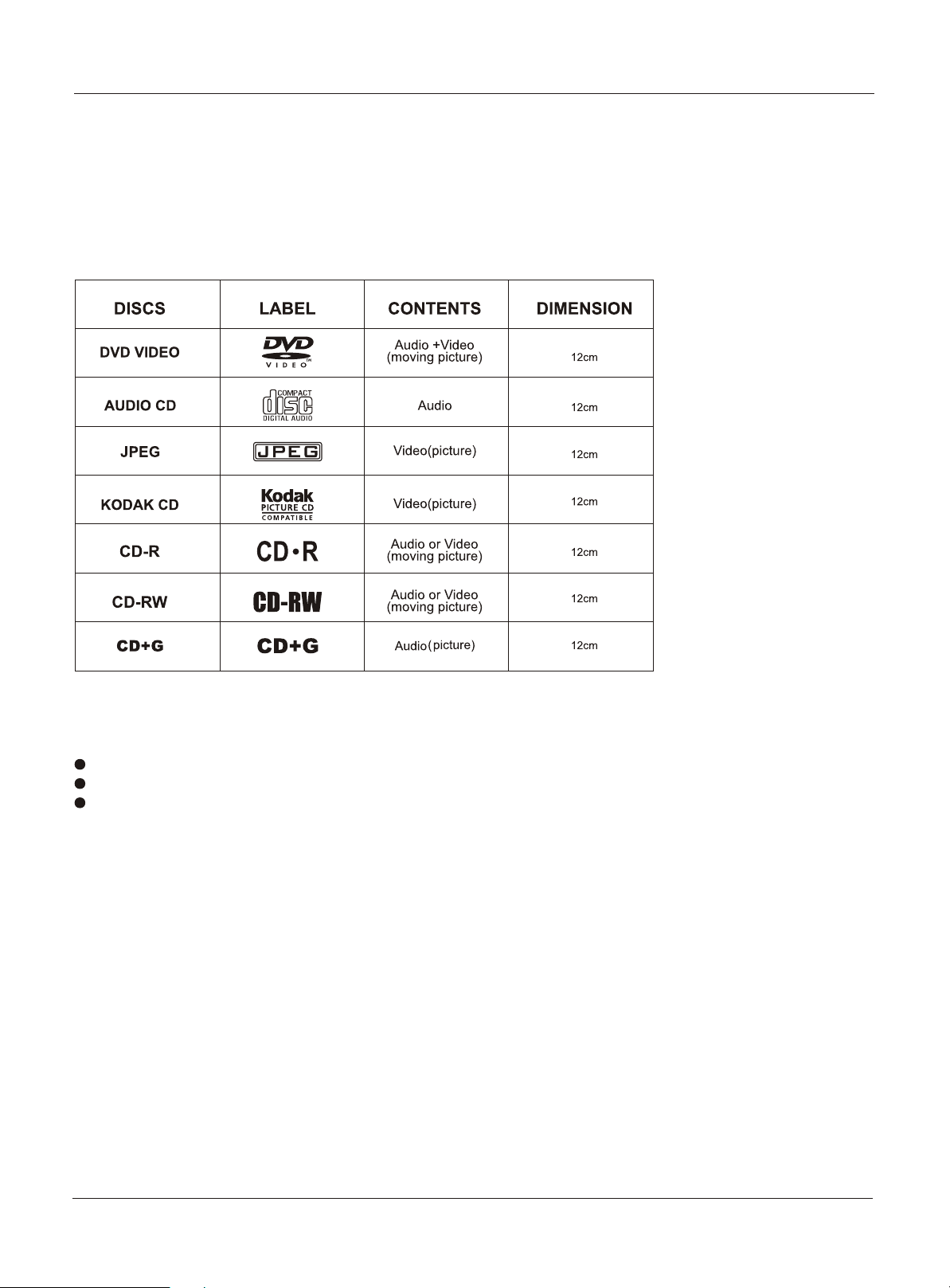

Playable Discs......................................................

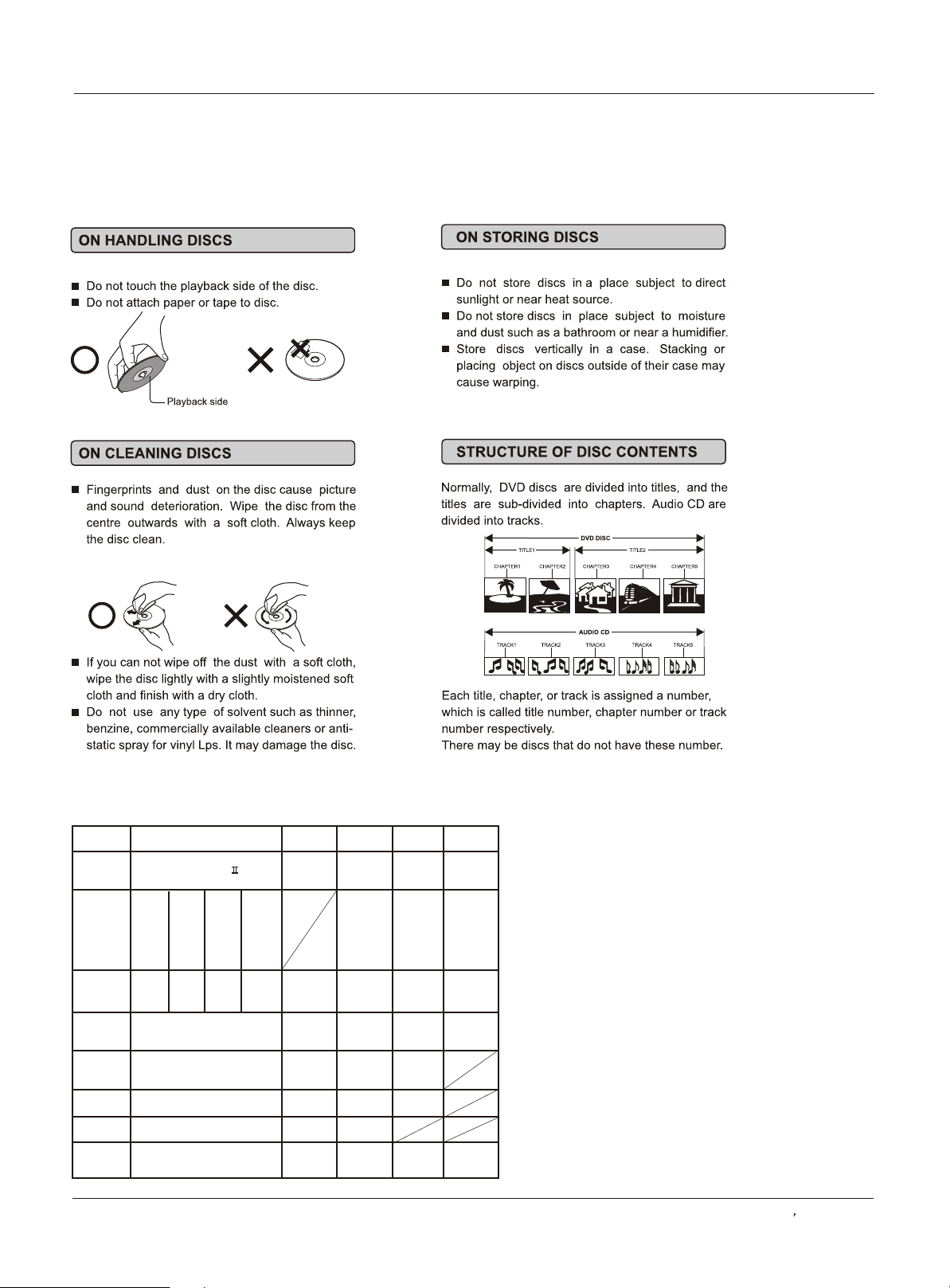

Discs Protection and DVD Characteristics..............

Maintenance . . .... .. . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Specifications . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

Warranty ...........................................................

24 25 25 26 26

26 27 28 28 28

28

29 30

32 32 33 33

34 36

40 41 42 43 46 47

48 49 50 51

Owner s Manual 5

Controls

This is a simplified representation of front panel. Here shown may be somewhat different from your TV.

Front panel controls

Introduction

HLC26 HLC32

A A

stereo sound from an

Connects the video signal

from a video device.

1.INPUT: Press to show the input source mode. In the MENU/INPUT screen, these buttons serve as OK buttons.

-/+

2.CH : Press to scan through channels. To scan quickly through channels,

press and hold down either +/- . In the MENU screen, these buttons serve as up/down buttons.

-/+

3.VOL : Press to adjust the volume .In the MENU screen, these buttons

serve as left/right buttons.

4.MENU: Menu display.

5.POWER: Press to turn on and off the TV.

AV3 AUDIO Input

connect to hear

external device.

AV3 VIDEO Input

Earphone jack

Earphone audio

output terminal.

R

AUDIO

L

VIDEO

INPUT

CH+

CH-

VOL+

VOL-

MENU

POWER

1

2

3

4 5

DVD panel controls

The Tray

6 TV LCD-TFT

Label Towards Back

STOP

OPEN/CLOSE

PLAY/PAUSE

STOP

OPEN/CLOSE:

Press to open the disc tray, and press again to close the tray.

PLAY/PAUSE

Press to play the DVD program, and press again to pause the DVD program.

STOP

Press to stop the DVD program.

Connection Options

Back panel controls

Introduction

HLC26 HLC32

A A

Power Cord Socket

This TV operates on AC power. The voltage is indicated on the Specifications page. Never attempt to operate the TV on DC power.

AC IN

HDMI/DVI IN 1 HDMI/DVI IN 2

HDMI

connect a

signal to

HDMI/DVI.

PC VIDEO Input

Connect the monitor output connector from a PC to the jack

Connect a component

video device to these

Digital Audio Output

Connect digital audio from various types of equipment. Note: In standby mode, these ports will not work.

PC IN

Y

Connect the audio out from

frequency output terminals

DVD/DTV Input

(Component )

jacks.

VIDEO

COMPONENT IN

L R

OPTICAL

L R

Pb

Pr

PC/DVI

Pr

AUDIO IN

Pb

PC/DVI Audio Input

the external device, used

while linking PC audio

or using a DVI to HDMI

connector.

COMPONENT AUDIO Input

stereo sound from an

S-Video Input

Connect S-Video

out from an S-VIDEO

device to the

S-VIDEO input.

Video

L R

Video

L R

AV IN

AUDIO Input

AUDIO

connect to hear stereo sound from an external device.

VIDEO Input

Connects the video signal from a video device.

connect to hear

external device.

Antenna Input

Connect cable or antenna signals to the TV, either directly or through your cable box.

S-VIDEO

ANT IN

Owner s Manual 7

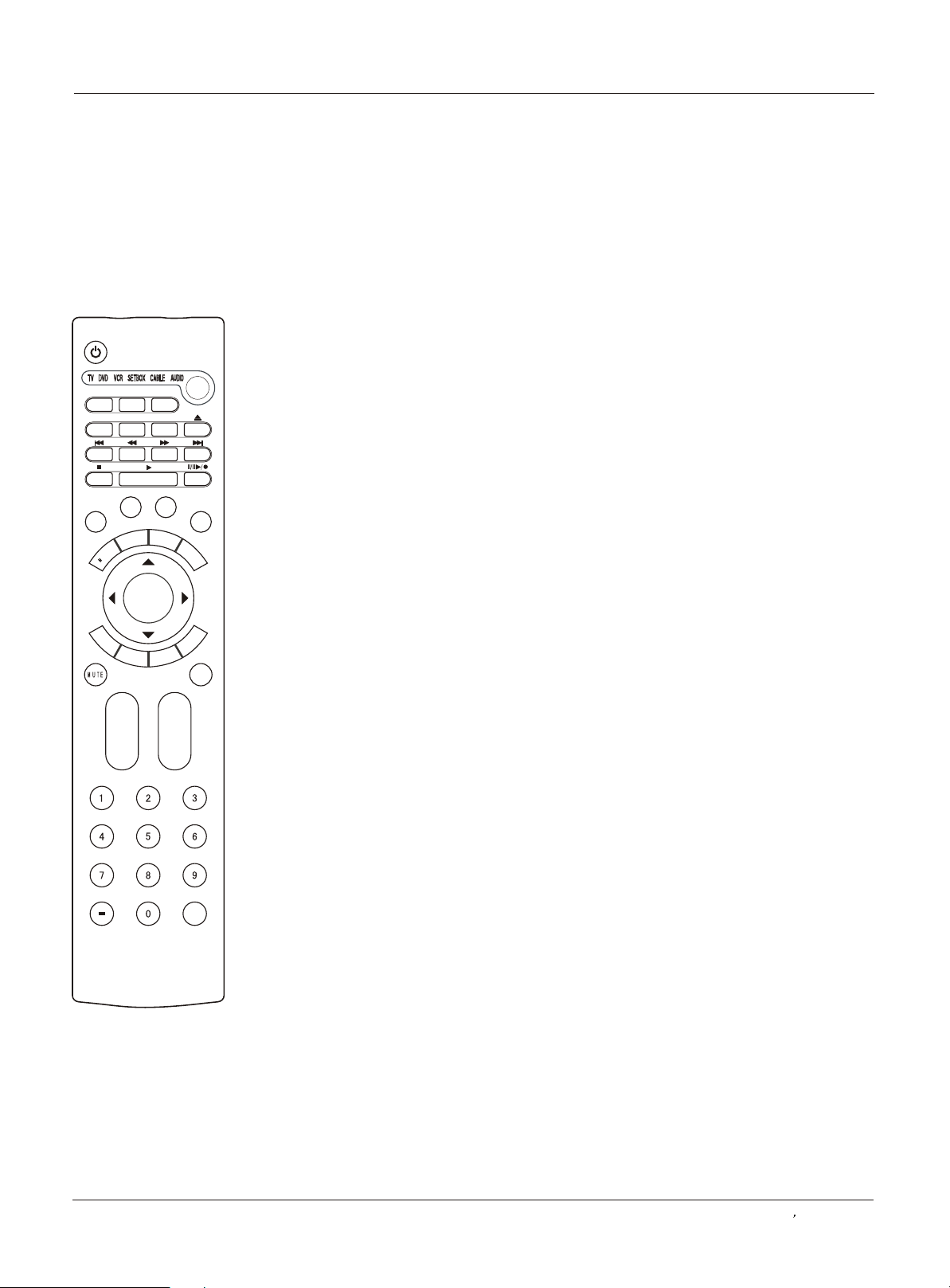

Universal Remote Control

The remote control cannot be operated unless the batteries are properly loaded. When using the remote control, aim it at the remote control sensor on the TV. Note: For DVD function see page 41.

Function introduction

TV DVD VCR SETBOX CABLE AUDIO

POWER

Press to turn on and off the TV.

TV/DVD

Press to enter TV/DVD signal

TIME

Shows time.

CC(closed caption)

Select a closed caption

INPUT

show the input source mode.

MENU

Brings up the main menu to the screen.

P.MODE

Selects the picture mode appropriate

for the program's character.

EXIT

Clears all on-screen displays and

returns toTV viewing from any menu.

Switches the sound on or off

MUTE

ARC

(Aspect Ratio Control)

Changes the aspect ratio.

VOLUME UP/DOWN

Press to adjust the volume.

TV/DVD

TITLE/PBC

SUBTITLE

CC

A-B

PROGRAM

REPEAT

TIME

E

D

.MO

P

U

N

E

ZOOM

INPUT

S.M

SELECT

SLOW

D.MENU

FREE ZE

OD

E

D

.C

ALL

INFO

OK

E

X

IT

A

R

C

VOL +

VOL-

P

A

S

DIO

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

Press the SELECT button repeatedly to select one of the system modes in which the remote control can be used. When the desired device is

selected, the corresponding LED lights on 5 seconds.

VCR/DVD Functions

Control some video cassette recorders or DVD players.

Open/close / Rewind / Fast / backward /Forward

Stop Play / Play/Pause/REC

FREEZE

Freezes the currently-viewed picture, but audio continues. Press FREEZE button again to resume the normal picture.

S.MODE

Selects the sound mode appropriate for the program's character.

INFO

When you watch the TV, press the key, the information displays on top of the screen.

THUMBSTICK (Up/Down/Left/Right/OK)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

SAP

Selects MTS sound: Mono, Stereo, and SAP in Analog mode. Change the audio language in DTV mode.

CH.LIST

Open the channel list.

SLEEP button

Displays the Sleep Timer option.

Introduction

Press to change the channel.

Numeric buttons

- button

Press to select additional channels

(digital )

being broadcast by the same station.

For example, to select channel

“54-3”, press “54”, then press

“-” and “3”.

8 TV LCD-TFT

10+

Q.VIEW

CHANNEL UP/DOWN

Press to scan through channels. To scan quickly through channels, press and hold down either +/- .

Q.VIEW

Switch the current channel to the last channel you have viewed.

External Equipment Connections

Accessories

SELECT

TV/DVD

A-B

ZOOM

TITLE/PBC

PROGRAM

SLOW

REPEAT

TIME

INPUT

D.MENU SUBTITLE

SUBTITLE

FREEZE

CC

S

. M O

D

ODE

E

M . P

D . C

A L

IN

L

F

U

O

EN

OK

E

P

X

A

I T

S

O

I D U

A

P

R

E

C

L S

CH.LIST

SETUP

ANGLE

VOL+

CH+

SEARCH

VOL-

CH-

10+

Q.VIEW

TFT-LCD TV/DVD Combo

OWNER S MANUAL'

Please READ this manual carefully before operating your TV, and retain it for future reference.

MODEL :

S

A

HLC26

A

HLC32

Installation

Remote control

Owner`s manual

Alkaline battery(AAA) 2

Power cable

Antenna Connection

Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .

location and antenna positioning

VHF Antenna UHF Antenna

Over-the-air TV reception quality will depend on your antenna type, antenna

.

Multi-family Dwellings/Apartments (Connect to wall antenna socket) Wall Antenna Socket

Bronze Wire

RF Coaxial Wire (75 ohm)

Video

L R

Video

L R

AV IN

S-VIDEO

Turn clockwise to tighten

Single-family Dwellings /Houses (Connect to wall jack for outdoor antenna) Outdoor Antenna

Be careful not to bend the bronze wire when connecting the antenna.

Bronze Wire

ANT IN

To improve the picture quality in a poor signal area,

please purchase a signal amplifier and install properly.

If the antenna needs to be split for two TV`s, install

a 2-Way Signal Splitter in the connections.

To install the antenna properly please contact a

professional in your area.

Owner s Manual 9

External Equipment Connections

NOTE: All cables shown are not included with the TV.

Choose Your Connection

There are several ways to connect your television, depending on the components you want to connect and the quality of the signal you want to achieve. The following are examples of some different ways to connect your TV with different input sources.

VCR connection

To avoid picture noise (interference), leave an adequate distance between the VCR and TV

Connection Option 1

Set VCR output switch to channel 3 or 4 and then tune the TV to the same channel number.

Installation

Connection Option 2

1. Connect the audio and video cables from the VCR's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). If you connect an S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved; compared to connecting a regular VCR to the Video input.

2. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner`s manual.)

3. Select the input source with using the INPUT button on the remote control, and then press / button to select the source, press theOK button to confirm.

AUDIO

L R

Video

L R

Video

L R

AV IN

S-VIDEO

ANT IN

10 TV LCD-TFT

External Equipment Connections

External A/V Source Setup

How to connect

Connect the audio and video cables from the external equipment's output jacks to the TV input jacks, as shown in the figure. When connecting the TV to external equipment, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

How to use

1. Select the input source with using the INPUT button on the remote control.

2. Press the / button to select the desired source.

3. Press the OK button to confirm.

4. Operate the corresponding external equipment.

DVD connection

How to connect

1. Connect the DVD video outputs (COMPONENT) to the Y Pb Pr jacks on the TV and connect the DVD audio outputs to the Y Pb Pr Audio IN jacks on the TV, as shown in the figure.

2. If your DVD only has an S-VIDEO output jack, connect this to the S-VIDEO input on the TV. as shown in the figure.

AUDIO

L R

Video

L R

Video

L R

AV IN

Installation

S-VIDEO

ANT IN

Camcorder

Video Game Set

Note

If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the INPUT button on the remote control to select Y Pb Pr mode.

3. Press Play button on external equipment for program play.

4. Refer to the DVD player's manual for operating instructions.

Component Input ports To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Y Pb Pr

Video output ports on DVD player

Note

The audio input terminal of AV IN 1 is compared with S-VIDEO.

Y B-Y R-Y Y Cb Cr

Y P P

BR

Video

L R

Video

L R

AV IN

S-VIDEO

VIDEO

Y

COMPONENT IN

Pb

Pr

PC/DVI

OPTICAL

Pr

AUDIO IN

Pb

AUDIO

L R

or

DVD

Owner s Manual 11

Installation

External Equipment Connections

DTV connection

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below. This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p, 1080i).

How to connect

Use the TV`s COMPONENT , PC or HDMI/DVI jack for video connections, depending on your set-top box connector. Then, make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner`s manual for the digital set-top box.)

2. Use INPUT on the remote control to select COMPONENT , PC or HDMI/DVI source.

HDMI/DVI IN 2

PC IN

VIDEO

Pb

Y

Pb

Y

COMPONENT IN

Pr

PC/DVI

AUDIO IN

Pr

OPTICAL

AUDIO

L R

Signal

480i

480p

720p

1080i

COMPONENT

Yes

HDMI/DVI

Yes

HDMI

Digital Audio Output

Send the TV`s audio to external audio equipment (stereo system) via the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment. See the external audio equipment instruction manual for operation.

Note

When connecting with external audio equipments, such as amplifers or speakers, please turn the TV speakers off.

Digital Set-top Box

OPTICAL

AUDIO

L R

Caution: Do not look into the optical output port. Looking at the laser beam may damage your vision.

12 TV LCD-TFT

Installation

External Equipment Connections

PC connection

How to connect

1. To get the best picture quality, adjust the PC graphics card to 1024

2. Use the TV`s PC or DVI (Digital Visual Interface)Audio IN port for video connections, depending on your PC connector.

If the graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of either PC

IN o

r HDMI/DVI IN to display the PC on the TV.

If the graphic card on the PC does output analog and digital RGB simultaneously, set the TV to eithe

HDMI/

DVI; (the other mode is set to Plug and Play automatically by the TV.)

3. Then, make the corresponding audio connection. If using a sound card, adjust the PC sound as required.

How to use

1. Turn on the PC and the TV.

2. Turn on the display by pressing the POWER button on the TV's remote control.

3. Use INPUT on the remote control to select PC or HDMI/DVI source.

4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or

brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

Note

1.Use a DVI cable.

2.Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently imprinted on the screen.

3. The synchronization input form for Horizontal and Vertical frequencies is separate.

x768 .

r PC or

Resolution

Mode

VGA

SVGA

XGA

Resolution

Frame frequency (Hz)

640*480

60Hz

800*600 60Hz/75Hz

60Hz

1024*768

75Hz

HDMI/DVI IN 1 HDMI/DVI IN 2

PC IN

VIDEO

Pb

Y

Pr

PC/DVI

Pr

AUDIO IN

Pb

Owner s Manual 13

Installation

HDMI

When the source device(DVD player or Set Top Box) supports HDMI

How To Connect

1. Connect the source device to HDMI port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

If the source device supports Auto HDMI function, the output resolution of the source device will be automatically set to 1280x720p. If the source device does not support Auto HDMI, you need to set the output resolution appropriately. To get the best picture quality, adjust the output resolution of the source device to 1280x720p. Select HDMI input source in input source option of Select Main source menu.

When the source device(DVD player or Set Top Box) supports DVI

How To Connect

1. Connect the source device to HDMI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

2. A separated audio connection is necessary.

3. If the source device has an analog audio output connector, connect the source device audio output to DVI Audio In port located on the left side of HDMI port.

How To Use

If the source device supports Auto DVI function, the output resolution of the source device will be automatically set to 1280x720p. If the source device does not support Auto DVI, you need to set the output resolution appropriately. To get the best picture quality, adjust the output resolution of the source device to 1280x720p. Press the INPUT button to select HDMI input source in input source option of Select Main source menu.

14 TV LCD-TFT

Cable sample

Installation

HDMI Cable (not supplied with the product)

HDMI to DVI Cable (not supplied with the product)

Analog Audio Cable (Stereo to RCA type) (not supplied with the product)

Owner s Manual 15

External Equipment Connections

Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

AUDIO-R

AUDIO- L

VIDEO

Plug a set of headphones into the 3.5mm mini-jack socket on the side panel of the set.

Note

Prolonged use of headphones at a high volume

may damage your hearing.

You will not receive sound from the speakers

when you connect headphones to the system.

Installation

Power source

Wider Hole and Blade

Polarized AC Cord Plug

AC Outlet

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard polarized AC outlet.

Note

Never connect the AC line cord plug to other than the specified voltage. Use the attached power cord only.

If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut the blade. It is the user`s responsibility to have an electrician replace the obsolete outlet.

If you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet and plug it back in. The unit should return to normal operation.

16 TV LCD-TFT

Take the table stand off

You can take off the table stand if you don`t want to use the table stand.

Installation

HLC26 HLC32

Please release the screws 6XM4,

see the picture.

A

Owner s Manual 17

Operation

In the manual, the OSD (on screen display) may be different from your TV`s, because it is just an example to help you with the TV operation.

There are several options you might need to set up in order for your TV to work properly. Read the instructions that follow.

Switching On/Off the TV set

1. First, connect power cord correctly.

2. Select the viewing source by using INPUT button on the remote control.

3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

4. If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

Note

If the TV in power on , the screen show information according the type of input signal . the information will disappear. If there is no signal , No Signal will display on the screen.

Choose the Menu Language

When you start using your set for the first time, you must select the language which will be used for displaying menus

and indications.

Channel

Video

Audio

Time

Function

Lock

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

Move /OK: Select /EXIT/ MENU: Exit

1 Choose the TV Input and then Press the MENU button. 2 Press the / button to select the Function menu. 3 Press the or OK button and then select the Menu Language. 4 Press the or OK button to select language. English Spanish or French 5 When you are satisfied with your choice, press the EXIT button

to return to normal viewing or press the MENU button to return to the previous menu.

Choose the Input source

Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TV.

1. Press the INPUT button to enter the Select Main picture Source menu and then use the / button to select the desired items TV, V , V , S-Video,Component1, Component2, In DVD ,PC, HDMI/DVI1, HDMI/DVI2 .

Video3,

ideo1 ideo2

2. Press the OK button to confirm .

Select Source

TV

Video1

Video2

Video3

S-Video

Component1

Component2

In DVD

PC

HDMI/DVI1

HDMI/DVI2

Move /OK: Select /EXIT/ MENU: Exit

18 TV LCD-TFT

Channel menu

This TV set has two methods to set channels, which are respectively Auto Scan, Add Channel Scan. In this section, how to use the remote control to set channel is explained. You can also use buttons on the TV

set to set channel.

Automatic Scan

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the All Channel List.

Note

The Channel menu will be only operated in normal TV mode.

1 Press the MENU button and then select the Channel menu.

2 Press the or OK button and then use / button to select Tuner.

3 Press the or OK button Select Cable or Antenna mode.

4 Press the / button to select Auto Scan.

5 Press the or OK button to start searching.

6 To cancel searching, press the EXIT /MENU button.

Channel

Video

Audio

Time

Function

Lock

Tuner Antenna

Auto Scan

Add Channel Scan

Rename

Move /OK: Select /EXIT/ MENU: Exit

Operation

Note

When Antenna is selected, the TV will detect antenna signals andwill search for antenna TV (NTSC and ATSC) channels available in your local area. When Cable is selected, the TV will detect cable company supplied signals and will search for cable TV (NTSC,QAM modulated) channels available in your area.

The Auto Scan function search for NTSC program first and then search for ATSC or QAM program.

Auto Scan

NTSC Channel 55

Analog channels 19

Digital Channels 0

Progress(%)64

Owner s Manual 19

Channel menu

Add Channel Scan

Operation

Only search the new channel ,so the old channel will not be cleared.

1 Press the MENU button and then select the Channel menu.

2 Press the or OK button and then use / button to select

Tuner.

3 Press the or OK button Select Cable or Antenna mode.

4 Press the / button to select .

Add Channel Scan

5 Press the or OK button to start searching.

6 To cancel searching, press the EXIT/MENU button.

Note

When Antenna is selected, the TV will detect antenna signals and will search for antenna TV (NTSC and ATSC) channels available in your local area. When Cable is selected, the TV will detect cable company supplied signals and will search for cable TV (NTSC,QAM modulated) channels available in your area. The function search for NTSC program first

Add Channel Scan

and then search for ATSC or QAM program.

Channel

Video

Audio

Time

Function

Lock

NTSC Channel 55

Analog channels 19

Digital Channels 0

Progress(%)64

Tuner Antenna

Auto Scan

Add Channel Scan

Rename

Move /OK: Select /EXIT/ MENU: Exit

Add Channel Scan

Rename

1 Press the MENU button and then select the Channel menu.

2 Press the or OK button and then use / button to select

Rename.

3 Press the or OK button to enter the Submenu.

4 press / button to move the cursor and then use / button

to change.

5 When you are satisfied with your choice, press OK button to

return to the previous menu or Press EXIT button to return to

TV viewing.

20 TV LCD-TFT

Channel

Video

Audio

Time

Function

Lock

Ch 16-0

Tuner Antenna

Auto Scan

Add Channel Scan

Rename

Move /OK: Select /EXIT/ MENU: Exit

Rename

- - - - - - -

Move Change EXIT: Exit

Operation

Select the desired program

Using the CH+/- buttons.

1

Press the CH+ button to select a channel number in number increasing direction. Press the CH- button to select a channel number in number decreasing direction. (Note: If Skip is ON on one channel, press CH+/- button, the channel will not appear.)

2

Also can enter channel number directly,eg:2-0.

Select the desired sound

Press the VOL-/+ buttons on the remote or the front of the TV set to adjust the volume level. The range is 0~100. When the volume buttons are pressed the volume level is displayed automatically on the TV screen.

Volume

+ 21

Mute

When you need to pay attention to , or there is a telephone calling you or there are some guests visiting you, the sound elimination (mute) function is very convenient.

1 Press the MUTE button on the remote control and type face will display on the screen. At this time, the sound of the TV set is turned off.

2 If you want to recover the sound, press the MUTE button again or directly press VOL+ buttons.

a conversation

Owner s Manual 21

Operation

Video menu

The TV menu gives you an overview of the menus you can select.

Note

Depending on the input signal, one or more menu items may not be selectable.

How to select picture mode

The picture mode provides the pre-defined images settings. There are four settings: standard/ vivid /mild/custom.

Press P.MODE button on the remote control to select the option (Standard/Vivid/Mild/Custom)

Standard:

Vivid:

Mild:

Custom:

How to customize your own picture status

1 Press the MENU button and then use / button to select the

Video menu.

2 Press the or OK button and then use / button to select the

desired items.

3 Press the or OK button and then use / button to adjust the

setting.

4 When you are satisfied with your choice, press MENU button to

return to the previous menu or press the EXIT button to return to

TV viewing.

Contrast This will adjust the intensity of bright parts in the picture but keep the dark parts unchanged.

normal mode.

mode of watching the movement of picture.

produces a softer picture.

allows adjustment of the picture to your personal taste.

Channel

Video

Audio

Time

Function

Lock

Contrast 50 Brightness 50 Tint 0 Color 50 Sharpness 50 Color Temperature Standard Mode Custom

Move /OK: Select /EXIT/ MENU: Exit

Brightness This will adjust the light output of the complete picture, which will mainly affect the darker areas of the picture.

Tint Allows you to select the color mix (Tint) of the picture.

Color This will adjust the saturation level of the colors to suit your personal preference.

Sharpness This will adjust the sharpness of fine details in the picture.

Color temperature This will increase or decrease Warm (red) and Cool (blue) colors to suit personal preferences. Select Cool to give the white colors a blue tint, Standard to give the white colors a neutral tint, Warm to give the white colors a red tint.

Mode Select the mode of picture(Standard/Vivid/Mild/Coustom).

Contrast

+ 21

Tint

G

Note

Only when the item of mode is custom , the Contrast Brightness Tint color Sharpness and can

Color Temperature

be set by user . In other mode the value of them are preset by program .

R

0

22 TFT-LCD TV

Audio menu

How to Select Audio mode

Press S.MODE button on the remote control to select the Audio Mode (Standard/Music/Theater/Custom).

Operation

Standard

Music

Theater

Normal sound with moderate bass and treble setting.

Designed to reduce the bass and treble which enhances the voice for news programs.

Enables extra bass and treble to enhance the movie experience.

A spare setting that can be adjusted to personal tastes. Custom

How to Customize your own audio status

1 Press the MENU button and then use / button to select the Audio menu.

2 Press the or OK button and then use / button to select the desired items.

3 Press the or OK button and then use / button to adjust the setting.

4 When you are satisfied with your choice, press MENU button to return to

the previous menu or press the EXIT button to return to TV viewing.

Volume

This will adjust the sound output level.

Bass

This will adjust the bass output level.

Treble

This will adjust the treble output level.

Balance This will adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening position.

Channel

Video

Audio

Time

Function

Lock

Volume 50 Bass 50 Treble 50 Balance 0 Digital Audio RAW Mode Standard TV Speaker Off

Move /OK: Select /EXIT/ MENU: Exit

Digital Audio The TV can output Digital audio via the optical connector to an external amplifier or receiver.

TV Speaker

Press the or OK button to switch ON or OFF of the loudspeaker.

Owner s Manual 23

Operation

Audio menu

SAP Broadcasts Setup

This TV can receive MTS stereo programs and SAP (Secondary Audio Program) that accompanies the stereo program; if the station transmits an additional sound signal as well as the original one. When having selected SAP button on the remote control, this TV can only receive the signal when the TV station transmits the proper signals. Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected. Select Mono if you want to listen to mono sound during stereo/SAP broadcasting. Stereo or SAP can be received in a Analog channel.

1. Use the SAP button to select your desired MTS mode in a analog signal. Each time you press the SAP button, Mono, Stereo or SAP appear. If other languages are available on the digital signal, select them with the SAP button.

2. Press EXIT button to save and return to TV viewing.

Time menu

Date /Time setting

Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV.

1 Press the MENU button and then use / button to select the

Time menu.

2 Press the or OK button and then use / button to select the

Date/Time.

3 Press the or OK button and then use / button to select the

Mode: Manual or Auto.

4 When you are satisfied with your choice, press MENU button to

return to the previous menu or press the EXIT button to return to

TV viewing.

Channel

Video

Audio

Time

Function

Lock

Mode Auto

Year 2007

Date March27

Time 5:10PM

When Auto mode is selected

Mode Manual

Year 2007

Date March27

Time 5:10PM

Date/Time

Time Zone Pacific

Sleep Timer Off

Timer

Date/Time

Move /OK: Select /EXIT/ MENU: Exit

24 TV LCD-TFT

When Manual mode is selected

Time menu

Time zone setting

This function allows you to select your local time zone. Broadcasted time information will correct the clock display for your local time.

1 Press the MENU button and then use / button to select the

Time menu.

2 Press the or OK button and then use / button to select

the Time Zone items.

3 Press the or OK button to select your viewing area time zone:

Eastern, Central, Mountain, Pacific, Alaska or Hawaii .

4 When you are satisfied with your choice, press MENU button

to return to the previous menu or press the EXIT button to return

to TV viewing.

Channel

Video

Audio

Time

Function

Lock

Operation

Date/Time

Time Zone Pacific

Sleep Timer Off

Timer

Move /OK: Select /EXIT/ MENU: Exit

Sleep Timer setting

The sleep timer automatically shuts off the TV after a preset time (from 5 to 240 minutes).

1 Press the MENU button and then use / button to select the

Time menu.

2 Press the button and then use / button to select the

Sleep Timer.

3 Press the button to select the number of minutes.

Select Off,5min,10min, 15min, 30min, 45min,60min, 90min,

120min, 180min or 240min.

The time begins to count down from the number of minutes selected.

4 When you are satisfied with your choice, press MENU button to

return to the previous menu or press the EXIT button to return to TV

viewing.

5 To cancel the set sleep timer: Press the button to select Off.

You can use the SLEEP button also to select quickly the sleep timer.

or OK

Channel

Video

Audio

Time

Function

Lock

Date/Time

Time Zone Pacific

Sleep Timer Off

Timer

Move /OK: Select /EXIT/ MENU: Exit

Owner s Manual 25

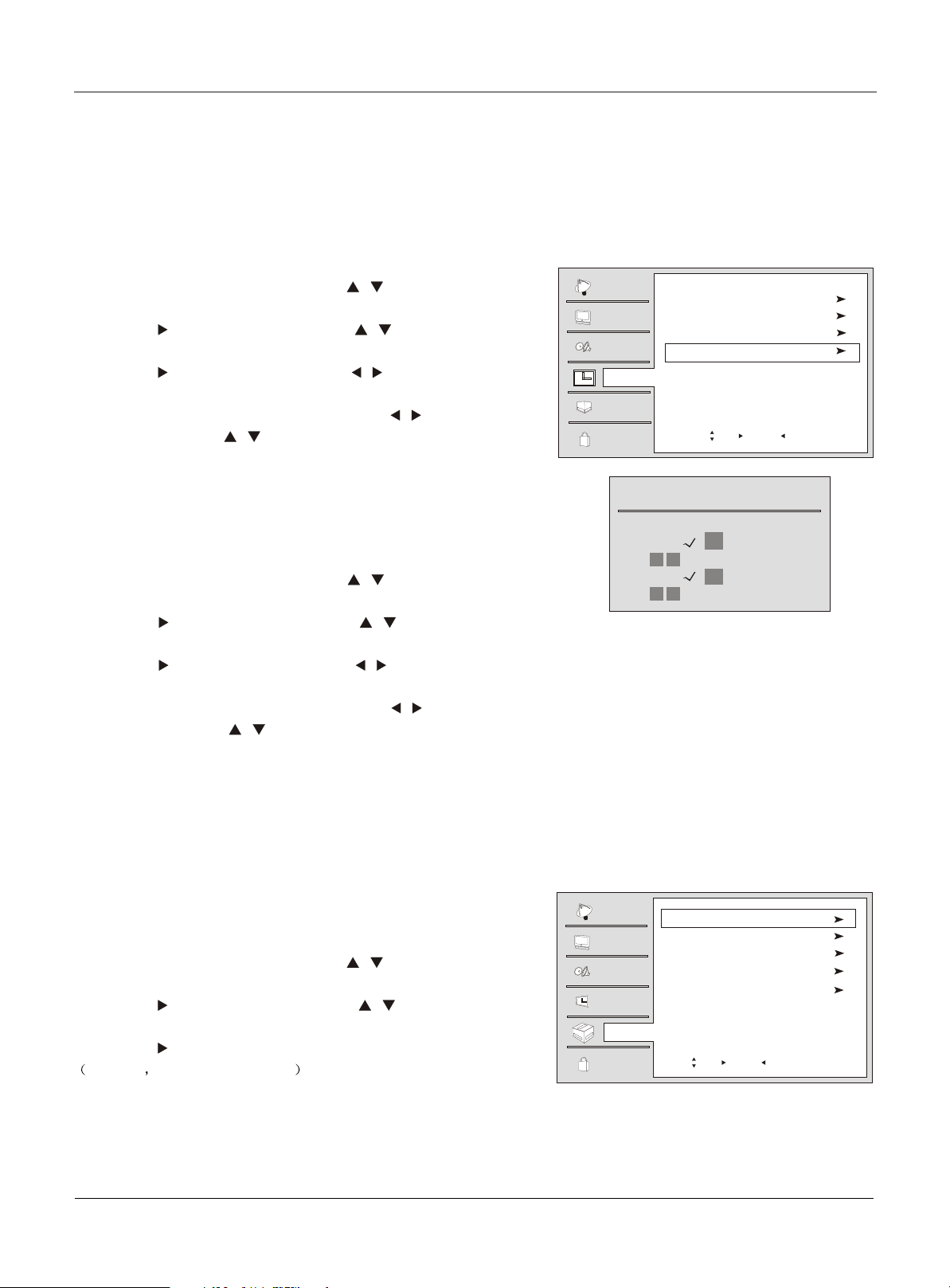

Time menu

Timer on setting

Switch on automatically at the time you presetting.

Operation

1 Press the MENU button and then use / button to select

the Time menu.

2 Press the or OK button and then use / button to select

the Timer.

3 Press the or OK button and then use / button to select

the On Mode.

4 Press the OK button to confirm. Then press / button to

move cursor, press / button to set.

5 When you are satisfied with your choice, press MENU button

to return to the previous menu or press the EXIT button to

return to TV viewing.

Timer off setting

Switch off automatically at the time you presetting.

1 Press the MENU button and then use / button to select

the Time menu.

2 Press the or OK button and then use / button to select

the Timer .

3 Press the or OK button and then use / button to select

the Off Mode.

4 Press the OK button to confirm. Then press / button to

move cursor , press / button to set .

5 When you are satisfied with your choice, press MENU button

to return to the previous menu or press the EXIT button to

return to TV viewing.

Channel

Video

Audio

Time

Function

Lock

On Time: Off On

01:50 AM

Off Time: Off On

05:10 PM

Date/Time

Time Zone Pacific

Sleep Timer Off

Timer

Move /OK: Select /EXIT/ MENU: Exit

Timer

Function menu

Menu Language

When you start using your set for the first time, you must

select the language which will be used for displaying

menus and indications.

1 Press the MENU button and then use / button to select

the Function menu.

2 Press the or OK button and then use / button to select

Menu Language.

3 Press the or OK button to select language.

English Spanish or French

4 When you are satisfied with your choice, press the EXIT

button to return to normal viewing or press MENU button

to return to the previous menu.

26 TV LCD-TFT

Channel

Video

Audio

Time

Function

Lock

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

: Move /OK: Select /EXIT/ MENU: Exit

Function menu

DTV Caption Style (In DTV mode)

This allows you to modify how digital captions are displayed on

your TV. Select from the following options to change the visual

characteristics of your TV`s digital captioning.

Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use / button to select the

Function menu.

2. Press the or OK button and then use / button to select

DTV Caption Style.

3. Press the or OK button and then use / or OK button to set

style as Custom.

4. Use / button to select the Style, Font, etc., and press /

or OK button to customize to your preference .

5. When you are satisfied with your choice, press MENU button

to return to the previous menu or press the EXIT button to

return to TV viewing.

Style

Select this option to select the font style of caption display according

to your own preference.

Press the / or OK button to select Default or Custom.

Size

Select this option to select the size of caption display according to your

own preference.

Press the / or OK button to select Small, Normal or Large .

Font

Select this option to select the font of caption display according to your

own preference.

Press the / or OK button to select Default, Font1 Font2, Font3, Font4,

Font5 Font6 or Font7.

Text color

Select this option to select the text color or the opacity of the text box

of caption display according to your own preference. Select a color

and one of the opacity options.

Text Opacity: Specify the opacity for the text color.

BG (Background) Color: Select a background color.

BG (Background) Opacity: Select the opacity for the background

color.

Edge Effect

Select Edge Effect of caption.

Edge Color

Select Edge color of caption.

Channel

Video

Audio

Time

Function

Lock

Operation

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

Move /OK: Select /EXIT/ MENU: Exit

DTV Caption Style

Style

Size

Font

Text Color

Text Opacity

BG Color

BG Opacity

Edge Effect

Edge Color

Move OK: Select / : ExitMENU EXIT

Default

Owner s Manual 27

Function menu

Operation

OSD Timeout

1. Press the MENU button and then use / button to select the Function menu.

2. Press the button and then use / button to select

or OK

OSD Timeout.

3. Press the button to select short, middle or Long.

short is for 5 seconds; middle is for 10 seconds; long is

(

for 15 seconds

or OK

)

OSD transparency

1. Press the MENU button and then use / button to sele

ct the Function menu.

2. Press the button and then use / button to select

or OK

OSD Transparency.

3. Press the button to select Low ,middle or High.

or OK

DNR

1. Press the MENU button and then use / button to select

the Function menu.

2. Press the button and then use / button to select

DNR.

3. Press the button to select Off, Weak, Medium, Strong.

or OK

Channel

Video

Audio

Time

Function

Lock

Channel

Video

Audio

Time

Function

Lock

Channel

Video

Audio

Time

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

Move /OK: Select /EXIT/ MENU: Exit

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

Move /OK: Select /EXIT/ MENU: Exit

Menu Language English

DTV Caption Style

OSD Timeout Middle

OSD Transparency Middle

DNR Off

Adjust menu

Screen Setup for Component or PC mode

When you select the Component or PC input, this function is used.

Adjustment for screen Position, Clock, Phase, Setting

Display Adjust menu by pressing INPUT button then use / button

to select the the source of Component1, Component2 or PC item.

Position : Adjust the screen position.

Clock : Adjust the clock of input signal.

Phase : Adjust the phase of Pixel clock.

Auto sync: Automatically adjust display of the picture(Olny

available in PC source).

Setting:Change to the default value.

1 Press the MENU button and then select the Adjust menu.

2 Press the or OK button and then use / button to select the

desired items.

3 Press the / button to adjust the setting.

4 When you are satisfied with your choice, press MENU button to

return to the previous menu or press the EXIT button to return to

TV viewing.

NOTE: Auto Sync is unuseful under Component.

Function

Lock

Adjust

Video

Audio

Time

Function

Lock

Move /OK: Select /EXIT/ MENU: Exit

H Position 48

V Position 48

Clock 50

Phase 51

Auto Sync

Setting Default

Move /OK: Select /EXIT/ MENU: Exit

28 TV LCD-TFT

Operation

Lock Menu

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

Parental Control rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings : NR (Permits all programs)

G (General audience) PG (Parental guidance suggested) PG-13 (Parents strongly cautioned) R (Restricted) NC-17 (No one 17 and under admitted) X (Adult only) If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made-for-TV movies :

TV-Y (All children)

TV-Y7 (Children 7 years older) TV-G (General audience) TV-PG (Parental guidance suggested) TV-14 (Parents strongly cautioned) TV-MA (Mature audience only)

TV Rating Children: ALL (Age) (applies to TV-Y, TV-Y7) FV (Fantasy Violence) (applies to TV-Y7)

TV Rating General: ALL (Age) (applies to TV-G, TV-PG, TV-14, TV-MA) D (Dialogue - sexual dialogue) (applies to TV-PG, TV-14) L (Language - adult language) (applies to TV-PG, TV-14, TV-MA) S (Sex - sexual situations) (applies to TV-PG, TV-14, TV-MA) V (Violence) (applies to TV-PG, TV-14, TV-MA)

Owner s Manual 29

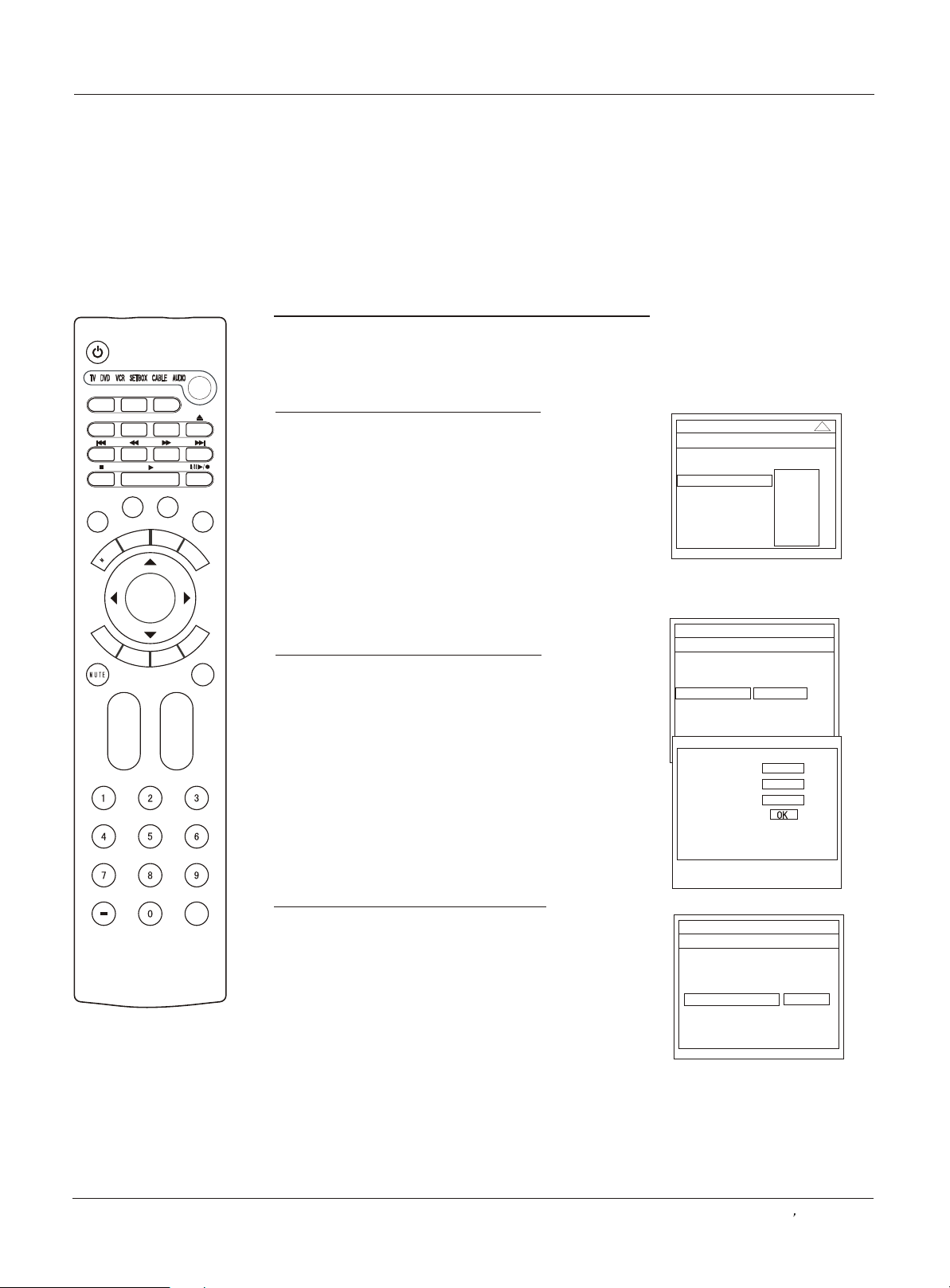

Lock Menu

Lock setup

Set up blocking schemes to block specific channels, ratings, and external viewing sources. A password is required to gain access to this menu.

1. Press the MENU button and then use / button to select

the LOCK menu. Then, press the button.

The TV is set up with the initial password 0-0-0-0 and

security default password is 9-4-4-3.

or OK

Operation

Enter Password

2. Use the / button to select the desired items, and press

the button to enter the next menu.

or OK

Once the option is selected, change the settings to your preference.

Password: Change the password by inputting a new

password twice.

Parental Lock

1. Press / button to select Lock item.

Parental

2. Press the or OK button to select On or Off.

Note

If the Parental Lock is setting as Off, the change of the

MPAA Rating, Parental Guide ,CA Eng Rating and CA Fren

Rating will be no useful.

MPAA Rating

Blocks movies according to the movie ratings limits specified,

so children cannot view certain movies. You can set the ratings

limit by blocking out all the movies with the ratings above a

specified level. Keep in mind that the movie ratings limit only

applies to movies shown on TV, not TV programs, such as

soap operas.

1 Press / button to select MPAA Rating item.

2 Press the button and then use / button to select

or OK

the rating.

3 Press the OK button to set block or unblock.

4 When you are satisfied with your choice, press MENU button

to return to the previous menu or press the EXIT button to

return to TV viewing.

Channel

Video

Audio

Time

Function

Lock

Password

Parental Lock On/off

MPAA Rating

Parental Guide

CA Eng Rating

CA Fren Rating

Move /OK: Select /EXIT/ MENU: Exit

MPAA

NR

G

PG

PG-13

R

NC-17

X

Move OK: Select / : ExitMENU EXIT

30 TV LCD-TFT

Lock Menu

Parental Guide

Note

Parental control

The will automatically block certain categories that are

more restrictive . For example, if you block TV-Y category, then

TV-Y7 will automatically be blocked. Similarly, if you block the TV-G

category, then all the categories in the young adult group will be

blocked (TV-Y, TV-Y7, TV-G, TV-PG, TV-14, and TV-MA). The sub-ratings

(D, L, S, V) work together similarly.

How to set the FV, D, L, S and V sub-ratings.

First, the / button select one of these Ratings:

TV-Y, TV-Y7, TV-G, TV-PG,TV-14, or TV-MA , and press the / button.

A symbol will be displayed for each sub-rating.

While is selected, press the OK button to go to a sub rating.

To select a different Rating, press the / buttons and then repeat

the process.

Note

The V-chip will automatically block certain categories

that are More restrictive .For example, if you block sub-rating in

TV-PG, then the sub-ratings in TV-14 and TV-MA will automatically

be blocked.

Operation

TV Rating

ALL FV D L S V TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

Move OK: Select / : ExitMENU EXIT

CA Eng Rating

Canadian English Language Rating

1 Press / button to select CA Eng Rating item.

2 Press the button and then use / button to select the rating.

or OK

3 Press the OK button to confirm.

4 When you are satisfied with your choice, press MENU button to return

to the previous menu or press the EXIT button to return to TV viewing.

C Children C8+ Children eight years and older G General Programming, suitable for all audiences PG Parental Guidance 14+ Viewers 14 years and older 18+ Adult Programming

CA Fren Rating

Canadian French Language Rating

1 Press / button to select CA Fren Rating item.

2 Press the button and then use / button to select the rating.

3 Press the button to confirm.

4 When you are satisfied with your choice, press MENU button to return

to the previous menu or press the EXIT button to return to TV viewing.

G General 8 ans+ 8+ General - Not recommended for young children 13 ans+ Programming may not be suitable for children under the age of 13 16 ans+ Programming is not suitable for children under the age of 16 18 ans+ Programming restricted to adults

or OK

OK

CA Eng Rating

C

C8+

G

PG

14+

18+

Block All

Move OK: Select / : ExitMENU EXIT

CA Fren Rating

G

8 ans+

ans

13 +

ans

16 +

18 +

ans

Block All

Move OK: Select / : ExitMENU EXIT

Owner s Manual 31

Other Functions

Brief Info

Brief Info shows the present screen information. Press the INFO button to show the Brief Info on the screen. Press the INFO button or EXIT button to exit.

Function:

Show the present screen information.

Press the INFO button or EXIT button to exit. A: Video resolution B: Additional information.

Program rating

C: categories D: Present time, Month, Day , Year E: Program title F: Program name G:Sound Standard

Operation

TV-PG

Quick program view

This function enables quick swap to the last watched program.

1 Suppose the channel number you used just now is 8 and the channel number

you are using is 18 (as shown in the figure).

2

If you want to return to the last watched program channel 8, you can simply

press the Q.VIEW button.

3

If you want to return to channel 18, press the button again. Use this function, you can easily change between the channel you are using and the channel you used last time.

32 TV LCD-TFT

Operation

Other Functions

Aspect Ratio Control

Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.

Note

If a fixed image is displayed on the screen for a long time, on the screen and remain visible.

Press the ARC button to select the desired picture format(Normal, Zoom, Wide, Cinema).

Normal

Choose normal when you want to view the picture with original aspect ratio of the input signal.

Zoom Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Wide Choose wide when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

Cinema For letterbox pictures,bars may appear on the top and bottom on some programs.

CC (Closed Caption Display)

Closed Captions

Closed captioning is a process which converts the audio portion of a television program into written words which then appear as subtitles on the television screen. Closed captions allow viewers to read the dialogue and narration of television programs.

Using Closed Captions

Captions are the subtitles of the dialogue and narration of television programs. For prerecorded programs, program dialogue can be arranged into captions in advance. Its possible to caption a live program by using a process called real-time captioning, which creates captions instantly. Real-time captioning is normally done by professional reporters using a machine shorthand system and computer for translation into English. Captioning is an effective system for the hearing-impaired, and it can also aid in teaching language skills.

the image may become permanently burned

Note

The captions do not always use correct spelling and grammar. Not all TV programs and product commercials are made for broadcast with Closed Caption information included. Refer to your area`s TV program listings for the TV channels and times of Closed Caption shows. The captioned programs are usually noted in the TV listings with service marks such as CC .

CC

In ATV mode CCD function allows you to configure the way you choose to view the analog captioning (Off,

Text1, Text2, Text3 or Text4

).

CC1, CC2, CC3, CC4,

Off

CAPTION The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

TEXT The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

In DTV mode

allows you to configure the way you choose to view the digital captioning(Off,Service1,Service2, Service3,Service4, Service5 or Service6). Select one of the digital service channels made available by the captionprovider. There are 6 standard services. Service 1 is designated as the Primary Caption Service. This service contains the verbatim, or near-verbatim captions for the primary language being spoken in the accompanying program audio.Service 2 is designated as the Secondary Language Service. This service contains captions in a secondary language which are translations of the captions in the primary Caption Service. The other service subchannels are not pre-assigned. It is up to the discretion of the individual caption provider to utilize the remaining service channels.

Owner s Manual 33

Remote Control

Setting Up Your Remote Control

After it has been set up properly, your remote control can operate in six different modes: TV, DVD, VCR, SETBOX , CABLE or AUDIO. Pressing the corresponding button on the remote control allows you to switch between these modes, and control whichever piece of equipment you choose.

Note

The remote control might not be compatible with all DVD Players, VCRs and Cable boxes.

Control Operation To control a device using the Control

1. Program the Control to work with your device.

TV/DVD

TITLE/PBC

SUBTITLE

CC

10+

S.M

ZOOM

INPUT

ODE

SELECT

SLOW

D.MENU

FREE ZE

D

.

C

A L

IN

L

FO

A-B

PROGRAM

REPEAT

TIME

E

D

O

.M

P

U

EN

OK

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

Q.VIEW

2. Changing device mode by pressing the SELECT key. Default device is TV. When press SELECT key, current device led will be on. Keep pressing SELECT key to choose a device, the loop is: TV DVD VCR STB Cable Audio - TV. When device is set, related device LED will be on for 5 seconds and then be off.

3. Aim the remote at the device.

4. Press the POWER button to turn the device on.

5. Use the other Control buttons to operate the device. Device LED will blink if user presses any key (if the key has data in current mode.). If the key has no data, then LED will not blink.

6. Default init status: TV/Haier 001 code.

7. Bulb key to control the flash light.

Programming the Control

The Control is factory-programmed to support up to 600 code sets. There are two ways to program the Control: Selecting a brand code for the device you wish to operate, and then entering that code manually into the Control. Using the Power Scan feature to find device codes automatically. The two programming methods are described in the following sections.

Manually Programming the Control

1. Using SELECT key to choose the device you want to program.

2. While Press and holding OK key, press SELECT key, and device LED will be ON. Keep the status for about 5 seconds, release both keys and then LED will blink twice per second, indicating that the control is ready for programming.

3. Led will blink once when you enter a digit key, indicating the digit key is programmed. If 3 digits are programmed successfully, device LED will be ON for about 3 seconds and then blink twice per second. Then User now can: a) Try to operate the device by using POWER or PLAY keys. If operation can be done, press OK to save current 3-digits code and exiting manually programming mode. b) Return to beginning of step 3. Reprogram the control.

5. If user's input is incorrect, LED will blink 12 times in 3 seconds. And then keep twice per second blink, user now can return to step 3 and re-program the device.

6. Within 10 seconds, user should enter the 3-digit brand code corresponding to your device. If time out or any key other than POWER PLAY and digits is pressed, LED will be off and manually programming process is exit.

7. Fast Programming Haier default TV code set. Press and holding the EXIT key and then press SELECT key for 5 seconds, default Haier code set (001) will be programmed to the control.

Operation

34 TV LCD-TFT

Manually scan mode

With manually scan programming, the control tests all the codes available in the code set data base and assign the correct one for the selected device. To manually-scan program the control:

1. Manually turn OFF the device for manually scan mode. (TV, DVD, VCR, STB, cable box or audio equipment).

2. Press SELECT key to choose the device you wish to program. While Press and holding OK key, press the SELECT key and device LED will be ON. Keep the status for about 5 seconds, release both keys and then LED will blink twice per second, indicating that the control is ready for programming.

3. Press and release the CH+/CH- key. The LED blinks 10 times per seconds, indicating that the Remote is in manually scan mode.

4. Press CH+/CH- key repeatedly until the device switches ON (CH+ key conducts a upward search while the CH- key conducts a downward search in the code set database).

Remote Control

5. When the device turns ON, press and release the OK key to program the control with the new code, saving the code and exit. To exit without programming, press any key other except CH+/CH- and OK. LED will be off after manually scan mode is exit.

6. If the device responds, no further programming is required. If the device does not respond, repeat step 1 through 5.And searching will start from current code set. If no key was pressed in 30 seconds, manually scan mode will be automatically exit.

7. After searching the entire data base, this mode will be automatically exited and led will blink for 3 times.

Automatic Scan Programming the Control

To automatic scan program the Control:

1. Manually turn OFF the device you wish to power scan. (TV, DVD, VCR, STB, cable box or audio equipment).

TV/DVD

TITLE/PBC

SUBTITLE

CC

S.M

ZOOM

INPUT

ODE

SELECT

SLOW

D.MENU

FREE ZE

D

.

C

A L

IN

L

FO

A-B

PROGRAM

REPEAT

TIME

E

D

O

.M

P

U

EN

OK

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

2. Press SELECT key to choose the device you wish to program. While Press and holding OK key, press the SELECT key and device LED will be ON. Keep the status for about 5 seconds, release both keys and then LED will blink twice per second, indicating that the Control is ready for programming.

3. Press and release the Mute key to enter automatic scan mode. And the remote will automatically sending power codes to the device.

4. When the device turns ON, press OK key to program the control with the new code, saving it and exit. To exit without programming, press any key other except OK key.

5. If the device responds, no further programming is required. If the device does not respond, repeat steps 1 through 4. And search will start from current code set.

6. After searching the entire data base, this mode will be automatically exited and led will blink for 3 times.

Punch-Through Features

The Control provides two punch-through features that allow users to control TV volume and DVD or VCR operation while the control is in another device mode control certain features of another device.

Volume Punch-Through:

The TV Volume/Mute punch-through feature allows you to control the volume and mute function of your TV while the control is in another device mode. The feature is applicable for all devices and brands that do not use the volume control buttons for other purposes.

Transport Key Punch-Through:

The DVD or VCR transport key punch through feature lets you control the PLAY, STOP, PAUSE, REWIND, FF and RECORD functions of your DVD or VCR while the control operates in other modes. The feature is applicable for all devices and brands that do not use the transport keys for other purposes.

Operation

10+

Q.VIEW

Protection mode

1. While press and holding OK, press AUTO key for 5 seconds to enter protection mode. In this mode, all the above programming methods will be invalid.

2.To exit protection: While press and holding OK, press AUTO key. Current device related LED remains ON and then release OK and AUTO. Input three digit password 8 8 8 , LED turns off and protection mode is ended. If error password is input or no password input in 10 seconds, LED blinks three times and then turns off. Protection mode will remain.

Display mode

1.To enter display mode, while press and holding OK key, press the SELECT key and device LED will be ON, keep the status for about 5 seconds. Release both keys and then LED will blink 2 times per second, indicating control is ready for programming.

2.Sequence press 9, 8, 0 to enter display mode. And LED is off now.

3.Press digit 1 key to get the first digit of current code set. For example, if the first digit of code set is 1, so then led will blink once and remains OFF. Digit 0 in code set will not be displayed. Blink twice per second.

4.Press digit 2 key to get the second digit of current code set. For example, if the second digit of code set is 3, so then led will blink three times and remains OFF. Blink twice per second.

5.Press digit 3 key to get the third digit of current code set. Blink twice per second.

6.Only digit 1, 2, 3 are valid in this mode. And the sequence is not fixed. You can repeat, if you don't remember clearly.

7.Control will not send out data in this mode if user presses any keys other than digit 1, 2, 3. And this can be regarded as no key pressed.

8.If no key was pressed in 10 seconds or any key other than digit 1, 2, 3 is pressed display mode is ended.

Owner s Manual 35

Remote Control

Remote Control Codes

TV

NO. Brand Code

1

Haier

2

A Mark

3

Action

4

Admiral

5

Advent

6

Aiko

7

Aiwa

8

Akai

9

Amtron

10

Anam

11

Anam National

12

AOC

13

Apex

14

Audiovox

15

Bell & Howell

16

Benq

17

Broksonic

18

Carver

19

CCE

20

Centurion

21

Citek

22

Citizen

23

Classic

24

Colortyme

25

Contec Cony

26

Contec/Cony

27

Craig

28

Crosley

29

Crown

30

CTX

31

Curtis

32

Curtis Mathes

33

Daewoo

34

Daytron

35

Denon

36

Dimensia

37

Dumont

38

Electrohome

39

Emerson

40

Envision

41

Fisher

42

Fujitsu

43

Funai

44

GE

45

Goldstar

46

Gradiente

47

Granada

48

Grundig

49

Hallmark

50

Harman Kardon

51

Hisense

52

Hitachi

53

Infinity

54

Janeil

55

JBL

56

JC Penney

57

J

ensen

58

JVC

59

Kawasho

60

Kenwood

Kloss Novabeam

61

KTV

62

LG

63

Lloyds

64

Loewe

65

Logik

66

Luxman

67

LXI

68

Magnasonic

69

Magnavox

70

Majestic

71

Marantz

72

Megatron

73

001 002 003 004 005 006 007 008 009 010 011 085 134 108 071 093 099 118 127 130 131 147 079 047 104 105 123 082 106 072 082 110 073 074 075 104 112 117 134 140 000 157 015 016 082 108 140 144 071 084 118 131 051 037 038 104 106 118 138 146 153 118 077 143 073 075 079 082 089 092 138 104 123 073 075 105 116 118 125 127 139 106 108 078 082 082 106 108 114 119 125 138 118 153 082 087 119 134 056 104 070 073 075 084 089 092 102 105 112 117 118 125 127 134 135 148 153 155 073 074 075 079 092 104 110 112 117 134 135 140 144 073 075 092 114 117 134 140 145 070 155 073 091 072 073 075 080 104 105 117 134 073 075 078 081 082 083 084 092 096 103 104 105 106 108 114 117 119 125 129 130 131 134 139 144 146 073 075 105 112 052 084 115 123 124 133 083 082 083 106 108 165 066 067 070 072 073 075 168 086 104 106 110 113 116 117 125 126 127 128 134 144 149 154 155 073 074 075 078 080 092 104 105 109 112 117 134 135 137 105 122 123 134 126 134 073 075 104 104 151 041 042 058 059 068 073 075 078 101 117 126 127 131 134 140 145 087 153 094 087 153 070 073 074 075 168 086 089 092 104 112 113 125 126 127 134 149 155 073 075 105 129 163 166 012 031 036 078 086 103 122 125 126 073 075 112 123 073 075 080 104 105 112 116 139 082 094 110 082 092 106 108 112 117 134 074 137 139 087 071 142 073 075 070 075 084 087 104 118 127 149 153 155 104 105 131 140 017 073 075 080 087 104 105 112 114 117 118 119 126 131 153 071 073 075 087 105 112 116 117 118 153 075

NO. Brand Code

Memorex

74

MGA

75

Mitsubishi

76

Montgomery Ward

77

Motorola

78

MTC

79

Multitech

80

Multivision

81

NAD

82

NEC

83

Nikko

84

Noblex

85

Onwa

86

Optimus

87

Optonica

88

Orion

89

Panasonic

90

Philco

91

Philips

92

Pioneer

93

Portland

94

Price Club

95

Prima

96

Prism

97

Proscan

98

Proton

99

Quasar

100

Radio Shack

101

Radio Shack/Realistic

102

RCA

103

Realistic

104

Runco

105

Sampo

106

Samsung

107

Sansui

108

Sanyo

109

Scott

110

Sears

111

Sharp

112

Signature

113

Signature 2000

114

Sony

115

Soundesign

116

Starlite

117

Supre-Macy

118

Sylvania

119

Symphonic

120

Tandy

121

Tatung

122

Technics

123

Techwood

124

Teknika

125

Telecaption

126

Telefunken

127

Toshiba

128

Totevision

129

Ultra

130

Uniden

131

Universal

132

Video Concepts

133

Vidikron

134

Wards

135

Wallmart

136

White Westinghouse

137

Yamaha

138

Zenith

139

RePlay

140

071 074 075 084 104 073 074 075 080 105 049 073 074 075 080 104 105 112 117 134 071 072 093 073 074 075 089 104 112 118 125 140 082 088 075 101 072 073 074 075 105 112 116 117 139 075 079 140 137 082 106 101 093 096 130 146 159 167 023 032 033 034 072 086 087 108 110 113 126 127 128 140 072 073 074 075 078 080 087 104 105 112 114 117 118 119 131 140 145 153 160 161 029 030 072 073 078 080 087 118 153 045 073 075 101 110 111 116 117 073 074 075 079 092 104 112 117 134 135 089 135 142 152 086 070 127 149 154 155 073 075 078 104 105 117 119 127 134 138 053 063 064 072 086 110 114 126 128 084 106 108 110 118 120 124 127 132 134 155 070 073 075 078 082 084 092 164 060 065 070 072 073 074 075 080 102 106 110 111 113 116 117 125 127 128 134 148 149 154 155 084 155 091 039 073 075 092 110 112 117 043 048 054 057 062 073 074 075 078 080 089 092 097 104 112 117 118 125 131 134 139 022 096 120 073 084 115 124 073 075 078 082 083 106 108 117 130 134 070 073 075 080 083 084 095 104 106 115 118 124 127 133 134 149 153 155 013 028 035 073 075 078 092 093 120 131 132 134 139 141 071 115 132 158 018 026 098 100 121 123 134 073 075 082 083 104 106 117 119 129 082 094 044 046 069 073 075 080 087 104 105 112 114 117 118 119 140 153 081 082 095 108 093 118 072 110 138 086 126 128 073 075 086 105 118 071 073 074 075 078 079 082 083 089 092 106 108 112 116 117 119 134 137 140 143 153 090 139 162 019 021 024 025 027 084 089 090 115 125 133 150 092 127 140 121 168 106 118 153 070 071 073 074 075 080 081 083 168 087 104 112 113 117 118 119 120 125 127 131 153 155 055 051 107 104 112 134 135 140 144 073 074 075 080 112 119 139 140 050 055 061 071 073 091 109 121 140 156

Operation

36 TV LCD-TFT

Remote Control

Remote Control Codes

DVD

NO. Brand Code

1

Aiwa

2

Apex

3

Audiovox

4

Blaupunkt

5

BOSE

6

Broksonic

7

Clarion

8

Classic

9

Daewoo

10

Denon

11

Emerson

12

Fisher

13

Funai

14

GE

15

Go Video

16

GPX

17

Harman Kardon

18

Hitachi

19

Irradio

20

JVC

21

Kenwood

22

Koss

23

Magnavox

24

Marantz

25

Memorex

26

Mintek

27

Mitsubishi

28

NAD

29

Nakamichi

30

Norcent

31

Onkyo

32

Oritron

33

Panasonic

34

Philips

35

Pioneer

36

Proscan

37

Qwestar

38

RCA

39

Sampo

40

Samsung

41

Sansui

42

Sanyo

43

Sharp

44

Sherwood

45

Sony

46

Sylvania

47

Techwood

48

Toshiba

49

Yamaha

50

Zenith

073 044 000 001 003 004 016 028 029 030 074 078 062 071 045 046 047 079 080 075 095 096 048 049 050 076 049 064 005 051 102 068 070 052 066 065 067 092 007 010 011 012 013 097 100 093 020 035 085 087 053 088 089 090 091 048 081 054 055 056 082 086 057 008 036 037 002 009 021 022 023 043 027 032 005 099 057 005 024 038 058 006 017 033 041 060 059 063 014 031 061 015 018 034 039 049 072 077 083 019 026 040 042 084 098 069 094

Operation

VCR

NO. B ran d Cod e 1 2 3 4 5 6 7 8 9 10 11 12

Admiral

1

Aiko

2

Aiwa

3

Akai

4

Audiovox

5

Bell & Howell

6

Broksonic

7

Calix

8

Canon

9

Capehart

10

Carver

11

CCE

12

Citizen

13

Colortyme

14

Craig

15

Curtis Mathes

16

Daewoo

17

Daytron

18

Denon

19

Dimensia

20

Electrohome

21

Emerson

22

Fisher

23

Fuji

24

Funai

25

Garrard

26

GE

27

Go Video

28

Goldstar

29

Gradiente

30

Harman Kardon

31

Harwood

32

Hitachi

33

JBL

34

JC Penney

35

Jensen

36

JVC

37

Kenwood

38

KLH

39

Kodak

40

LG

41

Lloyds

42

Logik

43

LXI

44

Magnasonic

45

Magnavox

46

Marantz

47

Matsushita

48

Memorex

49

MGA

50

MGN

51

Minolta

52

Mitsubishi

53

Montgomery Ward

54

Motorola

55

MTC

56

Multitech

57

NEC

58

Nikko

59

Noblex

60

Olympus

61

Optimus

62

Optonica

63

Orion

64

Panasonic

65

Pentax

66

Philco

67

Philips

68

Pioneer

69

Portland

70

Proscan

71

Precision

72

Proton

73

Quasar

74

Radio Shack

75

073 074 101 056 055 044 045 068 069 080 093 051 048 023 049 106 051 053 054 067 083 060 110 056 059 050 051 052 056 095 046 096 050 051 059 085 090 105 043 046 050 053 054 077 079 112 014 052 055 056 067 083 102 067 083 102 088 043 112 051 090 044 049 051 052 053 055 061 069 087 090 106 048 089 105 045 053 055 095 055 040 043 050 053 054 070 079 081 087 112 021 024 026 028 034 079 081 085 086 046 051 079 090 092 055 090 046 110 059 025 036 037 057 058 065 068 070 088 098 046 047 048 049 050 051 053 054 057 058 059 060 065 079 085 088 090 057 058 068 000 019 046 047 048 068 071 087 088 046 047 048 068 071 077 059 051 053 051 077 095 105 059 085 051 085 090 102 008 053 054 060 064 085 110 046 047 048 053 060 077 092 110 053 033 048 050 051 053 055 064 073 074 088 090 091 097105 061 069 079 057 058 065 088 003 005 006 057 058 061 069 071 090 073 074 053 073 074 050 085 050 055 059 046 047 048 068 071 077 092 051 050 053 051 073 074 090 094 062 087 090 106 002 004 009 020 053 054 066 085 090 105 057 058 065 070 077 088 053 054 060 088 106 017 018 053 042 060 062 110 047 057 071 075 078 104 067 083 043 112 102 085 053 054 090 051 062 074 090

Owner s Manual 37

Remote Control

Remote Control Codes

NO. Brand Code

Radio Shack/Realistic

76

Radix

77

RCA

78

Realistic

79

Ricoh

80

Runco

81

Samsung

82

Sansui

83

Sanyo

84

Scott

85

Sears

86

Sharp

87

Shintom

88

Signature

89

Signature 2000

90

Singer

91

Sony

92

STS

93

Sylvania

94

Symphonic

95

Tandy

96

Tashiko

97

Tatung

98

Teac

99

Technics

100

Teknika

101

Toshiba

102

Totevision

103

Tivo

104

Unitec

105

Unitech

106

Vector Research

107

Video Concepts

108

Wards

109

White Westinghouse

110

XR-1000

111

Yamaha

112

Zenith

113

Action

114

048 050 051 053 054 055 062 073 051 012 016 043 044 050 053 057 058 065 070 078 079 088 107 108 112 048 050 051 052 053 054 055 062 073 074 079 090 094 097 105 072 076 064 029 031 035 039 050 052 079 095 047 068 071 085 022 048 050 089 097 105 049 052 061 090 048 051 053 057 058 065 077 088 089 090 097 105 015 062 073 074 091 094 101 045 058 059 085 073 074 097 101 053 059 072 076 085 007 041 045 063 080 082 084 098 099 053 065 030 032 053 054 055 060 061 110 055 077 095 105 048 051 068 055 068 107 053 066 051 053 055 090 010 011 052 057 061 069 100 102 105 109 050 051 090 111 095 050 046 047 052 077 046 047 052 069 077 050 051 052 053 055 057 058 059 062 065 073 074 079 090 091 094 105 108 110 095 053 055 059 046 047 048 068 077 027 038 045 064 072 076 090 093 102

SETBOX

NO. Brand Code

1

Alphastar

2

Chaparral

3

DIRECTV

4

DISH NETWORK

5

Drake

6

Echostar

7

Express Vu

8

Fujitsu

9

GE

10

General Instruments

11

Hitachi

12

Hughes

13

Janeil

14

JVC

15

Mitsubishi

16

Panasonic

17

Philips

18

Proscan

19

Radio Shack

20

RCA

21

Realistic

22

Samsung

23

Sony

24

Star Choice

25

Star Trak

26

STS

27

Toshiba

28

Uniden

29

Zenith

CABLE

NO. Brand Code

ABC

1

Archer

2

Cableview

3

Contec

4

Eastern

5

GE

6

Gemini

7

General Instruments

8

Hamlin

9

Hitachi

10

Jerrold

11

Magnavox

12

Motorola

13

Movie Time

14

NEC

15

NSC

16

Oak

17

Panasonic

18

Philips

19

Pioneer

20

Proscan

21

RCA

22

Realistic

23

Samsung

24

Scientific Atlanta

25

Signature

26

Sprucer

27

Standard Component

28

Starcom

29

Stargate

30

Tocom

31

United Cable

32

Universal

33

View Star

34

Zenith

35

028 024 001 039 001 026 030 027 026 030 022 004 032 033 018 019 023 023 036 022 015 002 040 005 011 000 012 032 033 018 019 010 032 033 014 006 028 007 034 035 037 038 031 021 020 008 029 016 017 009 013 022

000 001 002 030 006 007 003 034 035 000 012 013 000 032 036 037 038 040 044 000 000 012 015 016 026 030 032 017 031 039 033 039 034 041 027 029 008 009 010 011 013 017 018 019 020 021 022 000 003 029 032 006 022 002 023 024 025 000 029 042 043 012 030 012 001 015 030 004 006 007 017 034 039 028

Operation

38 TV LCD-TFT

Remote Control

Remote Control Codes

AUDIO

Receiver/Tuner

NO. Brand Code

Aiwa

1

BOSE

2

Carver

3

Curtis Mathes

4

Denon

5

Fisher

6

Gradiente

7

Harman Kardon

8

Hitachi

9

JBL

10

Jensen

11

JVC

12

Kenwood

13

Luxman

14

Marantz

15

McIntosh

16

NAD

17

Nakamichi

18

NEC

19

Nikko

20

Onkyo

21

Optimus

22

Panasonic

23

Philips

24

Pioneer

25

Quasar

26

Radio Shack

27

RCA

28

Sansui

29

Sanyo

30

Sharp

31

Sherwood

32

Sony

33

Technics

34

Toshiba

35

Yamaha

36

Zenith

37

Audio Cassette

NO. Brand Code

1

Aiwa

2

Curtis Mathes

3

Denon

4

Fisher

5

GE

6

Kenwood

7

NAD

8

Nakamichi

9

Onkyo

10

Optimus

11

Panasonic

12

Philips

13

Pioneer

14

Proscan

15

Quasar

16

Radio Shack

17

RCA

18

Sansui

19

Sanyo

20

Sherwood

21

Sony

22

Technics

23

Yamaha

017 036 039 010 051 041 006 026 027 052 042 044 049 062 008 038 046 059 038 061 007 030 005 028 048 056 064 019 058 040 054 040 063 003 021 055 041 047 009 012 016 029 050 014 004 023 041 045 050 047 071 072 057 042 044 060 047 000 024 043 002 020 050 025 048 053 065

039 041 052 042 049 070 048 056 040 054 055 041 047 015 050 013 018 041 045 070 050 047 070 057 044 047 043 050 053

Audio System

NO. Brand Code

Aiwa

1

Carver

2

Curtis Mathes

3

Denon

4

Harman Kardon

5

Jerrold

6

Kenwood

7

Nakamichi

8

Panasonic

9

Philips

10

Pioneer

11

RCA & Dimensia

12

Sansui

13

Sanyo

14

Scientific Atlanta

15

Sony

16

Starcom

17

Technics

18

Yamaha

19

039 051 041 052 046 066 068 048 056 054 015 016 013 014 018 041 031 032 033 034 035 057 044 067 043 066 050 053

Amplifier

NO. Brand Code

1 2 3 4

Kenwood Pioneer RCA Yamaha

048 041 069 001 053

Phono

NO. Brand Code

1 2 3 4

Kenwood Pioneer Sony Yamaha

048 041 043 053

HTIB

NO. Brand Code

1

BOSE

2

Philips Toshiba

3

010 022 025

Operation

Owner s Manual 39

DVD Operation

Basic Playback

Preparations

Press the DVD on the remote control to enter the DVD status.

Note

The unit do not allow you re-enter the DVD mode again in order to prevent damage to the DVD disc. Wait for 10 second to enter again.

Basic playback

1. Press OPEN/CLOSE to open the disc tray, place a disc on the disc tray. If there is no disc placed on the disc tray in DVD mode, OPEN will display on the screen all the time)

TV/DVD

TITLE/PBC

SUBTITLE

CC

10+

S.M

ZOOM

INPUT

ODE

SELECT

SLOW

D.MENU

FREE ZE

D

.

C

A L

IN

L

FO

A-B

PROGRAM

REPEAT

TIME

E

D

O

.M

P

U

EN

OK

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

Q.VIEW

The DVD player will only play 4 in. diameter DVD and CD discs

. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD player to malfunction. Do not place a disc which is unplayable in this DVD player.

2. Press OPEN/CLOSE to close the disc tray, the playback will automatically start. Some disc may not playback automatically, you can press PLAY button to start playback.

3. Some disc may start playback with a menu, use the cursor button on the remote control to select menu options and press PLAY to start, or press digits to select a menu options directly.

Stop playback

1. Press STOP button to go to stop mode, the TV screen will show the start-up logo.

For some disc the player can recall the location where stopped, such as DVDs and audio CDs.

2. Press PLAY to resume playback from the location where playback is stopped.

3. Press STOP twice to stop completely.

Pause playback

1. Press PAUSE/STEP/REC to pause playback (still mode).

The sound will be muted during still mode.

2. Press PLAY to resume normal playback. Note: The

REC button is a universal remote control code, unuseful in this TV.

Previous and Next

During playback, press PREV key can go back to the beginning of this chapter, then each press of this key will skip a chapter till the start of the disc. (note: Disc function may vary depending on disc format) Each press of NEXT key during playback will skip the current chapter and play the next one.

Fast forward and Fast reverse

1. Press Forward to fast forward through the disc. Each time the Forward button

is pressed, the fast forward motion speed changes. It would cycle through 2X, 4X, 8X, 16X, 32X and normal.

2. Press PLAY to resume normal playback.

3. Press REV to fast reverse through the disc. Each time the REV button is

pressed, the fast reverse motion speed changes. It would cycle through 2X, 4X, 8X, 16X, 32X and normal.

4. Press PLAY to resume normal playback. Single step playback

1. Press the PAUSE/STEP button to pause the playback.

2. To view the next frame, press the PAUSE/STEP button. Each press of the PAUSE/

STEP button advances the film by one frame.

Operation

40 TV LCD-TFT

DVD Operation

Advanced Playback

Important note:

All functions described below are for DVD discs.

A-B

Press A-B to mark the start-point, press again to set an end point to complete setting. The selected section A-B will be repeated immediately. Press the Repeat A-B again to cancel this function.

ZOOM

Press this button can zoom enlarge or lessen the picture. Each time pressed the picture times will be change. In zoom mode press navigation buttons to move the picture

TV/DVD

TITLE/PBC

SUBTITLE

CC

10+

S.M

ZOOM

INPUT

ODE

SELECT

SLOW

D.MENU

FREE ZE

D

.

C

A L

IN

L

FO

A-B

PROGRAM

REPEAT

TIME

E

D

O

.M

P

U

EN

OK

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

Q.VIEW

displayed on the screen.

TITLE/PBC

With some DVD discs pressing this key will display the title menu. You can then use the digit buttons to select the item you prefer.

PROGRAM

When playing discs, press "PROGRAM" to enter program mode. Press the digit buttons to select the program number that you want. When finished, move the cursor to select "START" . This will start the program playback. If you want to cancel this function, press " STOP ", then press "PLAY".

SLOW

Press SLOW to play a disc in slow forward. Each time the SLOW button is pressed, the slow motion speed changes. Press PLAY to resume normal playback.

Note: This function is invalid for CD . SUBTITLE

Press " SUBTITLE ", the screen will display "SUBTITLE 01/XX XXXXX", "01" indicates

the ordinal number of this language; "XX" indicates total number of language; "XXXXXX" indicates the language of country. (the number of language depends on disc). This function can select up to 32 languages displayed on screen.

REPEAT

Press REPEAT button multiple times to reach desired play mode: DVD Chapter repeat, Title repeat, All repeat CD Track repeat, All repeat DIVX Single, Repeat one, Repeat all, Shuffle, Random

D.MENU

Press this key to display root menu, select item according to your preference. (This function will work with a DVD having a multi-layer menu.)

D.CALL

When pressing the D.CALL button repeatedly different OSD indicator will be displayed

for different types of disc DVD, CD, etc.

AUDIO

Press this key can change the audio mode. such as: Audio 1/2: AC 3 2 CH English Audio 2/2: AC 3 5.1 CH English If you play CD disc, press this button can cycle among Mono Left, Mono Right, Mix-Mono and Stereo.

ANGLE

When enjoying sports, concert or theatre, press this key to watch same actions in different angles. (Valid for discs possessing this function. Using a disc recorded in multiangle you can view the scene from different angles, for example, front, side, whole view and exterior scene.)

SEARCH

Press "SEARCH" once to display the search menu. Use the up/down navigation buttons to select the item you require. Press PLAY to confirm (DIVX, CD press the search button several times to select the item). And then press the numeric buttons or navigation buttons to input the item you require. Press PLAY to confirm.

10+

DVD mode only. If a chapter or track number is over 10, press this button, then press the number button for the last digit in the chapter or track number.

Operation

Owner s Manual 41

Operation

DVD Operation

Special Function Playback

Kodak Picture CD FUNCTION INTRODUCTION

You can view Kodak picture CD and JPEG picture CD on this TV.

Playback

Insert a Kodak picture CD or JPEG picture CD into the tray and the disc will be loaded automatically. If the disc type can be identified, the player will start showing the pictures one by one (slide show mode).If a navigation menu will be displayed use the navigation buttons to select a file, then press the PLAY button. Each picture in the CD will be displayed consecutively in a slide-show fashion and will be scaled to fit in the whole TV screen. Some slide show transition modes are provided, use "PROGRAM" key to select. Customer can set transition effects for each picture. To display an image indefinitely, press the "PAUSE" key. To view the next or previous picture, press "NEXT" or "PREV" key. To resume the slide show, press the " PLAY" key. Press the STOP button to preview the photos in a folder. Press navigation buttons to rotate a picture.

Zoom

We provide zoom in/out function for the pictures. Press the ZOOM key to execute zoom function and select the zoom enlarging scale by pressing and buttons.

SCREEN SAVER FUNCTION

If the screen is static or not playing for 3 minutes, the player will go into the screen saver mode if the screen saver is

on . In this mode, you can press any key on remote control or on front panel to activate the unit.

You can set SCREEN SAVER function to OFF in GENERAL SETUP PAGE of DVD SYSTEM SETUP.

42 TV LCD-TFT

DVD Operation

DVD System Setup

S.M

ZOOM

INPUT

ODE

SELECT

SLOW

D.MENU

FREE ZE

D

.

C A

L

IN

L

FO

TV/DVD

TITLE/PBC

SUBTITLE

CC

A-B

PROGRAM

REPEAT

TIME

E

D

O

.M

P

U

EN

OK

General Setup Process

1.Press the SETUP button, the General Setup Page, Preference Page will be displayed in turn.

2.Press or button to select the item, then press to enter the submenu.

3.Press or button to select then press PLAY to confirm.

4.Press SETUP repeatedly to exit the set up menus.

General Setup Page

ASPECT RATIO DESCRIPTION

Operation

..General Setup Page..

.

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On Screen Saver Off Hdcd Off

4 3/Ps

.

4 3/Lb 16 9

10+

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

When using the DVD with the internal TV, select 4 3/LB.

The following information applies only when the DVD output is connected to an external TV.

..General Setup Page..

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On

.

4 3/Ps

.

4 3/Lb 16 9

Screen Saver Off

4 3/PS (PS = Pan and Scan)

Hdcd Off

You may select if you have a normal aspect ratio (4:3) TV, although the NORMAL/LB (letter box) is a more common choice. In PS mode, wide screen material will fill the screen, but at the expense of chopping off extreme left and right edges of the original film picture. For this feature to work, the disc must be specially coded. Such discs are uncommon.

Q.VIEW

4 3/LB (LB = Letter Box) You may select this if you have a normal aspect ratio (4:3) TV. Wides creen material will be shown in pure unaltered form, allowing the entire picture area of the original film to be viewed without any side cropping. Black bars will appear above and below the picture.

16 9 You may select this if you have a wide screen (16:9) TV. Back bars may still appear above and below the picture even if using a wides creen TV. This is because some film directors prefer to use ultra wides creen aspect ratios e.g.

2.35:1. This will normally be indicated on the DVD packaging.

Owner s Manual 43

DVD Operation

DVD System Setup(Continued)

General Setup Page

Angle Mark: Users can select a particular

TV/DVD

TITLE/PBC

SUBTITLE

CC

camera angle when playing a DVD which offers multiple angles. This item allows you to set Angle Mark ON or OFF.

ZOOM

SELECT

SLOW

A-B

PROGRAM

On Screen Display (OSD) Language: Users

REPEAT

TIME

INPUT

D.MENU

FREE ZE

S.M

E

ODE

D

O

.M

P

U

EN

D

.

C

A L

IN

L

FO

can select on-screen display language.

.

Operation

..General Setup Page..

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On Screen Saver Off Hdcd Off

..General Setup Page..

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On Screen Saver Off Hdcd Off

On Off

English French Spanish

10+

OK

E

XIT

A

R

C

VOL +

VOL-

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

SEARCH

CH-

Caption: This function allows you to display or hide the caption.

Screen Saver: If the screen saver is on, then there will be an animated picture of DVD on the screen whenever the DVD player is idle for more than 3 minutes .

..General Setup Page..

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On Screen Saver Off

On Off

Hdcd Off

..General Setup Page..

Tv Display 4:3 LB Angle Mark On Osd Lang ENG Caption On

..General Setup Page..

Screen Saver Off Hdcd Off

On

Off

..General Setup Page..

Tv Display 4:3 LB Angle Mark On

Q.VIEW

Hdcd: When default setting is off, it will display "CD" by reading HDCD, for HDCD playback, please choose 1X or 2X.

Osd Lang ENG Caption On Screen Saver Off Hdcd Off

..General Setup Page..

Off 1 2

44 TV LCD-TFT

DVD Operation

DVD System Setup(Continued)

Preference Page

The Preference Page is only available when there is no disc in the player. These settings are applied consistently to all discs which are inserted and played.

Operation

TV/DVD

TITLE/PBC

SUBTITLE

CC

ZOOM

SELECT

SLOW

Parental: The parental control function works

..Preference Page..

A-B

PROGRAM

in conjunction with the different censorship classes assigned to DVDs. These classes

REPEAT

TIME

INPUT

D.MENU

FREE ZE

S.M

E

ODE

D

O

.M

P

U

EN

D

.

C A

L

IN

L

FO

help to control the types of DVDs that the family watches, There are up to 8 censorship classes for DVDs.

Note: 1 To change this setting you must enter your

Parental Password Default

2 G 3 Pg 4 Pg 13 5 Pgr 6 R 7 Nc17 8 Adult Off

password. (Initial password is 1234)

OK

E

XIT

A

R

C

VOL +

P

A

S

IO

D

U

A

P

E

L

S

CH.LIST

SETUP

ANGLE

CH+

2 When set to OFF, all discs may be viewed.

Password change: You can change your password by entering 4 digits. Your must confirm the 4 digits before

..Preference Page..

Parental Password Default

Change

the new password can be accepted.

VOL-

CH-

SEARCH

NOTE If you forget your password or a password

Old Password

New Password

Confirm Pwd

is accidentally set enter 1369 as the password. This will enable you to regain control.

10+

Q.VIEW

Default

Resets all settings (except password and parental lock status) for this DVD player back to the manufacturers original settings. Press OK to perform the reset.

Note:

Some functions may not be available depending on the type of disc.

..Preference Page..

Parental Password Default

Owner s Manual 45

Reset

DVD Operation

Playable Discs

The following discs can be played:

Operation

Support discs: DVD, VCD, CD-R, CD-RW, SVCD, DVCD, HDCD, JPEG, CD+G, Kodak CD , W MA.

You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labeled as above. The performance of CD-R or CD-RW disc is depend on the way of disc-burning. In a few cases, their performance may not

be very well or even not playable.

46 TV LCD-TFT

DVD Operation

Discs Protection and DVD Characteristics

Operation

Compare DVD disc with other discs:

DVD LD

Encode method

Capacity

Playing Time

Disc diameter

Horizontal resolution

Picture proportion

Subtitle

Sound quality

Digital/MPEG

Double

Singleside singlelayer

4.7G

133 minutes

Single-

-side

side

single

double-

-layer

layer

8.5G

9.4G

242

266

minutes

12cm 12cm

More than 500 line

Multiple kinds

32 kinds

48KHz, 96KHz/

6, 20, 24bit

Doubleside doublelayer 17G

484 minutes

Analog

Single-side 60 minutes double-side

120 minutes

30cm/20cm

No more than

430 line

One kind

16 kinds at most

44.1KHz/ 16bit

SVCD

Digital

650MB 650MB 650MB

45 minutes

12cm 12cm

No more than

350 line

One kind

4 kinds

44.1KHz/ 16bit

VCD CD

Digital/

Digital

I

MPEG

74 minutes 74 minutes

No more than

250 line

One kind

44.1KHz/ 16bit

Owner s Manual 47

Operation

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1. Here`s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it`s almost dry, and then use it to wipe the screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it`s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

48 TV LCD-TFT

Product Specification

Specifications

Resolution

Power requirement

Color system

External Antenna Impedance

Color

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

MODEL

HLC26

HLC32

A

16,770,000(256 steps of each R, G and B)

Dimensen(WX X ) Unit:inches/mmDH (Including stand)

26.7X9.7X20.7 inches 679X246X525mm

31.9X9.7X24.4 inches 811X246X621mm

1366X768(Dot)

120V~ , 60Hz

NTSC ATSC Clear QAM

75 ohm

32~104 F(0~40 C)

Less than 80%

6561 feet (2000m)

Weight(pounds/kg)

29.8/13.5

38.6/17.5

The specifications shown above may be changed without prior notice for quality improvement.

Owner s Manual 49

Troubleshooting

For the sake of time and cost, it is strongly recommended that you check out the problem by yourself according to the instructions listed hereunder before contacting the after-sales service for technical assistance.

Verify if the television is properly plugged.

No picture, no sound

Blank screen

No sound

Verify if the television is properly supplied power. Verify if electricity is available.

Verify if correct signals are input. Press INPUT button to change signal input to TV input. Restart the television of power supply is interrupted.

Press Mute button and verify if Mute mode is set. Switch to other channel and verify if the same problem happens. Press VOL+ button to see if the problem can be solved.

Poor sound

No picture in some channel

No color for some channel program (black and white)

Spots with some or all pictures

Horizontal/vertical bars or picture shaking

Television out of control

Note: Do not leave the television with static picture in an extended period as the image may become permanently burned.

Verify if sound system is correct. Refer to Page 23 for adjustments.

Verify if correct channel is selected. Adjust the antenna. Make adjustments by Fine Tune and Manual Scan.

Verify if the same problem exists in other channels. Check out of picture and sound systems. Refer to relative instructions in the Manual for color adjust.

Verify if the antenna is correctly connected. Verify if the antenna is in good condition. Make fine adjustment of channel.

Check for local interference such as an electrical appliance or power tool.

Disconnect the television from power supply and, 10 seconds later, connect the television to the power supply. If the problem still exists, contact authorized after-sales service for technical assistance.

Note: Production of the LCD screen requires high and precision technologies. However, there might be some dark or bright (red, blue or green) spots, or some anomalistic stripes or spots. This is not defect. If the TV set is used in an area 2,400 meters above the sea level where the air pressure is below 750hpa, the picture on the LCD screen may be affected and a muffled sound might be produced. These phenomena might happen in the area 1,500 meters above the sea level. This is resulted from difference between air pressures inside and outside the display. This is not a defect covered by the limited warranty.

50 TV LCD-TFT

Warranty

This Haier brand product, when shipped in

its original container, will be free from

defective workmanship and materials, and

agrees that it will, at its option, either repair

the defect or replace the defective product

with a new or re-manufactured equivalent at

no change to the purchaser, for parts or

labor for the periods set forth below:

This warranty does not apply to the

appearance of the product or the exterior of

the product, which has been damaged or

defaced, altered or modified in design or

construction. It does not apply to the

additional excluded items set forth below:

The warranty commences on the date the

item was purchased and the original

purchase receipt must be presented to the

authorized service center before warranty

repairs are rendered.

The limited warranty described herein is in

addition to whatever implied warranties may

be granted to purchasers by law. ALL

IMPLIED WARRANTIES INCLUDING THE

WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR USE ARE LIMITED TO THE

PERIOD(s) FROM THE DATE OF PURCHASE

SET FORTH BELOW. Some states do not

allow limitations on how long an implied

warranty lasts, so the above limitation may

not apply to you.

Neither the sales personnel of the seller nor

any other person is authorized to make any

warranties other than those described herein,

or to extend the duration of any warranties

beyond the time period described herein on

behalf of Haier.

responsibility of Haier to the purchaser with

respect to the product, and shall constitute

full satisfaction of all claims,

whether based on contract, negligence, strict

duality or otherwise. In no event shall Haier

be liable, or in any way responsible for any

damages or defects in the product which

were caused by repairs or attempted repairs

performed by anyone other than an

authorized service center or dealer; nor shall

Haier be liable, or in any way responsible

for incidental or consequential economic or

property damage. Some states do not allow

the exclusion of incidental or consequential

damages, so that above exclusion may not

apply to you.

THIS WARRANTY GIVES YOU

SPECIFIC LEGAL RIGHTS. YOU MAY

ALSO HAVE OTHER RIGHTS WHICH

VARY FROM STATE TO STATE.

Warranty period for this product:

and labor

Additional items excluded from warranty

coverage: non-rechargeable batteries.

Where to obtain service: For the location of

the nearest Haier authorized service center or

to obtain product literature, accessories,

supplies or customer assistance,

please call 1-877-337-3639.

What to do to obtain service: ship or carry in

your product to an authorized service dealer

or center .Be sure to have proof of purchase.

If you ship the product, be sure it is

packaged carefully.

Haier America

New York, NY 10018

.

one year parts

The warranties described herein shall be the

sole and exclusive warranties granted by

Haier and shall be the sole and exclusive

remedy available to the purchaser. Correction

of defects in the manner and for the period

of time described herein, shall constitute

complete fulfillment of all abilities and

Owner s Manual 51

Haier HLC32 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
