Haier HDW9WH, HDW9SS User Manual

Domestic Dishwasher
HDW9WH
HDW9SS

GB

Code:0120504951

Safety Is a Good Habit to Get Into

NOTICE
Carefully read the instructions contained in this manual, as they
provide important information which is essential to safe and proper
installation, use and maintenance of the appliance.

This appliance complies with the following EEC

directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent
modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications.

- Carefully dispose of the packing material.

- After removing the packing, check to make sure that the appli­ ance is not damaged. If in doubt, contact a qualified professional.

- The dishwasher must only be used by adults for the washing of
household dishes and cooking utensils.

- Fundamental rules to follow when using the appliance:
* Never touch the dishwasher when bare foot or with wet hands
or feet;
* We discourage the use of extension cords and multiple sockets;
* During installation, the power supply cord must not be exces­ sively or dangerously bent or flattened;
* If the appliance is not operating properly or maintenance must
be performed, disconnect the appliance from the power supply.

- Keep detergents out of the reach of children, who must also be
kept away from the dishwasher when it is open.

- This appliance cannot be installed outdoors, not even if the
area in which it is installed is covered by a roof; it is also very
dangerous to leave it exposed to the rain and elements.

- Do not touch the heating element during or after a wash cycle.

- Do not lean or sit on the door when it is open, as this could
overturn the dishwasher.

- If the appliance malfunctions, turn off water supply to the appli­ ance and disconnect the plug from the wall socket. Then, con­ sult the section entitled, "Troubleshooting". If you can not
solve the problem, contact a service centre.

- Only specialised personnel are authorised to make repairs.

- Appliances which are no longer being used must be made
inoperable by cutting the power supply cord and removing the
door lock.

- The appliance must be positioned so that the plug is accessible.

- The carpet must not obstruct the opening when the appliance in­ stalling on the ground with carpet.

- If the supply cord is damaged ,it must be replaced by the manu­ facture ,its service agent of similarly qualified persons in order to
avoid a hazard.

Notice:

The appliance is not instruct for use of young children of
infirm persons without supervision.
Young children should be supervised to ensure that they do
not play with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified per­son in order to avoid a hazard.

Close-up View (Control Panel)

A B

C

A

ON-OFF Light

B

Heater indicator Light

C

ON-OFF Button

D

D
E

E

Handle For Opening Door
Knob For Selecting Cycle

.1.

GB

Close-up View (Interior)

A
B
C
D

Technical characteristics

Width

Depth

Height

Capacity
Mains water pressure

Power voltage

Total absorber power

Upper Rack
Rack Height Adjustor

Top Spray Arm

Lower Rack

E

Washing Filter

F

Bottom Spray Arm

G

Detergent and Rinse Aid Dispenser

9 standard place settings

0.03-0.6 MPa

220-240V~ 50Hz

45 cm

60 cm

85 cm

1900W

GB

.2.

Detergent and Rinse Aid

DetergentDetergent

Detergent

DetergentDetergent

Detergent specifically intended for use with dishwashers must
be used. The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the "Wash Cycle
Table". The detergent dispenser is located on the inside panel of
the door.

Loading the detergentLoading the detergent

Loading the detergent

Loading the detergentLoading the detergent

To open the "A" cover on the dispenser, press the "B" button.
The detergent for the wash cycle should be poured into the "C"
compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.

BB

B

BB

Rinse AidRinse Aid

Rinse Aid

Rinse AidRinse Aid

This product makes dishes sparkle and helps them to dry with­out spotting. The dispenser is located on the inside panel of the
door and should be filled after every 80 wash cycles.

Loading the Rinse AidLoading the Rinse Aid

Loading the Rinse Aid

Loading the Rinse AidLoading the Rinse Aid

Regardless of the type detergent dispenser installed on your
appliance, you must proceed as indicator below when loading
the rinse aid.
To open the dispenser, turn the "C" cap in the anti-clockwise
direction and then pour in the rinse aid, making sure not to overfill.
The amount of rinse aid used for each cycle can be regulated by
turning the "F" dose adjustor, located beneath the "C" cap, with
a screwdriver. There are 6 different settings; the normal dosage
setting is 1.

Important:Important:

Important:

Important:Important:

Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs, the
dosage adjustor should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjustor to a
lower setting.

AA

A

AA

CC

C

CC

DO NOT USE TABLET

Notice:To facilitate closing the cover, remove any excessNotice:To facilitate closing the cover, remove any excess

Notice:To facilitate closing the cover, remove any excess

Notice:To facilitate closing the cover, remove any excessNotice:To facilitate closing the cover, remove any excess
detergent on the edges of the dispenser.detergent on the edges of the dispenser.

detergent on the edges of the dispenser.

detergent on the edges of the dispenser.detergent on the edges of the dispenser.

Dishwasher detergents are strongly alkaline. They canDishwasher detergents are strongly alkaline. They can

Dishwasher detergents are strongly alkaline. They can

Dishwasher detergents are strongly alkaline. They canDishwasher detergents are strongly alkaline. They can
be extremely dangerous if swallowed. Avoid contactbe extremely dangerous if swallowed. Avoid contact

be extremely dangerous if swallowed. Avoid contact

be extremely dangerous if swallowed. Avoid contactbe extremely dangerous if swallowed. Avoid contact
with the skin and eyes and keep children away from thewith the skin and eyes and keep children away from the

with the skin and eyes and keep children away from the

with the skin and eyes and keep children away from thewith the skin and eyes and keep children away from the
dishwasher when the door is open. Check that the de-dishwasher when the door is open. Check that the de-

dishwasher when the door is open. Check that the de-

dishwasher when the door is open. Check that the de-dishwasher when the door is open. Check that the de­tergent receptacle is empty after completion of the washtergent receptacle is empty after completion of the wash

tergent receptacle is empty after completion of the wash

tergent receptacle is empty after completion of the washtergent receptacle is empty after completion of the wash
cycle.cycle.

cycle.

cycle.cycle.

CC

C

CC

FF

F

FF

.3..3.

.3.

.3..3.

GBGB

GB

GBGB

Loading the DishwasherLoading the Dishwasher

Loading the Dishwasher

Loading the DishwasherLoading the Dishwasher

Before placing the dishes in the dishwasher, remove the large food
particle to prevent the filter from becoming clogged, which results
in reduced performance.
If the pots and pans have baked-on food that is extremely hard to
remove, we recommend that they be allowed to soak before they
are washed. This will eliminate the need for extra wash cycle.

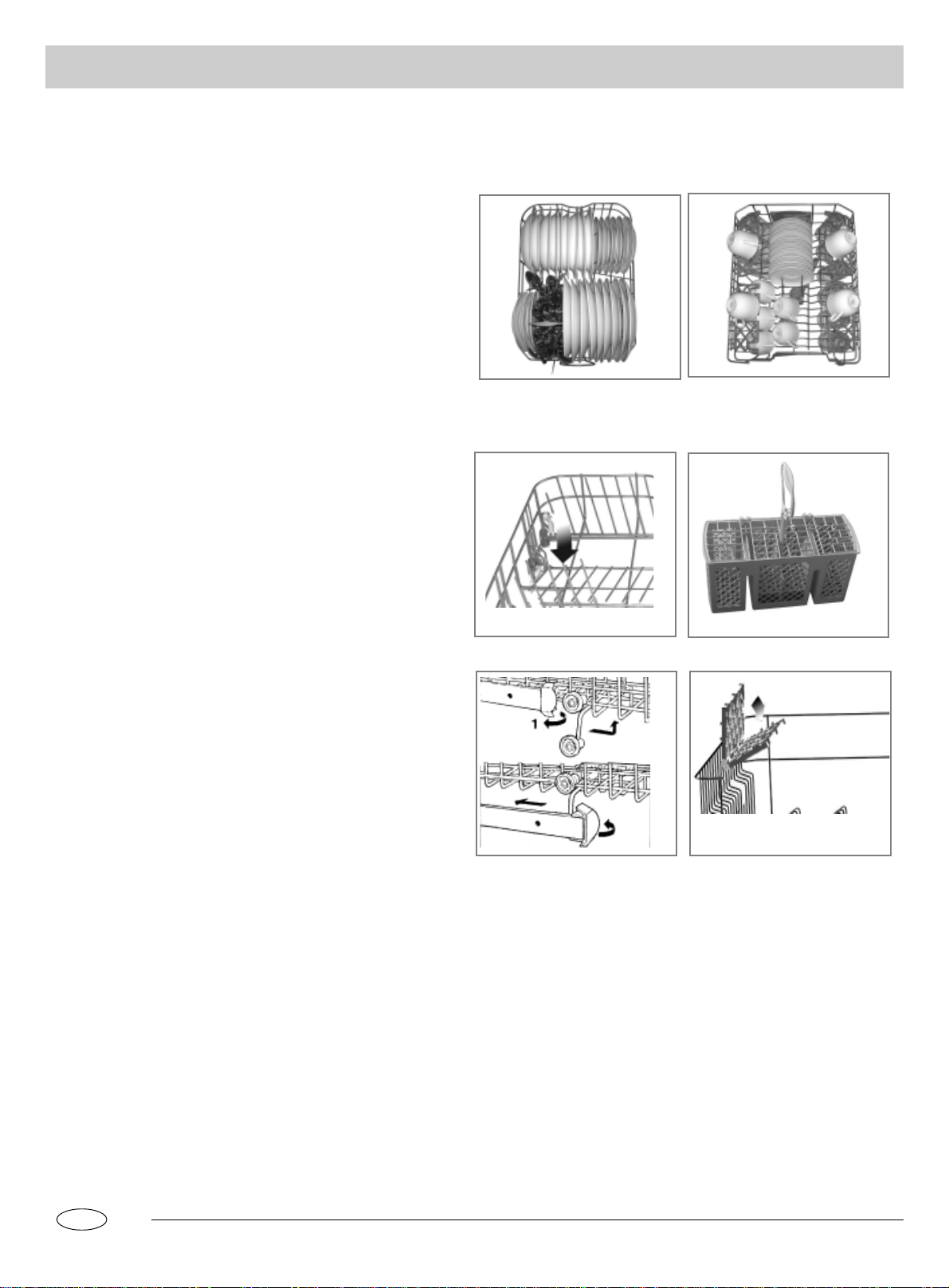

Pull out the rack to facilitate loading the dishwasher.

How to Use the Lower RackHow to Use the Lower Rack

How to Use the Lower Rack

How to Use the Lower RackHow to Use the Lower Rack

We recommend that you place the items which are the most diffi­cult to clean items on the lower rack: pots, lids, serving dishes and
bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of the
racks in order to avoid blocking the rotation of the top spray arm.

- Pots, serving bowls, etc. must always be placed face down.

- Deep pots should be slanted to allow the water to flow out.

- The lower rack features fold down tine rows (see fig.A) so that
larger or more pots and pans can be loaded.

- The silverware basket can not be doubled (see fig.B) .

- Silverware should be placed in the silverware basket with the
handles at the bottom; if the rack has side baskets, the spoons
should be located individually into the appropriate slots. Espe­ cially long utensils should be placed in the horizontal position at
the front of the upper rack.

Lower RackLower Rack

Lower Rack

Lower RackLower Rack

Load for 9 Standard SettingsLoad for 9 Standard Settings

Load for 9 Standard Settings

Load for 9 Standard SettingsLoad for 9 Standard Settings

fig.Afig.A

fig.A

fig.Afig.A

Upper RackUpper Rack

Upper Rack

Upper RackUpper Rack

fig.Bfig.B

fig.B

fig.Bfig.B

How to Use the Upper RackHow to Use the Upper Rack

How to Use the Upper Rack

How to Use the Upper RackHow to Use the Upper Rack

The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, coffee and tea cups and saucers, as
well as plates, small bowls and shallow pans (as long as they are
not too dirty).
Position the dishes and cookware so that they do not get moved
by the spray of water.
The upper rack can be adjusted for height. (See fig.C)

Shelf

Lean tall glasses and those with long stems against the shelf-not
against other items to be washed.
Place glasses, cups and small bowls on the additional cup rack.
The additional cup rack can be swivelled in or out as required
(see fig.D).

1

2

3

4

fig.C

fig.D

GB

.4.

Starting the Appliance

Starting a wash cycle

- Make sure that the plug for the appliance is inserted into the wall
socket.

- Make sure that the water supply is turned on to full pressure.

- Load the dishwasher (see the section entitled, "Loading the
Dishwasher").

- Pour in the detergent (see the section entitled, "Detergent
and Rinse Aid").

- Turn the knob located on the right of the control panel in the
clockwise direction until the number or symbol for the cycle sec­ tion entitled, "Wash Cycle Table").

- Press the ON-OFF button, and the ON-OFF light will turn on. At
this point, the wash cycle will begin.

Important:Important:

Important:

Important:Important:

In general, it is not advisable to open the door while the machine
is working. Care must be taken if the door is opened during the
hot phase or immediately after a programm has finished as steam
may escape.

Cancelling or modifying a wash cycle settingCancelling or modifying a wash cycle setting

Cancelling or modifying a wash cycle setting

Cancelling or modifying a wash cycle settingCancelling or modifying a wash cycle setting

Press the ON-OFF button and the ON Light will turn off. Rotate
the knob in the clockwise direction to the desired cycle setting
(see the section entitled, "Starting a wash cycle..."). Then, turn
the dishwasher back on using the ON-OFF button.

At the end of the wash cycleAt the end of the wash cycle

At the end of the wash cycle

At the end of the wash cycleAt the end of the wash cycle

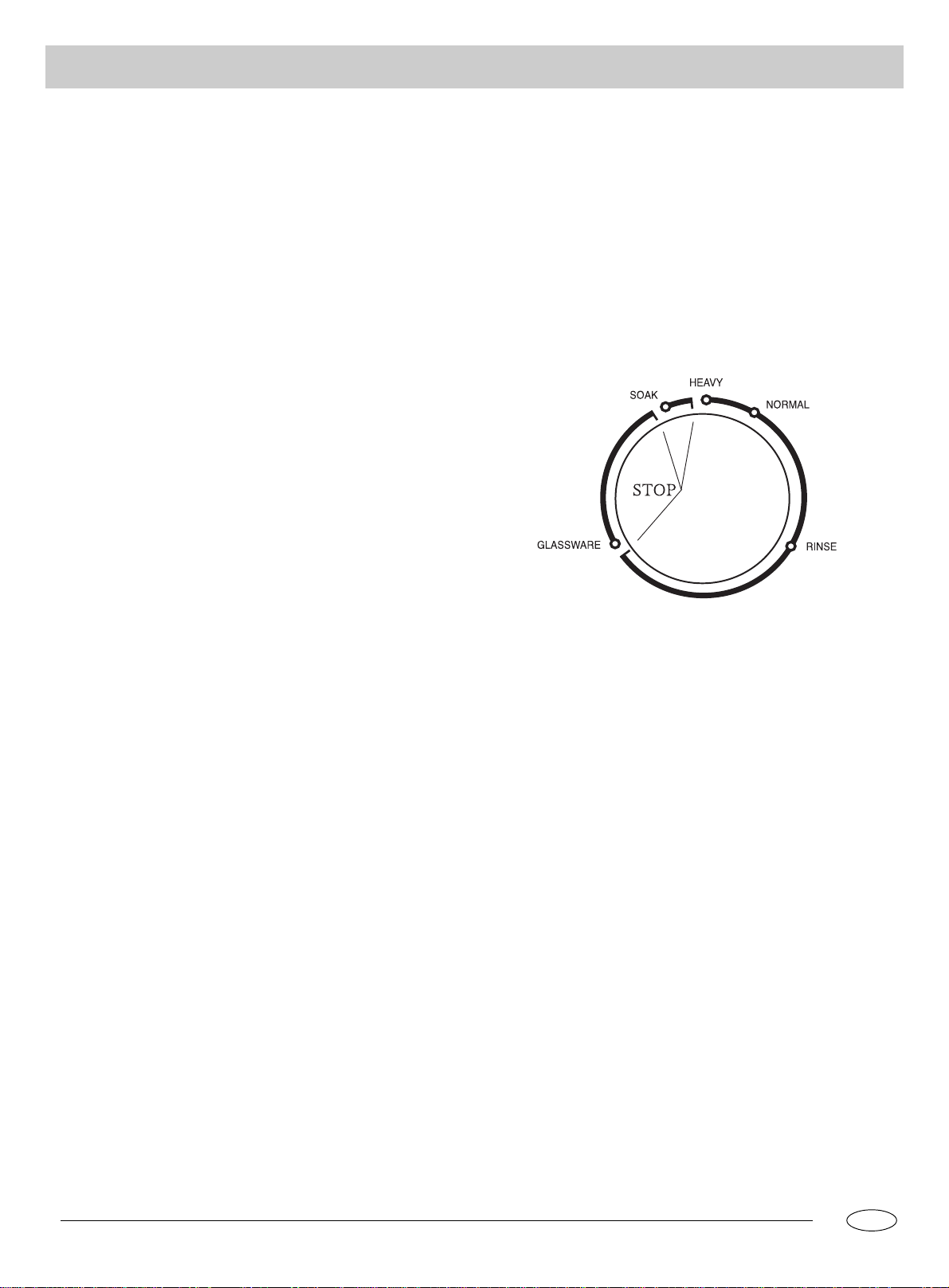

When the knob stops turning and is aligned with a STOP mark
(see figure), the cycle has finished. Turn off the appliance using
the ON-OFF button, turn off the water supply and open the door
of the dishwasher.
Wait a few minutes before unloading the dishwasher to avoid
handling the dishes and utensils while they are still hot and more
susceptible to breakage. They will also dry better.

.5..5.

.5.

.5..5.

GBGB

GB

GBGB

Wash Cycle TableWash Cycle Table

Wash Cycle Table

Wash Cycle TableWash Cycle Table

CycleCycle

Cycle

CycleCycle

Heavy

Normal

Cycle Selection InformationCycle Selection Information

Cycle Selection Information

Cycle Selection InformationCycle Selection Information

Very dirty dishes, pots and
pans. (not to be used with
delicate items)

Normally dirty dishes, pots
and pans. Standard daily
cycle.

Description of CycleDescription of Cycle

Description of Cycle

Description of CycleDescription of Cycle

Pre-wash with cold water.
Rinse with cold water.
Extended wash at 50 .
Rinse with hot water.
Drying.

Rinse with cold water.
Extended wash at 50 .
Rinse with hot water.
Drying.

DetergentDetergent

Detergent

DetergentDetergent

28.5g28.5g

28.5g

28.5g28.5g

5+23.5g5+23.5g

5+23.5g

5+23.5g5+23.5g

Rinse AidRinse Aid

Rinse Aid

Rinse AidRinse Aid

(5)

Rinse

Glassware

Soak

For dishes that need to be
rinsed and dried only.

Economic, fast cycle to be
used for items which are deli­cate items.

Pre-wash of dishes, pots and
pans while waiting for the
load to be completed after
the subsequent meal.

Rinse with hot water.
Drying.

Wash at 50 .
Hot Rinse
Drying.

Short cold wash to prevent
food residue from drying on
the dishes .

..

.

..

15g15g

15g

15g15g

GBGB

GB

GBGB

.6..6.

.6.

.6..6.

Energy Saving TipsEnergy Saving Tips

Energy Saving Tips

Energy Saving TipsEnergy Saving Tips

- -

- It is important to try and run the dishwasher when it is fully

- -

loaded to save on energy. In order to prevent odors from form­ ing and food from caking onto the dishes, you can run the soak
cycle.

- Choose the right wash cycle: the choice of cycle depends on
the type of dishware, cookware and utensils being washed and
how dirty they are.

How to Keep Your Dishwasher in ShapeHow to Keep Your Dishwasher in Shape

How to Keep Your Dishwasher in Shape

How to Keep Your Dishwasher in ShapeHow to Keep Your Dishwasher in Shape

- Use the right amount of detergent: if you use too much detergent,
the result will not be cleaner dishes, but, rather, a greater nega­ tive impact on the environment.

- There is no utility in rinsing dishes, cookware and untensils
before placing them in the dishwasher.

After Every WashAfter Every Wash

After Every Wash

After Every WashAfter Every Wash

After every wash, turn off the water supply to the appliance and
leave the door slightly ajar so that moisture and odors are not
trapped inside.

Remove the PlugRemove the Plug

Remove the Plug

Remove the PlugRemove the Plug

Before cleaning or performing maintenance, always remove the
plug from the socket. Do not run risks.

No Solvents or AbrasiveNo Solvents or Abrasive

No Solvents or Abrasive

No Solvents or AbrasiveNo Solvents or Abrasive

To clean the exterior and rubber parts of the dishwasher, do not
use solvents or abrasive cleaning products. Rather, use only a
cloth and warm soap water.
To remove spots or stains from the surface of the interior, use a
cloth dampened with water and white vinegar, or a cleaning
products made specifically for dishwasher.

Cleaning ProductsCleaning Products

Cleaning Products

Cleaning ProductsCleaning Products

When You Go on HolidayWhen You Go on Holiday

When You Go on Holiday

When You Go on HolidayWhen You Go on Holiday

When you go on holiday, it is recommended that you run a wash
cycle with the dishwasher empty and then remove the plug from
the socket, turn off the water supply and leave the door of the
appliance slightly ajar. This will help the seals last longer and pre­vent odors from forming within the appliance.

Moving the ApplianceMoving the Appliance

Moving the Appliance

Moving the ApplianceMoving the Appliance

If the appliance must be moved, try to keep it in the vertical position.
If absolutely necessary, it can be positioned on its back.

SealsSeals

Seals

SealsSeals

One of the factors that cause odors to form in the dishwasher is
food that remains trapped in the seals. Periodic cleaning with a
sponge will prevent this from occurring.

.7..7.

.7.

.7..7.

GBGB

GB

GBGB

Cleaning and Special MaintenanceCleaning and Special Maintenance

Cleaning and Special Maintenance

Cleaning and Special MaintenanceCleaning and Special Maintenance

Filter AssemblyFilter Assembly

Filter Assembly

Filter AssemblyFilter Assembly

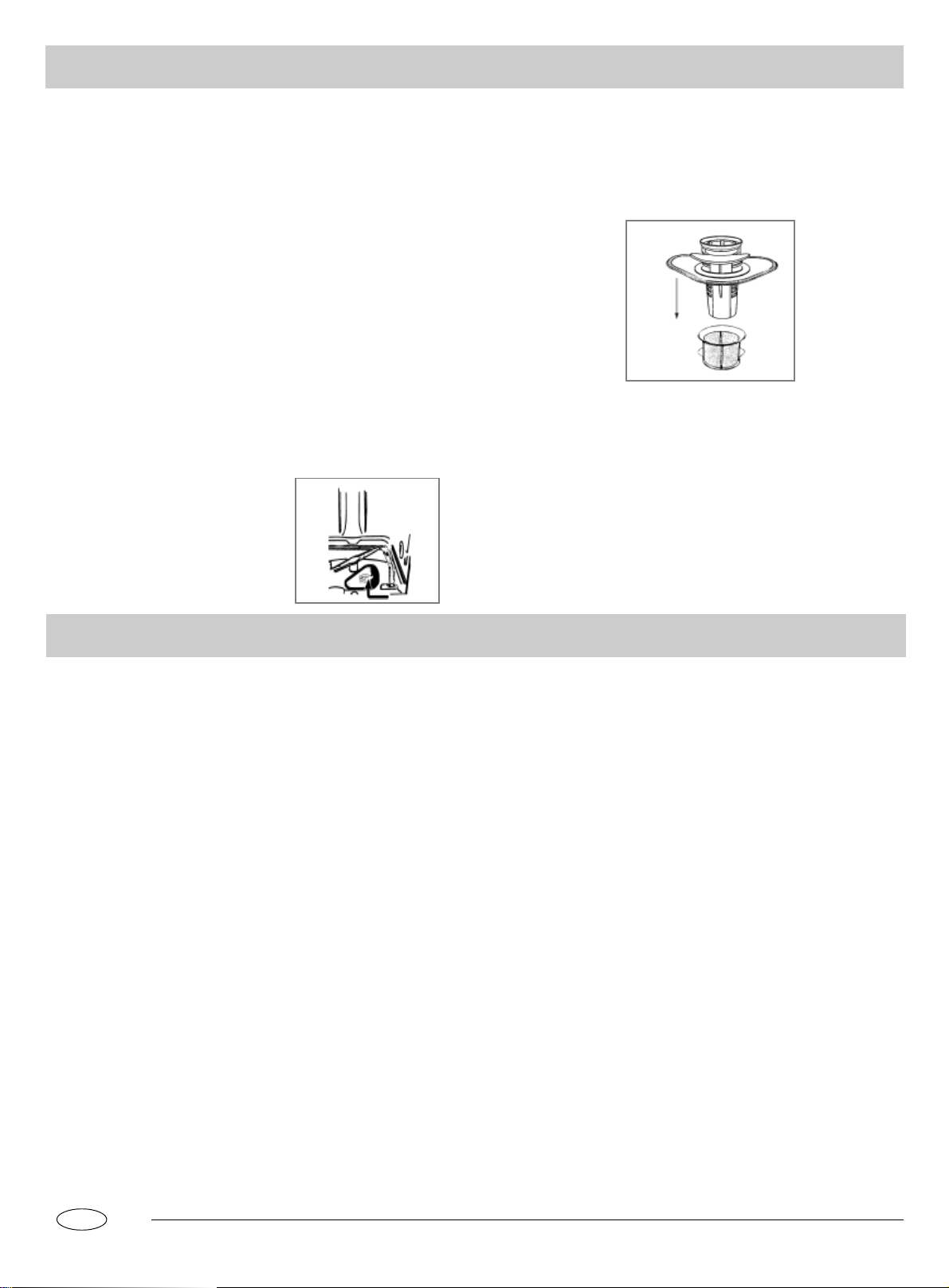

For the best performance and results, the filter assembly must
be cleaned.
The filter efficiently removes food particles from the wash water,
allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the
filter after each wash cycle by rinsing the "A" semi-circular filter
and cup under running water. To remove the filter assembly, pull
on the cup handle in the upward direction. The entire filter as­sembly (made up of the "A" semicircular filter and the "B" fine
filter) should be cleaned at least once a month. To clean the filter
and the fine filter, use a cleaning brush. Then, reassemble the
filter parts as shown in the figures below and reinsert the entire
assembly in the dishwasher, positioning in its seat and pressing
downward.
The dishwasher must never be used without the filters. Improper
replacement of the filters may reduce level of the appliance and
damage dishes and utensils.

Cleaning the Spray ArmsCleaning the Spray Arms

Cleaning the Spray Arms

Cleaning the Spray ArmsCleaning the Spray Arms

It may happen that food particle become encrusted on the sprayer
arms and block the hole. Check the sprayer arms periodically
and clean them when needed. (See "Close up view [interior]" ,
letters C-E ).

AA

A

AA

BB

B

BB

Cleaning the Water Inlet FilterCleaning the Water Inlet Filter

Cleaning the Water Inlet Filter

Cleaning the Water Inlet FilterCleaning the Water Inlet Filter

Periodically clean the water inlet filter located on the outlet of the
water supply tap.
After turning off the water tap, unscrew the end of the water sup­ply hose, remove the filter and clean it carefully under running
water. Then, return the filter to its place and tighten the water
supply hose back into position.

TroubleshootingTroubleshooting

Troubleshooting

TroubleshootingTroubleshooting

It may occur that the dishwasher does not function or does not
function properly. Before calling for assistance, let us see what
can be done first: have you forgotten to press one of the buttons
or to perform an essential operation?

The Dishwasher Does Not StartThe Dishwasher Does Not Start

The Dishwasher Does Not Start

The Dishwasher Does Not StartThe Dishwasher Does Not Start

Have you checked whether:

- the plug is pushed into the socket correctly;

- the power is on in the house;

- the door is closed properly;

- the ON-OFF switch is on "ON";

- the water supply is turned on.

The Dishwasher Does Not Load WaterThe Dishwasher Does Not Load Water

The Dishwasher Does Not Load Water

The Dishwasher Does Not Load WaterThe Dishwasher Does Not Load Water

Have you checked whether:

- the water is turned on and the hose is
connected properly;

- the water supply to the house on and has
sufficient pressure;

- the water supply hose is crimped or bent;

- the filter for the water supply hose is clogged.

The Dishes Are Not CleanThe Dishes Are Not Clean

The Dishes Are Not Clean

The Dishes Are Not CleanThe Dishes Are Not Clean

Have you checked whether:

- the water is turned on and the hose is
connected properly;

- the water supply to the house on and has
sufficient pressure;

- the water supply hose is crimped or bent;

- the filter for the water supply hose is clogged.

The Dishwasher Does Not DrainThe Dishwasher Does Not Drain

The Dishwasher Does Not Drain

The Dishwasher Does Not DrainThe Dishwasher Does Not Drain

Have you checked whether:

- the drain hose is crimped or bent.

Lime Deposits or a White Film Form on the DishesLime Deposits or a White Film Form on the Dishes

Lime Deposits or a White Film Form on the Dishes

Lime Deposits or a White Film Form on the DishesLime Deposits or a White Film Form on the Dishes

Have you checked whether:

- the lid to the salt container is closed properly;

- the rinse aid dosage is correct.
If, despite all these checks, the dishwasher still does not function
and/or the problem persists, contact the nearest authorised ser­vice centre and provide them with the following information:

- the nature of the problem;

- the model type number (Mod...) And the serial number (S/N...),
which are indicated on the plate located on the side of the inner
part of the door.

Never call on unauthorised technicians and refuse toNever call on unauthorised technicians and refuse to

Never call on unauthorised technicians and refuse to

Never call on unauthorised technicians and refuse toNever call on unauthorised technicians and refuse to
allow parts to be installed that are not original spareallow parts to be installed that are not original spare

allow parts to be installed that are not original spare

allow parts to be installed that are not original spareallow parts to be installed that are not original spare
parts.parts.

parts.

parts.parts.

GBGB

GB

GBGB

.8..8.

.8.

.8..8.

InstallationInstallation

Installation

InstallationInstallation

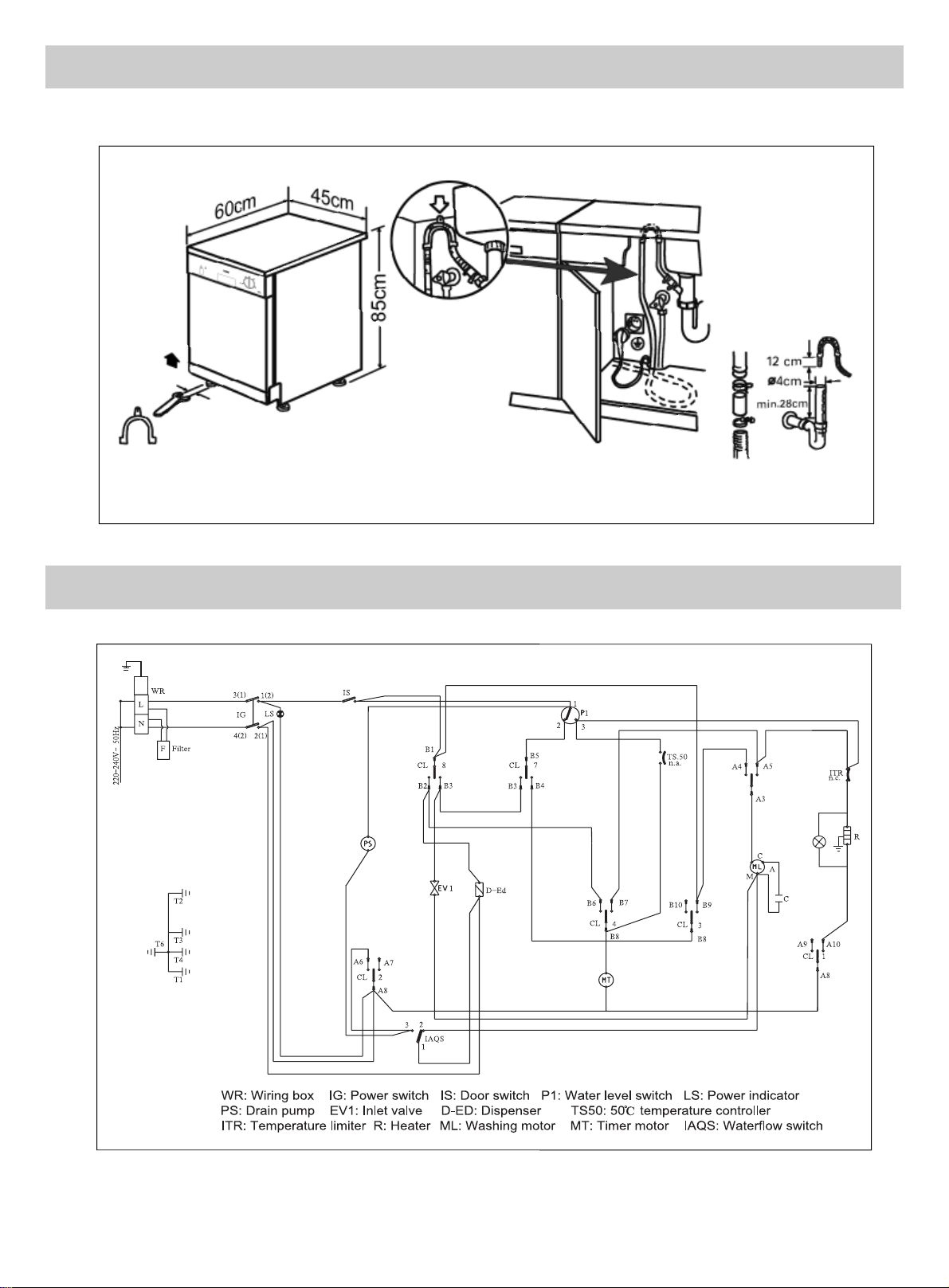

Positioning the AppliancePositioning the Appliance

Positioning the Appliance

Positioning the AppliancePositioning the Appliance

Position the appliance in the desired location. The back should
rest against the wall behind it, and the sides, along the adjacent
cabinets or wall. The dishwasher is equipped with water supply
and drain hoses that can be positioned to the right or the left to
facilitate proper installation.

Levelling the ApplianceLevelling the Appliance

Levelling the Appliance

Levelling the ApplianceLevelling the Appliance

Once the appliance is positioned, adjust the feet (screwing them
in or out) to adjust the dishwasher, making it level. In any case,
the appliance should not be inclined more than 2 . If the appli­ance is level, it will help ensure proper performance.

Cold Water ConnectionCold Water Connection

Cold Water Connection

Cold Water ConnectionCold Water Connection

Connect the cold water supply hose to a threaded 3/4 (gas) connec­tor and make sure that it is fastened tightly in place (see fig.1).
If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is clear
and free of impurities. If this precaution is not taken, there is a risk
that the water inlet can get blocked and damage the appliance.

Drain Hose ConnectionDrain Hose Connection

Drain Hose Connection

Drain Hose ConnectionDrain Hose Connection

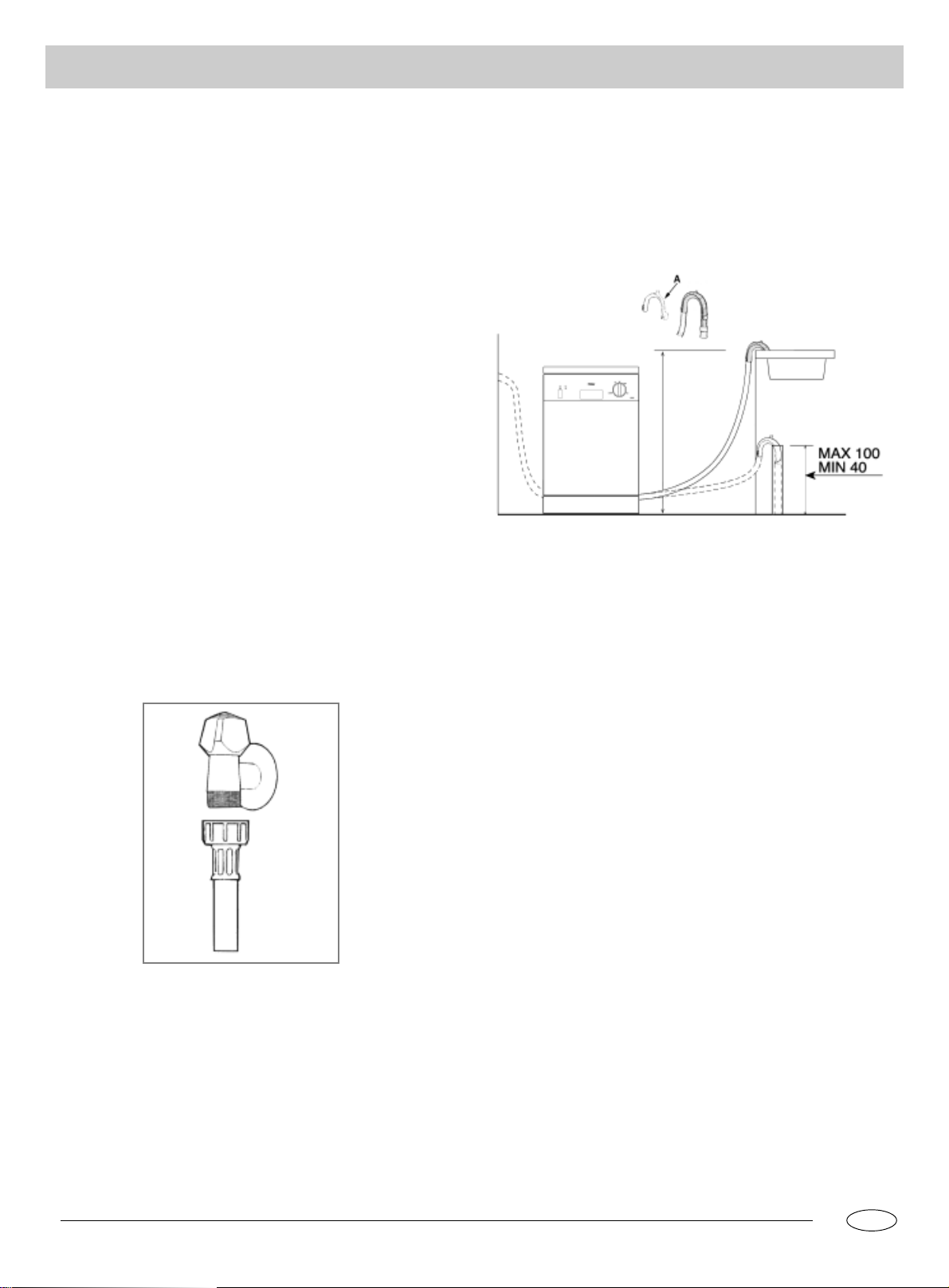

Insert the drain hose into a drain pipe with a minimum diameter of
4cm, or let it run into the sink, making sure to avoid bending or
crimping it. Use the special plastic support that comes with the
appliance (see fig.2). The free end of the hose must be at a height
between 40 and 100 cm and must not be immersed in water.

fig.2fig.2

fig.2

fig.2fig.2

Attention:Attention:

Attention:

Attention:Attention:

The special plastic hose support must be solidly fastened to
the wall to prevent the drain hose from moving and allowing
water to spill outside the drain.
Use the new hose and the old hose should not be reused.

Fig.1Fig.1

Fig.1

Fig.1Fig.1

Electrical ConnectionElectrical Connection

Electrical Connection

Electrical ConnectionElectrical Connection

After making sure that the voltage and frequency values for the
current in the home correspond to those on the rating plate
(located on the stainless steel inner door of the appliance) and
that the electrical system is sized for the maximum voltage on
the rating plate, insert the plug into an electrical socket which
is earthed properly (the earthing of the appliance is a safety
requirement mandated by law).
If the electrical socket to which the appliance must be connected
is not appropriate for the plug, replace the plug, rather than using
adaptors or the like as they could cause overheating and burns.

.9..9.

.9.

.9..9.

GBGB

GB

GBGB

InstallationInstallation

Installation

InstallationInstallation

DiagramDiagram

Diagram

DiagramDiagram
