Haier DWE-270 User Manual

Twin-tub Washing Machine

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

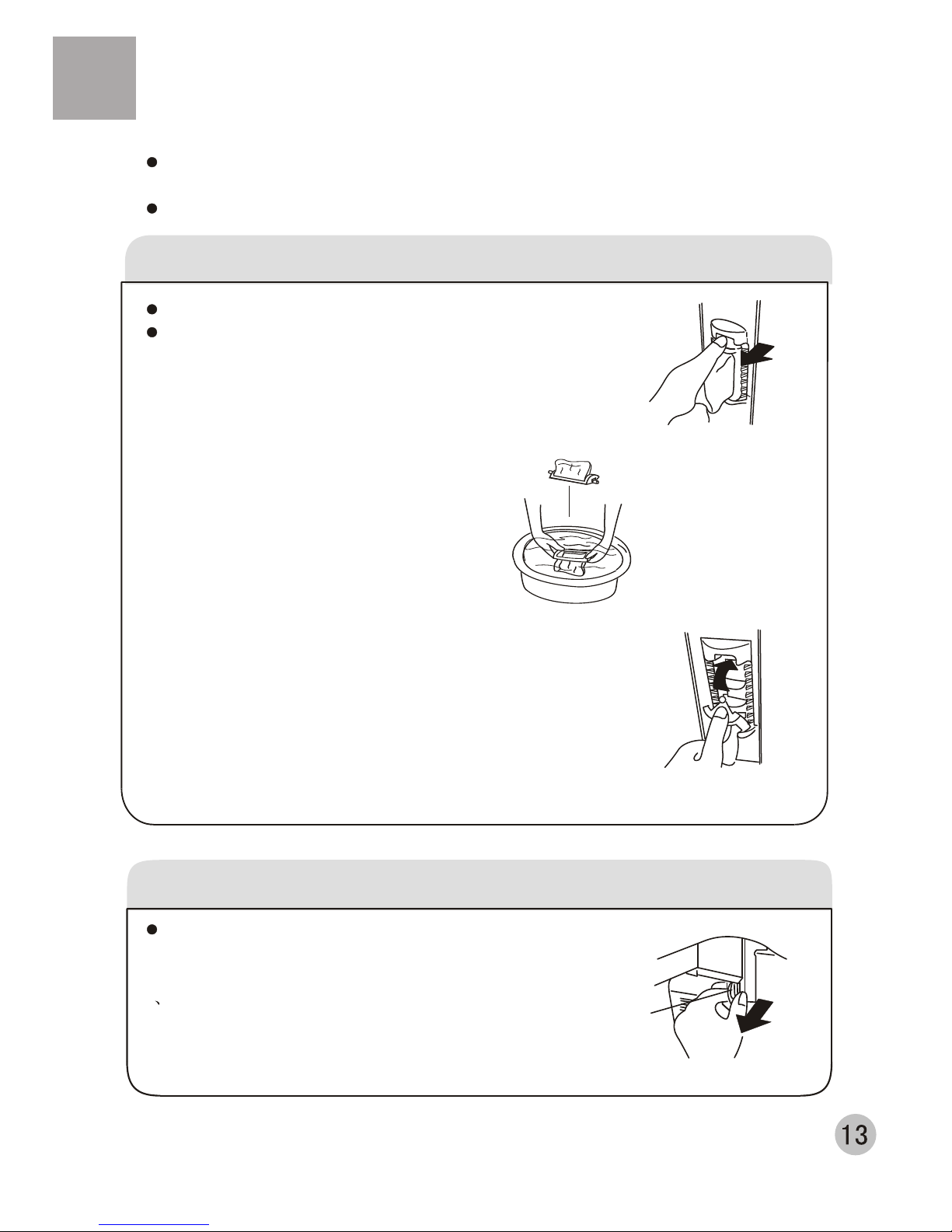

Disposal after washing .......................13

Contents

Before using

Using process

Please read this manual carefully before using.

Retain it for reference
Please check if the power receptable is earthed

reliably before usage to guarantee your safety.

The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.

User's manual

Trouble-shooting*

Answers to question.....................15

Specification*...........the back cover

Packing list ......................................16

Contents marked with that symbol are related to the safety of

the product and the personal safety of the users. Please operate

in strict conformity to the contents.

Contents marked with that symbol are prohibited, otherwise it

may do harm to the washing machine or the personal security

of the operator.

Accessories

Meaning and description of the symbols

Water inlet hose

Gland

(1 piece )

(1 piece )

Before Using

Before Using

Names of the parts

Buzzer
Water-filling entrance
Water inlet selector handle
Water selector
Wash timer
Control panel
Overflow filter
Water level adjusting lever
Drain hose hanging hole
Lint filter(Installed bu user)
Valve cover
Pulsator
Wash tub
Drain hose

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Warning sign

Prohibition sign

Lint filter

(1 piece )

Base frame

Wash tub cover

Before Using

Before Using

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.

Ventilation hole at
the bottom of the
washing machine

Do not use water hotter than 50 C .

Do not share one receptacle with other
electric appliances. Do not use it in
case that the power plug is damaged
or the inserting into the receptacle is
loose.

Earth

Do not wash water-proof laundries such
as the raincoat, bicycle shelter etc. To
avoid abnormal vibration during spinning.

If the power cord is bad, to avoid risk it is required to replace it by the technicians
of our special shop or the after-sale service department. Keep the pin of the power
plug clean.

Earth the earthing terminal of the
receptacle reliably.

Do not put the machine at damp place
like the bathroom . Never wash it with
water.

In case the washing machine is installed
on ground with carpet , do not block the
ventilation hole with carpet.

When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when the machine is idle
or when cleaning the machine.

Before Using

Before Using

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.

Handicapped or children without care
shall not use the machine.

Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.

Do not decompose, repair or alter the
machine by yourself.

Keep the machine away from direct
sunlight and heat source like the
heater.

Do not wash laundries with volatile
materials (such as thinner, petrol etc.).

Petrol

Thinn

er

Safety precautions

To prevent your laundries and washing
machine from damage,be sure to take out
all of the foreign materials from your pocket,
such as coins,buttons,sand or hair pins etc.

Before washing,please check if the water
tap is open,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming washing
powder.

Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

Before Using

Before Using

Installation and adjustment

Install the water inlet hose; Select the water level

(about 46L)

High

High

(about 55L)

Low

Low

(about 36L)

Medium

Medium

Adjust the water level adjusting
lever to desired water level line.

Water inlet hose

Water-filling
entrance

Water level
adjusting lever

4.If extra drain hose is needed , the inner
diameter of the extra hose shall not less
than 30mm, and the length shall not exceed

1.5m.

<10cm

> 30mm

<1.5m

1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.

2.Do not step on or press the drain hose.

3 If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.

Insert the water inlet hose into the water-filling
entrance on the control panel directly. (pull it
out to dismantle it)

Select water level according to the
quantity of the laundries.

Attention:
In water filling, do not exceed
the"High" water level. Otherwise
the water may overflow out of the
washing machine.

Lint filter

Filter frame

After opening the package,please take out the lint filter from
the document bag,install it to the filter frame of the
cabinet.See to the figure.

Install the lint filter

Before Using

Before Using

How to change the direction of the drain hoses

Figure 1 indicates the ex factory
installation position of the drain
hose.

Then hang the drain hose into the hanging
hole at the spin tub side. (As per Figure 5).

Extend the drain hose from the side of spin tub.

Extend the drain hose from the rear side

Take out the drain hose from the fixing
hook. Extend it from the rear side (When
the drain hose is extended from the rear
side, it can be hung on the point for drain
hose at the two sides of the cabinet.)
(See to Figure 6).

Take off the drain hose from the hanging
hole of the cabinet. Pull the drain hose
fixing hook outwards gently to take out
the drain hose from the two fixing hooks.
(As per Figure 2)

Rotate the drain hose fixing hook for 90
to take it out from the installation hole
(As per Figure 3).

Install the two drain hose
fixing hooks taken out into
the installation hole at the
other side of the base frame
(to aim at the installation
hole accurately you can
lean the washing machine
forward slightly).Then rotate
for 90 (As per Figure 4).

Pull the fixing hook outwards slightly.
Inlay the drain hose into the fixing hooks
reliably along the groove at spin tub side,
and make it extend towards spin tub side.

Figure 6

Figure 5

Figure 4

Figure 2

Figure 1

Figure 3

Drain hose
fixing hook

Drain hose
fixing hook

Pull outwards
slightly

Side sectional view

Fixing hook
installation hole

Drain hose

Take off
the drain hose

Rotate the fixing
hook for 90

Rotate the fixing
hook for 90

Insert the fixing hook into the
installation hole upwards

Take off the fixing
hook downwards

to fix it

Using process

Using process

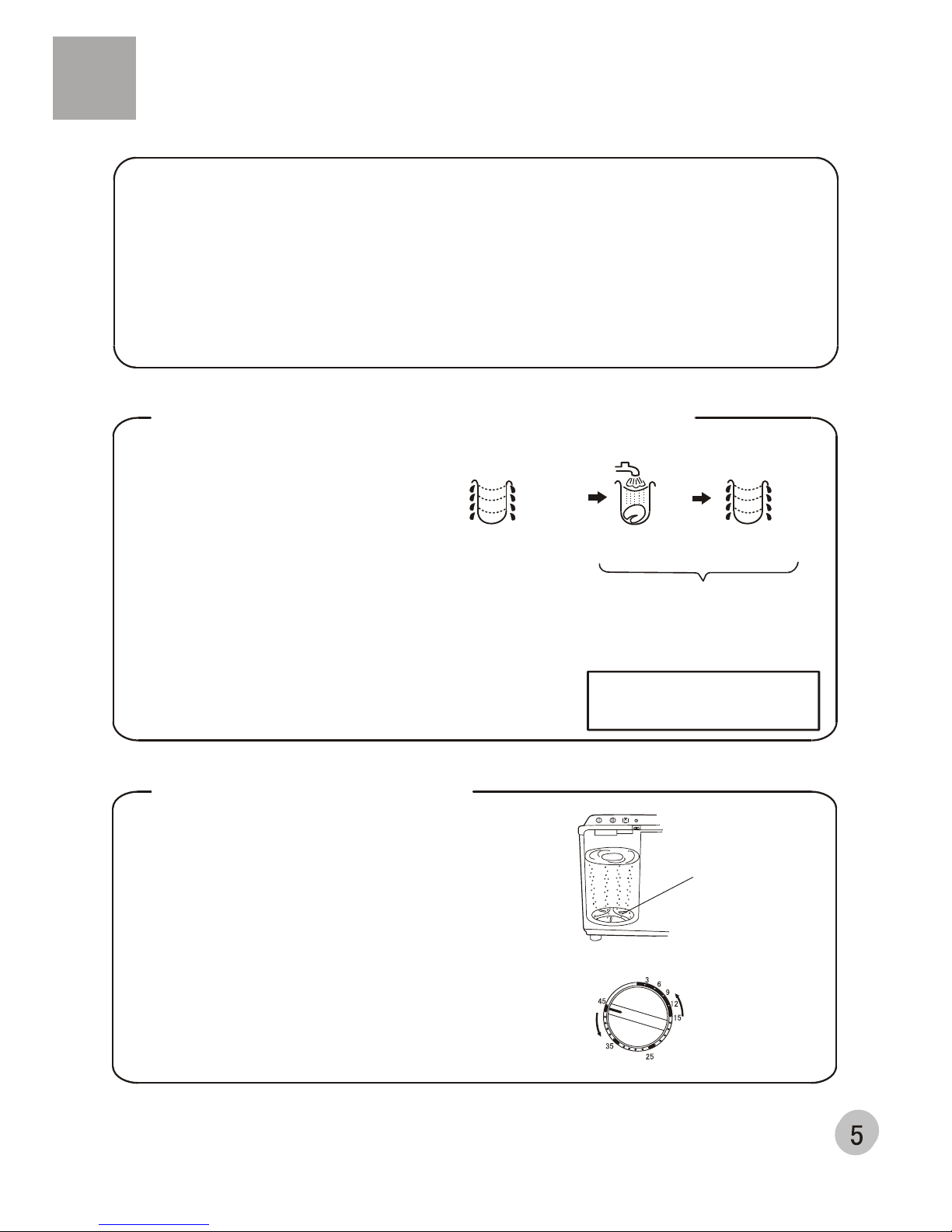

Introduction of the major function

The machine has good comprehensive performance, and nice appearance.
It adopts streamline appearance and full plastic shell, which will never get rust.
For the design on safety and reliability, it adopts the wash shelf and water reception
groove design, and reduces the unfavorable influence on the electrical component by the
vapor. Therefore it guarantees more safe and reliable washing.
It adopts complete enclosed base frame and low-noise motor, and thus reduces the
working noise significantly. We can guarantee that the purchase of this machine will bring
you a clean world without disturbing your quiet life.

Pulsator

WASH TIMER

OFF

WASH

SOAK

Foam-removing spinning during high-efficiency rinsing

Bubble washing + soak washing

Use the foam-removing spinning to
remove the extra detergent liquid. It can
both shorten the washing time and save
the water consumption.

When the pulsator rotates, the machine will
inhale air and produce small bubble. The bubble
can explode and produce tiny water current to
help dissolving the detergent, and improve the
cleaning capability the detergent , therefore
raise the cleaning ratio.

When you need to wash dirty laundries , you
can select soak washing. Select different time
according to the soil level of the laundries.

Foam-removing
spinning

Remove most of the foam
extra detergent liquid. it can
both shorten the washing
time and save the water
consumption.

Remove the detergent
liquid remained

The effect is best when the
laundries quantity is below
80% of the rated value.

Spin

Spin for about
1~2 minutes

Fill water for
about 1 minutes

Spin for about
1~2 minutes

Confirm if
there's special
requirement for
the laundries.

Clear the pocket.
Take out the
coins , sand,
hairpins etc.

Fasten the
buttons and
zippers.

When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.

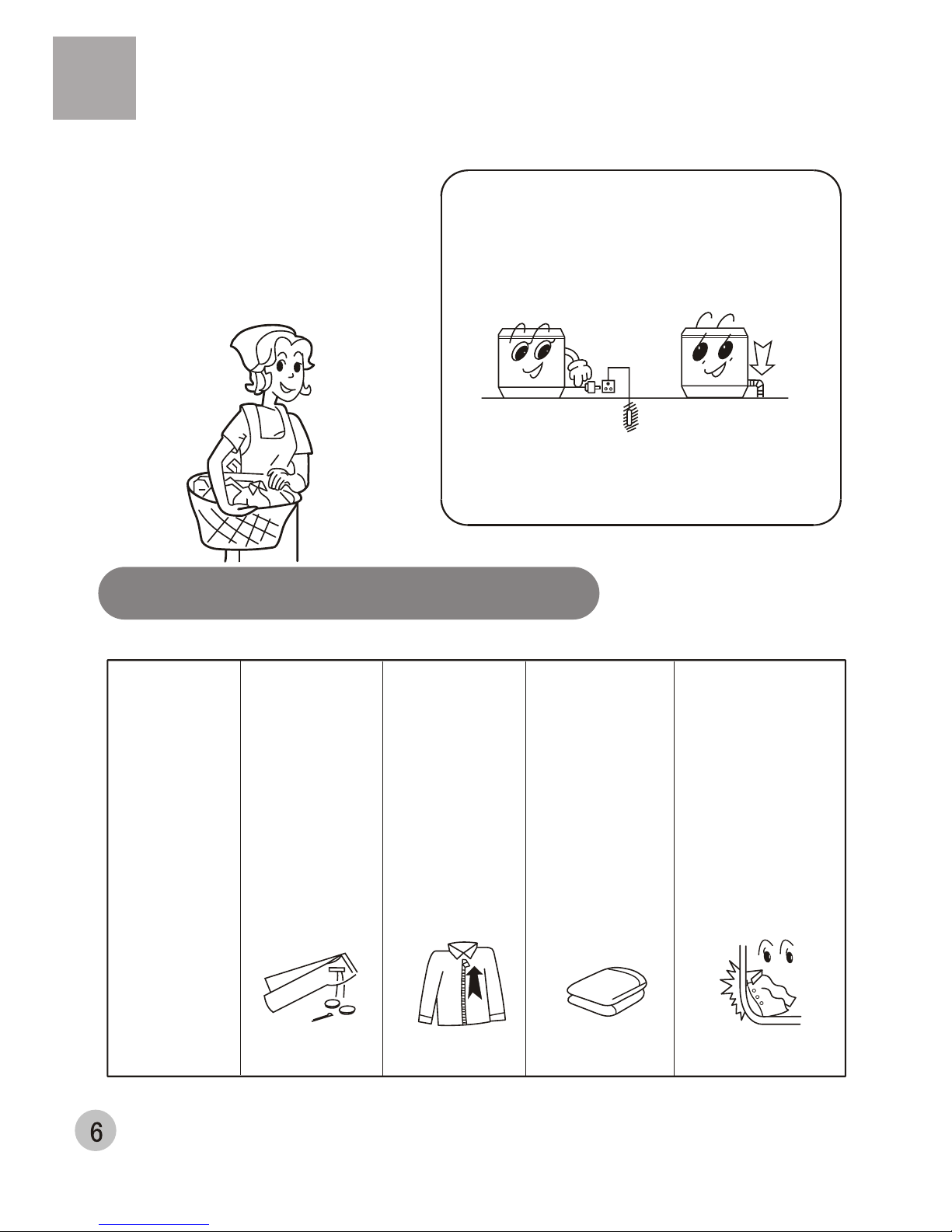

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.

The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.

Using process

Using process

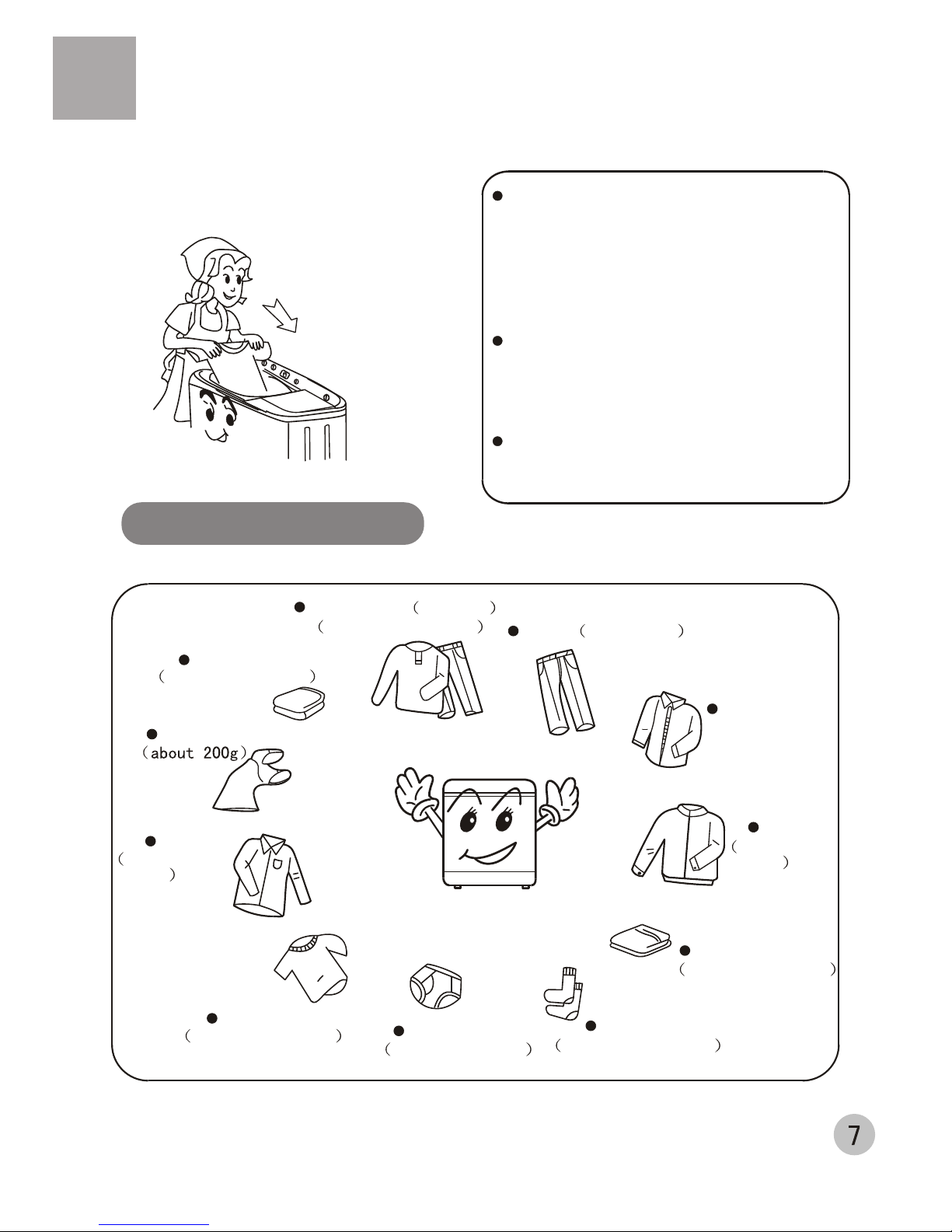

Preparation before washing

Pay attention to followings before washing the laundries

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
Laundries quantity in one washing cycle
shall be lower than the rated capacity.
The largest capacity of this machine is

7.0 kg.
The thickness ,size , type of the cloth will

influence the actual washing capacity. It
is suitable to put in reasonable amount of
laundries and the laundries can be turned
round in washing for one time washing.

Do not select " High " water level for
laundries less than 3.2kg, so as to avoid
splashing of water.

Blending coat

about 800g

Shirt

Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the
washing tub.
Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to
dissolve it completely.

3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully
dissolve it.

The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.

It is suggested not to use high sudsing
detergent.

Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.

Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before using.

Laundries
quantity

Laundries
quantity

Water level

Water level

Current

Standard dosage

Concentrated washing
powder

Laundries

Common washing
powder

Washing time
(minutes)

Water quantity

Water quantity

About About

About3~6
About8~10
About10~13
About7~13
About2~4
About3~6
About8~10

About About

About About

4.5kg~7.0kg

3.2kg~7.0kg

2.5kg~4.5kg

Below2.5kg

Below3.2kg

High (about55L)

High (about55L)

Standard

Low (about36L)

Low (about36L)
~

Gentle

Medium (about46L)

Medium (about46L)
~

Medium (about46L)

46g

38g

30g

55g

46g

36g

Usage of the detergent

Using process

Using process

Knitwear
Cotton,blending,linen
Very dirty and thick
Bed sheet
Silk(thin laundries)
Chemical fiber
Cotton,blending,linen

OFF

OFF

DRAIN

STANDARD

GENTLE

MAX

Washing sequence

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Spin timer

SPIN TIMER

SPIN

WASH

Wash timer

WASH SELECTOR

Wash selector

Buzzer

BUZZER

Water-filling entrance

(To set to below 2 minute,
first set to 5 minute then
turn it back. it can increase
the service life of the timer).

Using process

Using process

(gentle current,
standard current)

(The buzzer will ring when
the washing finishes)

(to set to below 1 minute,
first set to 2 minute then
turn it back. it can increase
the service life of the timer).

Overfilling sign

Water-filling selector handle

Wash

DRAIN

DRAIN

STANDARD

STANDARD

GENTLE

GENTLE

WASH SELECTOR

WASH SELECTOR

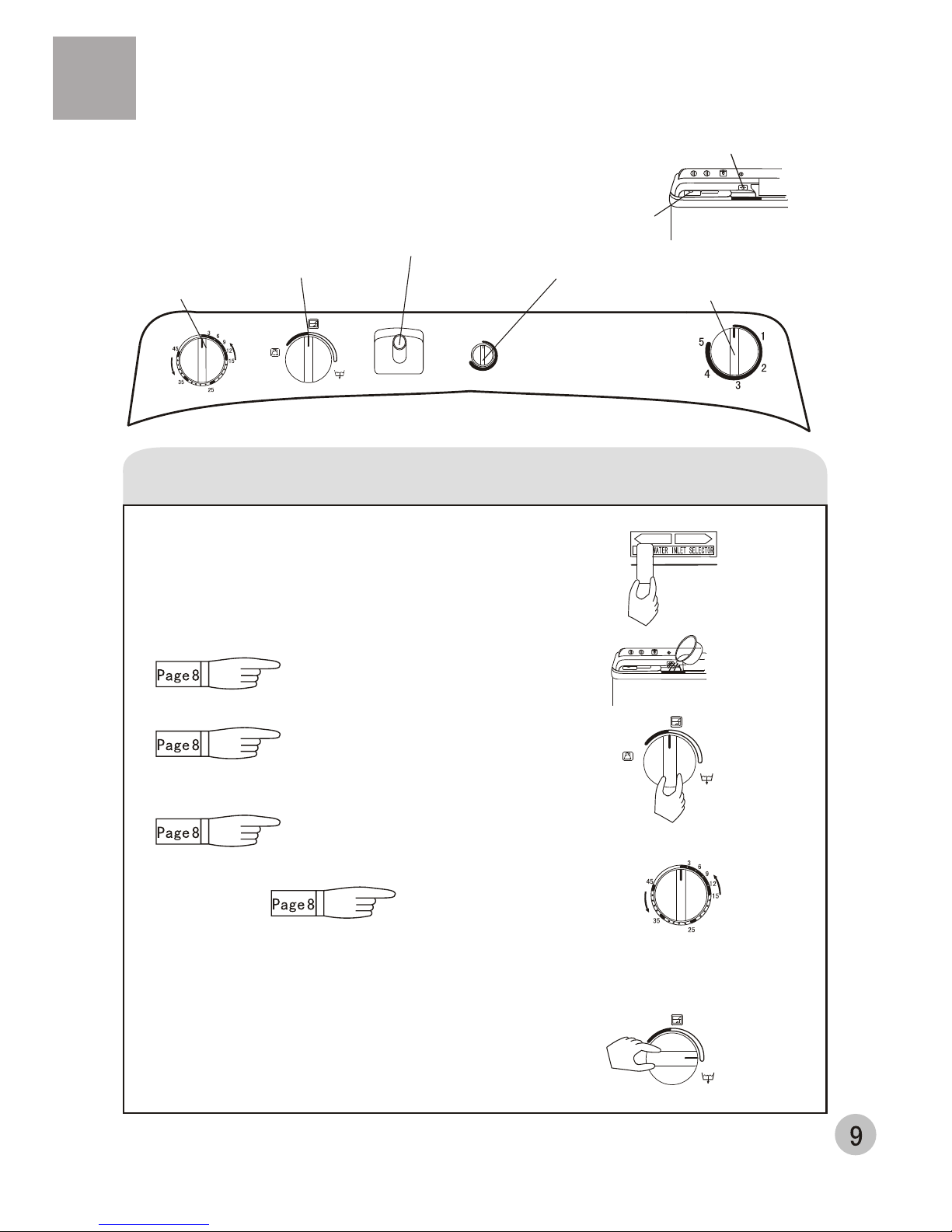

1.Water-filling selector
(1) Set the water-filling selector at the "WASH" side.
(Figure 1)
(2) Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.

2.Put in the laundries. If the water quantity is
insufficient, please add water.

3.Select the current.
Select the" STANDARD" or "GENTLE "current
according to the laundries. (Figure 3)

4.Select the washing time
Select the washing time according to the laundries.
(Figure 4)

5.After washing, the buzzer alarms. Set current change
at "DRAIN"position. (Figure 5).

WASH TIMER

WASH TIMER

OFF

OFF

WASH

WASH

SOAK

SOAK

Remarks:

1. 0~15 minute is the normal soaking.

2. 15~45 minute is active soaking. During active soaking, the pulsator will run for 2 minutes
in each 8 minutes. After the active soaking, it will run normal washing for 15 minutes.

3. If you select soaking(i.e. turn the knob to position between 15~45 minutes), be sure to
dissolve the washing powder in advance, otherwise the washing powder may result in
damage to the laundries.

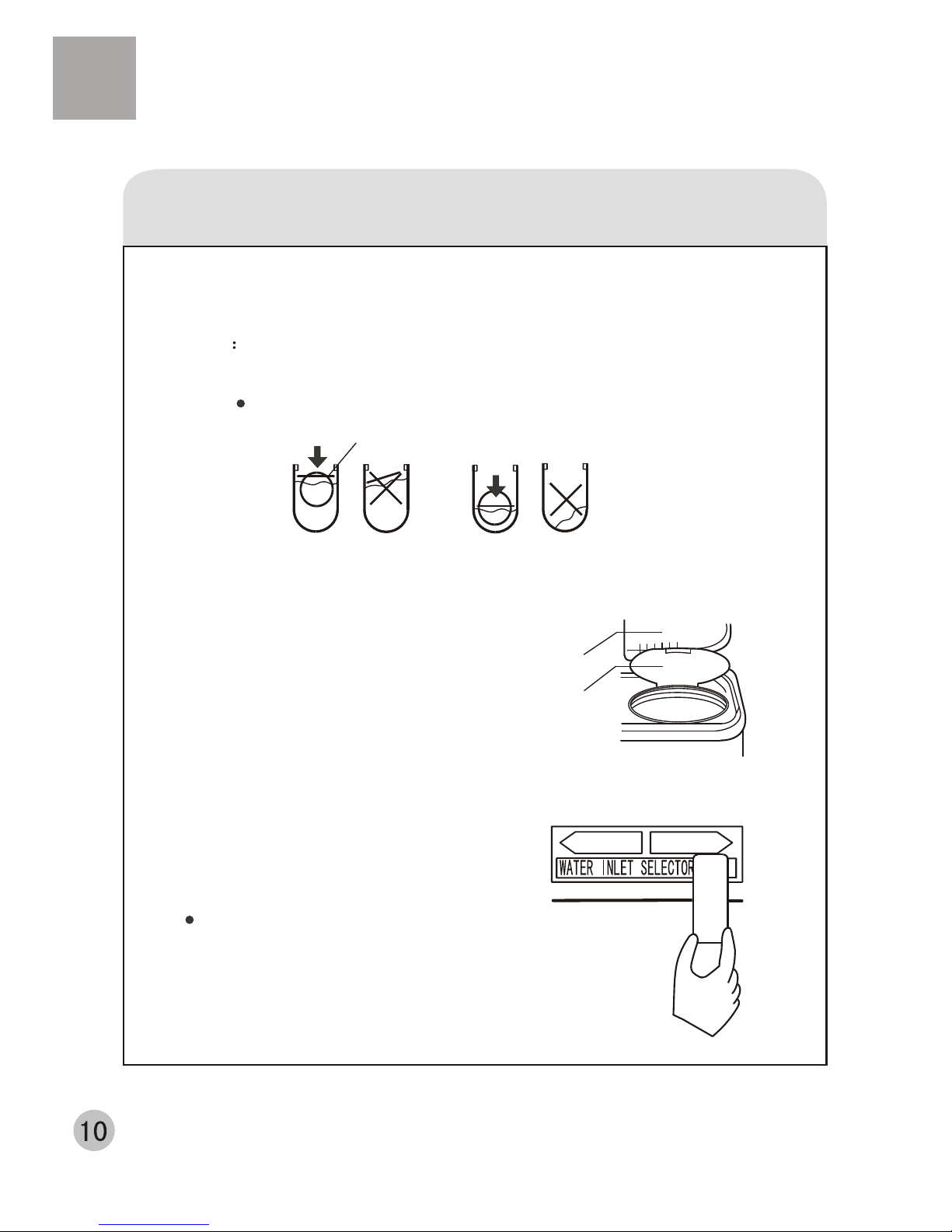

Midway spinning

1.

2.

3.

Put the laundries into the spin tub evenly and smoothly.

Spin

Run the foam-removing spinning.

Push

Push

Proper Proper

Outer cover of
The spin tub

Inner cover of
The spin tub

The laundries
are slanting

Gland

No gland

Using process

Using process

(1) Put the gland in properly.

Please put in the gland properly even if the laundries quantity is small.

(2) Close the inner and outer cover of the spin tub.

(3) Spin for 1-2 minutes.

(1) Open the outer cover of the spin tub.
(2) Set the water-inlet selector control
rod at the "SPIN" side. Fill water for
about 1 minute.
If the water quantity filled is too large,
the water may flow out from the wash
tub side. Please twist the water tap to
limit the water filling.
(3) Close the outer cover of the spin tub. Spin for 1-2
minutes.

SPIN

WASH

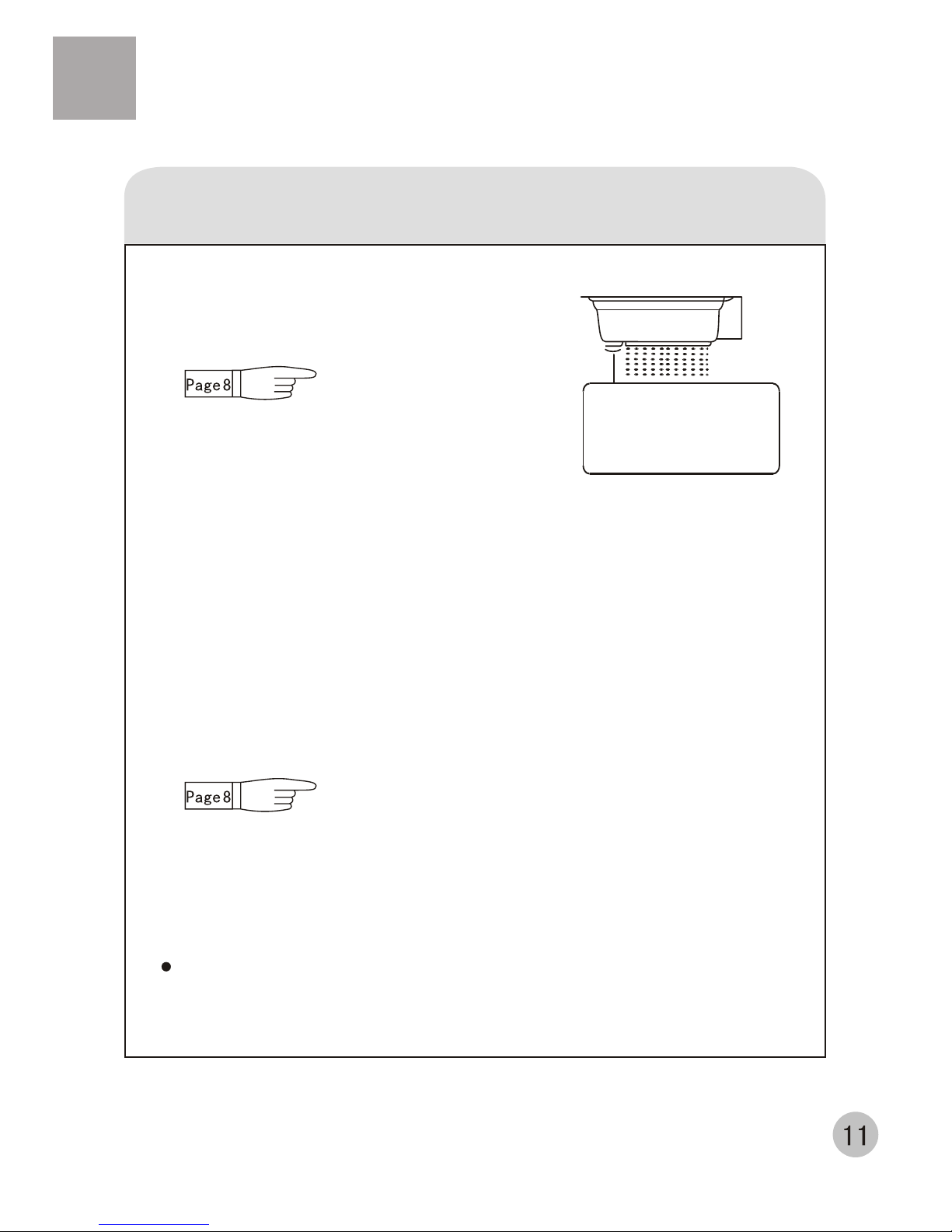

Rinse with stored water

Rinse with water-filing

1. Put the laundries into the wash tub. Select suitable current according to
the laundries.

2. Fill water to preset water level.

3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.

When the laundries quantity is below 3.2kg, please use "Gentle" current.
If you use "Standard" current, it may splash.

Rinsing

Using process

Using process

(Repeat the midway spinning and
rinsing with stored water for 2-3 times)

1.Put the laundries into the wash tub. Select
suitable current according to the laundries.

2.Adjust the water level
According to the laundries quantity, set the
water level with the adjusting lever. Fill
suitable water consecutively.

3.Rinse
Adjust the wash timer to 5-7 minutes to do
rinsing.

OVERFILL

If you find water flowing
out here,please twist
the water tap to limit
the water filling.

Selection of the spin time list 3

Laundries

Spin time
(minutes)

About 4~5

Bed sheet or
blanket

About 2~4

Underwear
(knitwear)

Swear
(chemical fiber)

About 1~2

Within 1 minute

Blending thin
laundries

Using process

Using process

1. Put the laundries into the spin tub
evenly and smoothly.

2. Press the gland in the tub properly.
Close the inner and outer cover of
the spin tub.

3. Spin
Select suitable spin time according
to the laundries, and do spinning.

During spinning, if there's abnormal
sound, it is generally owing to
slanting placement of the laundries.
Please stop the machine and re-order
the laundries.

In spinning, it will pause the work if you open the outer cover of the spin
tub. Close it to resume the spinning.

Spinning

To do spinning and draining or rinsing
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinsing with water-filling.
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

After using, please clean the lint and foreign materials of the lint filter and lint frame
in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.

1 Take off the filter frame.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.

Cleaning the filter frame

Too much lint on the filter frame will influence
the normal usage of the machine. Please
clean it every two months.

Elastic fixing
claw

Figure 2

Figure 3

Figure 1

1. Take off the lint filter
Put hand at the indicated position.
Push down to take it off. ( See to
Figure 1)

2. Clean the lint
Put it in water and clean while it is
still wet.(See to Figure 2)

3. Install the lint filter
After cleaning, insert the bottom
of the lint filter ( marked with
"down side") into the filter frame,
then push the upper part of the
filter in ( marked with " up side ").
(See to Figure 3)

The lint filter must be used during washing.
It must be cleaned in time after each using.

Cleaning the lint filter

Using process

Using process

Disposal after washing

Wipe the complete unit with soft cloth

twisted dry.

Wipe with neutral detergent if too dirty

Do not wash it directly by water

Using process

Using process

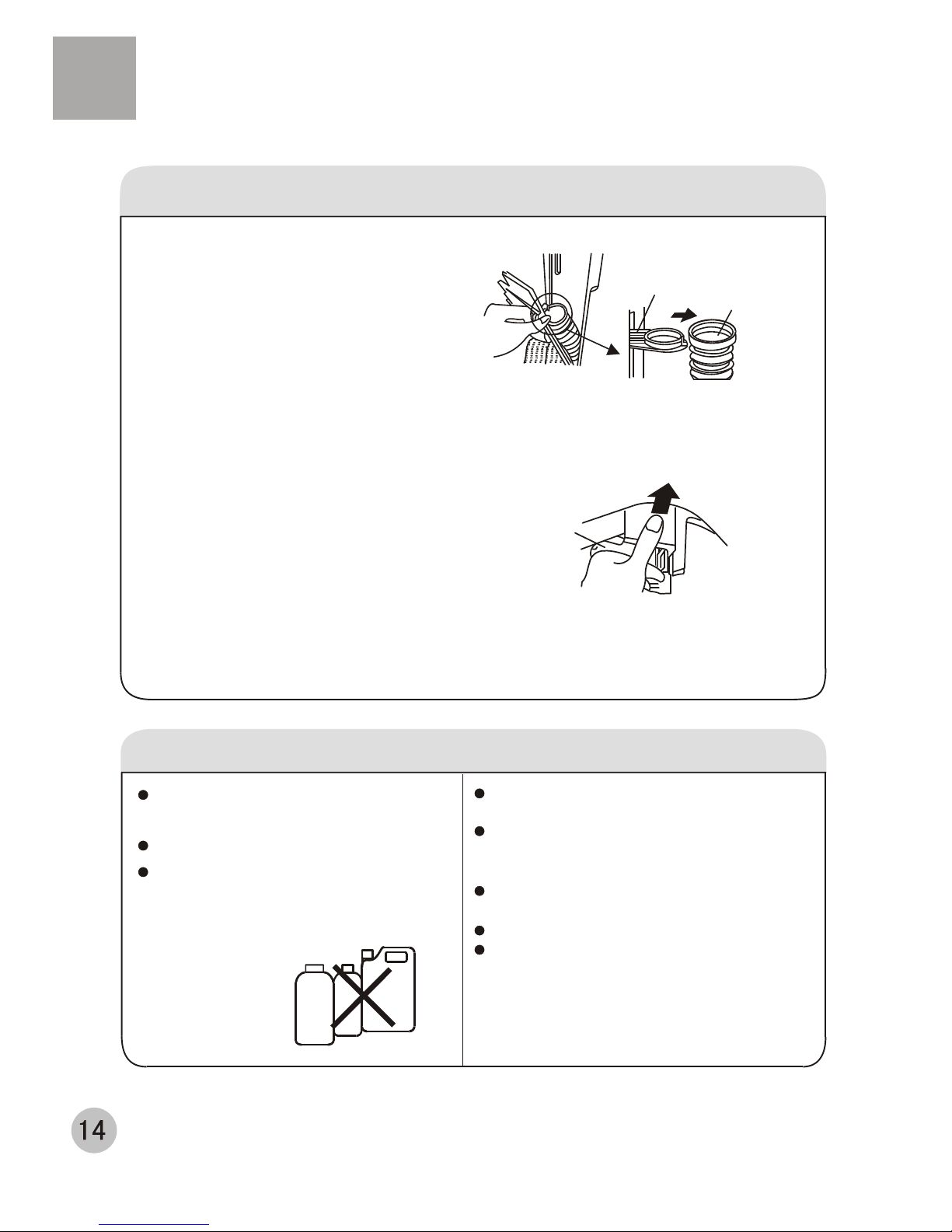

Cleaning the filter frame

2. Take off the corrugation pipe.

Dismantle the upper part of the

corrugation pipe inside the

overflow filter (See to Figure 1).

3. Cleaning the filter frame

Clean the lint around the frame

and flush with tap water.

4. Install the filter frame.

(1).Install the corrugation pipe.

(2).Insert the mounting plate at

the bottom of the frame into

the valve cover.

(3).Hang up the hook at the left

upper side.

(4).Push the upper part in as

indicated in Figure 2.

Corrugation
Pipe

Hook

Figure 1

Figure 2

Water level
adjusting lever

After washing, dismount the water inlet
hose.
Do not store water in the tub for long
period. Discharge the water immediately
after each using.
Pull off the power plug and hang up the
power cord.
Hang up the drain hose.
Wipe off the water drops on the surface
and inside the tub with clean soft cloth.
Open the cover of the wash tub and the
inner/outer cover of the spin tub for
some time (about one hour), then close
them.

Disposal of the complete unit

Thinner

Alcohol

Petrol

2~3L

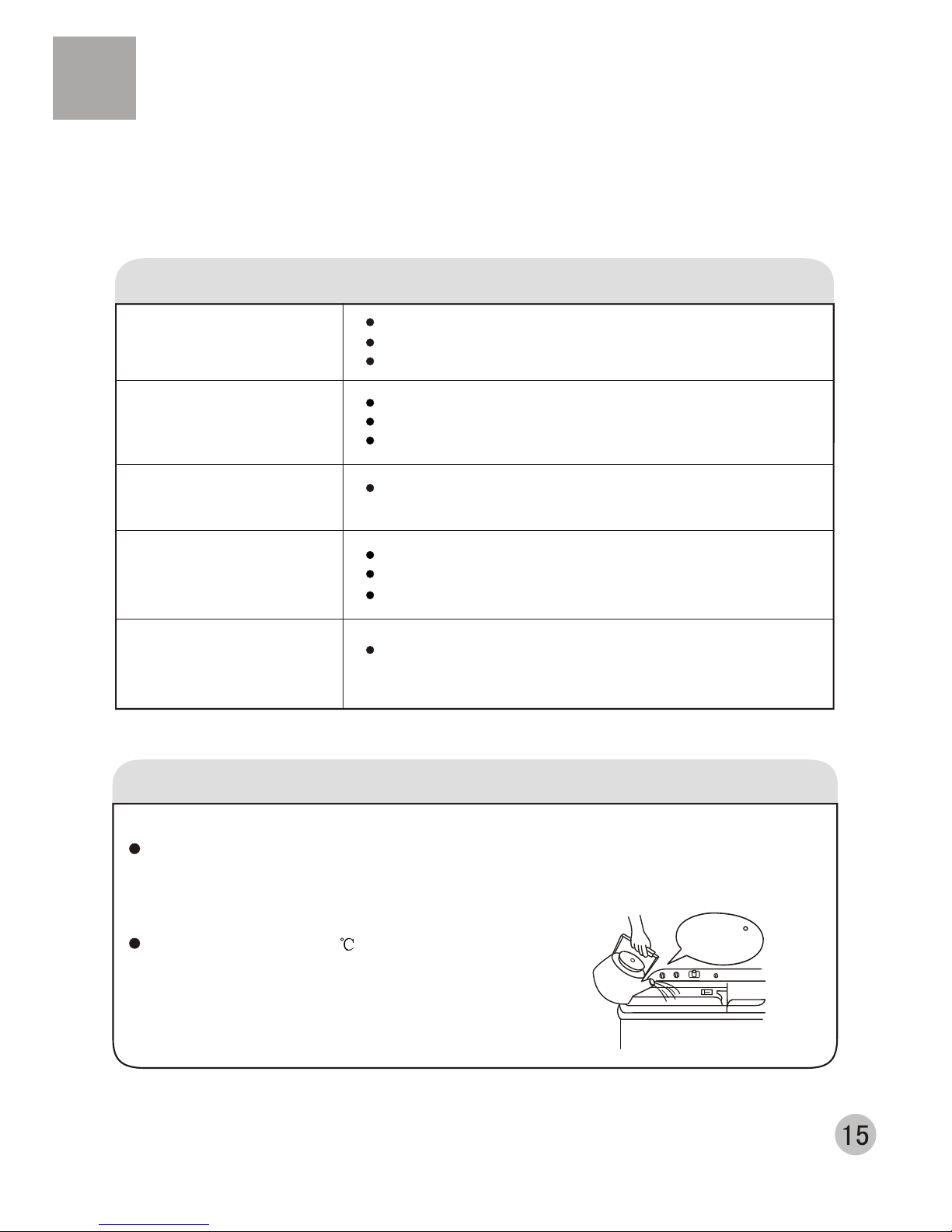

Trouble-shooting Answer to question

Below 50 c

(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.

Phenomena The reason

The machine does not act.

Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?

The draining does not work

Is the drain hose put down?
Is the drain hose frozen?
Is the drain hose blocked by foreign material?

There's abnormal sound
during washing

Are there hair pin, coins or metal items brought
inside the tub?

Is the machine slanting?
Is the gland pressed evenly?
Are the laundries in spin tub too much?

It is the water remained in the factory inspection
of performance.

There may be some water
flowing out of the drain
hose in the first use of
the machine.

There's abnormal sound
and violent vibration
during spinning

When the remained water is frozen

Prevent the freezing (be sure to discharge the water completely after using)
After complete draining, set the "WASH SELECTOR" at "GENTLE" or "STANDARD".
If it is set at "DRAIN", it will be rather difficult for the frozen water to melt.

When the water is frozen
Pour hot water below 50 into the wash tub
to soak it completely. Then turn the pulsator
with hands gently. Please confirm the drainage
can work normally before next using.

Packing list

User's manual

One

One

One

One

Water inlet hose

Gland

Twin-tub washing machine

One

Lint filter

Type

Model

Power source

Water level Water quantity about

Rated washing capacity kg

Rated input power W

Dimension(mm)

Wash pattern

Weight kg

Injection pressure

Rated spinning capacity kg

Twin-tub washing machine

DWE-270

220V~, 50Hz

High/55L Medium/46L Low/36L

7.0

7.0

Wash 370 Spin 230

L805 W473 H948

New current + Bubble+Soak

28

0.02MPa~0.2MPa

Rated voltage Rated frequency

Specification
