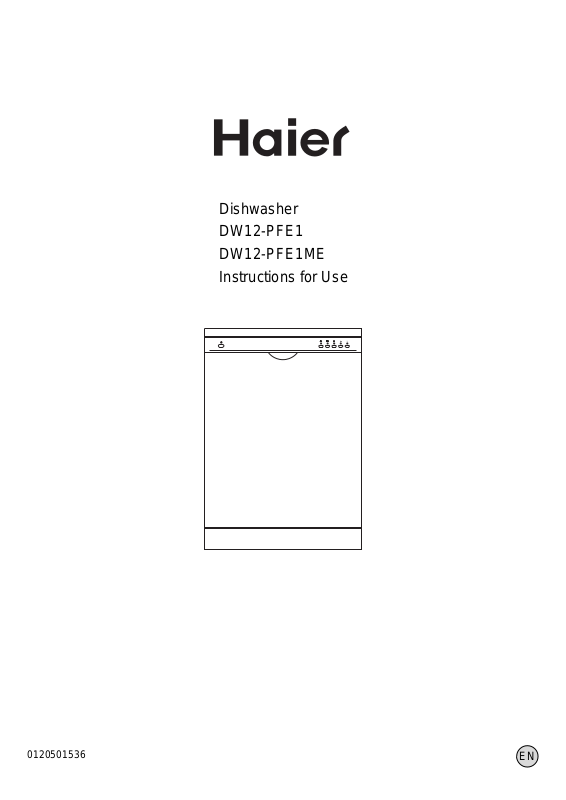

Haier DW12-PFE1 ME, DW12-PFE1 User Manual

Dishwasher
DW12-PFE1
DW12-PFE1ME
Instructions for Use

0120501536

EN

Index

Safety information
Installation
Getting to know your dishwasher
How to fill the salt
How to fill rinse aid
How to fill the detergent dispenser
Not suitable for the dishwasher
Arranging crockery, glasses, etc. in the dishwasher
Programme overview
Care and maintenance
Washing dishes

How to keep your dishwasher in shape

Fault finding
Important information
Technical data

1
2

3

3
4
4
4
5
6
6
7
7
8
9

10

Safety information

EN

At time of delivery

Check packaging and dishwasher immediately for signs of transport damage.
If the appliance is damaged, do not put it into use but contact your supplier
or customer service without delay.
Please dispose of packaging materials properly.

If your family includes children

During installation

Site the dishwasher and connect it up in accordance with the installation
instructions.
The dishwasher must not be connected to the electricity supply while instal­lation is being carried out.
Ensure that the domestic wiring is properly earthed.
The mains electricity supply must conform to the details shown on the dish­washer rating plate.
Do not connect the dishwasher to the electricity supply via an extension
cable.
Built-under and built-in appliances should always be installed under a con­tinuous work surface which is attached to the adjacent cupboards, in order
to ensure that the appliance is entirely stable.
After the appliance has been installed,the mains plug should still be easily
accessible.
Not on all models:
The plastic housing on the water inlet contains an electrically operated valve.
The connecting wires are inside the inlet hose.Do not cut through this hose
and do not immerse the plastic housing in water.
During installation, the power supply cord must not be bent or flattened.

If a fault occurs

When disposing of old appliances

The appliance is not intended for use by young children or infirm persons
without supervision.
Young children should be supervised to ensure that they do not play with
the appliance.
Keep detergents out of the reach of children, who must also be kept away
from the dishwasher when it is open.

If the appliance malfunctions, turn off water supply to the appliance and
disconnect the plug from the wall socket. Then, consult the section entitled,
"Fault finding" .If you cannot solve the problem, contact a service center.
Only specialised personnel are authorised to make repairs.
If the supply cord is damaged, it must be replaced by the manufacture, its
service agent of similarly qualified persons in order to avoid an electrical hazard.
To maintain the EFFICIENCY and SAFETY of this appliance,we recommend:

- call only the Service Centers authorised by the manufacturer.

- always use original Spare Parts.

Appliances which are no longer being used must be made inoperable by
cutting the power supply cord and removing the door lock.
Take the appliance to a designated waste disposal center.

During normal use

The dishwasher must only be used by adults for the washing of household
dishes and cooking utensils.
This appliance cannot be installed outdoors, not even if the area in which it
is installed is covered by a roof; it is also very dangerous to leave it exposed
to the elements.
Do not place any heavy objects or swing on the door when it is open. The
appliance could tip forward.
The water inside the dishwasher is not suitable for drinking.
Do not use solvents of any kind inside your dishwasher. They could cause
an explosion.
Open the door very carefully if the dishwasher is operating. There is a risk of
water squirting out.
Do not touch the heating element during or after a wash cycle.
Fundamental rules to follow when using the appliance:

- Never touch the dishwasher when barefoot or with wet hands or feet;

- We discourage the use of extension cords and multiple sockets;

- If the appliance is not operating properly or maintenance must be
performed, disconnect the appliance from the power supply.
The door shall not be left in the open position since this could present a
tripping hazard.

Dangerous voltage

Warning

Safety of Children when disposing of your old
appliance.Some packaging materials can be dan­gerous for children. There is a risk of suffocation,
keep packaging materials away from Children.
When disposing of old products remember to dis­able the door locking system by breaking or re­moving the door catch. and or hinges. This will
stop children from locking themselves inside the
product when playing. (Danger of suffocation).

1

Installation

Positioning the appliance

Positioning the appliance in the desired location. The back should rest against
the wall behind it, and the sides, along the adjacent cabinets or wall. The dish­washer is equipped with water supply and drain hoses that can be positioned to
the right or the left to facilitate proper installation.

Levelling the appliance

Once the appliance is positioned, adjust the feet (screwing them in or out) to
adjust the dishwasher, making it level. In any case, the appliance should not be
inclined more than 2˚. If the appliance is level, it will help ensure proper
performance.

Cold water connection

Connect the water supply hose to a water outlet tap, making sure that it is
fastened tightly in place (see fig.A). Make sure the rubber washer is seated
firmly in the bottom of the connector.
If the water pipes are new or have not been used for an extended period of time,
let the water run to make sure that the water is clear and free of impurities. If this
precaution is not taken, there is a risk that the water inletcan get blocked and
damage the appliance.

fig.A

Warning

The appliance is to be connected to the water mains using
new hose-sets and that old hose-sets should not be reused.

Anti-Flooding protection (for some models)

Your dishwasher has an overfill protection device which could automatically shut
off the inlet valve and starts the drain pump if the water level in the unit is detected
to be above the normal level.
If this occurs, turn off the main water supply before calling for servicing. If there is
water in the base pan because of an overfill or small leak, the water should be
removed before restarting the dishwasher.

Electrical Connection

After making sure that the voltage and frequency values for your home correspond
to those on the rating plate (located on the stainless steel inner door of the appliance)
and that the electrical system is correct for the maximum voltage on the rating
plate, insert the plug into an electrical socket which is earthed properly (the earthing
of the appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected is not appro­priate for the plug, replace the whole cable, rather than using adaptors or the
like as they could cause overheating and burns.

Electrical Connection (Uk Only)

For your safety please read the following information.

Warning: This appliance must be earthed.

The appliance must be connected to a 220-240 volts 50 cycle AC supply by
means of a three pin socket, suitably earthed and should be protected by a 13
amp fuse in the plug or a 15 amp fuse in the consumer unit.
The appliance is supplied with a moulded 13 amp 3 pin mains plug fitted with a
13 amp fuse. Should the fuse require replacement, it must be replaced with a
fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is
replaced. In the event of the fuse cover being lost or damaged, the plug must
not be used until a replacement cover has been obtained.
If the moulded mains plug is unsuitable for the socket outlet in your home or is
removed for any other reason, then the fuse should be removed and the cut off
plug disposed of safely to prevent the hazard of electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13 amp
socket outlet.

EN

Attention:

The connecting piece for syphon trap (U-bend) must be
solidly fastened to the wall to prevent the drain hose from
moving and allowing water to spill outside the drain.

Caution:

The dishwasher plug must be accessible even when the
appliance is installed as a built-in unit so that maintenance
can be done safely.

Drain hose connection

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. If necessary, fit a
syphon trap (U-bend) with a connecting piece for the drain hose (fig.B). The
free end of the hose must be at a height between 40 and 100 cm and must not
be immersed in water.

fig.B

2

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with
the following code:
Green and Yellow - Earth Blue – Neutral Brown – Live
As the colours may not correspond with the markings identifying the terminals
in your plug proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is
marked with the letter E or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N or coloured black.
The brown wire must be connected to the terminal marked L or coloured red.

Caution:

The dishwasher plug must be accessible even when the appliance is installed
as a built-in unit so that maintence can be done safety.
