Haier BKD45W, BFD45W User Manual

Built-in installation
Built-in installation(without worktop)
remove the worktop
WQP6-2A
Start
RinseStandard
Pause
Intense
Power Indicator
ON OFF
Delay timer
Start
DryingDrying DryingPause
Max. height of
drainpipe:80cm
Min. Diametere of sewage
pipe:4cm
Min. Height of
drainpipe:40cm
Fresh-water connection
Connect the hose to a water tap using the enclose parts and in accordance with the in­stallation instruction
Water pressure:
Minimum 3x104-maximum 106Pa. If the water pressure is higher,install a pressure reducing valve.
Water temperature
We recommend that you use cold water. If you do use hot water,the temperature should not exceed 60
Electrical connection
This appliance should only be connectedto a 220V AC source via a properly installed erath socket.See nameplate for size of required fuse.
Disconnecting the dishwasher
Here too,it is important that tasks are carried out in the correct sequence: always unplug the appliance from the mains electricity first of all. Pull plug out of wall socket. Turn off water suplly. Disconnect drain and water input hoses .Re­move screws in underside of wrok surface. Detach base board, if fitted. Pull out appliance and carefully withdraw hoses at same time.
Transporting the dishwasher
Drain water from the dishwadher.Secure all loose parts.The appliance should only be transported in an upright position.
- If the appiance is not kept upright dur­ing transport, any water left inside may seep into the control module and cause subsequcent error with programme function. The appliance must be drained in the fol­lowing sequence:
- Set main switch to ON
- Select the NORMAl programme. The programme duration in minutes is shown in the numerical display.
- Wait for approximately 4 minutes.
- Terminate the programme by pressing Intensive and Rinse simultaneously.
- Wait a further minute and then switch the appliance off.
Protection from freezing temperature
If the appliance is installed in a location where there is a risk of freezing temperature (e.g. in a holiday home),all water must be completely drained out pf the interior (see "Transporting the dishwasher"). Turn OFF the tap,disconnect the supply hose and allow to drain
Installation instructions
Individual installation
Other information
Installation
White stains are left on crockery, glasses have a milky appearance
- Not enough detergent was added to input compartment.
- Amount of rinse-aid was set too low.
- If you used a phosphate-free detergent, try a detergent containing phosphates and compare results.
Dishes, cutlery,etc.have not been dried or disinfected
- Selected programme did not include drying function function.
- Amount of rinse-aid was set too low.
- Items were removed from dishwasher too soon.
Glasses have a dull appearance
- Amount of rinse-aid was set too low.
Items were removed from from dishwasher too soon.
Glasses have a dull appearance
- Amount of rinse-aid was set too low.
Tea stains or traces of lipstick have not been completely removed.
- Detergent does not have a sufficient bleaching effect.
- Washing temperature was set too low.
Traces of rust on cutlery
- Cutlery is not sufficiently rustproof.
Glasses become clouded and discoloured;coating cannot
be wiped off
- Unsuitable detergent was used.
- Glasses are not dishwasher-proof.
Smears left behind on glasses and culery; glasses have acquired a metallic appearance
- Amount of rinse-aid set too high.
Notes on waste disposal
Old appliances still have some residual value. An envoiment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.
When an appliance has reached the end of its working life,unplug it from the mains. Cut through the mains cable and dispose of it together with the plug.
Destory the door locking mechanism. This will ensure that children at play cannot be­come locked inside and are mot exposed to the risk of suffocation.
Your new appliance was protected by suit­able packaging while it was on its way to you. All materials used for this purpose are envi­ronment-friendly and can be recycled. Please make a contribution to protecting the envi­ronment-friendly and can be recycled. Please make a contribution to protecting the enviroment by disposing of the packaging. There is a risk of suffocation by the cardboard boxes and the plastic wrapping.
Up-to-date information cerning options for disposal can be obtained from your retailer or local municipal administration.
In order to function correctly the dish­washer must be properly installed. Speci­fications for the water intake and waste­water drainage, as well as electrical connections, must fulfil the criteria that are set out in the following paragraphs and the installation instructions. When installing the dishwasher, carry out tasks in the following order:
- Check contents of delivery upon receipt,
- Site dishwasher,
- Connect drainage hose,
- Connect inlet hose to water supply,
- Connect dishwasher to electricity supply.
Checking contents of delivery
All functions of your dishwasher have been thoroughly tested in the factory. A small number of water marks have been left on the dishwasher as a result. They disap­pear as soon as the appliance is used for the first time.
Siting the dishwasher
Dimensions associated with siting the dish­washer are contained in the installation instructions. Ensure that the appliance is completely level by adjusting the feet. Make sure that it is standing on a firm surface.
Drainage connection
See the installation instructions for details of procedure to be followed. If necessary, fit a siphon trap (U-bend)with a connecting piece for the drainage hose. Connect the drainage hose to the trap using the enclosed parts.
Fault finding
Resolving minor problems yourself
Experience has shown that you can resolve most problems that arise during normal daily usage yourself, without having to call out a service engineer. Not only does this save costs, but it also means that the appliance is available for use again that much sooner. The following list of common occurrences and their remedies should help you identify the causes of most problems.
Problems
When the appliance is
switched on
Appliance does not start up
- Fault with fuse in mains electricity supply.
- Plug not inserted wall socket.
- Appliance door not closed properly.
- Water tap not turned on.
- Blocked strainer in water intake hose.
- The strainer is situated in the Aquastop or supply-hose connection.
Caution
Do not forget that repairs should only be carried out by a qualified specialist. Improper repairs can lead to considerable equipment damage as well as danger to the user.
With the appliance itself
Error display F on the numercial display
- Tap not turned on.
- For appliance with Aquastop: Brief excess pressure in the water mains; The Aquastop system must be vented:
- Turn off the tap.
- Unscrew the Aquastop and then screw back on again.
- Turn on the tap.
Lower spray arms rotates with difficulty
- Spray arm is blocked by small items or food remains.
Lid in detergent compartment cannot be closed
- Detergent compartment has been overfilled.
- Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished.
Remnants of detrgent stuck inside dispenser
- Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added.
Water remains inside appliance af­ter programme has ended.
- Blockage or kink in drainage hose.
- Pump is jammed.
- Coarse or fine filter or microfilter is blocked.
During washing
Unusual amount of foam is created
- Normal washing up liquid has been pourd into the rinse-aid container.
Appliance stops suddenly while washing is taking place.
- Cut in electrcity supply to appliance.
- Water supply has been interrupted.
Whistling sound can be heard while washing is taking place
- Whistling sound is caused by face seal on pump. This is not a fault but if it continues all the time, arrange for a service engineer to replace the seal.
Knocking sound can be heard while washing is taking place
- Aspray arm is knocking against the dishes inside the appliance.
Rattling sound can be heard while washing is taking place
- Crockey has not been stacked properly inside the appliance.
Knocking sound coming from inlet valves.
- This is caused by the way the water pipes have been laid and it has no effect upon
With the dishes, cultery, etc.
Remnants of food are stuck to the dishes,cutlery,etc.
- Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc.
- Too many items in the rack.
- Items in the rack were touching each other.
- Not enough detergent was added to dispenser.
- Selected wash programme was not intensive enough.
- Rotation of spray arm was obstructed by dish, etc.
- Nozzles in spray arm are blocked by remnants of food.
- Coarse or fine fillter or microfilter is blocked.
- Filters have been incorrectly fitted.
- Waste-water pump is jammed.
Plastic items are discoloured
- Not enough detergent was added to dispenser.
- Detergent has insufficient bleaching properties. Use a detergent containing a chemical bleaching agent.
Care and maintenance
Interruping the programme
- Set Start/Pause 9 to PAUSE.
- Indicator lights extinguish. The programme is retained in the dishwasher memory.
- If or the appliance has already heated up and then the appliance door ajar for several minutes and then close. Otherwise, the appliance door may fly open due to expansion.
- In oder to continue with thestored programme, set the button 9 to START.
Programme the delay timer
You can delay the start of a programme in increments of ONE hour for up to NINE hours.
- Switch dishwasher ON.
- Immediately press the Preset button 2 . The numercial display 3 changes to .
- Press the Preset button as many times as necessary unit the numercial display shows the required delay.
- To erase the time delay setting, keep pressing the Preset button until disappears in the numerical display. The timer function is cancelled if the dishwasher is switched off. You can change your programme selection as often as you like during the intervening period before the dishwasher starts up.
Drying
When a programme without drying process is selected,the dinner service is dried solely by afterheat
- Press the 6 or 7 or 8 button,and set washing programme
- Press the 6 or 7 or 8 button again, and set the programme to Drying.
Changing the programme
Once selected,the programme can not be changed during operation.To be change the programme, switch off the main switch and repeat the programme.
Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring. This saves time and aggravation. You should therefore carefully inspect the in­side of your dishwasher from time to time.
Overall condition of appliance
- Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits:
- Clean the interior of the dishwasher thorough with a detergent solution.
Filters
The filters 14 prevent larger remnants of food or other objects from getting inside the pump.This residue can occasionally clog up the filters. The filter system consists of a coarse/ microfilter and a flat fine filter.
- Inspect the filters for obstructions every time the dishwasher has been used.
- Remove the filters if necessary. After you have unscrewed the coarse/microfilter, you can lift out the fine filter. Remove any obstructions and clean the filters under runing water.
-Re-insert the fine filter and secure it in place by screwing the coarse/microfilter tight.
Spray arms
Lime and remants of food in the washing water can block the nozzles in the spray arms 12 and 13 and the arm mountings.
- Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
- If necessary, pull the lower spray arm 13 upwards and lift it off.
- Unscew the upper spray arm 12 .
- Clean both spray arms under runing water.
- Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight.

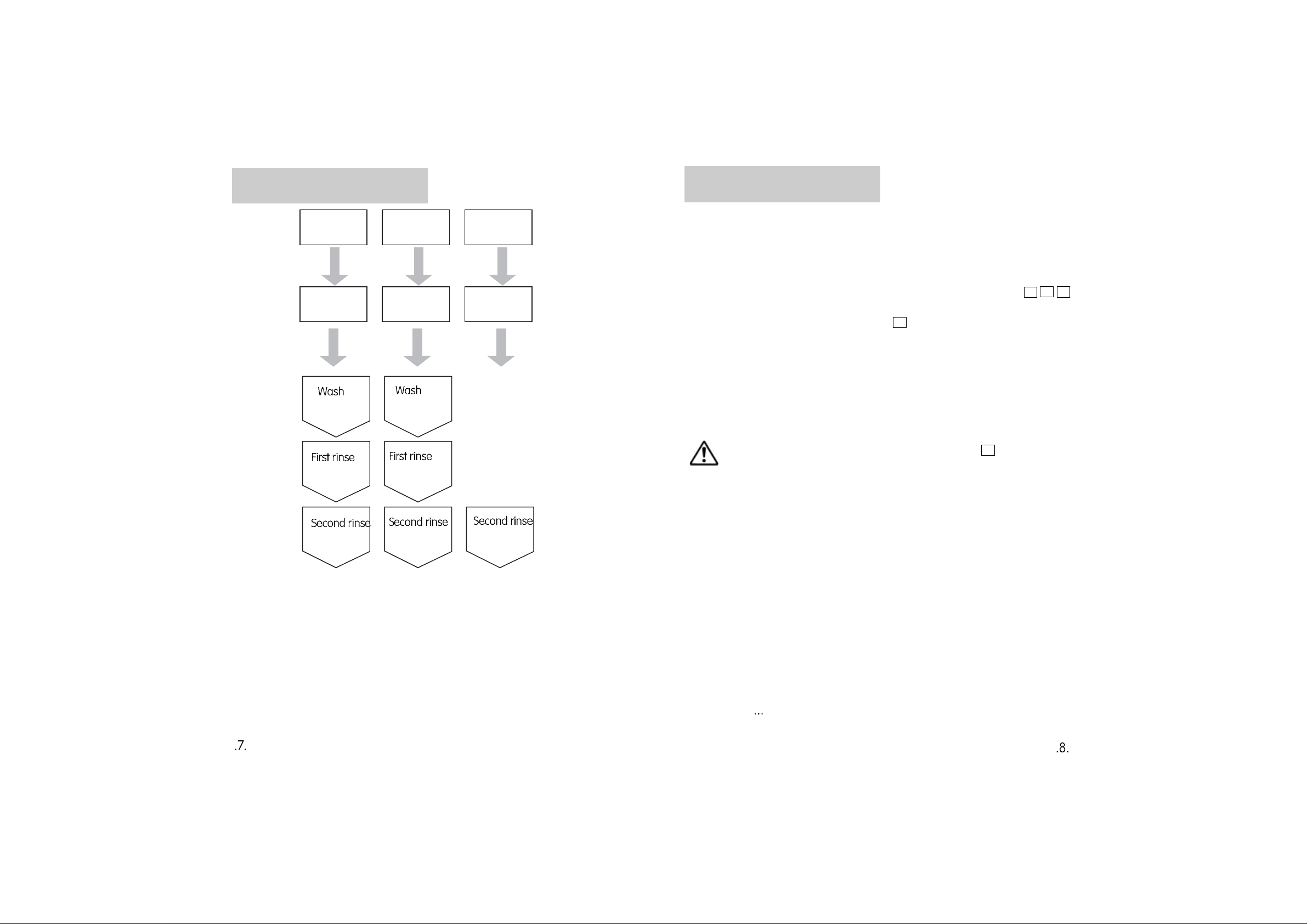

Programme overview
Washing dishes
Condition of dishes
Wash Programme
Programme sequence
Normal
Standard wash
(ca.15min)
(ca.5min)
(ca.10min)
Dirty
Intense wash
(ca.25min)
(ca.10min)
(ca.10min)
To be rinsed
Rinse
(ca.10min)
Programme selection
The most appropriate programme can be identified by comparing the type of crockery, cutlery,etc.,as well as the amount and con­dition of food remains,with the details con­tained in the programme overview.
The corresponding programme sequence, duration and consumption details are shown in the bottom half of the overview. For example: For a mixture of various types of crockery and utensils with plenty of pood remains that are not stuck on fast,use the NORMAL programme.
Reduce costs!
If only a small number of dishes have been loaded into the dishwasher,selecting a programme that operats at the next lowest temperature will usually suffice.
Switching the dishwasher ON
- Set main switch 1to ON. Indicators light up according to thelast programme that was selected. Indicators light up according to the last programme that was selected 6 7 8 .
- The programme starts after press button 9 .
End of programme
The programme has ended when all the indicators of selecting programme turn off.
Switching the dishwasher OFF
Several minutes after the programme has ended:
- Set the main switch 1 to OFF.
- Turn the water tap off. (Does not apply when Aqua-Stop unit has been fitted).
- Remove dishes, etc.when they have cooled down.
Programme data
The stated programme data are based on standared operating conditions.The values can vary considerably according to:
- different amounts of dishes
- temperature of mains water supply
- pressure of mains supply
- ambient temperature
- fluctuations in mains voltage
- machine-related factors(e.g. temperature, water volume,
).

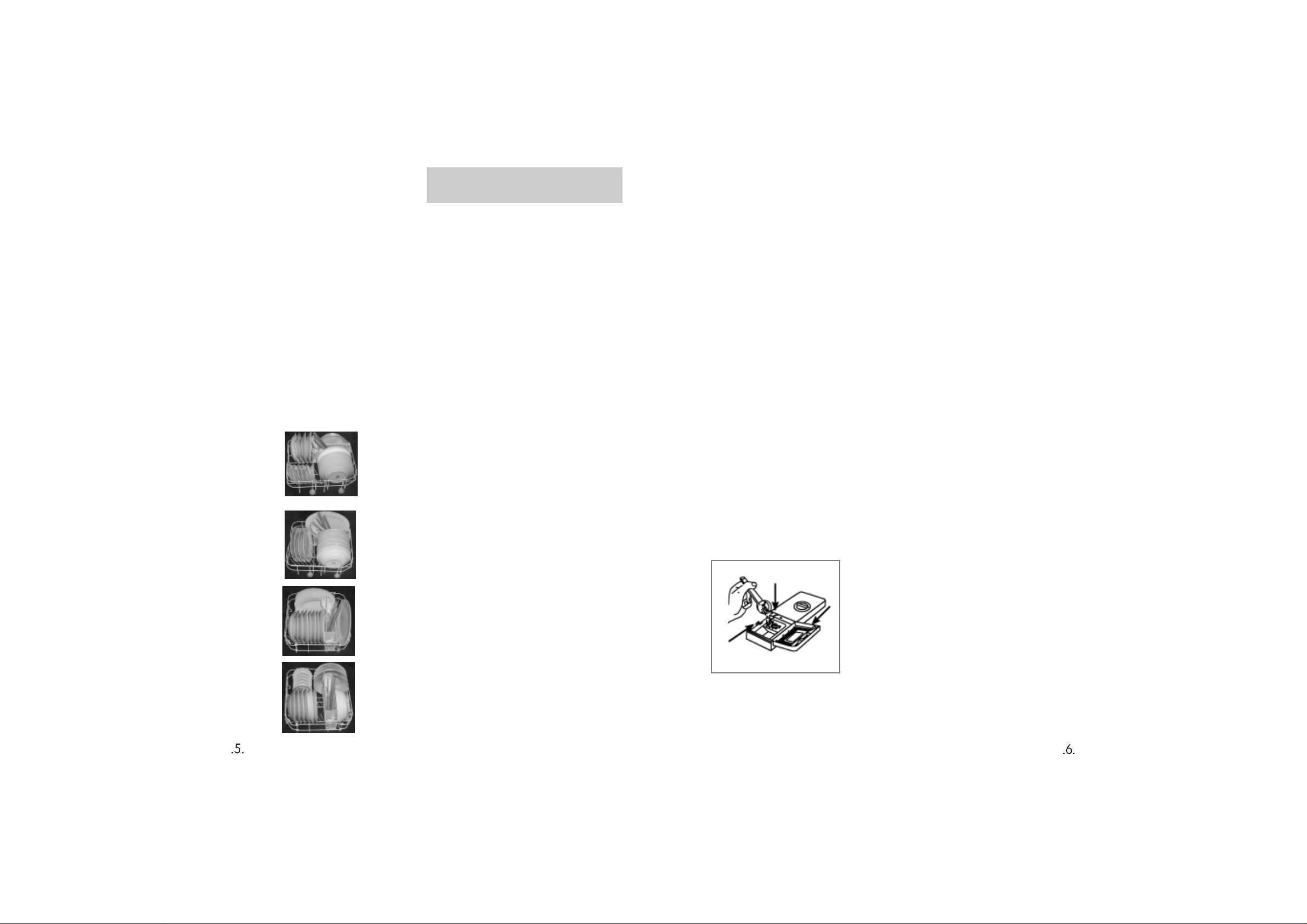

Lower rack
Detergents
- The lower rack is suitable for bowls,soup plate,frying pan,pan cover and plate,knife, fork,spool and soup ladle,etc.
- Plates shoud be sent in one direction and the bowls and cups should be set in the rack.Arrange the dishes for the best washing effect.
- The detachable chopstick container is positioned on the inner front side.Place the chopsticks and spools loosly in the container to ensure the best washing effect.
- See the following examples for referrence.
Information about detergents
You can use any brand or liquid or powder detergent,as well as tables,that have been specifically designed for use in domestic dishwashers.(Do not use normal washing-up liquid!)
Nowadays there are three types of dish­washer detergent available:
1.those containing phosphates and chlorine,
2.those containing phosphates but no chlorine,
3.those containing neither phosphates nor chlorine.
When a phosphate-free detergent is used in conjunction with hard water,there is a greater possibility that white warks will be left behind on crockery and glasses,etc.These can be avoided by pouring an increased amount of detergent into the dispenser.
Check the lable on the detergent packaging to determine whether a particular product is suitable for use with silverware.If you have any further questions,we recommened that you contact the customer advice departments of the various detergent manufactures.
Adding detergent
- The detergent dispenser is at the inner door, with the detergent contaiter at the left side and the rinse liquid contaiter at the right side.
- Add detergent before starting the appliance. To add detergent, press button A to open the lid B of the dispenser. Add appropriate amount of detergent into the contaiter C and then close the lid B.
- Amount of detergent: 8g (about a spool and a half )
- The lid opens automatically and release the detergent into water during operation.
Chlorine-free detergents have a reduced bleaching effect .This can mean that tea stains are not completely removed or plastic items become discoloured.
This can be resolved by:
- selecting a higher temperature programme,or
- increasing the amount of detergent,or
- using a detergent that contains chlorine.
C
B
A
Filling the rinse-aid container
Not suitable for the diashwasher
Arranging crockery, glasses,etc.in the dishwasher
The purpose of a rinse-aid is to prevent the formation of water marks on tableware and utensils, and to ensure that glasses are clean and sparking. The rinse-aid is consumed during the washing process.
- The rinse liquid contaiter is right to the detergent contaiter. Rotate the lid A anti­ clockwise to take it out, add rinse liquid and make sure no rinse liquid spills out.
- Adjust the dosage of rinse liquid according to the hardness of water.2~3ml a time is recommended. To change the dosage , use a screwdriver to adjust the dosage regulator under contaiter.
- The volume of the rinse liquid contaiter is about 130~140ml.Fill up the rinse liquid and close the lid.
- Generally, rinse liquid is automatically added upon the last rinse process
Rinse-aid
A
dosage regulator
the lid
What you should not put into the dishwasher:
Cutlery and tableware manufactured in whole or part from wood. They become faded and unsightly in appearance. Furthermore, the adhesives that are used are not suitable for the temperature that occur inside the dishwasher. Delicate decorative patterns on such items will not be dishwasher-proof.
Plastic objects that are not resistant to hot water,copper and pewter utensils are also not suitable.Decorative patterns printed or painted or painted onto the surface of crockery, glasses,etc., aluminium and silver items tend to become discoloured or faded if washed in the dishwasher. Some types of glass can become opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent materials, such as sponges and towels, should never be placed in the dishwasher.
Our recommendation:
In future, only puchase table or kitchenware that has been confirmed as being dishwasher-proof.
Damage to glassware and other dishes
Possible causes:
- Type of glasses or manufacturing proccess
- Chemical composition of detergent
- Water temperature and duration of dishwasher programme.
Suggested remedy
- Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
- Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.
- Select a programme with as low a temperature and as short a duration as possible.
- This is one advantage of connecting the dishwasher to a hot-water supply.
- To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.
Upper rack
- The upper rack is suitable for class, teatray,teacup,coffee cup,plate, bowl and shallow dish.
- Teacup and small bowls can be placed on the right and left cup racks besides the dish rack.
- See the following examples for reference.
Important
Use only rinse-aids intended for use in domestic dishwashers.
Important
Dishers or cutlery that have been soiled by tobacco ash, wax, lubricating grease or paint, should not be put in the dishwasher.
Safety information
Getting to know your dishwasher
At time of delivery
- Check packaging and dishwasher immediately for signs of transport damaged. If the appliance is damaged, do not put into use but contact your supplier without delay.
- Please dispose of packaging materials properly.
During installation
- Site the dishwasher and connect it up in accordance with the installation instructions.
- The dishwasher must not be connected to the electricity supply while installation is being carried out.
- Ensure that the domestic wiring is properly earthed.
- The mains electricity supply must conform to the details shown on the dishwasher nameplate.
- Do not connect the dishwasher to the electricity supply via an extension cable.
- Not on all models: The plastic housing on the water input contains an electrically operated valve. The connecting wires are inside the inlet hose.Do not cut through this hose and do not immerse the plastic housing in water.
- Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
- After the appliance has been installed, the mains plug should still be easily accessible.
During normal use
- Use the dishwasher solely in a domestic environment and for its designated purpose:washing household tableware and other utensils.
- Do not place any heavy objects or stand on the door when it is open. The apliance could tip forward.
- The water inside the dishwasher is not suitable for drinking.
- Do not use solvents of any kind inside your dishwasher. They could cause an explosion.
- Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
If your family incldes children
- Do not permit small children to play with or operate the dishwasher.
- Keep children away from detergents and rinse-aids.
- Keep small children away from the open door of the dishwasher. There could still be some detergent left inside.
If a fault occurs
- Repairs or other work on the dishwasher should only be carried out by a qualified specialist.
- The dishwasher must be disconnected from the electricity supply before any repairs or other work are started. Pull the mains plug out of the wall socket or switch off at the fuse box. Grasp the plug to remove it from the socket;do not tug on the cable. Turn the water off at the tap.
When disposing of old appliances
- Appliance that have reached the end of their service life should be rendered inoperable in order to exclude the possibility of subsequent accidents. Pull the mains plug out of the wall socket, cut through the connecting cable and disable the door lock.
- Take the appliance to a designated waste dipasal centre.
Illustrations of the control panel and the interior of the dishwasher are shown on the rear of cover of this manual. Fold this page out before you read the manual.
Control panel
1 Main switch 2 Delay timer 3 Numerical display 4 Power Indicator 5 Door handle 6 Programme button 7 Programme Button 8 Programme Button 9 Start/Pause
Appliance interior
10 Lower rack 11 Upper rack 12 Middle sprayer 13 Lower sprayer 14 Filter 15 Dispenser for detergent and rinse liquid
WQP6-2A
10
ON OFF
1 2
Delay timer
Power Indicator
Start
Intense DryingDrying DryingPause
RinseStandard
Start
Pause
Haier Domestic Dishwasher
3
4
5 6
8
9
7
Index
14
15
11
12
13
Safety information Getting to know your dishwasher Filling the Rinse-aid container Not suitable for the diashwasher Arranging crockery, glasses,etc.in the dishwasher Detergent Programme overview Washing dishes Care maintenance Fault finding Other information Installation Installation instructions
1 2 3 3
4 5 7 8 10 11 14 14 16
Loading...
