Please read this operation manual
before using the air conditioner.
No.0010541720
I
OPERATION MANUAL
AB42NACMCA
AU42NAIMBA
(HBU-42CD03)
AB28NACMAA
AU28NAHMAA
(HBU-28CD03)
AB42NACACA
AU42NAIACA
(HBU-42HD03)
AB282ACBBA
AU282AHBDA
(HBU-28HC03/R1)
AB242ACAAA
AU242AHABA
(HBU-24H03)
AB284ACMAA
AU284AHMAA
(HBU-28C13)
AB36NACAAA
AU36NAIAAA
(HBU-36H03)
AB282ACACA
AU282AHADA
(HBU-28HD03)
AB42NACNAA
AU42NAINAA
(HBU-42CA03/R1)
AB282ACNAA
AU282AHNAA
(HBU-28CA03/R1)
AB42NACBBA
AU42NAIBBA
(HBU-42HC03/R1)
AB28NACBAA
AU28NAHBAA
(HBU-28HB03/R1)
CASSETTE AIR CONDITIONER
AB28NACNAA
AU28NAHNAA
(HBU-28CB03/R1)
AB36NACMAA
AU36NAIMCA
(HBU-36C03)
AB242ACNAA
AU242AHNBA
(HBU-24CA03/R1)
AB242ACBAA
AU242AHBBA
(HBU-24HA03/R1)
AB36NACBAA
AU36NAIBBA
(HBU-36HA03/R1)
AB36NACNAA
AU36NAINBA
(HBU-36CA03/R1)
Cautions
...........................................................................................
Introduction to spare parts
............................................................
Remote controller operation
............................................................
Guide to operation
.....................................................................
Maintenance
.................................................................................
Trouble shooting
.............................................................................
1-5
6-8
9
10-17
18-21
22
CONTENTS
CAUTIONS
1
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in a air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get
damaged prior to being picked up by the
relevant waste disposal center, and
contribute to environmental awareness by
insisting on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your new
air conditioner
All the packaging materials employed in
the package of your new air conditioner
may be disposed without any danger to the
environment.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping bag
made of polyethylene and the polyethylene
foam pads contain no fluorochloric
hydrocarbon.
Consult your local authorities for the name and
address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of the
air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
All these valuable materials may be taken to a
waste collecting center and used again after
adequate recycling.
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill. Never
unplug your air conditioner by pulling on the
power cord. Always grip plug firmly and
pull straight out from the outlet.
CAUTIONS
4. The wiring method should be in line with
the local wiring standard.
5. The power cable and connecting cable are
self-provided. The requirement of the power
cable:
The connecting cable should be
H05RNF 4G 0.75mm.
All the cables shall have got the European
authentication certificate.
6. The breaker of the air conditioner should
be all-pole switch; and the distance between
its two contacts should be no less 3mm. Such
means for disconnection must be
incorporation in the fixed wiring.
7. The waste battery shall be disposed
properly.
8. The indoor unit installation height is at
least 2.5m.
2
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
The machine is adaptive in following
situation
Cooling
Heating
Indoor
Maximum:
Minimum:
D.B / W.B
D.B / W.B
D.B
Outdoor
Maximum:
Minimum:
D.B
D.B
Indoor
Maximum:
Minimum:
D.B
Outdoor
Maximum:
Minimum:
D.B / W.B
AB242ACAAA
AU242AHABA
(HBU-24H03)
AB242ACNAA
AU242AHNBA
(HBU-24CA03/R1)
AB242ACBAA
AU242AHBBA
(HBU-24HA03/R1)
AB284ACMAA
AU284AHMAA
(HBU-28C13)
AB42NACMCA
AU42NAIMBA
(HBU-42CD03)
AB42NACBBA
AU42NAIBBA
(HBU-42HC03/R1)
AB28NACBAA
AU28NAHBAA
(HBU-28HB03/R1)
AB28NACMAA
AU28NAHMAA
(HBU-28CD03)
AB36NACAAA
AU36NAIAAA
(HBU-36H03)
AB42NACACA
AU42NAIACA
(HBU-42HD03)
AB42NACNAA
AU42NAINAA
(HBU-42CA03/R1)
AB28NACNAA
AU28NAHNAA
(HBU-28CB03/R1)
AB36NACMAA
AU36NAIMCA
(HBU-36C03)
AB36NACBAA
AU36NAIBBA
(HBU-36HA03/R1)
AB36NACNAA
AU36NAINBA
(HBU-36CA03/R1)
Model
H07RN-F
5G 2.5mm
2
AB282ACACA
AU282AHADA
(HBU-28HD03)
AB282ACNAA
AU282AHNAA
(HBU-28CA03/R1)
AB282ACBBA
AU282AHBDA
(HBU-28HC03/R1)
H07RN-F
3G 4.0mm
2
2. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agentor a similar qualified person.
3. If the fuse on PC board is broken please
change it with the type of T. 3.15A /250VAC.
D.B / W.B
3
CAUTIONS
WARNING!
Carefully read the following information in order to operate the airconditioner correctly.
Below are listed three kinds of Safety Cautions and Suggestions.
WARNING!
CAUTION!
Incorrect operations may result in injuries or machine damages; in some cases may
cause serious consequences.
Incorrect operations may result in severe consequences of death or serious injuries.
INSTRUCTIONS: These information can ensure the correct operation of the machine.
Be sure to conform with the following important Safety Cautions.
The Safety Cautions should be at hand so that they can be checked at any time when needed.
If the conditioner is transferred to the new user, this manual should be as well transferred to the new user.
Otherwise the one
will feel unpleasant
or harm ones' health.
If any abnormal phenomena is found (e. g.
smell of firing), please cut off the power
supply immediately, and contact the dealer
to find out the handling method.
In such case, to continue
using the conditioner will
damage the conditioner,
and may cause electrical
shock or fire hazard.
When need maintenance and repairment,
call dealer to handle it.
Incorrect maintenance and repairment
may cause water
leak, electrical shock
and fire hazard.
switch
off
Please let the dealer be responsible for installing
the conditioner.
Incorrect installation may cause water leak, elec-
trical shock and fire hazard.
Don't put fingers or any other things into the
inlet/outlet and swing louver while the condi-
tioner is in operation.
Because the highspeed
fan is very dangerous
and may cause injuries.
Call the dealer to take measures to prevent the
refrigerant from leaking.
If conditioner is installed in a small room be sure
to take every measure in order to prevent suffoca-
tion accident even in case of refrigerant leakage.
When conditioner is deinstalled or reinstalled
dealer should be responsible for them.
Incorrect installation may cause water leaking,
electrical shock and fire hazard.
Don't blow the human body with the cooling
air too long, and don't let the room temperature decrease too low
either.
Safety cautions
CAUTIONS
4
CAUTIONS!
Conditioner should not be used for any other
purpose other
than airconditioning.
Don't use air-conditioner for any other special
purposes, e.g. the preservation and protection
of food, animals, plants,
pecision apparatus as well
as work of art, otherwise
the qualities of these
stuffs may be damaged.
Don't dismantle the outlet of the outdoor unit.
The exposure of fan is
very dangerous which
may harm human beings.
When air-conditioner is co-used with other
heat-radiator
the frequent replacement of
room atmosphere should be required.
Inefficient ventilation may cause
suf
focation.
After a long time use of air-conditioner the
base should be checked for
any damages.
If the damaged base is
not repaired, the unit
may fall down and
cause accidents.
No goods or nobody is permitted to placed on
or
stand on outdoor unit.
The falling of goods and
people may cause accidents.
Pets and plants should not be blowed directly
in the air flow.
Otherwise will suffer
damage.
Don't operate the air-conditioner
with damp hands.
Otherwise will be shocked.
Only use correctly-typed fuse.
May not use wire or any other
materials replacing fuse, other
wise may cause faults or fire
accidents.
Don't place any burning unit
in the air
flow of air-conditioner
which may cause incomplete
combustion.
No inflammable spray fluid
should be permitted to be
placed or
used near to airconditioner otherwise may
cause fire accidents.
Air-conditioner should be
cleaned only after
power
supply is cut off to keep
from shock or hurt.
Don't clean air-conditioner
with water
.
Otherwise may cause
shock.
Otherwise the poisonous chemicals may settle
in air
-conditioner which harm the health of
chemical-allergic people.
When use the fumigating insecticide don't
open air-conditioner.
5
CAUTIONS
WARNING !
CAUTION !
Please ask the dealer or specialist to install, never try by the users themselves. After the in
be sure of the following conditions.
Incorrect installation may cause water leaking, shock and fire hazard.
Please call dealer to install the air-conditioner.
Air-conditioner can't be installed in the envir
onment with inflammable gases because the
inflammable gases near to air-conditioner may
cause fire hazard.
Installed electrical-leaking circuit breaker.
Connect earthing wire.
Use discharge pipe correctly to ensure efficient
discharge.
[Location]
[Wiring]
[Operating noise]
It easily cause electrical shock without circuit
breaker
.
Air-conditioner should be located in well-vented
and easily-accessible place.
Air
-conditioner should not be located in the
following places:
(a) Places with machine oils or other oil vapours.
(b) Seaside with high salt content in the air.
(c) Near to hot spring with high content of sulfide
gases.
(d) Area with frequent fluctuation of voltage e.g.
factory, etc.
(e) In vehicles or ships.
(f) Kitchen with heavy oil vapour or humidity .
(g) Near to the machine emitting electric-magnetic
waves.
(h) Places with acid, alkali vapuor.
TV , radio, acoustic appliances etc are at least 1 m
far away to the indoor unit, outdoor unit, power
Earthing wire should not be connected to the gas pipe, water pipe,
lightning rod or phone line, incorrect earthing may cause shock.
Incorrect pipe use may cause water leaking.
supply wire, connecting wire, pipes, otherwise
images may be disturbed or noises be created.
As required, take measures against heavy snow
.
Air-conditioner should be equipped with special
power supply wire.
Chose the following locations:
(a) Capable of supporting air
-conditioner weight
don't increase operating noise and vibrati
(b) Hot vapour from outdoor unit outlet and ope rating noise don't disturb neighbour.
No obstacles around the outdoor unit outlet.
Earth
Installation
INTRODUCTION TO SPARE PARTS
6

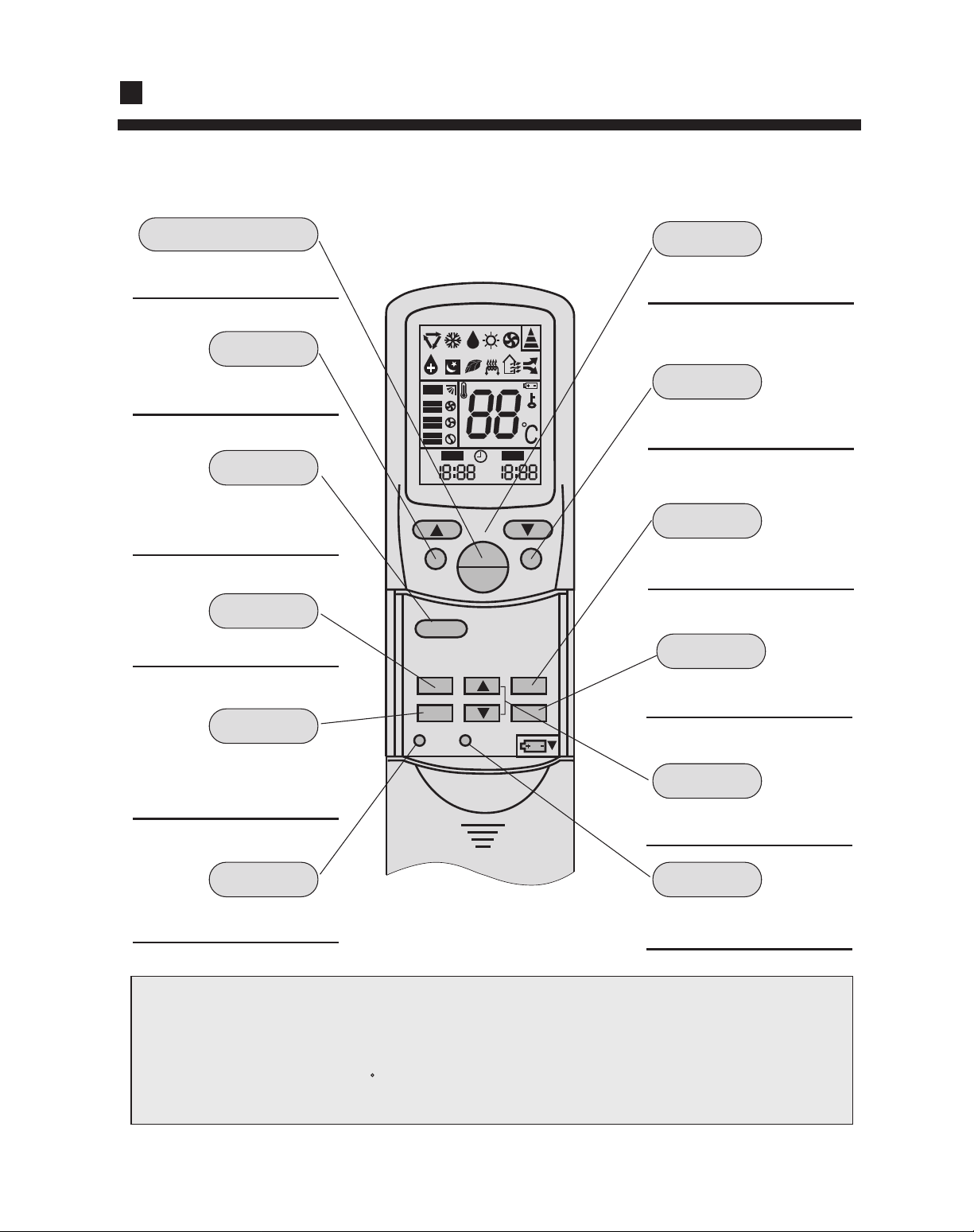

Buttons and display of the remote controller.
Operation
CLOCK
MODE
SWING
Power ON/OFF
TEMP
FAN
SLEEP
SET
HOUR
RESET
LOCK
TIMER
Used for unit start and
stop.
Used to set auto fan
direction.
Used to select AUT O run,
COOL,DR
Y,HEAT and
FAN operation.
Used to set correct time.Used to set correct time.
Used to select
TIMER ON,
TIMER OFF,
TIMER ON/OFF.
Used to lock buttons
and LCD display
.
Used to reset the controller
back to normal condition.
Used to set clock and
timer setting.
Used to confirm Timer
and Clock settings.
Used to select sleep
mode.
Used to select fan speed:
LO, MID, HI,
AUTO
Used to select your
desired temp.
Cautions:
On cooling only unit, heating mode is not available.
After replacing batteries, press ON/OFF, and display
becomes as follows:
Operation mode: AUTO, Temp: 24 C
Timer mode: No, Fan speed: AUTO
Note:
1.
The above information is theexplanation of the
displayed information therefore varies
with those displayed in actual operation.
2. This type only has the relevant function and
display as indicated in the above figure.
TEMP
SWING
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
AUTO
ON OF
AM
PM
AM
PM
LOCK
RESET
FAN
INTRODUCTION TO SPARE PARTS
7
Hints
LO
MID
HI
AUTO
AUTO
Buttons and display of the remote controller.
Operation
DRY
COOL
AUTO
SWING
FAN SPEED
SLEEP
Clock set
TIMER ON
TIMER OFF
LOCK
CLOCK
TEMP.
SIGNAL SENDING
FAN OPERATION
HEAT
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press o to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly
.
After time setting is confirmed, press SET , "AM "and "PM" stop flashing, while clock
starts working.
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD.
Then, it will become normal.
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
AUO
ON OF
AM
PM
AM
PM
LOCK
RESET
INTRODUCTION TO SPARE PARTS
INDOOR UNIT
OUTDOOR UNIT
Drain Hose
Swing fender
Refrigerant pipe
Cable line
Earthing line
Air filter
Outlet
Suction grill
(located in the suction grill)
In cooling operation,to
discharge the water
from inside the room.
Discharge unit (built in)
(located in the outlet)
Remote Controller
8
Air inlet
Air outlet
(Inside of unit)
Compressor
Air inlet
(Inside of unit)
Compressor
Air outlet
For series 36, 42 For series 24, 28
REMOTE CONTROLLER OPERATION
9
When in use, put the signal transmission head directly to the receiver hole on the indoor unit.
The distance between the signal transmission head and the receiver hole should be within 7m
without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless
telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals so
the distance to the indoor unit should be shorter.

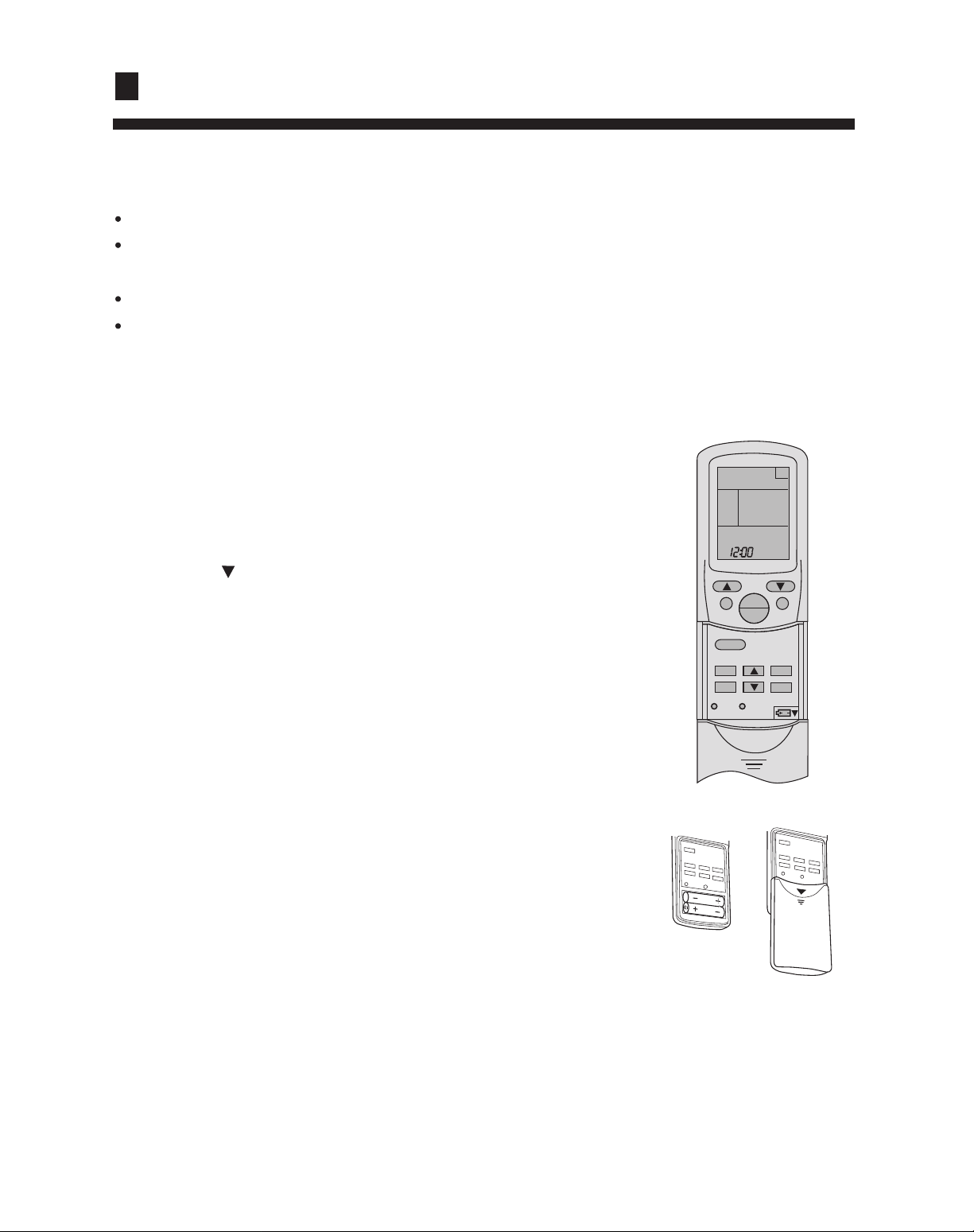

Loading of the battery
Load the batteries as illustrated.
2R-03 batteries, resetting key (cylinder)
Remove the battery cover :
Slightly press " " and push down the cover.
Load the battery :
Be sure that the loading is in line with the " + " / " - " pole request as
illustrated.
Put on the cover again
Confirmation indicator :
In disorderation, reload the batteries or load the new batteries
after 5mins.
Note :
Use two new same-typed batteries when loading.
If the remote controller can't run normally or doesn't work at all,
use a sharp pointed item to press the reset key.
Hint :
Remove the batteries in case unit won't be in usage for a long period.
If there is any display after taking-out just need to press reset key .
Remote controller's operation
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
AM
GUIDE TO OPERATION
10
FAN operation
Remote controller can memorize settings in each operation mode. T o run it next
time just select the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
Hints
(1) Unit start
(2) Select operation mode
(3) Fan
(4) Unit stop
AUTO COOL DRY HEAT FAN
Press ON/OFF button, unit starts.
Previous operation status appears on display .
(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Press F AN button. For each press, fan speed changes
as follows:
Unit will run at selected fan speed.
Adjust air flow direction if necessary, refer to page15.
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
V ertical flap closed automatically .
LO
MID HI
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
AM
2
4
1
3
LOCK
RESET
GUIDE TO OPERATION
11
AUTO run, COOL,HEAT and DRY operation
Use COOL in summer.
Use HEA
T in winter.
Use DRY in spring,autumn and in damp climate.
(1) Unit start
(2) Select operation mode
(3) Select temp.setting
Press ON/OFF button, unit starts.
Previous operation status appears on display
.(Not Timer setting)
Power indicator on indoor unit lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Hints
Unit will start running to reach the temp. setting on LCD.
*
*
Remote controller can memorize each operation status. When starting it next time,
just press ON/OFF button and unit will run in previous status.
AUTO COOL DRY HEAT FAN
Press TEMP button
Every time the button is pressed, temp. setting increases 1
Every time the button is pressed, temp. setting decreases 1
Recommendations
TEMP
SWIN
AN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
AM
1
4
3
2
3
6
5
LOCK
RESET
GUIDE TO OPERATION
12
Press F AN button. For each press, fan speed changes
as follows:
(4) Fan speed selection
Unit runs at the speed displayed on LCD.
In HEA
T mode, warm air will blow out after a short period
of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2 C higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.
AUTO
LO
MID HI AUTO
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
V ertical flap closes automatically .
(6) Unit stop
As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more
helpful for a better air circulation.
As warm air flows upward in HEA
T mode, adjusting air flow downward will be much more
helpful for a better air circulation.
Be careful not to catch a cold when cold air blows downward.
It is harmful to your health in summer to go frequently in and out of places where temp.
differenceis above 7 C . Temp. difference of 3-5 C will remove your fatigue.
More than this, unit's load can be reduced and power consumption cut down as well. So, you'd
better set a temp. diff of 3-5 Cbetween indoor and outdoor temp. in COOL mode.
Hints
COL operatin start when room
tep highe tha tmp setting.
On eaching temp. setting,unit
will un in mild DR
Y mode.
Ulta- r flw
Temp. setting+2 C
Tmp setting
(5) Air flow direction adjust
After operation mode is selected, vertical flap will open automatically according to the mode.
GUIDE TO OPERATION
13
LOCK
RESET
TIMER operation
Hints
Set Clock correctly before starting Timer operation(refer to page 6)
Y ou can let unit start or stop automatically at following times: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
TIMER ON/OFF
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
Select your desired TIMER mode (TIMER ON or TIMER
OFF) ON or OFF will flash.
(3)Timer setting
Press HOUR button.
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly .
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly . Time
will be shown on LCD. It can be adjusted within 24hours.
(4)Confirming your setting
After setting correct time, press SET button to confirm "ON"
or "OFF" stops flashing
Time displayed: Unit starts or stops at x hour x min (TIMER
ON or TIMER OFF).
Timer mode indicator on indoor unit lights up.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
ON
OFF
ON
OFF
blank
TIMER OFFTIMER ON TIMER ON-OFF
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
TIMER
ON
AM
2
1
4
3
3
GUIDE TO OPERATION
14
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly
.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly . Time
will be shown on LCD.
It can be adjusted within 24hours.
AM refers to morning and PM to afternoon.
TIMER ON-OFF
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(3)Time setting for TIMER ON
(4)Time confirming for TIMER ON
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
Time displayed: Unit starts at Xhour X min.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the
Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or
Stop-Start can be achieved.
Press HOUR button.
(1)After unit start, select your desired operation mode
Every time the button is pressed, display changes as follows:
(2)Press TIMER button to change TIMER mode
ON
OFF
ON
OFF
blank
TIMER OFFTIMER ON TIMER ON-OFF
Select TIMER ON-OFF , "ON" will flash.
(5)Time setting for TIMER OFF
Follow the same procedures in "Time setting for TIMER ON".
(6)Time confirming for TIMER OFF
After time setting, press SET button to confirm "OFF" stops flashing.
T
ime displayed: Unit starts at Xhour X min.
LOCK
E
TEMP
SWING
FAN
ON
OFF
MODE
SLEEP
SET
CLOCK
T MER
ON
AM
2
1
6
3
5
OFF
PM
4
GUIDE TO OPERATION
15
Adjusting up/down air flow direction
Up/down direction can be adjusted by using the SWING button on the remote controller.
Each time pressing this button, the mode changes in the following sequence.
SWING
No indication
(louver stopped)
Change to the AIRFLOW mode.
SWING
LOUVER STOPPED
Louver moves in upward and
downward directions continuously .
When the LOUVER button is
pushed during SWING mode,
it stops swinging at the just
angle.
Avoid direct air flow to the body
for many hours.
A void downward blowing operation of cooling mode for many
hours.
Do not touch the swing louver
during swing operation.
CAUTION
GUIDE TO OPERATION
16
about 6 hrs
1 hr
1 hr
increase 1 C
increase 1 C
Comfortable Sleep

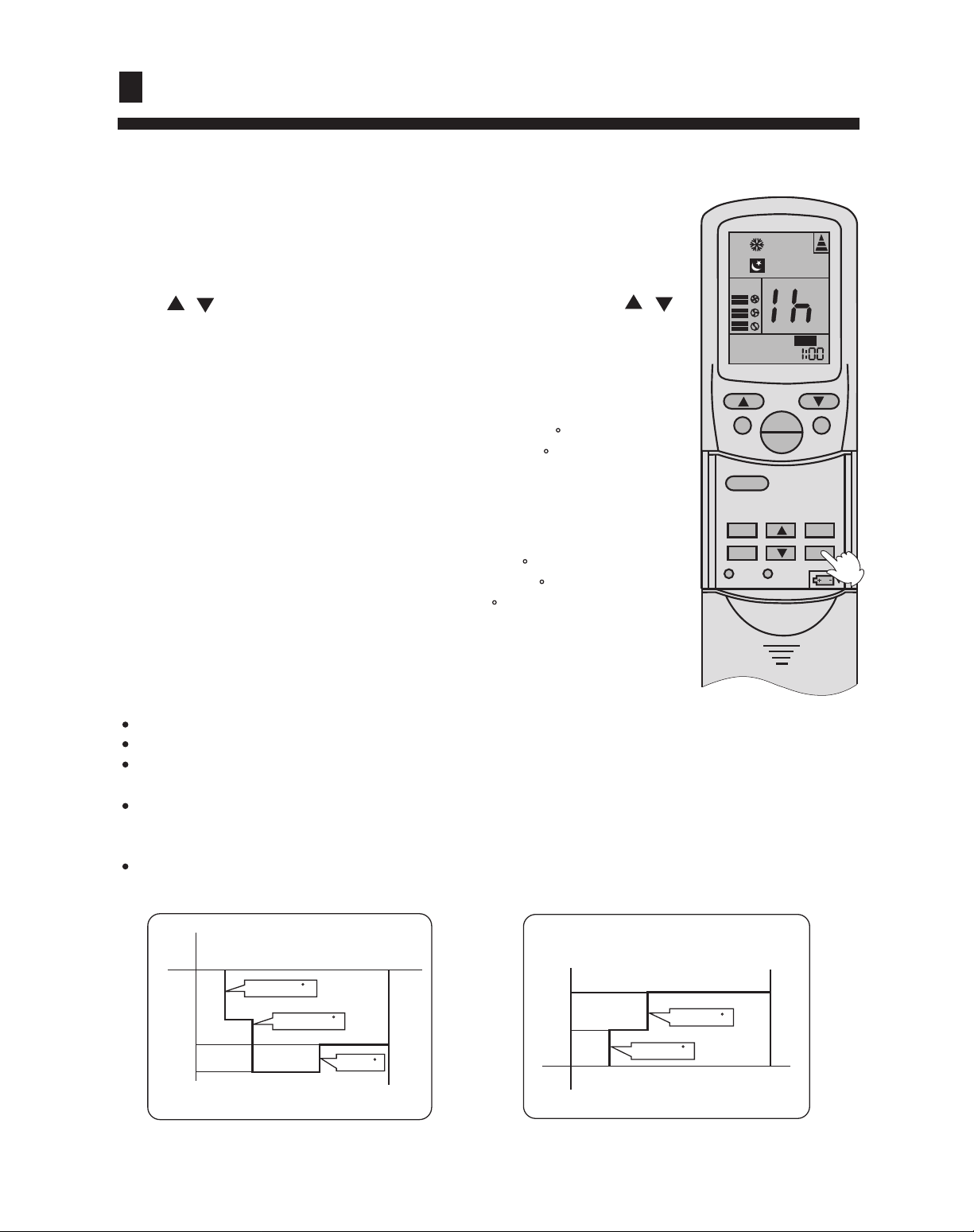

At night, before going to bed you can press down the SLEEP button on the
controller and the air
-conditioner will run by the comfortable sleeping mode
to make you sleep more comfortable.
One hour after sleeping operation start, the temp is 1 C higher
the setting one.
After another hour the temp. rises 1 C and then
continuously for another 6hrs' and then close. The actual temp.
higher than the setting one which is to prevent from being too c
to your sleep.
In cooling, dehumidifying mode
Press SLEEP button once to make the air conditioner have the previo
sleep time (first power
-on is "1h"), the sleep symbol will appear. Pre
button / , you can choose the time in 1~8 hours. Each press of
the time increases/reduces 1 hour and "Xh" appears in the tempera
setting part, "OFF" appears in "TIMER OFF" display part and timer
time; press SLEEP button again to cancel sleep function, the sleep
disappears.
One hour after start up, the temp. decrease 2 C lower an th
setting one.
After another hour decrease by more 2 C.
The temperature will automatically rise by 1 C after another 3h
operation, and then automatically close after 3hrs' continuou
operation. The actral temperature is lower than the setting one w
is to prevent from being too hot to your sleep.
In heating mode
Note:
In
AUTO mode, unit will run in SLEEP function according to the operation mode.
After setting SLEEP function, it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, the unit will stop
time is complete.
Set " TIMER-OFF" function first, then set SLEEP, and the sleep-se
ON function first, the sleep function can only be set before TIMER-
first, the TIMER function can not be set.
After setting SLEEP, press CLOCK button to show the time; pres
temperature; press again to change temperature.
TEMP
SWING
FAN
ON
OFF
MODE
SLEE
SET
CLOCK
TIMER
LOCK
RESET
AM
SETTING T
SLEEP RUN BEGINS SLEEP RUN STOPS
1 hr
1 hr
3 hrs
about 3 hrs
decrease 2 C
decreases 2 C
increase1 C
SHUT DOWN
SLEEP RUN STOPS
Heat mode
SLEEP RUN BEGINS
SETTING T
SHUT DOWN
Cooling mode
OFF
GUIDE TO OPERATION
17
Remote Control:
There is a telecommunication interface for remote control on the control panel of the indoor uni
After the peripheral equipment have been installed in accordance with the instruction manual o
the selected remote control detector
, the air conditioner will be computerized and controlled from
far-away place.
Power Failure Compensation (to be applied for a necessary situation):
Setting Method: When the remote controller is on (excluding timer mode and fan mode),
press the "Sleeping" button on the remote controller 10 times within
seconds, and after the buzzer rings 4 times, the air conditioner will ent
the state of power failure compensation.
Cancel Method: Press the "Sleeping" button on the remote controller 10 times within 5
seconds, and after the buzzer rings 2 timer, the power failure compensatio
mode will be cancelled.
Notes: When a power failure suddenly occurs during the air conditioner is working after the pow
failure compensation is set, if the air conditioner will not be
used for a long time, please cut off
power supply to prevent its operation from being resumed after the power is supplied again, or pre
the "Switch On/Off" button after the power comes again.
After the power failure compensation is set, if power failure suddenly occurs while the air condition
is working, it will resume the previous working state when the power is supplied again.
MAINTENANCE
18
Appropriate room temperature setting
Don't be too low or too high, to make everybody
in the room feel comfortable.
Otherwise reduce the
ef
ficiency of the air-
conditioner.
Don't open the doors and windows.
Otherwise will consume
several or dozens of
KWH electricity per day
.
To use air-conditioner
again power supply will
switched on at least 12hrs in advance.
These obstacles may lower the efficiency of
air-conditioner or stop it.
Don't place any goods around inlet and outlet.
If air-conditioner is not be used for a long time
the main power
supply should be switch off.
Goods which must be kept dry can't be placed
under
indoor unit.
when humidity
exceeds 80% or
water dischar
ge
hole blocked,
indoor unit may
drop water.
Don't let sunlight shine
room directly; Don't
let outdoor air flow into
room.
Curtains or louver should be hanged on
windows.
Heating
18 -23
Cooling
26-28
[Clean air filter]
NOTE
1. Open inlet grill
Press the elliptical "PUSH" knob, the inlet
grill will automatically drop. (the inlet grill
is catched with two pothooks)
When having to clean, don't dismantle air-filter,otherwise may cause faults.
In the environment where there is too much dust, air filter should be cleaned for more times.
(about half a year one time)
PUS
Press the elliptical knob
the inlet grill will
automatically drop
Open two
pothooks
Pothook
2. Open two othooks
MAINTENANCE
19
3. Dismantle air filter
CAUTION!
Don't wash with water over 50 ,to prevent
discoloring or deforming.
Don't dry over fire. Filter maybe burn.
4. Clean
6. Close inlet grill
7. Pr
ess the filter signal return key on the
controller.
[ Clean air filter ]
(A) Use vacuum suction or (B) wash with water
to remove dust.
(A) Remove dust with vacuum filter
.
(B) Wash with water.
With too much dust, use soft brush and neutra
detergent.
Swing off the water, and then place in cool place.
5. Install air filter
(1) Put filter into protruding parts at the top o
the inlet grill.
(2) Connect the two pothooks with inlet grill
See 2
[Clean inlet grill]
1. Open inlet grill
2. Take off air-filter
See "clean air filter"
* *
See 1.
Connet the two pothooks with inlet grill
PUSH
Press the elliptical knob
the inlet grill will
automatically drop
Open two
pothooks
Pothook
Press the elliptical "PUSH" knob, the inlet
grill will automatically drop. (the inlet grill
is catched with two pothooks)
Drag the knob of
the grill back lift
the filter and take
down.
Air filter
MAINTENANCE
20
[Clean inlet grill]
3. Take of inlet grill
Open the inlet grill by an angle of 45 ,
lift up.
4. Clean
CAUTION!
Don't wash with water over 50 * ,to prevent
decoloring or deforming.
Use soft brush, water and neutrul detergent,
then swing off the water.
NOTE
When too much dust
To spray the special detergent for vent fan or
utensils.
5. Install inlet grill
6. Install air filter
7. Close inlet grill
[Clean outlet and shell]
see 3
see "Clean air filter"
see 1
CAUTION!
Don't use gasoline, benzene, dilutant,
polishing powder, or liquid inseticide.
Don't wash with water over 50 * ,otherwise
may cause decoloring or deforming.
Use soft dry cloth to scrub.
If dust not removed, can use water or neutral
detergent.
If ceiling built-in conditioner's swing plate
too dirty, it can be dimantled (as described
below) and cleaned.
[Dismantle and install swing
plate ]
1. Fix the swing plate at the bottom.
2. Dismantle the swing plate.
CAUTION!
Use water to clean the plate and don't heavily
scrub, otherwise the fine hair may fall off.
Unscrew the screw at both ends of the swing
plate.
MAINTENANCE
21
[Dismantle and install swing plate ]
3. Install swing plate
Lightly rotate swing plate to insert the ridge at
both ends of the outlet into the groove and then
screw up.
For detailed information consult dealer.
Perfect circuit connection.
If any abnormal cases, consult dealer
.
2. Call technician to clean air-filter and shell.
3. Turn on power
Air-filter must be installed after cleaning.
After power turned on, some information on remote controller will display .
No blocks in the inlet /outlet of the indoor/outdoor unit.
Good earthing.
1. Check the following items:
At the beginning
Maintenance at the beginning and closing of the applyi
NOTE
When not in use for a long time
1. In fine days, go on with blowing for half a day , to make inner part of conditioner dry .
2. Turn off power supply.
3. Call technician clean air-filter and shell.
For details of blowing, see page 10.
If power not turned off, conditioner will consume several and dozens of KWH, T o turn off power
can save electricity
.
After power turned off, information on remote controller will disappear.
TROUBLE SHOOTING
22
The following symptoms are not faults
Symptom Reason
Conditioner
doesn't work
When stop machine then continue
operation.
When press temp setting key and release
at once.
When power turns on.
When humidity too high in the cooling
operation (high content of oil or just in
room).
When heating has started after defrosting.
During stopping the machine.
As it starts buzzing noises exist.
Constant noise in cooling or heating.
There are noises when start, stop and
defrosting begins, stops.
There are constant noise during operation
or after operation.
Noise during operation and after
operation.
Start after a long term of unuse.
In operation
White fog is
blown out
Outdoor unit
turns hot
Conditioner
makes noise
Conditioner give
out smell
Conditioner blow
out dust
The operation indicating lamp lights on
the remote controller is not fault; safety
unit is protecting the machine; after 3
minute the machine automatically start.
The computer is ready to operate, wait
for 1 minute or so.
Uncleaness of the indoor unit can cause
temp. fluctuation
*1
The frost removed turns into rising
vapour
.
Compressor is preheating so that the
conditioner start smoonthy
.
The noise is existing after temp.controller
operates, 1 minute after turn weak.
There is sound of gaseous refrigerant
flowing in the conditioner.
The sound given out when gaseous
coolant stop folwing or switching.
It's the sound of operation of discharging
system.
*2
Resin part expands or contract due to
temp. change and give out this sound.
Dust in indoor unit is blown out.
Room smell or cigarrette smell sucked
into indoor unit is blown out.
NOTE
The inner part of indoor unit must be cleaned. Consult dealer , because clean must be done
by technician.
In cooling operation, discharging system discharge water
in room.
*2
*1
Loading...
