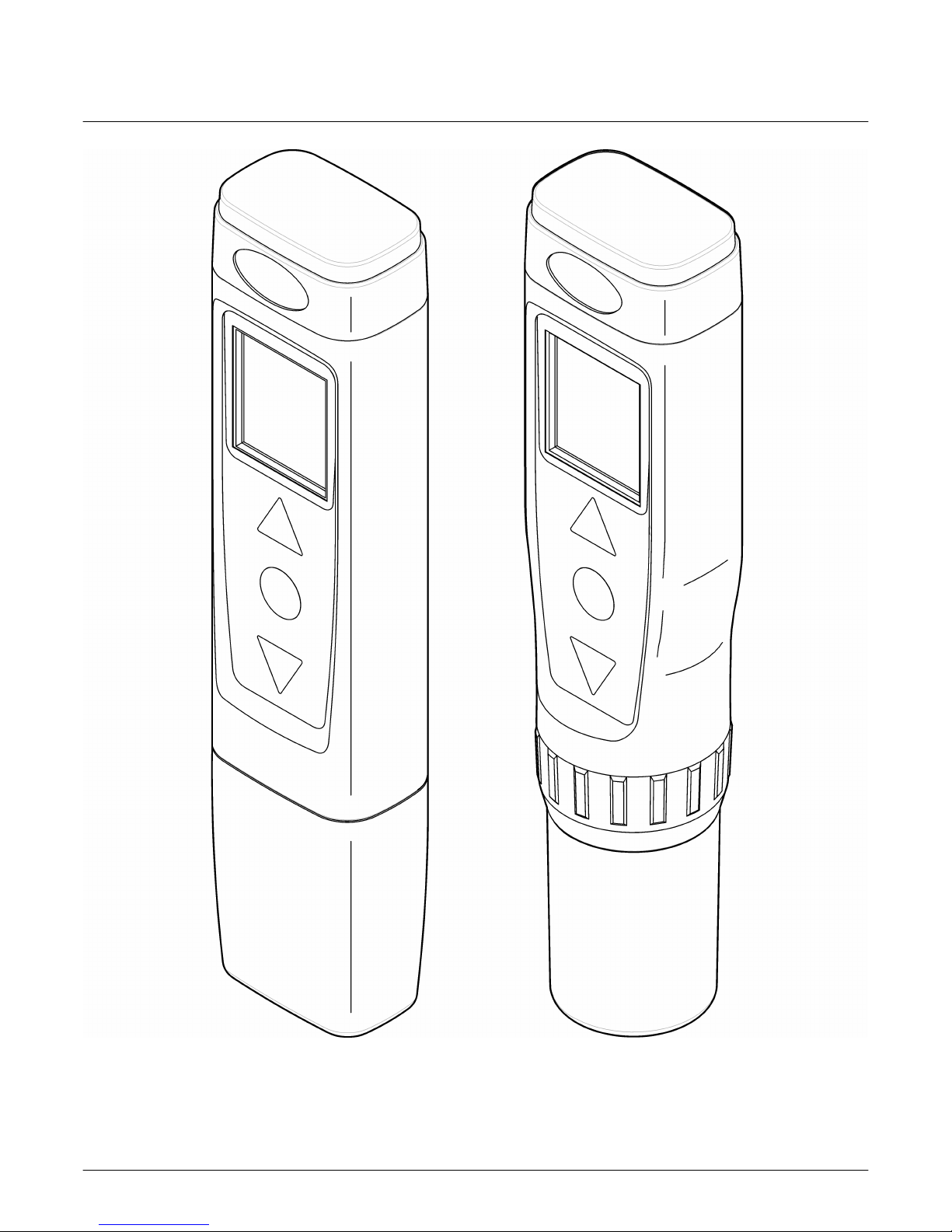

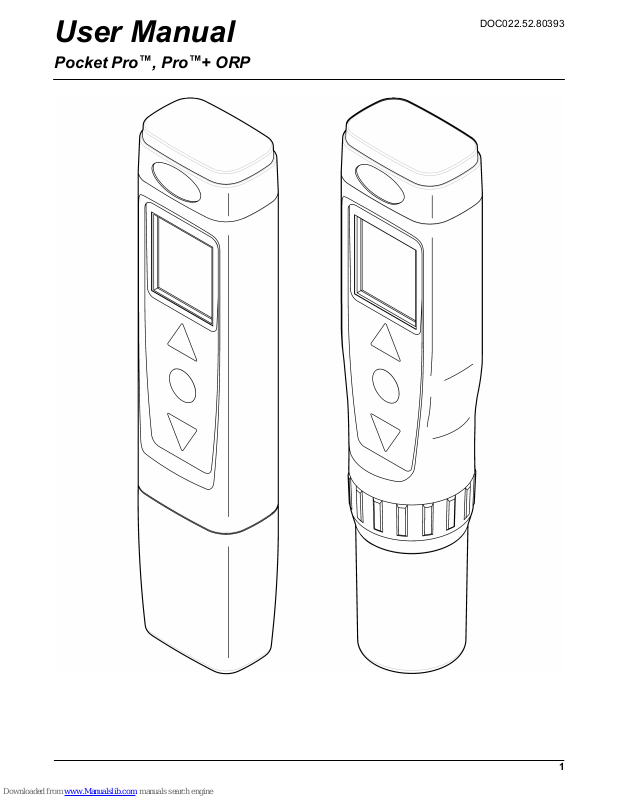

User Manual

DOC022.52.80393

Pocket Pro™, Pro™+ ORP

1

Specifications

Specifications are subject to change without notice.

Specification Details

Dimensions (W x D x H) 37 x 30 x 170 mm (1.45 x 1.18 x 6.69 in.)

Enclosure rating IP67

Weight 135 g (0.297 lb) with batteries

Power requirements (internal) AAA alkaline batteries (4x)

Battery life Pocket Pro: 450 hours

Pocket Pro+: 450 hours (200 hours with backlight on)

Operating temperature 0 to 50 °C (32 to 122 °F)

Storage temperature –20 to 60 °C (–4 to 140 °F)

Operating humidity 80% (non-condensing)

Altitude 2000 m (6562 ft)

Instrument range ±999 mV

Resolution 1 mV

Accuracy ±2 mV

Calibration points 1 point

Auto-recognition callibration standard None

Certifications CE mark, FCC, Industry Canada, KC Mark, RCM, China RoHS

Warranty 6 months for Pocket Pro tester, 1 year for Pocket Pro+ tester and 6 months for

replacement sensor for manufacturing faults only. Damage from use is not covered.

General information

In no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages resulting from any defect or omission in this manual. The
manufacturer reserves the right to make changes in this manual and the products it
describes at any time, without notice or obligation. Revised editions are found on the
manufacturer’s website.

Safety information

N O T I C E

The manufacturer is not responsible for any damages due to misapplication or misuse of this
product including, without limitation, direct, incidental and consequential damages, and disclaims
such damages to the full extent permitted under applicable law. The user is solely responsible to
identify critical application risks and install appropriate mechanisms to protect processes during a
possible equipment malfunction.

Please read this entire manual before unpacking, setting up or operating this equipment.
Pay attention to all danger and caution statements. Failure to do so could result in serious
injury to the operator or damage to the equipment.

Make sure that the protection provided by this equipment is not impaired. Do not use or
install this equipment in any manner other than that specified in this manual.

2

Use of hazard information

D A N G E R

Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death
or serious injury.

W A R N I N G

Indicates a potentially or imminently hazardous situation which, if not avoided, could result in
death or serious injury.

C A U T I O N

Indicates a potentially hazardous situation that may result in minor or moderate injury.

N O T I C E

Indicates a situation which, if not avoided, may cause damage to the instrument. Information that
requires special emphasis.

Precautionary labels

Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed. A symbol on the instrument is referenced in the
manual with a precautionary statement.

This symbol, if noted on the instrument, references the instruction manual for operation and/or safety information.

Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after
12 August of 2005. In conformity with European local and national regulations (EU Directive 2002/96/EC), European
electrical equipment users must now return old or end-of-life equipment to the Producer for disposal at no charge to
the user.

Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return end-of-life
equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.

Certification

Canadian Radio Interference-Causing Equipment Regulation, IECS-003, Class B:

Supporting test records reside with the manufacturer.

This Class B digital apparatus meets all requirements of the Canadian Interference­Causing Equipment Regulations.

Cet appareil numérique de classe B répond à toutes les exigences de la réglementation
canadienne sur les équipements provoquant des interférences.

FCC Part 15, Class "B" Limits

Supporting test records reside with the manufacturer. The device complies with Part 15 of
the FCC Rules. Operation is subject to the following conditions:

1. The equipment may not cause harmful interference.

2. The equipment must accept any interference received, including interference that

may cause undesired operation.

Changes or modifications to this equipment not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment. This
equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,

3

may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at their expense. The following techniques can be
used to reduce interference problems:

1. Move the equipment away from the device receiving the interference.

2. Reposition the receiving antenna for the device receiving the interference.

3. Try combinations of the above.

Product overview

The Pocket Pro™ ORP tester and Pocket Pro™+ ORP tester measure the ORP of general
water samples. Refer to Figure 1. These testers are waterproof and float.

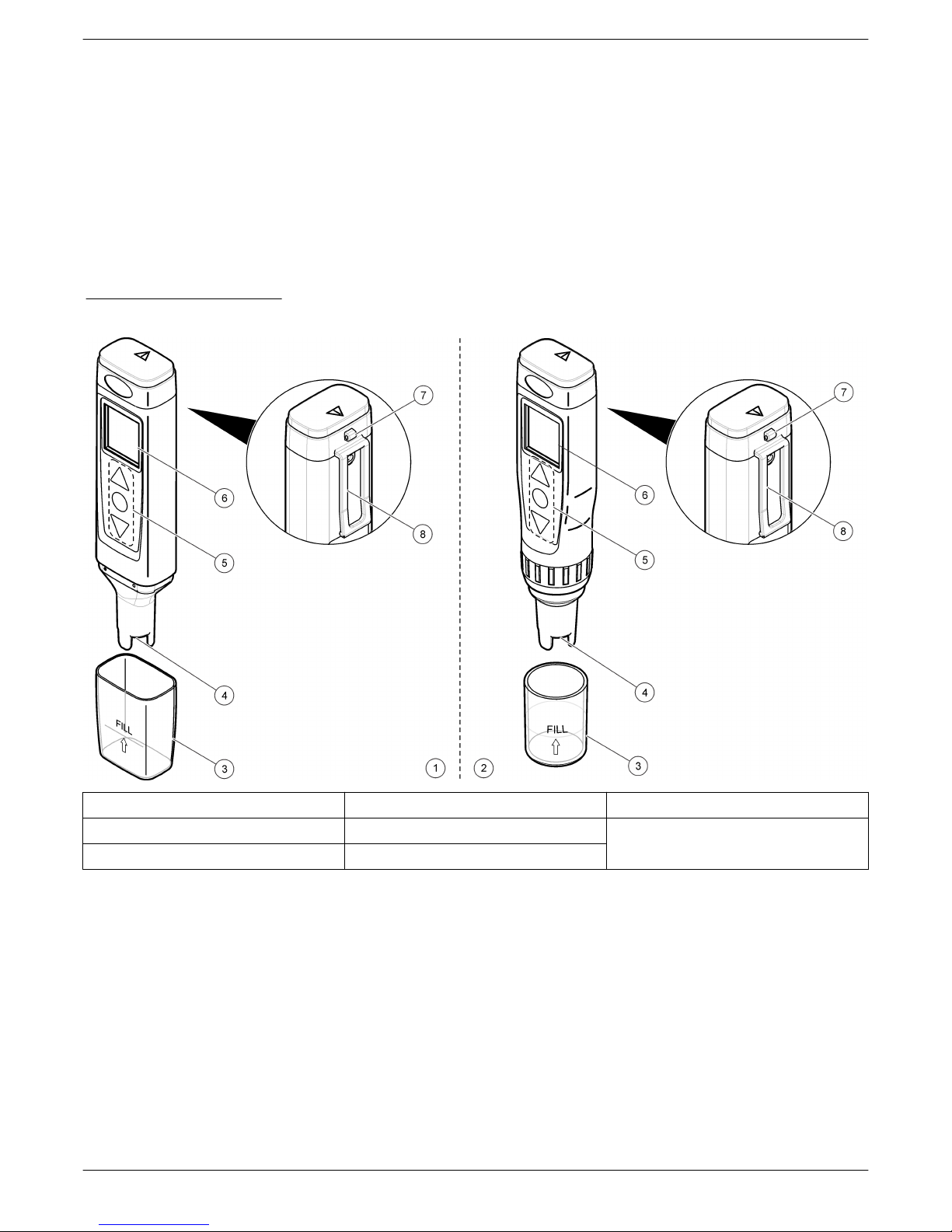

Figure 1 Product features

1 Pocket Pro tester 4 Sensor 7 Lanyard attachment

2 Pocket Pro+ tester 5 Keypad 8 Pocket clip

3 Sensor cap 6 Display

Product components

Make sure that all components have been received. Refer to Figure 2. If any items are
missing or damaged, contact the manufacturer or a sales representative immediately.

4

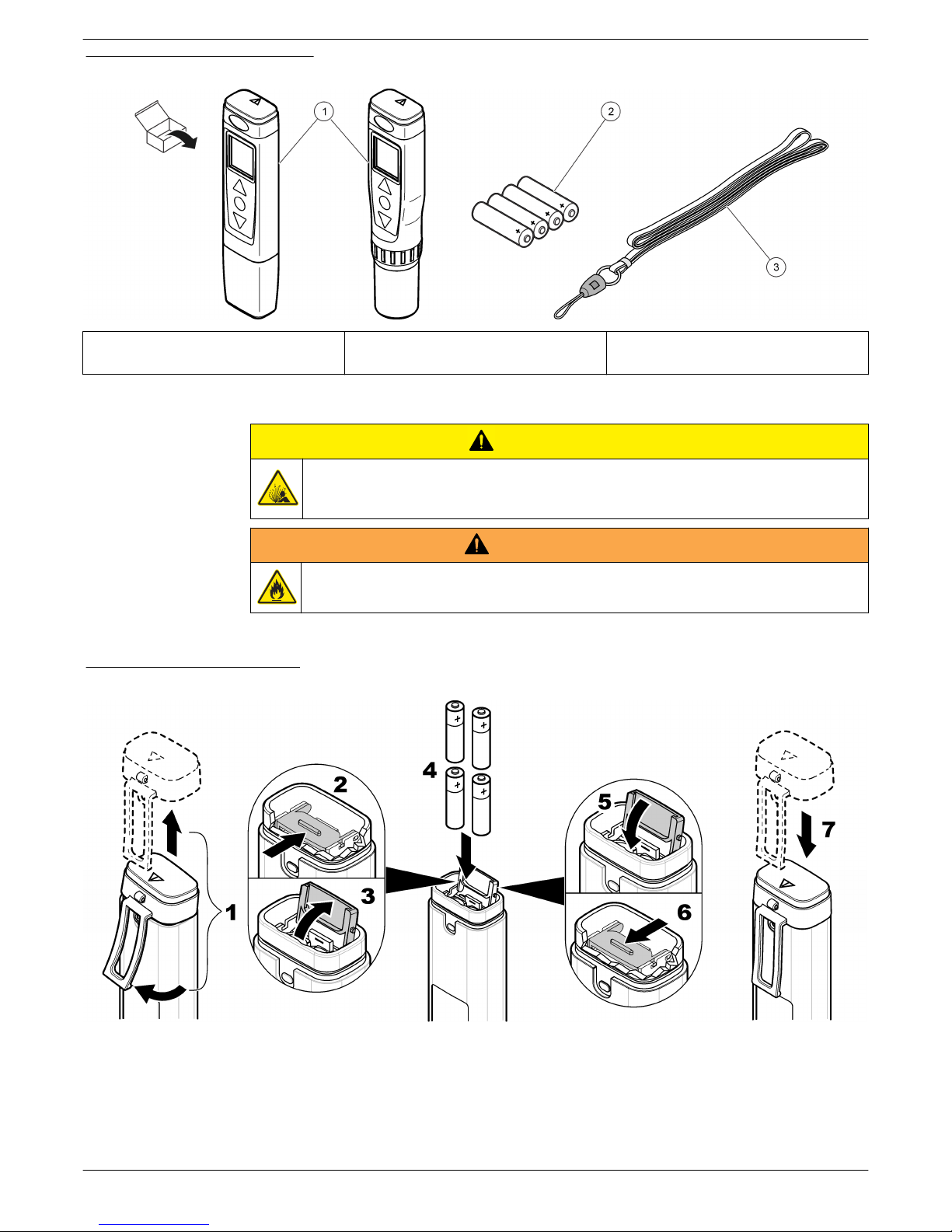

Figure 2 Product components

1 Pocket Pro tester or Pocket Pro+

tester

2 AAA alkaline batteries (4x) 3 Lanyard

Install the batteries

C A U T I O N

Explosion hazard. Incorrect battery installation can cause the release of explosive gases.
Be sure that the batteries are of the same approved chemical type and are inserted in the
correct orientation. Do not mix new and used batteries.

W A R N I N G

Fire hazard. Battery substitution is not permitted. Use only alkaline batteries.

Install the four AAA alkaline batteries in the tester. Refer to the illustrated steps in

Figure 3.

Figure 3 Install the batteries

User interface and navigation

Display description

Figure 4 shows the measurements, calibration standard information and indicator icons

shown on the display. Table 1 gives descriptions of the icons.

5

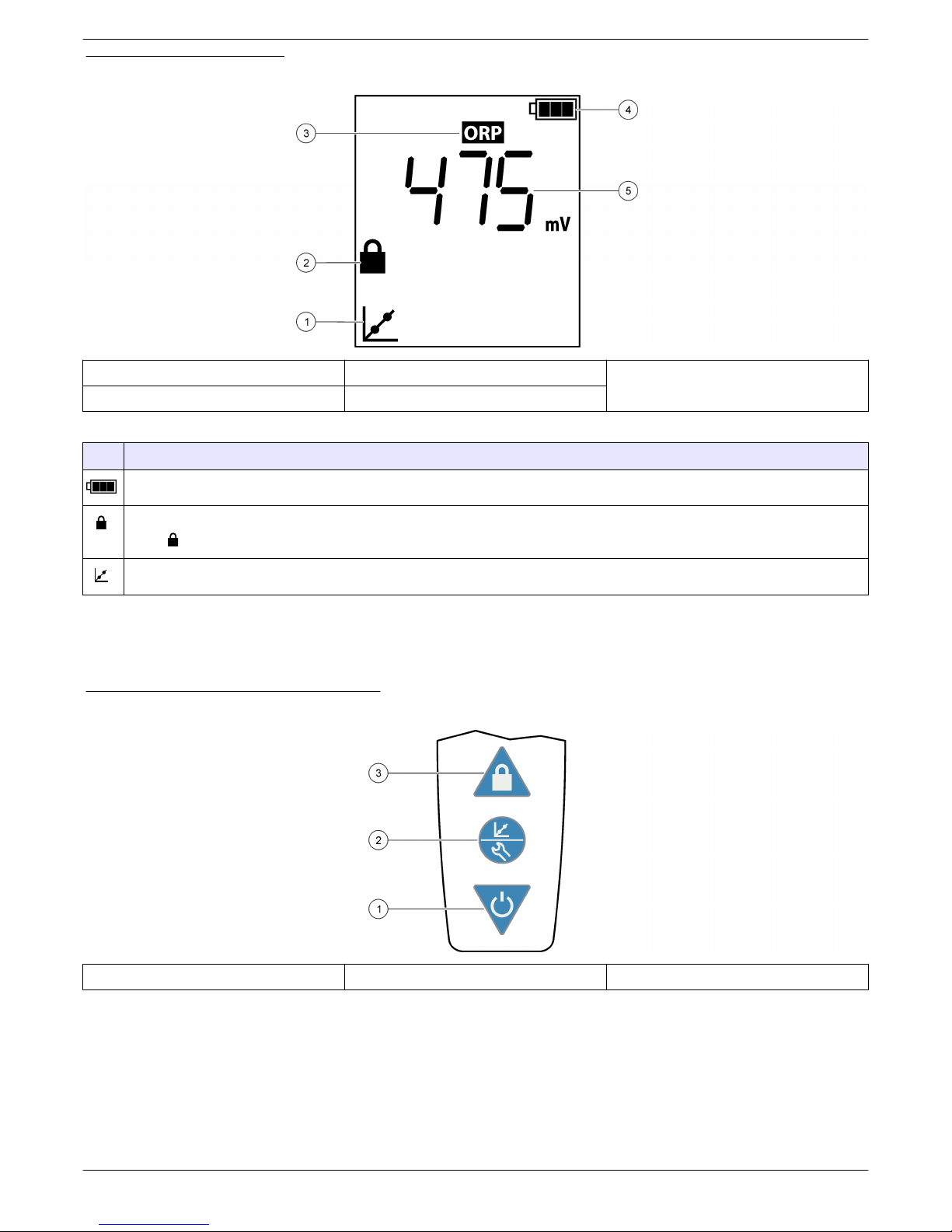

Figure 4 Display overview

1 Calibration icon 3 Parameter 5 Parameter value

2 Lock icon 4 Battery icon

Table 1 Display icons

Icon Description

Shows the battery power level. Flashes when the battery power is less than 10%.

Shows when the lock feature is on. When the lock feature is on, the parameter value on the display does not change.
Push to set the lock feature to on or off.

Shows when the tester is in calibration mode.

Keypad description

Figure 5 and Figure 6 show the Pocket Pro and Pocket Pro+ keypads. Table 2 gives the

key descriptions.

Figure 5 Keypad overview - Pocket Pro

1 Power key 2 Calibration/Settings key 3 Lock key

6

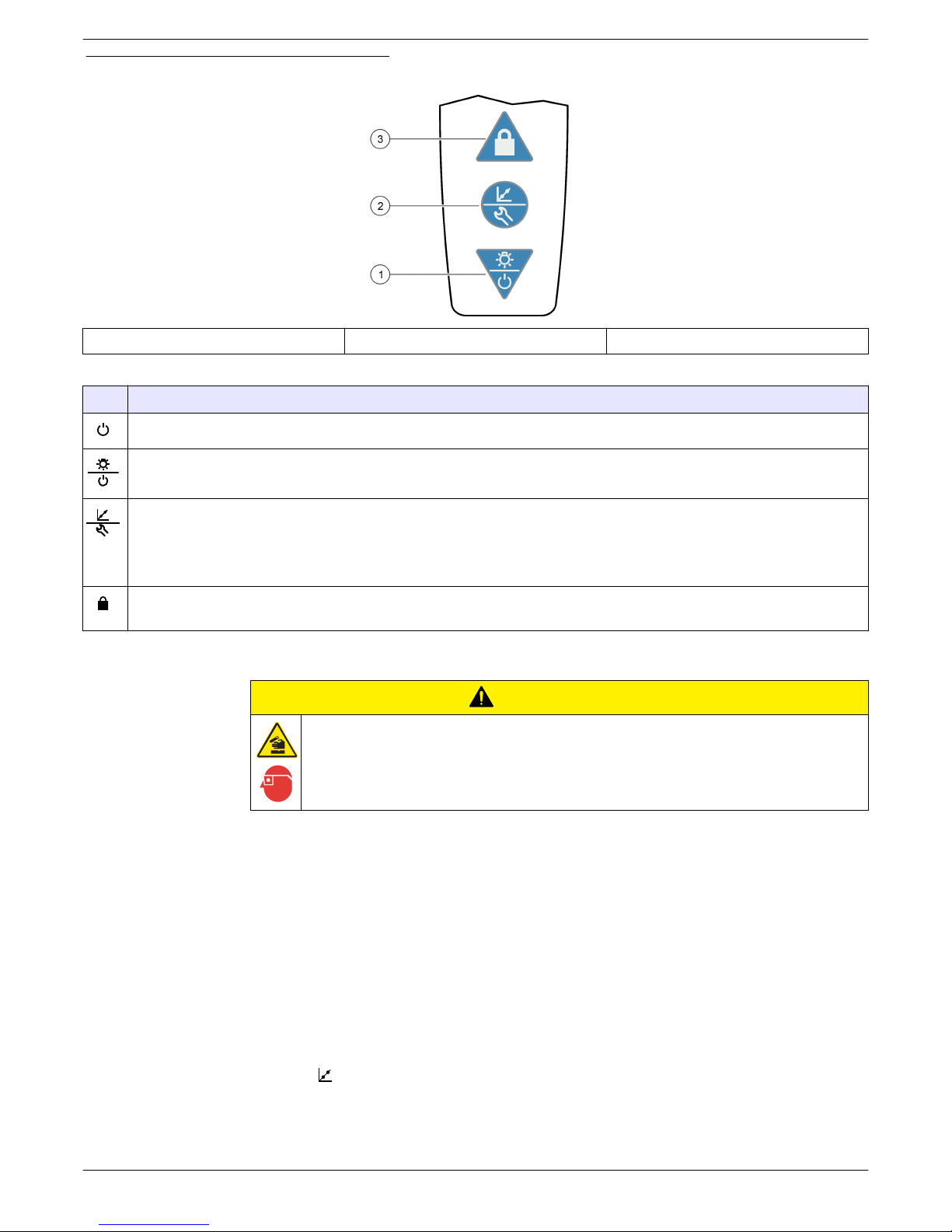

Figure 6 Keypad overview - Pocket Pro+

1 Power/Backlight key 2 Calibration/Settings key 3 Lock key

Table 2 Key functions

Key Description

Push and hold to set the power to on or off.

Push and hold to set the power to on or off.

Push to set the backlight to on or off. After 1 minute of no activity, the backlight switches off.

Push to start a calibration. To exit a calibration, push and hold.

Push and hold until "SEt" shows on the display to go to the settings menu. To exit the settings menu, push and hold
until "End" shows on the display. When in the settings menu, push to scroll through the settings.

Note: Power cannot be set to off while in settings or calibration mode.

Push to set the lock feature to on or off. When the lock feature is on, the lock icon shows and the parameter value on
the display does not change.

Calibration

C A U T I O N

Chemical exposure hazard. Obey laboratory safety procedures and wear all of the
personal protective equipment appropriate to the chemicals that are handled. Refer to the
current safety data sheets (MSDS/SDS) for safety protocols.

Calibrate the tester before initial use and when:

• Results drift

• Results are not accurate

Before the initial calibration and after a dry storage, soak the sensor for several minutes
in the sample or tap water.

Calibrate

Item to collect: One calibration standard or sample of known ORP value

1. Set the power to on.

2. Remove the cap from the sensor.

3. Push to go to calibration mode.

"CUS" shows on the bottom line.

4. Rinse the sensor and cap with deionized water and blot dry.

5. Pour the calibration standard or sample into the cap to the fill line.

7

6. Put the sensor fully into the cap.

7. When the measurement is stable, push and until the ORP value of the

calibration solution or sample shows on the display.

8. Push . The entered value will flash 3 times and then stop. "END" shows on the
display.

9. Rinse the sensor and cap with deionized water and blot dry.

Measurement

Note: Temperature compensation is not available on this tester.

1. Set the power to on.

2. Remove the cap from the sensor.

3. If the lock icon shows on the display, push to go to continuous measurement mode.

4. Rinse the sensor and cap with deionized water and blot dry.

5. Pour the water sample into the cap to the fill line.

6. Put the sensor fully into the cap. The measured value shows on the top line.

7. To keep the measured value on the display when the sensor is removed from the

sample, push .

Note: The lock icon shows on the display when the measurement is stable.

8. To measure another sample, do steps 3–7.

9. When done with measurements:

a. Rinse the sensor and cap with deionized water.
b. Put the cap on the tester.
c. Set the power to off.

Advanced operation

Configure the settings

1. Push and hold until "SEt" shows on the display.

2. Push to scroll through the settings. The current value of the setting shows on the

bottom line.

Option Description

AOFF Set the auto-off feature to on (default) or off. When set to on, power is automatically

set to off after 8 minutes of no activity.

rSEt Change the settings to the factory defaults—Yes or No (default). When set to Yes,

changes the settings to the factory settings and default values.

3. To change the value of the setting, push or .

4. When done with changes, push and hold until "End" shows to go to continuous

measurement mode.

Maintenance

C A U T I O N

Multiple hazards. Only qualified personnel must conduct the tasks described in this
section of the document.

Clean the sensor

Clean the sensor when:

• Stabilization is slow

8

• Results drift or are not accurate

1. Soak the sensor in the applicable cleaning agent. Refer to Table 3.

2. Rinse or soak the sensor in deionized water for 1 minute.

Table 3 Cleaning agents

Contaminant Cleaning agent Time

Grease, oils and fats Electrode cleaning solution 2 hours maximum

Mineral buildup 10% hydrochloric acid (HCl) solution 5 minutes maximum

Replace the batteries

When the battery icon flashes or the tester will not come on, replace all four batteries.
Refer to Install the batteries on page 5.

Replace the sensor

Note: Only Pocket Pro+ testers have replaceable sensors.

To replace the sensor, refer to the instructions supplied with the sensor.

Troubleshooting

Message Possible cause Solution

"- - - -"

(top line)

The parameter value is not within the
measurement range of the tester. Refer to

Specifications on page 2.

Make sure that the value of the sample is within the
measurement range of the tester. Gently clean the sensor.
Refer to Clean the sensor on page 8. Calibrate as
necessary.

Battery icon flashes The batteries have less than 10% power

remaining.

Replace all four batteries. Refer to Install the batteries
on page 5.

Replacement parts and accessories

W A R N I N G

Personal injury hazard. Use of non-approved parts may cause personal injury, damage to
the instrument or equipment malfunction. The replacement parts in this section are
approved by the manufacturer.

Note: Product and Article numbers may vary for some selling regions. Contact the appropriate
distributor or refer to the company website for contact information.

Table 4 Replacement parts

Description Quantity Item no.

AAA alkaline batteries 4/pkg 4674300

Lanyard 1 201305

ORP sensor, replaceable 1 9532101

Table 5 Accessories

Description Quantity Item no.

ORP Standard Solution, Light's, 20 mL/ampule 20/pkg 2612520

ORP Standard Solution, Zobell's 500 mL 2316949

Electrode cleaning solution 500 mL 2965249

9

Table 5 Accessories (continued)

Description Quantity Item no.

Hydrochloric Acid (HCl) 2.5 L 13406

Hydrochloric Acid (HCl) 500 mL 13449

HACH COMPANY World Headquarters

P.O. Box 389, Loveland, CO 80539-0389 U.S.A.
Tel. [phone]
[phone] (U.S.A. only)
Fax [phone]
[e-mail]
www.hach.com

HACH LANGE GMBH

Willstätterstraße 11
D-40549 Düsseldorf, Germany
Tel. [phone]
Fax [phone]
[e-mail]
www.hach-lange.de

HACH LANGE Sàrl

6, route de Compois
1222 Vésenaz
SWITZERLAND
Tel. [phone]
Fax [phone]

©

Hach Company/Hach Lange GmbH, 2014. All rights reserved. 12/2014, Edition 2
