Gyration GyroRemote and Mobile RF Keyboard User Manual

GyroRemote
and Mobile
RF Keyboard
User Manual
Spec GyroRemote Keyboard RF Receiver
System Require­ments
Size 7.75”L x 2”W x
Weight 6 ounces (186g) 21 ounces (653g)
Operating Range
Radio 49 MHz (U.S.) with 8 channels and 65,000
Batteries 4 AAA for up to 4
Connector N/A N/A USB with 5’ (1.5m)
Operating Temp +10 to 40 C (+50 to +104 F) Storage Temp -30 to +70 C (-86 to +158 F)
*GyroRemote: GyroTools software is Windows only. GyroRemote tool buttons not supported by Macintosh. Cursor control and left mouse button fully functional on Macintosh.
Keyboard: Internet and Multimedia hot keys not supported by Macintosh or Windows 98. Standard keyboard keys are functional.
**See inside back cover for international specifications.
T Full functionality on IBM compatible PCs running Windows
2000, ME, XP or higher
T Limited functionality on MAC OS 8.0 and higher and
Windows 98*
T Avail able USB p ort T CD ROM drive (for GyroTools installation) T Microsoft or Mac compatible mo u se driver
1.5”H (19.7cm x
5.1cm x 3.8cm)
Up to 100 feet (30.5m) typical with no line-of-sight requirement**
security addresses**
months of typical presentation use
12.5”L x 6”W x 1”H (32cm x 15cm x 4cm)
includes batteries and keyboard cover
4 AAA for up to 6 months of typical presentation use
5”L x 4”W x 2”H (13cm x 10cm x 5cm)
4 ounces (124g)
N/A
N/A
N/A
cable
GyroRemote
To Set Up and Synchronize the GyroRemote and the Receiver:
1. Power on your computer and connect the Receiver USB cable int o an available USB port on your computer.
2. Follow standard USB device installation screens.
3. Insert 4 AAA batteries into Gy ro Remot e handset.
4. Press and hold the LEARN bu tton on the Receiv er for 2 sec onds. The STATUS light will blink slow ly, indicating that the rec e ive r is in “Learn Mode.”
5. Press the TEACH button on the GyroRemote handset. The status light on the Receiver will blink rap idl y for 4 se co n ds , the n will blink slowly. Push the TEACH button on any additional devices (i.e. key -
board or 2
nd
GyroRemot e ) at this time.
1
6. OPTIONAL: To exit “Learn Mode,” press the LEARN button on the Receiver for 2 seconds. Otherwise, after five minutes, Learn Mode will automatically time ou t.
If more than one Gyratio n re mo te an d/or keyboard is being inst a lle d on the system, place the Receiver into Lear n M od e (ste p 4 a bove) on ly onc e, then “Teach” each dev ic e be f ore exiting Learn Mod e. D o n ot push the Learn button on the re ceiv er f or each dev ic e to b e ad ded. (Al so see “ In sta lli ng 3 o r More Devices” on page 13.)
When the Receiver is put into L e arn Mode, it erases its memory of lear n ed devices and looks for new devices. Theref ore, when addin g a new device to a system it is necess a r y to pu t the Recei ver into Learn Mode the n Teach all devices that will be used on the system.
Note: After the Teach/L earn sequence is performed, the Receiver and the device will remain synchronized after powering down and changing channels. It is only necessary to perform the Teach/Learn sequence when setting a device up for the first time or when adding additional de vi ce s to t h e sy stem.
GyroTools Software
GyroTools software is a suite of professional p resentation tools that enhance the functionality of GyroRemote. Assign your favorite tools to buttons 1-4 on GyroRemote and put advanced presentation techniques at your fingertips.
To install the GyroTools sof tware, insert the Gy roTools disk into your CD drive and follow the on-screen instructions. Once GyroTools is installed, you can view complete operating instructions by accessing the on-line help documentation.
2
To Determine Which Cha nnel GyroRemote is Usi n g
GyroRemote has eight individual channels available to it. To determine which channel a device is currently using:
1. Press and quickly release the CHANNEL button on the GyroRemote handset. Count the number of times the green LED light on the top of the handset flashes. The number of flashes indicates the channel the handset is using.
Note: If GyroRemote’s channel is changed when the computer is powered down or the receiver is not connected, the devices will become unsynchronized. When the system is running, click and release the channel button as described above to initiate a “channel confirm” operation. GyroRemote b roadcasts a message across all eight channels that informs the receiver what channel it is currently operating on. The receiver then automatically restores synchronization.
To Change the Channel GyroRemote is Using
When two devices are being used in the same proximity, each device should be set to operate on a unique channel.
To change the channel:
1. Press and hold the CHANNEL button on the GyroRemote handset for 2 seconds. When you relea s e the bu tt on, Gy roRemote will change to the next channel and the green LED will flash. The number of times the green LED flashes indicates the new channel the handset is using.
If a Teach/Learn sequence has already been performed, it will not be necessary to re-synchronize the devices after a channel change.
Tip: If you are installing three or more devices on a single receiver, see “Installing 3 or More Devices” on page 13.
3
Using GyroRemote
GyroRemote provide s gr e a t fle xib il ity in how you control your computer. GyroRemote has no line-of-sight requirements. This means it’s not necessary to point th e device at the computer, receiver, or TV scr ee n. Fi n d a comfortable, relaxed position and move the cursor with easy wrist movements.
The following instructions assu me you h ave already set up and synchronized GyroRemote and the Receiver (see set up steps above).
1. Hold GyroRemote in a comfortable, relaxed position with your index fin­ger on the ACTIVATION TRIGGER and your thumb on the SELECT buttons (see illu st ratio n above ).
2. Press and hold the ACTIVATION TRIGGER with your index finger. While holding the ACTIVATION TRIGGER, flex your wrist up, down, sideways, in a manner similar to using a flashlight. The mouse cur­sor tracks the motions of your hand.
Note: It is not necessary to point GyroRe m ote at the screen so be sure to place your hand in a relaxed, comfortable position in your lap or by your side.
3. Use your thumb to press the left/right SELECT buttons . These buttons serve the same func tio ns as the le ft/right mouse button of a standard computer mouse.
4. Double-click the ACTIVATION TRIGGER to keep the cursor continu­ously active. To stop the cursor, click the ACTIVATION TRIGGER once. Another way to keep the cursor continuously active is to click the crescent shaped GYRO LOCK button.
GyroRemote uses standard Windows and Mac mouse drivers. Cursor tracking speeds, mouse doub le-click speeds, and other options can be customized using the Mouse Control Panel under Windows 98, 2000, ME, NT, XP or Mac OS 8 and above (see operating system documentation for further informa­tion about customizing mouse properties).
4
Powering Off GyroRemote
After 3 minutes of non-use, GyroRemote enters a Sleep Mode that conserves battery life. In Sle ep Mode th e uni t only uses bat tery po wer when a butt on is pushed. It is not necessary to power down the unit when it is idle unless the unit will be traveling and may encounter inadvertent button presses.
1. To power down GyroRemote, simultane ou s ly pre ss a nd re le a s e the CHANNEL button and TEACH button on the side of unit. GyroRemote will immediately en ter de ep sleep mod e and will be unres ponsiv e to button clicks. The unit will confirm it is powering off by flashing its LED three times.
2. Repeat this sequence to powe r the unit back on. The unit will confirm it is powering on by flashing its LED for 1 second.
Note: It may be necessary to power off the unit when traveling on commercial airlines due to FCC regulations regarding radio-emitting devices.
Installing or Replacing the Batteries
GyroRemote operates on four standard or alkaline AAA batteries. Wh en GyroRemote’s batte rie s reac h 20% of a full charge the Status LED will blink when it normally lights so lid. For instance, clicking and holding a button on a fully charged remote causes the Status LED to light solid. Clicking and holding a button on a remote with low batteries will cause the Status LED to blink intermittently. To replace the batteries:
1. From the bottom of the remote, slide the battery cover open by pu s hing firmly downward with your thumbs.
2. Remove the battery holde r.
3. Insert four new AA A ba tt er ie s int o battery cradle and retur n cra dle into GyroRemote. When replacing the cradle into the remote, align the positive (+) labels. See Illustration for proper cradle alignment.
5
4. Replace battery cover.
Four alkaline AAA batteries will generally provide up to six months of use in a typical presentation environment.
Fine-tuning Cursor Control
GyroRemote uses your standard Windo ws mouse driver. Any settings that are available to a st andard desktop mouse are also av ailable t o GyroR emote. Multiple factors will determine how you adjust your mouse to suit your preference including screen resolution, mouse driver version and overall personal pref er e n ce .
While becoming fami lia r with your Gyr oRemo te an d ge tti ng a feel fo r the GyroPoint method of cursor control, Gy ratio n re co m m en d s ad ju st in g your mouse driver to the following se tti ngs :
T Pointer Speed – Average. Some new us ers prefer this setting to be
slightly slowe r tha n averag e. A dvanc e d us ers will increase the speed so that less wrist movement gives them more screen coverage with the cursor.
T Acceleration – Low or Off.
6
Gyration Mobile Keyboard
To Set Up and Synchronize the Keyboard with the Receiver
1. Power on your computer and connect the Receiver USB cable into an available USB port on your computer.
2. Follow standard USB device installation screens.
3. Insert 4 AAA batteries into the Keyboard.
4. Press and hold the LEARN bu tton on the Receiv er for 2 sec onds. The STATU S ligh t wi ll bli n k sl ow ly, indicating that the rec e ive r is in “Learn Mode.”
5. Press the TEACH button on the Gyration keyboard (see illustration above). The status ligh t on th e Receiver will bl in k rapidly for 4 sec­onds, then will blink s low ly. Push the “Teach” button on any addi-
tional devices (i.e. GyroRemote or 2
nd
Keyboard) at this time.
7
6. OPTIONAL: Press the LEARN button on the Receiver for 2 seconds to exit “Learn Mode.” Otherwise, af ter fi ve m inut es, L earn Mode w ill automatically time out.
If more than one device is be ing ins ta lle d on th e sam e sy st em , pl a ce the Receiver i nto Learn Mode (step 4 above) only once, then “Teach” each device before exiting Learn Mode. Do not push the LEARN button on the receiver for each device to be added. (See “Installing 3 or More Devices” on page 13.)
After the Teach/Learn sequence is performed, the receiver and the device will remain synch ro niz ed af te r po we ri n g do wn a nd c h an g ing channels. It is only necessary to perform the Teach/Learn sequence when setting a device up for the first time or when adding additional devices to the system.
When the Receiver is put into Learn Mode, it erases its memory of previously learned devices and looks for new devices. Therefore, when adding a new device to a system it is nec essary to put the Receiver into Learn Mode then Teach all devices that will be used on the system.
To Determine Which Channel the Keyboard is Using
The Gyration Keyboard has eight individual channels available to it. To determine which channel a device is cur re n t ly u s ing :
1. Press and quickly release the CHANNEL button on the keyboard. Count the number of times the gr e en LED light on the top of the keyboard flashes. The number of flashes indicates the channel the keyboard is using.
Note: If the keyboard’s channel is chan ged when th e computer i s power ed down or th e receiver is not connected, the devices will become unsynchronized. When the system is running, click and release the channel button as described above to initiate a “channel confirm” operation. The keyboard broadcasts a message across all eight channels that informs the receiver what channel it is currently operating on. The receiver then automatically restores synchronization.
8
To Change the Cha nnel the Keyboard is Using
When two devices are being used in the same proximity, each device should be set to operate on a unique channel. To change the channel:
1. Click and hold the CH ANN EL butt on on the RF Keyboard for 2 seconds. When you release the button, the keyboard will change to the next channel and the green LED will flash. The number of times the green LED flashes indicates the new channel the keyboard is using.
If a Teach/Learn sequence has already been performed, it will not be necessary to re-synchronize the devices.
Tip: If you are installing three or more devices on a single receiver, see “Installing 3 or More Devices” on page 13.
Powering Off the Keyboard
It is not necessary to power down the keyboard when it is idle unless the unit will be traveling and may encounter inadvertent key presses.
1. To power down the keyboard, simultaneousl y press and release the CHANNEL button and TEACH button on the top of the keyboard. The keyboard will immediately enter deep sleep mode and will be unresponsive to key or button clicks. The unit will confirm it is powering off by fla sh in g its LE D three times.
2. Repeat this sequence to power on the unit. The unit will confirm it is powering on by flashing its LED for 1 second.
Note: If the keyboard’s protective cover is used, power down is not required. The cover will prevent inadvertent key presses and the unit will rem ain in sleep mode with no radio transmission.
9

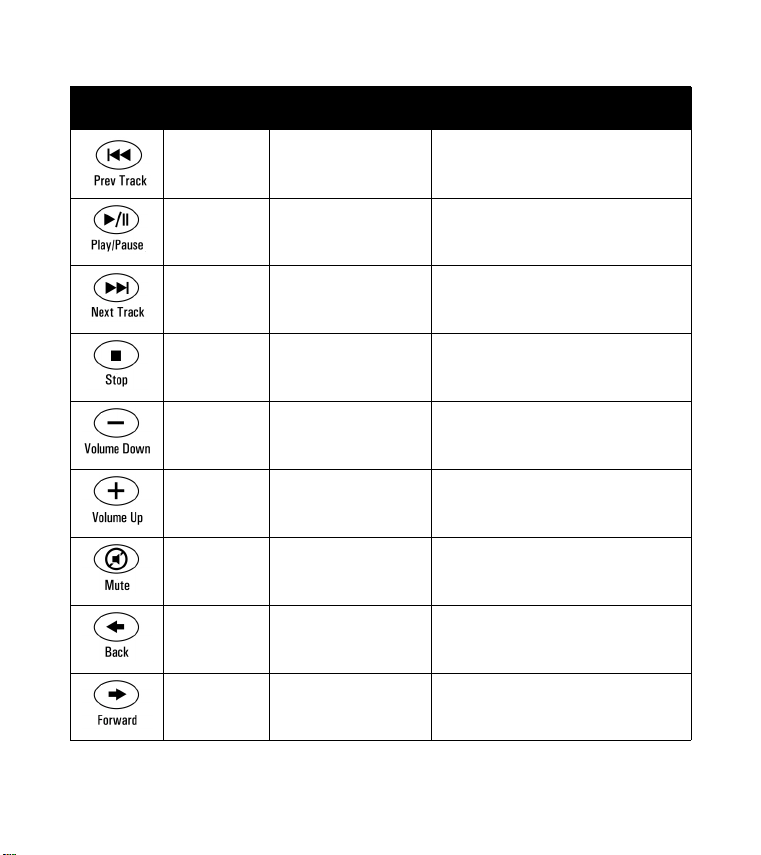

Special Keyboard Media Keys
Key OS
Support
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Program
Support
Windows CD Player, Default Media Player
Windows CD Player, Default Media Player
Windows CD Player, Default Media Player
Windows CD Player, Default Media Player
Windows sou n d control
Function
CD or Media player scans for previously played trac k
Toggles player between Play and Pause modes
CD or Media player scans for next track on CD or music file
Puts player into Stop mode
Decreases Windows vol ume setting
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Windows sou n d control
Windows sou n d control
Microsoft Internet Explorer
Microsoft Internet Explorer
10
Increases Windows volume setting
Mutes Windows sound volume
Loads the last page you viewed in the browser window
Re-loads a page you viewed before clicking the Back button

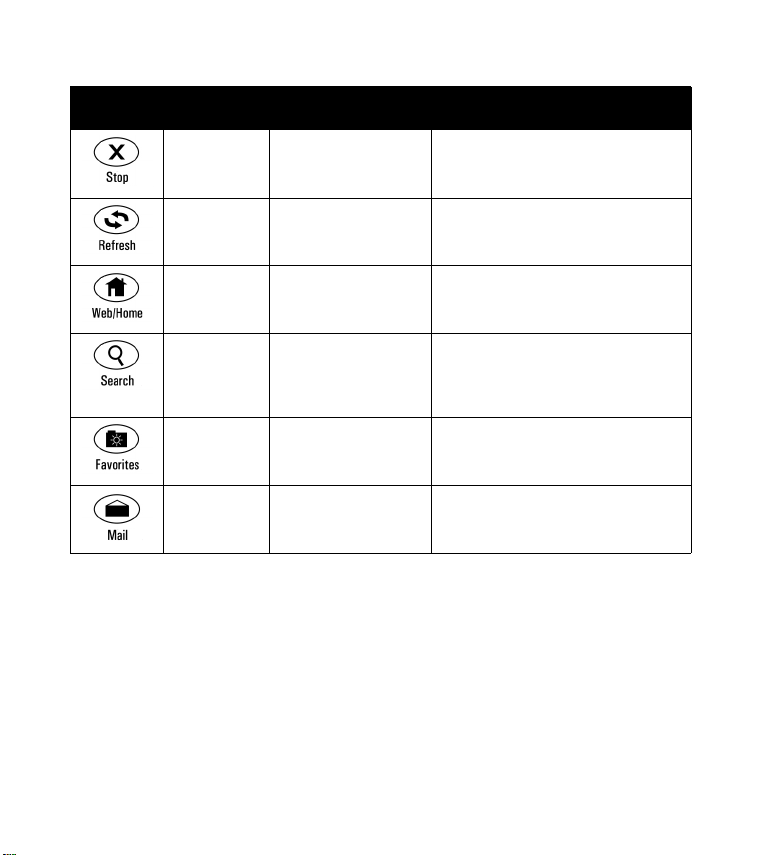

Special Keyboard Media Keys (Continued)
Key OS
Support
Win 2000, ME, XP
Program
Support
Microsoft Internet Explorer
Function
Stops the loadin g process in the browser window
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Win 2000, ME, XP
Microsoft Internet Explorer
Microsoft Internet Explorer
Microsoft Internet Explorer
Microsoft Internet Explorer
Default e-mail client
Re-loads the currently display e d page in the browser window
Launches Brower (if closed) and loads your Home page in the browser window
Opens the Search frame in the browser window or, if closed, launches Windows search
Opens the F avorites frame in the browser window
Launches your default e-mail client
11
Gyration RF Receiver
Learn Button
Pressing the LEARN button for 2 seconds puts the receiver into “Learn Mode” allowing you to synchronize one or more devices with the receiver. After devices have been synchronized, pressing the LEARN button again for 2 seconds takes the receiver out of Learn mode. If the receiver is not manually taken out of Learn Mode, it will automatically return to Normal Mode after five minutes.
Status LED
The Status LED displays useful information about modes of operation and t he connection between receiver and transmitter(s).
T The Statu s LED remains off when the receiver is operating in
“Normal Mode” and no devices are transm itting.
12
T The Status LED flickers rapidly when the receiver is operating in
“Normal Mode” and a synchronized device is transmitting. If there is radio interference , the flickering light will be inco n s is te nt.
T The Status LED blinks slowly (1 blink per second) when the receiver
is in Learn Mode and is awaiting a Teach instruction from a device.
T The Status LED blinks rapidly for a 4-se cond burst when it is in
Learn Mode and processing a Teach instruction and synchronizing the receiver with the device.
Keyboard Status LEDs
The Keyboard S tatus LED s indicat e whether the key board h as the Num L ock, Caps Lock and/or Scroll Lock features activated.
Conflict LED
If an unrecognized Gyration device is attempting to operate on the same channel as a device that has been synchronized, the red “Conflict” LED on the receiver will flicke r an d input control may be inte r mi tte nt .
The Conflict Light will only detect interference from another RF device (i.e. not cordless phones, personal radios, etc.).
Installing 3 or More Devices
The Receiver can be taught to recog nize up to eig ht de vic e s (rem o te s, key­boards, etc.) on a system, but only two of those devices may be used simul­taneously. When setting up a system with a single receiver and 3 or more devices, the foll ow in g guidelines must be fo llowed:
T Select t wo channels that are free of out side interference and install
all devices on either of those two channels. When possible, it is recommended that the two chosen channels be separated by at least one unused channel.
T Any of the devices installed on on e ch a nne l ma y be use d
13
simultaneously with any of the devices on the other channel. Two devices that share a channel may not be used simultaneously. When installing the devices try to determine which devices will be used simultaneousl y and set them on opposite channels.
The following examp le describes a single-receiver system with two remotes and a keyboard that requires one remote to be used by a presenter for cursor control while another presenter inputs data on the keyboard. Remote #1 is set to channel 3 and the keyboard and remote #2 are set to channel 5. With this configuration, remote #1 an d the keyboa r d ca n be use d simultaneously, but remote #2 and the keyboard cannot.
14
GyroRemote Troubleshooting Tips
Symptom Reason Solution
GyroRemote LED comes on when activate button is pressed, but receiver is unresponsive
Cursor is visible but shows no movement
Cursor movement i s choppy or erratic
When pressing the activate button, the LED on the GyroRemote is flashing
When pressing the activate button, the LED on the GyroRemote is off
Cursor moves too fast or too slow
When keyboard is in use, the GyroRemote stops working
Remote and Receiver not Synchronized
Gyro not activated Squeeze the trigger, double-click
Radio Interference 1. Change the device’s channel
Batteries are low
Batteries are dead
Speed or acceleration not set properly
The GyroRemote and Keyboard channels are too close to each other
Perform a Teach/Learn sequence. (See “GyroRemote” on pa ge 1.)
trigger or press crescent shaped Gyro Lock button on top of GyroRemote.
setting. (See “To Change the Channel GyroRemote is Using” on page 3.)
2. Move receiver away from other electronic devices (e.g. monitor, speakers, radio, etc.).
Replace batteries (see pag e 5).
Change the cursor tracking speed in the mouse control panel (see OS documentation for details).
Find out what channel each device is on (See “GyroTools Software” on page 2 and “To Determine Which Channel the Keyboard is Using” on page 8), then change the channels on the GyroRemote device to a channel at least 2 away from the keyboard channel.
15
Keyboard Troubleshooting Tips
Symptom Reason Solution
Computer does not recognize data input
Keystrokes are not consistently recognized
Keyboa rd a nd Recei ver not Synchronized
Radio interference 1. Change the device’s channel
Dead batteries Replace batteries. Radio interference 1. Change the device’s channel
Perform a Teach/Learn sequence (see page 7).
setting (See “To Change the Channel the Keyboard is Using” on page 9).
2. Move receiver away from other electronic devices (e.g. monitor, speakers, radio, etc.).
setting.
2. Move receiver away from other electronic devices (e.g. monitor, speakers, radio, etc.).
16
REGULATORY INFORMATION
ATTENTION! THIS DEVICE EMITS RADIO FREQUENCIES AND HAS NOT BEEN CERTI FIED BY THE FAA FO R USE ONBOARD AIRCRAFT. DO NOT USE THIS DEVICE AT ANY TIME ONBOARD CIVIL AIRCRAFT. TO MINIMIZE THE POSSIBILITY OF INTERFERENCE, POWER OFF GYROREMOTE TO ENSURE THAT GYROREMOTE REMAINS OFF DURING FLIGHT.
FCC Statement
The GyroRemote, Keyboard and Receiver have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses a nd r adiat es r adio frequ ency en ergy a nd, i f not instal led and used in accordance with the instructions, may cause harmful int erference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or te levision reception, which can be det e rmined by turning the equipment off and on, the user is encouraged to try to correct the interferen ce by one or more of the follo wi n g me a s ur es :
1. Reorient or relocate the receiving antenna (television, radio, etc.).
2. Increase the separation between the equipment and receiver.
3. Connect the equipm e n t to an outle t on a circ uit dif fe r ent from that to which the recei ver is co n ne c ted.
4. Consult the deale r or an experienced radio/T V te ch nic ian for additional help.
Caution: Changes or mo difications not expr es s ly a pp rove d by th e par t y responsible for compliance could void the user's authority to operate the equipment. Contac t Gy ration , Inc., 12930 Saratoga Avenue, Bldg . C, Saratoga CA 95070. Technical Support tel: 408 973-7086. These devices comply with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
17
1. these devices may not cause harmf ul interf e renc e, and
2. these devices must accept any interference received, including interference that may cause undesired operat ion.
The GyroRemot e and Keyboard operate in the frequency band of 49.82 to
49.9 MHz with RF output power of less tha n 30 M icro Watts EIRP (Eff ecti ve Isotropic Radiated Power).
Warning: Using these products in any way other than as described in this manual or altering the antenna in any way m ay violate FCC rules. FCC ID: JJ4-GP241-001 (G yr oRemote ), JJ4 -G P221-001 (Mobile Keyboard) Receiver: AS00216-001
Canadian Radio Interfere nce Regu la tions
This Class B digital apparatus meets all requirements of the Canadian Interference Cau si ng Equ i pm e nt Regu lati on s . Ce t app a re il nu m é riq ue de la classe B respecte toutes les exigences du Règelement sur le matériel brouil­leur du Canada.
18
Contacting Gyration
If you have any questions on your new Gyration product, please use any of the phone/FAX numbers or addresses below:
Main Office Gyration, Inc. 12930 Saratoga Avenue, Bldg. C Saratoga, CA 95070 USA Phone: 408-255-3016 Fax: 408-255-9075
Sales
Phone: 800-316-5432 (Toll-free in US and Canada) Fax: 408-351-4433 E-mail: sales@gyration.com
Technical Support
Phone: 408-973-7086 E-mail: support@gyration.com
World Wide Web
www.gyration.com
Warranty Information
Gyration products come with a one-year hardware warranty. Gyration, Inc., (Gyration) warrants products against defects in material and workmanship for a period of one year from the date of purchase from Gyration or an authorized Gyration agent . Thi s warra nty a pp lie s on ly to the ori gin a l purchaser and is not transferable. This warranty does not cover any incompatibili tie s du e to th e use r ' s co m puter, hardware, software or any other related system conf igu ration in wh ich the pro duct inte r fac e s. Proof of purchase will be required before any warranty consideration by Gyration occurs. This warr anty does not cover any damage caused by negligence, non-authorized modifications, or parts installed without prior written
19
permission from Gyration. This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication, nor as a result of service to the product by anyone othe r than by Gyration.
Gyration is not responsible for any lost profits, lost savings or other incidental or consequential damages arising out of the use of, or inability to use, this product. This includes damage to property and, to the extent permitted by law, damages for personal injury. This warranty is in lieu of all other warranties including implied warranties of merchantability and fitnes s for a particular purpose.
Some states do no t allo w limitation of implied war ranti es , or excl u si on or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights. You may have other rights which may vary from state to state. This warranty applie s only to these pr odu cts, and is gove rned b y the la ws of t he Sta te of Calif ornia .
20
International Radio Compatibility
United States, Brazil, Canada, Israel
CHANNELS FREQUENCY RANGE
8 49mhz 100 ft. (30.5 m)
Australia, European Union, Czech Republic, Hong Kong, Hungary, Malaysia, Mexico, New Zealand, Norway, Philippines, Poland, Russia, Switzerland, Thailand
CHANNELS FREQUENCY RANGE
4 40mhz 30.5 m (100 ft.)
Japan, South Korea
CHANNELS FREQUENCY RANGE
8 49mhz 7.6 m (25 ft.)
China, Taiwan
CHANNELS FREQUENCY RANGE
4 40mhz 7.6 m (25 ft.)
GyroRemote & RF Keyboard User Manual
PA00169-001 Rev. C
Gyration, Inc.
12930 Saratoga Avenue, Bldg. C
Saratoga, CA 95070
1.800.316.5432 www.gyration.com
Loading...
