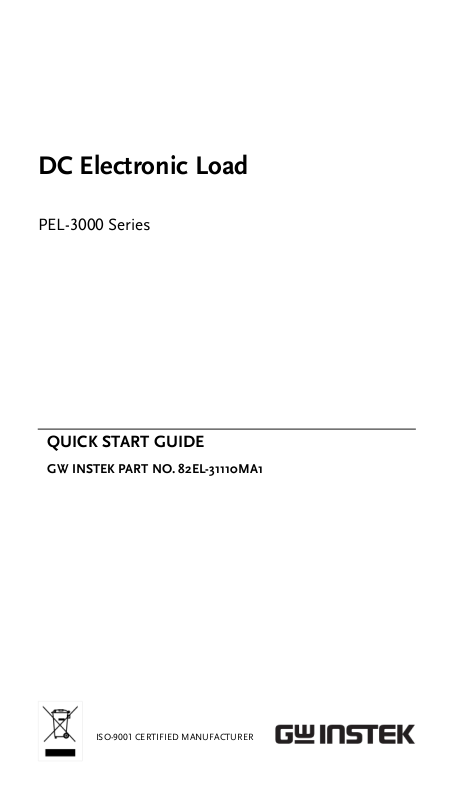

GW Instek PEL-3000 User Manual
DC Electronic Load
PEL-3000 Series
QUICK START GUIDE
GW INSTEK PART NO. 82EL-31110MA1
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist., New Taipei City 236, Taiwan.
SAFETY INSTRUCTIONS
Warning
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution
Caution: Identifies conditions or
practices that could result in damage
to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.
This section contains the basic safety symbols that may
appear on the accompanying User Manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.
Safety Symbols
These safety symbols may appear in the user manual or
on the instrument.
Power Cord for the United Kingdom
Green/ Yellow:
Earth Blue:
Neutral
Brown:
Live (Phase)
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
NOTE: This lead/appliance must only be wired by
competent persons.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in
accordance with the following code:
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2 should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
GETTING STARTED
Model
Operating Voltage (DC)
Current
Power
PEL-3021
1.5V~150V
35A
175W
PEL-3041
1.5V~150V
70A
350W
PEL-3111
1.5V~150V
210A
1050W
PEL-3211
(Booster)
1.5V~150V
420A
2100W
Performance
• High slew rates of up to
16A/μS(PEL-3111) for a fast
response speed
The Getting Started chapter introduces the instrument’s
main features, appearance, and set up procedure.
Overview
The PEL-3000 Series is a family of high performance DC
electronic loads positioned to test a wide range of
different power sources. The DC electronic loads are
fully programmable to simulate anything from basic
static loads to complex dynamic loads. With the ability
to operate independently or in parallel, the PEL-3000
Series is extremely robust and capable of molding to
any test environment.
Model Line Up
Main Features
• High capacity when used in
parallel:
5250W, 1050A (PEL-3111 x 5)/
9450W, 1890A (PEL-3111 + PEL3211 x 4)
• High resolution – 16 bit
Features
• 7 operating modes: CC, CV, CR,
CP, CC+CV, CR+CV, CP+CV
• Independent and parallel
operation
• Fully programmable with normal
and fast sequences
• Soft start
• Dynamic mode
• OCP, OVP and other protection
features
• Remote sense
• Integrated meter
• Rack-mountable
• Load booster
Interface
• USB, RS232 and GPIB
• External voltage or resistance
control
• Front panel trigger out BNC
• Front panel current monitoring
BNC
• Analog external control
Package Contents and Accessories
Standard Accessories
Item
Part Number
User /Programming Manual CD
82EL-31110EA1
Quick Start Guide (this document)
82EL-31110MA1
Load input terminal Cover
PEL-011
Terminal fittings: 2 sets of
bolts/nuts/springs/washers
(type: M8)
PEL-012
Power Cord x1
Region Dependent
Optional Accessories
Item
Part Number
Rack mount bracket for booster
PEL-3211/EIA
GRA-413-E
Rack mount bracket for booster
PEL-3211/JIS
GRA-413-J
Rack mount frame for PEL-3021,
PEL-3041, PEL-3111/EIA
GRA-414-E
Rack mount frame for PEL-3021,
PEL-3041, PEL-3111/JIS
GRA-414-J
300mm frame link cable (for
vertically stacked units)
GTL-255
GPIB cable, 2.0m
GTL-248
USB cable. Type A - Type B
GTL-246
Dust filter
PEL-010
Options
Item
Part Number
GPIB Interface
PEL-004
