GW-INSTEK GSP-9300BTG Instructions

Spectrum Analyzer

GSP-9300B

QUICK START GUIDE

ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company.

The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents

SAFETY INSTRUCTIONS .................................................. 2

GETTING STARTED .......................................................... 7

GSP-9300B Introduction ........................ 9

Accessories .......................................... 12

Appearance .......................................... 14

First Use Instructions .......................... 26

BASIC OPERATION ........................................................ 38

Viewing a Signal .................................. 38

Using the Marker Function .................. 40

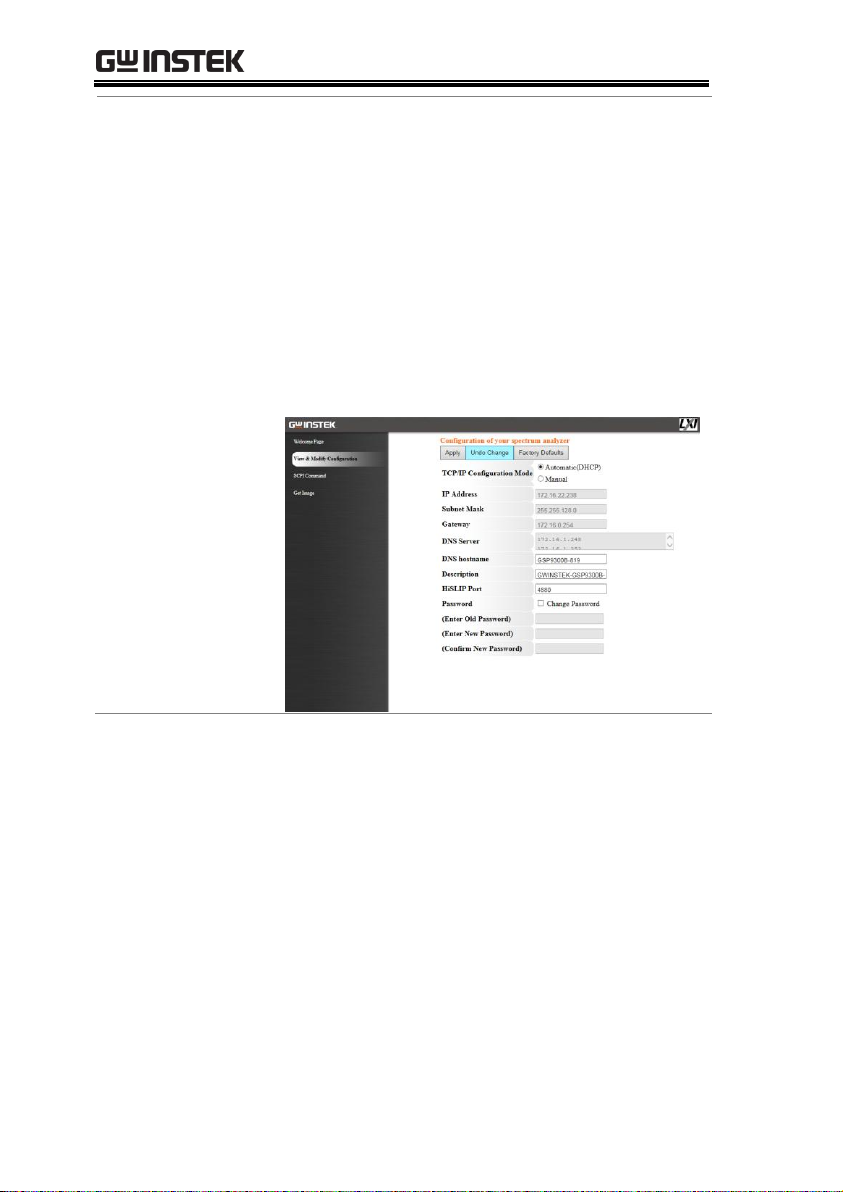

Interface Configuration ........................ 42

APPENDIX ..................................................................... 48

Replace the Clock Battery ..................... 48

GSP-9300B Specifications .................... 49

GSP-9300B Dimensions ....................... 57

Declaration of Conformity .................... 58

GSP-9300B Quick Start Guide

WARNING

Warning: Identifies conditions or practices that could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that could result in damage to the instrument or to other properties.

DANGER High Voltage

Attention Refer to the Manual

Earth (ground) Terminal

Frame or Chassis Terminal

Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.

SAFETY INSTRUCTIONS

This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the instrument.

SAFETY INSTRUCTIONS

General Guideline

CAUTION

 Do not place any heavy object on the

instrument.

 Avoid severe impact or rough handling that

leads to damaging the instrument.

 Do not discharge static electricity to the

instrument.

 Use only mating connectors, not bare wires, for

the terminals.

 Ensure signals to the RF input do not exceed

+30dBm.

 Ensure reverse power to the TG output terminal

does not exceed +30dBm.

 Do not supply any input signals to the TG

output.

 Do not block the cooling fan opening.  Do not disassemble the instrument unless you

are qualified.

(Measurement categories) EN 61010-1:2010 specifies the measurement categories and their requirements as follows. The instrument falls under category II.

 Measurement category IV is for measurement performed at the

source of low-voltage installation.

 Measurement category III is for measurement performed in the

building installation.

 Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

 Measurement category I is for measurements performed on

circuits not directly connected to Mains.

Power Supply

WARNING

 AC Input voltage range: 100V~240V  Frequency: 50/60Hz  To avoid electrical shock connect the protective

grounding conductor of the AC power cord to an earth ground.

Safety Guidelines

GSP-9300B Quick Start Guide

Battery

CAUTION

 Rating: 11.1V, 6 cell Li-ion battery  Turn off the power and remove the power cord

before installing or removing the battery.

Cleaning

 Disconnect the power cord before cleaning.  Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

 Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation Environment

 Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

 Temperature: 5°C to 45°C  Humidity: <90%

(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The instrument falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.

 Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

 Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.

 Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled.

Storage environment

 Location: Indoor  Temperature: -20°C to 70°C  Humidity: <90%

SAFETY INSTRUCTIONS

Disposal

Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.

GSP-9300B Quick Start Guide

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

Power cord for the United Kingdom

When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code:

As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:

The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment or contact the supplier.

This cable/appliance should be protected by a suitably rated and approved HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used.

Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.

GETTING STARTED

GSP-9300B Introduction ................................................... 9

Main Features................................................................................................................. 9

Accessories .................................................................... 12

Appearance .................................................................... 14

GSP-9300B Front Panel ............................................................................................14

Rear Panel .....................................................................................................................19

Display ..........................................................................................................................21

Status Icon Overview .................................................................................................24

First Use Instructions..................................................... 26

GETTING STARTED

This chapter provides a brief overview of the GSP-9300B, the package contents, instructions for first time use and an introduction to the front panel, rear panel and GUI.

GSP-9300B Quick Start Guide

Tilting the Stand ......................................................................................................... 26

Inserting the Battery Pack ......................................................................................... 27

Power UP ..................................................................................................................... 28

Power Down ............................................................................................................... 29

Setting the Date, Time and Wake-Up Clock ......................................................... 30

Firmware Update ........................................................................................................ 32

Restoring Default Settings ........................................................................................ 33

Conventions ................................................................................................................ 34

GETTING STARTED

Performance

 9kHz~3GHz bandwidth  1Hz resolution  Nominal RBW accuracy of ±5% <1MHz,

±8% =1MHz

 Video bandwidth 1Hz~1MHz (1-3-10 steps)  Amplitude measurement range: DANL~30dBm

(frequency dependent)

 Input attenuation: 0 ~ 50dB, 1dB steps  Phase noise: < -88dBc/Hz@1GHz, 10kHz,

typical

Features

 1-3-10 step increments for RBW bandwidth  Three display modes: Spectrum, Topographic

and Spectrographic

 Split window display  Built-in EMI filter  Auto Wake-up  Built-in preamplifier  Gate sweep

GSP-9300B Introduction

The GSP-9300B builds on the strong feature set of the GSP-9330 and significantly increases performance in almost every aspect; making this the most comprehensive and feature-rich spectrum analyzer GW Instek has released.

Like the GSP-9330, the GSP-9300B features a split window display to view data in spectrum, topographic or spectrographic views. There are also a number of additional test functions such as P1DB. Lastly, the GSP-9300B significantly reduces the sweep time and RBW filter step resolution and complexity.

Main Features

GSP-9300B Quick Start Guide

 Marker Frequency counter  Two operating modes: Spectrum and Power

Meter mode

 SEM measurement  ACPR measurement  OCBW measurement  Phase jitter measurement  Harmonics measurement  P1dB measurement  Channel power measurement  Demodulation analyzer  Diverse marker functions and features with

Peak Table

 Sequence function to automatically perform pre-

programmed sequential operations

 Optional battery operation

GETTING STARTED

Interface

 8.4 color LCD (800600)  On-screen menu icons  DVI-I video output  RS-232 with RTS/CTS hardware flow control  USB 2.0 with support for USB TMC  LAN TCP/IP with LXI support  Optional GPIB/IEEE488 interface  Optional 3G USB adapter for WLAN  Optional power meter adapter  IF output @ 886MHz  Headphone output  REF (reference clock) input/output BNC ports  Alarm/Open collector output BNC port  Trigger/Gate input BNC ports  RF N-type input port  Tracking generator output  DC +7V/500mA output SMB port

GSP-9300B Quick Start Guide

Standard Accessories

Part number

Description Region dependant

Power cord

N/A

User manual CD: Includes: User manual, Programming manual, SpectrumShot quick start guide, SpectrumShot software, IVI driver

N/A

Quick start guide

N/A

Certificate of calibration

Region dependant

Power cord

Options

Option number

Description

Opt1.

Tracking generator

Opt2.

Battery (11.1V/5200mAH Li-ion battery)

Opt3.

GPIB interface (IEEE 488 bus)

Optional Accessories

Part number

Description

ADB-002

DC block BNC 50R 10MHz-

2.2GHz

ADB-006

DC BLOCK N TYPE 50R 10MHz-6GHz

ADB-008

DC BLOCK SMA 50R

0.1MHz-8GHz

GSC-009

Soft Carrying Case

GRA-415

6U Rack mount kit

Accessories

GETTING STARTED

Software Downloads

PC Software for Windows System (SpectrumShot quick start guide, SpectrumShot software)

IVI Driver Supports LabView & LabWindows/CVI Programming

GSP-9300B Quick Start Guide

LOCAL

CONTROL

FILE AUXILIARY

Frequency

Autoset

Amplitude

Span

BW/AVG

Display

Trace

Sweep

Measure

Trigger

File

Recall

Save

Peak

Marker

System

Preset

Quick

Save

Enter

BK SP

Sweep Mode

Limit

Line

Sequence

Option Control

Fast/ Normal

F 4

F 3

F 2

F 1

F 6

F 5

F 7

RF INPUT 50

REV PWR +30dBm

TG OUTPUT 50

W W

500mA MAX .

DC 7V

OUTPUT +30 dBm MAX .

MAX.DC ±50V MAX.DC ±50V

9 kHz 3 GHz

Spectrum Analyzer

GSP-9300B

LCD display

Main keys

Function keys

Control keys *

Power key

File keys

Auxiliary keys

Scroll wheel

Arrow keys

RF input terminal

DC power supply

Tracking generator output

Numeric, Enter and BK SP keys

USB A, Micro SD port

Marker keys

Preset/Local and Quick Save keys

MARKER

LCD display

800600 color LCD display. The display shows the soft keys for the current function, frequency, amplitude and marker information.

Function keys

F 1

F 7

The F1 to F7 function keys directly correspond to the soft keys on the right-hand side of display.

Main keys

Frequency

Sets the center frequency, start frequency, stop frequency, center frequency step and frequency offset values.

Appearance

GSP-9300B Front Panel

GETTING STARTED

Span

Sets the span, with options for full span, zero span and last span.

Amplitude

Sets the amplitude reference level, attenuation, pre-amplifier controls, scale and other options for attenuation and scale.

Autoset

Automatically searches the peak signal with maximum amplitude and displays it with appropriate horizontal and vertical scales.

Control keys

BW/Avg

Sets the resolution bandwidth, video bandwidth, average type and turns the EMI filter on/off.

Sweep

Sets the sweep time and gate time.

Sweep

Mode

Toggles the Sweep Control between Fast and Normal mode.

Measure

Accesses measurement options such as ACPR, OCBW, demodulation measurements, SEM, TOI, phase jitter and other advanced measurements.

Trace

Sets traces and trace related functions.

Limit

Line

Sets and tests Pass/Fail limit lines.

Display

The Display key configures the windowing mode and basic display properties.

GSP-9300B Quick Start Guide

Trigger

Sets the triggering modes.

File

File utilities options

Save

Save the trace, state etc., and save options.

Recall

Recall the trace, state etc., and recall options.

Marker

Turns the Markers on/off and configures the markers.

Marker

The Marker key positions the markers on the trace.

Peak

Finds each maximum and minimum peak. Used with the Marker function.

Auxiliary

Sequence

Access, set and edit program sequences.

Option

Control

The Option Control key allows you to setup optional accessories such as the Tracking Generator, Power Meter or Demo Kit.

System

The System key shows system information, settings and other system related functions.

GETTING STARTED

Preset / Local key

Preset

LOCAL

The Preset key will restore the spectrum analyzer to the Factory or User Preset settings.

The Preset key will also return the instrument back to local control after it has been in remote control mode.

Quick

Save

The Quick Save utility allows you to save either the state, trace, display screen, limit line, correction or sequence with only a single press.

Power key

Turns the instrument on/off. On = yellow, off = blue.

Scroll wheel

Edit values, select listed items.

Arrow keys

Increment/decrement values (in steps), select listed items.

RF input terminal

RF INPUT 50

+30dBm MAX.

MAX.DC ±50V

RF input port. Accepts RF inputs.

 Maximum input: +30dBm  Input impedance: 50Ω  Maximum DC voltage: ±50V  N-type: female

GSP-9300B Quick Start Guide

DC power supply

500mA MAX.

DC 7V

OUTPUT

SMB port supplies power for optional accessories.

 DC +7V  500mA Max.

Numeric keypad

Enter

BK SP

The numeric keypad is used to enter values and parameters. It is often used in conjunction with the arrow keys and scroll wheel.

TG output port

REV PWR +30dBm

TG OUTPUT 50

MAX.DC ±50V

The Tracking Generator (TG) output source.

 N-type: female  Input impedance: 50Ω  Output power: -50dBm to 0dBm  Maximum reversed power:

+30dBm

USB A, Micro SD

USB A port, Micro SD port for saving/recalling settings/files.

Rear Panel

AC 100 240V

50 60 Hz 82W MAX.

AC 100 240V

50 60 Hz 82W MAX.

USB-B, LAN port

FanDVI-I

port

IF OUT

TRIG IN/GATE

IN port

ALARM OUT/

OPEN

COLLECTOR

REF OUT Battery cover/

Optional battery pack

REF IN

RS232 port

GPIB port (optional)

Power socket

RS232

RS232 9 pin DSUB port.

IF OUT

SMA IF Out port.

DVI-I

DVI video out port. Supports SVGA (800X600) @ 60Hz.

Fan

Power Socket

Power Socket: 100~240V, 50/60Hz.

GETTING STARTED

GSP-9300B Quick Start Guide

Battery pack

Voltage: 11.1V Capacity: 5200mAH

REF IN

BNC female reference input.

REF OUT

BNC female reference output: 10MHz, 50Ω impedance

Security Lock

ALARM OUT

BNC female open collector Alarm output.

TRIG IN/GATE IN

BNC female 3.3V CMOS trigger input/gated sweep input.

Phone

3.5mm stereo headphone jack (wired for mono operation)

USB B

USB B Device port. USB 1.1/2.0

LAN

RJ-45 10Base-T/100Base-Tx

Display

Scale and Reference level

Attenuation level

Date and time

Function menu

Marker information

Trace/ Detection settings

Unassigned setting icons

Sweep, Trigger, Pre-amp and USB settings

Frequency/Bandwidth settings

Status icons

Sweep settings

Traces and waveforms

LXI icon

Entry / Message area

Sweep progress bar

Scale

Displays the vertical scale of the vertical grid.

Reference level

Displays the reference level.

Attenuation

Displays the vertical scale (attenuation) of the input signal.

Date/Time

Displays the date and time.

Marker information

Displays marker information.

LXI icon

This icon indicates the status of the LXI connection.

Function menu

Soft menu keys associated with the F1 to F7 function keys to the right of the display.

GETTING STARTED

GSP-9300B Quick Start Guide

Sweep Mode

This icon displays the sweep mode, as set by the Sweep Mode key.

Sweep settings

Sweep icon that shows the sweep status.

Trace and detection settings

Trace icon that shows the trace type and the detection mode used for each trace.

Blank

Unassigned setting icons.

Trigger settings

Trigger icon that shows the trigger status.

Pre-amp settings

Pre-amplifier icon that shows the Pre-amplifier status.

USB settings

Displays the status of the USB A port.

Status Icons

Displays the interface status, power source status and alarm status, etc. See the Status Icon Overview on page 24 for a list of the status icons.

Frequency/ Bandwidth settings

Displays the Start, Center and Stop frequencies, RBW, VBW, Span and Sweep settings.

Entry/Message area

This area is used to show system messages, errors and input values/parameters.

Trace and waveforms

Main display showing the input signals, traces, limit lines and marker positions.

GETTING STARTED

Sweep progress bar

The sweep progress bar shows the progress of slow sweeps (greater than 2 seconds).

GSP-9300B Quick Start Guide

3G Adapter

Indicates that the 3G adapter is installed and turned on.

Demo Kit

Indicates that the demo kit is installed and turned on.

PreAmp

Indicates that the pre amplifier is on.

Shown when running on AC power.

AC Charge

Shown when the AC power is charging the battery.

Alarm Off

Alarm buzzer output is currently off.

Alarm On

Alarm buzzer output is currently on.

Amplitude Offset

Indicates that the amplitude-shift is active. This icon appears when amplitude-related functions are used: Reference level offset Amplitude Correction Input Z = 75Ω and Input Z cal >0

Battery indicator

Indicates the battery charge.

Bandwidth Indicator

Indicates that the RBW or VBW settings are in manual mode.

Status Icon Overview

GETTING STARTED

Average

Indicates that the Average function is active.

External Lock

Indicates that the system is now locked and refers to the external reference input signal

External Trigger

External trigger signal is being used.

Math

Trace math is being used.

Sequence Indicator

Shown when a sequence is running.

Sweep Indicator

Indicates that the sweep time is manually set.

Tracking generator

Indicates that the tracking generator is turned on.

TG Normalization

Indicates that the tracking generator has been normalized.

Wake-up clock

Indicates that the wake-up clock is turned on.

USB

Indicates that a USB flash drive is inserted into the front panel and is recognized.

Micro SD

Indicates that a micro SD card is inserted into the front panel and is recognized.

GSP-9300B Quick Start Guide

Description

The GSP-9300B has two adjustable rubber feet that can used to position the instrument into two preset orientations.

Upright Position

Tuck the feet under the bottom of the instrument to stand the instrument upright.

Leaning Position

Pull the feet back to have the instrument leaning back.

First Use Instructions

Use the procedures below when first using the GSP-9300B to tilt the stand, insert the battery pack, power up the instrument, set the internal clock, set the wake-up clock, update the firmware and to restore the default settings. Lastly, the Conventions sections will introduce you to the basic operating conventions used throughout the user manual.

Tilting the Stand

GETTING STARTED

Description

The GSP-9300B has an optional battery pack. The battery should be inserted before power is connected to the AC power socket and before the unit is turned on.

Steps

1. Ensure the power is off and the AC power is

disconnected.

2. Remove the battery cover.

3. Insert the battery as shown in the diagram

below.

4. Replace the battery cover.

Display Icon

The battery icon is displayed when GSP9300B is running on battery power.

Insertion Diagram

Inserting the Battery Pack

Power UP

Steps

1. Insert the AC power cord into the power

socket.

2. The power button exterior will be lit blue to

indicate that the GSP-9300B is in standby mode.

3. Press the power button for a few seconds to

turn the GSP-9300B on.

4. The power button will turn orange and the

GSP-9300B will start to boot up.

Note

It takes a little less than 1 minute for the GSP9300B to fully startup.

GSP-9300B Quick Start Guide

Power Down

Description

The GSP-9300B has two methods to power down: Normal and Forced Power Down.

The normal power down method will save the system state and end any running processes. The state is saved for the next time the instrument is turned back on.

The forced power down method only does a minimum state save.

Normal Power Down

Press the power button. The system will automatically handle the power down procedure in the following order:

 The system state is saved.  Outstanding processes are closed in

sequence.

 The LCD backlight is turned off.  The system enters standby mode (the

power key changes from orange to blue).

Note

The process takes ~10 seconds.

Forced Power Down

Press and hold the power button for ~4 seconds until the system turns off and the power button turns blue.

Note

The forced power down mode might cause the GSP-9300B to perform a longer system check the next time it is powered up.

GETTING STARTED

GSP-9300B Quick Start Guide

Description

The GSP-9300B can be setup to power-up automatically using the Wakeup Clock function. This feature is useful to wake-up the instrument early and eliminate settling time.

System Date

Example: Set the System Date to July 1, 2016

1. Press

System

>Date/Time[F4]>Set

Date[F1]>Year[F1].

2. Press 2016>Enter[F1].

3. Press Month[F2]>7>Enter[F1].

4. Press Day[F3]>1>Enter[F1].

5. Press Return[F7].

Note

The System Date will be shown at the top of the display.

System Time

Example: Set the System Time to 9.00 AM

1. Press

System

>Date/Time[F4]>Set

Time[F2]>Hour[F1].

2. Press 9>Enter[F1].

3. Press Minute[F2]>0>Enter[F1].

4. Press Second[F3]>0>Enter[F1].

5. Press Return[F7].

Setting the Date, Time and Wake-Up Clock

GETTING STARTED

Note

The System Time will be shown at the top of the display.

System Wake-Up Clock

Example: Set the GSP-9300B to wake up at 9.00 AM

1. Press

System

>Date/Time[F4]>Wake-Up

Clock[F3]>Select Clock[F1].

2. Press Clock 1[F1] ~ Clock 7[F7] to choose a clock

(1 ~ 7).

3. Press State[F2] to turn the wake up clock

on/off.

4. Press Hour[F3]>9>Enter[F1].

5. Press Minute[F4]>0>Enter[F1].

6. Press [F5] and choose Rept. (Repeat) or Single.

7. Press Select Date[F6] and select a day.

8. Press Return[F7] to save the Wake-Up Clock

settings.

Note

The system time is kept with the CR2032 clock battery. If the system time/ wake up clock can no longer be set, please replace the clock battery. See page 48.

GSP-9300B Quick Start Guide

Description

The GSP-9300B allows the firmware to be updated by end-users. Before using the GSP9300B, please check the GW Instek website or ask your local distributor for the latest firmware.

System version

Before updating the firmware, please check the firmware version.

1. Press

System

>System Information[F1].

2. The firmware will be listed on the display.

Firmware: V3.0.0.3

3. Press any other main/control/file/marker

/auxiliary key to exit out of the System Information screen.

4. To upgrade the firmware, insert the new

firmware onto a USB flash drive or Micro SD card and put the drive/card into the appropriate front panel port. The firmware files should be located in a directory named “gsp932”.

Firmware Update

GETTING STARTED

5. Press

System

>More 1/2[F7]>Upgrade[F2].

6. The spectrum analyzer will automatically find

the firmware on the USB flash drive and start to update the firmware. When finished, the message “Upgrade is finished” will be shown at the bottom of the screen followed by “Rebooting”.

Rebooting

7. The system will automatically restart after the

rebooting message.

Note

The upgrade process may take a few minutes.

Description

The factory default settings or user presets can be easily restored using the Preset key on the front panel. By default, the factory default settings are restored with the Preset key.

Steps

1. Press

Preset

2. The spectrum analyzer will load the preset

settings.

Restoring Default Settings

GSP-9300B Quick Start Guide

Soft Menu keys

The F1 to F7 function keys on the right side of the display correspond directly to the softmenu keys on their left.

LOCAL

CONTROL

FILE AUXILIARY

Frequency

Autoset

Amplitude

Span

BW/AVG

Display

Trace

Sweep

Measure

Trigger

File

Recall

Save

Peak

Marker

System

Preset

Quick Save

/ Enter

BK SP

Sweep Mode

Limit Line

Sequence

Option Control

Fast/

Normal

F 4

F 3

F 2

F 1

F 6

F 5

F 7

RF INPUT 50

REV PWR +30dBm

TG OUTPUT 50

W W

500mA MAX.

DC 7V

OUTPUT +30 dBm MAX.

MAX.DC ±50V MAX.DC ±50V

9 kHz 3 GHz

Spectrum Analyzer

GSP-9300B

MARKER

Soft-menu keys

F1 ~ F7 function keys

Input Parameter Values

Selecting this type of menu key will allow you to enter a new value with the numeric keypad or increment/decrement the value using the scroll wheel.

Toggle State

Pressing this menu key will toggle the state.

Conventions

The following conventions are used throughout the user manual. Read the conventions below for a basic grasp of how to operate the GSP-9300B menu system and front panel keys.

GETTING STARTED

Toggle State & Input Parameter

Pressing this menu key will allow you to toggle the state of the function between Auto and Man(ual) state. When in the Man state, the parameter value can be manually edited. Use the numeric keypad to enter the new value or use the scroll wheel to increment/decrement the current value.

Sub Menu

Pressing this menu key will enter a submenu.

Sub Menu to select parameter

Pressing this menu key will enter a submenu to select a parameter.

Active Function

Pressing this type of menu key will activate that function. The menu key will be highlighted to show it is the active function.

GSP-9300B Quick Start Guide

Parameter input

LOCAL

Preset

Quick

Save

Enter

BK SP

Numerical keypad

Scroll wheel

Directional arrow keys

Backspace, Enter keys

Parameter values can be entered using the numeric keypad, the scroll wheel and occasionally with the arrow keys.

Using the numeric keypad

When prompted to enter a parameter, use the number keys (0~9), the decimal key (.) and the sign key (+/-) to enter a value. After a value has been entered, the soft-menu keys can be used to select the units.

The value of the parameter is shown at the bottom of the screen as it is edited. Values can include decimal points for non-integer values or for entering dot-decimal notation for IP addresses.

Edited parameter

Span: 10

Back Space

Use the backspace key to delete the last character or number entered.

GETTING STARTED

Using the scroll wheel

Use the scroll wheel to alter the current value. Clockwise increases the value, anti-clockwise decreases the value.

Directional arrows

Use the directional arrows to select discrete parameters or to alter values by a coarser resolution than the scroll wheel. Left decreases the value, right increases the value.

GSP-9300B Quick Start Guide

Description

This section will give a brief overview on how to view signals from the rear panel REF out terminal. Only the basic settings will be shown.

Operation

1. Press

Preset

. This will restore the factory default

settings. See the user manual for details.

2. Connect the REF out signal from the rear panel

to the RF Input on the front panel.

RF INPUT 50

+30dBm MAX.

MAX.DC ±50V

BASIC OPERATION

The Basic Operation chapter in this Quick Start Guide only covers a few basic operations: how to view a signal, how to use a marker to make a measurement and how to setup the LXI interface. For comprehensive operating instructions, please see the user manual on the accompanying User Manual CD.

Viewing a Signal

BASIC OPERATION

3. Press

Frequency

>Center[F1] and enter 10MHz. This

is the output frequency of the REF out signal.

4. Press

Amplitude

>Ref Level[F1] and set the reference

level to 17dBm.

5. Press

Span

and enter a span of 10MHz. This will set the start frequency to 5MHz and the stop frequency to 15MHz.

Display

Reference

Level: 17dBm

Center Frequency

Span

GSP-9300B Quick Start Guide

Description

This section will describe how to activate and move a normal marker. The noise marker function will also be used to show how to make a basic marker measurement.

Operation

1. Use the procedure described in the previous

section to display a signal from the REF out terminal.

2. Press

Marker

> Select Marker[F1] and select

marker number 1.

3. Press [F2] and turn the marker 1 on.

4. Press Normal[F3] and set the marker position to

12 MHz using either the keypad, scroll wheel or arrow keys.

5. Press Function[F5]>Marker Noise[F2] and turn

the marker noise function on. The noise marker function calculates the average noise level over a bandwidth of 1Hz, referenced from the marker position.

Using the Marker Function

BASIC OPERATION

Display

Marker frequency

Marker position

Measurement

GSP-9300B Quick Start Guide

Background

The LAN interface is used for remote control over a network. The spectrum analyzer supports DHCP connections so the instrument can be automatically connected to an existing network. Alternatively, network settings can also be manually configured.

LAN configuration Settings

IP Address

Default Gateway

Subnet Mask

DNS Server

DHCP on/off

Connection

Connect an Ethernet cable from the network to the rear panel LAN port.

Interface Configuration

The GSP-9300B supports USB, RS-232, GPIB (optional), WLAN and LAN based LXI interfaces for remote control. This Quick Start Guide only details how to connect to a LAN to access the LXI browser interface for remote control and configuration. Please see the programming manual or user manual on the accompanying User Manual CD for further details.

Configure the LAN and LXI Interface

The GSP-9300B is a class C LXI compliant instrument. The LXI specification allows instrumentation to be configured for basic remote control or monitoring over a LAN or WLAN. The GSP9300B also supports HiSlip. HiSlip (High-Speed LAN Instrument Protocol) is an advanced LAN based standard for 488.2 communications.

For details on the LXI specification, compliance classes and HiSLIP, please see the LXI website @ http://www.lxistandard.org.

BASIC OPERATION

1. Press

System

>More[F7]>RmtInterface[F1]>

LAN[F2]>LAN Config[F1] to set the LAN

settings:

IP Address[F1]

Sets the IP address.

Subnet Mask[F2]

Sets the subnet mask.

Default Gateway[F3]

Sets the default gateway.

DNS Server[F4]

Sets the DNS server address

LAN Config[F5]

Toggles the LAN configuration between DHCP and manual IP settings.

2. Press Apply[F6] to confirm the LAN

configuration settings.

Display Icon

The LXI icon turns green when connected to a LAN and will flash if the “Identification” setting is on, see page 45.

Set Password

The password on the LXI webpage can be set from the spectrum analyzer. The password is shown in the system information.

3. Press

System

>More[F7]>RmtInterface

Config[F1]>LAN[F2]>LXIPassword[F3] to set the

password.

4. Enter the password using the

F1~F7 keys, as shown below, or use the numeric keypad to enter numbers:

7 8 9

654

1 2 3

Limitations:

 No spaces  Only 1~9, A~Z, a~z characters allowed

GSP-9300B Quick Start Guide

ABCDE

FGHIJ KLMNO PQRST UVWXY

C D E

Lowercase

Return

c d e

Return

Rename>

Return

Cancel password

Menu tree to enter the password

5. The password appears on the bottom of the

screen as it is created.

Password

6. Press

Enter

to confirm setting the password.

Hi SLIP Port

7. Press

System

>More[F7]>RmtInterface Config[F1]>LAN[F2] >HiSLIPPort to see the Hi Slip Port number.

HiSlip port

4880

Reset LAN

It may be necessary to reset the LAN configuration settings before the LAN can be used.

8. Press

System

>More[F7]>RmtInterface Config[F1]>LAN Reset[F3] to reset the LAN.

BASIC OPERATION

Functionality check

Enter the IP address of the spectrum analyzer in a web browser after the instrument has been configured and connected to the LAN (page

42).

http:// XXX.XXX.XXX.XXX

The web browser interface appears:

Welcome Page

The Welcome Page lists all the LXI and LAN configuration settings as well as the instrument identification. The instrument identification can be turned on/off from this page.

Note

The LXI icon in the GSP-9300B display will flash when the Identification setting is turned on.

LXI Browser Interface and Function Check

GSP-9300B Quick Start Guide

View & Modify Configuration

The View & Modify Configuration allows you to modify the LAN settings from the browser.

Press the Modify Configuration button to modify any of the configuration files.

A password must be entered to alter the settings.

Default password: lxiWNpwd [Note: password is case sensitive.]

BASIC OPERATION

SCPI Command

The SCPI Command page allows you to enter SCPI commands directly from the browser for full remote control. Please see the programming manual for details. A password must be entered before remote commands can be used.

Default password: lxiWNpwd

[Note: password is case sensitive.]

Get Image

The Get Image page allows the browser to remotely capture a screenshot of the GSP-9300B display.

Note

For further details, please see the programming manual, available on the GW Instek web site @ www.gwinstek.com.

GSP-9300B Quick Start Guide

Background

The system clock and wake-up clock keep time using a button battery.

Battery type:

CR2032, 3V, 210mAh

Connection

1. Turn off the GSP-9300B and

remove the battery cover and battery (if connected).

2. Replace the battery with the same type and

specification.

APPENDIX

Replace the Clock Battery

APPENDIX

Frequency

Range

9 kHz to 3 GHz

Resolution

1 Hz

Frequency Reference

Accuracy

±(period since last adjustment X aging rate) + stability over temperature + supply voltage stability

Aging Rate

±1 ppm max.

1 year after last adjustment

Frequency Stability over Temperature

±0.025 ppm

0 to 50 °C Supply Voltage Stability

±0.02 ppm Frequency Readout Accuracy

Start, Stop, Center, Marker

±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution1)

Trace points

Max 601 points, min 6 points

Marker Frequency Counter

Resolution

1 Hz, 10 Hz, 100 Hz, 1 kHz

Accuracy

±(marker frequency indication X frequency reference accuracy + counter resolution)

RBW/Span >=0.02 ; Mkr level to DNL>30 dB Frequency Span

Range

0 Hz (zero span), 100 Hz to 3 GHz

Resolution

1 Hz

Accuracy

± frequency resolution1

RBW: Auto;

GSP-9300B Specifications

The specifications apply when the GSP is powered on for 45 minutes* to warm-up to a temperature of 20˚C to 30˚C, unless specified otherwise.

 45 minutes typical, 90 minutes maximum

Frequency

GSP-9300B Quick Start Guide

Phase Noise

Offset from Carrier

Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz; Average ≥ 40

10 kHz

<-88 dBc/Hz

Typical

100 kHz

<-95 dBc/Hz

Typical

1 MHz

<-113 dBc/Hz

Typical

Resolution Bandwidth (RBW) Filter

Filter Bandwidth

1 Hz to 1 MHz in 1-3-10 sequence

-3dB bandwidth

200 Hz, 9 kHz, 120 kHz, 1MHz

-6dB bandwidth

Accuracy ± 8%, RBW = 1MHz

Nominal3

± 5%, RBW < 1MHz

Nominal

Shape Factor

< 4.5:1

Nominal ; Normal Bandwidth ratio: 60dB:-3dB

Video Bandwidth (VBW) Filter

Filter Bandwidth

1 Hz to 1 MHz in 1-3-10 sequence

-3dB bandwidth

[1] Frequency Resolution = Span/(Trace points - 1) [2] Typical specifications in this datasheet mean that the performance can be exhibited in 80% of the units with a 95% confidence level over the temperature range 20 to 30 °C. They are not covered by the product warranty. [3] Nominal values indicate expected performance. They are not covered by the product warranty.

Amplitude Range

Measurement Range

100 kHz to 1 MHz

Displayed Average Noise Level (DANL) to 18 dBm

1 MHz to 10 MHz

DANL to 21 dBm

10 MHz to 3 GHz

DANL to 30 dBm

Attenuator

Input Attenuator Range

0 to 50 dB, in 1 dB step

Auto or manual setup

Maximum Safe Input Level

Average Total Power

≤ +33 dBm

Input attenuator ≥10 dB

DC Voltage

± 50 V

Amplitude

APPENDIX

1 dB Gain Compression

Total Power at 1st Mixer

> 0 dBm

Typical

;Fc ≥ 50 MHz;

preamp. off

Total Power at the Preamp

> -22 dBm

Typical

;Fc ≥ 50 MHz;

preamp. on

mixer power level (dBm)= input power (dBm)attenuation (dB)

Displayed Average Noise Level (DANL)4

Preamp off

0 dB attenuation; RF Input is terminated with a 50Ω load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40

9 kHz to 100 kHz

< -93 dBm

Nominal

100 kHz to 1 MHz

< -90 dBm - 3 x (f/100 kHz) dB

1 MHz to 2.7 GHz

< -122 dBm

2.7 GHz to 3 GHz

< -116 dBm

Preamp on

0 dB attenuation; RF Input is terminated with a 50Ω load ; RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40

100 kHz to 1 MHz

< -108 dBm - 3 x (f/100 kHz) dB

Nominal

1 MHz to 10 MHz

< -142 dBm

10 MHz to 3 GHz

< -142 dBm + 3 x (f/1 GHz) dB

[4] DANL spec excludes spurious response. Level Display Range

Scales

Log, Linear

Units

dBm, dBmV, dBuV, V, W

Marker Level Readout

0.01 dB

Log scale

0.01 % of reference level

Linear scale

Level Display Modes

Trace, Topographic, Spectrogram

Single / split Windows

Number of Traces

Detector

Positive-peak, negativepeak, sample, normal, RMS (not Video)

Can be setup for each trace separately

Trace Functions

Clear & Write, Max/Min Hold, View, Blank, Average

GSP-9300B Quick Start Guide

Absolute Amplitude Accuracy

Absolute Point

Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 23°C ±1°C; Signal at Reference Level

Preamp off

± 0.3 dB

Ref level 0 dBm; 10 dB RF attenuation

Preamp on

± 0.4 dB

Ref level -30 dBm; 0 dB RF attenuation

Frequency Response

Preamp off

Attenuation: 10 dB; Reference: 160 MHz; 20 to 30°C

100 kHz to 2.0 GHz

± 0.5 dB 2GHz to 3GHz

± 0.7 dB

Preamp on

Attenuation: 0 dB; Reference: 160 MHz; 20 to 30°C 1 MHz to 2 GHz

± 0.6 dB

2 GHz to 3 GHz

± 0.8 dB

Attenuation Switching Uncertainty

Attenuator setting

0 to 50 dB in 1 dB step

Uncertainty

± 0.25 dB

reference: 160 MHz, 10dB attenuation

RBW Filter Switching Uncertainty

1 Hz to 1 MHz

± 0.25 dB

reference : 10 kHz RBW

Level Measurement Uncertainty

Overall Amplitude Accuracy

± 1.5 dB

20 to 30°C; frequency > 1 MHz; Signal input 0 to -50 dBm; Reference level 0 to -50 dBm; Input attenuation 10 dB; RBW 1 kHz; VBW 1 kHz; after cal; Preamp Off

± 0.5 dB

Typical

Spurious Response

Second Harmonic Intercept

Preamp off; signal input -30dBm; 0 dB attenuation

+35 dBm

Typical

; 10 MHz < fc < 775 MHz

+60 dBm

Typical

; 775 MHz ≤ fc < 1.625 GHz

Third-order Intercept

Preamp off; signal input -30dBm; 0 dB attenuation

> 1dBm

300 MHz to 3 GHz

Input Related Spurious

< -60 dBc

Input signal level -30 dBm, Att. Mode, Att=0dB; 20-30ºC

Residual Response (inherent)

<-90 dBm

Input terminated; 0 dB attenuation; Preamp off

Sweep

Sweep Time

Range

204 us to 1000 s

Span > 0 Hz

50 us to 1000 s

Span = 0 Hz; Min Resolution = 10 us

Sweep Mode

Continuous; Single

Trigger Source

Free run; Video; External

Trigger Slope

Positive or negative edge

Frequency Range

1 MHz to 3 GHz

Gain

18 dB

Nominal

(installed as standard)

RF Input

Connector Type

N-type female

Impedance

50 ohm

Nominal

VSWR

<1.6 :1

300 kHz to 3 GHz; Input attenuator ≥ 10 dB

APPENDIX

RF Preamplifier

Front Panel Input/Output

GSP-9300B Quick Start Guide

Power for Option

Connector Type

SMB male

Voltage/Current

DC +7V / 500 mA max

With short-circuit protection

USB Host

Connector Type

A plug

Protocol

Version 2.0

Supports Full/High/Low speed

MicroSD Socket

Protocol

SD 1.1

Supported Cards

microSD, microSDHC

Up to 32GB capacity

Reference Output

Connector Type

BNC female

Output Frequency

10 MHz

Nominal

Output Amplitude

3.3V CMOS

Output Impedance

50 ohm Reference Input

Connector Type

BNC female

Input Reference Frequency

10 MHz Input Amplitude

-5 dBm to +10 dBm

Frequency Lock Range

Within ± 5 ppm of the input reference frequency

Alarm Output

Connector Type

BNC female

Open-collector

Trigger Input/ Gated Sweep Input

Connector Type

BNC female

Input Amplitude

3.3V CMOS

Switch

Auto selection by function

LAN TCP/IP Interface

Connector Type

RJ-45

Base

10Base-T; 100Base-Tx; Auto-MDIX

USB Device

Connector Type

B plug

For remote control only; supports USB TMC

Protocol

Version 2.0

Supports Full/High/Low speed

Rear Panel Input/Output

APPENDIX

IF Output

Connector Type

SMA female

Impedance

50 ohm

Nominal

IF Frequency

886 MHz

Nominal

Output level

-25 dBm

10 dB attenuation; RF input: 0 dBm @ 1 GHz

Earphone Output

Connector Type

3.5mm stereo jack, wired for mono operation

Video Output

Connector Type

DVI-I ( integrated analog and digital) , Single Link. Compatible with VGA or HDMI standard through adapter

RS232 Interface

Connector Type

D-sub 9-pin female

Tx,Rx,RTS,CTS

GPIB Interface (Optional)

Connector Type

IEEE-488 bus connector

AC Power Input

Power Source

AC 100 V to 240 V, 50 / 60 Hz Auto range selection

Battery Pack (Optional)

Battery pack

6 cells, Li-Ion rechargeable, 3S2P

With UN38.3 Certification

Voltage

DC 11.1 V

Capacity

5200 mAh / 56Wh

Internal Data storage

16 MB nominal

Power Consumption

<65 W Warm-up Time

< 30 minutes

Temperature Range +5 °C to +45 °C

Operating

-20 °C to + 70 °C

Storage

Weight

4.5 kg (9.9 lb)

Inc. all options (Basic+TG+GPIB+Battery)

Dimensions

210 x 350 x 100 (mm)

Approximately

8.3 x 13.8 x 3.9 (in)

General

GSP-9300B Quick Start Guide

Frequency Range

100 kHz to 3 GHz

Output Power

-50 dBm to 0 dBm in 0.5 dB steps

Absolute Accuracy

± 0.5 dB

@160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C

Output Flatness

Referenced to 160 MHz, -10 dBm

100 kHz to 2 GHz

± 1.5 dB

2 GHz to 3 GHz

± 2 dB

Output Level Switching Uncertainty

± 0.8 dB

Referenced to -10 dBm Harmonics

< -30 dBc

Typical, output level = -10 dBm

Reverse Power

+30 dBm max.

Connector type

N-type female

Impedance

50 ohm

Nominal

Output VSWR

< 1.6:1

300 kHz to 3 GHz, source attenuation ≥ 12 dB

[5] The minimum RBW filter is 10kHz when the TG output is ON.

Tracking Generator5 (Optional)

APPENDIX

LOCAL

CONTROL

FILE MARKER AUXILIARY

Frequency

Autoset

Amplitude

Span

BW/AVG

Display

Trace

Sweep

Measure

Trigger

File

Recall

Save

Peak

Marker

System

Preset

Quick

Save

Enter

BK SP

Sweep

Mode

Limit

Line

Sequence

Option Control

Fast/ Normal

F 4

F 3

F 2

F 1

F 6

F 5

F 7

RF INPUT 50

REV PWR +30dBm

TG OUTPUT 50

W W

500mA MAX.

DC 7V

OUTPUT +30dBm MAX.

MAX.DC ±50V MAX.DC ±50V

9 kHz 3 GHz

Spectrum Analyzer

GSP-9300B

350.0

213.0

200.0

100.0

105.7

GSP-9300B Dimensions

GSP-9300B Quick Start Guide

Type of Product: Spectrum Analyzer

Model Number: GSP-9300B

◎ EMC

EN 61326-1: EN 61326-2-1: EN 61326-2-2:

Electrical equipment for measurement, control and

laboratory use –– EMC requirements (2013)

Conducted & Radiated Emission EN 55011: 2009+A1: 2010

Electrical Fast Transients EN 61000-4-4: 2012

Current Harmonics EN 61000-3-2: 2014

Surge Immunity EN 61000-4-5: 2014

Voltage Fluctuations EN 61000-3-3: 2013

Conducted Susceptibility EN 61000-4-6: 2014

Electrostatic Discharge EN 61000-4-2: 2009

Power Frequency Magnetic Field EN 61000-4-8: 2010

Radiated Immunity EN 61000-4-3: 2006+A1: 2008+A2: 2010

Voltage Dip/ Interruption EN 61000-4-11: 2004

Low Voltage Equipment Directive 2014/35/EU

Safety Requirements

EN 61010-1: 2010 (Third Edition) EN 61010-2-030: 2010 (First Edition)

Declaration of Conformity

GOOD WILL INSTRUMENT CO., LTD.

declare that the below mentioned product

is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to the EMC: 2014/30/EU, LVD: 2014/35/EU, WEEE: 2012/19/EU and RoHS: 2011/65/EU. For the evaluation regarding the Electromagnetic Compatibility and Low Voltage Directive, the following standards were applied:

GOOD WILL INSTRUMENT CO., LTD.

No. 7-1, Jhongsing Road, Tucheng Dist., New Taipei City 236, Taiwan Tel: +886-2-2268-0389 Fax: +866-2-2268-0639 Web: www.gwinstek.com Email: marketing@goodwill.com.tw

GOOD WILL INSTRUMENT (SUZHOU) CO., LTD.

No. 521, Zhujiang Road, Snd, Suzhou Jiangsu 215011, China Tel: +86-512-6661-7177 Fax: +86-512-6661-7277 Web: www.instek.com.cn Email: marketing@instek.com.cn

GOOD WILL INSTRUMENT EURO B.V.

De Run 5427A, 5504DG Veldhoven, The Netherlands Tel: +31(0)40-2557790 Fax: +31(0)40-2541194

Email: sales@gw-instek.eu

GW-INSTEK GSP-9300BTG Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY INSTRUCTIONS

Safety Symbols

Safety Guidelines

Power cord for the United Kingdom

GETTING STARTED

GSP-9300B Introduction

Main Features

Accessories

Appearance

GSP-9300B Front Panel

Rear Panel

Display

Status Icon Overview

First Use Instructions

Tilting the Stand

Inserting the Battery Pack

Power UP

Power Down

Setting the Date, Time and Wake-Up Clock

Firmware Update

Restoring Default Settings

Conventions

BASIC OPERATION

Viewing a Signal

Using the Marker Function

Interface Configuration

Configure the LAN and LXI Interface

LXI Browser Interface and Function Check

APPENDIX

Replace the Clock Battery

Frequency

GSP-9300B Specifications

Amplitude

Sweep

RF Preamplifier

Front Panel Input/Output

Rear Panel Input/Output

General

Tracking Generator5 (Optional)

GSP-9300B Dimensions
