GW Instek GSP-9300 QUICK START GUIDE
Spectrum Analyzer
GSP-9300
QUICK START GUIDE
GW INSTEK PART NO. 82SP-930A0M01
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
Table of Contents
Table of Contents
SAFETY INSTRUCTIONS ................................................... 2
GETTING STARTED ........................................................... 7
GSP-9300 Introduction .......................... 8
Accessories .......................................... 11
Appearance .......................................... 13
First Use Instructions .......................... 25
BASIC OPERATION ......................................................... 37
Viewing a Signal .................................. 37

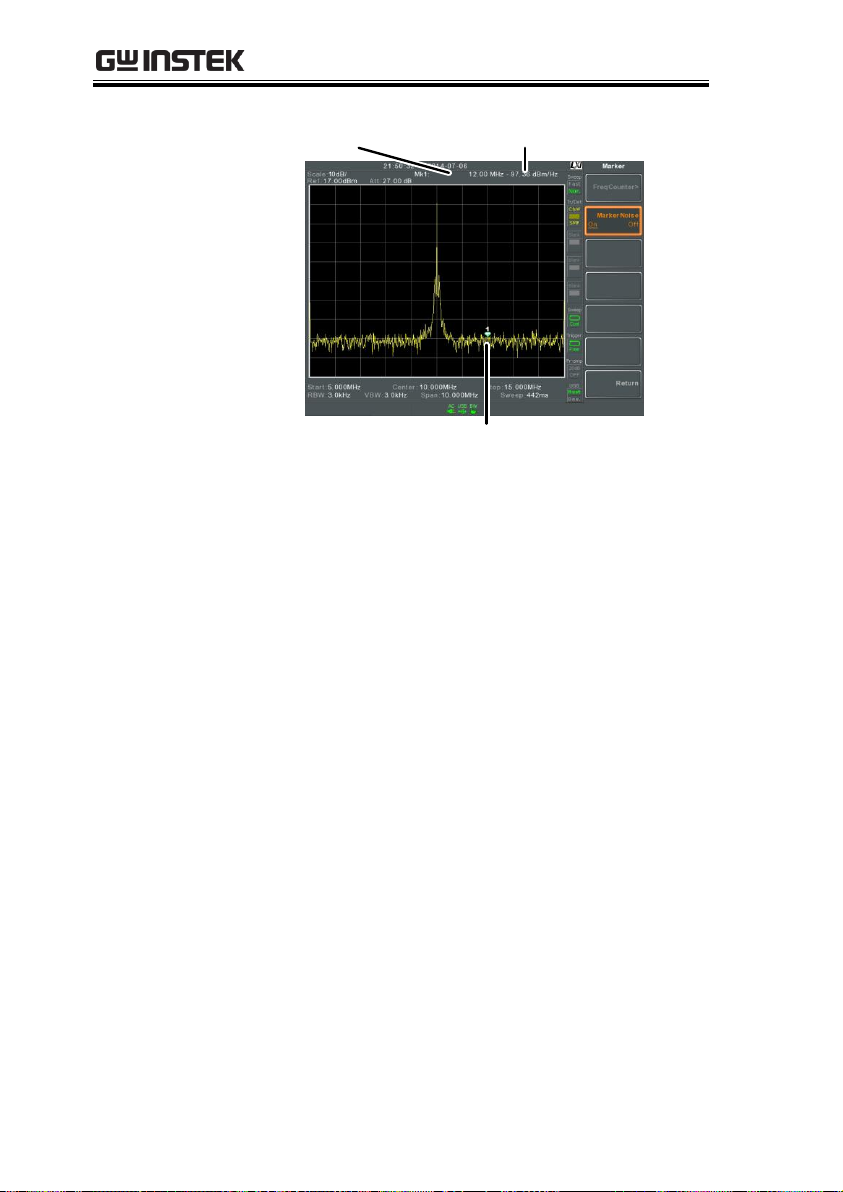

Using the Marker Function .................. 39
Interface Configuration ........................ 41
APPENDIX ...................................................................... 47
Replace the Clock Battery ..................... 47
GSP-9300 Specifications ...................... 48
GSP-9300 Dimensions ......................... 57
Declaration of Conformity .................... 58
1
GSP-9300 Quick Start Guide
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the instrument or to
other properties.
DANGER High Voltage
Attention Refer to the Manual
Earth (ground) Terminal
Frame or Chassis Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
2
SAFETY INSTRUCTIONS
General
Guideline
CAUTION
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that
leads to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only mating connectors, not bare wires, for
the terminals.
Ensure signals to the RF input do not exceed
+30dBm.
Ensure reverse power to the TG output terminal
does not exceed +30dBm.
Do not supply any input signals to the TG
output.
Do not block the cooling fan opening.
Do not disassemble the instrument unless you
are qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
instrument falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 100V~240V
Frequency: 50/60Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
Safety Guidelines
3
GSP-9300 Quick Start Guide
Battery
CAUTION
Rating: 10.8V, 6 cell Li-ion battery
Turn off the power and remove the power cord
before installing or removing the battery.
Cleaning
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Temperature: 5°C to 45°C
Humidity: <90%
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The instrument falls under
degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -20°C to 70°C
Humidity: <90%
4
SAFETY INSTRUCTIONS
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
5
GSP-9300 Quick Start Guide
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
Power cord for the United Kingdom
When using the instrument in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2 should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
6
GETTING STARTED
GSP-9300 Introduction ...................................................... 8
Main Features ............................................................................................................. 8
Accessories ..................................................................... 11
Appearance ..................................................................... 13
GSP-9300 Front Panel ............................................................................................ 13

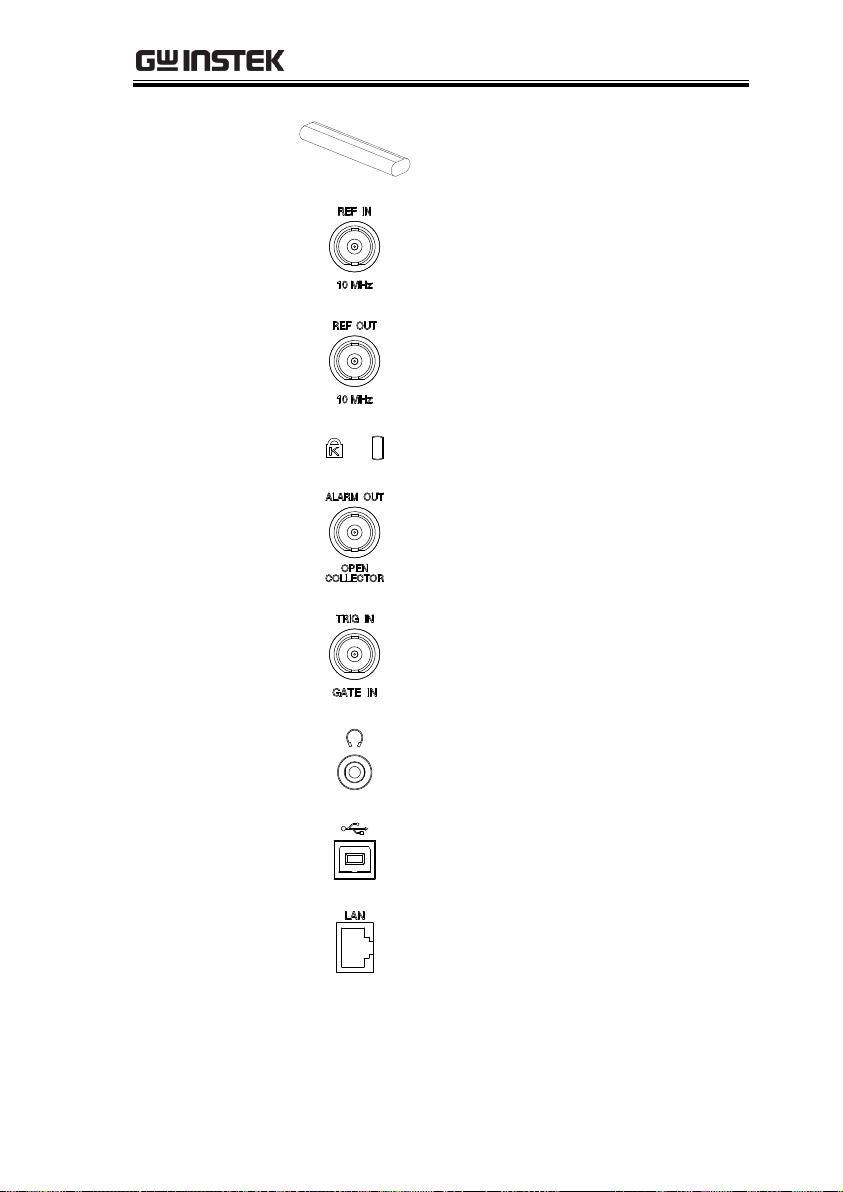

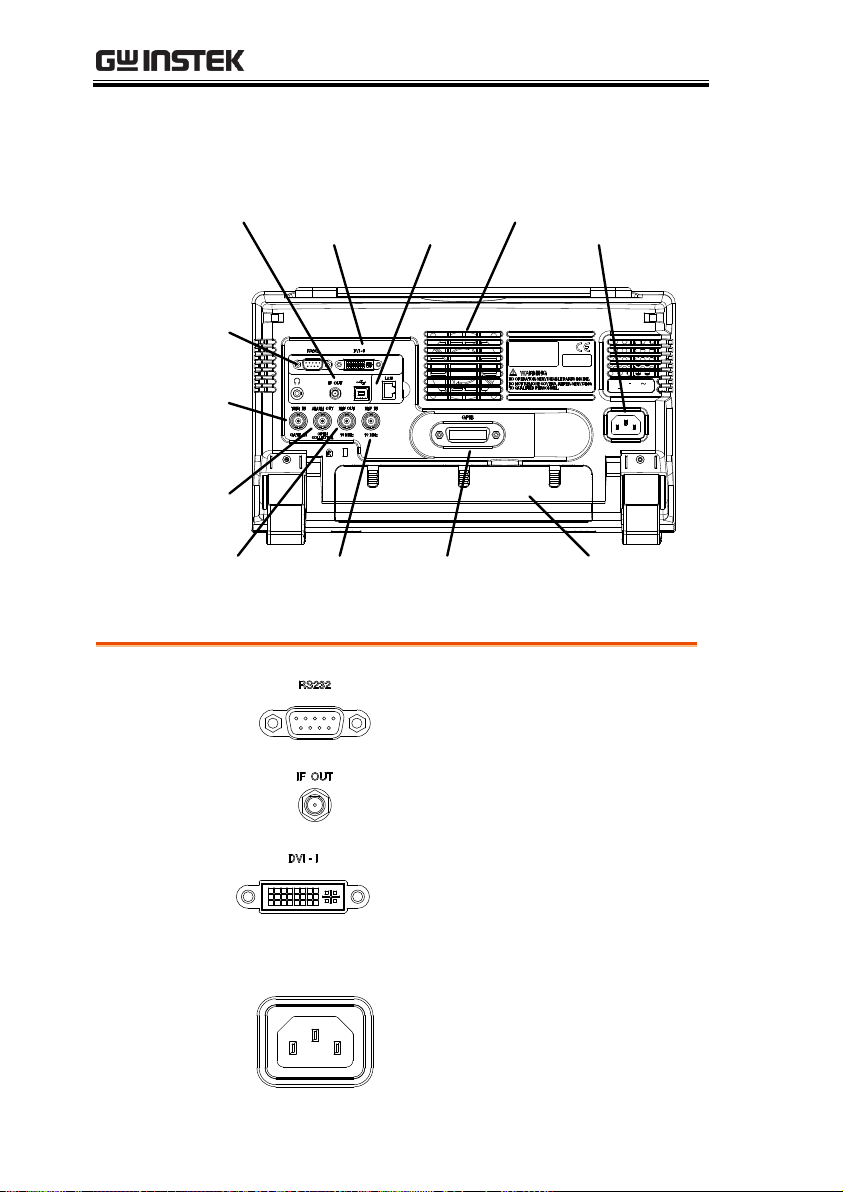

Rear Panel ................................................................................................................. 18
Display ....................................................................................................................... 20
Status Icon Overview .............................................................................................. 23
First Use Instructions ...................................................... 25
Tilting the Stand ....................................................................................................... 25

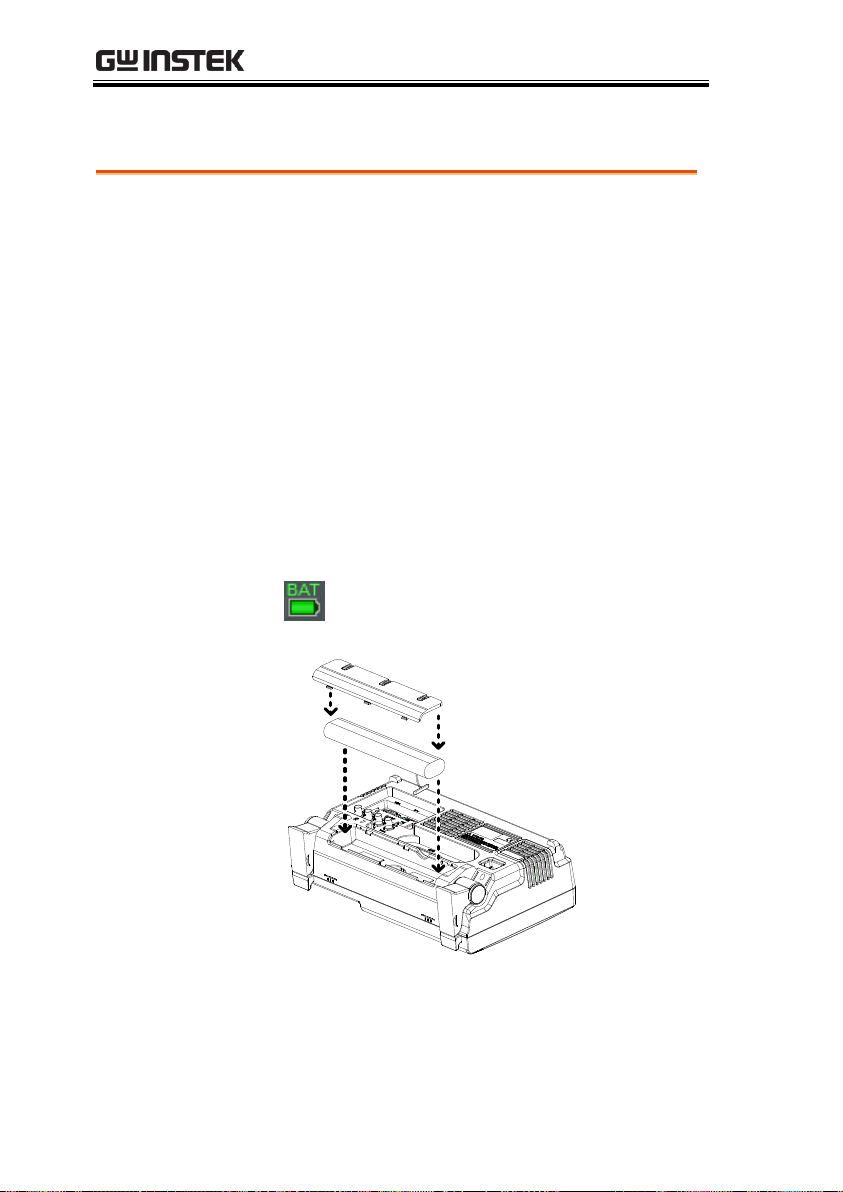

Inserting the Battery Pack ....................................................................................... 26
Power UP .................................................................................................................. 27
Power Down ............................................................................................................ 28
Setting the Date, Time and Wake-Up Clock ........................................................ 29
Firmware Update ..................................................................................................... 31
Restoring Default Settings ...................................................................................... 32
Conventions .............................................................................................................. 33
GETTING STARTED
This chapter provides a brief overview of the
GSP-9300, the package contents, instructions for
first time use and an introduction to the front
panel, rear panel and GUI.
7
GSP-9300 Quick Start Guide
Performance
9kHz~3GHz bandwidth
1Hz resolution
Nominal RBW accuracy of ±5% <1MHz,
±8% =1MHz
Video bandwidth 1Hz~1MHz (1-3-10 steps)
Amplitude measurement range: DANL~30dBm
(frequency dependent)
Input attenuation: 0 ~ 50dB, 1dB steps
Phase noise: < -88dBc/Hz@1GHz, 10kHz,
typical
Features
1-3-10 step increments for RBW bandwidth
Three display modes: Spectrum, Topographic
and Spectrographic
Split window display
Built-in EMI filter
Auto Wake-up
Built-in preamplifier
GSP-9300 Introduction
The GSP-9300 builds on the strong feature set of the GSP-930 and
significantly increases performance in almost every aspect; making
this the most comprehensive and feature-rich spectrum analyzer
GW Instek has released.
Like the GSP-930, the GSP-9300 features a split window display to
view data in spectrum, topographic or spectrographic views. There
are also a number of additional test functions such as 2FSK, 1PdB
and new dedicated EMC pretest functions for EMI and EMS testing.
Lastly, the GSP-9300 significantly reduces the sweep time and RBW
filter step resolution and complexity.
Main Features
8
GETTING STARTED
Gate sweep
Marker Frequency counter
Two operating modes: Spectrum and Power
Meter mode
EMI Pretest functions
SEM measurement
ACPR measurement
OCBW measurement
2FSK measurement
Phase jitter measurement
Harmonics measurement
P1dB measurement
Channel power measurement
Demodulation analyzer
Diverse marker functions and features with
Peak Table
Sequence function to automatically perform pre-
programmed sequential operations
Optional battery operation
9
GSP-9300 Quick Start Guide
Interface
8.4 color LCD (800600)
On-screen menu icons
DVI-I video output
RS-232 with RTS/CTS hardware flow control
USB 2.0 with support for USB TMC

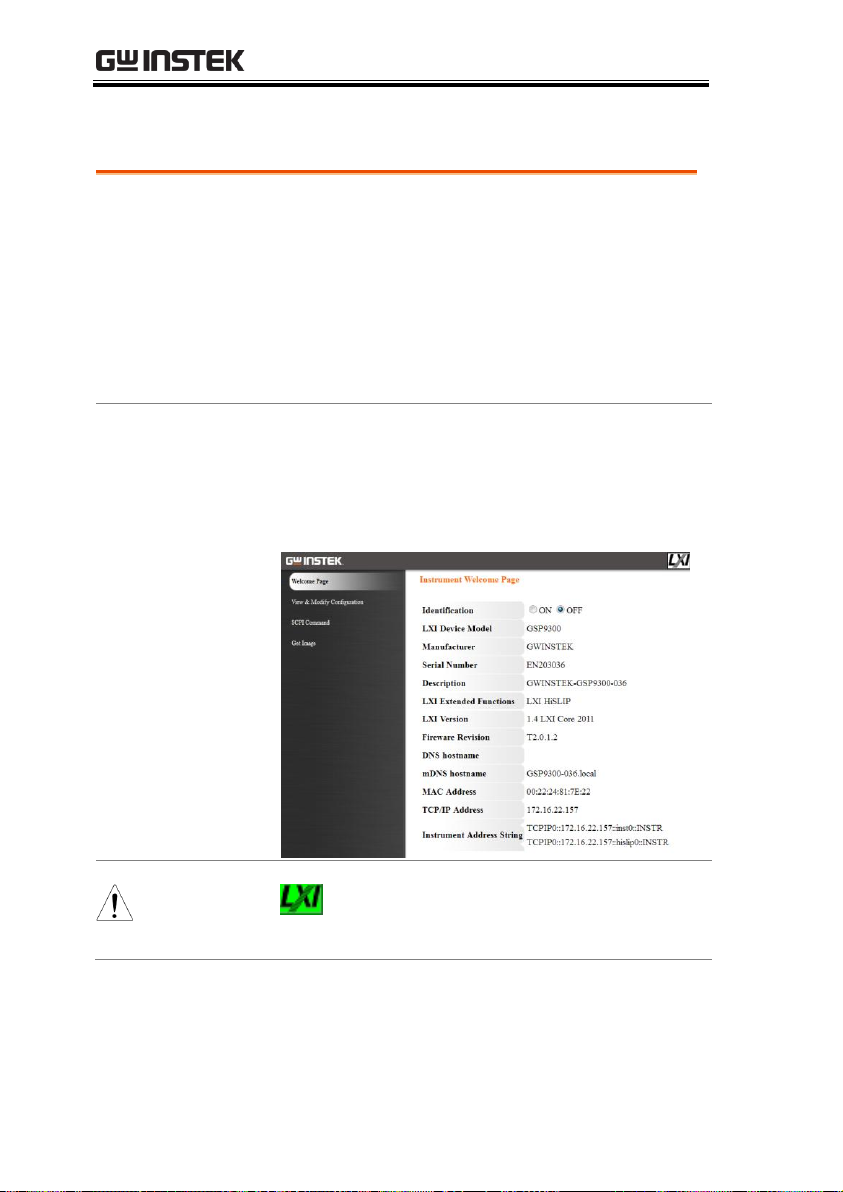

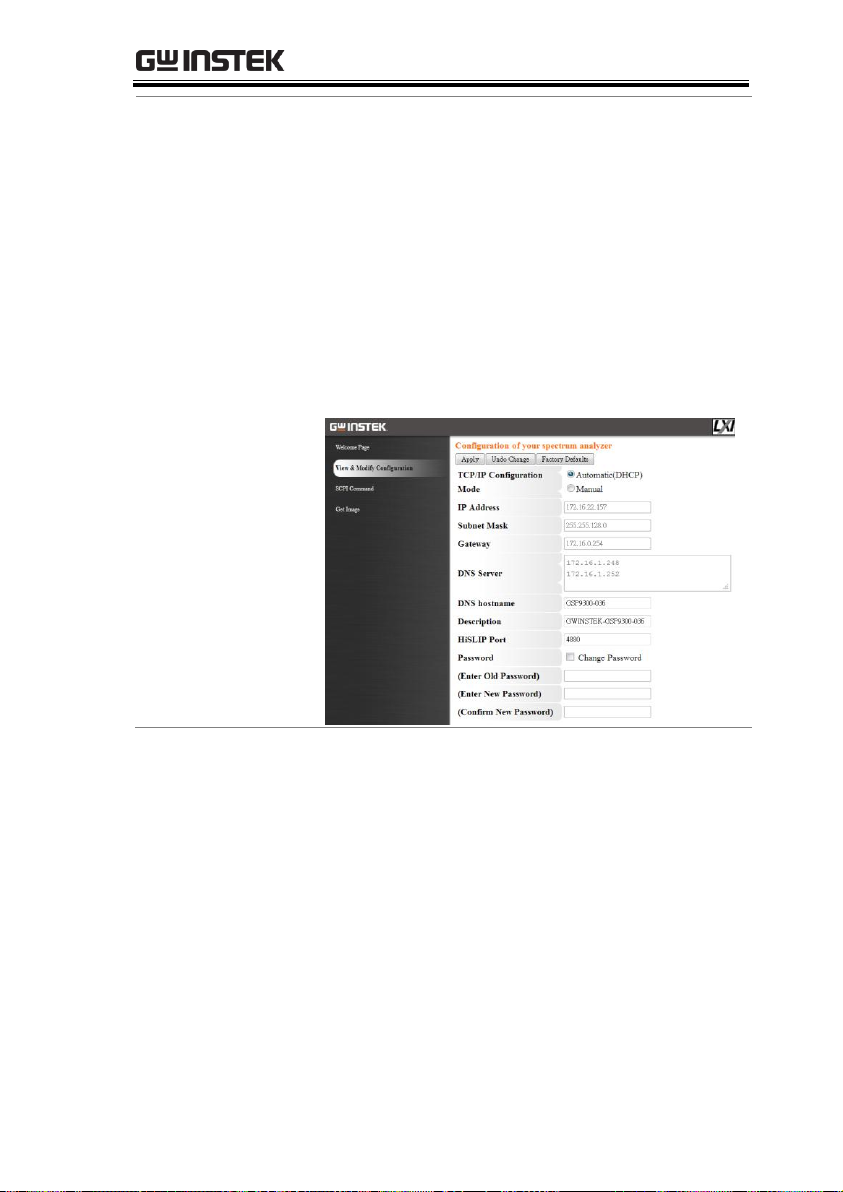

LAN TCP/IP with LXI support
Optional GPIB/IEEE488 interface
Optional 3G USB adapter for WLAN
Optional power meter adapter
IF output @ 886MHz
Headphone output
REF (reference clock) input/output BNC ports
Alarm/Open collector output BNC port
Trigger/Gate input BNC ports
RF N-type input port
Tracking generator output
DC +7V/500mA output SMB port
10
GETTING STARTED
Standard
Accessories
Part number
Description
Region dependant
Power cord
N/A
User manual CD:
Includes: User manual,
Programming manual,
SpectrumShot quick start
guide, SpectrumShot
software, IVI driver
N/A
Quick start guide
N/A
Certificate of calibration
Region dependant
Power cord
Options
Option number
Description
Opt1.
Tracking generator
Opt2.
Battery (11.1V/5200mAH
Li-ion battery)
Opt3.
GPIB interface (IEEE 488
bus)
Optional
Accessories
Part number
Description
ADB-002
DC block BNC 50R 10MHz-
2.2GHz
ADB-006
DC BLOCK N TYPE 50R
10MHz-6GHz
ADB-008
DC BLOCK SMA 50R
0.1MHz-8GHz
GSC-009
Soft Carrying Case
PWS-06
USB Average Power Sensor
(up to 6200 MHz;
-32 to 20 dBm)
GRA-415
6U Rack mount kit
Accessories
11
GSP-9300 Quick Start Guide
Software Downloads
PC Software for Windows System (SpectrumShot quick
start guide, SpectrumShot software)
IVI Driver Supports LabView & LabWindows/CVI
Programming
Android System (“GSP-9300 Remote Control”, available
on Google play.)
12
GETTING STARTED
LOCAL
CONTROL
FILE AUXILIARY
Frequency
Autoset
Amplitude
Span
BW/AVG
Display
Trace
Sweep
Measure
Trigger
File
Recall
Save
Peak
Marker
Marker
System
Preset
Search
Quick
Save
EMC
Pretest
7
4
1
0
8
5
2
9
6
3
/
Enter
BK SP
Sweep
Mode
Limit
Line
Sequence
Option
Control
Fast/
Normal
F 4
F 3
F 2
F 1
F 6
F 5
F 7
RF INPUT 50
REV PWR +30dBm
TG OUTPUT 50
W W
500mA MAX .
DC 7V
OUTPUT +30 dBm MAX .
MAX.DC ±50V MAX.DC ±50V
9 kHz 3 GHz
Spectrum Analyzer
GSP-9300
LCD
display
Main
keys
Function
keys
Control
keys
Power key
File keys
Auxillary keys
Scroll wheel
Arrow keys
RF input
terminal
DC power
supply
Tracking
generator
output
Numeric,
Enter and
BK SP keys
USB A,
Micro SD
port
Marker keys
Preset/Local
and Quick
Save keys
MARKER
LCD display
800600 color LCD display. The display shows the
soft keys for the current function, frequency,
amplitude and marker information.
Function keys
F 1
~
F 7
The F1 to F7 function keys directly
correspond to the soft keys on the
right-hand side of display.
Main keys
Frequency
Sets the center frequency, start
frequency, stop frequency, center
frequency step and frequency
offset values.
Appearance
GSP-9300 Front Panel
13
GSP-9300 Quick Start Guide
Span
Sets the span, with options for full
span, zero span and last span.
Amplitude
Sets the amplitude reference level,
attenuation, pre-amplifier
controls, scale and other options
for attenuation and scale.
Autoset
Automatically searches the peak
signal with maximum amplitude
and displays it with appropriate
horizontal and vertical scales.
Control keys
BW/Avg
Sets the resolution bandwidth,
video bandwidth, average type
and turns the EMI filter on/off.
Sweep
Sets the sweep time and gate time.
Sweep
Mode
Toggles the Sweep Control
between Fast and Normal mode.
Measure
Accesses measurement options
such as ACPR, OCBW,
demodulation measurements,
SEM, TOI, 2FSK, phase jitter and
other advanced measurements.
EMC
Pretest
Dedicated EMI testing and setup
menu.
Trace
Sets traces and trace related
functions.
Limit
Line
Sets and tests Pass/Fail limit lines.
14
GETTING STARTED
Display
The Display key configures the
windowing mode and basic
display properties.
Trigger
Sets the triggering modes.
File
File
File utilities options
Save
Save the trace, state etc., and save
options.
Recall
Recall the trace, state etc., and
recall options.
Marker
Marker
Turns the Markers on/off and
configures the markers.
Marker
The Marker key positions the
markers on the trace.
Peak
Search
Finds each maximum and
minimum peak. Used with the
Marker function.
Auxiliary
Sequence
Access, set and edit program
sequences.
Option
Control
The Option Control key allows you
to setup optional accessories such
as the Tracking Generator, Power
Meter or Demo Kit.
System
The System key shows system
information, settings and other
system related functions.
15
GSP-9300 Quick Start Guide
Preset / Local key
Preset
LOCAL
The Preset key will restore the
spectrum analyzer to the Factory
or User Preset settings.
The Preset key will also return the
instrument back to local control
after it has been in remote control
mode.
Quick
Save
The Quick Save utility allows you
to save either the state, trace,
display screen, limit line,
correction or sequence with only a
single press.
Power key
Turns the instrument on/off. On =
yellow, off = blue.
Scroll wheel
Edit values, select listed items.
Arrow keys
Increment/decrement values (in
steps), select listed items.
RF input terminal
RF INPUT 50
W
+30dBm MAX.
MAX.DC ±50V
RF input port. Accepts RF inputs.
Maximum input: +30dBm
Input impedance: 50Ω
Maximum DC voltage: ±50V
N-type: female
16
GETTING STARTED
DC power supply
500mA MAX.
DC 7V
OUTPUT
SMB port supplies power for
optional accessories.
DC +7V
500mA Max.
Numeric keypad
7
4
1
0
8
5
2
9
6
3
/
Enter
BK SP
The numeric
keypad is used to
enter values and
parameters. It is
often used in
conjunction with
the arrow keys and
scroll wheel.
TG output port
REV PWR +30dBm
TG OUTPUT 50
W
MAX.DC ±50V
The Tracking Generator (TG)
output source.
N-type: female
Input impedance: 50Ω
Output power: -50dBm to 0dBm
Maximum reversed power:
+30dBm
USB A, Micro SD
USB A port, Micro SD port for
saving/recalling settings/files.
17
Loading...
