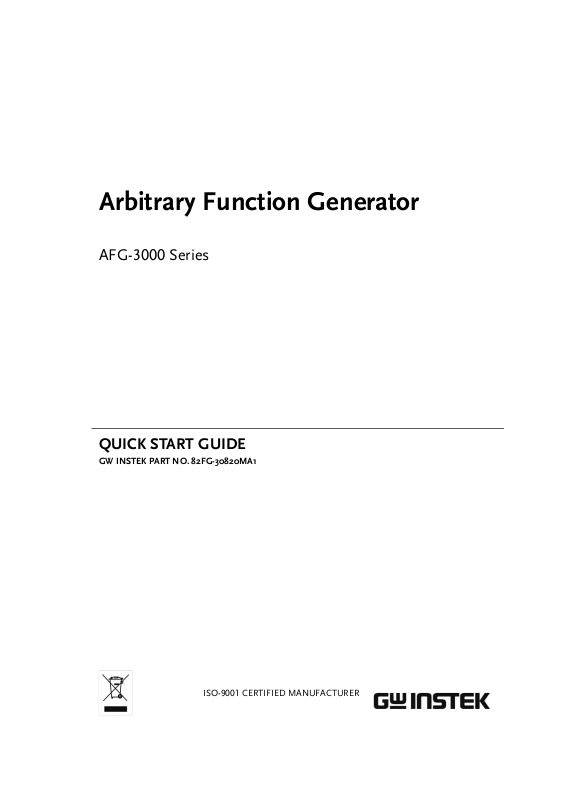

Gw instek AFG-3081, AFG-3051 QUICK START GUIDE

Arbitrary Function Generator
AFG-3000 Series
QUICK START GUIDE
GW INSTEK PART NO. 82FG-30820MA1
ISO-9001 CERTIFIED MANUFACTURER
October 2010 edition
The information in this manual was correct at the time of printing. However, Good Will continues to improve its products and therefore reserves the right to change the specifications, equipment, and maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.
Table of Contents
Table of Contents
SAFETY INSTRUCTIONS .................................. 4
GETTING STARTED .......................................... 8
Main Features ..................................................................... 8
Panel Overview .................................................................. 10
Selecting a Waveform ........................................................ 15
Modulation ........................................................................ 16
Sweep ................................................................................ 18
Burst ................................................................................. 18
ARB ................................................................................... 19
Utility Menu ...................................................................... 22
AFG-3000 Series Specifications ......................................... 24
EC Declaration of Conformity ............................................ 30
3
AFG-3000 Quick Start Guide
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that should be followed when operating and storing the function generator. Read the following before any operation to ensure your safety and to keep the function generator in the best condition.
Safety Symbols
These safety symbols may appear in this manual or on the instrument.
WARNING
CAUTION
4
Warning: Identifies conditions or practices that could result in injury or loss of life.
Caution: Identifies conditions or practices that could result in damage to the function generator or to other objects or property.
DANGER High Voltage
Attention: Refer to the Manual
Protective Conductor Terminal
Earth (Ground) Terminal
DANGER Hot Surface
SAFETY INSTRUCTIONS
Double Insulated
Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.
Safety Guidelines
General Guideline
CAUTION
Power Supply
WARNING
Do not place heavy objects on the instrument. Do not place flammable objects on the
Avoid severe impact or rough handling that
Avoid discharges of static electricity on or near
Use only mating connectors, not bare wires, for
The instrument should only be disassembled by
(Measurement categories) EN 61010-1:2001 specifies the measurement categories and their requirements as follows. The AFG-3000 falls under category II.
Measurement category IV is for measurement performed at the
Measurement category III is for measurement performed in a
Measurement category II is for measurement performed on
Measurement category I is for measurements performed on
AC Input voltage: 100 ~ 240V AC, 50 ~ 60Hz. Connect the protective grounding conductor of
instrument.
may damage the function generator.
the function generator.
the terminals.
a qualified technician.
source of a low-voltage installation.
building installation.
circuits directly connected to a low voltage installation.
circuits not directly connected to Mains.
the AC power cord to an earth ground to prevent electric shock.
5
AFG-3000 Quick Start Guide
Fuse
WARNING
Cleaning the function generator
Operation Environment
Fuse type: T0.63A/250V. Only qualified technicians should replace the
fuse.
To ensure fire protection, replace the fuse only
with the specified type and rating.
Disconnect the power cord and all test leads
before replacing the fuse.
Make sure the cause of fuse blowout is fixed
before replacing the fuse.
Disconnect the power cord before cleaning the
function generator.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid into the function generator.
Do not use chemicals containing harsh products
such as benzene, toluene, xylene, and acetone.
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below) and avoid strong magnetic fields.
Relative Humidity: < 80% Altitude: < 2000m Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2001 specifies pollution degrees and their requirements as follows. The function generator falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight,
6
Storage environment
SAFETY INSTRUCTIONS
precipitation, and full wind pressure, but neither temperature nor humidity is controlled.
Location: Indoor Relative Humidity: < 70% Temperature: -10°C to 70°C
Disposal
Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
Power cord for the United Kingdom
When using the function generator in the United Kingdom, make sure the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue: Neutral Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol
Yellow. The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Blue or Black. The wire which is coloured Brown must be connected to the terminal marked with
the letter L or P or coloured Brown or Red. If in doubt, consult the instructions provided with the equipment or contact the
supplier. This cable/appliance should be protected by a suitably rated and approved HBC
mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm Larger conductors would normally require 13A types, depending on the connection method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.
or coloured Green/Green &
2
should be protected by a 3A or 5A fuse.
7
AFG-3000 Quick Start Guide
GETTING STARTED
The Getting started chapter introduces the function generator’s main features, appearance and introduces a quick instructional summary of some of the basic functions. For comprehensive operation instructions, please see the user manual.
Main Features
Model name Frequency bandwidth
AFG-3081 80MHz
AFG-3051 50MHz
Performance
DDS Function Generator series 1μHz high frequency resolution maintained at
full range
1ppm frequency stability Full Function Arbitrary Waveform Capability
200 MSa/s sample rate 100 MSa/s repetition rate 1 M-point waveform length 16-bit amplitude resolution Ten 1M waveform memories True waveform output to display User define output section User defined marker output section DWR (Direct Waveform Reconstruction)
capability
8
GETTING STARTED
Waveform editing capability sans PC N Cycle and Infinite output mode selectable
-60dBc low distortion sine wave
Features
Interface
Sine, Square, Ramp, Pulse, Noise, Sinc standard
waveforms
Internal and external LIN/LOG sweep with
marker output
Int/Ext AM, FM, PWM, FSK modulation Modulation/sweep signal output Burst function with internal and external
triggers without marker output
Store/recall 10 groups of setting memories Output overload protection
GPIB, RS232, USB standard interfaces 4.3 inch Color TFT LCD (480 × 272) Graphical
User Interface.
AWES (Arbitrary Waveform Editing Software)
PC software
9
