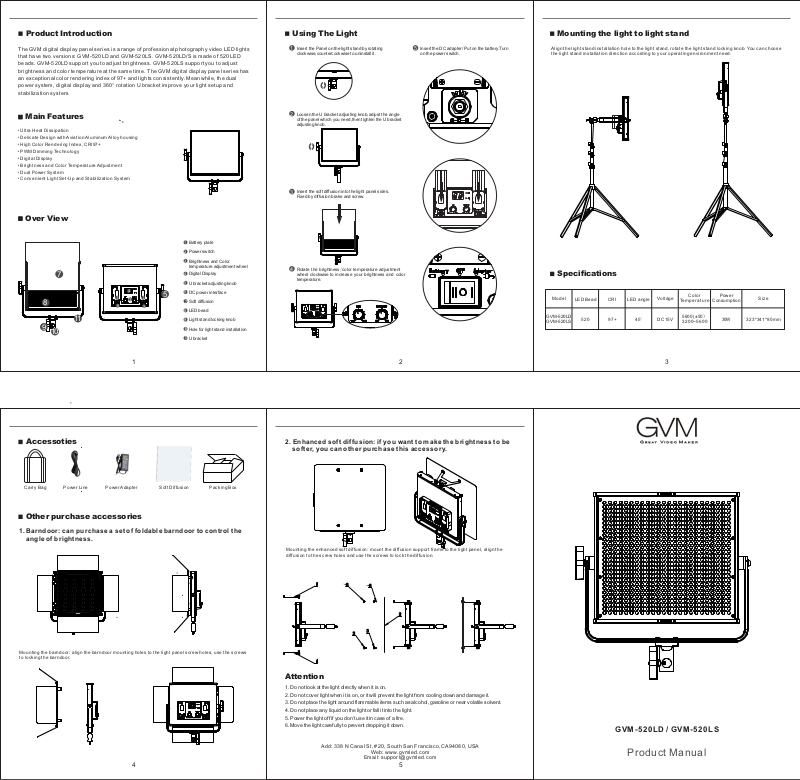

Gvm GVM-520LD, GVM-520LS User Manual
Product Introduction
Using The Light
Mounting the light to light stand
The GVM digital display panel series is a range of professional photography video LED lights
that have two versions: GVM-520LD and GVM-520LS. GVM-520LD/S is made of 520 LED
beads. GVM-520LD support you to adjust brightness. GVM-520LS support you to adjust
brightness and color temperature at the same time. The GVM digital display panel series has
an exceptional color rendering index of 97+ and lights consistently. Meanwhile, the dual
power system, digital display and 360° rotation U bracket improve your light setup and
stabilization system.
Main Features
• Ultra Hea t Di ssipa ti on
Delicat e De sign wi th Aviat io n Alu minum Al lo y housing•
High Colo r Re nderi ng I ndex, CRI 97 +•
PWM Dim mi ng Techno lo gy•
Digital D is play•
Brightn es s and Col or Temper at ur e Adjust me nt•
Dual Powe r Sy stem•
Conveni en t Light S et -Up and Sta bi lizat io n System•
Over View
Insert the Panel on the light stand by rotating
1
clockwise,countercockwise to uninstall it.
Loosen the U bracket adjusting knob,adjust the angle
2
of the panel which you need,then tighten the U bracket
adjusting knob.
Insert the soft diffusion into the light panel sides.
3
Fixed by diffusion brake and screw.
Insert the DC adapter/ Put on the battery.Turn
5
on the power switch.
Align the l ig ht stan d in stallat io n hole to t he l ight stan d, r otate t he l ight stan d lo cking k no b. You can choo se
the light s ta nd inst al lation di re ction a cc ording to y ou r opera ti ng enviro nm ent nee d.
1
Battery plate
2
Power switch
3
Brightness and Color
temperature adjustment wheel
4
7
4
11
8
3
6
2
5
11
9
10
Digital Display
5
U bracket adjusting knob
6
DC power interface
7
Soft diffusion
8
LED bead
9
Light stand locking knob
10
Hole for light stand installation
11
U bracket
1
Rotate the brightness/color temperature adjustment
4
wheel clockwise to increase your brightness and color
temperature.
Specifications
Model
GVM-520LD
GVM-520LS
LED Bead CRI LED angle
520 97+
45°
2 3
Voltage
DC15V
Co l or
Tem p er a tur e
5600(±5 0）
3200~56 00
Pow er
Con sumption
30W
Size
323*341 *8 0mm
Accessoties
Carry Bag Power Lin e Power Adap te r Soft Di ffusion Packing B ox
Other purchase accessories
1. Barndo or: can purc hase a set of fo ldable bar ndoor to con trol the
angle of br ightness .
2. Enhanc ed soft diff usion: if yo u want to make t he brightn ess to be
softer, yo u can other pu rchase thi s accessor y.
Mountin g th e enhan ce d soft diff usion : mo unt the d iffusio n su pport f ra me to the lig ht p anel, a li gn the
diffu sion to the s cr ew hole s an d us e the scr ew s to lock t he d iffus io n.
Mountin g th e barnd oo r: align th e ba rndoo r mo unting ho le s to the li gh t panel scr ew h oles, u se t he screws
to lockin g th e barnd oo r.
4
Attention
1. Do not look at the light directly when it is on.
2. Do not cover light when it is on, or it will prevent the light from cooling down and damage it.
3. Do not place the light around flammable items such as alcohol, gasoline or near volatile solvent.
4. Do not place any liquid on the light or fall it into the light.
5. Power the light off if you don’t use it in case of a fire.
6. Move the light carefully to prevent dropping it down.
