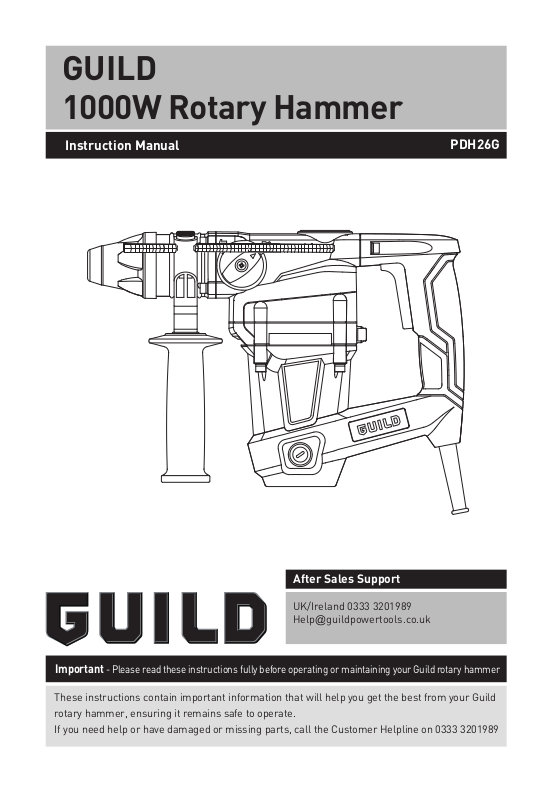

GUILD
1000W Rotary Hammer
Instruction Manual
PDH26G
After Sales Support
UK/Ireland 0333 3201989
Help@guildpowertools.co.uk
Important - Please read these instructions fully before operating or maintaining your Guild rotary hammer
These instructions contain important information that will help you get the best from your Guild
rotary hammer, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
Contents
Safety Information.....................................................................................................3
In The Box..................................................................................................................6
Accessories................................................................................................................6
Operating Instructions...............................................................................................7
Working Hints For Your Rotary Hammer .................................................................11
Maintenance.............................................................................................................12
Trouble Shooting......................................................................................................12
Technical Data..........................................................................................................13
Environmental Protection........................................................................................14
Guarantee................................................................................................................14
Declaration of Conformity........................................................................................15
Plug Replacement (Uk & Ireland Only).....................................................................15
2
Customer Helpline 0333 3201989
Safety Information
Important - Please read these instructions fully before starting assembly
Warning Symbols
The following warning symbols appear throughout this assembly manual and
indicate the appropriate safety measures you should take when assembling and
operating the rotary hammer.
To reduce the risk of injury, Please read the instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
Customer Helpline 0333 3201989
3
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
4
Customer Helpline 0333 3201989
Original Instructions
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5) Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Hammer Safety Warnings
1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
Additional Safety Rules for hammer
1. Always wear a dust mask.
Customer Helpline 0333 3201989
5
In The Box
Parts
Locking sleeve
1
2
SDS Chuck
3
Depth Gauge
4
Hammer and chisel action selector
5
Grease box cover
1 2 43 5 6
8
6
On / Off Switch
Hammer and drilling action selector
7
8
Auxiliary Handle
9
Dust cover
7
Accessories
Auxiliary handle 1pc
Dust cover 1pc
Depth gauge 1pc
Point chisel (14x250mm) 1pc
Flat chisel (14x250mm) 1pc
SDS drill bits (8/10/12x150mm) 3pc
6
9
Customer Helpline 0333 3201989
Operating Instructions
NOTE: NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This tool is intended for hammer drilling in concrete, brick and stone as well as for light
chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and
plastic.
1. ADJUSTING THE AUXILIARY HANDLE (SEE FIG A)
Slide the handle onto the hammer and rotate to the desired working position. To clamp
the auxiliary handle rotates the handle clockwise. To loosen the auxiliary handle rotate
the handle anti-clockwise.
WARNING: For your personal safety we recommend using the auxiliary handle at all
times.
2. INSTALLING THE DEPTH GAUGE (SEE FIG B1, B2)
The depth gauge can be used to set a constant depth to drill (hammer). Fit the drill bit
into the chuck. Depress the locking button on the handle and insert the depth gauge
A
B1
B2
Toothed side of
the depth gauge
Customer Helpline 0333 3201989
Toothed side of hex hole
marking on the grip base
7
Operating Instructions
into the handle. Slide the depth gauge until the distance between the depth gauge end
and the drill bit end is equal to the depth of hole/screw you wish to make.. Release the
locking button to tighten.
Note: Make sure that the toothed side of the depth gauge needs to be directed to the
toothed side of hex hole in the handle as shown in the figure.
3. USING THE DUST COVER (SEE FIG C)
Use the dust cover to prevent dust from falling over the tool and on yourself when
performing overhead drilling operations. Attach the dust cover to the bit as shown in Fig.
C.
4. INSERTING AND REMOVING DRILL BIT IN SDS CHUCK
FITTING BITS (SEE FIG D)
Clean the bit shank and apply grease before installing the bit. Hold the rotary grip, pull
back the locking sleeve and insert the bits into the bit holder. Turn the bit until it latches.
Then release the locking sleeve. Check the locking by pulling on the tool.
If the bit or chuck is not located well, repeat the operation again.
REMOVING BITS (SEE FIG D)
Retract back the bit holder locking sleeve and pull out the bit.
WARNING! Your new Rotary Hammer generates powerful forces to get your job
done quickly and effectively. These forces may cause inferior quality SDS bits
to break and jam in the chuck. We therefore recommend that only high quality SDS
bits be used with this tool.
C D
8
Customer Helpline 0333 3201989
bit holder
bits
locking sleeve
Operating Instructions
a
5. ON/OFF SWITCH (SEE FIG E)
Depress the switch to start the tool and release it to stop your tool.
6. FUNCTION MODE SELECTION
Hammer drill function (SEE FIG F1, F2)
1)For drilling concrete, masonry etc, press the lock button (a) and rotate the selector
switch to make sign “ “ point to the triangle. (SEE FIG F1)
Note: You must press the selector switch lock button before adjusting the selector
switch. If the selector switch cannot go into the required position, switch on your
hammer a little, then adjust the selector switch again.
2)Turn the hammer or drilling action selector switch pointing to the hammer action
“ “ position. (SEE FIG F2)
3)You are now set up for hammer drilling into masonry.
E
F1
F2
Customer Helpline 0333 3201989
9
Operating Instructions
Drilling function (SEE FIG G1, G2)
1)Press the lock button (a) and rotate the selector switch to make sign “ “ point to
the triangle. (SEE FIG G1)
2) Turn the hammer or drilling action selector switch pointing to the drilling action “
“ position. (SEE FIG G2)
3)You are now set up for drilling function.
Chisel function (SEE FIG H1, H2)
1)For chipping, grooving or demolition operation, press the lock button (a) and then
rotate the selector switch make sign “ “ pointing to the triangle. (SEE FIG H1)
2)Turn the hammer or drilling action selector switch pointing to the hammer action “
“ position. (SEE FIG H2)
3)You are now set up for chisel work using Chisel action.
WARNING: You must make sure that the selector switch is positively locked in
chisel mode position. If not, it could cause a hazard.
Note:No function if rotate the hammer and chisel action selector(4) to mark sign T and
rotate the hammer or drilling action selector switch (5)pointing to drilling action x
position
G1
H1
10
a
a
Customer Helpline 0333 3201989
G2
H2
Operating Instructions
7. OVERLOAD PROTECTION
If the tool insert becomes caught or jammed, the drive to the drill spindle is interrupted.
Because of the forces that occur, always hold the power tool firmly with both hands and
provide for a secure stance.
Working Hints For Your Rotary Hammer
Reduce the pressure on the drill bit when it is about to break through. This will prevent
the drill from jamming.
When drilling a large hole, first drill a pilot hole using a smaller drill bit.
Always apply pressure to your drill bit in a straight line, and if possible at right angles to
the workpiece.
Never change the operating mode whilst the rotary hammer is running.
Do not apply excessive pressure to the tool when chiseling. Expressive force does not
speed up the work.
Customer Helpline 0333 3201989
11
Maintenance
Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power
tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free
of dust. Occasionally you may see sparks through the ventilation slots. This is normal
and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
LUBRICATION TOOL (SEE FIG I)
The tool is grease-lubricated. A grease refill is only required during hammer work
efficiency is low. Open the grease box lid at the top of the hammer using the pin spanner
provided. Then refill approx 30g grease provided with your tool. The grease specification
is general purpose lithium based.
Caution: Keep the container of grease away from children.
I
Trouble Shooting
1. If your power tool does not start, check the plug on the power supply first.
2. If your hammer becomes too hot in use, set the hammer switch to the drill mode and
allow your drill to operate at maximum speed without load for 2 minutes.
3. If your hammer work efficiency is too low, please add sufficient grease in the grease
box.
4. If work efficiency is too low please check drill bit or chisel and make sure it is not
blunt or worn.
5. If a fault can not be rectified, return the tool to an authorized dealer for repair.
12
Customer Helpline 0333 3201989
Technical Data
Technical Data Table
Voltage 230 -240V~50 Hz
Power input 1000 W
No load speed 1050 /min
Impact rate 5000 /min
Impact energy 3.5J
Max drilling capacity in
Steel 13 mm
Masonry 26 mm
Wood 40 mm
Protection class
Weight 4.00 kg
Noise Information
A weighted sound pressure LpA : 89.2 dB(A)
A weighted sound power LwA : 100.2 dB(A)
KpA & KwA= 3.0 dB(A)
Wear ear protection
Vibration Information
/II
Vibration total values (triax vector sum) determined according to EN 60745:
Hammer drilling into concrete
Chiseling
The declared vibration total value may be used for comparing one tool with another, and
may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can
differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
Vibration emission value a
Uncertainty K =1.5m/s²
Vibration emission value a
Uncertainty K =1.5m/s²
= 19.140 m/s
h, HD
= 19.200 m/s
h, Cheq
2
2
Customer Helpline 0333 3201989
13
Technical Data
Vibration Information
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions
of use should also take account of all parts of the operating cycle such as the
times when the tool is switched off and when it is running idle but not actually doing the
job. This may significantly reduce the exposure level over the total working period.
Help to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 100C or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for
recycling advice.
Guarantee
This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 24 months. This
does not cover the product where the fault is due to misuse, abuse, use in contravention of
the instructions, or where the product has been the subject of unauthorised modifications
or alterations, or has been the subject of commercial use. In the event of a problem with
the product within the guarantee period please return it to your nearest store. If the item is
shown to have an inherent defect present at the time of sale, the store will provide you with
a replacement. Your statutory rights remain unaffected.
14
Issue1 08/2015
Customer Helpline 0333 3201989
Declaration of Conformity
firmly clamped
This Guild 1000W Rotary Hammer model number PDH26G fully complies with the
Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/
EC(before 2016/04/20) and 2014/30/EC(since 2016/04/20), RoHS Directive 2011/65/EU and
the following harmonized EU standards
EN 60745-2-1:2010
EN 60745-1: 2009 + A11: 2010
EN 55014-1: 2006 + A1:2009 + A2:2011
EN 55014-2: 1997 + A1:2001 + A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
This declaration is made under the sole responsibility of Argos Ltd, 489/499 Avebury
Boulevard, Milton Keynes, MK9 2NW
Category Technical Manager signed
Issued 20/10/2015
Plug Replacement (Uk & Ireland Only)
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows. The wire
which is coloured blue must be connected to the terminal which is marked with N. The
wire which is coloured brown must be connected to the terminal which is marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only fit an
approved BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the
plug and severed cable, it must be destroyed to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
13 Amp fuse approved
to BS1362
Brown L (live)
Cable grip
Customer Helpline 0333 3201989
15
Loading...
