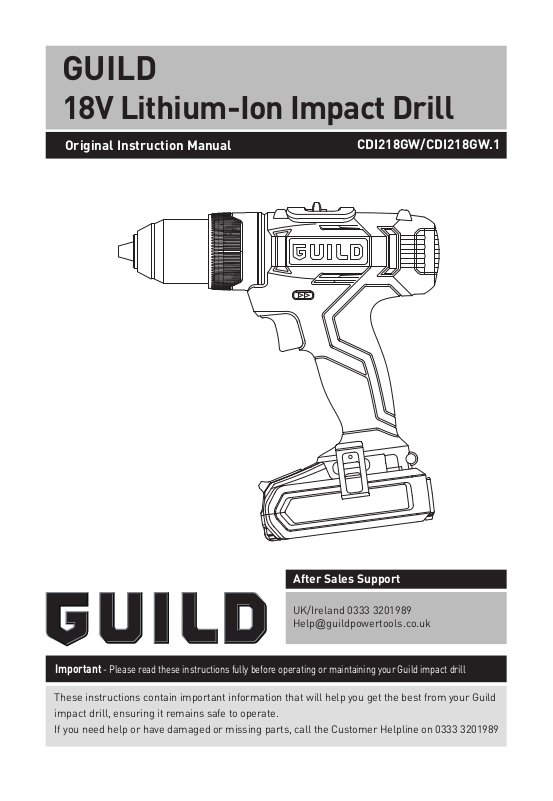

Guild CDI218GW Instruction manual

GUILD

18V Lithium-Ion Impact Drill

Original Instruction Manual

CDI218GW/CDI218GW.1

After Sales Support

UK/Ireland 0333 3201989
[e-mail]

Important - Please read these instructions fully before operating or maintaining your Guild impact drill

These instructions contain important information that will help you get the best from your Guild
impact drill, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989

Contents

Safety Information.....................................................................................................3

In The Box.................................................................................................................. 11

Accessories...........................................................................................................12

Operating Instructions..............................................................................................14

Problem Solution......................................................................................................20

Maintenance..........................................................................................................20

Technical Data..........................................................................................................21

Environmental protection........................................................................................23

Guarantee................................................................................................................23

2

Customer Helpline 0333 3201989

Safety Information

Important - Please read these instructions fully before starting assembly
Warning Symbols

The following warning symbols appear throughout this
assembly manual and indicate the appropriate safety
measures you should take when assembling and
operating the impact drill.

To reduce the risk of injury, Please read the instruction manual

Warning

Wear ear protection Wear eye protection

Wear dust mask Double insulation

Indoor use only

Li-I on

Do not expose to rain or water

Do not burn

Waste electrical products must not be disposed of with
household waste. Please recycle where facilities exist. Check
with your local authorities or retailer for recycling advice.

Li-Ion

Do not dispose of batteries, Return exhausted batteries to your
local collection or recycling point.

Fuse

Positive terminal Negative terminal

Customer Helpline 0333 3201989

3

Safety Information

Important - Please read these instructions fully before starting assembly

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or
serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains­operated (corded) power tool or battery-operated (cordless)
power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark

areas invite accidents.

b) Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the

dust or fumes.

c) Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body
is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of
electric shock.

d) Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged

4

Customer Helpline 0333 3201989

Original Instructions

Safety Information

Important - Please read these instructions fully before starting assembly

General Power Tool Safety Warnings

or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord

suitable for outdoor use reduces the risk of electric
shock.

f) If operating a power tool in a damp location is

unavoidable, use a residual

current device (RCD) protected supply. Use of an RCD

reduces the risk of electric shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention

while operating power tools may result in serious
personal injury.

b) Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal
injuries.

c) Prevent unintentional starting. Ensure the switch is

in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.

d) Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal
injury.

e) Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool

in unexpected situations.

Customer Helpline 0333 3201989

5

Safety Information

Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings

f) Dress properly. Do not wear loose clothing or jewellery.

Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught

in moving parts.

g) If devices are provided for the connection of dust

extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can

reduce dust-related hazards.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the job

better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with

the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the

battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

d) Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools

are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to
bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in

accordance with these instructions, taking into account

6

Customer Helpline 0333 3201989

Safety Information

Important - Please read these instructions fully before starting assembly

General Power Tool Safety Warnings

the working conditions and the work to be performed.

Use of the power tool for operations different from those
intended could result in a hazardous situation.

5) Battery tool use and care
a) Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of

battery pack may create a risk of fire when used with
another battery pack.

b) Use power tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of

injury and fire.

c) When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs,

flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.

6) Service
Have your power tool serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

Customer Helpline 0333 3201989

7

Safety Information

Important - Please read these instructions fully before starting assembly
Drill Safety Warnings

1. Wear ear protectors when impact drilling. Exposure to noise

can cause hearing loss.

2. Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring. Cutting accessory contacting a “live”

wire may make exposed metal parts of the power tool “live”
and could give the operator an electric shock.

Safety Warnings For Battery Pack

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery

packs haphazardly in a box or drawer where they may
short-circuit each other or be short-circuited by conductive
materials. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in

direct sunlight.

d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to

come into contact with the skin or eyes. If contact has been
made, wash the affected area with copious amounts of
water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack

has been swallowed.

g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if

they become dirty.

i) Battery pack needs to be charged before use. Always refer

to this instruction and use the correct charging procedure.

j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to

charge and discharge the battery pack several times to

8

Customer Helpline 0333 3201989

Safety Information

Important - Please read these instructions fully before starting assembly
Safety Warnings For Battery Pack

obtain maximum performance.

l) Battery pack gives its best performance when it is

operated at normal room temperature (20 °C ± 5 °C).

m)When disposing of battery packs, keep battery packs of

different electrochemical systems separate from each
other.

n) Recharge only with the charger specified by GUIDE . Do

not use any charger other than that specifically provided
for use with the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire when used
with another battery pack.

o) Do not use any battery pack which is not designed for use

with the equipment.

p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

General Safety Warnings for Battery Charger

WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious
injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

Customer Helpline 0333 3201989

9

Safety Information

Important - Please read these instructions fully before starting assembly

Additional safety instructions for your Battery Charger

1. Before charging, read the instructions.

2. Do not charge a leaking battery.

3. Do not use chargers for works other than those for which
they are designed.

4. Before charging, ensure your charger is matching the local
AC supply.

5. For indoor use, or do not expose to rain.

6. The charging device must be protected from moisture.

7. Do not use the charging device in the open.

8. Do not short out the contacts of battery or charger.

9. Respect the polarity “+/-“ when charging.

10.Do not open the unit and keep out of the reach of children.

11.Do not charge the batteries of other manufactures or ill­suited models.

12.Ensure that the connection between the battery charger
and battery is correctly positioned and is not obstructed by
foreign bodies.

13.Keep battery charger’s slots are free of foreign objects and
protect against dirt and humidity. Store in a dry and frost­free place.

14.When charging batteries, ensure that the battery charger
is in a well-ventilated area and away from inflammable
materials. Batteries can get hot during charging. Do
not overcharge any batteries. Ensure that batteries and
chargers are not left unsupervised during charging.

15.Do not recharge non-rechargeable batteries, as they can
overheat and break.

16.Longer life and better performance can be obtained if
the battery pack is charged when the air temperature is
between 18
temperatures below 4.5
as it can prevent serious damage to the battery pack.

17.Charge only battery pack of the same model provided
by manufacturer and of models recommended by
manufacturer.

o

C and 24oC. Do not charge the battery pack in air

o

C, or above 40.5oC. This is important

10

Customer Helpline 0333 3201989

In The Box

Parts

1

Keyless chuck

2

Torque adjustment ring

3

Two-speed gear control

4

Forward/Reverse rotation control

5

Soft grip handle

6

Battery pack

7

Battery pack release button

8

On/Off switch

9

Sight light

10

Battery capacity indicator

1

2 3

4

9

8

5

7

10

6

Customer Helpline 0333 3201989

11

Accessories

Battery pack
(ABP118W1)

Charger (ACG118W) 1 1

Accessories
(100 pcs)

CDI218GW CDI218GW.1

1 2

1 x Belt clip
48 x 25mm bits:

- 8 Torx: T10, T15, T20, T25,
T27, T30, T40, T45

- 8 Pozi: 2xPZ0, 2xPZ1, 2xPZ2,
2xPZ3

- 8 Phillips: 2xPH0, 2xPH1,
2xPH2, 2xPH3

- 10 Metric hex: H2, H2.5, H3,
H3.5, H4, H4.5, H5, H5.5, H6, H7

- 14 Square: 2xS1, 2xS2, 2xS3,
2xS4, 2xS5, 2xS6, 2xS7

1 x Belt clip
48 x 25mm bits:

- 8 Torx: T10, T15, T20, T25,
T27, T30, T40, T45

- 8 Pozi: 2xPZ0, 2xPZ1, 2xPZ2,
2xPZ3

- 8 Phillips: 2xPH0, 2xPH1,
2xPH2, 2xPH3

- 10 Metric hex: H2, H2.5, H3,
H3.5, H4, H4.5, H5, H5.5, H6, H7

- 14 Square: 2xS1, 2xS2, 2xS3,
2xS4, 2xS5, 2xS6, 2xS7

31x50mm bits:

- 4 Slotted: 3mm, 4mm, 5mm,
6mm

- 7 Phillips: 2xPH1, 3XPH2, 2XPH2

- 7 Pozi: 2xPZ1, 3XPZ2, 2XPZ3

- 4 Torx: T15, T20, T25, T30

- 4 Metric hex: H3, H4, H5, H6

- 5 Square: S1, 2xS2, 2x S3

9 x Wood drill bits: 2x3mm, 4mm,
5mm, 5.5m, 6mm, 7mm, 8mm,
10m

10 x HSS drill bits: 2x3mm, 4mm,
5mm, 5.5mm, 6mm, 7mm, 8mm,
2x10mm

1 x Magnetic holder

31x50mm bits:

- 4 Slotted: 3mm, 4mm, 5mm,
6mm

- 7 Phillips: 2xPH1, 3XPH2, 2XPH2

- 7 Pozi: 2xPZ1, 3XPZ2, 2XPZ3

- 4 Torx: T15, T20, T25, T30

- 4 Metric hex: H3, H4, H5, H6

- 5 Square: S1, 2xS2, 2x S3

9 x Wood drill bits: 2x3mm, 4mm,
5mm, 5.5m, 6mm, 7mm, 8mm,
10m

10 x HSS drill bits: 2x3mm, 4mm,
5mm, 5.5mm, 6mm, 7mm, 8mm,
2x10mm

1 x Magnetic holder

12

Customer Helpline 0333 3201989

Accessories

Customer Helpline 0333 3201989

13

Operating Instructions

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

This tool is intended for driving in and loosening screws as well as for drilling in wood,
metal and plastic.

1. CHARGING PROCEDURE

BEFORE PUTTING INTO OPERATION
CHARGING THE BATTERY PACK (SEE FIG A)
NOTE:
a) Do not use any charger other than that specifically provided for use with the

equipment.

b) If the battery pack is very hot you must remove your battery pack from the charger

and allow time for the battery to cool down before recharging.

c) The battery in your new tool is not charged when it leaves the plant. Therefore it

must be full charged before using the first time

d) Please charge the battery to reach full or no less than half charge before storage.

If the tool will not be used for long periods of time, charge the battery every 3-6
months.

1) Plug the charger into an appropriate outlet.

2) Place the battery pack into the charger

3) When charging is completed, unplug the charger and remove the battery pack.

Note: If the battery pack is locked in the charger, press the battery pack release
button and remove it.

14

Warning: When battery charge runs out after continuous use or exposure to
direct sunlight or heat, allow time for the battery to cool down before re-

charging to achieve the full charge.

CHARGING INDICATOR

Light Status

Red on

Green on

Charging

Fully Charged

A

Customer Helpline 0333 3201989

Operating Instructions

Operation

1. INSTALLING AND REMOVING THE BATTERY PACK

1) INSTALLING THE BATTERY PACK (SEE FIG. B1)

Slide the fully charged Battery Pack onto the tool with sufficient force until it clicks into
position.

2) REMOVING THE BATTERY PACK (SEE FIG. B2)

Depress the Battery Pack Release Button firmly first and then slide the Battery Pack out
from your tool.

B1

C

B2

2. ON / OFF SWITCH (SEE FIG C)

Depress the On/Off switch to start and release it to stop your drill.
The on/off switch is fitted with a brake function which stops your chuck immediately
when you quickly release the switch.
It is also a variable speed switch that delivers higher speed and torque with increased
trigger pressure. Speed is controlled by the amount of switch trigger depression.

WARNING: Do not operate for long periods at low speed because excess heat will
be produced internally.

3. SWITCH LOCK (SEE FIG. D)

The switch trigger can be locked in the OFF position. This helps to reduce the possibility
of accidental starting when not in use. To lock the switch trigger, place the rotation
control in the center position.

D

Customer Helpline 0333 3201989

15

Operating Instructions

4. REVERSIBLE (SEE FIG. E1, E2)

For drilling and screw driving use forward rotation marked “ ” (lever is moved to the
left). Only use reverse rotation marked “ ” (lever is moved to the right) to remove
screws or release a jammed drill bit.

WARNING: Never change the direction of rotation when the chuck is rotating,
wait until it has stopped!

E1

E2

5. TWO-SPEED GEAR CONTROL (SEE FIG. F)

The drill has a two-speed gear control designed for drilling or driving at LO (mark is 1)
or HI (mark is 2) speeds. A slide switch is located on top of the drill to select either LO
or HI speed. When using the drill in the LO speed range, the speed will decrease and the
drill will have greater power and torque. When using the drill in the HI speed range, the
speed will increase and the drill will have less power and torque.

Gear I

Low speed range: for screwdriving or working with large drilling diameter

Gear II

High speed range: for working with small drilling diameter

WARNING: To prevent gear damage, always allow the chuck to come to a complete
stop before changing the direction of rotation or the two-speed gear control.

6. AUTOMATIC SPINDLE LOCK (SEE FIG. G)

The automatic spindle lock allows you to use it as a regular screwdriver. You can give
an extra twist to firmly tighten a screw, loosen a very tight screw or continue working
when the battery energy has expired. For manual screwdriver purposes, the chuck is
automatically locked when the tool is off.

16

Customer Helpline 0333 3201989

Operating Instructions

F

7. CHUCK ADJUSTMENT (SEE FIG. H)

To open the chuck jaws rotate the front section of the chuck. Insert the drill bit between
the chuck jaws and rotate the front section in the opposite direction. Ensure the drill
bit is in the center of the chuck jaws. Finally, firmly rotate the front chuck section in the
opposite directions. Your drill bit is now clamped in the chuck.

8. TORQUE ADJUSTMENT (SEE FIG. I)

(Screw driving force of your drill driver)
The torque is adjusted by rotating the torque adjustment ring. The torque is greater when
the torque adjustment ring is set on a higher setting. The torque is less when the torque
adjustment ring is set on a lower setting.
When drilling in masonry and concrete choose the hammer position
When drilling in wood, metal, plastic and screwdriver choose the drill position
Make the setting as follows:

1 - 4 for driving small screws
5 - 9 for driving screws into soft material
10 - 14 for driving screws into soft and hard material
15 - 20 for driving screws into hard wood

21

for driving larger screws

for heavy drilling

G

.

.

for drilling in masonry

Customer Helpline 0333 3201989

17

Operating Instructions

H

9. USING THE SIGHT LIGHT

To turn on the light, press the on/off switch and make sure the forward/reverse rotation
control is on right/left position. When you release the on/off switch, the light will be off.
LED lighting increases visibility-great for dark or enclosed area.
LED is also a battery capacity indicator. It will flash when power gets low.

10. BELT HOOK (SEE FIG. J)

Screw the belt hook on the tool with the screw provided in the plastic bag. The belt hook
can be hooked on your belt or pocket, etc.

I

J

18

Customer Helpline 0333 3201989

Operating Instructions

11. DRILLING

When drilling into a hard smooth surface, use a center punch to mark the desired hole
location. This will prevent the drill bit from slipping off center as the hole is started.
Hold the tool firmly and place the tip of the bit at the point to be drilled.
Depress the switch trigger to start the tool.
Move the drill bit into the workpiece, applying only enough pressure to keep the bit
cutting. Do not force or apply side pressure to elongate a hole.
If you want to activate the drill function (For drilling metal wood or plastic), turn the
torque adjustment ring on the drill position.
If you want to activate the impact function(For masonry or concrete), turn the torque
adjustment ring on the hammer position.

Tungsten carbide drill bits should always be used for concrete and masonry.

When drilling in metal, only use HSS drill bits in good condition. Always use a
magnetic bit holder (not included) when using short screwdriver bits. When screw­driving, apply a small quantity of liquid soap or similar to the screw threads to ease
insertion.

12. OVERLOAD PROTECTION

When overloaded, the motor comes to a stop. Relieve the load on the tool immediately
and release the on/off switch. Restart the tool as normal.

13. TEMPERATURE DEPENDENT OVERLOAD PROTECTION

When using as intended for the power tool cannot be subject to overload. When the load
is too high or the allowable battery temperature is too hot, the electronic control switches
off the power tool until the temperature is in the optimum temperature range again.

14. PROTECTION AGAINST DEEP DISCHARGING

The Li-ion battery is protected against deep discharging by the “Discharging Protection
System”. When the battery is empty, the machine is switched off by means of a protective
circuit: The inserted tool no longer rotates.

15. DISPOSAL OF AN EXHAUSTED BATTERY PACK

To preserve natural resources, please recycle or dispose of the battery pack properly.
This battery pack contains Lithium batteries. Consult your local waste authority for

information regarding available recycling and/or disposal options. Discharge your
battery pack by operating your drill, then remove the battery pack from the drill housing and
cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and
energy discharge. Do not attempt to open or remove any of the components.

Customer Helpline 0333 3201989

19

Problem Solution

1. WHY DOES THE DRILL NOT TURN ON WHEN YOU PRESS THE SWITCH?

The forward/reverse rotation control, which is on top of the trigger, is positioned in the lock
function. Unlock the forward/reverse rotation control by putting it into the required rotation
position. Push the trigger and the drill will start to rotate.

2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY?

Verify the torque position of the torque adjusting ring, you can find the torque-adjusting ring
between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and
position 21 is the highest torque (screw driving force). Position is for drill operation. Position
is for hammer drill operation. Regulate the torque adjusting ring to a higher position to reach
the best result.

3. I CANNOT FIT THE BATTERY INTO THE BATTERY CHARGER. WHY?

The battery can be inserted into the charger only in one direction. Turn the battery around
until it can be inserted into the slot.

4. REASONS FOR DIFFERENT BATTERY PACK WORKING TIMES

Charging time problems, as above, and having not used a battery pack for a prolonged time
will reduce the battery pack working time. This can be corrected after several charge and
discharge operations by charging & working with your drill. Heavy working conditions such as
large screws into hard wood will use up the battery pack energy faster than lighter working
conditions. Do not re-charge your battery pack below 0oC and above 45oC as this will affect
performance.

Maintenance

Remove the battery pack from the tool before carrying out any adjustment, servicing or
maintenance.

Your tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power
tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free
of dust. Occasionally you may see sparks through the ventilation slots. This is normal and
will not damage your power tool.

20

Customer Helpline 0333 3201989

Technical Data

Vibration Information

Voltage 18V

No load speed 0-400/0-1450/min

Impact rate 0-6400/0-23200bpm

Number of clutch positions 21+1+1

Max torque 30N.m

Chuck capacity 10mm

Charger protection class

Charging time 1 hr

Charger Input 220-240V~ 50/60Hz, 37W

Charger Output 20V

Drill capacity

Machine weight

Steel

Wood

Masonry

/II

1500mA

10mm

25mm

10mm

1.27kg

Customer Helpline 0333 3201989

21

Technical Data

Noise Information

A weighted sound pressure LpA : 89.2dB(A)
A weighted sound power LwA : 100.2dB(A)
KpA & KwA=3.0dB(A)
Wear ear protection when sound pressure is over: 80dB(A)

Vibration Information

Vibration total values (triax vector sum) determined according to EN 60745:

Impact drilling into concrete

Drilling into metal

The declared vibration total value may be used for comparing one tool with another, and
may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can

differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.

Vibration emission value a

Uncertainty K = 1.5 m/s²

Vibration emission value a

Uncertainty K = 1.5 m/s²

=16.2m/s

h,ID

=1.15m/s²

h,D

2

22

This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions

of use should also take account of all parts of the operating cycle such as the
times when the tool is switched off and when it is running idle but not actually doing the
job. This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.

Customer Helpline 0333 3201989

Environmental Protection

Waste electrical products must not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for
recycling advice.

Guarantee

This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 24 months. This
does not cover the product where the fault is due to misuse, abuse, use in contravention of
the instructions, or where the product has been the subject of unauthorised modifications
or alterations, or has been the subject of commercial use. In the event of a problem with
the product within the guarantee period please return it to your nearest store. If the item is
shown to have an inherent defect present at the time of sale, the store will provide you with
a replacement. Your statutory rights remain unaffected.

Issue1 11/2017

Customer Helpline 0333 3201989

23
