GSmart G1317 D Operating Guide

G1317D

0-1

Copyright

All mobile products by GIGA-BYTE COMMUNICATIONS INC. mentioned in this document, including the
device, accessories, software, text, music, and pictures, are owned by, or authorized by original manufacturers
to GIGA-BYTE COMMUNICATIONS INC. Reproduction, transfer, distribution, or storage of part or all of the
contents in this document in any form without the prior written permission of GIGA-BYTE COMMUNICATIONS
INC. is prohibited.

GIGA-BYTE Group, GIGA-BYTE COMMUNICATIONS INC.

G1317D│

0-2

Safety Information

This section contains important information on safe and efficient operation. Please read this information before

using the device.

• Use only the batteries and power adapter provided by the manufacturer. Use of unauthorized accessories
may void your warranty.

• Do not remove the battery while the phone is charging.

• Avoid using the phone near electromagnetic sources such as TVs, radios, and microwave ovens.

• Unplug the power adapter from the wall outlet during lightning storms to avoid electric shock or fire.

• Do not expose the phone or the battery to direct sunlight.

• Do not store your phone in temperatures higher than 60ºC or 140ºF.

• Do not use harsh chemicals or detergents to clean your phone.

• Do not handle the phone with wet hands while it is being charged. This may cause an electric shock or

serious damage to the phone.

SAFETY PRECAUTIONS FOR BATTERY USE

• Use only approved battery.

• Keep the battery dry and away from any liquid since this may cause a short circuit.

• Keep the battery away from metal objects since this may cause a short circuit.

• Do not use damaged or deformed batteries.

• If the battery emits a foul odor, discontinue use.

• Keep the battery away from babies and small children.

• If the battery leaks:

• Do not allow the leaking fluid to come in contact with your skin, eyes or clothing. If already in contact, rinse

with clean water immediately and seek medical advice.

• Keep the battery away from fire since this may cause the battery to explode.

• Do not attempt to open or service the battery yourself.

• Do not dispose battery in fire or water.

• Recycle or dispose used batteries according to the local regulations.

• Prevent to place the battery in extreme temperature condition, it maybe influence the battery efficiency.

ROAD AND ENVIRONMENTAL SAFETY

• Turn off the phone in areas with a potentially explosive atmosphere or where flammable objects exist such as
gas stations, fuel depots, and chemical plants among others. Sparks from these areas could cause explosion
or fire and result in injury or even death.

• Do not use hand-held phones while driving a vehicle. Use hands-free devices as an alternative.

SAFETY IN AIRCRAFT
Do not use the phone on board an aircraft. The phone’s network signals may cause interference to the

G1317D│

0-3

navigation system. As a safety measurement, it is against the law in most countries to use the phone on board

an aircraft.

Copyright © 2011. All Rights Reserved.

Android is a trademark of Google Inc. Use of this trademark is subject to Google Permissions.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc. Java, JME and all other
Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and
other countries.

SAR Information

THIS MOBILE DEVICE MEETS GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your mobile device is a
radio transmi tter and receive r. It is desi gned not to exceed th e lim its for exposure to radio wav es
recommended by international guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of
age and health. The exposure guidelines for mobile devices employ a unit of measurement known a s the
Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2 W/kg averaged over 10
grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting
at its highest certified power level in all tested frequency bands. The actual SAR level of an operating device
ca n b e be low th e m axi mu m v al ue be cau se th e d evi ce is des ig ne d t o u se o nl y t he p ow er
required to reach the network. That amount changes depending on a number of factors such as how close you
are to a network base station. The highest SAR value under the ICNIRP guidelines for use of the device at the
ear is 0.808 W/kg. Use of device accessories and enhancements may result in different SAR values. SAR
values may vary depending on national reporting and testing requirements and the network band. Additional
SAR information can be found on the Cellular Telecommunications Industry Association (CTIA) website at
www.wow-com.com.

 The standard value of SAR is 2.0W/Kg; the maximum SAR of the device is 0.808W/Kg.
 For decreasing the influence of the electromagnetic wave, please use the device carefully.

FCC Notice

Your device may cause TV or radio interference (for example, when using a telephone in close proximity to
receiving equipment). This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Any changes or
modifications not expressly approved by the manufacturer could void the user's authority to operate this
equipment.

WEEE Notice

The WEEE logo on the product or on its box indicates that this product must not be disposed of or dumped with
your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by
relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and
proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help

G1317D│

0-4

conserve natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will
ensure safety of human health and environment. For more information about electronic and electrical waste
equipment disposal, recovery, and collection points, please contact your local city center, household waste
disposal service, shop from where you purchased the equipment, or manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27
January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS) and its amendments.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12
July 1999 on the limitation of exposure of the general public to electromagnetic fields (0–300 GHz). This
equipment meets the following conformance standards: EN 300 328, EN 301489-1, EN 301489-3, EN
301489-7, EN 301489-17, EN 301489-24, EN 301 511, EN 301 908-1/2, EN 50360, EN62311, EN 300440,
and EN 60950. Changes or modifications to this product not authorized by the manufacturer could void the
EMC compliance and negate your authority to operate the product. This product has demonstrated EMC
compliance under conditions that included the use of compliant peripheral devices and shielded cables
between system components. It is important that you use compliant peripheral devices and shielded cables
between system components to reduce the possibility of causing interference to radios, televisions, and other
electronic devices. We, hereby, declare that this cellular, Wi-Fi, & Bluetooth radio is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.

Intellectual Property Right Information

Right to all technologies and products that comprise this device are the property of their respective owners:
This product has an Android platform based on Linux, which can be expanded by a variety of
Java-Script-based application SW. Google, the Google logo, Android, the Android logo, Gmail, and YouTube
are trademarks of Google Inc. Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Wi-Fi, the Wi-Fi CERTIFIED log, and the Wi-Fi logo are registered trademarks of the Wireless Fidelity Alliance.
Java, JME and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
in the United States and other countries. microSD is a trademark of SD Card Association.

G1317D│

0-5

General Information

This section contains important information on safe and efficient operation. Please read this information before

using the device. Ignorance of the following notices may lead to violations of the law.

• Before using the device, please make sure you have fully charged the battery.

• Do NOT remove the battery from the device during charging.

• Before inserting SIM card into the device, make sure that the device is switched off.

• Do NOT attempt to dissemble the device on your own. This should be done by an authorized person.

• Use the device in accordance to instructions when in public facilities.

• In some countries, it is a violation against the law to record phone conversations. Always ask permission of

the other party when you are going to record a conversation.

• To protect your ears, turn down the volume before you use stereo headsets or other audio devices.

• To avoid damaging the touch screen and the device, do NOT apply excessive pressure on them, and

remove the device from your pants’ pocket before you sit down. It is also recommended that you only use
the stylus or your finger to interact with the touch screen. It is not covered by the warranty that you crack the
touch screen because of the improper usage.

• When you use the device for a long time, such as talking on the phone, browsing online, or charging the

battery, the device may become warm. In most cases, this condition is normal.

• Refer servicing to the provider, or an authorized technician under the following conditions: 1. The device

has been damaged. 2. When you follow the instructions to use your device, it does not operate normally. 3.
The device has been exposed to water. 4. Liquid has been spilled or an object has fallen onto the device.

• Do Not push unauthorized objects into slots and openings in your device.

• The device should be placed away from heat sources such as stoves, radiators, heat registers, or other

products that produce heat.

• Condensation may form on or within your device, when you move your device between environments with

very different temperature and/or humidity ranges. To avoid damaging your device, make the moisture to
evaporate before you use the device.

• To avoid damaging your device, do Not put your device on an unstable table, stand, bracket, or other

places.

• Before you clean your device, unplug it, please. Use a damp cloth for cleaning, but do Not use water, liquid

cleaners, or aerosol cleaners to clean the touch screen.

G1317D│

0-6

Table of Contents

Copyright .................................................................................................................................................... 0-1

Safety Information ...................................................................................................................................... 0-2

General Information .................................................................................................................................... 0-5

Chapter 1 Getting Started ........................................................................................................................ 1-1

1.1 Your Phone .......................................................................................................................................... 1-1

1.2 Installing or uninstalling the SIM Card, Battery, and Memory Card ...................................................... 1-3

1.3 Charging the Battery ............................................................................................................................. 1-6

1.4 Using Headset ...................................................................................................................................... 1-7

1.5 Turning the Phone On or Off ................................................................................................................ 1-7

1.6 Lock / Unlock ........................................................................................................................................ 1-7

1.7 Notification LED .................................................................................................................................... 1-8

1.8 Initial Settings ....................................................................................................................................... 1-8

1.9 Adjusting the Volume ............................................................................................................................ 1-8

1.10 Contacts ............................................................................................................................................. 1-9

1.11The Home Screen ............................................................................................................................... 1-10

Chapter 2 Phone Functions & Input........................................................................................................ 2-1

2.1 Voice Calls ........................................................................................................................................... 2-1

2.2 Using On-Screen Keyboard .................................................................................................................. 2-2

Chapter 3 Email & Messaging ................................................................................................................. 3-1

3.1 Creating and sending a text message .................................................................................................. 3-1

3.2 Multimedia Message ............................................................................................................................. 3-2

3.3 Voice Message ..................................................................................................................................... 3-2

3.4 E-mail Accounts.................................................................................................................................... 3-3

3.5 Using E-mail ......................................................................................................................................... 3-3

Chapter 4 Using the Internet ................................................................................................................... 4-1

4.1 Connecting to the Internet .................................................................................................................... 4-1

4.2 Bluetooth modes................................................................................................................................... 4-3

Chapter 5 Multimedia Applications ......................................................................................................... 5-1

5.1 Photos and Videos ............................................................................................................................... 5-1

5.2 Viewing Photos and Videos .................................................................................................................. 5-3

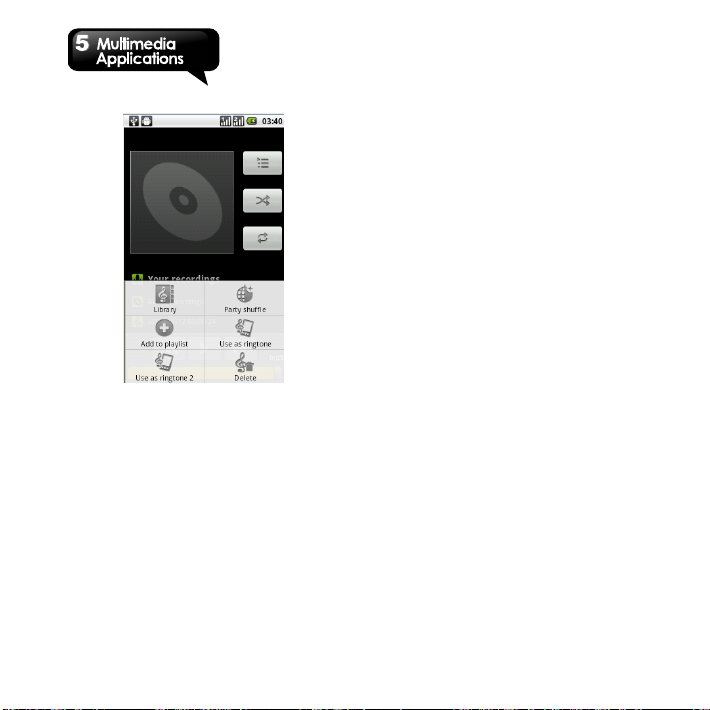

5.3 Using Music Player ............................................................................................................................... 5-4

Chapter 6 Programs ................................................................................................................................. 6-1

6.1 Browser ................................................................................................................................................ 6-2

6.2 Calculator ............................................................................................................................................. 6-5

G1317D│

0-7

6.3 Calendar ............................................................................................................................................... 6-5

6.4 Gallery .................................................................................................................................................. 6-5

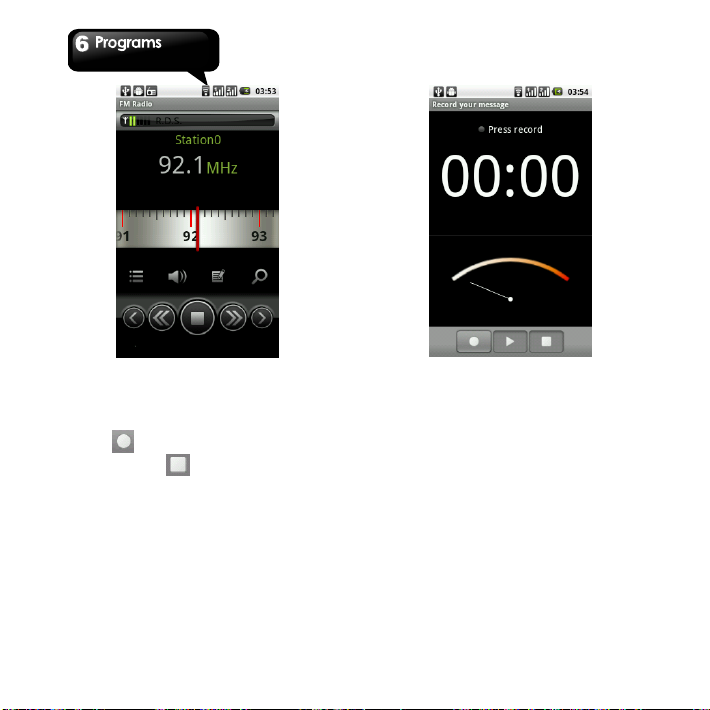

6.5 FM Radio .............................................................................................................................................. 6-5

6.6 Sound recorder ..................................................................................................................................... 6-6

6.7Gmail……………………………………………………………………………………………………………...6-6

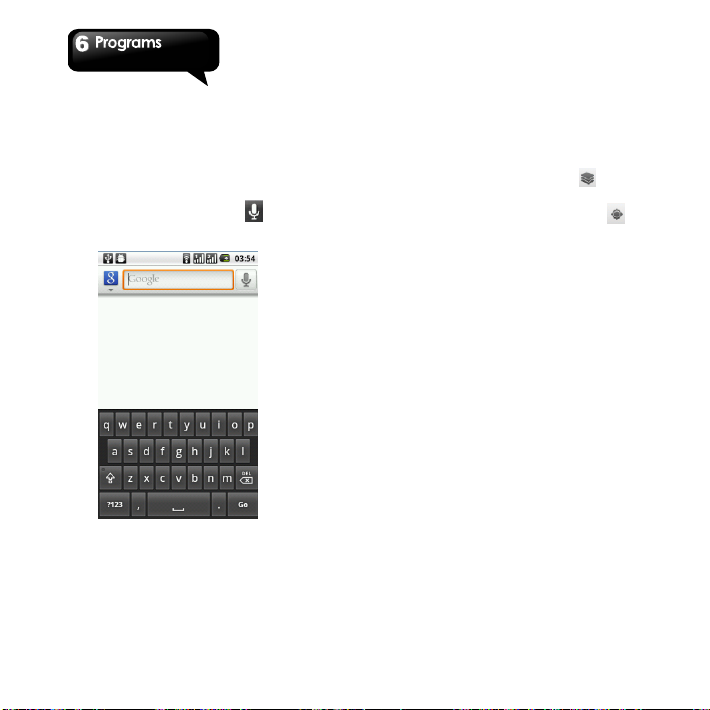

6.8Google search ..................................................................................................................................... 6-7

6.9 Maps ..................................................................................................................................................... 6-7

6.10 Latitude ............................................................................................................................................... 6-7

6.11 Navigation ......................................................................................................................................... 6-8

6.12 Places ................................................................................................................................................. 6-8

6.13Market ................................................................................................................................................. 6-8

6.14Talk ...................................................................................................................................................... 6-8

6.15 YouTube ............................................................................................................................................. 6-9

6.16 Weather .............................................................................................................................................. 6-9

6.17 People ................................................................................................................................................ 6-9

6.18 News and Weather ............................................................................................................................. 6-10

6.19 Best Choice ........................................................................................................................................ 6-10

6.20 USB Manager ..................................................................................................................................... 6-10

6.21 Install USB Driver ............................................................................................................................... 6-10

6.22 Android Manager ................................................................................................................................ 6-10

6.23 File Manager ...................................................................................................................................... 6-11

Chapter 7 Managing Your Phone ............................................................................................................ 7-1

7.1 Phone Settings ..................................................................................................................................... 7-1

7.2 Managing Basic Settings ...................................................................................................................... 7-4

7.3 Protecting Your Phone ......................................................................................................................... 7-5

7.4 Resetting the Phone ............................................................................................................................. 7-6

7.5 Specifications ....................................................................................................................................... 7-6

G1317D│

1-1

1.1 Your Phone

No.

Items

Functions

1

Earphone jack

Use a headset for
hands-free conversation or
listening to music.

2

Power

• Press and hold for several
seconds to turn the phone
on or off.

• To save battery, quick

press to temporarily turn
the screen on or off.

3

Earpiece

The source of music and
voice.

4

Touch screen

Display screen.

5

LED

•Power status notification.

•Other notification.( New text

message / Missed call).

6

P-sensor

The screen will automatically
shut down when taking the
device close to face on call.

7

Light sensor

Adjust the screen brightness
according to the
environment of lightness.

8

Home

• Go back to Home Screen.

• Press and hold to bring up

recent activities

9

Menu

Press to view menu options.

10

Search

Connect to the website or
Find feature in the phone.

11

Return

Return to the previous page.

12

MIC

Sound Receiver.

This section introduces you to the hardware of the
device.

1. Getting Started

G1317D│

1-2

13

Strap hole

It is for hanging cell phone
strap.

14

Micro USB port

• Connect USB cable to PC

as a modem / USB mass
storage.

• Connect USB cable and

the AC adapter to charge the
battery.

15

Volume

Press upwards or
downwards to increase or
decrease the volume. Slide
down the key fully to enter
vibrate mode.

16

Micro SD Slot

You can insert your Micro SD

card here.

17

Camera key

In Camera/Camcorder

mode, press to take a photo
or video.

G1317D│

1-3 No.

Items

Functions

18

Speaker

The source of music and
voice.

19

Flash LED

Help photo shooting.

20

3Megapixels

Camera

The camera on the back of
the device supports
3-mega-pixel photo and
high-quality video.

21

Back cover

You need to open the cover
to install or uninstall the
battery and SIM card.

1.2 Installing or uninstalling the
SIM Card, Battery, and Memory
Card

To remove the back cover

1. Please turn over your phone with the back
cover facing up.

NOTE: The battery can also be charged while
connecting to a computer.

2. Please move your fingertip into the slot
located on the top of the back cover.

G1317D│

1-4

3. Stay your palm close to the back cover. Then
pull the back cover with your fingertip to remove it.

SIM card

The SIM card contains your phone number,
memory storage, and network service details.

To install the SIM card

Insert the SIM card. Make sure the gold contacts
are facing down and the cut-off corner is facing
towards the battery slot. There are two slots for
two SIM cards. Upper slot is for SIM2, SIM1slot is
on the underside.

To remove the SIM card

1. Remove battery.

2. Use your finger to slide the SIM card from the
card slot.

Battery

Your phone comes with a rechargeable
LI-Polymer battery. Battery life varies depending
on the network, used applications, and the type of
connections attached to your phone.

To install the battery

Insert the battery. Make sure the contacts of the
battery are aligned with the connectors on the
battery slot.

G1317D│

1-5

To replace the back cover

Secure the hooks on the back cover with
designated holes on the phone and close the back
cover.

1. Please insert the hook on the bottom of the

back cover into the slot of the phone.

To remove the battery

Use your fingertip to lift the battery, and then,
remove it.

NOTE: To ensure battery performance and
avoid the risk of fire:

• Use only original batteries designated for the

phone.

• Do not store the battery in temperatures
below -10ºC or higher than 45ºC

2.With your right and left thumbs, press the middle
of the back cover.

G1317D│

1-6

3. Then, press the top of the back cover until click
in place.

Memory card

You will need a microSD card to store photos,
music, videos, and other data.

To install the memory card

1. Insert the memory card with the gold contacts
facing down.

2. Push the memory card until it clicks into place.

To remove the memory card

Push the memory card down to eject it from the
slot.

1.3 Charging the Battery

When you take your phone out from the box for
the first time, the battery is only partially charge, to
fully charge the battery before use.

1. Plug the battery charger.

2. Plug the AC adapter to an outlet to start
charging.

NOTE:

• The battery can also be charged when you

connect your phone to the computer.

• To ensure safety, do not remove the battery

from the phone while the AC adapter is
connected or while it is being charged.

G1317D│

1-7

Types

Descriptions

Press the button

on the headset

• When you receive an
incoming call press the
button to answering a call. If
you are having a call
conversation, press the
button to hold, and press
again to un-hold a call.

•In music/video mode, press
the button to play, and press
again to stop or resume
music/ video.

Press and hold

the button on the

• If you are having a call
conversation, press and hold

headset

the button to end the call.

• When you are listening to
music press and hold the
button back to Playlist.

• When you use other
functions, press and hold the
button can launch the music
player.

• When you receive an
incoming call, press and hold
the button to end the call.

1.4 Using Headset

For hands-free conversation or listening to music,
plug a headset to headset jack.

NOTE:

• When using a headset, your ability to hear

outside sounds may be limited. Do not use
headset if it will endanger you.

• Do not set the volume to its maximum with a

headset as it may damage your hearing.

• The following instructions are only provided
with GSmart original headset:

1.5 Turning the Phone On or Off

After installing the SIM card and charging the
battery, you are now ready to turn on your phone.

To turn on your phone

Press and hold the power button until the phone
vibrates.

To turn off your phone

1. Press and hold the power button for several
seconds.

2. A pop-up window appears, and then, tap Power
off.

3. Select OK to confirm.

To set your phone to Sleep mode

To set your phone to the sleep mode, press the
power button briefly. It will turn the display off. To
turn the display on, press the power button briefly
again.

1.6 Lock / Unlock

When you turn on your phone or the display, you
need to unlock the device. Slide the Lock Icon on
screen to unlock the device. Slide the Sound Icon
on screen to turn on / off the sound.

G1317D│

1-8

Types

Descriptions

Solid red light

Battery is charging.

Solid green light

Battery is full.

Flashing red light

Battery is low.

Flashing green

light

Notification.( New text
message / Missed call/
New email).

1.7 Notification LED:

1.8 Initial Settings

Please insert the SIM card. When you turn on
your phone at the first time or you reset your
phone, you need to follow the step below:

1. Tap the Android Robot icon to begin. In this
step, you can tap Emergency dial to make an

emergency call, or tap Change language to
change the default language.

2. Tap Begin to learn how to use your phone, or

tap Skip to skip this step.

3. In the screen of Google Account Settings, you

can tap Create to create an account, tap Sign in
to sign in with the Google account, or tap Skip
to set up an account later.

4. In the screen of Use Google location, you can

allow or disallow Google’s location service to
collect anonymous location data. You can also
allow or disallow Google to use location for
improved search results and other services.

Then tap Next to set up date and time.

5. Finally, tap Next to finish the whole initial
settings.

NOTE: Some features that need to connect to
the Internet such as location-based services
and auto-sync of your online accounts may
incur extra data fees from your mobile
operator. You can enable or disable them in
your phone's settings as you go along later
on.

1.9 Adjusting the Volume

To adjust the volume of ringtone, media, and
alarm

1. Tap Application Drawer > Settings > Sound >

volume.

2. Slide the volume bar to adjust the volume. Do

either of the following:
a. Drag the slider towards the left to decrease the
volume, or drag the slider towards to the right to
increase the volume. Tap OK to save your

settings.

b. Tap Application Drawer > Settings > Sound
> Silent mode to set the phone to the silent

mode.

G1317D│

1-9

NOTE: When the phone is set to the silent
mode, all sounds are turned off except media
and alarm.

1.10 Contacts

“Contacts” is your phonebook that lets you store
names, phone numbers, e-mail addresses and
other information. Contacts are stored in the
phone memory.

Adding a Contact

1. Tap Application Drawer > Contacts.

2. Tap Menu > New contact, and then, the new
contact window appears.

3. Tap each field to enter the contact information
with the on-screen keyboard.

NOTE:

• To add picture, tap Picture field, and then,
select a picture file.

4. Tap Done to save.

Searching for Contacts

On Contacts tab, do any of the following to easily
search for contacts:

• Tap Menu > Search.

• Type the first few letters of the contact to search.

The list is filtered as you type.

SIM Manager

SIM Manager is an SIM card management tool.
If you don't have any contacts stored on your
phone, you can import SIM contacts to your
device.

1. Tap Application Drawer > SIM Manager.

2. Tap and hold the desired Contacts, the
contacts submenu appears, you can call
Contacts from your SIM Card, create/ delete
Contacts on your SIM Card, transfer SIM Card
Contacts to your Device.

Importing / Export Contacts

Import from SIM card.

1. Tap Application Drawer > Contacts.

2. On Contacts tab, tap Menu > Import/Export >
SIM Manager.

3. Tap Menu > Export to phone, and select the

contacts you want or select all and then tap
Export.

Export to SD card

1. Tap Application Drawer > Contacts.

2. On Contacts tab, tap Menu > Import/Export >
Export to SD card.

3. Tap OK to confirm.

Favorite Contacts

You can add the most frequently called contacts
to the favorite contact list which helps you to
access the contacts quickly and easily.

Add to Favorites

1. Tap Application Drawer > Contacts.

2. On Contacts tab, tap and hold the desired

contact.

3. The contact submenu appears, and then, tap

Add to favorites.

4. When you tap the contact, you will find a golden

star appears next to the contact name. It means
the contact is now in the favorites list.

Remove from Favorites

1. Tap Application Drawer > Contacts.

2. Tap Favorites tab, the favorites list is displayed.

3. Tap and hold the desired contact to display the

submenu.

4. Tap Remove from favorites. The contact will be

removed from the favorites list.

G1317D│

1-10

1.11 The Home Screen

Icon

Function

Enable/disable Wi-Fi.

Enable/disable Bluetooth.

Enable/disable GPS.

Enable/disable
Data Synchronization.

Tap to adjust brightness.

Tap to switch SIM1/SIM2.

On Home screen, you can quickly access
common features and view notifications of missed
calls, received messages, battery, and connection
status. You can slide the home screen from the
left side to the right side or from the right side to
the left side to switch it.

Tap to launch Application Drawer. Tap and
hold it to review the five home screens at the
same time.

Default Home Screen: Main functions.

Quick launch Home Screen:：Wi-Fi、Bluetooth 、

GPS、Data Synchronization、Brightness。

G1317D│

1-11

Multimedia Home Screen: Camera、
Camcorder、sound recorder、Gallery、Music。

Self-defined Home Screen: There are five
screens. You can add the shortcuts and widgets.

How to Navigate

Tap: You can tap the icon on the screen to get

into the application.
Press and Hold: Press and hold the icon on the
home screen to make it movable. Press and hold
the icon on the application screen will make it add
into home screen.
Slide: Slide the home screen from the left side to
the right side or from the right side to the left side
to change different pages.
Drag: After pressing and holding the icon on the
home screen, you can arrange it. Drag it to
anywhere you like on the screen or to the trash
can.

G1317D│

1-12

Status Bar Icons

Types

Icons

Descriptions

Volume

Volume is off.

Vibration is on.

Wired headset
connected.

Wired microphone
headset
connected.

Speaker is on.

Battery

Battery is full.

Battery is low.

Battery is very low.

Battery is charging.

Phone

SIM 1 no network
signal.

SIM 2 no network
signal.

SIM 1maximum
signal strength.
Fewer bars
indicate lower
signal strength.

SIM 2 maximum
signal strength.
Fewer bars
indicate lower
signal strength.

Airplane mode.

Call is in progress.

SIM 1 call on hold.

SIM 2 call on hold.

Network
Network

Wi-Fi is connected.

Wi-Fi Network
available.

Bluetooth is on.

SIM 1 GPRS is in
progress.

SIM 2 GPRS is in
progress.

SIM 1 EDGE is in
progress.

SIM 2 EDGE is in
progress.

SIM 1 3G is in
progress.

SIM 1 HSDPA is in
progress.

Portable hotspot.

USB tethering
activated.

GPS is on.

Phone is
connected to PC
via USB connector.

Wi-Fi is connected.

Notification

New text message.

The Status bar icons indicate different types of
information. Tap the status bar and scroll down to
view notifications or view system information.

G1317D│

1-13

New e-mail.

Alarm. Event notification.

Missed call.

USB debugging
connected.

PC SYNC mode.

General
notification.

FM radio app is
use.

Song is playing.

USB Manager.

App downloading.

Shortcut Icons

Tap shortcut icons to activate the related
functions. Tap and hold a shortcut icon to move it.

To add shortcuts

1. On Home Screen, tap Menu > Add > Shortcuts.

2. Tap Applications to display the list of
applications.

3. Tap to add the items that you want to appear on
Home Screen.

To delete shortcuts

1. Tap and hold the desired shortcut icon. The
icon enlarges, and Trash Can Icon appears at
the bottom of Home Screen.

2. Drag the shortcut icon to Trash Can Icon to
delete it.

Using Widgets

You may add and customize the Widgets on
Home Screen as you like.

To add widgets

1. On Home Screen, tap Menu > Add > Widgets.

2. A list of all available widgets is displayed. Tap

to select the widget you want to appear on
Home Screen.

To delete widgets

1. Tap and hold the desired widget icon. The

icon enlarges, and the Trash Can Icon appears

at the bottom of the Home Screen.

2. Drag the widget icon to the Trash Can Icon to

delete it.

Setting the wallpaper

You can customize the wallpaper of your Home
Screen with default wallpaper or with pictures
taken with your phone.

Set wallpaper from Gallery

1. On Home Screen, tap Menu > Wallpaper.

2. Select a picture from Gallery.

3. You will see thumbnail images of all pictures.

Tap to select the picture you want to use as
your wallpaper.

4. Drag your finger to select the crop area.

5. Tap Save and the cropped image appears as

your wallpaper on Home screen.

Set wallpaper from Live wallpapers or
Wallpapers

1. On Home Screen, tap Menu > Wallpaper.

2. Tap Live wallpapers or Wallpapers.

3. All system wallpapers are displayed. Tap to

preview the wallpaper.

4. Tap Set wallpaper to apply your selection.

G1317D│

1-14

Folders

To add / delete Folder

You can also add/delete folders to your Home
screen.

1. On Home Screen, tap Menu >Add > Folders.

2. Tap to select the desired folder you want to
appear on Home Screen.

3. Tap and hold the desired folder ,the

icon enlarges, and the Trash Can Icon appears

at the bottom of the Home Screen. Drag the
widget icon to the Trash Can Icon to delete it.

G1317D│

2-1

2. Phone Functions & Input

To open Phone screen, do any of the following:

• Tap Application Drawer > Phone.

• Press Talk Key.

• Make a phone call by SIM1, press

• Make a phone call by SIM2, press

2.1 Voice Calls

Making a call

To make a call from the Phone screen

1. Open the Phone screen.

2. Tap the phone number on the keypad.

NOTE: Tap to erase a wrong number.

Tap and hold to erase the entire number.

3. Tap phone number, and then, press Talk
Key to dial.

4. To end the call, press End Key .

To make a call from Contacts

1. Tap Application Drawer > Contacts.

2. Tap the desired contact.

3. Tap Call mobile, Call work, or Call home. Or,
press Talk Key to dial the default number
directly.

To make emergency calls

Enter the international emergency number 112,
and then, press Talk Key.

If your device has entered Device Lock Mode, you
have to un-lock the device before you make an
emergency call.

To make international calls

1. Open the Phone screen.

2. Tap and hold 0 until the international prefix
code “+” is displayed.

3. Enter the country code, area code, and the
phone number.

4. Tap the phone number or press Talk Key to
dial.

Answering a call

When you receive an incoming call:

• The phone rings if the ring volume is turned on.

• A notification message appears on the screen.

To accept or reject an incoming call

• To accept a call, press Talk Key.

G1317D│

2-2

• To reject a call, press End Key.

To put a call on hold

If you are having a call conversation and there is
another incoming call, tap Menu > Hold to put the
first call on hold. To un-hold a call, tap Menu >
Hold again.

To switch between calls

If you are having a call conversation, and there is
another incoming call, tapping “Hold current call &
answer“ to put the first call on hold. Tap Menu >
Swap calls to switch between calls.

To set up conference calls

1. When you are already having a call

conversation, tap Menu > Add call to enter the
second number you wish to call, and then,
press Talk Key to dial the number.

2. When the third party answers your call, tap

Menu > Merge calls to set up the
conference calls.

NOTE: Conference call is a network service.
Check with your network provider for the
availability of this function.

To manage other voice call features

• Tap Menu > Speaker to activate the

speakerphone, or tap Menu > Speaker again to
deactivate the speakerphone.

• Tap Menu > Mute to mute the microphone, or

tap Menu > Mute again to un-mute the
microphone.

Ending a call

To end a call, tap Menu > End call.

2.2 Using On-Screen Keyboard

On-screen keyboard appears in portrait mode
when an application requires text input, such as

messaging, and writing e-mails. The keyboard
input method is activated by default.

• Tap and hold the text area, the pop-up window
will ask you to select the input methods.

Using on-screen keyboard

• Use the keys on the on-screen keyboard as you
do on computer keyboard.

• Tap the keys to enter the characters.

• To toggle between upper and lower case letter

display, tap .

• To display the numeric and symbols keyboard,

tap .

Setting the Input Method

Your phone supports several text input methods,
and you can select your preferred method.

1. Tap Application Drawer > Settings > Language

G1317D│

2-3

& keyboard.

Icon

Function

Switch input methods.

Tap to smart English input
method.

Tap to handwriting input
mode.

Tap to enter capital letters.

Tap to Guobi input method
settings.

Tap to next text zone.

Tap to the numeric
keyboard.

Tap to symbols keyboard.

2. In Text settings, you will see a list of the input

methods. Select and check the options you
prefer.

Android keyboard:

Android keyboard settings

• Vibrate on keypress: Phone vibrates when

user presses any key on the on-screen
keyboard.

• Sound on keypress: Phone sounds when user

presses any key on the on-screen keyboard.

• Auto-capitalization: The first letter of

sentences to be capitalized.

• Voice Input: Voice input on main keyboard, on

symbols keyboard, off.

• Input languages: Slide finger on spacebar to

change language.

Word suggestion settings:

• Quick fixes: Corrects commonly typed

mistakes.

• Show suggestions: Display suggested words

while typing.

• Auto-complete: Spacebar and punctuation

automatically insert highlighted word.
User dictionary: Tap Menu > Add to add the
self-defined words in the user dictionary. When
you compose, you can use them. Tap and hold
the self-defined word in the user dictionary to edit
or delete.

Guobi Alphabetic Input Method:

Guobi Input Method settings:

• Sound on keypress: Turn on/off.

• Vibration on keypress: Turn on/off.

• Keyboard types: QWERTY or Numeric

Keyboard.

• Space after English words automatically:
Turn on/ Turn off.

• Select languages: Select language for Guobi

input method.

• About: GuoBi Input Method.

G1317D│

3-1

3. Email & Messaging

Use Messaging to access text and MMS
messages. Use Email to send and receive e-mail
messages via your Internet e-mail accounts.

3.1 Creating and sending a text
message

Your phone offers several ways to create and
send a new text message.

From Messaging screen

1. Tap Application Drawer > Messaging.

2. Tap New message.

3. In the “To” field, enter the recipient’s
phone number.

4. Type your message in the “Type to compose”
field.

5. Tap Send to send your message. You can

select SIM1 or SIM2 (If SIM2 inserted).

From Contacts

1. Tap Application Drawer > Contacts.

2. Tap a contact to display the contact
information.

3. Tap the Text Icon .

4. Compose your message.

5. Tap Send to send your message. You can

select SIM1 or SIM2 (If SIM2 inserted).

From Call log

1. Tap Application Drawer > Contacts.

2. Tap the Call log tab to view all call history.

3. Tap a call from the Call log.

4. Tap Send text message.

5. Compose your message.

6. Tap Send to send your message. You can

select SIM1 or SIM2 (If SIM2 inserted).

Note: If you exit Messaging before sending,
unsent message will be automatically saved
as a draft.

To request message delivery notification

1. In Messaging, tap Menu > Settings> Text
message(SMS) settings/Multimedia
message(MMS) settings> Delivery reports.

2. Check Delivery reports.

Receiving and Managing Messages

When you send and receive messages from a
contact, these messages are grouped as a
message thread. A message thread looks like an
exchanged conversation.

To reply to a text message

1. Tap Application Drawer > Messaging.

2. Tap the contact who send message to you.

3. Tap “Type to compose” to enter your message.

4. Tap Send to send your message.

To forward a text message

1. Tap Application Drawer > Messaging.

2. Tap the contact who send message to you to
view a message thread.

3. Tap and hold a message to display the
message options.

4. Tap Forward.

5. In the “To” field, enter the recipient’s phone
number.

6. Tap Send to send your message. You can
select SIM1 or SIM2 (If SIM2 inserted).

To delete a message within a thread

1. Tap Application Drawer > Messaging.

2. Tap the contact who send message to you.

3. Tap and hold the message you want to delete.

G1317D│

3-2

4. Tap Delete message.

To copy message text

You can use this function to copy the text from a
message to a new message you are composing.

1. Tap Application Drawer > Messaging.

2. Tap the contact who send message to you to
view a message thread.

3. Tap and hold a message to display the
message options.

4. Tap Copy message text.

5. Go to New Message.

6. Tap and hold “Type to compose”.

7. Tap Paste to paste the copied texts to your new
message.

3.2 Multimedia Message

A Multimedia message or MMS can contain
letters, an image, an audio, or a video file.

Creating and sending an MMS message

Your phone offers several ways to create and
send a MMS message.

From the Messaging screen

1. Tap Application Drawer > Messaging.

2. Tap New Message.

3. Tap Menu > Add subject. The message
converts to a MMS message automatically.

4. In the “To” field, enter the recipient’s phone
number.

5. Enter the Subject.

6. To insert a picture or video file, tap Menu >
Attach.

7. To insert text, tap “Type to compose”, and
then, enter your message with the on-screen
keyboard.

8. Tap Send to send your message.

From Contacts

1. Tap Application Drawer > Contacts.

2. Tap a contact.

3. Tap the Text Icon . The message window is
displayed.

4. Tap Menu > Add subject to convert to MMS

message.

5. Tap Subject to enter the subject.

6. To insert a picture or video file, tap Menu >

Attach.

7. To insert text, tap “Type to compose”, and
then, enter your message with the on-screen
keyboard.

8. Tap Send to send your message.

From the Call log

1. Tap Application Drawer > Contacts > Call log
tab.

2. Tap a call in the list of Call log tab.

3. Tap Send text message.

4. Tap Menu > Add subject to convert to MMS

message.

5. Tap Subject to enter the subject.

6. To insert a picture or video file, tap Menu >

Attach.

7. To insert text, tap “Type to compose”, and
then, enter your message with the on-screen
keyboard.

8. Tap Send to send your message.

3.3 Voice Message

Your phone supports sending of Voice message.

To create a voice message

1. Tap Application Drawer > Messaging.

2. Tap New Message.

3. Tap Menu > Attach > Record audio.

4. Tap to record an audio file.

G1317D│

3-3

5. Tap to stop recording.

6. Tap to listen to your recording.

7. Tap Use this recording to proceed, or tap
Discard, and return to the compose message
screen.

8. Tap Play to listen to your recording again, Tap

Replace to replace the file, or tap Remove to
delete your recording from the MMS message.

9. Enter the mobile phone number in the “To”
field.

10. To insert text, tap “Type to compose”, and

then, enter your message with the on-screen
keyboard.

11. Tap Send to send your message.

3.4 E-mail Accounts

Your phone can send and receive e-mails just as
you do with a computer. Your phone supports
Internet e-mail: e-mail account provided by an
Internet Service Provider (ISP) or web-based
e-mail, such as Gmail, Hotmail, Yahoo! Mail, etc.

Setting up an Internet e-mail account

1. Tap Application Drawer > Email.

2. Enter your E-mail address and Password. Tap

Next.

3. The phone will retrieve the e-mail settings
automatically.

• If the e-mail settings are pre-configured, the

E-mail setup wizard displays a successful
message.

• If the e-mail settings are not found, Manual

setup is in process automatically. You can follow
the instructions to complete the settings.

4. Enter Account display name and Your Name,

and then, tap Done.

NOTE: The Account display name is the name
shown on the Email screen.

To open Email

Tap Application Drawer, and then, tap Email to
view your e-mails.

To select an account

1. Tap Application Drawer > Email.

2. Tap Menu > Accounts to view all e-mail
accounts. If you set up two more e-mail
accounts in the beginning, Account List will
appear directly after you tap Application Drawer
> Email.

3. Tap the e-mail account you want to access.

To configure e-mail settings

1. On your accounts screen, tap to select an
e-mail account.

2. Tap Menu > Account settings to adjust the
settings of your e-mail accounts.

3.5 Using E-mail

Composing and sending an E-mail

1. Tap Application Drawer > Email, and then,
tap an e-mail account.

2. Tap Menu > Compose.

3. In the “To” field, enter the recipient’s e-mail
address.

4. Enter the Subject.

5. Compose Mail.

6. Tap Send to send your e-mail.

Sending an E-mail from Contacts

You can send an e-mail to a contact with an
e-mail address stored in Contacts.

1. Tap Application Drawer > Contacts.

2. Tap a name to open contact.

3. Tap Email home. Tap Email in the submenu.

4. Enter the Subject and compose Mail.

5. Tap Send to send your e-mail.

G1317D│

3-4

Adding attachments to an e-mail message

Before sending your message, tap Menu > Add
attachment, and then, select the attachment you
want to attach.

Receiving e-mails

E-mails are received in your Inbox automatically
when your phone connects to wireless networks.

Reading and replying to e-mails

The Inbox displays the e-mail headers. When you
open the e-mail, it shows only a part of the
message, unless it is a very short message.
Download the e-mail to view the complete
content.

To reply or forward an e-mail

1. Open an e-mail.

2. Do any of the following:

• Tap Reply or Reply all to reply the e-mail.

• Tap Menu > Forward. Then enter the recipient

in the “To” field.

3. Compose Mail.

4. Tap Send to send your e-mail.

Managing E-mail folders
To delete an e-mail

1. Tap Application Drawer > Email, and then, tap

an e-mail account (if you have two more e-mail

accounts).

2. Tap Inbox to view the inbox e-mails.

3. Tap and hold an e-mail to launch a

submenu, and then, tap Delete to delete the
e-mail.

To move between messaging accounts

If you are viewing the messaging list screen of
one account and you want to view the list of
another account, tap Menu > Accounts, and then,
tap the account you want to view.

Customizing Account settings

You can configure the general settings of your
e-mail account such as Account name, Email
check frequency, and Default account, etc.

To set up your account name

1. Tap an e-mail account (if you have two more
e-mail accounts).

2. Tap Menu > Account settings > Account name

to change the account name.

3. Tap OK to confirm.

To set up the e-mail check frequency

1. Tap an e-mail account (if you have two more
e-mail accounts).

2. Tap Menu > Account settings > Email check

frequency. You can set the phone to
automatically check for new e-mail every 5
minutes, every 10 minutes, every 15 minutes,
every 30 minutes, and every hour.

To set up default account

1. Tap an e-mail account.

2. Tap Menu > Account settings > Default account

to send e-mail from this account by default.

To delete an e-mail account

1. Tap Application Drawer > Email.

2. Tap and hold the account to launch the

submenu, and then, tap Remove account.

3. Tap OK to confirm.

G1317D│

4-1

4. Using the Internet

4.1 Connecting to the Internet

Your phone connects to the Internet via:

 Wi-Fi
 GPRS / EDGE / 3G / 3.5G

Note: If you want to connect to the Internet
automatically, you can tap Application Drawer
> Settings > Wireless & networks > Mobile
networks > Data enabled, to mark Data
enabled. When you connect to the Internet, it
may charge you.

Wi-Fi

Your device can connect to the detected network
through Wi-Fi.

1. Tap Application Drawer > Settings to access
Wireless & networks.

2. Tap to check the Wi-Fi function and turn Wi-Fi
on or off.

To connect to a Wi-Fi network

1. Turn Wi-Fi on.

2. Tap Wi-Fi settings. The phone scans for Wi-Fi
signals.

3. Detected networks are displayed below. Tap a
network connection, and then, tap Connect.

4. If you select an unsecured network, the
connection is automatically established.
Otherwise, proceed to the next step.

5. To connect to a secured connection, you will
be prompted for the network key. Enter the key,
and then, tap Connect.

When Wi-Fi is connected, the connection icon
is displayed on the status bar.

G1317D│

4-2

To add Wi-Fi network

1. Tap Application Drawer > Settings to access
Wireless & networks.

2. Tap Wi-Fi settings.

3. In W i-Fi networks, tap Add Wi-Fi network. A
new window is displayed.

4. Follow the on -screen instructions and enter
necessary information, and then, tap Save to
store settings.

To configure Wi-Fi settings

1. Tap Application Drawer > Settings to access
Wireless & networks.

2. Tap Wi-Fi Settings.

3. Tap Menu > Advanced.

Note: If you use static IP, enter the IP settings
as required.

4. In IP settings, Enter the information for IP
address, Gateway, Netmask, and DNS. Tap
OK to save your settings.

Cellular Data Network

Check the availability of these connections with
your network service provider and obtain the
following information:

 Access Point Name
 Proxy
 Port
 User name

G1317D│

4-3

 Password

To set up wireless data connection

1. Tap Application Drawer > Settings > W ireless
& networks.

2. Tap Mobile networks >SIM1/SIM2 >
GSM/UMTS Options >Access Point Names.

3. Tap Menu > New APN.

4. Enter a name for the connection, and then, tap
OK.

5. Enter the APN, and then, tap OK.

6. Enter the Proxy, Port, Username, and
Password (if available) etc., and then, tap OK
to save your settings.

To start a data connection manually

1. Tap Application Drawer > Settings.

2. Tap W ireless & networks > Mobile networks >
SIM1/SIM2 > GSM/UMTS Options >Access

Point Names.

3. A list of connections will be displayed. Tap the
radio button to select the connection you want
to use.

Tethering & portable hotspot

You can tether your phone to your computer with
a USB cable, to share your phone’s internet
connection with your computer. And share your
phone’s mobile data connection via as a portable
Wi-Fi hotspot.

1. Tap Application Drawer > Settings.

2. Tap Wireless & networks > Tethering &
portable hotspot.

3. Enable USB tethering function to setup.

VPN settings

Set up & manage Virtual Private Networks(VPNs)

1. Tap Application Drawer > Settings.

2. Tap Wireless & networks > VPN settings

4.2 Bluetooth modes

Bluetooth on your phone operates in three
different modes:
 On: Bluetooth is turned on. Your phone

detects other Bluetooth devices, but your
phone is not visible to others.

 Discoverable: Bluetooth is turned on and your

phone is visible to other Bluetooth devices.

 Off: Bluetooth is turned off.
To turn Bluetooth on or off

1. Tap Application Drawer > Settings > W ireless
& networks.

2. Tap Bluetooth settings.

3. Tap to check Bluetooth and activate.

4. To make your phone visible to others, check
Discoverable to make this phone visible to
other devices.

G1317D│

4-4

phone, you can use the Bluetooth device.

NOTE: Tap and hold the selected device to
enter device options menu.
NOTE: Once a partnership has been created,
connecting to that device again will no longer
require entering the password.

Connecting to Bluetooth Devices

A connection to a Bluetooth device is called a
partnership. You need to pair and create a
partnership with a Bluetooth device to exchange
information.

1. Tap Application Drawer > Settings > W ireless
& networks.

2. Tap Bluetooth settings to view the menu
options.

3. To search for a new device, tap Scan for
devices.

4. Tap the device to connect.

5. To start pairing, enter the password, and then,
tap OK.

NOTE: The password you enter on your phone
must be the same password to be entered on
the other Bluetooth device.

6. After the Bluetooth device is connected to your

G1317D│

5-1

5.1 Photos and Videos

Icon

Function

Displays the last image.
Tap to go to Review
Screen. You need to insert
your SD card first.

Indicates capture mode.
Swipe to switch between
video and camera mode.

Tap to take a photo.

Icon

Function

Configuring camera settings.

Tap to adjust store location.

Tap to set white balance.

Tap to set flash mode.

Tap to zoom the image in or
out.

Icon

Function

Indicates the remaining

Your phone is equipped with a 3.0 megapixels
camera to take photos and videos.

Taking a photo

5. Multimedia Applications

1. Tap Application Drawer > Camera. The screen
switches to landscape view automatically.

2. Fully press the shutter button, or tap to

G1317D│

take the shot.

Recording Video

5-2

recording time.

Displays the last video.
Tap to go to Review
Screen. You need to
insert your SD card first.

Indicates capture mode.
Swipe to switch between
video and camera mode.

Press to record video.

Icon

Function

Configuring Camcorder
settings.

Tap to set white balance.

Tap to set flash mode.

Tap to set video quality.

Icon

Function

Tap D elete to delete the
picture.

Tap Share to share the picture
via Email or Messaging.

Tap Set as to set the picture as
contact icon or wallpaper.

1. Tap Application Drawer > Camcorder.

2. Aim the phone at the subject.

3. To start recording, press the shutter button , or

tap .

4. To stop recording, press the shutter button

again or tap .

Reviewing a photo

After taking a shot screen, the function of reviewin g
a photo:

Reviewing a video

After recording a video, the function of reviewing a
video:

G1317D│

5-3

Icon

Function

Tap to play or stop the video.

Tap to go forward or
backward.

Slide to go forward or
backward.

Mode

Setting

Available
options

Camera
mode

Flash Mode

Auto, On, and
Off

White
Balance

Auto, Incandesce,
Daylight,
Fluorescent, and
Cloudy

Store
location

On, Off
Zoom

1x,1.3x,1.7x,2.3x,3
x,4x

Anti Banding

50 Hz, 60 Hz

Color effect

None, Sepia,
Negative

Picture size

3M Pixels, 2M
Pixels, 1M
Pixels ,VGA

quality

Super fine, Fine,
Normal

Exposure

-2,-1,0,+1,+2

Camcorder
mode

Video
Quality

CIF, QVGA, VGA,
and QCIF

Audio
Encoder

AMRNB,QCELP,E
VRC,AAC

Video
Encoder

MPEG4, H263

Video
duration

30 seconds
(for MMS),
10 minutes,
and 30 minutes

White
Balance

Auto, Incandesce,
Daylight,
Fluorescent, and
Cloudy

Flash mode

On, Off

Color Effect

None, Sepia, and
Negative

Video
Quality

High, Low, MMS,
YouTube, custom

Configuring camera settings

On the camera or camcorder screen, tap to
view and adjust the general settings of your
camera and camcorder.

5.2 Viewing Photos and Videos

To view photos in the album

1. Tap Application Drawer > Gallery.

2. Tap one of picture folders to view the images in
thumbnails.

3. Tap an image to view.

4. To view previous/next image, slide the screen
from the left side to the right side / from the right
side to the left side.

G1317D│

5-4

To play slideshow

Icon

Function

Album art picture or
animation

Audio information display
area.

Tap to go to the previous
song.

Tap to play or pause the
song.

Tap to go to the next
song.

Slide to go forward or
backward.

1. W hile viewing an image, tap Menu > More
>Slideshow.

2. Tap screen again to stop slide show.

To set the image as Wallpaper

1. W hile viewing the image, tap Menu > Set as >
Wallpaper.

2. Drag your finger to select the crop area.

3. Tap Save to set the image as the wallpaper.

To save image to Contact icon

1. W hile viewing the image, tap Menu > Set as >
Contact icon.

2. Tap the contact name to add image.

3. Drag your finger to select the crop area.

4. Tap Save to save the image as the contact
icon.

To edit an image

While viewing the image, to edit an image:
 To rotate image, tap Menu > Rotate > Rotate

Left or Rotate Right.

 To crop, tap Menu > Crop.

1. Drag your finger to select the crop area.

2. Tap Save to save the image.

To view file properties

1. W hile viewing the image, tap Menu > More >
Details.

2. The file information is displayed.

3. Tap Close to return to the image.

5.3 Using Music Player

You must copy your audio files to the storage card
before you play music, because the music player
only plays audio files saved in the storage card of
your phone. Tap Application Drawer > Music.

Music Screen

 Playback screen: Displays the playback area

with the playback controls.

G1317D│

5-5

Tap to go to Now playing
list.

Tap to shuffle.

Tap to enable or disable
the repeat function.

 Library screen: Displays folder categories

which make searching for media files quickly
and easily.

 Now Playing screen: Displays the list of

currently playing songs and those on queue for
playback. Use the icons on the left of each
media file to arrange the sequence of files for
playback.

Library Screen

To play music

1. Tap Application Drawer > Music.

2. The Library screen is displayed.

3. Tap Songs, and all songs on the phone will be

4. Tap to select the song, and then, it will play

Changing Playback options

While in Playback screen, tap Menu.

 Tap Library to go to the Music Library screen.
 Tap Party shuffle to play all songs in shuffle

 Tap Add to playlist to add the song to a

 Tap Use as ringtone to set this song as

 Tap Use as ringtone2 to set this song as

G1317D│

Now Playing Screen

displayed.

automatically.

order.

preferred playlist

ringtone.

5-6

ringtone.

 Tap Delete to delete this song.

3. Tap and hold the song you want to delete.

4. Tap Delete, and then, the song is deleted from
the playlist.

Creating a Playlist

Add songs to a specific playlist or create a playlist.

1. Tap Application Drawer > Music.

2. The Library screen is displayed.

3. Tap Songs, and all songs on the phone will be
displayed.

4. Tap and hold the song you want to add.

5. Tap Add to playlist.

6. Tap New to create a new playlist.

NOTE: If you create a new playlist, enter the
playlist name now.

7. The song has been added to the new playlist.

To remove a music file from the playlist

1. Tap Application Drawer > Music.

2. The Library screen is displayed, and then, tap

Playlist to select a playlist.

G1317D│

6-1

Your phone comes with the following pre-installed

Icons

Programs

Description

Best Choice

Allows you to use
the phone more
easily, we
recommend and
provide you the
best software and
functionality.

Browser

Browses the web
and download
files from the
Internet.

Calculator

Performs basic
arithmetic
functions, such as
addition,
subtraction,
multiplication, and
division.

SIM Toolkit

Directly connects
to and use
services provided
by your mobile
service provider.

Weather

More convenient
way in checking
your daily weather
forecast status.

FM Radio

Listen to
music/news on
the FM Radio.

Gmail

Google’s

web-based e-mail
service.

Calendar

Creates and
tracks schedule or
appointments.

Latitude

See your friends'
locations and
share yours with
them.

Market

Find applications
and fun games
which you can
download and
install on your
phone.

People

To assist you in
merging friends’
various Social
Networking
Services
accounts.

Email

Sends and
receives e-mail
messages.

SIM
Manager

Provides an easy
way to organize
the contacts of a
SIM card.

File
Manager

Manages all files.

Talk

Google’s instant

messaging
program.

YouTube

Online video
streaming service

programs.

6. Programs

G1317D│

6-2

that allows you to
view, search, and
upload videos.

Places

Search places
that you want to
find near your
current location.

Maps

Google’s mapping
service to search
for places of
interest.

Camcorder

Records videos
clips.

Camera

Captures still
images and
record videos.

Clock

Sets up alarm
clock, global time,
timer, and stop
watch.

Contacts

Stores names,
numbers, e-mail,
and other
information.

Google
search

Search for
anything on the
Internet.

News and
Weather

Google’s news
and weather
services.

Navigation

Help you get the
destination.

Gallery

Views and edits
photos and
videos.

Messaging

Sends and
receives all types
of messages,
such as text

message and
MMS.

Music

Plays and
manages the
music and audio
files on your
phone.

Phone

Makes and
receives phone
calls.

Settings

Configures the
phone settings,
wireless settings
and call settings
of your phone.

Sound
Recorder

Record Voice
Note.

Videos

Play videos.

Voice
Search

Search for
information by
voice.

6.1 Browser

Open the Browser to view web pages.

1. Tap Application Drawer > Browser

2. An address bar appears on screen at the upper

side. Type the URL, and then, tap .

3. W hile viewing a web page, tap the screen twice
quickly to enlarge or shrink the web pages, or

tap the screen to show to zoom in or
zoom out. Even more you can use your fingers
to zoom in or zoom out the web pages.

G1317D│

6-3

New Window

Open a web page in a
new window.

Refresh

Tap to refresh web
page.

Bookmarks

Tap to select from the
list of saved favorite web
pages to visit.

Windows

Review the previous
web pages.

Exit

Tap to exit the web
page.

MORE

Forward

Forward to the next
webpage.

Add bookmark

Add the web page to
Bookmarks.

Find on page

Tap to find the text on
the web page.

Select text

Tap to select text on the
web page.

Page info

Tap to view web page
information.

Share page

Tap to send this web
page via email or
messaging.

Downloads

Tap to view download
history.

Settings

Page Content Setting

Tap to configure
browser settings:

 Text size: adjusts text

size.

 Default zoom: set

Bookmarks .

2. W hile viewing Bookmarks, tap Menu to add
last-viewed page into bookmark.

3. W hile viewing Bookmarks tap Menu to see the
Bookmark list.

To set the Home page

1. W hile viewing a web page, tap Menu > More >
Settings > Set home page.

2. Enter the URL of the page that you want to set
as home page.

3. Tap OK to save your settings.

Managing a Web Page

While viewing a web page, tap Menu to change
view settings or apply other functions.

The following table lists the Menu options.
Depending on the function, some options may be
unavailable.

Managing Bookmarks

Collection and management web page. Bookmarks,
Most visited, History.

1. W hile viewing a web page, tap Menu >

G1317D│

6-4

zooming functions.

 Open pages in

overview: show
overview of newly
opened pages.

 Text encoding: sets

text encoding.

 Block pop-up

windows: blocks
pop-up windows
when browsing a web
page.

 Load images: display

images on web
pages.

 Auto-fit pages:

Enable/disable the
webpage to fit the
screen.

 Landscape-only

display: Display
pages only in the
wider , landscape
screen orientation.

 Enable JavaScript:

enables/disables
JavaScript on web
page.

 Enable

plug-ins :Always
on,On demand,Off.

 Open in background:

open new windows
behind the current
one.

 Set home page:

enters URL and sets
as home page.

 Invert color: Display

pages in inverted

color.

Privacy settings

Tap to configure privacy
settings:

 Clear cache: clear

locally cached content
and databases.

 Clear history: clear

the browser navigation
history.

 Accept cookies: allow

sites to save and read
cookie data.

 Clear all cookie data:

Clear all browser
cookies.

 Remember form data:

remember data I type
in forms for later use.

 Clear form data: clear

all the saved form
data.

 Enable location: Allow

sites to request access
to your location.

 Clear location access:

Clear location access
for all websites.

Security settings

Tap to configure security
settings:

 Remember

passwords: save
usernames and
passwords for web
sites.

 Clear passwords: clear

all saved passwords.

 Show security

warnings: show
warning if there is a

G1317D│

6-5

problem with a site’s
security.

Advance settings

 Set search engine:

Select a search
engine.

 Website settings:

Advanced settings for
individual websites.

 Reset to default:

Restore default
settings.

6.2 Calculator

With Calculator, you can perform basic arithmetic
functions on your phone.
Tap Application Drawer > Calculator.

6.3 Calendar

Tap Create or Sign in your Google account
, the Calendar helps you schedule and sound
alarms for appointments, meetings, and other
events. Scheduled appointments for the day can
be displayed on the Home screen.

To schedule an event

1. Tap Application Drawer > Calendar.

2. Tap Menu > More > New event.

3. Enter event details.

4. Select the dates for From and To field.

NOTE: For an all-day event, check All day.

5. To set repetition, select the repetition from the
list.

6. To set a reminder, select the reminder time
from the list.

7. W hen finished, tap Done to return to the
calendar.

6.4 Gallery

You can view the captured images, recorded video

clips, and downloaded images in the Gallery.

1. Tap Application Drawer > Gallery.

2. The picture folder and video folder are
displayed.

3. Tap to view the camera pictures or camera
videos.

4. The images or videos will be displayed in
thumbnails.

6.5 FM Radio

You can listen to music/news on the FM Radio.

1. Tap Application Drawer > FM Radio.

2. Please insert headset as antenna.

3. Tap to view all list.

4. Tap to switch voice source.

5. Tap to save new station.

6. Tap or slide to search the FM

stations，tap to go to the available FM

stations or tap to fine tune the radio
frequency.

7. Tap start or tap stop to listen to the
radio.

G1317D│

6-6

6.6 Sound Recorder

To Record Voice Note

1. Tap Application Drawer > Sound Recorder.

2. The recording screen is displayed.

3. Tap to record a voice note. To stop

Recording tap .

4. Tap Use this recording to save the voice note.

To play a voice note

1. Tap Application Drawer > Music>Playlist>My
recordings.

2. Displays the list of voice note, and then, tap the
voice note you want to listen.

3. The Voice Note is played with Music player.

6.7 Gmail

Gmail is Google's web-based email service.
Google Mail is configured when you first set up
your phone. Depending on your synchronization
settings, Gmail on your phone is synchronized with
your Gmail account on the web automatically.

1. Tap Application Drawer > Gmail.

2. Tap Create or Sign in your Google account.

3. Follow the on-screen instructions to login or
create your Gmail username and password.

4. Once logged in, you can begin reading and
sending emails from your Gmail account.

G1317D│

6-7

6.8 Google Search

Search for anything on the Internet: websites,
images , videos, blogs, news, products and more.
This feature also supports voice search,
identification is currently only supports simplified
Chinese, but the search still can be found to
Traditional Chinese website.

1. Tap Application Drawer > Google Search.

2. To use the voice search, click , start
speaking.

6.9 Maps

Maps is Google's mapping service to search for
places of interest.

To open Map

1. Tap Application Drawer > Maps.

2. Do any of the following:

 To search for a place of interest: Tap Menu >

Search, and then, type in a keyword to begin
search.

 To get direction: Tap Menu > Directions. Input

your start point and your destination, Maps will
direct you to attend the destination.

 To select Map layers: Tap Menu > , and then,

you can select different layers.

 To go back to my location: Tap Menu > My

Location.

 Share my location with my friends and Google:

Tap Menu > Join Latitude.

 To clear the map: Tap Menu >More> Clear

Map.

 To view terms, privacy, and notices: Tap Menu

> More > Terms, Privacy & Notices.

 To view information about Google Map: Tap

Menu > More > About

6.10 Latitude

You can share locations with your friends and see
your friends' locations on the map.

1. Tap Application Drawer > Latitude. You need to
activate GPS first.

2. Tap Create or Sign in your Google account.

3. Start to use the phone to share and update the
location.

4. Add friends select from Contacts or add via
email address, tap menu> add friends.

NOTE: Google GPS positioning might occur
some inaccuracy, which depends on
considering the surroundings and weather
status.

Privacy settings:

1. Tap Application Drawer > Latitude.

2. Tap your name to edit your privacy settings, this
screen can also change your photos.

G1317D│

6-8

3. Privacy settings can be changed according to
your preferences: automatically detect your
location, set your position, hide your location or
turn off Latitude.

6.11 Navigation

Navigation is an internet-connected GPS
navigation system with voice guidance.
Help you get the destination.

1. Tap Application Drawer > Navigation.

NOTE: Before use this function, you need to
turn on wireless networks and GPS first. Tap
Application Drawer > Settings > Location &
security > Check Use wireless networks and
Use GPS satellites.

When you check Use wireless networks, a
warning window will pop up. You can agree or
disagree to allow Google’s location service to
collect your anonymous location data.

When you check Use wireless networks and
Use GPS satellites, you may be charged.

NOTE: In some locations and regions, Google
Maps Navigation is not available.

6.12 Places

Use Google maps to search places that you want
to find near your current location, details about the
location you select displays on the screen.

1. Tap Application Drawer > places.

2. Tap or enter the places you want to search.

3. The search results are displayed on the map,

or displayed in a list, you can tap a place to
show its location and to view more
information about the place.

6.13 Market

Android Market allows you to find and download
applications and fun games to your phone.
To start using Android Market

2. Tap Application Drawer > Market.

3. Tap Accept after reading the terms of services.

4. Tap Next to setup your Google account.

5. Tap Create to create a new account or Sign in
to sign in your existing account.

6. Once you are signed in, you can begin
searching and downloading programs from the
market. Tap Apps to view the list of available
applications, and tap Games to view the list of
available games. You can also tap Downloads
to view the programs you have previously
downloaded.

6.14 Talk

Talk is Google's instant messaging program.

To sign in to Talk

1. Tap Application Drawer > Talk.

2. Tap Create or Sign in your Google account.

3. Follow the on screen instructions to login or
create your Gmail username and password.

4. Once logged in, you can begin using Talk and
do any of the following:

 View friend’s list: Tap Menu > All friends.
 Send chat invitation to friends: Tap Menu > Add

friend.

 To view the blocked friends: Tap Menu > More>

Blocked.

 To block a person: Tap and hold the friend to

launch the submenu, and then, tap block friend.

 To invite a person to your chat: Tap Menu >

More > Invites.

 To configure Talk settings: Tap Menu >

Settings.

 To Sign out: Tap Menu > Sign out.

G1317D│

6-9

 To view terms and privacy: Tap Menu >

Settings > Terms & Privacy.

6.15 YouTube

YouTube is an online video streaming service that
allows you to view, search, and upload videos.

To start using YouTube

1. Tap Application Drawer > YouTube.

2. Videos are grouped into categories, tap menu >
Browse. Tap a category to watch the available
videos.

3. Tap a video to play it.

To upload your video

1. Tap Application Drawer > YouTube。

2. Tap .

3. Tap to record video. Tap to stop .

4. Click the Upload link at the top of any YouTube

page. As the video file is uploading, enter as much
information about your video as possible in the
relevant fields (including Title, Description, Tags,
and Category).

NOTE: Please sign in to your YouTube or
Google account.

5. Tap upload

6.16 Weather

Weather can give you more convenient way in
checking your daily weather forecast status.

1. Tap Application Drawer >Weather.

2. Add City, tap menu > Add City.

3. Remove the City of the page, tap menu >
Remove City.

4. You can arrange or change order of the cities,
tap menu > Arrange.

5. Select background, tap menu > Background.

6. Select degree unit, tap menu > Degree unit.

7. More information: Update Frequency, Update
Notification , Demo, About , tap menu > More.

6.17 People

This application could perfectly integrate your
friends’ Social Networking Service.

G1317D│

6-10

1. Tap Application Drawer > People.

2. This application could perfectly integrate your
social network services with your contacts on an
Android phone. Please read the End User
License Agreements carefully and press “Agree”
to go next step.

3. Please insert your personal information that will
be displayed on the self-page. When finish,
press “OK” to go next step.

4. To select your friends from the contact list, or

press “All” to include all. When finish, press
“OK” to go next step.

5. Select an icon of social network service that you
are using. Log in the service. When the icon
lights on, it means log in successfully.

6.18 News and Weather

News and weather shows the city current
conditions, temperature and allowing
customization showing/hiding various news
categories and even creating your own.

1. Tap Application Drawer > News and Weather.

2. Tap menu > Settings > News settings .You can
select news topic, Prefetch articles, Prefetch
images .And read the News terms of service.

3. To instruct the device you can select: Use my
location, Set location or Use metric. Tap menu >
Settings > Weather settings.

4. Select Auto-refresh , Refresh interval , and
check the Refresh status, tap menu > Settings >
Refresh settings.

5. Tap menu> Refresh, to update information.

6. Application version, Tap menu > Settings.

6.19 Best Choice

Allows you to use the phone more easily, we
recommend and provide you the best software and
functionality. With this function can easily find links
to the services you need.

1. Tap Application Drawer > Best Choice.

2. Click the desired function links to the download
page.

6.20 USB Manager

There will be 4 modes of USB Manager after your
device connecting with PC:

1. Data storage: Storage mode.

Insert the memory card, tap Data storage, your
PC will pop-up a message to ask if you want to
use data storage and file manager.

2. PC Sync: Android Manager mode。

Tap PC Sync, your device will connect and
access Android Manager Agent. Your PC will
need to open Android Manager to sync up with
the device.

3. Data Card : Data card mode。

Tap Data Card, you can use your phone as a
modem, Share your data connection with other
devices.

4. Charger: Charging mode。

Tap Charger to start charging.。

6.21 Install USB Driver

1. Connect your device with PC by the USB cable,
and then, your PC will pop-up a message.
Select “Open folder to view files.”

2. Tap the "Setup.exe" in the USB Driver Installer
folder in your PC.

3. Pop up the installing windows of GSmart Driver.
Wait for a few seconds for the process, then tap
“Done” to have the process completed.

6.22 Android Manager

You may use Android Manager to Synchronize
data in this device with your PC. Download Android
Manager from GSmart’s official website. Support
for Windows XP, Windows Vista, Windows 7 and

G1317D│

6-11

follow the instructions on your screen.

Set up:

1. Connect your device to your PC with the USB
cable.

2. After you connect this device to your PC with a
USB cable, USB Connect shown in the pop-up
window, tap the PC Sync mode.

3. Android Manager Agent will synchronize your
phone automatically.

4. Android Manager start connection with PC。

Android Manager connection status:

Connection between PC and the handset

has been established.

Connection between PC and the handset

is being established.

Connection between PC and the handset

is disconnected.

Getting Started:

Contacts : Allows you to back up contacts, as well
as organize your contacts .
Messages : Allows you to edit and send SMS
messages.
Photos: Allows you to easily import photos from
PC or the device and organize them in different
albums for management.

Videos: Allows you to add and play video files.
Music: Allows you to add, delete, edit and play

music files.
Application: Allows you to manage downloaded
applications.
Files: Allows you to organize and manage files in
both PC and the device.
Sync: Allows you to synchronize the following

items between PC and the device. According
Contacts, Calendar ,Camera ,Camcorder and
Folders.

6.23 File Manager

File manager helps you manage the files in your
phone and in your SD card.

1. Tap Application Drawer > File Manager.

2. Tap the folder list, and then, tap the folder you
want to browse.

G1317D│

7-1

7.1 Phone Settings

Application

Description

SIM 1

SIM 1 Name Setting.

SIM 2

SIM 2 Name Setting.

Application

Description

Airplane mode

Disable all wireless
connections.

Wi-Fi

Turn on/ Turn off
Wi-Fi.

Wi-Fi settings

Set up and manage
wireless access
points.

Bluetooth

Turn on/ Turn off
Bluetooth.

Bluetooth settings

Manage connections,
set device name, and
discoverability of the
phone.

Tethering & potable
hotspot

Share your phone’s
mobile data
connection via USB or
as portable Wi-Fi
hotspot.

VPN settings

Set up & manage
Virtual Private
Networks(VPNs).

Mobile networks

Set options for
roaming, networks,
and Access Point
Names.

Application

Description

SIM1

Set options for SUB1
network settings.

SIM2

Set options for SUB2
network settings.

Application

Description

Silent mode

Turn silent mode
on/off. All sounds
except media & alarms
are silenced.

Turn off boot sound

The volume of the
boot animation will be
mute.

Vibrate

Set Vibrate mode.

Volume

Set volume for
Ringtone, Media,
Alarm.

Phone ringtone
(SIM1)

Set your default
incoming call ringtone.

Phone ringtone
(SIM2)

Set your default
incoming call ringtone.

Notification ringtone

Set your default
notification ringtone.

Audible touch tones

Enable/disable sound
when using dial pad.

Audible selection

Enable/disable sound
when making screen
selection.

Screen lock sounds

Enable/disable sounds
when locking and
unlocking the screen.

Tap Application Drawer > Settings to view and adjust
the settings of your phone.

Dual SIM Settings

Wireless & networks

7. Managing Your Phone

Call settings

Sound

G1317D│

7-2

Haptic feedback

Enable/disable the
vibration when
pressing soft keys and
tapping certain icons
and functions on
screen.

Application

Description

Brightness

Adjust the brightness
of the screen.

Auto-rotate screen

Automatically adjust
the screen direction

Animation

Show animation when
opening & closing
windows.

Screen timeout

Adjust the delay
before the screen
turns off automatically.

Touch Screen
Calibration

To calibration your
touch screen.

G-Sensor Calibration

To calibration your
G-sensor.

Application

Description

Use wireless
networks

Set location in
applications (such as
maps) using wireless
networks.

Use GPS
satellites

Check to enable GPS
satellites.

Set up screen lock

Lock screen with a
pattern, PIN, or
password.

Set up SIM/RUIM
card lock

Lock SIM card and
change SIM card pin.

Visible passwords

Enable/disable show

passwords as you
type.

Select device
administrators

Add or remove device
administrators.

Use secure
credentials

Allow applications to
access secure
certificates and other
credentials.

Install from SD card

Install the encrypted
certificates from the
SD card.

Set password

Set or change the
credential storage
password.

Clear storage

Clear credential
storage of all contents
and reset its
password.

Application

Description

Unknown sources

Allow installation of
non-market
applications.

Manage applications

Manage and remove
installed applications.

Running service

View and control the
currently running
services.

Development

Set options for
application
development.

Display

Location & security

Applications

Account & sync

The synchronization provides secure, wireless, and
direct push synchronization of corporate e-mail,
calendar, contacts, and attachments. Follow the
instructions to add your accounts and complete the
synchronization.

G1317D│

7-3

Privacy

Application

Description

Back up my data

Back up my settings
and other application
data.

Automatic restore

Check to enable if
reinstall an
application ,restore
backed up settings or
other data.

Factory data reset

Erase all data in your
phone, and then,
restore to the default
settings of the factory.

Application

Description

Total space

To show total space of
SD card.

Available space

To show available
space of the SD card.

Mount SD card

Unmount the SD card
for the safe removal.

Format SD card

Format all data on SD
card.

Available space

To show available
space of internal
phone storage.

Application

Description

Select Language

Select language for
your phone.

Android keyboard

Android keyboard
settings & Word
suggestion settings.

Guobi Alphabetic
Input Method

Guobi Alphabetic Input
Method settings.

User dictionary

With the help of the
User Dictionary
Manager application
you can export your
defined words .

Application

Description

Voice recognizer
settings

Google voice
recognition settings.

Text-to-speech
settings

Text-to-speech &
Default settings.

Application

Description

Automatic

Check to use the
provided values of the
network.

Set date

Tap to set date for
your phone.

Select time zone

Set time zone of your
current location.

Set time

Tap to set time for
your phone.

Use 24-hour format

Set the clock to
24-hour format.

Select date format

Set the preferred date
format.

Application

Description

Accessibility

Enable/disable
Accessibility.

Power button ends
call

During a call ,pressing
Power ends call
instead of turned off
screen.

SD Card & phone storage

Voice input & output(Text-to-speech)

Date & Time

Language & keyboard

Accessibility

G1317D│

7-4

Connect to PC

USB Manager Default Action Settings .

About phone

Display the software version, phone status, and the
processor information, etc.

7.2 Managing Basic Settings

Date and Time

You can set up Date and Time on your phone.

To set the date and time

1. Tap Application Drawer > Settings > Date & time.

2. If you check Automatic, you can not set date, time,
and time manually. Tap Set date. To adjust the
date, tap the month, day, or year field, and tap up
or down to increase or decrease the value.

3. Select the time zone from the list.

4. Set Time. To adjust the time, tap the hour, minute
or am/pm field, and use the up and down arrows
to increase or decrease the value.

5. Tap Set to apply the values.

.

Clock

The clock function contains alarm clock.

Setting Alarms

You can set up alarms on your phone.

To set the alarm

1. Tap Application Drawer > Clock.

2. Under Alarm clock tab, tap to select from the
existing alarm clock settings or tap Menu > Add
alarm to set up a new alarm.

3. Tap Time to open a clock and set the time for the
alarm. To enter the time numerically, tap the hour,
minute or am/pm field and use the up and down
arrows to change the values.

4. Tap Ringtone to set up the preferred ringtone
when your alarm sounds.

5. Tap Vibrate to enable/disable vibration when the
alarm sounds.

6. Tap Repeat to select a day to sound the alarm.

G1317D│

7-5

Tap OK to confirm.

7. Tap Label, and enter an alarm description.

8. Tap Turn on alarm to turn on the alarm.

Display Settings
To turn off the backlight when the phone is idle

1. Tap Application Drawer > Settings > display.

2. In the Display settings, tap Screen timeout.

3. Select from the screen timeout list. Your setting is
saved automatically.

To adjust brightness

1. Tap Application Drawer > Settings > display.

2. In Display settings, tap Brightness.

3. Drag the Brightness slider to adjust brightness
settings.

4. Drag the brightness slider to the left to decrease,
or to the right to increase the screen brightness.
Tap OK when finished.

To change the screen orientation

1. Tap Application Drawer > Settings > display.

2. In Display settings, tap Auto-rotate screen.

Ring Settings

You can assign a ring tone and a ring tone type for
various events such as an incoming call, or the
received new message, etc.

To change the ring tone and ring type of an
incoming call

1. Tap Application Drawer > Settings > Sound.

2. On the Sound settings tab, tap Phone
ringtone(SIM1 )/ Phone ringtone(SIM2).

3. Select the Ring tone from the lists.

4. Tap OK when finished.

To change the ring tone of other events

1. Tap Application Drawer > Settings > Sound.

2. On the Sound settings tab, tap Notification
ringtone.

3. Select the Ring tone from the lists.

4. Tap OK when finished.

7.3 Protecting Your Phone

You can protect your phone from unauthorized users
by requiring the PIN code or entering a password.

Enable or Disable SIM /RUIM card PIN

When PIN code is enabled, you are required to enter
the PIN code before making a call.

1. Tap Application Drawer > Settings > Location &
security.

2. On the SIM/RUIM card lock tab, tap Set up SIM
/RUIM card lock.

3. Tap SIM/RUIM1 / SIM/RUIM2,Lock SIM/RUIM
card to use PIN to use the phone. Check to
enable, and uncheck to disable.

4. Enter the current PIN code.

G1317D│

7-6

5. To change the PIN code, tap Change SIM/RUIM

System Information

Platform

Android 2.2

Processor

Qualcomm MSM7225-1
at 528 MHz

Memory

ROM 512 MB
RAM 256 MB

Size

Dimensions
(L x W x T)

113.5(L) x 60(W) x

13.3(H) mm

Weight

116g

Power

Battery

Rechargeable

Li-Poly pack 1260 mAh

Power Adapter AC

input

100-240V, 50 / 60Hz,

0.3A max.

DC output

5V、1A

Standby time

Up to 115 hours.
(It may vary depending
on the availability of
local networks and
individual usage.)

Talk time

Up to 6. 5 hours
(It may vary depending
on the availability of
local networks and
individual usage.)

Radio Band & Standard

GSM/GPRS/EDGE

850 / 900 / 1800 /1900
MHz

WCDMA/HSDPA

900 / 2100 MHz

Connectivity

PIN.

6. Enter the old PIN code.

7. Enter the new PIN code and confirm.

Set up Password Protection

1. Tap Application Drawer > Settings > Location &
security > Set up screen lock > Password.

2. Choose your password, and then, tap Continue.
Confirm your password, and then, tap OK.

3. If you want to stop the function, please tap
Application Drawer > Settings > Location &
security > Change screen lock. Confirm your
password, and then, tap Continue. Tap None to
stop the function.

Set up unlock pattern

You can further secure your data by locking the
screen and requiring a screen unlock pattern every
time after your phone is turned on or it wakes up
from the sleep mode every time (screen is off ).

1. Tap Application Drawer > Settings > Location &
security > Set up screen lock > Pattern.

2. Read the information on the screen, and then, tap
Next. Study the example pattern on the screen,
and then, tap Next.

3. Draw the unlock pattern by connecting at least
four dots. Then tap Continue.

4. Draw the unlock pattern again, and then, tap
Confirm.

5. If you want to stop the function, please tap
Application Drawer > Settings > Location &
security > Change screen lock. Confirm the
saved pattern, and then, tap None to stop the
function.

7.4 Resetting the Phone

With Clean Boot, you can reset your phone to its
factory defaults. When you reset your phone, the

data stored in your phone may be erased.

1. Tap Application Drawer > Settings > Privacy.

2. On Personal data tab, tap Factory data reset.

3. Tap Reset phone > Erase everything to reset the
phone.

7.5 Specifications

G1317D│

7-7

GPS

GPS / AGPS

Wi-Fi

IEEE 802.11 b/g

Bluetooth

Bluetooth 2.1 + EDR

USB

Micro USB 2.0

Audio Jack

3.5 mm stereo audio
jack

Digital Camera

Digital Camera

3.0 Megapixel Color
Camera, Video
Recording

External Memory

Memory Card

MicroSD

Temperature

Operating

-15°C to 55°C

GIGA-BYTE COMMUNICATIONS INC.
B2, No.207, Sec.3, Pai-Hsin Road,
Hsin-Tien Dist., New Taipei City 231, Taiwan
[phone]
www.gigabytecm.com

Note: Specifications are subject to change
without prior notice. They may vary in some
regions also.

NOTE:
Cautions of Usage:

1. Only ONE SIM card exist at one time when
making phone call or internet browsing.

2. Network supporting:
(a). SIM 1: 3G (WCDMA)
(b). SIM 2: 2G (GSM)

If this document is modified, please download the
latest version on GSmart’s official website.

G1317D│
