PNEG-1840
60'-105' Bin Manager Temperature Cable Support Bracket Instructions
Instruction Manual
PNEG-1840
Date: 01-06-12
Table of Contents

Contents

Chapter 1 Introduction ..........................................................................................................................................4
Chapter 2 Safety .....................................................................................................................................................5
Safety Guidelines .................................................................................................................................. 5
General Safety Statement ..................................................................................................................... 6
Safety Instructions ..................... ... .... .......................................... ... ... ..................................................... 7
Chapter 3 Decals ....................................................................................................................................................9
Roof Damage Warning and Disclaimer ................................................................................................. 9
Chapter 4 60'-105' Bin Manager Temperature Cable Bracket Instructions .....................................................12
Special 20 Thousand Lbs. 60' Temperature Cable Support Assembly ......................... ...................... 12
72' Temperature Cable Support Assembly ......................................................................................... 13
Special 20 Thousand Lbs. 72' Temperature Cable Support Assembly ......................... ...................... 16
75' Temperature Cable Support Assembly ......................................................................................... 17
Special 20 Thousand Lbs. 75' Temperature Cable Support Assembly ......................... ...................... 20
78' Temperature Cable Support Assembly ......................................................................................... 21
Special 20 Thousand Lbs. 78' Temperature Cable Support Assembly ......................... ...................... 24
90' Temperature Cable Support Assembly ......................................................................................... 25
Special 20 Thousand Lbs. 90' Temperature Cable Support Assembly ......................... ...................... 28
Special 25 Thousand Lbs. 105' Temperature Cable Support Assembly ............................................. 29
Chapter 5 Warranty ..............................................................................................................................................31
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 3

1. Introduction

READ THIS MANUAL carefully to learn how to properly use and install equipment. Failure to do so could result in personal injury or equipment damage.
INSPECT the shipment immediately upon arrival. The customer is responsible for ensuring that all quantities are correct. The customer should report and note any damage or shortage on the bill of lading to justify their claim to the transport company.
THIS MANUAL SHOULD BE CONSIDERED a permanent part of your equipment and should be easily accessible when needed.
This warranty provides you the assurance that the company will back its products when defects appear within the warranty period. In some circumstances, the company also provides field improvements, often without charge to the customer, even if the product is out of warranty. Should the equipment be abused, or modified to change its performance beyond the factory specifications, the warranty will become void and field improvements may be denied.

2. Safety

DANGER
WARNING
CAUTION
NOTICE
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand. This information relates to protecting personal safety and preventing equipment problems. It is the responsibility of the owner/operator to inform anyone operating or working in the area of this equipment of these safety guidelines. To help you recognize this information, we use the symbols that are defined below. Please read the manual and pay attention to these sections. Failure to read this manual and its safety instructions is a misuse of the equipment and may lead to serious injury or death.
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 5
2. Safety
This product has sharp edges, which may cause serious injury. To avoid injury, handle sharp edges with caution and always use proper protective clothing and equipment.
General Safety Statement
Our foremost concern is your safety and the safety of others associated with grain handling equipment. This manual is to help you understand safe operating procedures and some problems that may be encountered by the operator and other personnel.
As owner and/or operator, you are responsible to know what requirements, hazards, and precau tions exist and inform all personnel associated with the equipment or in the area. Safety precautions may be required from the personnel. Avoid any alterations to the equipment, which may produce a very dangerous situation, where SERIOUS INJURY or DEATH may occur.
You should consider the location of the bin site relative to power line locations or electrical transmission equipment. Contact your local power company to review your installation plan or for information concerning required equipment clearance. Clearance of portable equipment that may be taken to the bin site should also be reviewed and considered. Any electrical control equipment in contact with the bin should be properly grounded and installed in accordance with National Electric Code provisions and other local or national codes.
This product is intended for the use of grain storage only. Any other use is a misuse of the product.
Sidewall bundles or sheets must be stored in a safe manner. The safest method of storing sidewall bundles is laying horizontally with the arch of the sheet upward, like a dome. Sidewall sheets stored on edge must be secured so that they cannot fall over and cause injury. Use care when handling and moving sidewall bundles.
Personnel operating or working around equipment should read this manual. This manual must be delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the equipment.
2. Safety
Follow Safety Instructions
Carefully read all safety messages in this manual and safety signs on your machine. Keep signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from the manufacturer.
Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction.
Keep your machinery in proper working condition. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life.
If you do not understand any part of this manual or need assistance, contact your dealer.
Read and Understand Manual
Practice Safe Maintenance
Understand service procedures before doing work. Keep area clean and dry.
Never lubricate, service, or adjust machine while it is in operation. Keep hands, feet, and clothing away from rotating parts.
Keep all parts in good condition and properly installed. Fix damage immediately . Replace worn or broken p arts. Remove any built-up grease, oil, and debris.
Maintain Equipment and Work Area
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want to keep you as a customer. This manual is to help you understand safe operating procedures and some problems that may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may be required from the personnel. Avoid any alterations to the equipment. Such alterations may produce a very dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made.
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 7
2. Safety
Prepare for Emergencies
Be prepared if fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone.
Keep Emergency Equipment Quickly Accessible
Wear Protective Clothing
Wear close-fitting clothing and safety equipment appropriate to the job.
Remove all jewelry.
Tie long hair up and back.
Wear safety glasses at all times to protect eyes from debris.
Wear gloves to protect your hands from sharp edges on plastic or steel parts.
Wear steel-toed boots to help protect your feet from falling debris. Tuck in any loose or dangling shoestrings.
A respirator may be needed to prevent breathing potentially toxic fumes and dust.
Wear a hard hat to help protect your head.
Wear appropriate fall protection equipment when working at elevations greater than six feet (6').
Eye Protection
Gloves
Steel-Toed Boots
Respirator
Hard Hat
Fall Protection
Roof Damage Warning and Disclaimer
The manufacturer does not warrant any roof damage caused by excess ive v acuum or internal pressure from fans or other air moving systems. Adequate ventilation and/or “makeup air” devices should be provided for all powered air handling systems. The manufacturer does not recommend the use of downward flow systems (suction). Severe roof damage can result from any blockage of air passages. Running fans durin g high humidity/cold weather conditions can cause air exhaust or intake ports to freeze.
CAUTION!

3. Decals

Excessive vacuum (or pressure) may damage roof. Use positive aeration system. Make sure all roof vents are open and unobstructed. Start roof fans when supply fans are started. Do not operate when conditions exist that may cause roof vent icing.
DC-969
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 9
3. Decals
Rotating flighting will
kill or dismember.
Flowing material will
trap and suffocate.
Crusted material will
collapse and suffocate.
Keep clear of all augers. DO NOT ENTER this bin!
Failure to heed these
warnings will result in
serious injury or death.
If you must enter the bin:
1. Shut off and lock out all power.
2. Use a safety harness and safety line.
3. Station another person outside the bin.
4. Avoid the center of the bin.
5. Wear proper breathing equipment or respirator.
DC-GBC-1A
ATTENTION: The decal shown below should be present on the outside of the door cover of the 2 ring, 24" porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois St. Assumption, IL. 62510 Phone: 1-217-226-4421
3. Decals
Failure to heed these warnings
could result in serious injury, death,
structural damage or collapse of tank.
1. Use CENTER FLOOR OUTLET ONLY until NO grain remains above this outlet.
2. Side floor outlets to be used ONLY when above condition is satisfied.
3. Lock all side floor outlets to avoid accidental premature use.
4. See manufacturers instructions for proper use of factory supplied sidedraw (wall) discharge systems.
UNLOADING INSTRUCTIONS:
DC-GBC-2A
WARNING
DON’T
DO
ATTENTION: The decal shown below should be present on the outside of the door cover of the 2 ring, 24" porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois St. Assumption, IL. 62510 Phone: 1-217-226-4421
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 11

4. 60'-105' Bin Manager Temperature Cable Bracket Instructions

Temperature Cable Package Part #
BMGR-6020-IC
Special 20 Thousand Lbs. 60' Temperature Cable Support Assembly
Figure 4A
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Installation instructions: Attach left and right bracket assemblies to roof beams as shown in detail 4 on Page 14.
Adjust bracket position along the roof beam to the desired radius. Tighten all 1/2" bolts to a minimum torque of 120 ft. lbs.
Left bracket assembly (See detail 4 on Page 14.)
Right bracket assembly (See detail 4 on Page 14.)
72' Temperature Cable Support Assembly
Figure 4B
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 13
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions

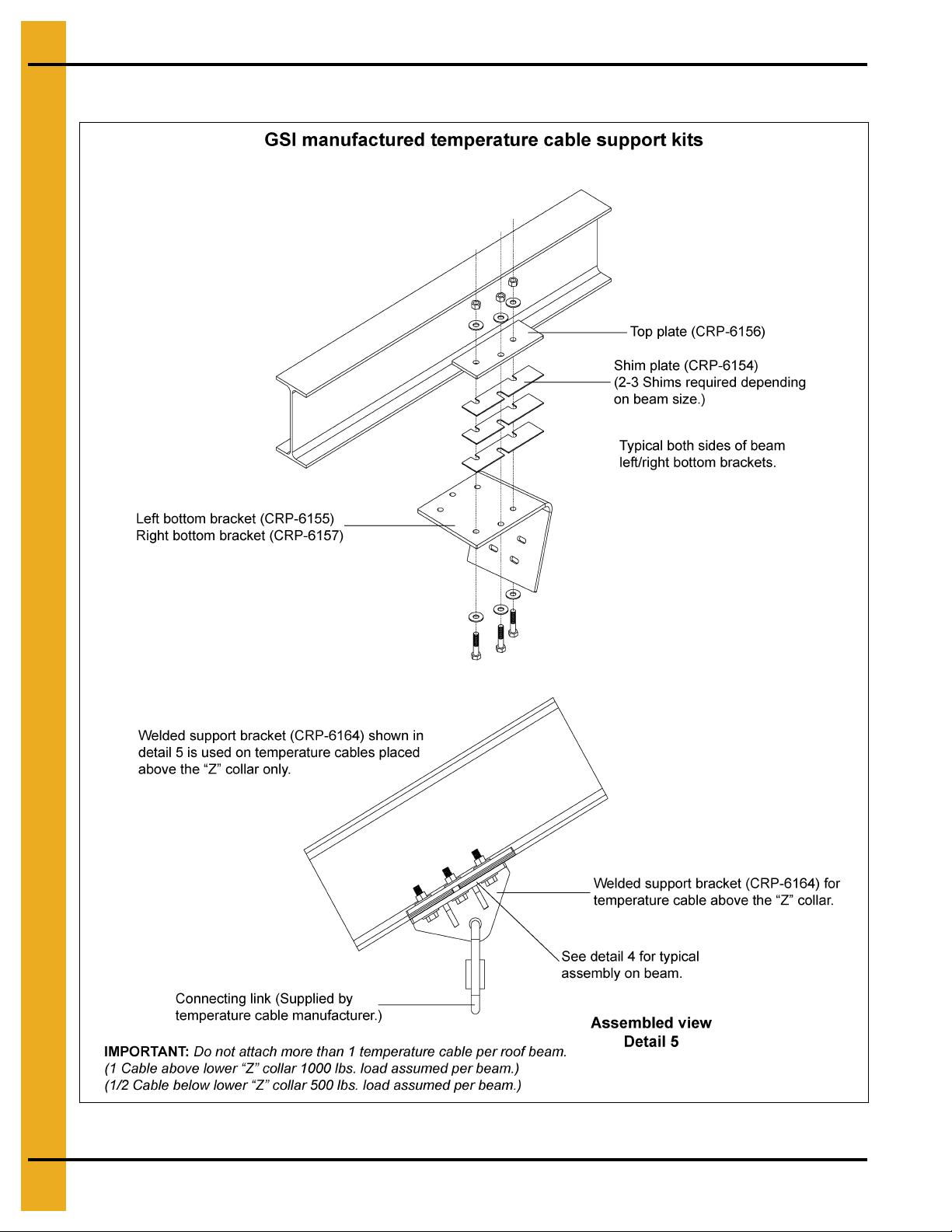

Un-assembled view
Detail 4
72' Temperature Cable Support Assembly (Continued)
Figure 4C
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Bin
Diameter
T emperature
Cable
Manufacturer
Total
Number of
Cables
Center
Cable
(Y/N)
Cable 1
Radius
(ft.)
Cable 2
Radius
(ft.)
Cable 3
Radius
(ft.)
T emperature
Cable Support
Package
72' Diameter Bin Manager 12 N 4 at 8' 8 at 25' N/A CRP-6168
All specifications should be verified with the temperature cable manufacturer.
Temperature Cable Package Part #
BMGR-7210-IC
72' Temperature Cable Support Assembly (Continued)
NOTE: Internal mount only.
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 15
Figure 4D
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Temperature Cable Package Part #
BMGR-7220-IC
Special 20 Thousand Lbs. 72' Temperature Cable Support Assembly
Figure 4E
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Installation instructions: Attach left and right bracket assemblies to roof beams as shown in detail 10 on Page 18.
Adjust bracket position along the roof beam to the desired radius. Attach support chann el to the left and right bracket assemblies with 3/8" x 1-1/2" flange head bolts, washers and nuts. Attach hanging bracket to the support channel with 3/8" x 1-1/2" flange head bolts, washers and nuts. Tighten all 1/2" bolts to a minimum torque of 120 ft. lbs.
Left bracket assembly (See detail 10 on Page 18.)
Right bracket assembly (See detail 10 on Page 18.)
75' Temperature Cable Support Assembly
Figure 4F
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 17
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Un-assembled view
Detail 10
75' Temperature Cable Support Assembly (Continued)
Figure 4G
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Bin
Diameter
T emperature
Cable
Manufacturer
Total
Number of
Cables
Center
Cable
(Y/N)
Cable 1
Radius
(ft.)
Cable 2
Radius
(ft.)
Cable 3
Radius
(ft.)
T emperature
Cable Support
Package
75' Diameter Bin Manager 13 N 4 at 10' 9 at 26' N/A CRP-6169
All specifications should be verified with the temperature cable manufacturer.
Temperature Cable Package Part #
BMGR-7510-IC
75' Temperature Cable Support Assembly (Continued)
Figure 4H
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 19
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Temperature Cable Package Part #
BMGR-7520-IC
Special 20 Thousand Lbs. 75' Temperature Cable Support Assembly
Figure 4I
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Installation instructions: Attach left and right bracket assemblies to roof beams as shown in detail 16 on Page 22.
Adjust bracket position along the roof beam to the desired radius. Attach support channel to the left and right bracket assemblies with 3/8" x 1-1/2" flange head bolts, washers and nuts. Attach hanging bracket to the support channel with 3/8" x 1-1/2" flange head bolts, washers and nuts. Tighten all 1/2" bolts to a minimum torque of 120 ft. lbs.
Left bracket assembly (See detail 16 on Page 22.)
Right bracket assembly (See detail 16 on Page 22.)
78' Temperature Cable Support Assembly
Figure 4J
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 21
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Un-assembled view
Detail 16
78' Temperature Cable Support Assembly (Continued)
Figure 4K

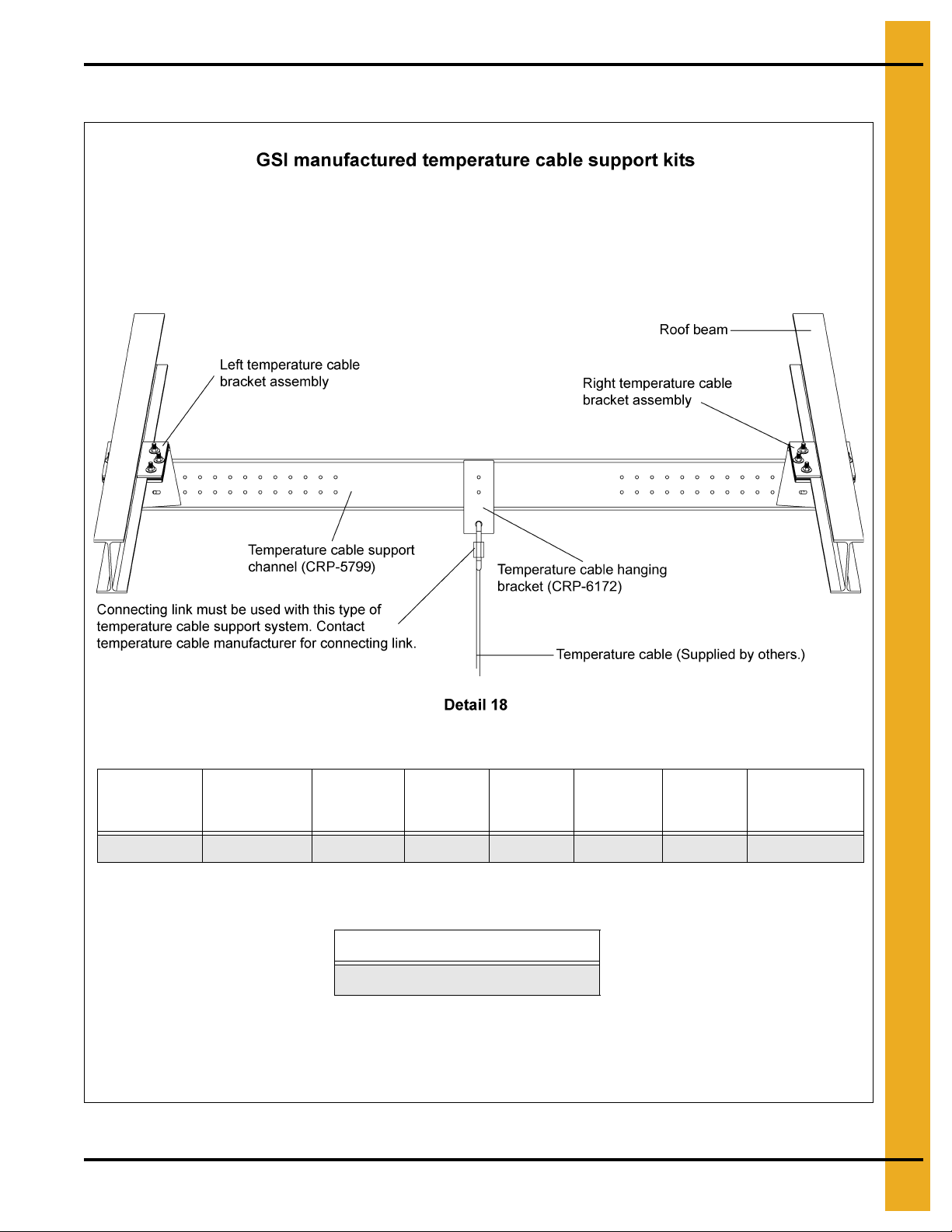

4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Bin
Diameter
T emperature
Cable
Manufacturer
Total
Number of
Cables
Center
Cable
(Y/N)
Cable 1
Radius
(ft.)
Cable 2
Radius
(ft.)
Cable 3
Radius
(ft.)
T emperature
Cable Support
Package
78' Diameter Bin Manager 14 N 4 at 10' 10 at 26-1/2' N/A CRP-6169
All specifications should be verified with the temperature cable manufacturer.
Temperature Cable Package Part #
BMGR-7810-IC
78' Temperature Cable Support Assembly (Continued)
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 23
Figure 4L
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Temperature Cable Package Part #
BMGR-7820-IC
Special 20 Thousand Lbs. 78' Temperature Cable Support Assembly
Figure 4M
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Installation instructions: Attach left and right bracket assemblies to roof beams as shown in detail 22 on Page 26.
Adjust bracket position along the roof beam to the desired radius. Attach support channel to the left and right bracket assemblies with 3/8" x 1-1/2" flange head bolts, washers and nuts. Attach hanging bracket to the support channel with 3/8" x 1-1/2" flange head bolts, washers and nuts. Tighten all 1/2" bolts to a minimum torque of 120 ft. lbs.
Left bracket assembly (See detail 22 on Page 26.)
Right bracket assembly (See detail 22 on Page 26.)
90' Temperature Cable Support Assembly
Figure 4N
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 25
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Un-assembled view
Detail 22
90' Temperature Cable Support Assembly (Continued)
Figure 4O
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Bin
Diameter
T emperature
Cable
Manufacturer
Total
Number of
Cables
Center
Cable
(Y/N)
Cable 1
Radius
(ft.)
Cable 2
Radius
(ft.)
Cable 3
Radius
(ft.)
T emperature
Cable Support
Package
90' Diameter Bin Manager 18 Y 6 at 18' 12 at 32-1/2' N/A CRP-6170
All specifications should be verified with the temperature cable manufacturer.
Temperature Cable Package Part #
BMGR-9010-IC
90' Temperature Cable Support Assembly (Continued)
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 27
Figure 4P
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Temperature Cable Package Part #
BMGR-9020-IC
Special 20 Thousand Lbs. 90' Temperature Cable Support Assembly
Figure 4Q
4. 60'-105' Bin Manager Temperature Cable Bracket Instructions
Temperature Cable Package Part #
BMGR-1055-IC
Special 25 Thousand Lbs. 105' Temperature Cable Support Assembly
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 29
Figure 4R
NOTES

5. Warranty

9101239_1_CR_rev7.DOC (revised July 2009)
GSI Group, LLC Limited Warranty
The GSI Group, LLC (“GSI”) warrants products which it manufactures to be free of defects in materials and workmanship under normal usage and conditions for a period of 12 months after sale to the original end-user or if a foreign sale, 14 months from arrival at port of discharge, whichever is earlier. The end-user’s sole remedy (and GSI’s only obligation) is to repair or replace, at GSI’s option and expense, products that in GSI’s judgment, contain a material defect in materials or workmanship. Expenses incurred by or on behalf of the end-user without prior written authorization from the GSI Warranty Group shall be the sole responsibility of the end-user.
Warranty Extensions:
The Limited Warranty period is extended for the following products:
Product Warranty Period
Performer Series Direct Drive Fan Motor 3 Years
AP Fans and Flooring
Cumberland Feeding/Watering Systems
Grain Systems Grain Bin Structural Design 5 Years Grain Systems
Farm Fans Zimmerman
All Fiberglass Housings Lifetime All Fiberglass Propellers Lifetime Feeder System Pan Assemblies 5 Years ** Feed Tubes (1-3/4" and 2.00") 10 Years * Centerless Augers 10 Years * Watering Nipples 10 Years *
Portable and Tower Dryers 2 Years Portable and Tower Dryer Frames and
Internal Infrastructure †
5 Years
* Warranty prorated from list price: 0 to 3 years - no cost to end-user 3 to 5 years - end-user pays 25% 5 to 7 years - end-user pays 50% 7 to 10 years - end-user pays 75% ** Warranty prorated from list price: 0 to 3 years - no cost to end-user 3 to 5 years - end-user pays 50%
† Motors, burner components
and moving parts not included. Portable dryer screens included. Tower dryer screens not included.
GSI further warrants that the portable and tower dryer frame and basket, excluding all auger and auger drive components, shall be free from defects in materials for a period of time beginning on the twelfth (12 and continuing until the sixtieth (60
th
) month from the date of purchase (extended warranty period). During the extended
th
) month from the date of purchase
warranty period, GSI will replace the frame or basket components that prove to be defective under normal conditions of use without charge, excluding the labor, transportation, and/or shipping costs incurred in the performance of this extended warranty.
Conditions and Limitations:
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE LIMITED WARRANTY DESCRIPTION SET FORTH ABOVE. SPECIFICALLY, GSI MAKES NO FURTHER WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE IN CONNECTION WITH: (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE, INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT, REPRESENTA TIVE OR EMPLOYEE OF GSI REGARDING OR RELATED TO THE CONFIGURATION, INSTALLATION, LAYOUT, SUITABILITY FOR A PARTICULAR PURPOSE, OR DESIGN OF SUCH PRODUCTS.
GSI shall not be liable for any direct, indirect, incidental or consequential damages, including, without limitation, loss of anticipated profits or benefits. The sole and exclusive remedy is set forth in the Limited Warranty, which shall not exceed the amount paid for the product purchased. This warranty is not transferable and applies only to the original end-user. GSI shall have no obligation or responsibility for any representations or warranties made by or on behalf of any dealer, agent or distributor.
GSI assumes no responsibility for claims resulting from construction defects or unauthorized modifications to products which it manufactured. Modifications to products not specifically delineated in the manual accompanying the equipment at initial sale will void the Limited Warranty.
This Limited Warranty shall not extend to products or parts which have been damaged by negligent use, misuse, alteration, accident or which have been improperly/inadequately maintained. This Limited Warranty extends solely to products manufactured by GSI.
Prior to installation, the end-user has the responsibility to comply with federal, state and local codes which apply to the location and installation of products manufactured or sold by GSI.
PNEG-1840 60'-105' Bin Manager Temperature Cable Support Bracket Instructions 31
This equipment shall be installed in accordance with
the current installation codes and applicable
regulations, which should be carefully followed in
all cases. Authorities having jurisdiction should be
consulted before installations are made.
Copyright © 2012 by GSI Group Printed in the USA
GSI Group
1004 E. Illinois St.
Assumption, IL 62510-0020
Phone: 1-217-226-4421
Fax: 1-217-226-4420
www.gsiag.com
CN-205386
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
