36'-135' “C” Series Roof Stairs
and Handrail
Assembly Instructions
PNEG-1623
Date: 05-26-09
PNEG-1623
2 PNEG-1623 Roof Stairs and Handrail Assembly
Table of Contents
Contents
Chapter 1 Introduction ....................................................................................................................................... 4
Chapter 2 Safety .................................................................................................................................................. 5
Safety Guidelines .......................................................................................................................... ... .. 5
General Safety Statement .................................................................................................................. 6
Safety Instructions ..................... ... .... .......................................... ... ... ............................................. ... .. 7
Safety Sign-Off Sheet ........................................................................................................................ 9
Proper Storage Grain Bin/Silo Materials Prior to Construction ........................... .... ... ... ... ... .... ... ...... 10
Chapter 3 Decals ............................................................................................................................................... 11
Chapter 4 Assembly ......................................................................................................................................... 14
Chapter 5 Stair Section .................................................................................................................................... 15

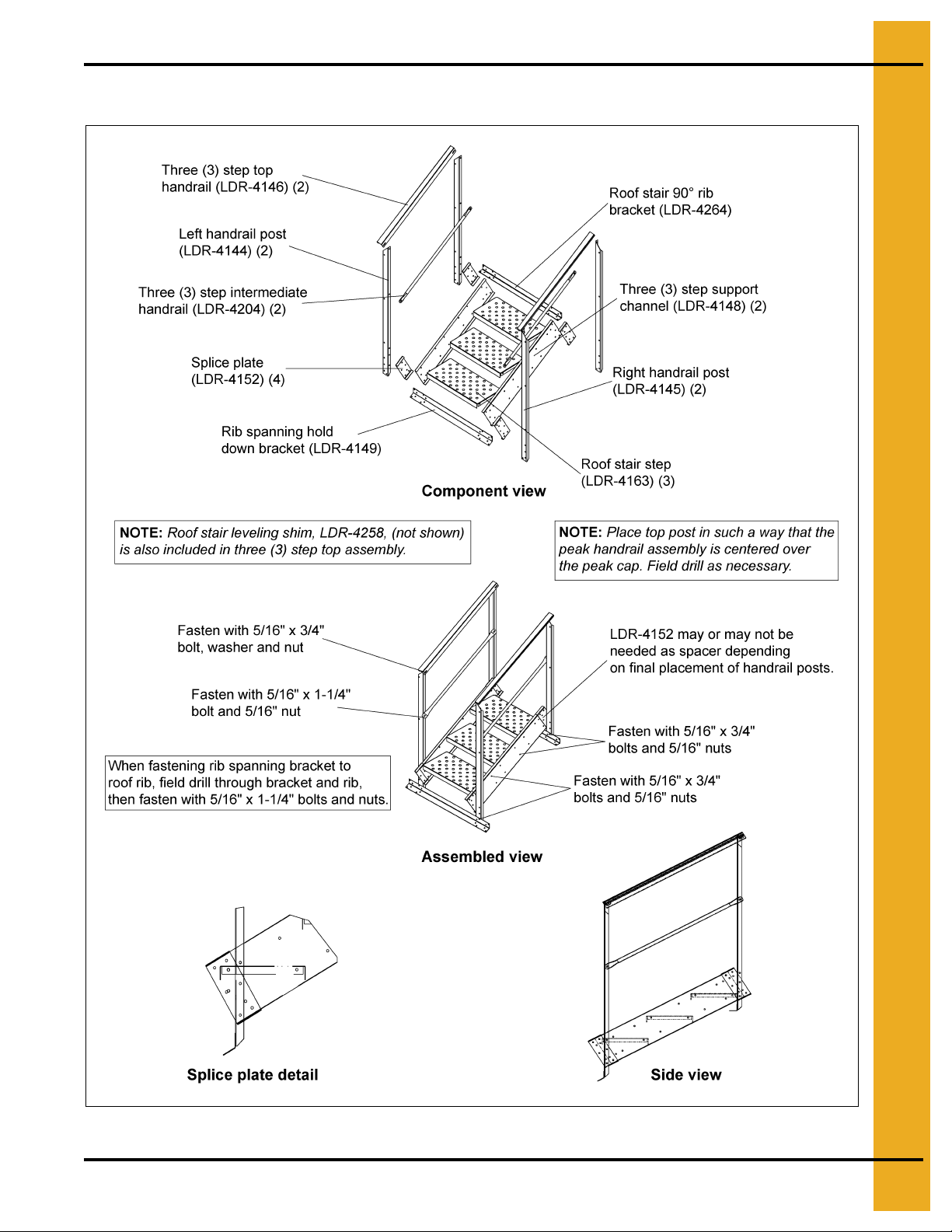

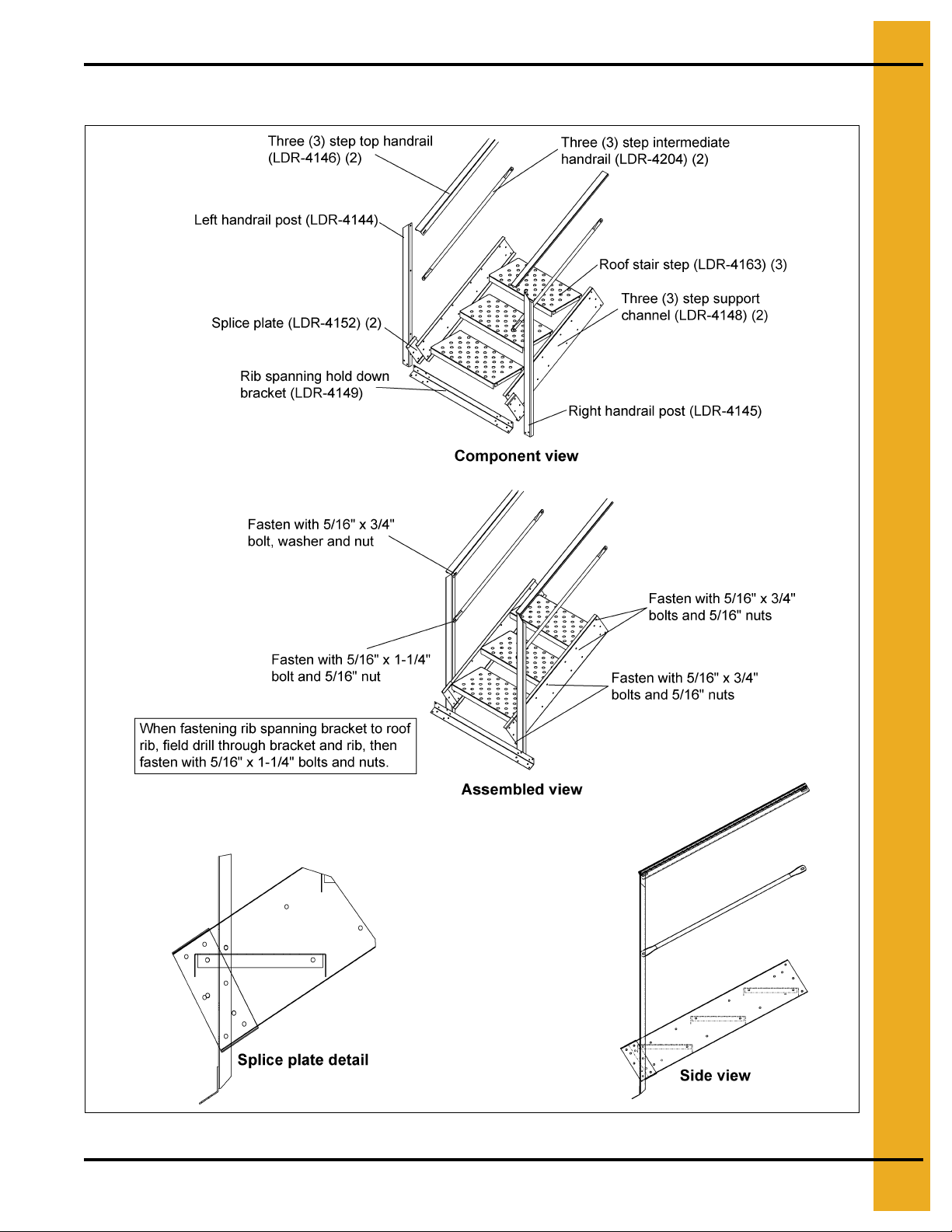

Three (3) Step Top Assembly (LDR-5130) ...................................................................................... 15

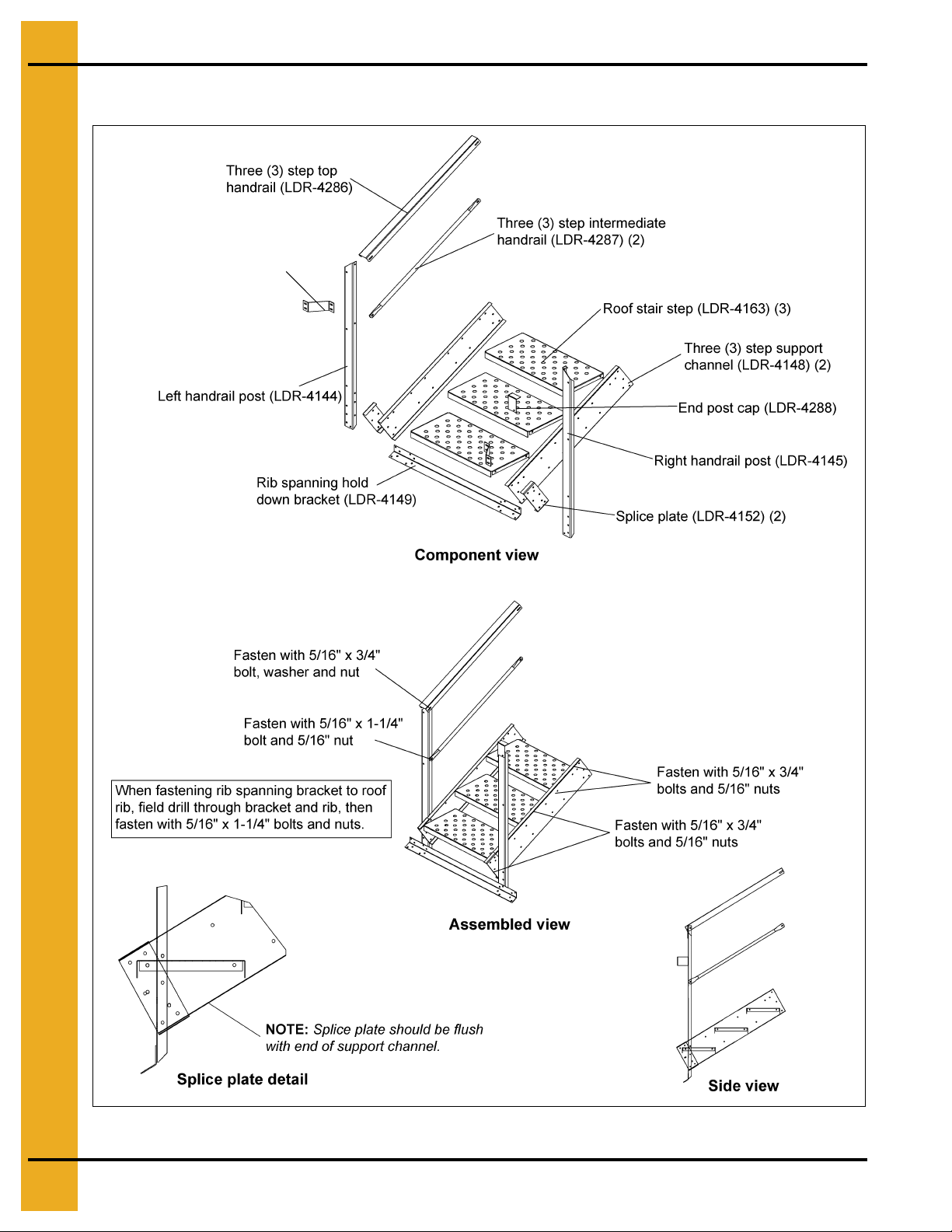

Three (3) Step Bottom Assembly (LDR-5129) ........................................................................... ... ... 16
Four (4) Step Top Assembly (LDR-4239) ........................................................................................ 17
Four (4) Step Section (LDR-4209) ................................................................................................... 18
Three (3) Step Section (LDR-4210) ................................................................................................. 19

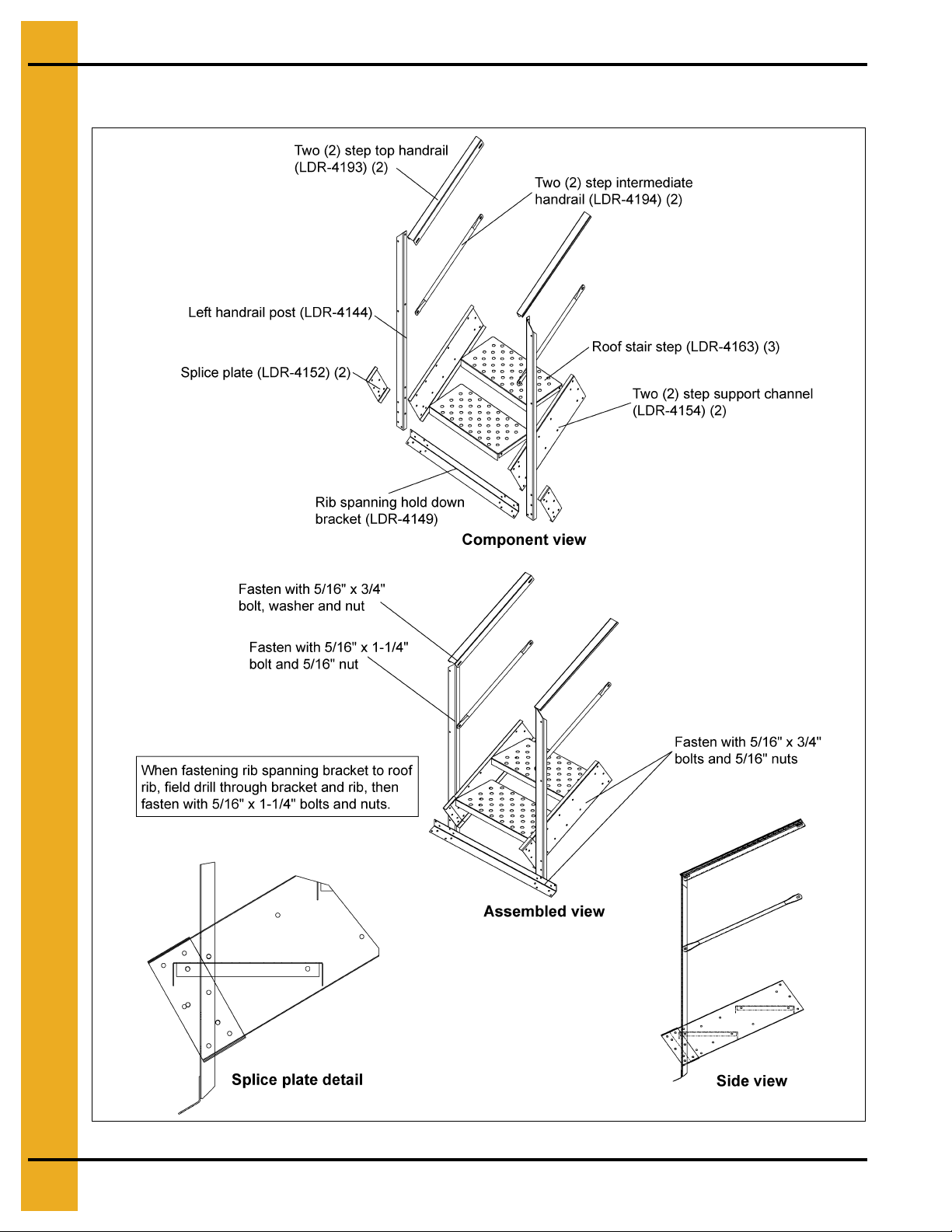

Two (2) Step Section (LDR-4211) .................................................................................................... 20
Four (4) Step Transition Section (LDR-4406) .................................................................................. 21

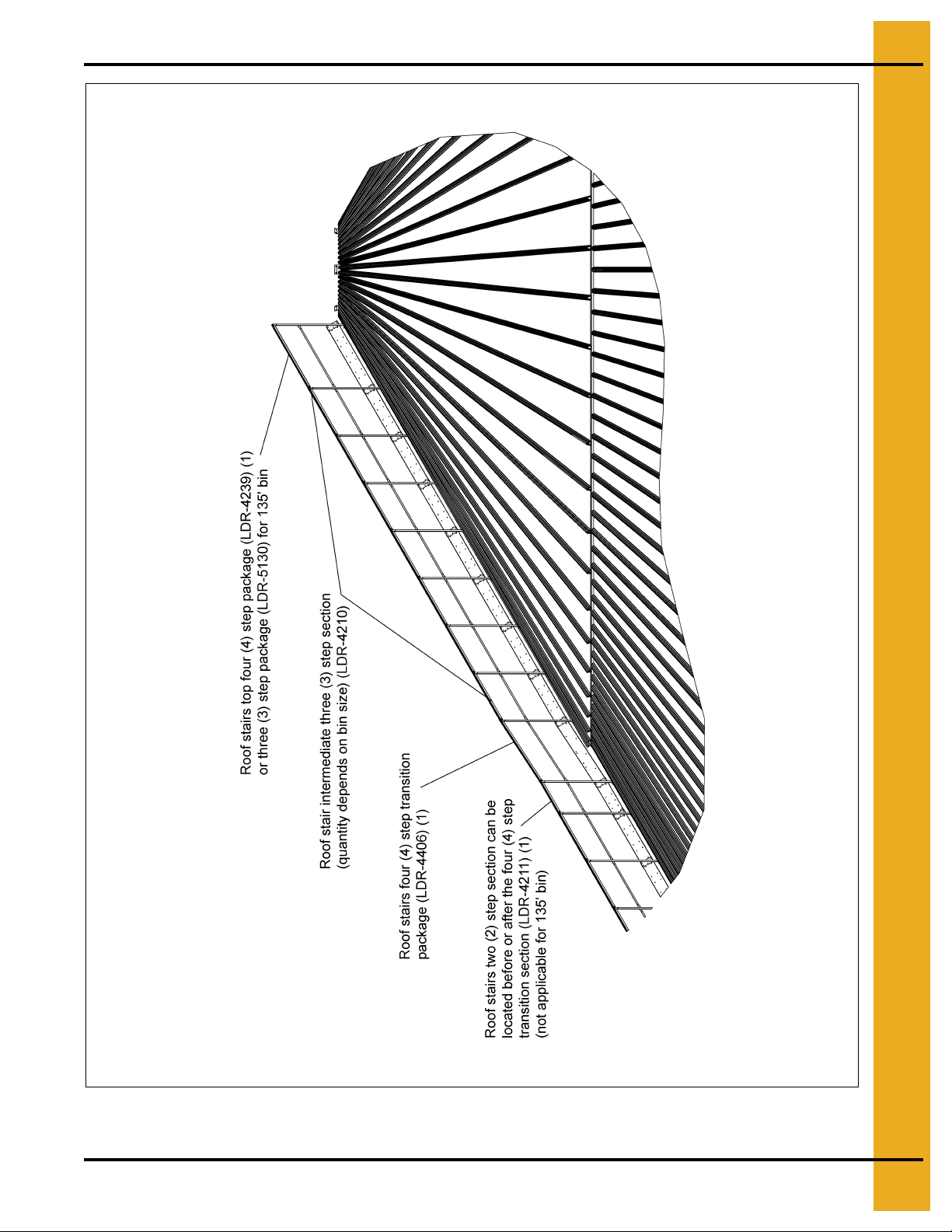

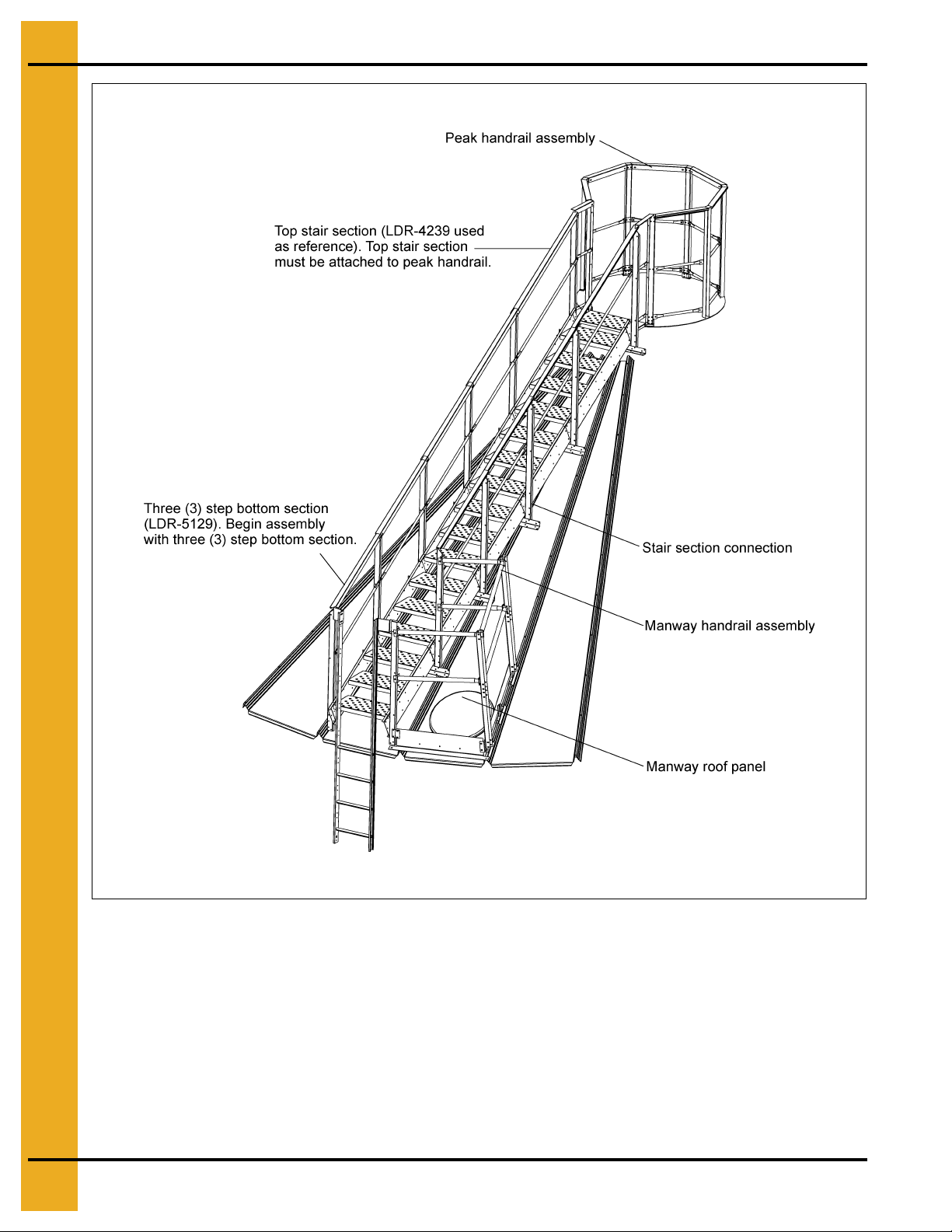

Chapter 6 Complete Stair Assembly ............................................................................................................... 22
Chapter 7 Three (3) Step Bottom .......................... ....................................................... .................................... 23
Three (3) Step Bottom Section (LDR-5129) ..................................................................................... 23

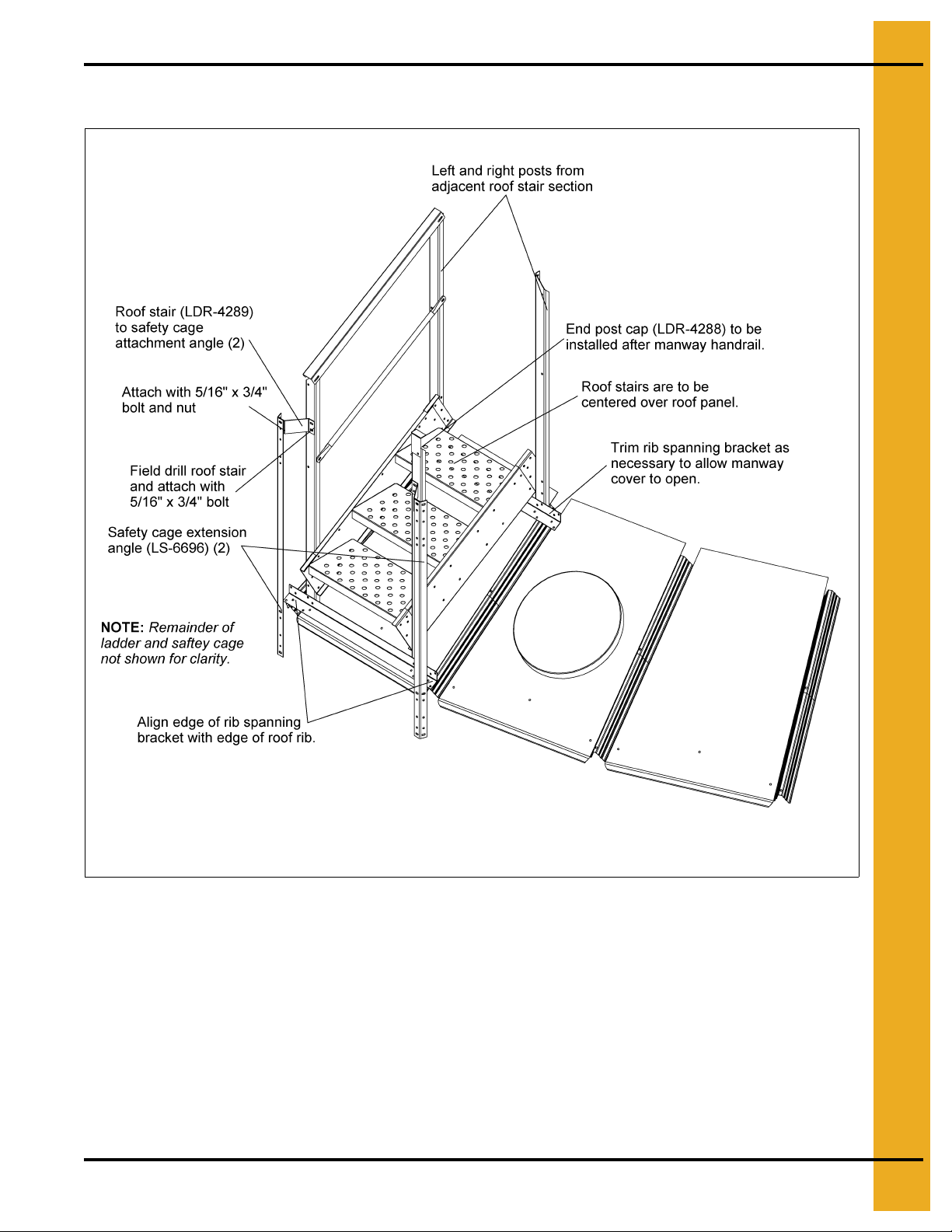

Chapter 8 Manway Handrail ............................................................................................................................. 24

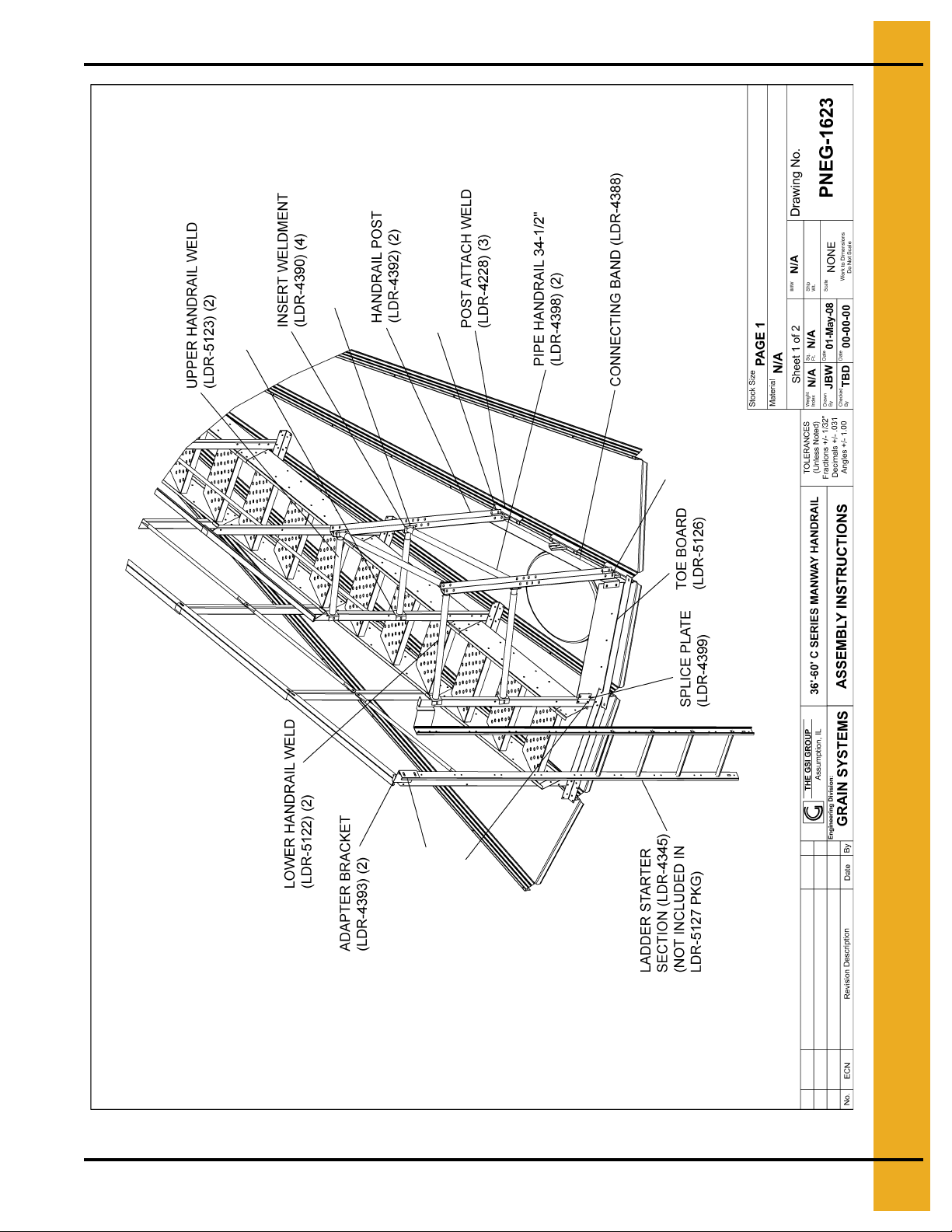

36'-60' w/ Round Manway................................................................................................................. 24
72'-135' w/ Obround Manway............................................................................................................ 27
Chapter 9 Stair Section Connection ................................................................................................................ 30
Chapter 10 Transition Section ......................................................................................................................... 31
Roof Stair with Transition Assembly Instructions (72'-105') ............... ............. ............. ............. ...... 31
Roof Stair with Transition Assembly Instructions (135') ................................................................. 31
Chapter 11 Flattop Peak Handrail .................................................................................................................... 34

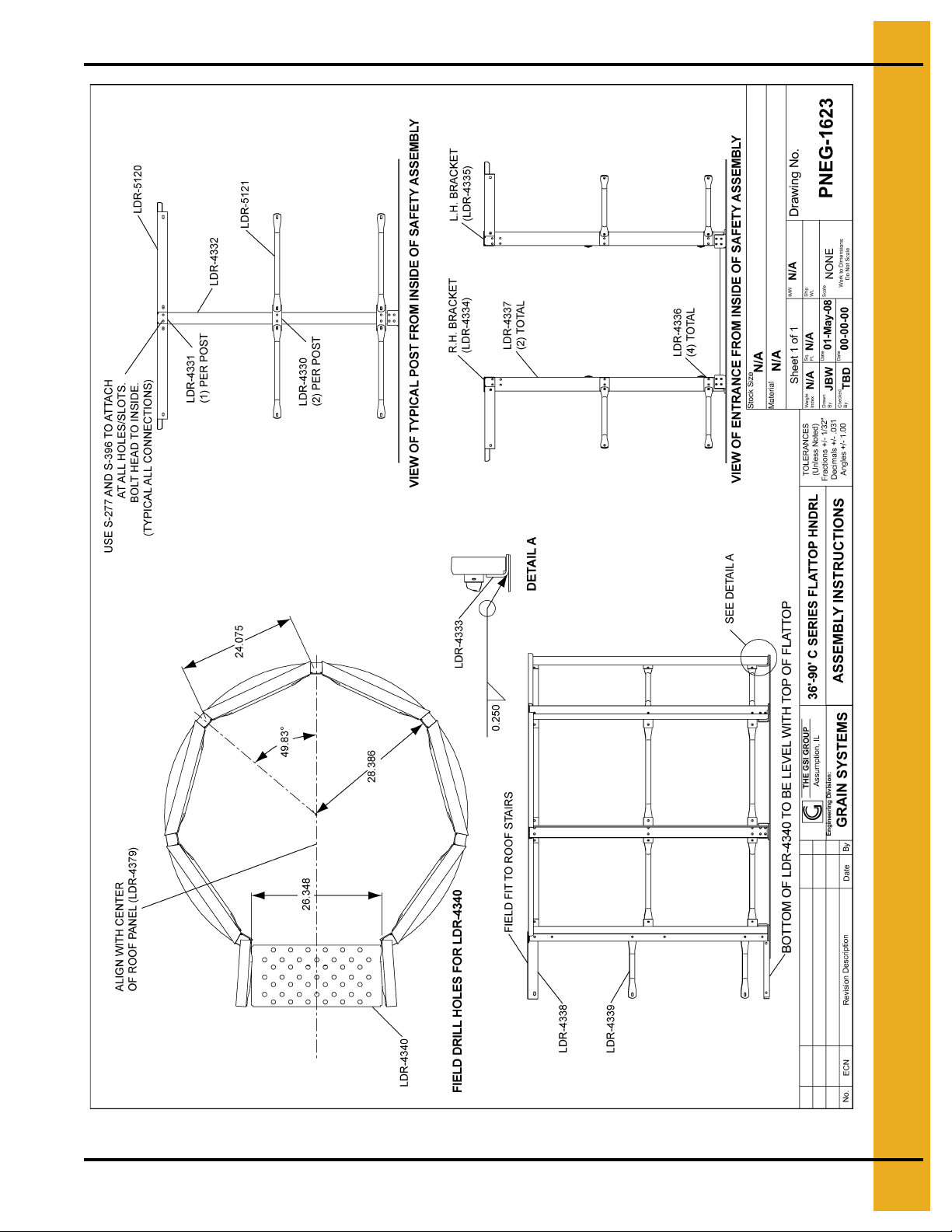

36'-90' Assembly Instructions ......................................................................................................... 34

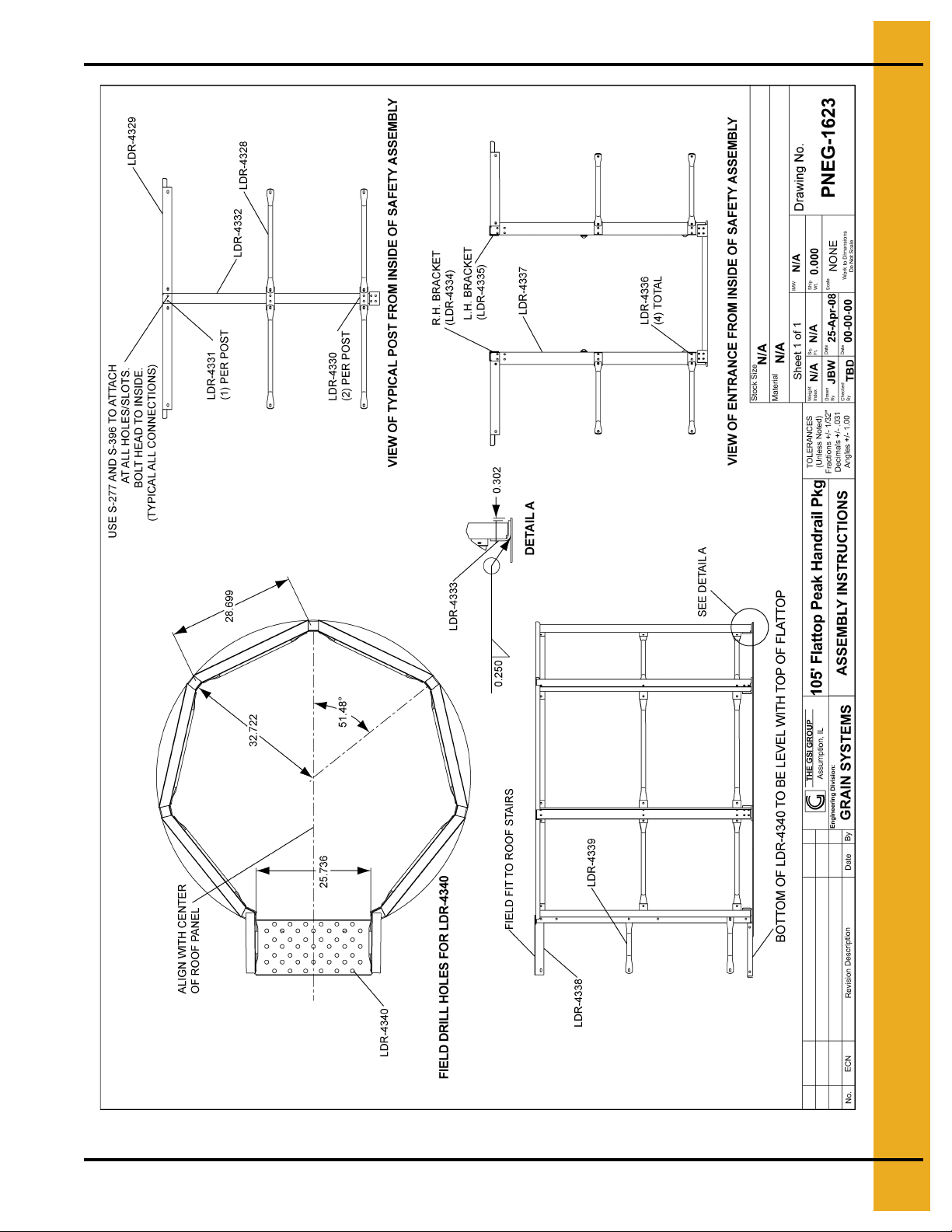

105' Assembly Instructions ............................................................................................................. 36
135' Assembly Instructions ............................................................................................................. 38
Chapter 12 Warranty ......................................................................................................................................... 41
PNEG-1623 Roof Stairs and Handrail Assembly 3
1. Introduction
READ THIS MANUAL carefully to learn how to properly use and install equipment. Failure to do so could
result in personal injury or equipment damage.
INSPECT the shipment immediately upon arrival. The customer is responsible for ensuring that all
quantities are correct. The customer should report and note any damage or shortage on the bill of
lading to justify their claim to the transport company.
THIS MANUAL SHOULD BE CONSIDERED a permanent part of your equipment and should be easily
accessible when needed.
This warranty provides you the assurance that the company will back its products when defects appear
within the warranty period. In some circumstances, the company also provides field improvements, often
without charge to the customer, even if the product is out of warranty. Should the equipment be abused,
or modified to change its performance beyond the factory specifications, the warranty will be come void
and field improvements may be denied.
4 PNEG-1623 Roof Stairs and Handrail Assembly
2. Safety
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems. It is the
responsibility of the owner/operator to inform anyone operating or wo rking in the area of this equipment
of these safety guidelines. To help you recognize this information, we use the symbols that are defined
below. Please read the manual and pay attention to these sections. Failure to read this manual and its
safety instructions is a misuse of the equipment and may lead to serious injury or death.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
NOTE indicates information about the equipment that you
should pay special attention.
PNEG-1623 Roof Stairs and Handrail Assembly 5
2. Safety
General Safety Statement
Our foremost concern is your safety and the safety of others associated with grain handling equipment.
This manual is to help you understand safe operating procedures and some problems which may be
encountered by the operator and other personnel.
As owner and/or operator, you are responsible to know what requirements, hazards and precautions
exist and inform all personnel associated with the equipment or in the area. Safety precautions may be
required from the personnel. Avoid any alterations to the equipment, which may produce a very
dangerous situation, where SERIOUS INJURY or DEATH may occur.
You should consider the location of the bin site relative to po wer line locations or ele ctrical transmission
equipment. Contact your local power company to review your installation plan or for information
concerning required equipment clearance. Clearance of portable equipment that may be taken to the bin
site should also be reviewed and considered. Any electrical control equipment in contact with the bin
should be properly grounded and installed in accordance with National Electric Code provisions and
other local or national codes.
This product is intended for the use of grain storage only. Any other use is a misuse of the product.
This product has sharp edges, which may cause serious injury. To avoid injury, handle
sharp edges with caution and always use proper protective clothing and equipment.
Sidewall bundles or sheets must be stored in a safe manner. The safest method of storing sidewall
bundles is laying horizontally with the arch of the sheet upward, like a dome. Sidewall sheets store d on
edge must be secured so that they cannot fall over and cause injury. Use care when handling and
moving sidewall bundles.
Personnel operating or working around equipment should read this manual. This manual must be
delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse
of the equipment.
6 PNEG-1623 Roof Stairs and Handrail Assembly
2. Safety
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want
to keep you as a customer. This manual is to help you understand safe operating p rocedures and some
problems which may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards and precautions
exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may
be required from the personnel. Avoid any alterations to the equipment. Such alterations may produce
a very dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.
Follow Safety Instructions
Carefully read all safety messages in this manual and
safety signs on your machine. Keep signs in good
condition. Replace missing or damaged safety signs. Be
sure new equipment components and repair parts include
the current safety signs. Replacement safety signs are
available from the manufacturer.
Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
Keep your machinery in proper working condition.
Unauthorized modifications to the machine may impair
the function and/or safety and affect machine life.
If you do not understand any part of this manual or need
assistance, contact your dealer.
Practice Safe Maintenance
Understand service procedures before doing work. Keep area
clean and dry.
Never lubricate, service, or adjust machine while it is in operation.
Keep hands, feet and clothing away from rotating parts.
Keep all parts in good condition and properly installed. Fix
damage immediately . Replace worn or broken p arts. Remove any
built up grease oil and debris.
Read and Understand Manual
Maintain Equipment
and Work Area
PNEG-1623 Roof Stairs and Handrail Assembly 7
2. Safety
Prepare for Emergencies
Be prepared if fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance service,
hospital and fire department near your telephone.
Wear Protective Clothing
Wear close fitting clothing and safety equipment appropriate
to the job.
Remove all jewelry.
Keep Emergency Equipment
Quickly Accessible
Eye Protection
Long hair should be tied up and back.
Safety glasses should be worn at all times to protect eyes
from debris.
Wear gloves to protect your hands from sharp edges on
plastic or steel parts.
Wear steel toe boots to help protect your feet from falling
debris. Tuck in any loose or dangling shoe strings.
A respirator may be needed to prevent breathing potentially
toxic fumes and dust.
Wear hard hat to help protect your head.
Wear appropriate fall protection equipment when working at
elevations greater than six feet (6').
Gloves
Steel Toe Boots
Respirator
Hard Hat
Fall Protection
8 PNEG-1623 Roof Stairs and Handrail Assembly
2. Safety
Safety Sign-Off Sheet
As a requirement of O.S.H.A., it is necessary for the employer to train the employee in the safe operating
and safety procedures for this auger. This sign-off sheet is provided for your convenience and personal
record keeping. All unqualified persons are to stay out of the work area at all times. It is strongly
recommended that another qualified person who knows the shut down procedure be in the area in the
event of an emergency.
Date Employee Name Supervisor Name
PNEG-1623 Roof Stairs and Handrail Assembly 9
2. Safety
Proper Storage Grain Bin/Silo Materials Prior to Construction
Wet storage stain (rust) will develop when closely packed bundles of galvanized material, such as
sidewall and roof sheets, have moisture present. Inspect roof and sidewall bundles on arrival for any
moisture. If moisture is present, it must not be allowed to remain between the sheets. Separate the
sheets or panels immediately and wipe them down. Spray with a light oil or diesel fuel.
If possible, sidewall bundles, roof sheets and other closely packed galvanized materials should be stored
in a dry, climate controlled building. If outdoor storage is unavoidable, the materials should be stored so
that they are raised above the ground and vegetation. Any tacking and spacing materia ls should not be
corrosive or wet. Be sure to protect materials from the weather, but permit air movement around the
bundles if possible.
Storing roof bundles and sidewall sheets at a slight incline can also help minimize the presence of
moisture. Storing the bundles with the center of the dome up (like an arch) is one option for minimizing
moisture during storage. Sidewall bundles can also be stored on edge but must be secured so that they
do not fall over and cause injury.
If “white rust” or “wet storage stain” occurs, contact the manufacturer immediately about ways to
minimize the adverse effect upon the galvanized coating.
10 PNEG-1623 Roof Stairs and Handrail Assembly
3. Decals
The manufacturer does not warrant any roof damage caused by excessive vacuum or internal
pressure from fans or other air moving systems. Adequate ventilation and/or “makeup air”
devices should be provided for all powered air handling systems. The manufacturer does not
recommend the use of downward flow systems (suction). Severe roof damage can result from
any blockage of air passages. Running fans during high humidity/cold weather conditions can
cause air exhaust or intake ports to freeze.
CAUTION!
Excessive vacuum (or pressure) may
damage roof. Use positive aeration
system. Make sure all roof vents are
open and unobstructed. Start roof
fans when supply fans are started.
Do not operate when conditions exist
that may cause roof vent icing.
DC-969
PNEG-1623 Roof Stairs and Handrail Assembly 11
3. Decals
ATTENTION: The decal shown below should be present on the outside of the door cover of the 2 ring,
24" porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any
of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois St.
Assumption, IL. 62510
Phone: 1-217-226-4421
Rotating flighting will
kill or dismember.
Flowing material will
trap and suffocate.
Crusted material will
collapse and suffocate.
Keep clear of all augers.
DO NOT ENTER this bin!
If you must enter the bin:
1. Shut off and lock out all power.
2. Use a safety harness and safety line.
3. Station another person outside the bin.
4. Avoid the center of the bin.
5. Wear proper breathing equipment or respirator.
Failure to heed these
warnings will result in
serious injury or death.
DC-GBC-1A
12 PNEG-1623 Roof Stairs and Handrail Assembly
3. Decals
ATTENTION: The decal shown below should be present on the outside of the door cover of the 2 ring,
24" porthole door cover and the roof manway cover. If a decal has been damaged or is missing in any
of these locations, contact the manufacturer for a free replacement decal.
GSI Decals
1004 E. Illinois St.
Assumption, IL. 62510
Phone: 1-217-226-4421
WARNIN
DON’T
DO
UNLOADING INSTRUCTIONS:
1. Use CENTER FLOOR OUTLET ONLY until NO grain
remains above this outlet.
2. Side floor outlets to be used ONLY when above
condition is satisfied.
3. Lock all side floor outlets to avoid accidental
premature use.
4. See manufacturers instructions for proper use of
factory supplied sidedraw (wall) discharge systems.
Failure to heed these warnings
could result in serious injury, death,
structural damage or collapse of tank.
DC-GBC-2A
PNEG-1623 Roof Stairs and Handrail Assembly 13
4. Assembly
“C” Series
Tank
Roof Stair
Size
105' LDR-4370 1 13 1 LDR-4239 1 LDR-4401 LDR-4327
135' LDR-5131 N/A 17 1 LDR-5130 1 LDR-4401 LDR-5154
The
Package
36' LDR-4410 N/A 3 1 LDR-4239 N/A LDR-5127 LDR-4379
48' LDR-4378 N/A 5 1 LDR-4239 N/A LDR-5127 LDR-4379
54' LDR-4377 N/A 6 1 LDR-4239 N/A LDR-5127 LDR-4379
60' LDR-4376 N/A 7 1 LDR-4239 N/A LDR-5127 LDR-4379
72' LDR-4375 1 8 1 LDR-4239 1 LDR-4401 LDR-4327
75' LDR-4374 1 9 1 LDR-4239 1 LDR-4401 LDR-4327
78' LDR-4373 1 10 1 LDR-4239 1 LDR-4401 LDR-4327
90' LDR-4371 1 11 1 LDR-4239 1 LDR-4401 LDR-4327
Chart above
Two (2)
Step
Section
(LDR-4211)
shows the correct number of two (2) step, th ree (3) step, and four (4) step sections for
Three (3)
Step
Section
(LDR-4210)
Three (3) Step
Bottom
Section
(LDR-5129)
Three (3) or
Four (4)
Step Top
Section
Four (4) Step
Transition Section
(LDR-4406)
Manway
Handrail
Package
Flattop Handrail
Package (Order
Separately)
each size of tank. Be sure the roof stair package contains the correct number of sections before beginning .
14 PNEG-1623 Roof Stairs and Handrail Assembly
Three (3) Step Top Assembly (LDR-5130)
5. Stair Section
Figure 5A
PNEG-1623 Roof Stairs and Handrail Assembly 15
5. Stair Section
Three (3) Step Bottom Assembly (LDR-5129)
Roof stair to ladder cage attachment
angle (LDR-4289) (2). See Figure 7A
on Page 23 for placement.
Figure 5B
16 PNEG-1623 Roof Stairs and Handrail Assembly
Four (4) Step Top Assembly (LDR-4239)
NOTE: Roof stair leveling shim,
(LDR-4258), (not shown) is also
included in four (4) step top assembly.
5. Stair Section
Figure 5C
PNEG-1623 Roof Stairs and Handrail Assembly 17
5. Stair Section
Four (4) Step Section (LDR-4209)
Figure 5D
18 PNEG-1623 Roof Stairs and Handrail Assembly
Three (3) Step Section (LDR-4210)
5. Stair Section
Figure 5E
PNEG-1623 Roof Stairs and Handrail Assembly 19
5. Stair Section
Two (2) Step Section (LDR-4211)
Figure 5F
20 PNEG-1623 Roof Stairs and Handrail Assembly
Four (4) Step Transition Section (LDR-4406)
For use with 72' and larger bins
5. Stair Section
Figure 5G
PNEG-1623 Roof Stairs and Handrail Assembly 21
6. Complete Stair Assembly
See Figure 7A on Page 23.
Figure 6A
See Figure 9A on Page 30.
NOTE: Start roof stair assembly with three (3) step bottom section (LDR-5129). Center the roof stair
sections over the roof panel. Attach the appropriate number of two (2) step, three (3) step or
four (4) step sections to the bottom section. Refer Chart on Page 14 for the correct number of
sections. 72' and larger bins will require a transition stair package. See details on Pages 31-33
for instructions. Field drill as necessary. All sections will attach to the roof panels with
5/16" x 1-1/4" bolts and nuts. Field drill the rib spanning brackets and the roof ribs to attach
the stair sections to the roof ribs.
22 PNEG-1623 Roof Stairs and Handrail Assembly
Three (3) Step Bottom Section (LDR-5129)
7. Three (3) Step Bottom
Figure 7A
Begin roof stairs directly above sidewall ladder and adjacent to the manway panel. Roof stair sections are
to be centered on roof panel. Begin with three (3) step bottom section (LDR-5129). Align edge of rib
spanning angle (LDR-4149) with edge of roof rib. Field drill hole through rib spanning bracket and roof rib.
Attach roof stair section to roof rib with 5/16" x 1-1/4" bolts. A ttach safety cage extension an gle (LS-6696)
to roof stair with (LDR-4289) attachment angle as shown. Continue attaching roof stair sections as
indicated by the stair section chart
three (3) step bottom section and the lower post of the next section.
manway opening at eave, assemble handrails on both sides of bo ttom sta ir section.
PNEG-1623 Roof Stairs and Handrail Assembly 23
on Page 14
. Attach manway handrail assembly to lower post of the
NOTE:
If roof does not have a
8. Manway Handrail
36'-60' w/ Round Manway (Refer to Page 25 and Page 26 for details.)
1. Loosely assemble handrail posts (LDR-4392) to post attach weld (LDR-4228) using 5/16" hardware.
2. Loosely attach corner insert weldment (LDR-4390) to handrail posts.
3. Place pipe handrails (LDR-4398) between the corner insert weldments. After the correct spacing is
found, secure with 1/4" self-drilling screws. (See Detail D on Page 26.)
4. Place upper and lower handrail weldments (LDR-5123 and LDR-5122) onto corner insert weld and
attach on the other end to the three (3) step bottom stair sectio n handrails. Field drilling attachment
holes and cutting of the pipe may be required to secure handrail weldments to stair section
weldment. Secure on the other end with 1/4" self-drilling screws to the corner insert weldments.
5. After the spans are covered and the handrails are secured, the three (3) post attach weld s can be
field drilled to the roof rib as shown in Detail C on Page 26. The connecting band (LDR-4388) and
the toe board (LDR-5126) can now be placed and field drilled where necessary. (Refer to Detail C
and Detail D on Page 26.)
6. Tighten all hardware after it is loosely assembled. NOTE: 5/16" Hardware is used at all connections
and a 5/16" washer must be used for all slotted connections.
24 PNEG-1623 Roof Stairs and Handrail Assembly
SEE DETAIL F ON PAGE 26
8. Manway Handrail
SEE DETAIL E ON PAGE 26
SEE DETAIL D ON PAGE 26
SEE DETAIL C ON PAGE 26
SEE DETAIL A ON PAGE 26
SEE DETAIL B ON PAGE 26
Figure 8A
PNEG-1623 Roof Stairs and Handrail Assembly 25
8. Manway Handrail
Figure 8B
26 PNEG-1623 Roof Stairs and Handrail Assembly
8. Manway Handrail
72'-135' w/ Obround Manway (Refer to Page 28 and Page 29 for details.)
1. Loosely assemble handrail posts (LDR-4392) to post attach weld (LDR-4228) using 5/16" hardware.
2. Loosely attach corner insert weldment (LDR-4390) to handrail posts.
3. Place pipe handrails (LDR-4398) between the corner insert weldments. After the correct spacing is
found, secure with 1/4" self-drilling screws. (See Detail D on Page 29.)
4. Place upper and lower handrail weldments (LDR-4396 and LDR-4394) onto corner insert weld and
attach on the other end to the three (3) step bottom stair section handrails. Field drilling attachment
holes and cutting of the pipe may be required to secure handrail weldments to stair section
weldment. Secure on the other end with 1/4" self-drilling screws to the corner insert weldments.
5. After the spans are covered and the handrails are secured, the three (3) post attach welds can be
field drilled to the roof rib as shown in Detail C on Page 29. The connectin g band (LDR-4388) and
the toe board (LDR-4400) can now be placed and field drilled where necessary. (Refer to Detail C
and Detail D on Page 29.)
6. Tighten all hardware after it is loosely assembled. NOTE: 5/16" Hardware is used at all connections
and a 5/16" washer must be used for all slotted connections.
PNEG-1623 Roof Stairs and Handrail Assembly 27
8. Manway Handrail
SEE DETAIL F ON PAGE 29
SEE DETAIL E ON PAGE 29
SEE DETAIL D ON PAGE 29
SEE DETAIL C ON PAGE 29
SEE DETAIL A ON PAGE 29
SEE DETAIL B ON PAGE 29
Figure 8C
28 PNEG-1623 Roof Stairs and Handrail Assembly
8. Manway Handrail
Figure 8D
PNEG-1623 Roof Stairs and Handrail Assembly 29
9. Stair Section Connection
Figure 9A
Connect remaining roof sections as shown. Always start with the bottom three (3) step sections and
finish with the four (4) step top section. The sections used between the top and bottom sections are
outlined in the Chart on Page 14. See instructions on Pages 31-33 for roofs needing a transition
stair section.
30 PNEG-1623 Roof Stairs and Handrail Assembly
10. Transition Section
Roof Stair with Transition Assembly Instructions (72'-105')
1. Begin assembly at the bottom eave of the roof with the bottom three (3) step section,
part #LDRbracket and the roof rib, then fasten with 5/16" x 1-1/4" bolts and nuts.
2. Follow up the bottom three (3) step section (LDR-5129) with intermediate three (3) step sections
(LDR-4210). Continue adding intermediate three (3) step sections (LDR-4210) until you are within
72" of the roof transition. At this point, measure the distance remaining to pass the roof transition
and decide whether the two (2) step section (LDR-4211) will fit best above or below the four (4) step
transition section (LDR-4406). Figure 10A on Page 32 shows the two (2) step section below the
four (4) step transition sections. If the distance is more than 48", the two (2) step section (LDR-4211)
will most likely fit better below the four (4) step transition section (LDR-4406).
3. After the two (2) step section (LDR-4211) and the four (4) step transition section (LDR-4406) have
been utilized, continue attaching intermediate three (3) step sections (LDR-4210) towards the peak
of the roof. (See Figure 10B on Page 33.)
4. The last section attached at the peak of the roof should be the top four (4) step section (LDR-42 39).
5129
. When fastening the rib spanning bracket to the roof rib, field drill through the
(See Figure 10A on Page 32.)
Roof Stair with Transition Assembly Instructions (135')
1. Begin assembly at the bottom eave of the roof with the bottom three (3) step section,
5129
part #LDRbracket and the roof rib, then fasten with 5/16" x 1-1/4" bolts and nuts.
2. Follow up the bottom three (3) step section (LDR-5129) w/ twelve (12) intermediate three (3) step
sections (LDR-4210). At this point, the four (4) step transition section (LDR-4406) should be placed.
NOTE: The 135' package does not include a two (2) step section. (See Figure 10A on Page 32.)
3. After the four (4) step transition section (LDR-4406) has been utilized, continue adding intermediate
three (3) step sections (LDR-4410) towards the peak of the roof. (See Figure 10B on Page 33.) The
135' roof requires five (5) more intermediate sections to be placed after the transition section.
4. The last section attached at the peak of the roof should be the top three (3) step section (LDR-5130).
. When fastening the rib spanning bracket to the roof rib, field drill through the
(See Figure 10A on Page 32.)
PNEG-1623 Roof Stairs and Handrail Assembly 31
10. Transition Section
Figure 10A Roof Stair Assembly Bottom
32 PNEG-1623 Roof Stairs and Handrail Assembly
10. Transition Section
Figure 10B Roof Stair Assembly Top
PNEG-1623 Roof Stairs and Handrail Assembly 33
1 1. Flattop Peak Handrail
36'-90' Assembly Instructions (Refer to Page 35 for details.)
1. Loosely assemble five (5) handrail posts (LDR-4332) with upper (LDR-5120), lower and
intermediate (LDR-5121) handrails connecting the posts as shown in the typical post view
on Page 35.
2. Loosely assemble entrance posts (LDR-4337) to the handrails using the upper L.H. (LDR-4335)
and R.H. (LDR-4334) brackets and four (4) lower brackets (LDR-4336) as shown in the entrance
view on Page 35.
3. Field fitting must be done to connect the entrance posts to the upper post of the top four (4) step
stair package. Cutting and field drilling on LDR-4338 and LDR-4339 is required for a good fit.
4. The flattop handrail posts should be equally spaced on the flattop as shown in the upper view
on Page 35. Detail A on Page 35 shows the welding procedure required to fit the posts to the flattop.
5. Be sure and tighten all hardware. NOTE: 5/16" Hardware is used in all for all connections.
Use a 5/16" washer for slotted connections.
NOTE: Because of catwalks and conveyors, altering of the handrail may be required. Posts may need
to be excluded if this is the case. Longer of shorter field fabr icated handrails may be required to
ensure the handrail wraps completely around the flattop. Paint any non-galvanized surfaces (for
instance, welds) to ensure rusting is kept to a minimum.
34 PNEG-1623 Roof Stairs and Handrail Assembly
11. Flattop Peak Handrail
Figure 11 A
PNEG-1623 Roof Stairs and Handrail Assembly 35
1 1. Flattop Peak Handrail
105' Assembly Instructions (Refer to Page 37 for details.)
1. Loosely assemble five (5) handrail posts (LDR-4332) with upper (LDR-4329), lower and
intermediate (LDR-4328) handrails connecting the posts as shown in the typical post view
on Page 37.
2. Loosely assemble entrance posts (LDR-4337) to the handrails using the upper L.H. (LDR-4335)
and R.H. (LDR-4334) brackets and four (4) lower brackets (LDR-4336) as shown in the entrance
view on Page 37.
3. Field fitting must be done to connect the entrance posts to the upper post of the top four (4) step
stair package. Cutting and field drilling on LDR-4338 and LDR-4339 is required for a good fit.
4. The flattop handrail posts should be equally spaced on the flattop as shown in the upper view
on Page 37. Detail A on Page 37
5. Be sure and tighten all hardware. NOTE: 5/16" Hardware is used in all for all connections.
Use a 5/16" washer for slotted connections.
NOTE: Because of catwalks and conveyors, altering of the handrail may be required. Posts may need
to be excluded if this is the case. Longer of shorter field fabr icated handrails may be required to
ensure the handrail wraps completely around the flattop. Paint any non-galvanized surfaces (for
instance, welds) to ensure rusting is kept to a minimum.
shows the welding procedure required to fit th e posts to the flattop.
36 PNEG-1623 Roof Stairs and Handrail Assembly
11. Flattop Peak Handrail
Figure 11B
PNEG-1623 Roof Stairs and Handrail Assembly 37
1 1. Flattop Peak Handrail
135' Assembly Instructions (Refer to Page 39 for details.)
1. Loosely assemble six (6) handrail posts (LDR-4332) with upper (LDR-5149), lower and intermediate
(LDR-5152) handrails connecting the posts as shown in the typical post view
2. Loosely assemble entrance posts (LDR-5146) to the handrails using the upper L.H. (LDR-5147)
and R.H. (LDR-5150) brackets and four (4) lower brackets (LDR-5151) as shown in the entrance
view on Page 39.
3. Field fitting must be done to connect the entrance posts to the upper post of the top stair package.
Cutting and field drilling on LDR-5156 and LDR-5157 is required for a good fit.
4. The flattop handrail posts should be equally spaced on the flattop as shown in the upper view on
Page 39. Detail A on Page 39
5. Be sure and tighten all hardware. NOTE: 5/16" Hardware is used in all for all connections. Use a
5/16" flange nut for slotted connections.
NOTE: Because of catwalks and conveyors, altering of the handrail may be required. Posts may need
to be excluded if this is the case. Longer of shorter field fabricated handrails may be required to
ensure the handrail wraps completely around the flattop. Paint any non-galvanized surfaces (for
instance, welds) to ensure rusting is kept to a minimum.
shows the welding procedure required to fit the posts to the flattop.
on Page 39
.
38 PNEG-1623 Roof Stairs and Handrail Assembly
11. Flattop Peak Handrail
Figure 11 C
PNEG-1623 Roof Stairs and Handrail Assembly 39
NOTES
40 PNEG-1623 Roof Stairs and Handrail Assembly
12. Warranty
The GSI Group Limited Warranty
The GSI Group, LLC (“GSI”) warrants products which it manufactures to be free of defects in materials
and workmanship under normal usage and conditions for a period of 12 months after sale to the original
end-user or if a foreign sale, 14 months from arrival at port of discharge, whichever is earlier. The
end-user’s sole remedy (and GSI’s only obligation) is to repair or replace, at GSI’s option and expense,
products that in GSI’s judgment, contain a material defect in materials or workmanship. Expenses
incurred by or on behalf of the end-user without prior written authorization from the GSI Warranty Group
shall be the sole responsibility of the end-user.
Warranty Extensions:
The Limited Warranty period is extended for the following products:
Product Warranty Period
AP Fans and Flooring
Cumberland
Feeding/Watering
Systems
Grain Systems
Performer Series Direct Drive Fan Motor 3 Years
All Fiberglass Housings Lifetime
All Fiberglass Propellers Lifetime
Apex Flooring 10 Years *
Feeder System Pan Assemblies 5 Years **
Feed Tubes (1.75" and 2.00") 10 Years *
Centerless Augers 10 Years *
Watering Nipples 10 Years *
Grain Bin Structural Design 5 Years
Portable Dryers 2 Years
Portable Dryer Frames, Screens and Internal
Infrastructure †
5 Years
* Warranty prorated from list price:
0 to 3 years - no cost to end-user
3 to 5 years - end-user pays 25%
5 to 7 years - end-user pays 50%
7 to 10 years - end-user pays 75%
** Warranty prorated from list price:
0 to 3 years - no cost to end-user
3 to 5 years - end-user pays 50%
† Motors, burner components and
moving parts not included.
Conditions and Limitations:
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE LIMITED WARRANTY DESCRIPTION
SET FORTH ABOVE. SPECIFICALLY, GSI MAKES NO FURTHER WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE IN CONNECTION
WITH: (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE, INSTRUCTION,
RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT, REPRESENTATIVE OR
EMPLOYEE OF GSI REGARDING OR RELATED TO THE CONFIGURATION, INSTALLATION,
LAYOUT, SUITABILITY FOR A PARTICULAR PURPOSE, OR DESIGN OF SUCH PRODUCTS.
GSI shall not be liable for any direct, indirect, incidental or consequential damages, including, without
limitation, loss of anticipated profits or benefits. The sole and exclusive remedy is set forth in the
Limited Warranty, which shall not exceed the amount paid for the product purchased. This warranty is
not transferable and applies only to the original end-user. GSI shall have no obligation or responsibility
for any representations or warranties made by or on behalf of any dealer, agent or distributor.
GSI assumes no responsibility for claims resulting from construction defects or unauthorized
modifications to products which it manufactured. Modifications to products not specifically
delineated in the manual accompanying the equipment at initial sale will void the Limited Warranty.
This Limited Warranty shall not extend to products or parts which have been damaged by negligent
use, misuse, alteration, accident or which have been improperly/inadequately maintained. This Limited
Warranty extends solely to products manufactured by GSI.
Prior to installation, the end-user has the responsibility to comply with federal, state and local codes
which apply to the location and installation of products manufactured or sold by GSI.
9101239_1_CR_rev5.DOC (revised April 2009)
PNEG-1623 Roof Stairs and Handrail Assembly 41
