PNEG-1461
12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series
Assembly Manual
PNEG-1461
Date: 09-25-13
All information, illustrations, photos and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice.
Table of Contents

Contents

Chapter 1 Introduction ..........................................................................................................................................5
Chapter 2 Safety .....................................................................................................................................................6
Safety Guidelines .................................................................................................................................. 6
General Safety Statement ..................................................................................................................... 7
Safety Instructions ..................... ... .... .......................................... ... ... ..................................................... 8
Safety Sign-Off Sheet ......................................................................................................................... 10
Proper Storage of Grain Bin/Silo Materials Prior to Construction ....................................................... 11
Chapter 3 Decals ..................................................................................................................................................12
Chapter 4 General Information ...........................................................................................................................13
Bulk Feed Tank Assembly Manual General Instructions .............................. ... ... .... ... ... ... ... ................ 13
Chapter 5 Foundation ..........................................................................................................................................15
Chapter 6 Sidewall Assembly .............................................................................................................................26
Bulk Feed Tank Assembly .................................................................................................................. 26
12' Sidewall Sheet Orientation ............................................................................................................ 27
Sidewall Erection ....................... ... .... ... ... ... ... .......................................... .... ... ... ... .... ... ......................... 28
Chapter 7 Roof .....................................................................................................................................................32
12'-18' BFT Sealed Roof Panel Installation ......................... ....................... ...................... ................... 32
Peak Ring Collar to Roof Panels ......................................................................................................... 33
12' Roof Reinforcement Angle ............................................................................................................ 34
15' and 18' Roof Assembly Instructions .............................................................................................. 35
Raising the Roof ........................ ... .... ... .......................................... ... ... ................................................ 38
Chapter 8 Optional BFT Ladder Assembly ........................................................................................................40
Starter Bracket Installation .................................................................................................................. 41
Sidewall and Roof Ladder Installation ................................................................................................. 42
Roof Ladder Support Bracket Installation ........................................................................................... 43
Ladder Standoff Installation ................................................................................................................ 49
Ladder Section Assembly ................................................................................................................... 50
Ladder Support Detail ......................................................................................................................... 51
Ladder Decal Application .................................................................................................................... 51
Chapter 9 Ladder Handrails ................................................................................................................................52
Handrail Installation for Ladder System Without Safety Cage ............................................................ 52
Chapter 10 Safety Cage .......................................................................................................................................60
Ladder System With Safety Cage ..................................................................................................... 60
Safety Cage Hoop Assembly ............................................................................................................. 62
Safety Cage Installation ..................................................................................................................... 64
Chapter 11 Roof Cap and Ground Control ........................................................................................................67
Roof Cap and Ground Control Instructions ....................................................................................... 67
Roof Cap .................................................... .... .......................................... ......................................... 74
Chapter 12 Hopper Assembly .............................................................................................................................76
Hopper Sheets ................................................................................................................................... 76
Hopper Collar Assembly .................................................................................................................... 80
Chapter 13 Legs and Leg Bracing ......................................................................................................................82
12' Only .............................................................................................................................................. 82
Installation of Leg to Sidewall ............................................................................................................ 83
Installation of Leg to Sidewall for 15', 18' and 21' BFT ...................................................................... 84
12'-21' Leg Bracing ............................................................................................................................ 85
Bracing Hole Layouts ..................................................... ... ... .... ... ...................................................... 87
Hopper to Leg Bracing ....................................................................................................................... 91
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 3
Table of Contents
Chapter 14 Raising Bin ........................................................................................................................................92
Raising Bin to Set on Foundation ...................................................................................................... 92
Standard Hopper Bin Anchoring ........................................................................................................ 92
Anchoring Tank ........................................... .... ... ... ... .......................................... .... ... ........................ 93
Bin Grounding Instructions ................................................................................................................ 94
Chapter 15 Pneumatic Fill Kit ............. ... ... ..........................................................................................................95
Pneumatic Fill Kit Assembly ............ ... ... .......................................... ... ... .... ... ... ... .... ... ... ..................... 95
Roof Panel ......................................................................................................................................... 96
Chapter 16 Parts List ...........................................................................................................................................97
12' Diameter 60° Hopper Bin Specifications .......................... .......................................... .................. 98
12' Diameter 60° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 100
12' Diameter 45° Hopper Bin Specifications .......................... .......................................... ................ 102
12' Diameter 45° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 104
15' Diameter 60° Hopper Bin Specifications .......................... .......................................... ................ 106
15' Diameter 60° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 108
15' Diameter 45° Hopper Bin Specifications .......................... .......................................... ................ 110
15' Diameter 45° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 112
18' Diameter 45° Hopper Bin Specifications .......................... .......................................... ................ 114
18' Diameter 45° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 116
21' Diameter 45° Hopper Bin Specifications .......................... .......................................... ................ 118
21' Diameter 45° Hopper Bin Hardware Specifications ............. ... ... ... ... .... ... ... ................................ 120
Chapter 17 Warranty ..........................................................................................................................................123

1. Introduction

READ THIS MANUAL carefully to learn how to properly use and install equipment. Failure to do so could result in personal injury or equipment damage.
INSPECT the shipment immediately upon arrival. The customer is responsible for ensuring that all quantities are correct. The customer should report and note any damage or shortage on the bill of lading to justify their claim to the transport company.
THIS MANUAL SHOULD BE CONSIDERED a permanent part of your equipment and should be easily accessible when needed.
This warranty provides you the assurance that the company will back its products when defects appear within the warranty period. In some circumstances, the company also provides field improvements, often without charge to the customer, even if the product is out of warranty. Should the equipment be abused, or modified to change its performance beyond the factory specifications, the warranty will become void and field improvements may be denied.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 5

2. Safety

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand. This information relates to protecting personal safety and preventing equipment problems. It is the responsibility of the owner/operator to inform anyone operating or working in the area of this equipment of these safety guidelines. To help you recognize this information, we use the symbols that are defined below. Please read the manual and pay attention to these sections. Failure to read this manual and its safety instructions is a misuse of the equipment and may lead to serious injury or death.
DANGER
WARNING
CAUTION
NOTICE
2. Safety
This product has sharp edges, which may cause serious injury. To avoid injury, handle sharp edges with caution and always use proper protective clothing and equipment.
General Safety Statement
Our foremost concern is your safety and the safety of others associated with grain handling equipment. This manual is to help you understand safe operating procedures and some problems that may be encountered by the operator and other personnel.
As owner and/or operator, you are responsible to know what requirements, hazard s, and precautions exist and inform all personnel associated with the equipment or in the area. Safety precautions may be required from the personnel. Avoid any alterations to the equipment, which may produce a very dangerous situation, where SERIOUS INJURY or DEATH may occur.
You should consider the location of the bin site relative to power line locations or electrical transmission equipment. Contact your local power company to review your installation plan or for information concerning required equipment clearance. Clearance of portable equipment that may be taken to the bin site should also be reviewed and considered. Any electrical control equipment in contact with the bin should be properly grounded and installed in accordance with National Electric Code provisions and other local or national codes.
This product is intended for the use of grain storage only. Any other use is a misuse of the product.
Sidewall bundles or sheets must be stored in a safe manner. The safest method of storing sidewall bundles is laying horizontally with the arch of the sheet upward, like a dome. Sidewall sheets stored on edge must be secured so that they cannot fall over and cause injury. Use care when handling and moving sidewall bundles.
Personnel operating or working around equipment should read this manual. This manual must be delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the equipment.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 7
2. Safety
Follow Safety Instructions
Carefully read all safety messages in this manual and safety signs on your machine. Keep signs in good condition. Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from the manufacturer.
Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction.
Keep your machinery in proper working condition. Unauthorized modifications to the machine may impair the function and/or safety and affect machine life.
If you do not understand any part of this manual or need assistance, contact your dealer.
Read and Understand Manual
Practice Safe Maintenance
Understand service procedures before doing work. Keep area clean and dry.
Never lubricate, service, or adjust machine while it is in operation. Keep hands, feet, and clothing away from rotating parts.
Keep all parts in good condition and properly installed. Fix damage immediately . Replace worn or broken p arts. Remove any built-up grease, oil, and debris.
Maintain Equipment and Work Area
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want to keep you as a customer. This manual is to help you understand safe operating procedures and some problems that may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may be required from the personnel. Avoid any alterations to the equipment. Such alterations may p roduce a very dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made.
2. Safety
Prepare for Emergencies
Be prepared if fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone.
Keep Emergency Equipment Quickly Accessible
Wear Protective Clothing
Wear close-fitting clothing and safety equipment appropriate to the job.
Remove all jewelry.
Tie long hair up and back.
Wear safety glasses at all times to protect eyes from debris.
Wear gloves to protect your hands from sharp edges on plastic or steel parts.
Wear steel toed-boots to help protect your feet from falling debris. Tuck in any loose or dangling shoestrings.
A respirator may be needed to prevent breathing potentially toxic fumes and dust.
Wear a hard hat to help protect your head.
Wear appropriate fall protection equipment when working at elevations greater than six feet (6').
Eye Protection
Gloves
Steel-Toed Boots
Respirator
Hard Hat
Fall Protection
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 9
2. Safety
Safety Sign-Off Sheet
As a requirement of O.S.H.A., it is necessary for the employer to train the employee in the safe operating and safety procedures for this equipment. This sign-off sheet is provided for your convenience and personal record keeping. All unqualified persons are to stay out of the work area at all times. It is strongly recommended that another qualified person who knows the shut down procedure be in the area in the event of an emergency.
Date Employee Name Supervisor Name
2. Safety
Proper Storage of Grain Bin/Silo Materials Prior to Construction
Wet storage stain (rust) will develop when closely packed bundles of galvanized material, such as sidewall and roof sheets, have moisture present. Inspect roof and sidewall bundles on arrival for any moisture. If moisture is present, it must not be allowed to remain between the sheets. Separate the sheets or panels immediately and wipe them down. Spray with a light oil or diesel fuel.
If possible, sidewall bundles, roof sheets and other closely packed galvanized materials should be stored in a dry, climate controlled building. If outdoor storage is unavoidable, the materials should be stored so that they are raised above the ground and vegetation. Any stacking and spacing materials should not be corrosive or wet. Be sure to protect materials from the weather, but permit air movement around the bundles if possible.
Storing roof bundles and sidewall sheets at a slight incline can also help minimize the presence of moisture. Storing the bundles with the center of the dome up (like an arch) is one option for minimizing moisture during storage. Sidewall bundles can also be stored on edge but must be secured so that they do not fall over and cause injury.
If “white rust” or “wet storage stain” occurs, contact the manufacturer immediately about ways to minimize the adverse effect upon the galvanized coating.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 11

3. Decals

GSI Decals
1004 E. Illinois St. Assumption, IL. 62510 Phone: 1-217-226-4421
For replacement decals, contact:
Rotating flighting will
kill or dismember.
Flowing material will
trap and suffocate.
Crusted material will
collapse and suffocate.
Keep clear of all augers. DO NOT ENTER this bin!
Failure to heed these warnings will result in serious injury or death.
If you must enter the bin:
1. Shut off and lock out all power.
2. Use a safety harness and safety line.
3. Station another person outside the bin.
4. Avoid the center of the bin.
5. Wear proper breathing equipment or respirator.
DC-2123
DANGER
> 300 lbs
(136 kg)
DO NOT EXCEED LADDER LOAD LIMIT
Load limit = 300 LBS (136 kg)
Excessive load will damage ladder resulting in injury or death.
DC-2307GSI Group, 217-226-4421

4. General Information

Bulk Feed Tank Assembly Manual General Instructions
This product is intended for the use of storing feed only. Any other use is a misuse of the product. While every effort has been made to keep the edges from being sharp, please wear the proper protective
clothing while erecting the Bulk Feed Tank. Our company recommends that you contact the local power company and have a representative review
the installation so the wiring will be compatible with their system and so that you will have adequate power supplied to the unit.
A Bulk Feed Tank weighs a minimum of 444 lbs. (201 kg). All precautions should be taken when raising the tank to its feet. Follow the instructions given later in this manual.
The safety pages show you where you can find the safety decals. The photographs show exactly where the decals should be. If a decal has been damaged or is missing contact our company for a free replacement.
First, read the assembly manual completely before starting to assemble the Bulk Feed Tank. Check the shipment with the packing list to be sure there are no shortages.
1. Decal protective mask must be removed when assembling tank. Mask may become difficult to remove if left exposed to sunlight.
2. Vertical seams must be staggered on all sidewall rings.
3. When legs extend up 2 rings, the leg holes must be in alignment in the bottom 2 rings.
4. All hopper seams and the hopper collar use truss head bolts. The heads of the bolts must be on the inside of the tank.
5. Hex head bin bolts are used on all sidewall and roof seams with the bolt heads on the outside of the bin.
6. Hex head bolts are to be used on all leg to sidewall connections with the bolt heads on the inside of the tank.
7. All bolts are to be tightened from the nut side only. Do not allow bolt heads to spin.
8. Drift punches can be used to align holes.
9. All vertical sidewall sheet seams must be overlapped in the same direction.
10. A hole spacing of 3-1/8" is used at the top of all top sidewall sheets and at the bottom of all bottom sidewall sheets.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 13
4. General Information
Selecting the Proper Site
The selected site should be level, firm and free from underlying debris. The tank can be installed satisfactorily on slopes, but as the slope increases, additional labor and materials are required for the foundation. The concrete foundation surfaces must be level and tamped thoroughly to prevent uneven settling from the weight of the tank. Good water draina ge should be provided to prevent water collecting under or around the tank. The site mu st allow conve nient access for loading and unloading and plus provide additional space for future units. Also, consider the positioning of handling equipment, availability of electricity, etc.
. If some fill is required, it should be watered
Tools
Tools recommended for assembly of Bulk Feed Tanks.
1. Assorted sizes of combination wrenches
2. Hammer
3. 3-12" Long drift punches
4. 1 Large flathead screwdriver
5. 1 Pair of slip joint pliers
6. Two (2) adjustable wrenches
7. Ratchet and sockets
8. Impact wrenches and sockets (if available)

5. Foundation

# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-5 15" 9.1 Cu. Yards 196 Sq. Ft. 8
6 16" 9.7 Cu. Yards 196 Sq. Ft. 8
7 16" 9.7 Cu. Yards 196 Sq. Ft. 8
8 17" 10.3 Cu. Yards 196 Sq. Ft. 8
# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-5 381 mm 6.93 Cu. Meters 18.21 Sq. Meters 8
6 406 mm 7.40 Cu. Meters 18.21 Sq. Meters 8
7 406 mm 7.40 Cu. Meters 18.21 Sq. Meters 8
8 432 mm 7.86 Cu. Meters 18.21 Sq. Meters 8
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
* Applies to 45° hopper tank only.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
*
*
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
6" Maximum
Grade
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 15
Figure 5A 12' 2-8 Rings BFT/GHT Square Pad
5. Foundation
# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-5 15" 7.1 Cu. Y a rd s 155 Sq. Ft. 8
6 16" 7.6 Cu. Yards 155 Sq. Ft. 8
7 16" 7.6 Cu. Ya rd s 155 Sq. Ft. 8
8 17" 8.1 Cu. Yards 155 Sq. Ft. 8
# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-5 381 mm 5.45 Cu. Meters 14.40 Sq. Meters 8
6 406 mm 5.81 Cu. Meters 14.40 Sq. Meters 8
7 406 mm 5.81 Cu. Meters 14.40 Sq. Meters 8
8 432 mm 6.18 Cu. Meters 14.40 Sq. Meters 8
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
* Applies to 45° hopper tank only.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
*
*
6" Maximum
Grade
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
8 Legs
Figure 5B 12' 2-8 Rings BFT/GHT Round Pad
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
8 15" 4" 5.0 Cu. Yards 175 Sq. Ft. 12
9 18" 4" 5.8 Cu. Yards 175 Sq. Ft. 12
10 20" 4" 6.4 Cu. Yards 175 Sq. Ft. 12
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
8 381 mm 102 mm 3.82 Cu. Meters 16.26 Sq. Meters 12
9 457 mm 102 mm 4.43 Cu. Meters 16.26 Sq. Meters 12
10 508 mm 102 mm 4.89 Cu. Meters 16.26 Sq. Meters 12
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
* Applies to 60° hopper tank only.
** Applies to 45° and 60° hopper tanks.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
****
**
Grade
6" Maximum
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
12 Legs
Figure 5C 12' 8-10 Rings BFT/GHT Round Pad
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 17
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
11 24" 4" 7.5 Cu. Yards 175 Sq. Ft. 16
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
11 610 mm 102 mm 5.73 Cu. Meters 16.26 Sq. Meters 16
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual installation
may vary according to local conditions. The GSI Group assumes no liability for
results arising from the use of such recommendations.
6" Maximum
Grade
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
16 Legs
Figure 5D 12' 11 Rings BFT/GHT 16 Leg Round Pad
5. Foundation
# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
1-4 14" 11.0 Cu. Yards 255 Sq. Ft. 15
5 15" 11.8 Cu. Yards 255 Sq. Ft. 15
6 16" 12.6 Cu. Yards 255 Sq. Ft. 15
# of
Rings
Slab
Thickness (D)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
1-4 3 56 mm 8.41 Cu. Meters 23.69 Sq. Meters 15
5 381 mm 9.01 Cu. Meters 23.69 Sq. Meters 15
6 406 mm 9.63 Cu. Meters 23.69 Sq. Meters 15
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
Grade
6" Maximum
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
15 Legs
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 19
Figure 5E 15' 1-6 Rings BFT/GHT Round Pad
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
7 14" 4" 6.3 Cu. Yards 225 Sq. Ft. 20
8 15" 4" 6.6 Cu. Yards 225 Sq. Ft. 20
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
7 356 mm 102 mm 4.82 Cu. Meters 20.9 Sq. Meters 20
8 381 mm 102 mm 5.05 Cu. Meters 20.9 Sq. Meters 20
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual installation
may vary according to local conditions. The GSI Group assumes no liability for
results arising from the use of such recommendations.
6" Maximum
Grade
20 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
Figure 5F 15' 7-8 Rings BFT/GHT 60° Round Pad
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
7 17" 4" 7.4 Cu. Yards 225 Sq. Ft. 15
8 18" 4" 7.7 Cu. Yards 225 Sq. Ft. 15
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
7 432 mm 102 mm 5.66 Cu. Meters 20.90 Sq. Meters 15
8 457 mm 102 mm 5.89 Cu. Meters 20.90 Sq. Meters 15
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
6" Maximum
Grade
15 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
Figure 5G 15' 7-8 Rings BFT/GHT 45° Hopper Tank
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 21
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
9 18" 4" 7.7 Cu. Yards 225 Sq. Ft. 20
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
9 457 mm 102 mm 5.89 Cu. Meters 20.90 Sq. Meters 20
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
6" Maximum
Grade
20 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
Figure 5H 15' 9 Rings BFT/GHT 20 Leg 45° Tank
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-4 12" 4" 8.5 Cu. Yards 350 Sq. Ft. 18
5-6 15" 4" 10 Cu. Yards 350 Sq. Ft. 18
7 16" 4" 10.9 Cu. Yards 350 Sq. Ft. 18
8 18" 4" 11.5 Cu. Yards 350 Sq. Ft . 18
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-4 305 mm 102 mm 6.5 Cu. Meters 32.52 Sq. Meters 18
5-6 381 mm 102 mm 7.66 Cu. Meters 32.52 Sq. Meters 18
7 406 mm 102 mm 8.33 Cu. Meters 32.52 Sq. Meters 18
8 457 mm 102 mm 8.79 Cu. Meters 32.52 Sq. Meters 18
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
6" Maximum
Grade
18 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 23
Figure 5I 18' 2-8 Rings BFT/GHT Hopper Tank
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
9 18" 4" 11.5 Cu. Yards 350 Sq. Ft. 24
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
9 457 mm 102 mm 8.79 Cu. Meters 32.52 Sq. Meters 24
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. the actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
6" Maximum
Grade
24 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
Figure 5J 18' 9 Rings BFT/GHT 24 Leg Hopper Tank
5. Foundation
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-6 13" 4" 11 Cu. Yards 450 Sq. Ft. 28
7 15" 4" 12.1 Cu. Yards 450 Sq. Ft. 28
8 16" 4" 12.7 Cu. Yards 450 Sq. Ft. 28
# of
Rings
Footing
Depth (D)
Slab
Thickness (T)
Concrete
Volume
Wire Mesh
Area
# of Column
Legs
2-6 330 mm 102 mm 8.41 Cu. Meters 41.81 Sq. Meters 28
7 381 mm 102 mm 9.25 Cu. Meters 41.81 Sq. Meters 28
8 406 mm 102 mm 9.71 Cu. Meters 41.81 Sq. Meters 28
GENERAL NOTES:
1. Foundation recommendations are based on 3500 lbs./ft.^2 allowable
soil bearing capacity.
2. Foundation recommendations are based on a minimum compressive
strength of 3000 PSI at 28 days.
3. The foundation site must be well drained and free of vegetation
and debris.
4. The foundation should be level within 1/4" overall and within
± 1/8" in any 10 ft. length along the anchor bolt circle.
5. Material estimates do not include allowance for shrinkage and waste.
6. These layouts are recommendations for GSI tanks only. Consult GSI
engineering for special tank foundations.
All instructions shall be construed as recommendations only. The actual
installation may vary according to local conditions. The GSI Group assumes
no liability for results arising from the use of such recommendations.
6" Maximum
Grade
28 Legs
Anchor bolt 5/8" x 8" (203 mm) bolt with a
1/8" thick x 1-3/4" O.D. washer on head.
Figure 5K 21' 2-8 Rings BFT/GHT 24 Hopper Tank
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 25

6. Sidewall Assembly

Bulk Feed Tank Assembly
Model Gauge
BFT 12'-1 Ring 18 BFT 12'-2 Ring 13-20 BFT 12'-3 Ring 13-20-20 BFT 12'-4 Ring 13-18-20-20 BFT 12'-5 Ring 12-16-18-20-20 BFT 12'-6 Ring 12-15-16-18-20-20 BFT 12'-7 Ring 12-13-15-16-18-20-20 BFT 15'-2 Ring 14-16 BFT 15'-3 Ring 14-16-20 BFT 15'-4 Ring 14-16-18-20 BFT 15'-5 Ring 12-14-16-18-20
Body Sheet Chart
BFT 15'-6 Ring 12-14-16-16-18-20 BFT 15'-7 Ring 12-14-14-16-16-18-20 BFT 15'-8 Ring 12-14-14-14-16-16-18-20 BFT 18'-2 Ring 10-16 BFT 18'-3 Ring 10-16-20 BFT 18'-4 Ring 10-16-18-20 BFT 18'-5 Ring 10-16-18-20-20 BFT 18'-6 Ring 10-14-16-18-20-20 BFT 18'-7 Ring 10-14-16-18-18-20-20 BFT 18'-8 Ring 10-14-14-16-18-18-20-20 BFT 21'-2 Ring 10-16 BFT 21'-3 Ring 10-16-20 BFT 21'-4 Ring 10-16-20-20 BFT 21'-5 Ring 10-16-17-20-20 BFT 21'-6 Ring 10-16-17-17-20-20
NOTE: * Represents 45° Bulk Tanks. All other tanks come with 60° or 45° hoppers.
How to use charts on this page
The chart titled “Body Sheet Chart” is for the reference when building the tank. This chart tells you how many rings the specific tank must have. To read the chart find the tank size you wish to build. For example, an 12' diameter tank with 4 rings will look like BFT 12'-4 rings. The side labeled “Gauge” will tell you which body sheets to use. The sheets are color coded, simply match the gauge number with the color. (Use “Sheet Gauge Color Code Chart” on Page 27.)
6. Sidewall Assembly
Slot detail
End view
Sheet Gauge Color Code Chart
Code # Color Code
20 Red 18 Orange 17 Pink/Light Blue 16 Blue 15 Brown/Red 14 Green 13 Yellow/Blue 12 Black 11 Pink 10 Light Blue
IMPORTANT: Number of rings shown for each tank size are maximums. (12' 60° Tanks have a 6 ring
maximum. 15' 45° and 18' 45° tanks have an 8 ring maximum.)
NOTE: Body sheets are color coded on edges for gauge identification.
12' Sidewall Sheet Orientation
IMPORTANT: Please note sheet orientation when assembling the bin sidewall. The upper right corner
will have a slot or identifying sticker. This corner should be on the inside of the tank when assembled. (See Figure 6A.)
Figure 6A Viewed from Inside (Sheet orientation effects how sheets overlap.)
Ref # Description
A 3/8" x 1/2" Slot (One per Sheet)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 27
6. Sidewall Assembly
Inside of tank
Sidewall Erection
12'-21' Bulk Feed Tank
12'-21' Diameters Bulk Feed Tanks are designed to be built vertically utilizing bin jacks or a crane of adequate capacity. Before bolting the sidewall sheets together, check that you have the proper gauge steel for the first ring. The higher gauge number denote the thinner materials. For example, 20 gauge material is thinner than 14 gauge. In erecting all Bulk Feed Tanks the thinnest material always goes on top, therefore the first sidewall ring you assemble will be the top ring of the tank. Check the various gauges of the tank with the color code chart and begin building accordingly. Remember assemble th e top ring first. Note ring overlap detail in Figure 6B.
NOTE: See Page 27 for proper gauges and color code chart. IMPORTANT: The number of rings shown for each tank size are maximums. (15' 60° Tanks have a
6 ring maximum, 21' 45° tanks have a 7 ring maximum. 12' 60° Tanks have a 7 ring maximum. 15' 45° Tanks have an 8 ring maximum. The 12' 45° and 18' 45° tanks have an 9 ring maximum.)
Figure 6B Ring Overlap Detail
Ref # Description
A Upper Ring B 5/16" Nut C 5/16" x 1" Bin Bolt D Caulking (Two (2) Strips) E Lower Ring
6. Sidewall Assembly
Figure 6C Caulking Detail (For 12' tanks only.)
Figure 6D Caulking Detail (For 15', 18' and 21' tanks.)
Ref # Description
A Caulking
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 29
6. Sidewall Assembly
Figure 6E
Figure 6F
IMPORTANT: BEGIN BOLTING IN THE CENTER OF SHEETS when connecting sidewall rings to one
another. When bolting sidewall rings to one another, always begin bolting in the center of the sheet and work toward the outside edges (horizontal seams). This allows the sidewall to draw up evenly.
6. Sidewall Assembly
Figure 6G
Ref # Description
A Left Panel B Right Panel C Sidewall Sheet
Once you have selected the proper gauge material, begin assembling all sidewall sheets in the following manner. Standing on the inside of the tank, place the left panel to the inside with the right panel to the outside.
NOTE: The rope caulking is applied before each sheet is assembled. Wipe sheets clean where caulking
will be applied. Apply caulking on each side of the holes of the vertical seams and on each side of the horizontal row of holes.
Using correct size bin bolt throughout, begin assembling sidewall sheet end to end (overlapping the same way throughout) until the ring is completed. All body sheet bolts are to be installed with the bolt head and its neoprene washer to the outside and the nut to the inside. Do not tighten bolts until all sheets are assembled and form a complete ring. Remember to attach lifting straps at the bottom of the vertical seams while bolting the sheets together. These straps, coupled to the jacks, will enable you to later elevate the tank. Now tighten the bolts, in sequence, starting from the center and working to the edge in both directions. This permits the sidewall sheets to draw-up evenly. Complete one ring and stop. You are now ready to assemble the roof.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 31

7. Roof

Inside of tank
(Roof reinforcement not shown for clarity.)
Inside of tank
12'-18' BFT Sealed Roof Panel Installation
Roof to Sidewall
NOTE: The roof and sidewall ladders are centered between seams. When placing the roof panel, the
one edge is bent down. This edge is to be placed on the outside of other roof panel to form a tight seal.
(See Figure 7A.) Be sure to apply two (2) strips of caulking on all seams.
Figure 7A Roof Sheet Overlap Detail
Ref # Description
A 5/16" x 1" Bin Bolt B Caulking (Two (2) S tr ips)
Roof Assembly
Assemble roof panels in a counterclockwise manner. On bins that will be equipped with pnuematic fill system (refer to Page 95), the two (2) roof panels with fill hole and exhaust hole must be located opposite each other on Bulk Feed Tank.
Ref # Description
A Caulking (Two (2) Strips) B 5/16" x 1" Bin Bolt C Roof Sheet D Sidewall Sheet
Figure 7B Eave Detail
7. Roof
B
A
B
B
D
Inside of tank
Peak Ring Collar to Roof Panels
Apply two (2) strips of caulking between peak ring and roof panels, See Figure 7D. Note that the peak ring goes on the outside of the roof panels.
Figure 7D
Ref # Description
A Peak Ring Collar
Figure 7C
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 33
B Caulking (Two (2) S tr ips) C Roof Sheet D 5/16" x 1" Bin Bolt
Figure 7E Peak Ring Collar Detail
7. Roof
Inside of tank
12' Roof Reinforcement Angle
Ref # Description
Figure 7F
A 12' Roof Inforcement Angle (Twelve (12) pieces required.)
Figure 7G
Ref # Description
A Peak ring collar mounted to outside of roof panels.
7. Roof
15' and 18' Roof Assembly Instructions
After completing first ring assembly, you are ready to begin roof construction. First, build a roof center support to hold the peak ring in place at the proper height. A simple structure consisting of a sturdy cross arm attached to a pole and supported by a platform or scaffo lding will do. Stand the center support directly in the center of the tank. The bottom of the peak ring should be 89-5/16" (2269 mm) above the foundation on the 18' tank and 78-15/16" (2005 mm) above it on the 15' tank. These dimensions are approximate ones used in BFT construction. Adjusting the center support height will ease roof erection. Refer to the accompanying drawings for details. Install six (6) roof reinforcement angles spaced equally around the tank. Reinforcement angle edges are parallel with sidewall sheet and peak ring, see views “A-A”
on Page 36 and “D-D” on Page 37.
The reinforcement angles utilize every other hole in the peak ring. At the sidewall, there are twelve (12) spaces between each reinforcement angle on the 18' tank and ten (10) spaces between each on the 15' tank. Next, “skin” the roof by installing the roof panels on the just completed reinforcement structure. Reinforcement angles will share all roof panels holes, including hole where panel and peak ring attach. Ensure that all roof seams are caulked and lapped correctly as shown in the accompanying detail drawings.
Figure 7H
Ref # Description
A Roof Reinforcement Angle B Sidewall Sheet C Roof Compression Straps
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 35
7. Roof
15' and 18' Roof Assembly Instructions (Continued)
Figure 7I View “A”-“A” Figure 7J View “B”-“B”
Ref # Description
A Roof Panel B Caulking (Two (2) S trip s) C Intermediate Eave Clip D Sidewall Sh eet E Reinforcement Angle
NOTE: Reinforcement angle edge is parallel
F
to sidewall sheet. (Angle can be installed correctly only one way.)
Ref # Description
A Roof Panel B Compression Strap C Reinforcement Angle
15' and 18' Roof Assembly Instructions (Continued)
7. Roof
Figure 7K View “C”-“C” Figure 7L View “D”-“D”
Ref # Description
A Roof Panels B Caulking (Two (2) Strips) C Reinforcement Angle
Ref # Description
A Peak Ring B Caulking (Two (2) Strip s) C Roof Panel D Reinforcement Angle E NOTE: Reinforcement angle edge is parallel
to peak ring.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 37
7. Roof
Raising the Roof
NOTE: See 30° roof manual (PNEG-1092) in roof hardware box for instructions on 12', 15', 18' and
21' grain bin roof.
Figure 7M
Ref # Description
A Anchor Cable B Anchor Jacks Securely
Anchor Tank Before Second Ring Assembly
Anchor all jacks securely with metal stakes and cables (use one jack per sidewall sheet). Now raise the tank just enough to assemble the next ring. When lifting the tank crank all jacks at an equal rate. This will prevent bowing previously assembled rings and make for easier hole alignment. To the inside of the first ring bolt the next ring. Be sure to stagger the sheets and select the proper gaug e material. Lower the tank on the foundation after assembling and tightening bolts on each new ring. Now re-bolt lifting straps t o the lowest ring in place thus far.
NOTE: Add outside ladders and other accessories to tank walls as you continue to raise the tank. After body sheets are assembled and bolts are tightened, raise the tank and attach the legs. Do not put a
bolt in the bottom sidewall hole yet, because the hopper must be attached here. When the legs are in place and tightened, release the jack enough to rest the tank on the legs.
7. Roof
Watch for power lines. The crane and anything associated with building the bin (due to height) can get in the way of power lines.
Leg
Figure 7N
A crane of adequate capacity attached to a spider assembly with cables connecting at each vertical sidewall seam just above the legs can also be used to lift the tank. Make sure the tank is being lifted smoothly and evenly. Raise it enough to assemble the next ring and/or to attach the legs. Reference a qualified rigger.
WARNING
12' 60° and 15' 60° Leg Attachment (for 12' 60° and 15' 60° Tanks Only)
Curved washers are supplied in the hardware packages. These washers must be installed at the bottom leg to sidewall bolt connection, to the inside of the hopper panel as indicated in Figure 7O. Apply caulking between the hopper panel and the sidewall sheet.
Ref # Part # Description
A S-7484 Hex Nut 5/16"-18 JS Grade 5
B BLK-12483 10 Gauge Curved Washer C S-10260 5/16" x 1" Bin Bolt D Sidewall Sheet
E Hopper Panel
Figure 7O
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 39

8. Optional BFT Ladder Assembly

See Page 41 for proper
orientation of bracket.
Optional BFT Ladder Assembly
The components needed to complete the eave ladder assembly are listed in the chart below and are numbered in the order of assembly. Review the installation instructions for each component before beginning. Failure to do so may complicate the installation and cause unnecessary field drilling.
(See Figure 8A.)
Figure 8A
Ref # Description Qty
A L.H. Starter Bracket 1 B R.H. Starter Bracket 1 C Top 4' Ladder Section 1 D Connector Bracket 2 E Roof Ladder Section 1 F Roof Ladder Support Bracket 4 G Standoff Bracket 2 H Wedge 6
8. Optional BFT Ladder Assembly
Starter Bracket Installation
The starter brackets must be centered in the roof sheet to ensure proper installation of the roof ladder support brackets. Before the starter brackets can be installed, two (2) 3/8" holes must be drilled. The holes must be 2.66" below and directly in line with the top row of pre-punched horizontal holes 18-3/4" apart. Refer to Figure 8B for additional clarification of hole locations. Use 5/16" and 3/4" bin bolts for connections.
Figure 8B
Ref # Description
A Two (2) 3/8" Field Drilled Holes B Roof Panel C Top Horizontal Seam D 3/8" Field Drilled Holes E Sidewall Sheet
L.H. 30° Roof (LDR-5405) and R.H. 30° Roof (LDR-5406)
F
L.H. 40° Roof (LDR-5407) and R.H. 40° Roof (LDR-5408)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 41
8. Optional BFT Ladder Assembly
Failure to follow instructions may cause damage or failure of the equipment.
Sidewall and Roof Ladder Installation
Check the sidewall ladder to make sure the ladder rung dimples face upward. Attach the ladder to the sidewall with the starter brackets to the inside of the ladder and the connector brackets to the outside as shown in Figure 8C. Once the sidewall ladder is installed, attach the roof ladder to the other end of the connector brackets. All bolts should be installed with the head of the bolt to the inside of the ladder. Use 5/16" x 1" bin bolts for all connections.
NOTE: The roof ladder must be one continuous ladder section. The roof la dder cannot
two (2) or more smaller ladder sections spliced together. See chart below for required roof ladder lengths vs bin diameter and roof angle.
WARNING
Roof Ladder Length
Bin Diameter
30° Roof 40° Roof
12' 6' 7' 15' 8' 9' 18' 9' N/A
be assembled from
Figure 8C
Ref # Part # Description
LDR-4318 30° Connector Bracket D S-10260 5/16" x 1" Bin Bolt
A
LDR-4367 40° Connector Bracket E Sidewall Ladder
B S-845 5/16" Flat Washer F Roof Ladder
C S-7484 Hex Nut 5/16"-18 JS Grade 5
Ref # Part # Description
8. Optional BFT Ladder Assembly
Failure to follow instructions may cause damage or failure of the equipment.
WARNING
Slide
Slide
Roof Ladder Support Bracket Installation
The roof ladder requires support brackets at the top of the ladder. These upper ladder support brackets either bend in towards the center of the ladder or bend out away from the ladder depending on the diameter and roof angle of the tank being assembled. See Figure 8D below and Figure 8I on Page 47 that show brackets for the 12'-30° and 12'-40° roofs. See Figure 8E on Page 44 and Figure 8J on Page 47 that show brackets for 15'-30° and 15'-40° roofs. See Figure 8F on Page 45 and Figure 8K on Page 47 that show brackets for 18'-30° roofs. Assemble the wedge and support brackets to the ladder rail as shown in Figure 8G and Figure 8H on Page 46. Then, slide the support bracket assemblies along the ladd er rails as shown in Figure 8D below, Figure 8E on Page 44 and Figure 8F on Page 45 until the slots match up with the pre-punched holes in the roof panel and attach using the existing bolts.
NOTE: The roof ladder supports must be assembled so that the maximum distances are not exceeded.
See Figure 8L on Page 48 and the “maximum distances chart” to determine maximum allowable
spacing of support brackets.
Figure 8D 12' Tank
Ref # Part # Description
LDR-5403 30° Support Bracket
A
LDR-5404 40° Support Bracket
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 43
Ref # Part # Description
LDR-4386 30° Support Bracket
B
LDR-4387 40° Support Bracket
8. Optional BFT Ladder Assembly
Slide
Slide
Roof Ladder Support Bracket Installation (Continued)
Figure 8E 15' Tank
Ref # Part # Description
LDR-4386 30° Support Bracket (Two (2) on Each Side)
A
LDR-4387
40° Support Bracket (Two (2) on Each Side)
8. Optional BFT Ladder Assembly
Slide
Slide
Roof Ladder Support Bracket Installation (Continued)
Figure 8F 18' Tank
Ref # Part # Description
A LDR-5426 30° Support Bracket B LDR-5425 30° Support Bracket
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 45
8. Optional BFT Ladder Assembly
Roof Ladder Support Bracket Installation (Continued)
Figure 8G Figure 8H
Ref # Part # Description
A LDR-4198 Wedge B S-3550 5/16" x 1" Carriage Bolt
LDR-5403 30° Support Bracket
C
LDR-5404 40° Support Bracket LDR-4386 30° Support Bracket
D
LDR-4387 40° Support Bracket E S-10268 Flange Nut 5/16"-18 JS Grade 5 F Ladder
8. Optional BFT Ladder Assembly
Top view for these tanks:
All 12' diameter 30° sealed roofs. All 12' diameter 40° sealed roofs.
(Not to scale.)
Top view for these tanks:
All 15' diameter 30° sealed roofs.
All 15' diameter 40° sealed roofs.
(Not to scale.)
Top view for these tanks:
All 18' diameter 30° sealed roofs.
(Not to scale.)
Roof Ladder Support Bracket Installation (Continued)
Figure 8I 12' Tank
Figure 8K 18' Tank
Ref # Part # Description
LDR-5403 30° Support Bracket
A
LDR-5404 40° Support bracket LDR-4386 30° Support Bracket
B
LDR-4387 40° Support bracket LDR-5425 30° Support Bracket
C
LDR-5426 30° Support Bracket
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 47
Figure 8J 15' Tank
8. Optional BFT Ladder Assembly
Roof Ladder Support Bracket Installation (Continued)
Figure 8L Maximum Allowable Distance
Maximum Distances Chart “A” “B” “C”
Maximum allowable distance between ladder support bracket and the edge of the ladder at the eave.
Maximum allowable distance between roof ladder support brackets.
Maximum allowable distance between ladder support bracket and edge of ladder at peak.
50 Inches
46.5 Inches
10 Inches
8. Optional BFT Ladder Assembly
Ladder Standoff Installation
With the sidewall ladder in place, standoff brackets must be installed on the ladder and attached to the sidewall at each horizontal seam (every 32"). Start by assembling the standoff bracket and wedge t o the ladder rail as shown in Figure 8M. Then, slide the standoff assembly along the ladder rail until the standoff is in line with the pre-punched hole in the horizontal seam and attach to the sidewall using 5/16" x 1" bin bolts.
Figure 8M
Ref # Description
A Roof Ladder B Connector Bracket C Starter Bracket D Sidewall Ladder E Standoff Bracket (Two (2) Per Seam) (LDR-4314) F Horizontal Seam
G 32" Typical
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 49
8. Optional BFT Ladder Assembly
NOTE: Leave bolt loose until cage
hoop half has been attached.
Top view
Ladder Section Assembly
Two (2) splice plates are required to attach each additional ladder section. The head of the bolt should be to the inside of the ladder with the splice plate on the outside as shown in Figure 8N. Use 5/16" x 1" bolts for all connections.
NOTE: With most installations, the last ladder section to reach the concrete will need to be cut to fit.
Figure 8N
Ref # Part # Description
A LDR-4317 Splice Plate (Two (2) per Connection) B LDR-4314 Standoff Bracket C S-10268 Flange Nut 5/16"-18 JS Grade 5 D S-3550 5/16" x 1" Carriage Bolt E LDR-4198 Wedge F Ladder G Ladder Sections
8. Optional BFT Ladder Assembly
Ladder Support Detail
The ladder must be secured to the leg assembly with standoff brackets using support channels as shown in Figure 8O.
Ref # Description
A Support Channel B Ladder Standoff Bracket (LDR-4314) C 5/16" x 1" Hardware
Figure 8O
Ladder Decal Application
Apply the ladder load limit decal (DC-2307) at eye level on the inside of the ladder rail. Make sure the ladder surface is clean and dry before application. (See Figure 8P.)
DANGER
> 300 lbs
(136 kg)
DO NOT EXCEED LADDER LOAD LIMIT
Load limit = 300 LBS (136 kg)
Excessive load will damage ladder resulting in injury or death.
DC-2307GSI Group, 217-226-4421
Figure 8P
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 51

9. Ladder Handrails

Failure to follow instructions may cause damage or failure of the equipment.
Handrail Installation for Ladder System Without Safety Cage
Handrail Gusset and Handrail Installation
For ladder systems without safety cages, handrails are required. Begin installation by sliding a handrail bar assembly through the top rung of the sidewall ladder and another handrail bar assembly through the second rung of the roof ladder as shown in must be assembled as shown in the ladder rungs. The handrail bar assembly pieces will be bolted together when the han drail gussets and handrails are installed. Position the left hand bottom handrail gusset so that outer most hole lines up with the outer most hole of the handrail bar assembly. Clamp in place using the wedges, 5/16" x 1" carriage bolt and 5/16" flange nuts as shown in assembly as shown. Position the left hand top handrail gusset so that the outer most hole lines up with the outer most hole of the handrail bar assembly. Clamp in place using the wedges and hardware as shown in
Figure 9E on Page 56
installation of the handrail tubes. Repeat handrail gusset and wedge installation for the opposite side of the ladder. Install the handrail tubes using the 5/16" hardware as shown in wedge hardware when necessary to obtain the proper fit of the handrail tubes. Tighten all hardware to complete the assembly.
See Figure 9G on Page 58 and Figure 9H on Page 59 for detail.
Figure 9A
Figure 9B on Page 53 and Figure 9C on Page 54
Figure 9D on Page 55
. All four (4) pieces of LDR-5421, LDR-5414 (2) and LDR-5422
and installed through
. Bolt the handrail gusset to the handrail bar
. It will be necessary to loosen the wedge hardware slightly to allow proper
Figure 9F on Page 57
loosening the
WARNING
Ref # Part # Description Qty
LDR-5421
A
LDR-5414 2 LDR-5422 1 LDR-5421
B
LDR-5414 2
LDR-5422 1 C Roof Ladder D Sidewall Ladder
Handrail Bar Assembly
(See Figure 9B on Page 53.)
Handrail Bar Assembly
(See Figure 9C on Page 54.)
1
1
Figure 9A
9. Ladder Handrails
Exploded view
Assembled view
Exploded view
Assembled view
Handrail Installation for Ladder System Without Safety Cage (Continued)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 53

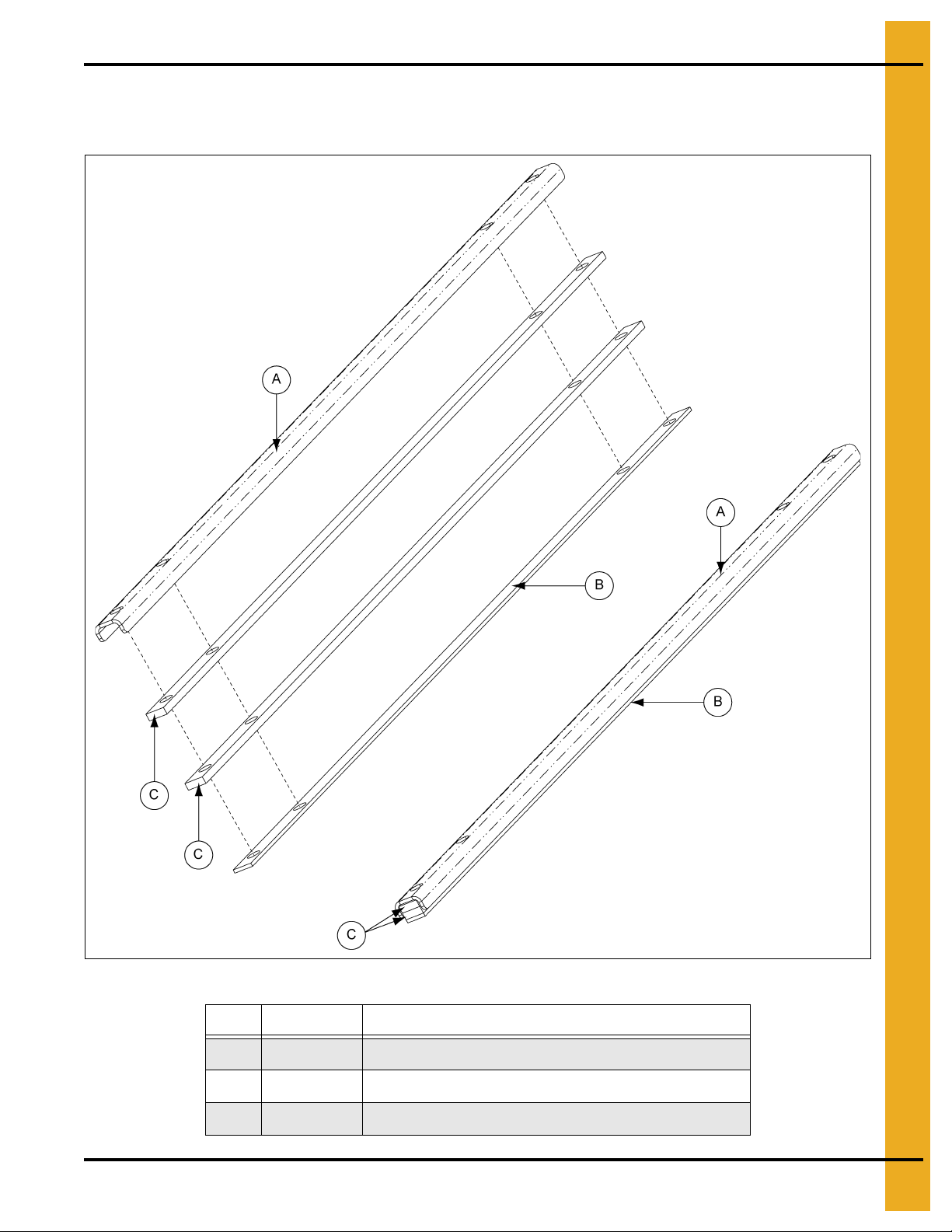

Figure 9B
Ref # Part # Description
A LDR-5421 BFT Handrail Support Channel B LDR-5422 BFT Handrail Support Channel Reinforcement 12 Gauge C LDR-5414 BFT Handrail Support Channel Reinforcement
9. Ladder Handrails
Exploded view
Assembled view
Handrail Installation for Ladder System Without Safety Cage (Continued)
Figure 9C
Ref # Part # Descriptio n
A LDR-5422 BFT Handrail Support Channel Reinforcement 12 Gauge B LDR-5414 BFT Handrail Support Channel Reinforcement C LDR-5421 BFT Handrail Support Channel
9. Ladder Handrails
Handrail Installation for Ladder System Without Safety Cage (Continued)
Figure 9D
Ref # Part # Description Ref # Part # Description
LDR-5417 Bottom Handrail Gusset L.H. E S-10268 Flange Nut 5/16"-18 JS Grade 5
A
LDR-5418 Bottom Handrail Gusset R.H. F S-3550 5/16" x 1" Carriage Bolt B S-7484 Hex Nut 5/16"-18 JS Grade 5 G Ladder C S-4276 5/16" x 1-1/4" Hex Head Bolt H Handrail Bar Assembly D LDR-4198 Ladder Standoff Wedge
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 55
9. Ladder Handrails
Handrail Installation for Ladder System Without Safety Cage (Continued)
Figure 9E
Ref # Part # Description Ref # Part # Description
A LDR-4198 Wedge (Two (2) per Side) E S-7484 5/16" Nut (One Per Side)
B S-10268 5/16" Flange Nut (Two (2) per Side) C S-3550 5/16" x 1" Carriage Bolt (Two (2) per Side) LDR-5416 Top Handrail Gusset R.H. D S-4276 5/16" x 1-1/4" Hex Head Bolt (One per Side) G Handrail Bar Assembly
LDR-5415 Top Handrail Gusset L.H.
F
9. Ladder Handrails
Handrail Installation for Ladder System Without Safety Cage (Continued)

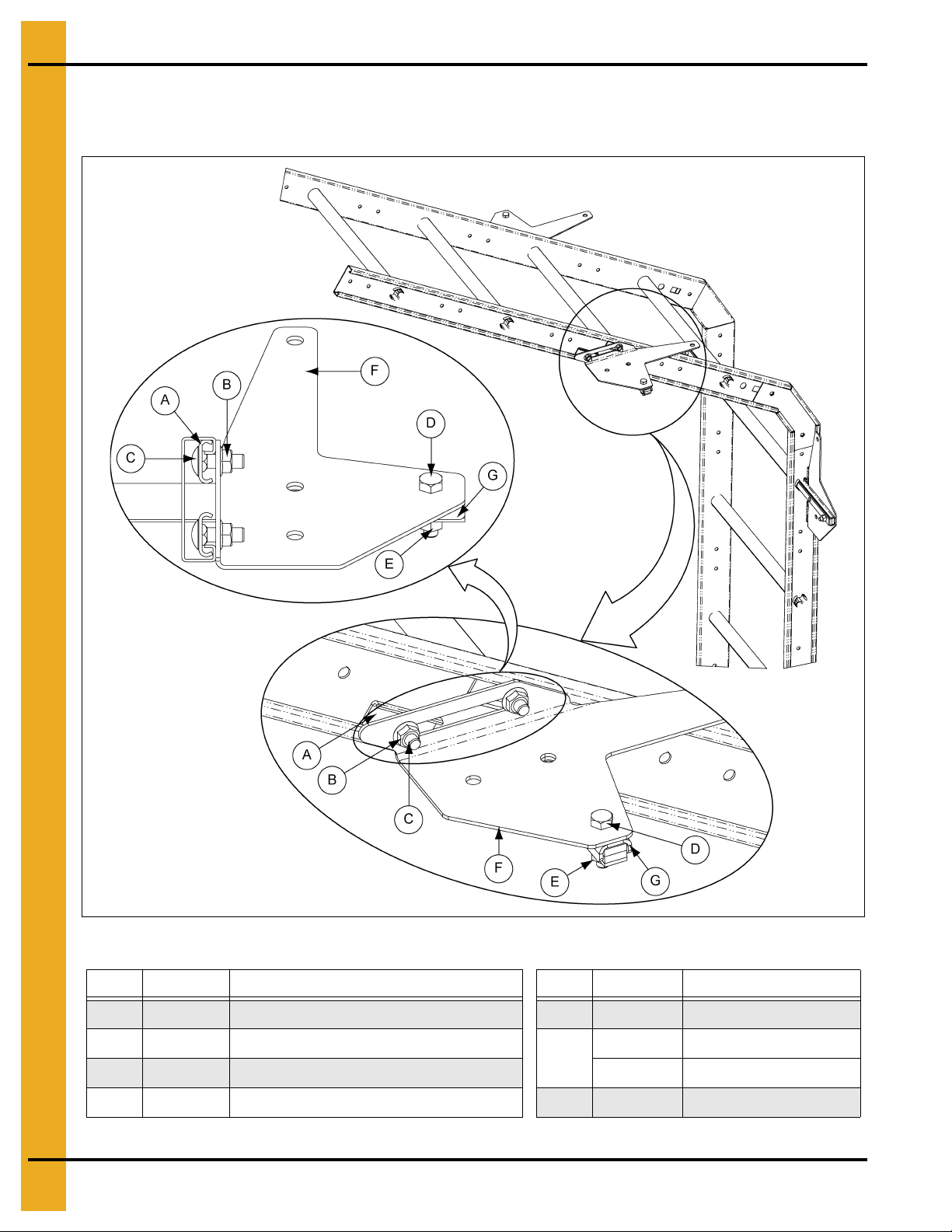

Figure 9F
Ref # Part # Description
A LDR-5416 Top Handrail Gusset R.H. B S-7076 5/16" x 2-1/2" Hex Head Bolt (4)
C S-7877 5/16" x 2" Hex Head Bolt (8)
LDR-5423 30° Handrail
D
LDR-5424 40° Handrail E LDR-5418 Bottom Handrail Gusset R.H. F LDR-5417 Bottom Handrail Gusset L.H.
G S-7484 Hex Nut 5/16"-18 JS Grade 5 (12) H LDR-5415 Top Handrail Gusset L.H.
I Roof Ladder J Sidewall Ladder K Handrail Bar Assembly
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 57
9. Ladder Handrails
Handrail Installation for Ladder System Without Safety Cage (Continued)
Figure 9G Handrails Fully Assembled
Ref # Part # Description
A LDR-5416 Top Handrail Gusset R.H.
LDR-5423 30° Handrail
B
LDR-5424 40° Handrail C LDR-5418 Bottom Handrail Gusset R.H. D LDR-5417 Bottom Handrail Gusset L.H. E LDR-5415 Top Handrail Gusset L.H.
F Roof Ladder
G Sidewall Ladder
9. Ladder Handrails
Handrail Installation for Ladder System Without Safety Cage (Continued)
Figure 9H
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 59

10. Safety Cage

Ladder System With Safety Cage
Extension Rail Installation
Before the safety cage can be installed, the ladder extension rails must be attached. Start by bolting the spacer brackets through the top and bottom set of holes in the top ladder section. Then, attach the extension rail to the spacer brackets as shown in Figu re 10 A. When installed correctly, the bottom of the extension rail should be flush with the bottom of the top ladder section. Use 5/16" x 1" bin bolts for all connections.
Figure 10A
Ref # Description
A 8' RFB Extension Rail B Spacer Bracket (LDR-4403) C Top Ladder Section
10. Safety Cage
Eave Adjustable Braces
The adjustable braces must be attached at this time. A large diameter tube and two (2) smaller tubes are used to make up one adjustable brace. Slip the smaller tubes inside the larger tubes and attach one smaller tube to the top of the ladder extension rail. Adjust the other smaller tube so the bottom of the flattened tube reaches the roof panel. Field drill four (4) 5/16" holes through both large and small tubes and bolt together using 1/4" x 1-1/2" bolts and nuts. This prevents the adjustable braces from slipping.
(See Figure 10B.)
Figure 10B
Ref # Description
A End Tube (LS-6616)
B Field drill 5/16" holes four (4) per brace
C 3/8" Field drilled hole one per brace
D Center Tube (LS-6615)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 61
10. Safety Cage
Safety Cage Hoop Assembly
To complete the safety cage hoop installation, some pre-assembly is required. Attach four (4) safety cage brackets to the extension rails and two (2) safety cage brackets to the second 4' ladder section as shown in Figure 10C. See cage hoop bracket detail on Page 63 for proper installation. Next, bolt each set of safety cage hoop halves together using 5/16" x 1" bolts with the head of the bolt to the inside of the safety cage. You may now bolt these assemblies to the safety cage brackets. Tighten bolts as you go.
Figure 10C
Ref # Description
A 48" Typical Bottom to Bottom B Extension Rail C Cage Hoop Bracket D Safety Cage Hoop Halves (LDR-4201) E Ladder Section
Cage Hoop Bracket Detail
Top view
NOTE: Leave bolt loose until cage
hoop half has been attached.
10. Safety Cage
Figure 10D Figure 10E
Ref # Part # Description
A S-3550 5/16" x 1" Carriage Bolt B LDR-4198 W edge C LDR-4199 Cage Hoop Bracket D S-10268 Flange Nut 5/16"-18 JS Grade 5 E Extension Rail/Ladder
Ref # Part # Description
A LDR-4198 Wedge B S-3550 5/16" x 1" Carriage Bolts C LDR-4201 Safety Cage Hoop Half D S-10268 Flange Nut 5/16"-18 JS Grade 5 E LDR-4199 Cage Hoop Bracket
F Extension Rail/Ladder
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 63
10. Safety Cage
Safety Cage Installation
Vertical Supports
After all three (3) hoop assemblies are in place, attach the 48" vertical supports from hoop assembly to hoop assembly as shown in Figure 10F. This requires fourteen (14) supports, seven (7) between each set of hoops. The second set of vertical supports must be bent at the flat area to allow for the tap ering of the bottom hoop assembly. Use 5/16" x 1" bolts with the head of the bolt to the inside of the safety cage.
Figure 10F
Ref # Part # Description
A LS-6713 Safety Cage 48" Vertical Supports
10. Safety Cage
48" Safety Cage
Attach the vertical support pieces to the existing hoop halves above using 5/16" x 1" bolts and nuts with the head of the bolt to the inside of the safety cage. Fasten two (2) hoop halves together and bolt to o ther end of vertical supports. Attach cage hoop bracket to ladder. See cage hoop bracket detail on Page 63. Once cage hoop brackets are installed, attach cage hoop halves and tight en bolts. Repeat installation for each safety cage required.
Figure 10G
Ref # Part # Description
A LS-6713 Safety Cage 48" Vertical Support B LDR-4201 Safety Cage Hoop Half
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 65
10. Safety Cage
24" Bell
48" Bell
24"-48" Safety Cage Bell Section
Attach the vertical supports to the hoop half assembly from the final safety cage installation using 5/16" x 1" bolts and nuts with the head of the bolt to the inside of the safety cage. Assemble the special bell hoop halves and attach to the other end of the vertical supports. The vertical supports must be bent at the flat area to allow for the angle of the bell section. Attach the safety cage brackets to the ladder as shown in Figure 11A on Page 67. Once the safety cage brackets are installed, attach the bell safety ca ge hoop half assembly to the safety cage brackets. Tighten bolts as you go.
Figure 10H
Ref # Part # Description
A LS-6714 24" Vertical Support B LS-4202 Safety Cage Bell Hoop Half C LS-6713 48" Vertical Support

11. Roof Cap and Ground Control

See Figure 11B on Page 68.
See Figure 11I on Page 72.
See Figure 11J on Page 72.
IMPORTANT: Adjust chain
in this area as explained.
Roof Cap and Ground Control Instructions
Additional Tools and Materials Needed:
•Clamp
• Assorted Wrench Set
• Ratchet and Socket Set
NOTE: Roof cap ground control comes standard on 12'-60° Bulk Feed Tanks. Roof cap ground control is
optional on all 45° Bulk Feed Tanks. (See Figure 11A.)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 67
Figure 11A
Ref # Desc ription
A
Lever Arm
B Roof Eave Bracket
11. Roof Cap and Ground Control
F
G
1. With the lid closed, align the ho le in the lever arm with the hole in the bin lid. Insert 1/2" bolt through the hole and fasten with the nylock nut using 3/4" wrench and ratchet. NOTE: DO NOT over tighten.
This is a pivot bolt and the lever arm must be able to pivot freely.
Ref # Description
A
Nut B Lever Arm C Key Ring DChain E Bolt F Mounting Brackets G Clamp H Bracket should extend over flange.
Figure 11 B Install Lever Arm and Chain
2. Place the lid assembly over the existing peak ring collar and rotate lid assembly such that the lever arm and spring hinge line up with the roof eave bracket, See Figure 11A on Page 67. Use a clamp to pull the mounting brackets together. Slide the 3/8" carriage bolt supplied through the mounting bracket and loosely fasten with nut, See Figure 11C. Remove clamp and tighten the bolt with 9/16" ratchet, ensuring that the vertical flange tightens past the left edge of the top, horizontal flange, See Figure 11E on Page 69.
Figure 11C Mount Lid to Peak Ring
11. Roof Cap and Ground Control
F
B
H
Figure 11D
Figure 11E Tighten Bolt s Until Flush with Bracket
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 69
11. Roof Cap and Ground Control
The control arm is spring loaded. It must be released while on the ground and before attaching it to the peak ring. Failure to do so will result in serious injury.
NOTE: The steel roof cap is used on GHT series bins.
Figure 11F
IMPORTANT: Make sure the loop of the main cap spring (BLK-11623) is held securely in the pre-loaded
position by the head of the 5/16" bolt beneath. (See Figure 11F.)
Figure 11G
IMPORTANT: If necessary, place one or more 5/16" flat washers under the bolt head to ensure that the
bolt catches the loop. (See Figure 11G.)
WARNING
11. Roof Cap and Ground Control
Ground control
latch details
Control arm details
Figure 11H
Control Arm and Ground Control Parts List
Ref # Part # Description
A BLK-11735 Control Arm B BLK-11876 Nylon Grommet with Nut C BLK-11623 Flush Cap Main Spring D S-10260 Flange Bolt 5/16"-18 x 1" JS with Sealing Washer E S-845 Flat Washer 5/16" USS SAE YDP Grade 2 F BLK-11842 L ower Cap Hinge G BLK-11734 Upper Cap Hinge H S-7329 5/16''-18 x 2'' Hex Head Bolt
I BLK-10015 Bulk Tank Roof Cap
J S-5220 5/16''-18 Hex Lock Nut (Grade 2) K BLK-11503 1-7/8'' Long Spring Spacer L BLK-11730 1 Piece Bulk Tank Peak Ring
M S-7171 3/8''-16 x 6-1/2" Hex Head Bolt (Grade 5) N S-3214 7 /8''-9 Hex Nut (Grade 2) O BLK-11845 Latch Counterweight
P S-7281 7/8''-9 x 1-1/2" Hex Head Bolt
Q BLK-11844 Peak Cap Latch R BLK-11795 15/16'' x 3/4" Diameter Plastic Spacer
S BLK-11843 Pivot Bracket T BLK-11846 Ca p Hold-Down Bracket
U S-4663 3/8''-16 Hex Head Lock Nut
V Right Hinge Attachment Holes
W Spring Stop Attachment Holes
X Left Hinge Attachment Holes
NOTE: Use the above chart for control arm and ground control details.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 71
11. Roof Cap and Ground Control
Note: Position handle for
easy access from ground.
3. Thread the existing chain through the hole on the end of the lever arm and fasten it to the provided key ring. (See Figure 11B on Page 68.) Ensure that the ground control chain is freely looped through the roof eave bracket and chain holder. After removing the slack in the chain while the lid is fully closed and in latched position, re-position the key ring 2" below the roof eave bracket.
(See Figure 11I.) Re-adjust the existing handle and key ring so the handle is positioned for easy
access from ground. (See Figure 11J.) Check to make sure that the key rings allow the cap to fully close, but will not allow the chain enough slack on top of the cap to become wrapped around the lever arm in a high wind condition.
Figure 11I
Figure 11J
Ref # Description Ref # Description
A Roof Eave Bracket (BLK-11950) C Chain Holder (BLK-11949) B Key Ring
D Handle
11. Roof Cap and Ground Control
DC-2123
4. Install the decal DC-2123 to the inside of peak ring on the hinge side of the lid as show n in Decal should be clearly visible when lid is open.
Figure 11K
.
Figure 11K
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 73
11. Roof Cap and Ground Control
A
A
Roof Cap
Bulb Seal Kit (Optional)
Figure 11L
Cap Hold-Down Package
Ref # Part # Description
A BLK-10472 Bulb Seal B S-7120 5/16'' x 3-1/2'' Bolt C CRP-4654 Cap Hold-Down D CRP-4639 Cap Hold-Down Bracket E BLK-10022 Cap Latch F Right Hinge Attachment Holes G Left Hinge Attachment Holes
Figure 11M
Bulb seal is pressed into place around the lip of the peak ring.
NOTE: Bulb seal kit is included with all pneumatic fill kits. When ordered as a separate option, specify
part# BLK-10472.
Cap hold-down package comes standard on all 45° hopper bulk tanks. Optional on all 60° hopper bulk tanks.
BFT Collar Assembly (BLK-13062)
11. Roof Cap and Ground Control
Figure 11N
BFT Collar Assembly (BLK-13062) Parts List
Ref # Part # Description Qty Ref # Part # Description Qty
A BLK-13059 BFT, Lid Clamp Band 1 M BLK-13048 Leverage Arm - BFT Lid 1 B BLK-13061 BFT, Lid Clamp Band Bracket - Right 1 N BLK-13068 B FT, Lid Magnet 1 C BLK-13065 BFT, Lid Clamp Band Bracket - Left 1 O BLK-13058 Retainer, Magnet, BFT Lid 1
D BLK-13038 Support, Spring BFT 2 P S-8314 E BLK-13064 BFT, Lid Pivot Tube 1 Q S-8260 Nylock Nut 1/2"-13 ZN Grade 5 1
F BLK-13053 Bumper, Reinforced Rubber Belting 1 R S-8234 Nylock Nut 7/16"-14 ZN Grade 2 1 G BLK-13066 BFT, Lid Clamp Band Bracket - Right 1 S S-7645 H BLK-13067 BFT, Lid Clamp Band Bracket - Left 1 T S-7382 Nylock Nut 5/16"-18 ZN Grade 5 8
I BLK-13070 BFT, Lid 1 U S-9085
J BLK-13027 Spring, L.H. Rear 1 V S-7236 K BLK-13028 Spring, R.H. Rear 1 W S-7383 Nylock Nut 3/8"-16 ZN Grade 5 1
L S-10121 Bolt, HHCS 7/16"-14 x 9" ZN Grade 5 1 X S-10138 Bolt, FHSCS #10-32 x 3/8" ZN 2
Bolt, HHCS 1/2"-13 x 3-1/2" YDP Grade 8
Carriage Bolt 5/16"-18 x 3/4" ZN Grade 5
Carriage Bolt 3/8"-16 x 3-1/2" ZN Grade 5
Rivet, POE 3/16" Diameter x
0.565" Long ARSM
1
8
1
7
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 75

12. Hopper Assembly

NOTE: Every hole in hopper sheet will be util ized.
Use 5/16" x 3/4" truss head bolt on hopper seams. (T russ head goes on inside of hopper.)
Inside of tank
Hopper Sheets
When starting to attach hopper sheets to sidewall it is recommended that the first hopper sheet seam be positioned halfway between leg positions. Lap the hopper sheets as shown in Figure 12A. Apply two (2) strips of caulking on all seams at sidewall to hopper and hopper sheet to hopper sheet. Use 5/16" x 1" bin bolts (head to outside of tank) for attaching hopper sheets to bottom sidewall sheet. Use truss head bolts to attach hopper sheet to hopper sheet. Be sure to place the head of the truss head bolt on the inside of the hopper. Leave one hopper sheet out to allow room to install the hopper collar. Be sure to use two (2) strips of caulking between hopper collar and hopper sheets, then put last hopper sheet in place. After the collar is in place, attach the hopper braces and tighten all bolts.
Figure 12A
Ref # Description
A Sidewall Sheet B Use Two (2) Strips of Caulking C Hopper Sheet D Use 5/16" x 1" Bin Bolt (Hopper sheet to sidewall sheet only.)
15' 60°, 18' 45° and 21' 45°
Install hopper sections. When starting to attach hopper sheets to sidewall it is recommended that the first hopper sheet seam be positioned halfway between leg positions. Lap the hopper sheets as shown. Use 5/16" x 1" bin bolts (head to outside of tank) for attaching hopper sheets to bottom sidewall sheet. Use truss head bolts to attach hopper sheet to hopper sheet. Be sure to place the head of the truss head bolt on the inside of the hopper. Caulk all seams (double bead). Remember, the hopper collar must be installed before the last hopper section is in place. Clean any caulking, which may have squeezed out during assembly, off the inside of the hopper. After the collar is in place, attach the hopper braces and tighten all bolts.
Hopper Sheets (Continued)
Stagger hopper sheets as shown.
Stagger hopper sheets as shown.
12. Hopper Assembly
Figure 12B 15' 60° Two-Piece Hopper Overhead View of 15' 60° Hopper Sheet Assembly
Figure 12C 18' and 21' Two-Piece Hopper Overhead View of 18' 45° and 21' 45° Hopper Sheet Assembly
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 77
12. Hopper Assembly
Inside of tank
Inside of tank
Hopper Sheets (Continued)
Figure 12D 15' 60° Hopper Sheet Detail Figure 12E
Ref # Description
A Bottom Sidewall Sheet B Caulking C Top Hopper Panel D Caulking E Bottom Hopper Panel
Ref # Description
A Hopper Panel B 5/16" x 3/4" Truss Head Bolt C Flange Nut
Hopper Sheets (Continued)
Inside of tank
Inside of tank
12. Hopper Assembly
Figure 12F 22" Hopper Collar Detail Figure 12G 16" Hopper Collar Detail
Ref # Description
A 5/16" x 3/4" Truss Head Bolt B Flange Nut C 22" Hopper Collar
NOTE: Every hole in hopper sheet will be utilized. Use 5/16" x 3/4" truss head bolt on hopper seams.
(Truss head goes on inside of hopper.)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 79
12. Hopper Assembly
Bolt head to be on inside of hopper.
Hopper Collar Assembly
45° 22" Hopper collar (BLK-10854) 60° 22" Hopper collar (BLK-10342) Install hopper collar before all hopper panels are assembled. Use 5/16" truss head bolts on all hopper
seams, as shown in the Figure 12H. Be sure to caulk between the hopper collar and hopper panels. Refer to Figure 12I and Figure 12J on Page 81.
16" 45° Hopper extension panel (BLK-10697) (three (3) required) 16" 45° Hopper collar (BLK-10696) 16" 60° Hopper extension panel (BLK-10487) (three (3) required) 16" 60° Hopper collar (BLK-10489) Prior to attaching the final hopper panel, assemble the hopper extensions (if utilized) on the h opper collar.
Use 5/16" truss head bolts and caulk all joints on the hopper extensions and collar. After completing this assembly, attach to the hopper panels, using 5/16" truss head bolts. Be sure to caulk between hopper extensions and hopper panels. (See Figure 12I and Figure 12J on Page 81.)
Figure 12H Hopper Seam Overlap Detail
Ref # Description
A 5/16" x 3/4" Truss Head Bolt B Flange Nut
C Caulking (Two (2) Strips)
Hopper Collar Assembly (Continued)
Figure 12I 22" Hopper Collar
12. Hopper Assembly
Figure 12J 16" Hopper Extensions and Collar
Ref # Description
A 22" Hopper Collar B 16" Hopper Collar C 22"-16" Hopper Extension
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 81

13. Legs and Leg Bracing

Leg
12' Only
Figure 13A
Ref # Part # Description
A BLK-10057 Back Leg Anchor Plate (has One Tab) B BLK-10058 Front Leg Anchor Plate (has Two (2) Tabs)
Figure 13B
Figure 13C
13. Legs and Leg Bracing
Leg
Insert bolts from inside to outside on all leg to tank connections.
Installation of Leg to Sidewall
Figure 13D
Use 5/16" x 1" bin bolts and nuts when attaching the leg to base. Make sure the washer is used on the slot side of the leg.
When installing legs to sidewall, reverse normal insertion procedure on bolts. Place hex head and neoprene washer to inside of sidewall, leaving threaded portion of bolt protruding outward. This provides for a weather-tight seal at the leg attachment location. (See leg size chart on Page 86 before attaching legs.)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 83
Figure 13E
Ref # Description
A 5/16'' x 1'' Bin Bolt
13. Legs and Leg Bracing
Second ring sidewall sheet
Leg
Inside of Tank
Installation of Leg to Sidewall for 15', 18' and 21' BFT
When installing legs to sidewall, reverse normal insertion procedure on bolts. Place hex head and neoprene washer to inside of sidewall, leaving threaded portion of bolt protruding outward. This provides for a weather-tight seal at the leg attachment location.
NOTE: Insert bolts from inside to outside on all leg to tank connections.
Figure 13F Plug Holes
Ref # Description
A Plug top two (2) holes above legs with 3/8'' bolts (S-7487) and nuts (S-7489). B First leg attachment hole.
Figure 13G
Ref # Part # Description
A S-7487 3/8'' x 1'' Bin Bolt B S-7489 3/8'' Nut
Figure 13H Installing legs to bin with bolt heads on the
inside of bin and nuts on the outside.
13. Legs and Leg Bracing
“A”
“B”
12'-21' Leg Bracing
Tank “A” “B” “C” “D”
12' 60° 36.962" 66.962" 112.359" 12' 45° 66.962" 36.962" 15' 60° 50.596" 75.596" 138.250" 15' 45° 80.596" 50.596" 18' 45° 50.596" 63.640" 120.237" 21' 45° 55.075" 66.075" 133.075"
See Pages 87-90 for attachment points of bracing. Use 3/8" nuts and bolts to attach cross ties to each
other and to leg. Hopper braces are attached to legs with 3/8" nuts and bolts and to hopper collar with 5/16" hardware. Ladder standoffs are attached to legs with 5/16" nuts and bolts. See Figure 13I below and
Figure 13J on Page 86 show typical bracing attachment points to the leg. Do not tighten any hardware
until all bracing is in place. See chart above for dimensions called out as shown in Figure 13I below and
Figure 13J on Page 86.
Figure 13I Typical 12' and 15' 45° Bracing Layout
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 85
13. Legs and Leg Bracing
12'-21' Leg Bracing (Continued)
Figure 13J Typical 18' and 21' 45° and 12' and 15' 60° Bracing Layout
Leg Size Chart
Ta nk Size Hopper # of Rings Length
12' Diameter Tank 45° 1-5 Rings 130-1/8'' 12' Diameter Tank 45° 6-7 Rings 154-1/8'' 12' Diameter Tank 60° 1-5 Rings 175-1/8'' 12' Diameter Tank 60° 6-7 Rings 199-1/8'' 15' Diameter Tank 45° 2-8 Rings 172-3/8'' 15' Diameter Tank 60° 2-6 Rings 231" 18' Diameter Tank 45° 2-8 Rings 190-1/4'' 21' Diameter Tank 45° 2-6 Rings 201-1/2''
Depending on the size of the Bulk Feed Tank you are assembling, the leg will cover either the bottom ring or 1-3/4 rings (56"). Refer to above chart to find the correct number of rings the legs will cover. Put all legs on, but do not tighten bolts until all braces are in place. Be sure to put leg braces on properly.
(See Pages 87-89.)
Bracing Hole Layouts
BLK-12718
(Eight (8) required)
(130-1/8" Long)
12' 45°
1-5 Rings
1 Ring coverage
BLK-12045
(Eight (8) required)
(154-1/8" Long)
12' 45°
6-7 Rings
1-3/4 Ring coverage
13. Legs and Leg Bracing
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 87
Figure 13K
Figure 13L
Ref # Description
A Cross Tie B Ladder Standoff C 22" Hopper Brace D 16" Hopper Brace E Leg Anchor
13. Legs and Leg Bracing
12' 60°
1-5 Rings
1 Ring coverage
BLK-12720
(Eight (8) required)
(175-1/8" Long)
12' 60°
6-7 Rings
1-3/4 Ring coverage
BLK-12046
(Eight (8) required)
(199-1/8" Long)
Bracing Hole Layouts (Continued)
Figure 13M
Ref # Description
A Cross Tie
B Ladder Standoff C 22" Hopper Brace D 16" Hopper Brace
E Leg Anchor
Figure 13N
All leg to sidewall holes must be utilized for leg attachment.
Bracing Hole Layouts (Continued)
BLK-12047
(Fifteen (15) required)
(172-1/8" Long)
BLK-12048
(Fifteen (15) required)
(231" Long)
13. Legs and Leg Bracing
All leg to sidewall holes (22 at 2.666" spacing) must be utilized for leg attachment.
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 89
Figure 13O
Figure 13P
Ref # Description
A Cross Tie B Ladder Standoff C 22" Hopper Brace D 16" Hopper Brace E Leg Anchor
13. Legs and Leg Bracing
BLK-12049
(Eighteen (18) required)
(190" Long)
BLK-12050
(Twenty eight (28) required)
(201-1/2" Long)
Bracing Hole Layouts (Continued)
Figure 13Q Figure 13R
Ref # Description
A Cross Tie
B Ladder Standoff C 22" Hopper Brace D 16" Hopper Brace
E Leg Anchor
All leg to sidewall holes (22 at 2.66" spacing on 18', 20 at 2.66" on 21') must be utilized for leg attachment.
13. Legs and Leg Bracing
Hopper to Leg Bracing
Hopper braces are to be spaced equally around tank. Hopper braces are required on all hopper tanks. Refer to chart below for the quantities required.
NOTE: Hopper braces attach between the legs and the collar/hopper horizontal seam. Never bolt the
braces directly to the hopper seam above the collar.
Figure 13S
Ref # Description
A 3/8'' x 1'' Bolt B 5/16'' x 3/4'' Truss head bolt
Description 16" Hopper Brace Part # 22" Hopper Brace Part # Qty
12' Diameter 45° Hopper BLK-12115 BLK-12116 8 12' Diameter 60° Hopper BLK-12113 BLK-12114 8 15' Diameter 45° Hopper BLK-12118 BLK-12120 3 15' Diameter 60° Hopper BLK-12117 BLK-12119 3 18' Diameter 45° Hopper BLK-12121 BLK-12122 3 21' Diameter 45° Hopper BLK-12123 BLK-12124 4
Directions: Locate correct tank in far left column, braces are located across top of chart. Follow the column down to correct tank line and read the quantity required for that tank.
Cross Tie Brace Usage Chart
Description Inside Cross Tie Outside Cross Tie
12' Diameter 60° Hopper 16 16 12' Diameter 45° Hopper 8 8 15' Diameter 45° Hopper 15 15 15' Diameter 60° Hopper 30 30 18' Diameter 45° Hopper 36 36 21' Diameter 45° Hopper 56 56
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 91

14. Raising Bin

Make sure there is enough clearance between the tank and surrounding power lines, electrocution may occur.
All usual and customary precautions must be taken to ensure safety of personnel and property.
NOTE: Leg shims are not standard equipmentand must be obtained locally.
Raising Bin to Set on Foundation
Be sure that all bolts are tightened properly. The Bulk Feed Tank can now be set up on foundation. A crane of adequate capacity attached to a spider assembly with cables connecting at each vertical sidewall seam just above the legs will usually do the job. Reference a qualified rigger.
WARNING
WARNING
Standard Hopper Bin Anchoring
Figure 14A
14. Raising Bin
Anchoring Tank
Check all legs to see if shims are necessary to level the tank properly (shims are to be obtained locally). After Bulk Feed Tank is level and shimmed properly, anchor the tank down with 5/8" washers and nuts.
(See Figure 14B.)
Figure 14B Leg Base Detail
Ref # Part # Description
A S-836 5/8" Nut B S-858 5/8" Washer
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 93
14. Raising Bin
NOTE: Grounding rod must be placed
a minimum of 24" from concrete.
Bin Grounding Instructions
NOTE: Parts are not supplied by manufacturer. They should be purchased locally.
All bins shall have two (2) ground connections. Ground clamps must be placed at equal distances around the bin.
Alternate Installation: Cables may be placed in the foundation or through PVC sleeve inserted in the slab during construction.
Figure 14C
Ref # Description Ref # Description
A Cable Clamp E Number 2 Minimum (Typical) B 5' (1524 mm) Copper Cable (Plain or Jacketed) C Ground Rod Clamp G 10'-0" Minimum (3048 mm) D Ground Rod 1/2" x 10' (3048 mm)
F 12" (305 mm)
H 9'-0" Minimum (2743 mm)
Pneumatic Fill Kit Assembly
15' Roof panel
12' Roof panel
NOTE: Inlet and exhaust parts from roof eave upward supplied with kit.

15. Pneumatic Fill Kit

PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 95
Figure 15A
Ref # Description Ref # Description
A Fill E Cupped Washer B Exhaust C 5/16" Square Neck Bolt G Exhaust tube is 6" diameter D Hex Nut 5/16"-18 JS Grade 5 (S-7484)
F Fill tube is 4" diameter (Available)
H 5-5/8" Diameter Hole
15. Pneumatic Fill Kit
Roof Panel
Identical pre-punched roof panels are available from the GSI for inlet and outlet sections of pneumatic fill systems. Extruded lip of the panels provide for weather-tight installation. Caulking placed between angle rings virtually eliminates all leakage problems. Rubber seal must be utilized at roof cap area to prevent material “blow by” from pressurized systems.
To install fill kits in roof panels not pre-punched, cut 5-5/8" (143 mm) diameter holes in opposing roof panels as shown. Caulk sufficiently to provide weather-tight seal.
Refer to PNEG-1904, that is included in the pneumatic fill kits for information on installation of the cap latch and lid sealing components.
Figure 15B

16. Parts List

1. 12' Diameter 60° Hopper Bin Specifications - (See Pages 98 and 99.)
2. 12' Diameter 60° Hopper Bin Hardware Specifications - (See Pages 100 and 101.)
3. 12' Diameter 45° Hopper Bin Specifications - (See Pages 102 and 103.)
4. 12' Diameter 45° Hopper Bin Hardware Specifications - (See Pages 104 and 105.)
5. 15' Diameter 60° Hopper Bin Specifications - (See Pages 106 and 107.)
6. 15' Diameter 60° Hopper Bin Hardware Specifications - (See Pages 108 and 109.)
7. 15' Diameter 45° Hopper Bin Specifications - (See Pages 110 and 111.)
8. 15' Diameter 45° Hopper Bin Hardware Specifications - (See Pages 112 and 113.)
9. 18' Diameter 45° Hopper Bin Specifications - (See Pages 114 and 115.)
10. 18' Diameter 45° Hopper Bin Hardware Specifications - (See Pages 116 and 117.)
11. 21' Diameter 45° Hopper Bin Specifications - (See Pages 118 and 119.)
12. 21' Diameter 45° Hopper Bin Hardware Specifications - (See Pages 120 and 121.)
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 97
16. Parts List
12' Diameter 60° Hopper Bin Specifications
Under Collar Clearance
16" Collar 31-3/16" (792 mm) 22" Collar 35-3/4" (908 mm)
IMPORTANT: Bolt heads are inside of bin at the leg to body attachment and on all vertical seams on
hopper panels. All bolts to be tightened from the nut side only. Refer to detail on Page 29 for location of caulking.
16. Parts List
12' Diameter 60° Hopper Bin Specifications Parts List
Ref # Part # Description Qty
1 BLK-12272 12' 30° Roof Panel (20 Gauge) 12 1 BLK-12275 12' 40° Roof Panel (20 Gauge) 12 2 BLK-12286 12' 30° Roof Stiffener Channel (18 Gauge) 12 2 BLK-12287 12' 40° Roof Stiffener Channel (18 Gauge) 12 3 12' Sidewall Sheet 4 Per Ring 3 SS40682012 20 Gauge (T op Punched Sidewall Sheet) 3 SS41932012 20 Gauge (Top Punched Decal Sidewall Sheet) 3 SS40692012 20 Gauge (Middle Punched Sidewall Sheet) 3 SS40691812 18 Gauge (Middle Punched Sidewall Sheet) 3 SS40691612 16 Gauge (Middle Punched Sidewall Sheet) 3 SS40691512 15 Gauge (Middle Punched Sidewall Sheet) 3 SS40701512 15 Gauge (Middle Leg Punched Sidewall Sheet) 3 SS40701312 13 Gauge (Middle Leg Punched Sidewall Sheet) 3 SS40721312 13 Gauge (Bottom Punched Leg Sheet) 3 SS40721212 12 Gauge (Bottom Punched Leg Sheet) 4 BLK-10155 12' 60° Offset Hopper Panel (14 Gauge) 12 5 BLK-12720 12' 60° (1-5 Ring) Leg 175-1/8" (12 Gauge) 1 Ring Coverage 8 5 BLK-12046 12' 60° (6-7 Ring) Leg 199-1/8" (10 Gauge) 1-3/4 Ring Coverage 8 6 BLK-12113 Hopper Brace for 16" Collar (Shown) 8 6 BLK-12114 Hopper Brace for 22" Collar 8 7 BLK-10587 16" 60° Hopper Extension Kit with Collar (Shown) 1 7 BLK-10342 22" 60° Hopper Collar (36 Holes) 1 8 BLK-11730 30° Roof Bulk Tank Peak Ring 1 8 BLK-12534 40° Roof Bulk Tank Peak Ring 1 9 BLK-12060 12' Inside Cross Tie Brace (67.788") (12 Gauge) 16 9 BLK-12061 12' Outside Cross Tie Brace (67.788") (12 Gauge) 16
N/S BLK-11840A 12' 60° Hopper Reinforcement Angle (Optional) 12
PNEG-1461 12', 15', 18' and 21' Bulk Feed Tank Series and Grain Hopper Tank Series 99
16. Parts List
12' Diameter 60° Hopper Bin Hardware Specifications
Under Collar Clearance
16" Collar 31-3/16" (792 mm) 22" Collar 35-3/4" (908 mm)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
