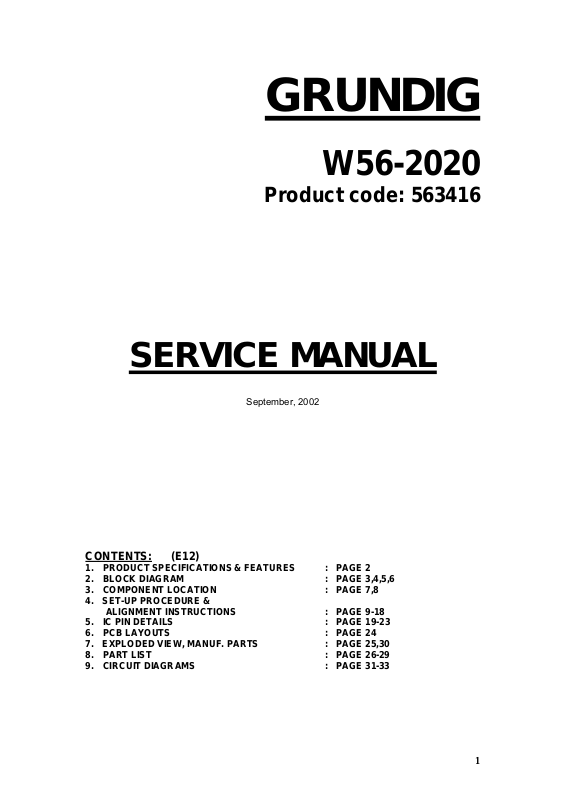

GRUNDIG

W56-2020

Product code: 563416

SERVICE MANUAL

September, 2002

CONTENTS: (E12)

1. PRODUCT SPECIFICATIONS & FEATURES : PAGE 2

2. BLOCK DIAGRAM : PAGE 3,4,5,6

3. COMPONENT LOCATION : PAGE 7,8

4. SET-UP PROCEDURE &
ALIGNMENT INSTRUCTIONS : PAGE 9-18

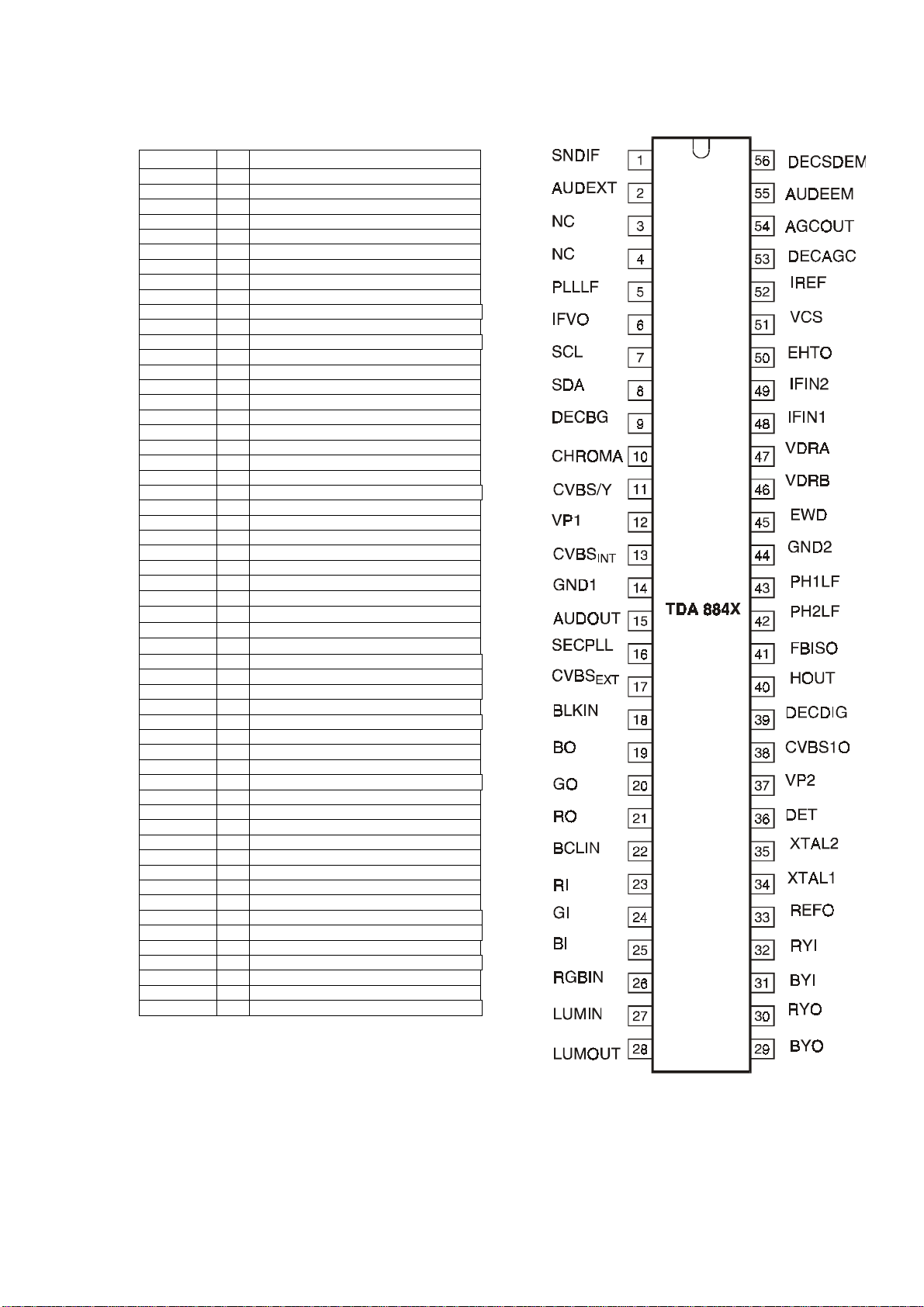

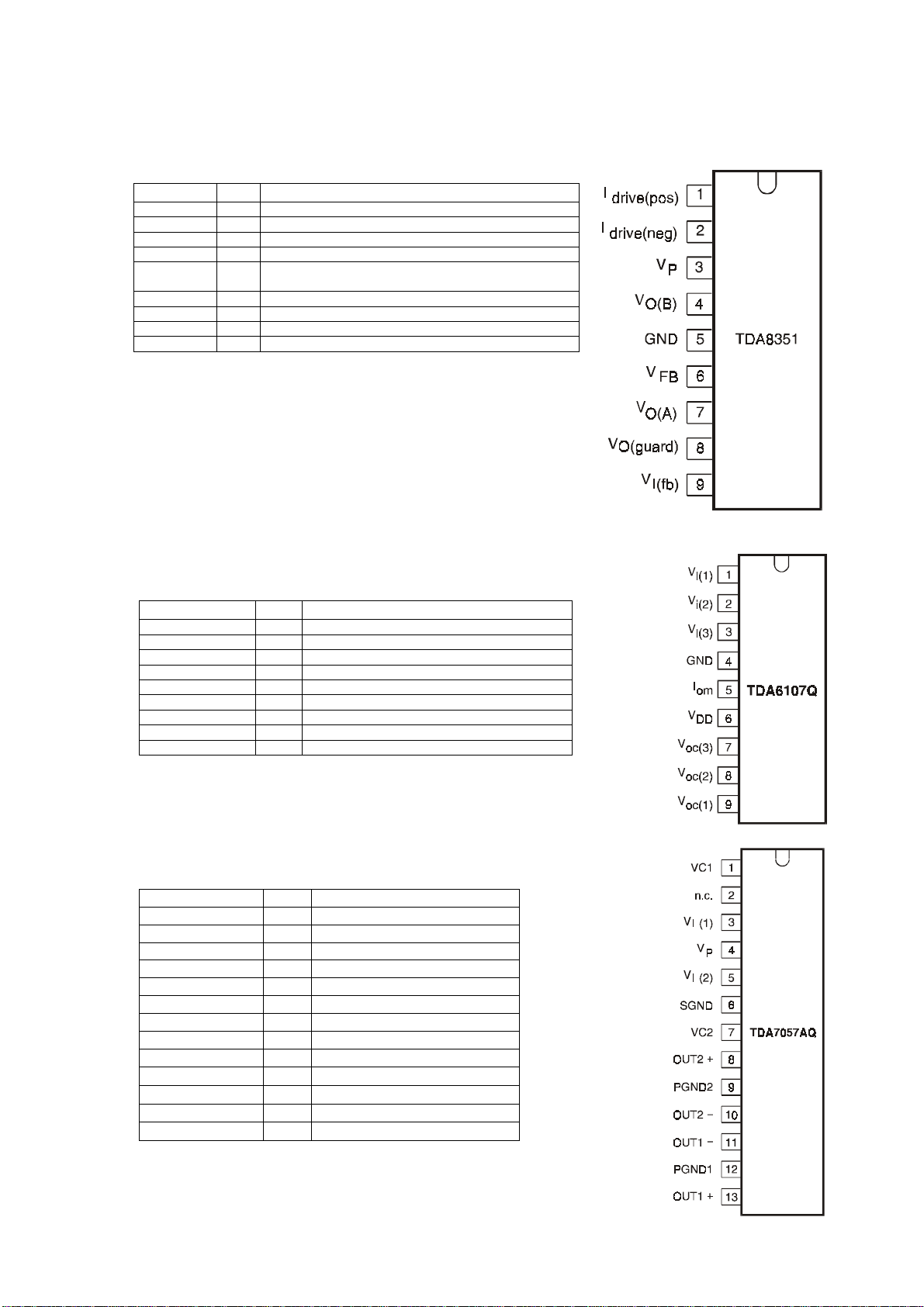

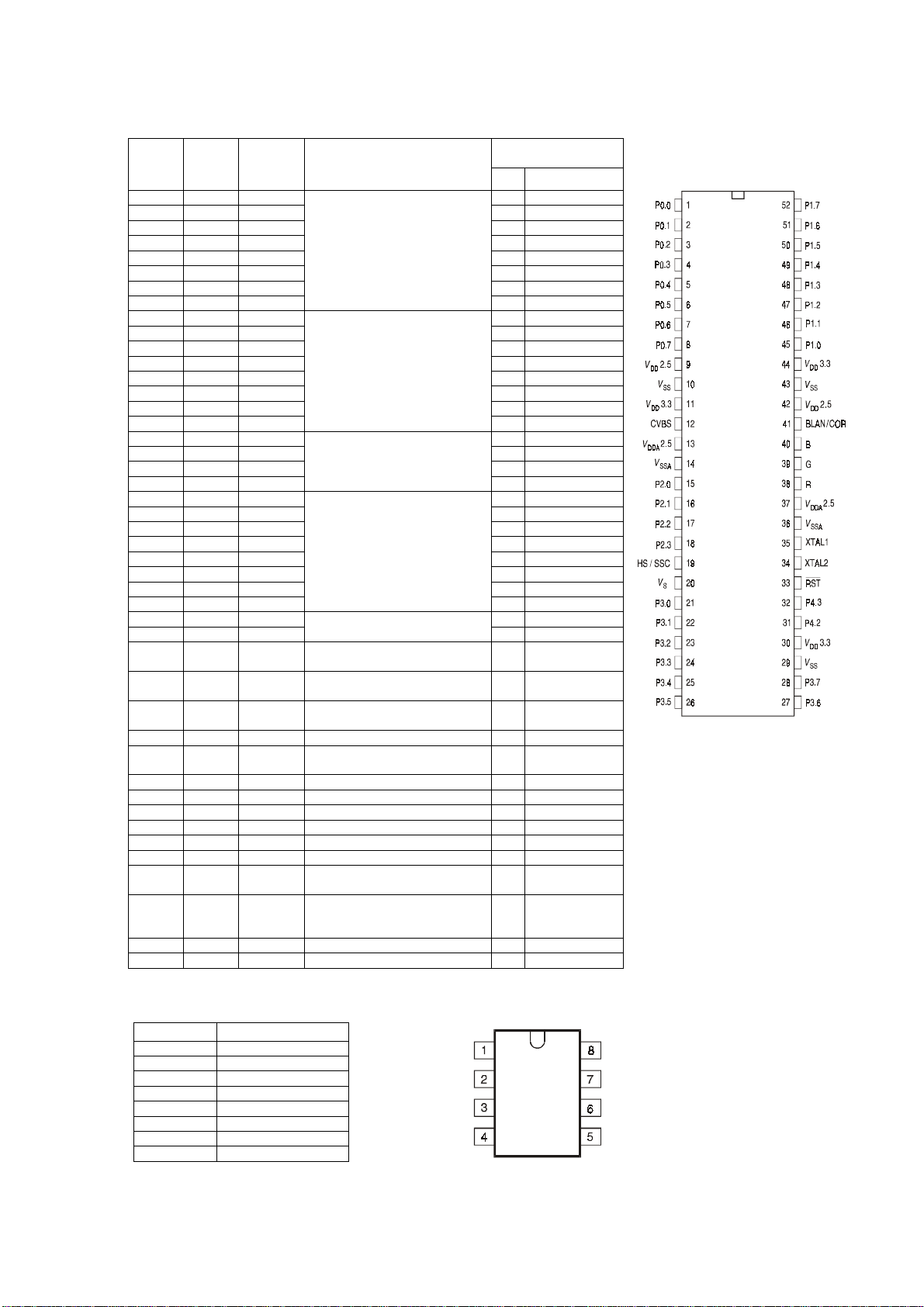

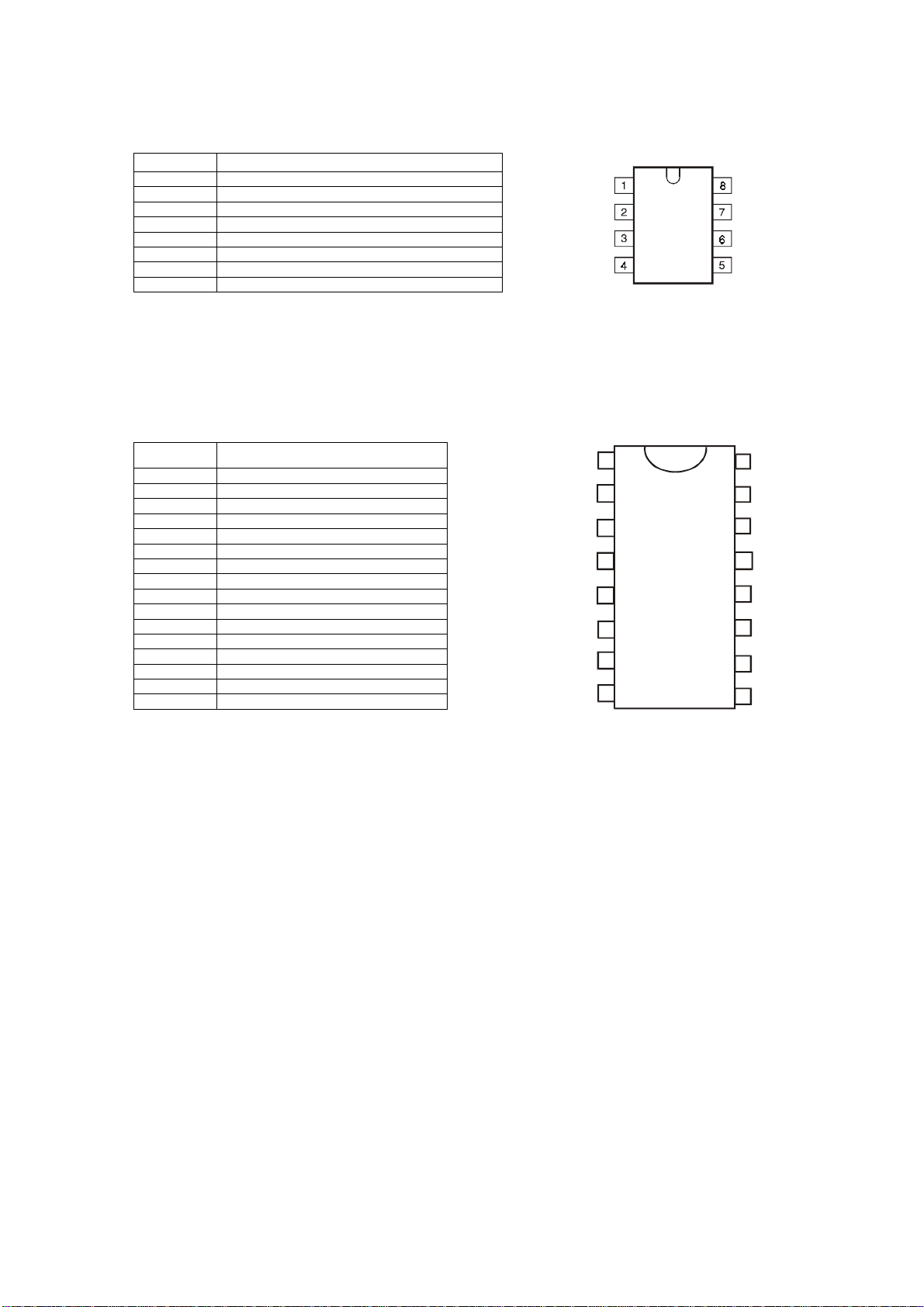

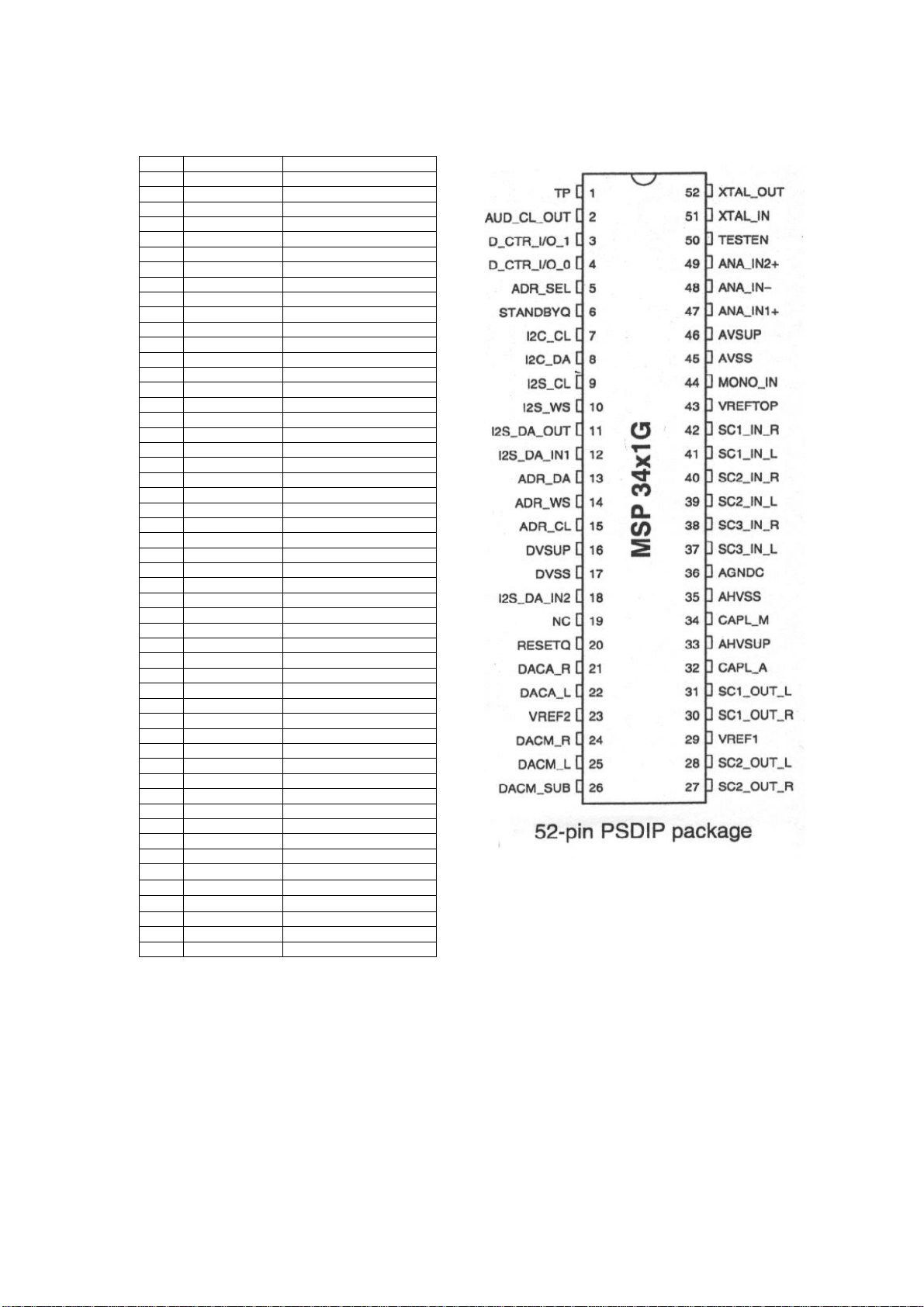

5. IC PIN DETAILS : PAGE 19-23

6. PCB LAYOUTS : PAGE 24

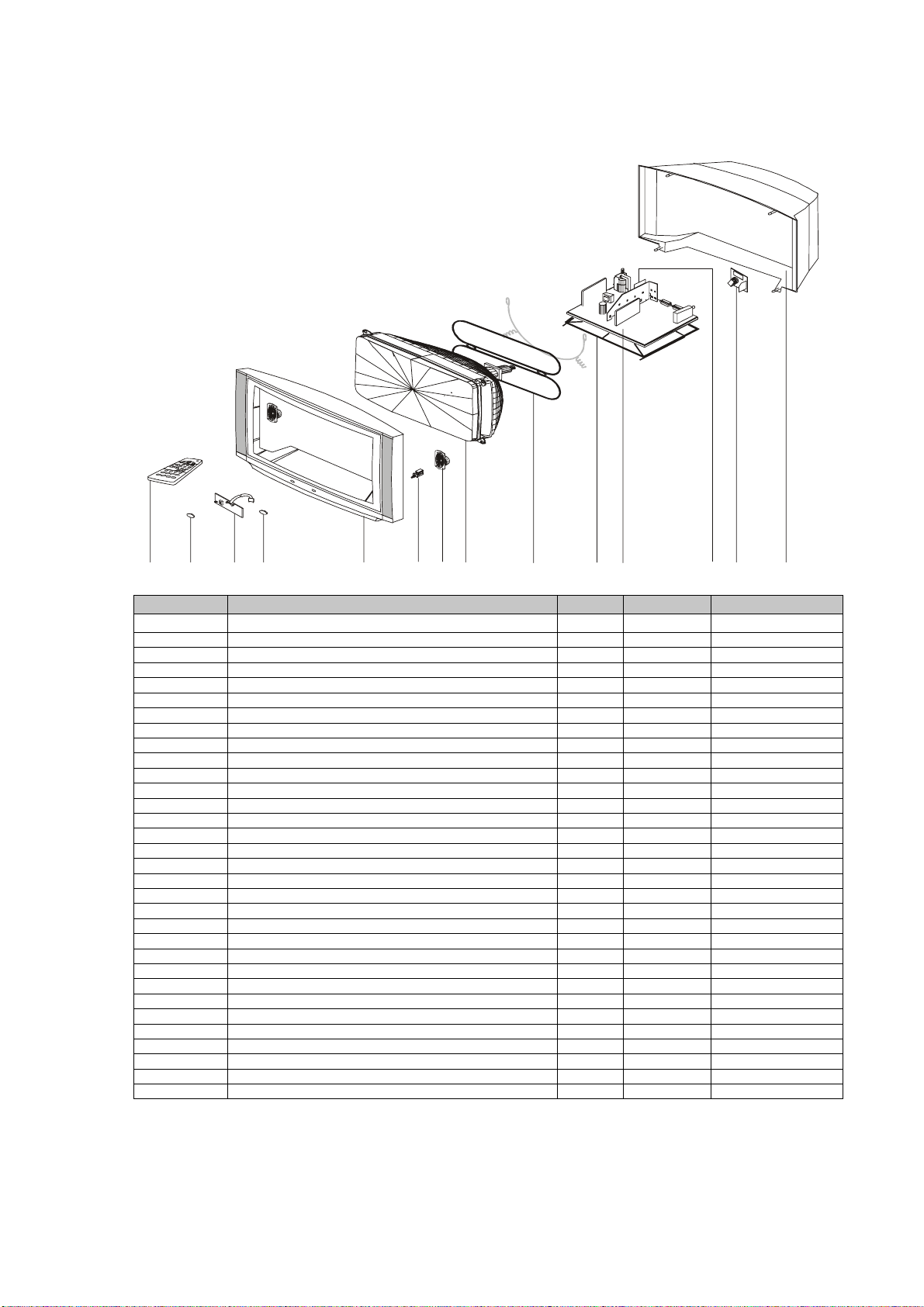

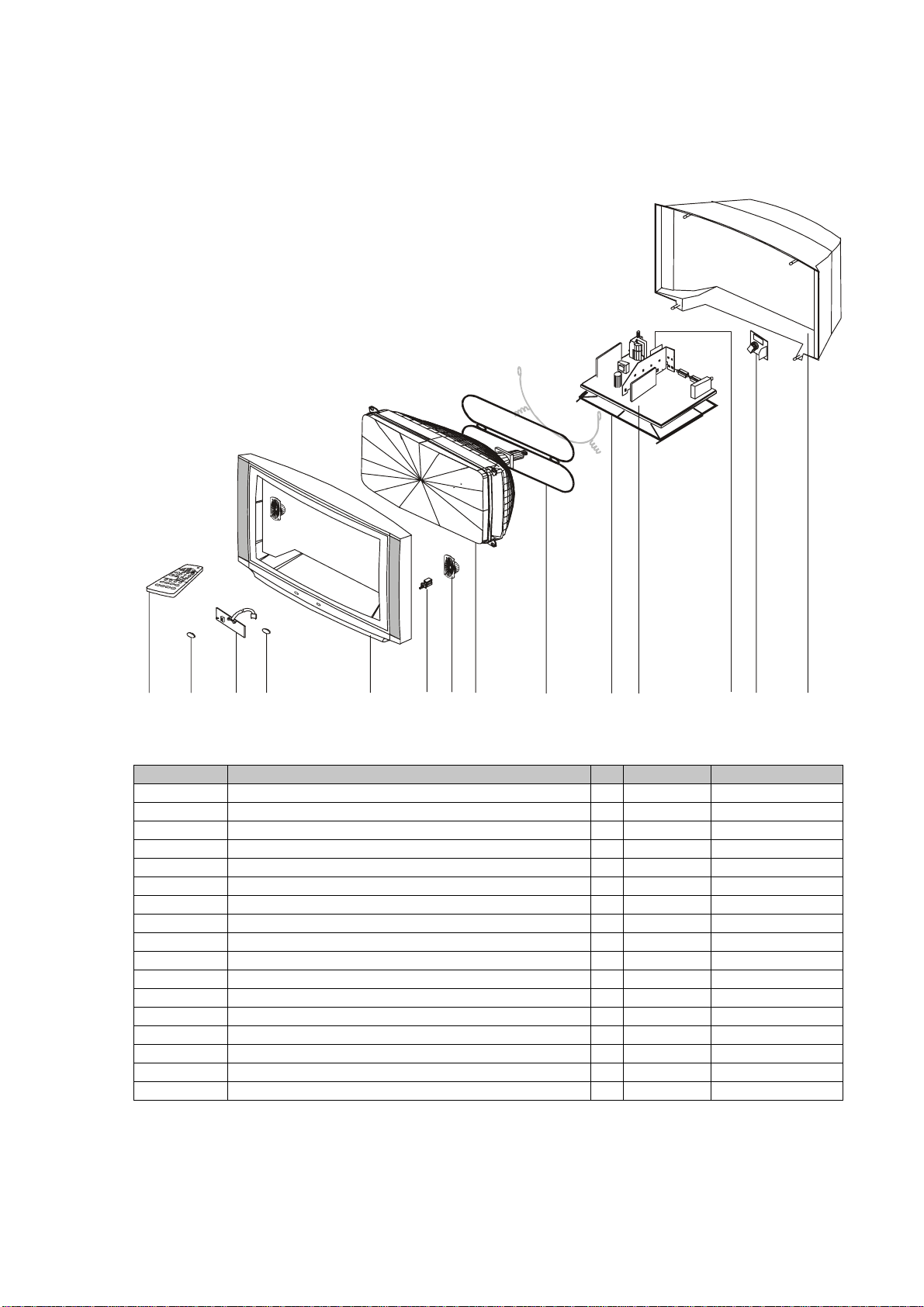

7. EXPLODED VIEW, MANUF. PARTS : PAGE 25,30

8. PART LIST : PAGE 26-29

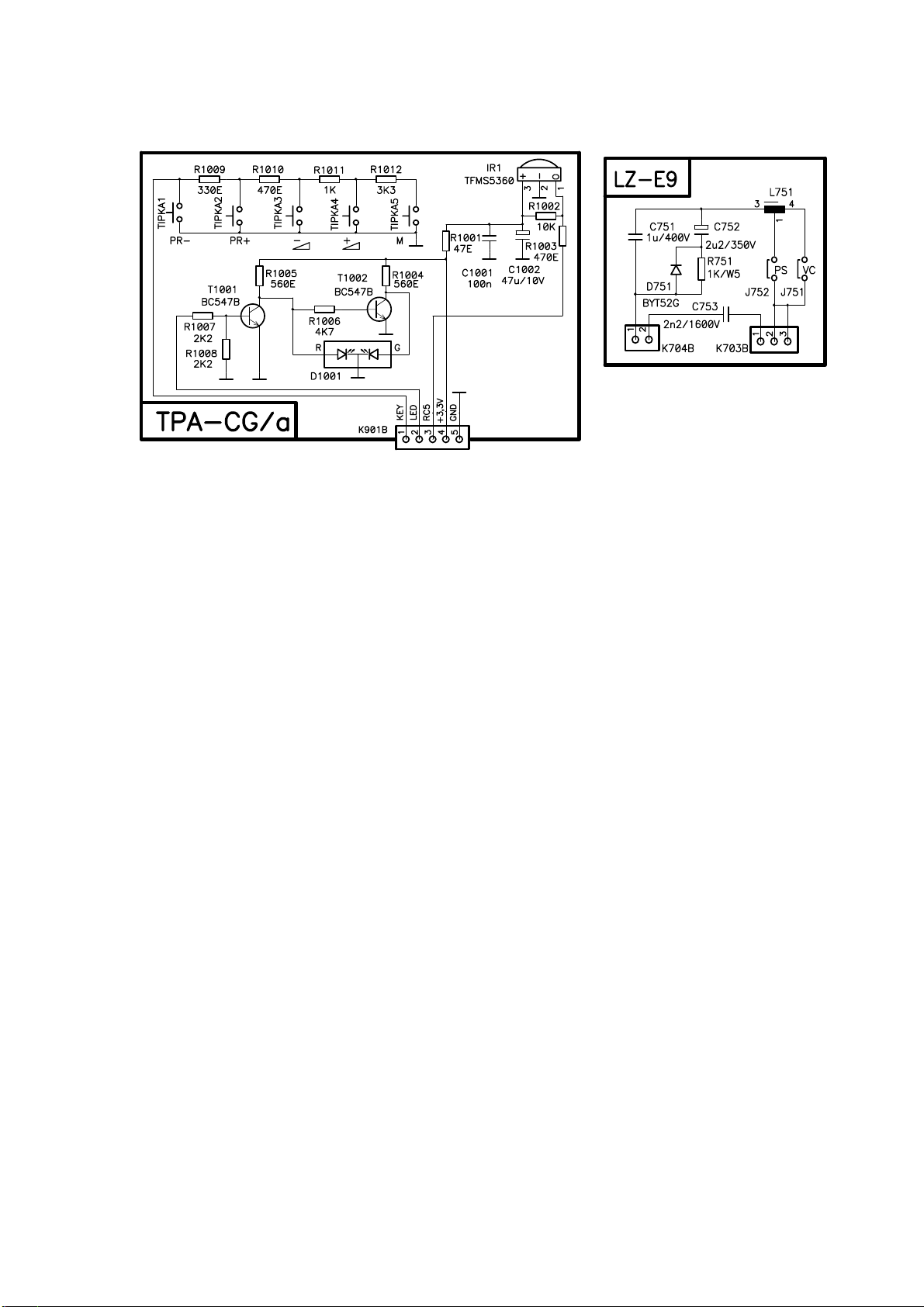

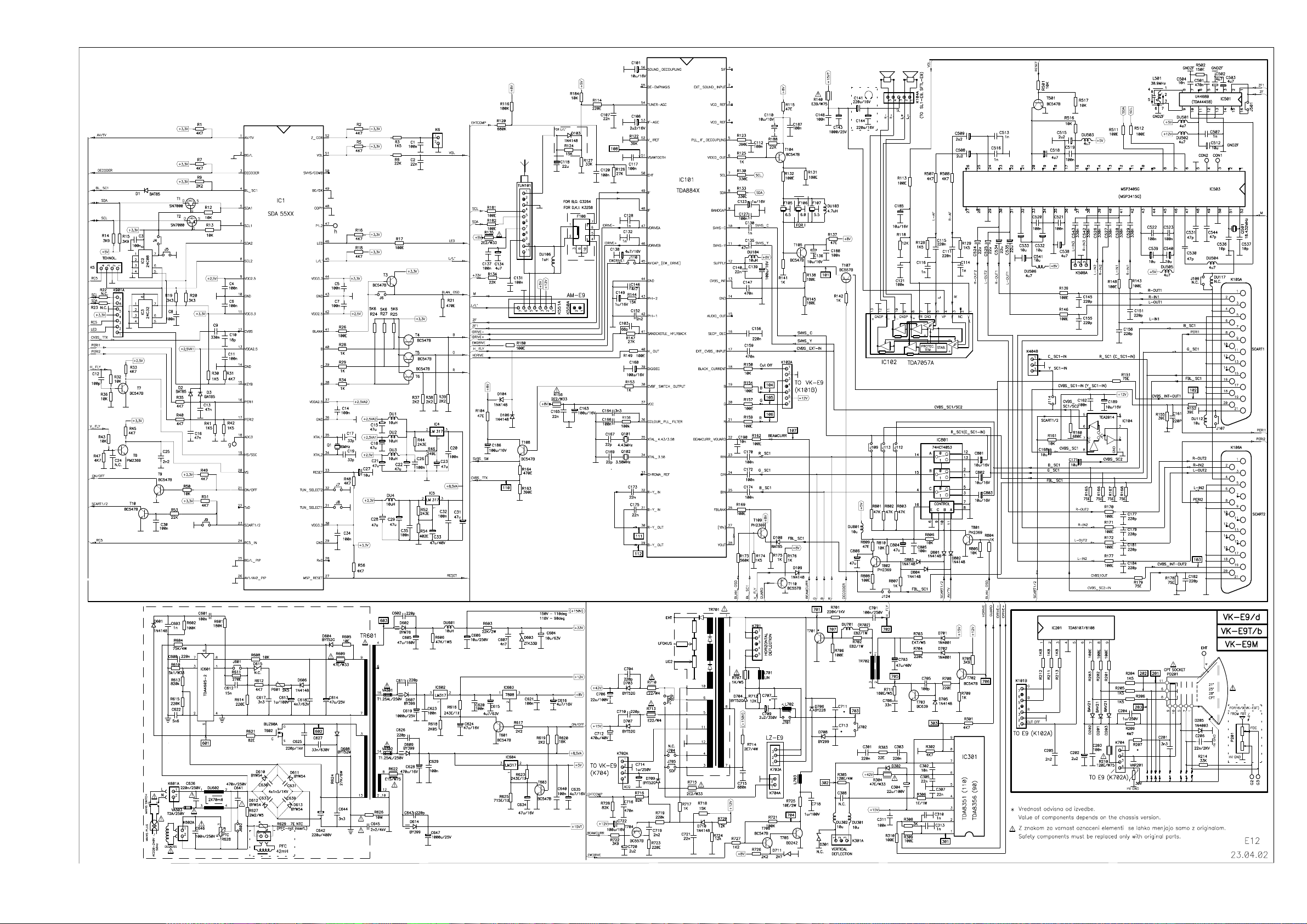

9. CIRCUIT DIAGRAMS : PAGE 31-33

1

PRODUCT SPECIFICATION & FEATURES

TVTEXT Version 7p (SDA 5553-A009/EV E945)

1. SCREEN SIZE:

2. AVAILABLE
STANDARDS:

3. TUNER:

4. FEATURES:

5. SOUND:

6. TELETEXT:

7. CONNECTIONS:

8. VIDEO:

9. CONSUMPTION:

24” 16:9
PAL I,

HYPERBAND: VHF 2-12, UHF 21-69, S1-S41
Frequency s ynt. (62,5K Hz search steps),
MENU oriented OSD (On Screen Disp.) Multilanguage MENU OSD,
100 programs,
Full function remote control,
Automatic switch off at the end of the progr.
Off timer 0 - 120 min.,
Organise Program Information System (OPIS) with the follo wing functions:

• Autostore with simple ATS: Autostore, Name, Order,

• Insert

• Delete

• Rename,

MONO/STEREO/DUAL sound decoder,
Virtual Dolby sound,
NICAM Digital Stereo Sound Processor,
Muting,
2 loudspeakers,
Audio music power: 2x15W (STEREO),
7 - page TTX with FLOF and P26,
Westeuropean and easteuropean language support.
SCART I AV connector (21 - pin) video, RGB and SVHS,
SCART II AV connector (21 - pin) video
Antenna connection 75 ohms unbalanced,
Blue stretch,
Automatic Colour limiting,
Colour Temperature adjustment,

≈75W; <9W stand by;
POWER REQUIREMENTS: Voltage/frequency: 230V/50Hz , rating (180V - 250V)

2

BLOCK DIAGRAM: MODULES ARRANGEMENT ON CHASSIS

L

R

E12 CHASSIS

MODULES & CONNECTION

21.5.2002

3

BLOCK DIAGRAM – MODULES & CONNECTIONS

2

AUDIO

SREREO

AUDIO

VK-E9T

TDA6107

IC201

R

L

K101B

2

K104

OUT

TDA7057A

IC102

PROC.

MSP34XXG

IC503

K102A

RGB

V+V-GUARD

7

RGB

K704

4

2

K301

VERT.

OUT

TDA8356-90°

TDA8351-110°

CRT SOCKET

K703B K704B

K752

H. DRIVE

K703A K704A

EW DRIVE

H. FLY

LZ-E9

IC301

Z_COR

2

E12 CHASSIS

BLOCK DIAGRAM

MODULES & CONNECTIONS

6.6.2002

K701

K702A

HOR.

OUT

BU508A

T701

42V

15V

EHT COMP

BEAMCURR

R,G,B,BL

SC1

200V

L,R

K105

SCART 1

IF

U4468B

IC501

R,G,B,BL

R,G,B,BL IN

R G B

SWITCH

74HCT4053

IC801

CVBS_SC1

CVBS_INT

K106

SCART 2

CVB

S

_

SC2

A1

A2

2,5V

2,5V

5V

8V

TDA4605-2

2,5V

3,3V

BUZ90A

IC601

T602

K601

E12

TUNER

SIGNAL &

SAW

DEFL. PROC.

filter

C

V

B

EXT

S

_

VIDEO

SWITCH

TEA2014

TDA884X

IC101

K6

F108

SDA5553

CONTROL

& TEXT

TUN101

IC1

PROC.

K901A

IC104

A

T

8,5V

33V

12V

15V

155V

POWER

SUPPLY

5

230V AC

4

BLOCK DIAGRAM – CONTROL SIGNALS

SIGN AL &
DEFL. PR.
IC101

EEPROM
IC1

EEPROM
IC2

SDA_pin5

SCL_pin6

SFTLA_E9
TPA_CG

pin5 4
pin2 6

SCL_pin7

SDA_pin8

SDA_pin5

SCL_pin6

AGC

IIC1

2
C

I

I

pin5

TUNER
TUN101

SCL_pin4

SDA_pin5

STEREO PROC.
IC503

SCL_pin7

SDA_pin8
pin20

VIDEO SW.
IC104

pin5

RGB SW.
IC801

pin9,10,11

A
1
0
9

K

A
1

)
1

(

)

0

2

9

(

K

K901A

(3)

ON/OFF SW.
T9, T601, T603

1

B
Y
E
K

pin
15

D
E

L

pin
46

5
C
R

pin
24

CONTR. &
TEXT PR O C .
IC1

pin
16

1

I
R
E
P

SC1

8

pin
17

2

I
R
E
P

SC2

8

C
S

_
L

B

5
n

i
p
_
1

A
D
S

4

6

n

n

i

i

p

p
_
1
L

C
S

DECODER

RESET

8
n

i
p
_
2
L

C
S

pin
3

T107

V

T

/
V
A

ON/OFF

3

7

2

2

n

n

i

i

p

p

1

1

2

n

n

i

i

p

p

AUDIO
OUT
IC102

pin

VOL pin

51

1,7

5

BLOCK DIAGRAM - SUPPLY VOLTAGES

6

COMPONENT LOCATION AND MEASURING POINTS FOR
SUPPLY VOLTAGES ON MAIN CHASSIS – COMPONENT SIDE

155V adjust 200V 155V

2,5V

A

8,5V
2,5V 2,5V

A1

15V

3,3V

A2

T

15V

42V

12V

8V

5V

33V

7

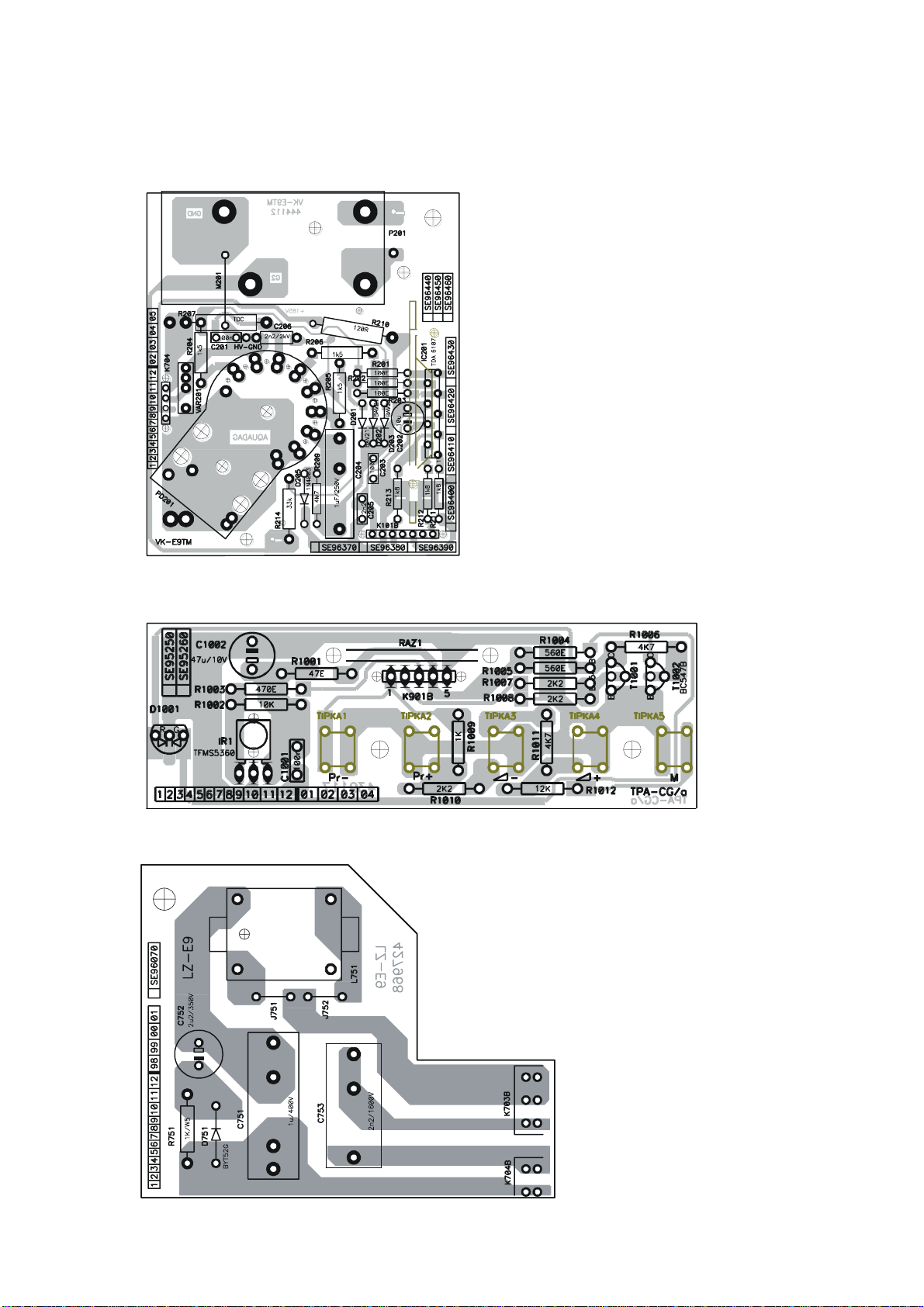

COMPONENT LOCATIONS ON SEPARATE MODULES OF CHASSIS E12 –
COMPONENT SIDE

VK-E9T

TPA-CG

LZ-E9

8

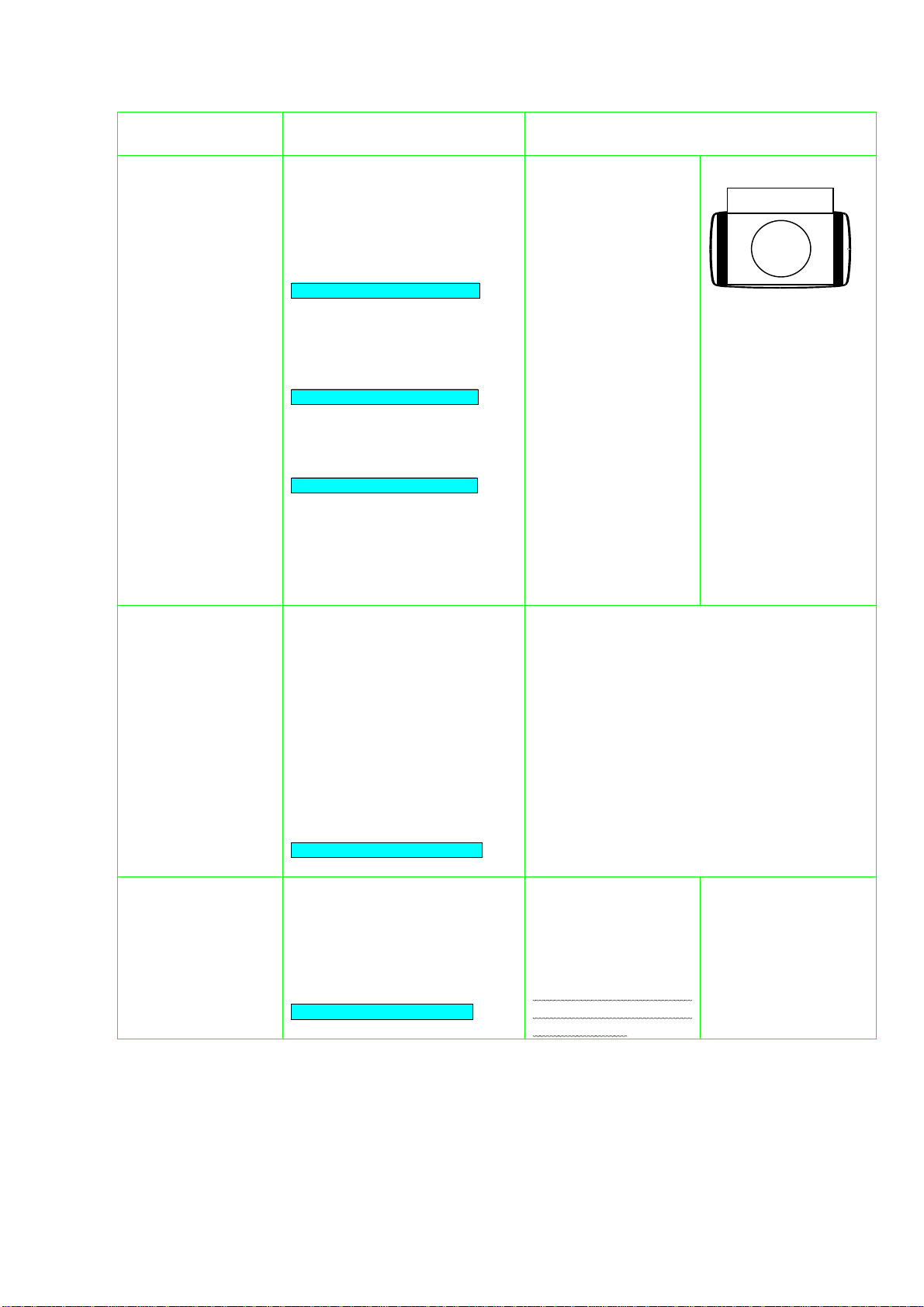

SETUP PROCEDURE & ALIGNMENT INSTRUCTIONS

All necessary adjustments and settings are performed during manufacture of TV set and assure its
correct operation when connected to the mains voltage and antenna or external video or audio signal.
When TV set requires service intervention all settings should be checked and corrected, if necessary.

DEMAGNETISING OF PICTURE TUBE

Correctness of picture tube demagnetising is usually automatically checked. Magnetisation of picture
tube is presented as one or more colour "clouds", consequently colour reproduction of the picture is
not correct.
Each time the TV set is switched on with mains switch, demagnetising system is activated. For correct
demagnetising procedure disconnect the TV set with mains switch and leave it disconnected for about
15 minutes. Afterwards when yo u switch on the TV, demagnetising procedure is performed. In case
distortion of colour reproduction still persists, special demagnetising coil should be used.

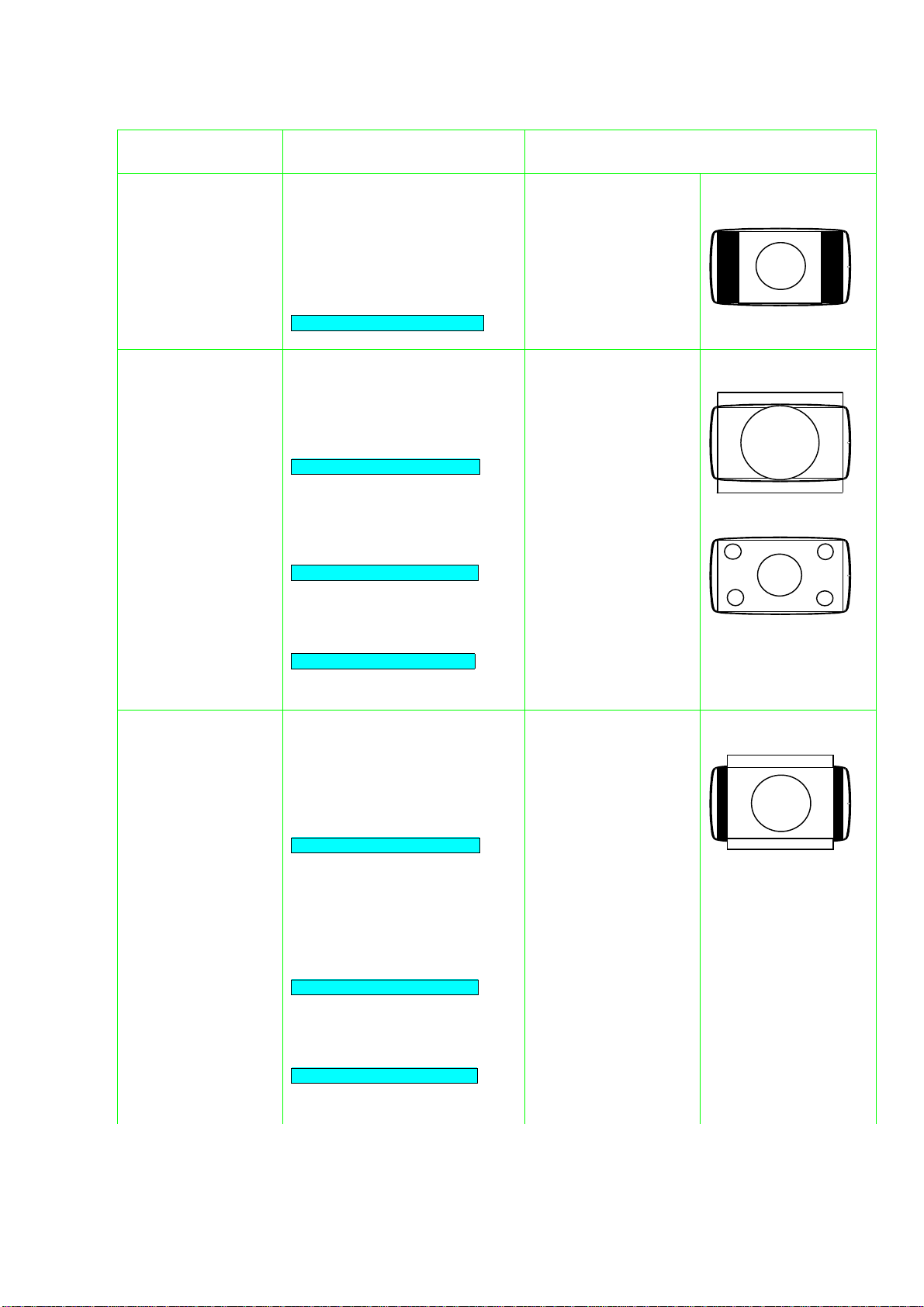

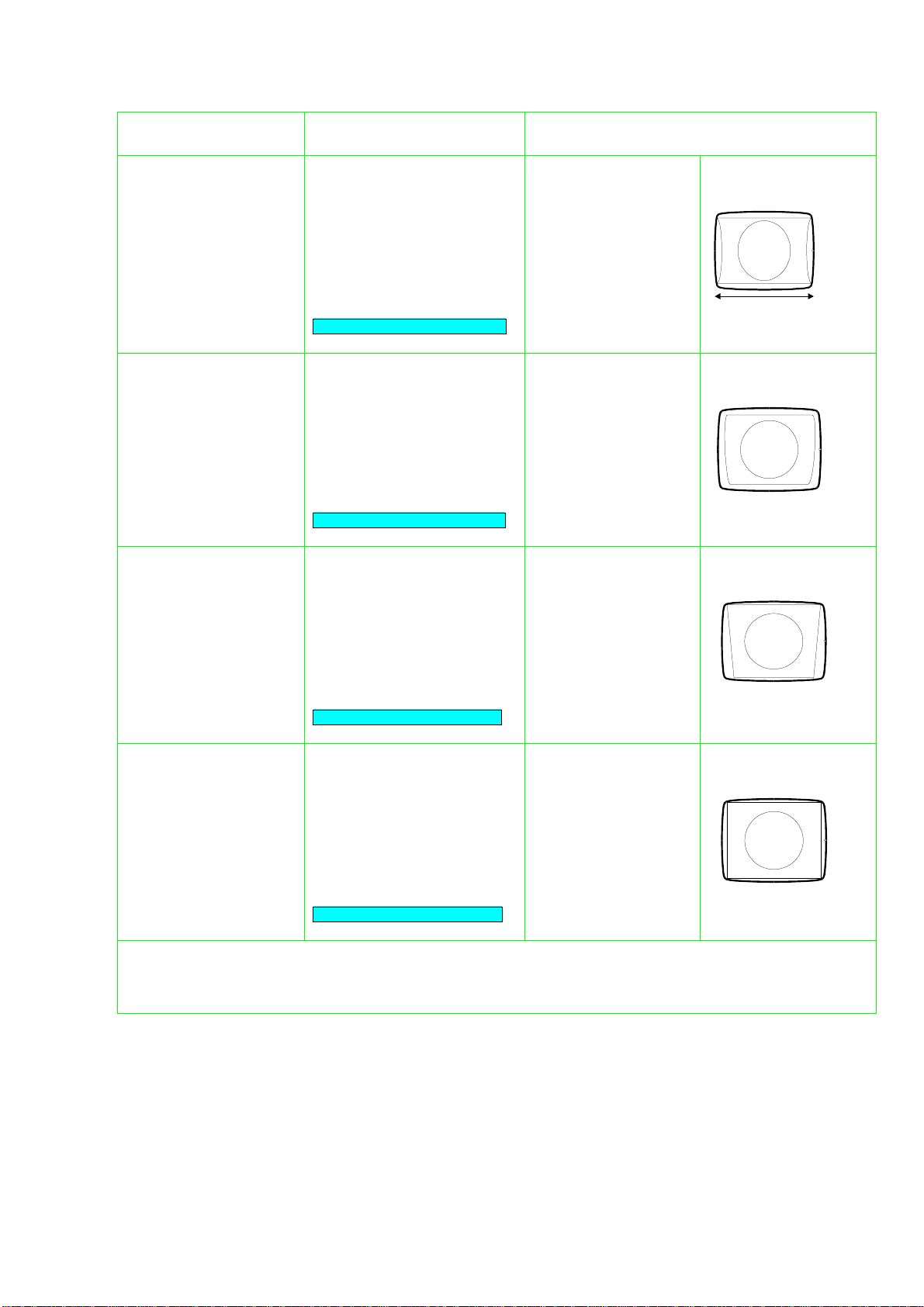

ADJUSTMENT ADJUSTMENT

CONDITION

1. SUPPLY VOLTAGE
FOR HORIZONTAL
OUTPT STAGE

»B+«

• Connect the TV set to

supply voltage
175…250VAC.

• Switch it on and set it by

means of remote
controller to AV mode of
operation.

• Connect DC voltmeter to

D-602 cathode.

SWITCHING TO SER V ICE MODE

All other service settings of TV set are made in so called service mode of TV set operation. To enter this mode of operation press
the keys in the following sequence: "TV", "I", and "STOP" in the period of 5 seconds from switching on the TV set to normal mode
of operation. When the TV set is switched over to service mode the following status line with service parameter and parameter value
appears on the screen:

SERVICE PARAM: XX VALUE: xx

The parameter to be set is selected with keys (P+/P-), and selected parameter is set with keys (volume+ /volume-). Each
time you press the key for parameter selection ( ) the value of preselected parameter is stored. Therefore when the last setting is
performed you must press one of the two keys once again. Values of individual parameters are expressed in hexadecimal form due
to limited capacity of the memory. Values of individual parameters are variable from 0 to 3F, with the exception of some parameters
(see the table at the end of describi ng service mode) where values are changed from 0 to 7F and O1, O2, O3, O4, O5 which have
value range between 0 an d FF.
When setting is finished it should obligatory be concluded with "STOP" key. After a few seconds the status line disappears and
service adjustment is accomplished.

NOTE: In case service adjustment is not ended in above specified mode (e.g. power supply breakdown), the

adjustment should be repeated.

2. VERTICAL

POSITION

• To antenna connector of

TV set, which is switched
on and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: VH VALUE: xx

With P-601 potentiometer set supply voltage for
horizontal output stage to:

• With remote

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

• 155V ±±±±0,5V

controller set vertical
position of the
picture: beginning of
dark part of the
picture should be
exactly in the centre
of the screen (two
bright points on left
and right side of the
screen).

9

ADJUSTMENT ADJUSTMENT

CONDITION

3. VERTICAL

AMPLITUDE
ON TOP PART
OF SCREEN

4. VERTICAL
AMPLITUDE ON
BOTTOM PART
OF SCREEN

5. CORRECTION OF

"S" VERTICAL
DISTORTION

6. HORIZONTAL
POSITION

• To antenna connector of TV

set, which is switched on
and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: VA VALUE: xx

• To antenna connector of

TV set, which is switched
on and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: VS VALUE: xx

• To antenna connector of TV

set, which is switched on
and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: SC VALUE: xx

• To antenna connector of

TV set, which is switched
on and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following setting

on the screen:

SERVICE PARAM: HS VALUE: xx

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

• With remote

controller set vertical
amplitude of picture
on top, visible part of
the screen. The
beginning of test
picture should be at
the beginning of top
part of the screen.

• With remote

controller set vertical
amplitude of picture
on bottom part of the
screen. The lower
part of test picture
should be at the edge
of bottom part of the
screen. During this
setting the picture on
top part of the screen
should not change.

• With remote

controller correct the
picture. The distances
between the two
horizontal lines of
test picture in the
centre of the screen
should be equal to the
distances on top and
bottom part of the
screen. If after this
setting vertical
amplitude of picture
changes, see pos. 5
and 6.

• With remote

controller set test
picture to the centre
of the screen (if
necessary first widen
the picture, see pos.

7).

10

ADJUSTMENT ADJUSTMENT

CONDITION

7. HORIZONTAL
AMPLITUDE

OF PICTURE

• To antenna connector of TV

set, which is switched on
and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

• With remote

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

controller set picture
width. Edges of test
picture should be just
hidden behind the
edges of the screen.

• With remote

controller correct the
picture. On left and
right side of test
picture straight lines
should appear
(especially in the
centre of the
picture).

8. CORRECTION OF
HORIZONTAL
PINCUSHION
DISTORTION

SERVICE PARAM: EW VALUE: xx

• To antenna connector of

TV set, which is switched
on and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: PW VALUE: xx

9. CORRECTION OF
HORIZONTAL
PINCUSHION
DISTORTION IN
CORNERS OF THE
SCREEN

• To antenna connector of TV

set, which is switched on
and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

• With remote

controller correct the
picture. On left and
right part of test
picture straight lines
should appear also in
corners of the screen.

SERVICE PARAM: CP VALUE: xx

10. CORRECTION OF

TRAPEZIUM
DISTORTION

• To antenna connector of

TV set, which is switched
on and operates in service
mode, connect VF signal
source with PHILIPS test
picture.

• Select the following service

setting on the screen:

SERVICE PARAM: TC VALUE: xx

• With remote

controller correct the
picture. On left and
right part of test
picture perfectly
straight and vertical
lines should appear.

REMARK:
If after correcting pincushion and trapezoidal distortion, changes the horizontal amplitude of picture, is necessary to

correct also horizontal amplitude of picture according to expl anation in point 7.

11

ADJUSTMENT ADJUSTMENT

CONDITION

11. HORIZONTAL

AMPLITUDE
FOR 16:9
TUBES

12. »EXTEND«

GEOMETRY OF
ZOOM

(16:9)

REMARK:
The setting enables
reproduction of 4:3
picture through entire
16:9 screen (with cut
off edges on top and
bottom side) and
"letterbox" picture
without black edges.
This format is also
automatically selected
if WSS code is present

(PALplus).

13. »CINEMA«
GEOMETRY
OF ZOOM
PICTURE (16:9)

The setting enables
reproduction of 4:3
expanded picture on
16:9 screen (black
edges on left and right
side decrease, a part of
picture at top and
bottom is cut off).

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following service

setting on the screen:

SERVICE PARAM: EW VALUE: xx

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
16:9 "letterbox" test picture.

• Select the following setting:

SERVICE PARAM: X1 VALUE: xx

• Select the following setting:

SERVICE PARAM: E1 VALUE: xx

• Select the following setting:

SERVICE PARAM: S1 VALUE: xx

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following setting:

SERVICE PARAM: X2 VALUE: xx

• Select the following setting:

SERVICE PARAM: E2 VALUE: xx

• Select the following setting:

SERVICE PARAM: S2 VALUE: xx

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

• With remote

controller set picture
width. Correct 4:3
picture geometry
should be obtained.

• Set vertical amplitude

of the picture. The
picture should be
expanded up to the
edges of the test on
top and bottom side.

• Set horizontal

amplitude of picture.
The picture should be
expanded up to the
edge of test.

• Set vertical position

of the picture to the
centre of the screen.

• Set vertical amplitude

of picture which
should be expanded
up to the first
horizontal white line
on test picture of
page.

• Set picture width so

as to get correct 4:3
picture geometry
(rounded circle).

• Set vertical picture

position in the centre
of the screen.

4:3 picture

»letterbox picture«

»CIN EMA«

12

ADJUSTMENT ADJUSTMENT

CONDITION

14. »ZOOM«
GEOMETRY
OF ZOOM
PICTURE (16:9)

The setting enables
reproduction of 4:3
expanded picture on
16:9 screen (black
edges on left and right
side decrease, a part of
top part of picture is
cut off so that subtitles
are visible.

15. OPERATING
THRESHOLD OF
AUTOMATIC
AMPLIFICATION
REGULATION

16. RED

COMPONENT
OF WHITE

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following setting:

SERVICE PARAM: X3 VALUE: xx

• Select the following setting:

SERVICE PARAM: E3 VALUE: xx

• Select the following setting:

SERVICE PARAM: S3 VALUE: xx

• To antenna connector of TV

set, which is set to channel 12,
connect VF signal source of
frequency 224,25 MHz (C12)
with RF amplitude 60dB/uV
(1mV/75E).

• Connect voltmeter, dc, on

C107.

• Switch the TV set to service

mode of operation.

• Select the following service

setting:

SERVICE PARAM: AC VALUE: xx

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following service

setting:

SERVICE PARAM: R VALUE: xx

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

• Set vertical amplitude

of picture which
should be expanded
on 138% of normal
test picture.

• Set picture width so

as to get correct 4:3
picture geometry
(rounded circle).

• Set vertical picture

position. Picture
should be shifted
upwards (bottom
edge of picture up to
bottom edge of
screen).

• With remote controller keep changing the value

of AC setting until 7.5V±0,5V appears on
voltmeter display.

REMARK: If in chassis is inserted WW form of

tuner (small casing), with 5V supply, set on
voltmeter value 2,8V±0,1V.

• With remote

controller set value:

1F: Pict. Tube Philips,

Panasonic.

1F: Pict. Tube Thomson.

This value is for
orientation and depends
of picture tube.

»ZOOM«

(»Titled Movie Expand)

13

ADJUSTMENT ADJUSTMENT

CONDITION

17. GREEN

COMPONENT
OF WHITE

18. BLUE

COMPONENT
OF WHITE

19. REFERENCE
OSCILLATING
CIRCUIT OF
DEMODULATOR

20. TIME DELAY

OF
LUMINANCE
SIGNAL

21. HORIZONTAL

OSD POSITION

22. OSD COLOUR

INTENSITY

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following service

setting:

SERVICE PARAM: G VALUE: xx

• To antenna connector of TV

set, which is switched on and
operates in service mode,
connect VF signal source with
PHILIPS test picture.

• Select the following service

setting:

SERVICE PARAM: B VALUE: xx

• With remote controller select the following

service setting:

SERVICE PARAM: I1 VALUE: xx

PAL /SECAM /L'

• With remote controller select the following

service setting:

SERVICE PARAM: I2 VALUE: 00

PAL /SECAM /DK

• With remote controller select the following

service setting:

SERVICE PARAM: I3 VALUE: 40

• To antenna connector of TV set,

which is switched on and operates in
service mode, connect VF signal
source with PHILIPS test picture.

• Select the following setting:

SERVICE PARAM: YD VALUE:xx

• To antenna connector of TV set,

which is switched on and operates in
service mode, connect VF signal
source with PHILIPS test (or any)
picture.

• Select the following setting:

SERVICE PARAM: HD VALUE:xx

• To antenna connector of TV set,

which is switched on and operates in
service mode, connect VF signal
source with PHILIPS test (or any)
picture.

• Select the following setting:

SERVICE PARAM: RG VALUE:xx

• With remote

24: Pict. Tube Philips,

28: Pict. Tube Thomson.

This value is for
orientation and depends
of picture tube.

• With remote

24: Pict. Tube Philips,

20: Pict. Tube Thomson.

This value is for
orientation and depends
of picture tube.

PAL /SECAM BG/L

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

controller set value:

Panasonic.

controller set value:

Panasonic.

• With keys fo r set va lue cha ngi ng se t

parameter value.

SERVICE PARAM: I1 VALUE:40

• With keys fo r set va lue cha ngi ng se t

parameter value.

SERVICE PARAM: I2 VALUE: 00

• With keys fo r set va lue cha ngi ng se t

parameter value.

SERVICE PARAM: I3 VALUE: 40

• With remote controller set such delay

setting that signals of colour and black ­white picture overlap.

Recommended value: D

• With remote controller set position of the

OSD (On Screen Display) to the centre of
the screen.

• With remote controller set colour intensity

(4 steps) of the OSD (On Screen Display).

14

ADJUSTMENT ADJUSTMENT

CONDITION

23. OPTION BYTE 1

24. OPTION BYTE 2

25. OPTION BYTE 3

26. OPTION BYTE 4

27. OPTION BYTE 5

28. VOLTAGE FOR

PICTURE TUBE
BEAM
FOCUSING

29. VOLTAGE OF

SECOND GRID
OF U

G2

PICTURE TUBE

30. REFERENCE

OSCILLATING
CIRCUIT OF
SOUND
DEMODULATOR

• Select the following setting:

SERVICE PARAM: O1 VALUE: xx

• Select the following setting:

SERVICE PARAM: O2 VALUE: xx

• Select the following setting:

SERVICE PARAM: O3 VALUE: xx

• Select the following setting:

SERVICE PARAM: O4 VALUE: xx

• Select the following setting:

SERVICE PARAM: O5 VALUE: xx

• Switch the colour TV with STOP

key on remote controller to normal
mode of operation.

• Connect signal with Philips test

picture to antenna connector.

Required instruments:

• oscilloscope ,

• oscilloscope probe 100:1;

• Cp=2,5pF (oscilloscope setting

0,5V/div; 5ms/div: ext. actuation
with vertical time b asis of TV set).

Procedure:

• To antenna connector connect signal

with Philips test picture.

• With oscilloscope probe search on

video output stage for the cathode of
picture tube on which video signal
has highest voltage level of black
(oscilloscope setting: 0,5V/div; 20
µs/div: int. triggering). The probe
should remain connected to this
cathode.

• Change t he setti ng o f oscillo sc ope to

5ms/div and ext. Triggering with
vertical time basis of TV set and on
oscillogram search for measuring
"ABS" impulse (automatic black
point stabilisation).

• To antenna connector of TV

set, which is switched on
and operates in service
mode, connect VF signal
source with PHILIPS test
picture and with 1kHz
modulated sound carrier.

ADJUSTMENT ACTIVITY

AND RESULT OF SETTINGS

• See table of OPTION BYTES on followed

• Connect Volt-meter

pages.

• See table of OPTION BYTES on followed

pages.

• See table of OPTION BYTES on followed

pages.

• See table of OPTION BYTES on followed

pages.

• See table of OPTION BYTES on followed

pages.

• With potentiometer for focusing voltage

adjustment on HV transformer set such
value of vol tage, tha t give s s har p p ictur e on
entire surface of the screen. Sharpness
should be equal in corners and in centre of
the screen.

• With

potentiometer for
second grid
voltage
adjustment on

ABS pulse

HV transformer
set such value of
»ABS« pulse to
voltage 130±2 V.

0V

130V

• Rotating the core of

on pin 5 of IC525.

L521 coil to set 2,3V
+/-0,lV on Volt­meter.

15

LIST OF SERVICE MODE PARAMETERS

NR. PAR. NAME FUNCTION FW1 MIN MAX

0 VH Vertical Shift 24h 00h 3fh
1 VA Vertical Amplitude 21h 00h 3fh
2 VS Vertical Slope 25h 00h 3fh
3 SC S-Correction 09h 00h 3fh
4 HS Horizontal Shift 25h 00h 3fh
5 EW EW width 33h 00h 3fh
6 PW EW Parabola/Width 19h 00h 3fh
7 CP EW Corner Parabo la 08h 00h 3fh
8 TC EW Trapezium 1fh 00h 3fh

9 EW EW width 33h 00h 3fh
10 X1 Vertical zoom 16:9 (EXREND) 1fh 00h 26h
11 E1 EW width 16:9 (EXTEND) 20h 00h 3fh
12 S1 Vertical Scroll 16:9 (EXTEND) 20h 00h 3fh
13 P1 PIP horizontal position 20h 00h 7fh
14 PA PIP adjustment right hor izo ntal position 07h 00h 0fh
15 P2 PIP vertical position 20h 00h 7fh
16 P3 PIP horizontal position - zoom 20h 00h 7fh
17 X2 Vertical zoom CINEMA 00h 00h 26h
18 E2 EW width CINEM A 33h 00h 3fh
19 S2 Vertical Scroll CINEMA 20h 00h 3fh
20 X3 Vertical zoom ZOOM 1ah 00h 26h
21 E3 EW width ZOOM 33h 00h 3fh
22 S3 Vertical Scroll ZOOM 20h 00h 3fh
23 AC AGC take o ver 07h 00h 3fh
24 R White point R 1fh 00h 3fh
25 G White point G 24h 00h 3fh
26 B White point B 24h 00h 3fh
27 I1 Adjustment IF-PLL A UTO 40h 00h 7fh
28 I2 Adjustment IF-P L L SECAM L 00 h 00h 7fh
29 I3 Ad j ust me nt IF-PLL Sound Standard DK 40h 00h 7fh
30 YD Y-Delay 0dh 00h 0fh
31 HM Hotel Mode Max Loudspeaker value 2fh 00h 7fh
32 HD Display Horizontal Delay 10h 00h 1fh
33 RG R GB Ga in for OSD 02h 00h 03h
34 O1 Option byte 1 20h 00h ffh
35 O2 Option byte 2 02h 00h ffh
36 O3 Option byte 3 50h 00h ffh
37 O4 Option byte 4 00h 00h ffh
38 O5 Option byte 5 00h 00h ffh

FATAL ERROR DETECTION

VIDEO PROCESSOR NOT DETECTED, or POWER UP RESET of Video Processor not finished – LED flashing with 1Hz.

1

Firmware value – Used in case of empty EEPROM or on se rvice table checksum fail

16

OPTION BYTES

Option bytes enable programme configuration of colour TV set. Changing individual bites of a
byte modifies the characteristics of TV set.

Option byte O1:

Position 7 6 5 4 3 2 1 0

Slo

language

1 Enable Enable Enable Enable Enable 123 degrees Enable Enable
0 Disable Disable Disable Disable Disable 118 degrees Disable Disable

FW 0 0 1 0 0 0 0 0

Hotel mode Black

stretch

Blue stretch Dynamic

skin control

Dynamic
skin
correction
angle

Blue back NTSC

Option Byte O2:

Position 7 6 5 4 3 2 1 0

Headphone

menu

1 Disable 38 Enable Enable Enable Disable Enable Enable
0 Enable 06 Disable Disable Disable Enable Disable Disable

FW 0 0 0 0 0 0 1 0

User set
(east or
west)

Top TV set is

16:9

EEPROM
language

HBL bit
video proc.
On 4:3

Multistanda
rd TV

PAL I

Option Byte O3:

Position 7 6 5 4 3 2 1 0

Italian

channels
(c13-c20)

1 Disable Disable Enable Enable Standard Enable Enable
0 Enable Enable Disable Disable Delayed 8s Disable Disable

FW 0 1 0 1 0 0 0 0

Zoom on
4:3

HBL in
TXT (110
chassis)
Avl (90
chassis)

AVL option Switch on ROM

language

Not used CTI

Option Byte O4:

Position 7 6 5 4 3 2 1 0

Force

mono
volume

1 Enable Enable Enable Enable Enable Enable
0 Disable Disable Disable Disable Disable Disable

FW 0 0 0 0 0 0 0

DCO
adjustment
and
INDIA_TV

DK toggle
alternate
sound (red
key)

6.5Mhz and

5.74Mhz to

6.25 and

5.74 Mhz

Space effect

0 0

3D effect

0 1

Virtual Dolby effect

1 0

Virtual Dolby (text 3D)

1 1

Zet
correction

Auto on
(for quality
department)

Low
standby

Option Byte O5:

Position 7 6 5 4 3 2 1 0

Not used Not used Tuner Scan 1 x 4 Not used
0 0
Tuner Scan Reverse U x 6
0 1
Tuner Scan 3 x 3
1 0
Tuner Scan 3 x 4

1 1
1 Enable Enable Enable
0 Disable Disable Disable

FW 0 0 0 0 0 0 0 0

Second

zoom
(UK)

Tuner scan Equaliser

17

Option bytes are set so that besides selected op tion byte also hexadecimal number is set on the basis of
above tables.

Example:

• blue back-enable

• dynamic skin control enable

• blue stretch enable

Select option byte O1 and for items, which should be activated, set “1” (other bites are “0”). In our case
is as follows:

O1:

7 6 5 4 3 2 1 0
0 0 0 1 1 0 1 0

1 A

Shaded binary number should now be converted to hexadecimal value (darker frame). Afterwards set
this value.

SERVICE PARAM: O1 VALUE: 1A

• CAUTION: Option bytes are Factory adjusted and must NOT be changed later, because

they change TV set characteristics.

31. INFORMATION MENU ABOUT
INTEGRATED CIRCUITS,
CONNECTED TO I

2

C-BUS

If you press i key (info) on remote control
when the TV set is in service mode, you will
get on the screen information about

of current software (e.g.: VER: E9P7 4.5) and

the version

devices connected on I2C bus:

E9P7 4.5

TDA8843
MSP 34XX OK WD: FF
SDA9488 XX SP : 00
TUNER2 XX
TDA 8540 XX
TDA8425 X

SERVICE

Video processor: Bus controlled TV processor

for video and audio signal

MSP 34XX: Digital stereo sound

processor

If device is installed and properly connected on

2

I

C bus it will respond with “OK” beside the
name of device, otherwise there will be “XX”
on this place.

For conversion from binary to hexadecimal
help us next table:

BIN HEX
0 0 0 0 0
0 0 0 1 1
0 0 1 0 2
0 0 1 1 3
0 1 0 0 4
0 1 0 1 5
0 1 1 0 6
0 1 1 1 7
1 0 0 0 8
1 0 0 1 9
1 0 1 0 A
1 0 1 1 B
1 1 0 0 C
1 1 0 1 D
1 1 1 0 E
1 1 1 1 F

18

IC PIN DETAILS

TDA8843

SYMBOL PIN DESCRIPTION

SNDIF 1 Sound IF input
AUDIOEXT 2 External audio input
NC 3 not connected
NC 4 not connected
PLLLF 5 IF-PLL loop filter
IFVO 6 IF video output
SCL 7 serial clock input
SDA 8 serial data input/output
DECBG 9 bandgap decoupling
CHROMA 10 chrominance input (S-VHS)
CVBS/Y 11 external CVBS/Y input
VP1 12 main supply voltage 1 (+8V)
CVBS
GND1 14 ground1
AUDIOOUT 15 audio output
SECPLL 16 SECAM PLL decoupling
CVBS
BLKIN 18 black-current input
BO 19 blue output
GO 20 green output
RO 21 red output
BCLIN 22 beam current limiter input/V-guard input
RI 23 red input for insertion
GI 24 green input for insertion
BI 25 blue input for insertion
RGBIN 26 RGB insertion input
LUMIN 27 luminance input
LUMOUT 28 luminance output
BYO 29
RYO 30
BYI 31
RYI 32
REFO 33 subcarrier reference output
XTAL1 34 3.58MHz crystal connection
XTAL2 35 4.43/3.58MHz crystal connection
DET 36 loop filter phase detector
VP2 37 2nd supply voltage 1(+8V)
CVBS1O 38 CVBS-1 output
DECDIG 39 Decoupling digital supply
HOUT 40 horizontal output
FBISO 41 flyback input/sandcastle output
PH2LF 42 phase-2 filter
PH1LF 43 phase-1 filter
GND2 44 ground 2
EWD 45 east-west drive output
VDRB 46 vertical driveB output
VDRA 47 vertical driveA output
IFIN1 48 IF input 1
IFIN2 49 IF input 2
EHTO 50 EHT/overvoltage protection input
VSC 51 vertical sawtooth capacitor
IREF 52 reference current input
DECAGC 53 AGC decoupling capacitor
AGCOUT 54 tuner AGC output
AUDEEM 55 Audio deemphasis
DECSDEM 56 Decoupling sound demodulator

13 internal CVBS input

INT

17 external CVBS input

EXT

(B−Y) signal output
(R−Y) signal output
(B−Y) signal input
(R−Y) signal input

19

TDA8351

SYMBOL PIN DESCRIPTION

I

drive(pos)

I

drive(neg)

V

P

GND

V

FB

V

O(guard)

V

I(fb)

1

input power-stage (positive);

2

input power-stage (negative);

3

operating supply voltage

4

output voltage B
ground

5

6

input flyback supply voltage

7

output voltage A
8 guard output voltage
9 input feedback voltage

includes I

includes I

V

O(B)

V

O(A)

V

I(fb)

I(sb) signal bias

I(sb) signal bias

TDA6107Q

SYMBOL PIN DESCRIPTION

Vi(1) 1 inverting input 1
Vi(2) 2 inverting input 2
Vi(3) 3 inverting input 3
GND 4 ground (fin)
Iom 5 black-current measurement output
VDD 6 supply voltage
Voc(3) 7 cathode output3
Voc(2) 8 cathode output2
Voc(1) 9 cathode output1

TDA7057Q

SYMBOL PIN DESCRIPTION

VC1 1 DC volume control1
n.c. 2 not connected

V

l (1)

VP

V

l (2)

SGND 6 signal ground
VC2 7 DC volume control2
OUT2+ 8 positive output2
PGND2 9 power ground2

OUT2−
OUT1−

PGND1 12 power ground1

OUT1+

3 voltage input1
4 positive supply voltage
5 voltage input2

10 negative output2
11 negative output1

13 positive output1

20

F

SDA5553-A009/EV E945

Symbol

Pin No.

P0.0 1 I/O O AV/TV
P0.1 2 I/O O BG/L
P0.2 3 I/O O DECODER
P0.3 4 I/O O BL_SC1
P0.4 5 I/O I/O IIC-SDA1
P0.5 6 I/O I/O IIC-SCL1
P0.6 7 I/O I/O IIC-SDA2
P0.7 8 I/O
P1.0 45 I/O O L/L'
P1.1 46 I/O O LED
P1.2 47 I/O I/O N.C. (h)
P1.3 48 I/O I/O COPY
P1.4 49 I/O I/O BG/DK
P1.5 50 I/O O SVHS_COMB
P1.6 51 I/O O VOL
P1.7 52 I/O
P2.0 15 I I KEYB
P2.1 16 I I PERI1
P2.2 17 I I PERI2
P2.3 18 I
P3.0 21 I/O O ON/OFF
P3.1 22 I/O O TxD
P3.2 23 I/O I/O SCART1/2
P3.3 24 I/O I RC5
P3.4 25 I/O I/O BG/L_PIP
P3.5 26 I/O I/O AV1/AV2_PIP
P3.6 27 I/O O MSP_RESET
P3.7 28 I/O
P4.2 31 I/O I TUN_SELECT1
P4.3 32 I/O

XTAL2 34 O

XTAL1 35 I

RESET 33 I

V
V
V

VSS
V

R 38 O Red colour signal output
G 39 O Green colour signal output
B 40 O Blue colour signal output
BLANK/
COR

HS/SSC 19 I

VS 20 I/O Vertical sync input for display
CVBS 12 I CVBS (video signal) input

2.5

DD

2.5

DDA

DD

SSA

13, 37 S

3.3

11,30,47 S Power supply voltage
10,29,43 S Ground (0 V)

14, 36 S Ground (0 V) for Slicer and ADC

Input (I)
Output (O)
Supply (S)

Port 0 is an 8-bit open drain
bi-directional I/O port. Port 0 pins
that have 1s written to them
float; in this state they can be
used as high-impedance inputs
(e.g. for software driven
Bus).

Port 1 is an 8-bit bi-directional
multifunctional I/O port with
internal pull-up resistors.

Port 2 is a 4-bit input port without
pull-up resistors. Port 2 also
works as analogue input for the
4-channel-ADC.

Port 3 is an 8-bit bi-directional
I/O port with internal pull-up
resistors.

Port 4 is a bi-directional I/O
port

Output of the inverting oscillator
amplifier.
Input to the inverting oscillator
amplifier
A low level on this pin resets the

9, 42 S Power supply voltage for RGB

41 O

processor

Power supply voltage for Slicer
and ADC

Blanking output/ Contrast
Reduction output
Horizontal sync input (alternative
sandcastle sync input) for
display

Function

2

I

C

EV PINING

I/0

I/O IIC-SCL

I/O Z_COR

I ADC3

I RxD

I TUN_SELECT2

UNCTION

2

SDA5553

24C16

Pin No. Function

1 Internal N.C.
2 Internal N.C.
3 Internal N.C.
4 Ground
5 Seral Adress/Data
6 Serial Clock
7 Write Protect Input
8 Supply voltage input

A0

A1

A2

VSS

24C16

VCC

WP

SCL

SDA

21

TDA4605-2

Pin No. Function

1 Information Input Concerning Secondary Voltage
2 Information Input Regarding the Primary Current
3 Input for Primary Voltage Monitoring
4 Ground
5 Output
6 Supply Voltage Input
7 Input for Soft-Start and Integrator Circuit
8 Input for the Feedback of the Oscillator

U4467B, U4468B

Pin No. Function

1 `IF` input
2 `IF` input
3 Capacitor for AGC` time constant
4 Capacitor for internal reference voltage
5 Loop filter *
6 A.F. output (AM sound)
7 Standard switch *
8 Reference VCO L.C. network *
9 Reference VCO L.C. network *
10 AM mute switch
11 not connected
12 Sound IF output (FM` sound) *
13 Ground
14 Supply voltage 5V
15 not connected
16 not connected

* Function only for U4468B

V

sw,AGC

V

U_PIS

U_PUD

V

i,IF

V

i,IF

C

AGC

C

REF

LF *

V

o,AM

VCO

U_R

GND

*

*

1

2

3

4

5

6

7

8

TDA4605-2

U4467B
U4468B

U_ZCD

U_SST

U_S

OUT

16

n.c.

15

n.c.

14

V

13

GND

12

V

11

n.c.
V

10

V

9

s

*

o,FM

sw,mute

*

VCO

22

MSP3411G (MSP3401G, MSP3405G, MSP3415G)

PIN Pin Name Short Description

1 TP Test pin
2 AUD_CL_OUT Audio clock output
3 D_CTR_I/O_1 D_CTR_I/O_1
4 D_CTR_I/O_0 D_CTR_I/O_0
5 ADR_SEL I2C Bus address select
6 STANDBYQ Stand-by (low-active)
7 I2C_CL I2C clock
8 I2C_DA I2C data
9 I2S_CL I2S clock
10 I2S_WS I2S word strobe
11 I2S_DA_OUT I2S data output
12 I2S_DA_IN1 I2S1 data input
13 ADR_DA ADR data output
14 ADR_WS ADR word strobe
15 ADR_CL ADR clock
16 DVSUP Digital power supply 5 V
17 DVSS Digital ground
18 I2S_DA_IN2 I2S2-data input
19 NC Not connected
20 RESETQ Power-on-reset
21 DACA_R Headphone out, right
22 DACA_L Headphone out, left
23 VREF2 Reference ground 2
24 DACM_R Loudspeaker out, right
25 DACM_L Loudspeaker out, left
26 DACM_SUB Subwoofer output
27 SC2_OUT_R SCART output 2, right
28 SC2_OUT_L SCART output 2, left
29 VREF1 Reference ground 1
30 SC1_OUT_R SCART output 1, right
31 SC1_OUT_L SCART output 1, left
32 CAPL_A Volume capacitor AUX
33 AHVSUP Analog power supply 8 V
34 CAPL_M Volume capacitor MAIN
35 AHVSS Analog ground
36 AGNDC Analog reference voltage
37 SC3_IN_L SCART 3 input, left
38 SC3_IN_R SCART 3 input, right
39 SC2_IN_L SCART 2 input, left
40 SC2_IN_R SCART 2 input, right
41 SC1_IN_L SCART 1 input, left
42 SC1_IN_R SCART 1 input, right
43 VREFTOP Reference voltage IF
44 MONO_IN Mono input
45 AVSS Analog ground
46 AVSUP Analog power supply 5 V
47

ANA_IN1

48

ANA_IN

49

ANA_IN2
50 TESTEN Test pin
51 XTAL_IN Crystal oscillator
52 XTAL_OUT Crystal oscillator

+

−
+

IF input 1
IF common
IF input 2

23

PCB LAYOUTS

VK-E9TM

TPA-CG

LZ-E9

24

"#$%&'()*+,-.

EXPLODED VIEW W24VA/S 12S0

!

Pos. On Pict. Description Qty Ident.Nr. Code

1 REMOTE HANDSET PR 108
2 IR, LED GLASS 1 445066
3 MODULE TPA-CG SE 95260 1 444396
4 BUTTON FOR MAIN SWITCH 1 445069
5 HOUSING W24“ 1 445473
6 MAIN SWITCH 1 438101
7 LOUDSPEAKER 8Ω 15W 2 420717
8 COLOUR PICTURE TUBE W 56 EHQ… TH 1 445365
8 COLOUR PICTURE TUBE W 56 ECK… PH 1 445364

9 DEGAUSSING COIL 24“ 1 445443
10 CHASSIS FRAME 1 444849
11 MAIN CHASSIS 12 P/I N TH
11 MAIN CHASSIS 12 P/I N PH
12 MODULE LZ-E9 SE 96200 1 433811
13 MODULE VK-E9T SE 96110 1 439657
14 BACK COVER 24“ 1 445068

--EXPLODED VIEW – DR AWING- -

GRUNDIG

(S.B. 0 20-91-00-00-04)

(S.B. 0 20-91-00-00-04)

1 444872

1 441839

1 443008
1 445647

25

LIST OF RECOMMENDED SPARE PARTS FOR CHASSIS AND MODULES

CODE VALUE POSITION

MAIN CHASSIS

412499 C/EL 220U M400V C-12642
415949 C/EL PR 5,0 2U2 M350V C-12709 5,0
338557 C/EL PR 5,0 10U T250V C-12606 5,0
414794 C/EL PR 5,0 47U M160V C-12605 5,0
415947 C/EL TR 5,0 1U0 M250V C-12714 5,0
412517 C/CE/Y/2E4/Z NR12,5 2N2M400VAC C-12645

415881 C/MPP 22,5 U39 J 250V
413782 C/MPP PR * U68 M 250V C-12715

425838 C/PP U015 J 1,6KV
428781 C/PP U015 J 1,0KV C-12713 22,5

415936 C/PP PR * U033 K 630V C-12627
415937 C/PP PR15,0 220P J 1,6KV C-12625 15,0
429609 C/X2 PR* U47 M 275VAC C-12641
429610 C/X2 U10 M 275VAC C-12646 15,0
429611 C/X2 U22 M 275VAC C-12636 22,5
313551 D/SI/1N4001 TA D-12701 12,5
313551 D/SI/1N4001 TA D-12702 12,5
51666 D/SI/1N4148 TA D-12104 10,0
51666 D/SI/1N4148 TA D-12106 10,0
51666 D/SI/1N4148 TA D-12109 12,5
51666 D/SI/1N4148 TA D-12601 12,5
51666 D/SI/1N4148 TA D-12606 12,5
51666 D/SI/1N4148 TA D-12705 12,5
51666 D/SI/1N4148 TA D-12710 12,5
412464 D/SI/BAT85 D-12108 17,5
324669 D/SI/BY228 TA D-12706 20,0/H10
410680 D/SI/BYW74 TA D-12708
410680 D/SI/BYW74 TA D-12607 15,0/H10
410680 D/SI/BYW74 TA D-12609 15,0/H10
410680 D/SI/BYW74 TA D-12614 15,0/H10
424580 D/SI/BYT52G D-12302 12,5
424580 D/SI/BYT52G D-12604 12,5
424580 D/SI/BYT52G D-12703 12,5
424580 D/SI/BYT52G D-12704 12,5
424580 D/SI/BYT52G D-12709 12,5
424279 D/SI/BYT52M TA D-12608 12,5
415931 D/SI/BYW54 TA D-12610 12,5
415931 D/SI/BYW54 TA D-12611 12,5
415931 D/SI/BYW54 TA D-12612 12,5
415931 D/SI/BYW54 TA D-12613 12,5
417320 D/SI/BYW95C TA D-12602 15,0/H10
417320 D/SI/BYW95C TA D-12707 15,0/H5
68571 DIODE Z/ 2,7V/C/0,5W D-12711 10,0
304326 DIODE Z/33 V/C/0,5W TA D-12603 12,5
435879 MAINS CHOKE 2X70 mH DU-12602
439745 IC SDA5553-A009/EV E945 IC-12001
429960 IC AT24C08-10PC IC-12002

C-12707

C-12711 22,5

26

CODE VALUE POSITION

MAIN CHASSIS

445647 IC AT24C08-10PC IC-12002
415922 IC LM317T IC-12004, IC-12005
415922 IC LM317T IC-12602, IC-12604
427444 IC TDA8843/N2C IC-12101
419821 IC TDA7057AQ IC-12102
366430 IC TEA2014 IC-12104
425757 IC TDA8351 IC-12301
438568 IC U4468B IC-12501
430973 IC MSP3415G PSDIP52 IC-12503
415921 IC TDA4605-2 IC-12601
415923 IC VOLTAGE REG. 8 V;1 A;TO-220 IC-12603
419715 IC 74HCT4053 IC-12801

444371 TUNER EL 2787-74
68503 IC SOCKET 8 FOR IC-12002

426141 HEADER 7/2,5 K-12102A
426141 HEADER 7/2,5 K-12901A
423427 CONNECTOR M/ / 4/2,5 MKS1954 K-12701
424019 CONNECTOR M/ 3/2,5 90647-1003 K-12301A
423988 CONNECTOR M/ 4/2,5 90647-1004 K-12702A
423989 CONNECTOR M/ 5/2,5 90647-1005 K-12104A
319045 CRYSTAL 4,4 MHz Q-12101
431081 CRYSTAL 6 MHz Q-12001
439430 CRYSTAL 18,432 MHZ Q-12501
316831 FUSE HOLDER FOR VA-12601
316831 FUSE HOLDER FOR VA-12602
316831 FUSE HOLDER FOR VA-12603
421055 METAL SHIELD EMC E6/E7 MP-12101
79039 PASTE SILICON P12 FOR HEATSINK T-12705
410208 MICA WASHER FOR IC-12602
410208 MICA WASHER FOR IC-12604
338708 MICA WASHER FOR T-12602
338569 R/PL TA R47 J 0,5 W R-12703 15,0
415965 R/PL TA 5K1 J 0,33 W R-12610 10,0
433775 R/MF 220K J 3,5kV R-12615 12,5
372123 R/FUSIBLE TA 2R2 J 0,33W R-12156 15,0/H10
372123 R/FUSIBLE TA 2R2 J 0,33W R-12715 15,0/H10
411573 R/FUSIBLE R39 K 0,75W R-12140 15,0/H10
421131 R/FUSIBLE TA 47R J 0,33W R-12304 20,0/H10
421131 R/FUSIBLE TA 47R J 0,33W R-12609 15,0/H10
415009 R/FUSIBLE TA 1K J 0,5 W R-12707 15,0/H10
411572 R/FUSIBLE TA R15 K 0,75W R-12622 15,0/H10
411574 R/FUSIBLE TA R22 K 0,4 W R-12710 15,0/H15
411574 R/FUSIBLE TA R22 K 0,4 W R-12713 15,0/H15
419823 R/PLK 0204 TA 2K05 F 0,25 W R-12618 12,5
69833 R/CL 0204 TA 8K2 J 0,33 W R-12118 10,0
330380 R/PLK 0204 TA 3K F 0,25 W R-12308 12,5
429553 R/PLK 0204 TA 39K F 0,25 W R-12122 12,5
419824 R/PLK 0204 TA 243R F 0,25 W R-12052, R-12044 10,0
419824 R/PLK 0204 TA 243R F 0,25 W R-12616, R-12623 12,5
419825 R/PLK 0204 TA 715R F 0,25 W R-12625 12,5

TUN-12101

27

CODE VALUE POSITION

MAIN CHASSIS

416940 R/HV TA 220K J 1 kV R-12701 12,5
433776 R/HV TA 820K J 1,6KV R-12613 12,5

415143 R/MOX TA 1R2 J 1W
316701 R/PLKO TA R82 J 1W R-12306 20,0/H10 for PH

316701 R/PLKO TA R82 J 1W R-12702 15,0
429521 R/PLKO TA 2R7 J 4W R-12714 20,0/H15
419822 R/PLKO TA 10R J 2W R-12725 20,0/H20
416508 R/PLKO TA 22K J 2W R-12603 20,0/H15
415953 R/PLKO TA 27K K 4W R-12624 35,0/H20
415952 R/PLKO TA 47K J 1,5W R-12606 20,0/H10
429522 R/PLKO TA 75K J 4W R-12604 20,0/H15
417319 R/PLKO TA 120R K 4W R-12305 20,0/H10
430531 R/PTC 16:9 T209 R-12628
338709 CLIP IC FOR IC-12102, IC-12301
338709 CLIP IC FOR IC-12602, IC-12604
338709 CLIP IC FOR T-12602, T-12701
422699 CLIP IC FOR T-12705
423137 T/FET/BUZ90A T-12602
338580 T/NPN/AF/BC639 TR T-12703
411262 T/NPN/BC547B TR T-12003, T-12004, T-12005
411262 T/NPN/BC547B TR T-12006, T-12007, T-12009
411262 T/NPN/BC547B TR T-12010, T-12104, T-12105
411262 T/NPN/BC547B TR T-12108, T-12501, T-12601
411262 T/NPN/BC547B TR T-12603, T-12702, T-12706
415900 T/NPN/BU508AF T-12701
415928 T/NPN/PH2369 TR T-12008, T-12109
415928 T/NPN/PH2369 TR T-12801, T-12802
411261 T/PNP/BC212B/BC557B TR T-12107, T-12110, T-12704
414036 T/PNP/BD242 T-12705
425763 TRANSFORM. SMPS E9 110 TR-12601
439188 TRANSFORM.HV E9 16:9 TR-12701
378773 TRANSFORM. DRIVER TR-12702
339150 LINEARITY COIL 12-25

427974 COIL EW E9 L-12703
437560 POWER FACTOR CORRECTION COIL PFC
21108 FUSE T 1,25 A L 250V VA-12601, VA-12602
431998 FUSE T 2 A E 250V VA-12603

MODULES

MODULE VK-E9T

415032 C/EL 5,0 2U2 M250V C-9202 5,0
300874 D/SI/1N4003 TA D-9205 12,5
425755 IC TDA6107Q IC-9201
414571 CRT SOCKET B10-277 PD-9201
411567 R/FUSIBLE TA 120R J 0,75W R-9210 20,0/H10
415951 R/MOX TA 1R5 K 1,5W R-9207 15,0/H10 for TH
425983 R/MOX TA 3R3 K 1,5W R-9207 15,0/H10 for PH
338709 CLIP IC FOR IC-9201
426035 VARISTOR 35V VAR-9201

R-12306 20,0/H10 for TH

L-12701

28

MODULES

MODULE TPA-CG

CODE VALUE POSITION

425987 IC TSOP IR-91001
420171 D/LED R/G D-91001

MODULE LZ-E9

427971 C/MPP 1u J 400V C-9751
415949 C/EL 2,2u M 350V C-9752
414037 C/PP 2,2n J 1,6kV C-9753
424580 D/SI/BYT52G D-9751
415009 R/FUSIBLE TA 1K J 0,5 W R-9751 15,0/H10
431359 BRIDGE COIL L-9751

29

"#$%&'()*+,-.

MANUFACTURING PARTS FOR TV W24VA/S 12S0

!

Pos. On Pict. Description Qty(pcs) Ident.Nr. Code

1 REMOTE HANDSET PR 108 GRUNDIG 1 444872

2 IR, LED GLASS 1 445066

3 MODULE TPA-CG SE 95260 1 444396

4 BUTTON FOR MAIN SWITCH 1 445069

5 HOUSING W24“ 1 445473

6 MAIN SWITCH 1 438101

7 LOUDSPEAKER 8Ω 15W 2 420717

8 COLOUR PICTURE TUBE W 56 EHQ… TH (Thomson) 1 445365

8 COLOUR PICTURE TUBE W 56 ECK… PH (Philips) 1 445364

9 DEGAUSSING COIL 24“ 1 445443

10 CHASSIS FRAME 1 444849
11 MAIN CHASSIS 12 P/I N TH (S.B. 0 20-91-00-00-04) 1 443008
11 MAIN CHASSIS 12 P/I N PH (S.B. 0 20-91-00-00-04) 1 445647
12 MODULE LZ-E9 SE 96200 1 433811
13 MODULE VK-E9T SE 96110 1 439657
14 BACK COVER 24“ 1 445068

User manuals 2 445606 & 445607
Battery R6S 2 422401
Designation relief “GRUNDIG” 1 445120
SCREW A 2,9X9,5 for main sw. & TP-AX 4 18149
SCREW A 3,9X9,5 for back cover 1 89338
SCREW A 3,9X16 for back cover 6 445450
SCREW R 7X32 for picture tube 4 445238
SCREW B 3X9 for loudspeakers 8 423520
CRT carrier 2 431984
CABLE for loudspeakers 1 436596
CABLE for defl. yokes 1 436766
Soldering wire 1,5 2,2g 26575
Cartoon box with packaging 1 445435 & 445367
Driller with base 3 77578
Spec clean. agent 1ml 378986

--EXPLODED VIEW – DR AWING- -

1 441839

30

CIRCUIT DIAGRAM OF MAIN CHASSIS E12

31

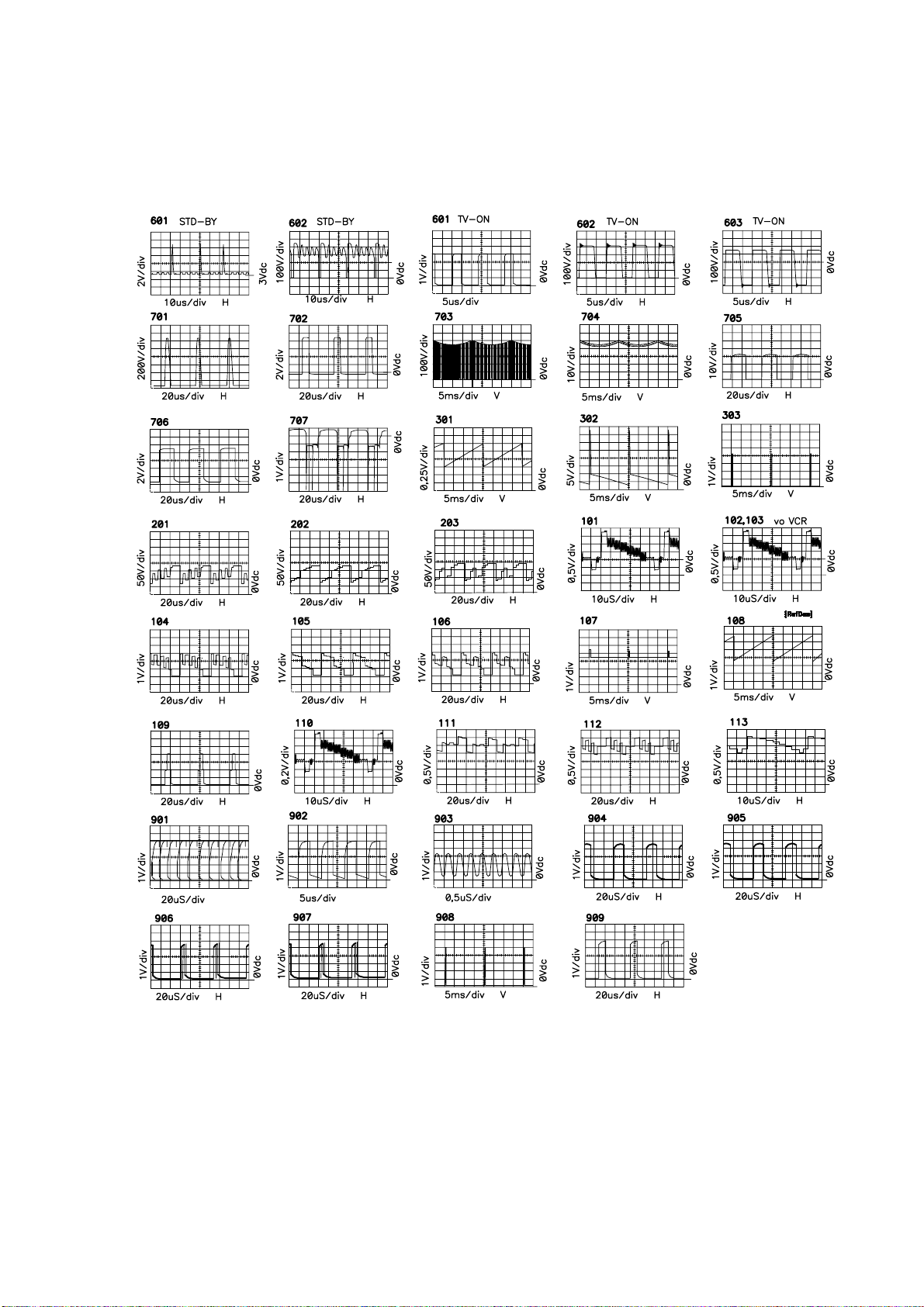

OSCILLOGRAMS

32

ELECTRICAL DIAGRAMS OF SEPARATE MODULES OF CHASSIS E12

NOTES:

33
