TV Service Manual
Service
Manual
Vorabversion
Preliminary Version
Chassis SE
Toronto
26-7831 T GBH3126
Vision 6
42-6831 T GBH1342
37-6831 T GBH1337
32-6831 T GBH1332
32-6832 T ECO GBH1232
26-6831 T GBH1326
26-6832 T ECO GBH1226
26-6832 F T ECO GBH1227
Vision 4
42-4831 T GBH2442
37-4831 T GBH2437
32-4831 T GBH2432
32-4806 T GBH2332
26-4806 T GBH2326
Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service
Sicherheit
Safety
Materialnr./Part No.
720108000001
Materialnummer / Part Number 720100538000
Änderungen vorbehalten / Subject to alteration
TCC 1108 HH • Prepared in Germany
http://www.grundig.com
Vision 3
37-3831 T GBH1537
32-3831 T GBH1532
32-3831 F T GBH1533
26-3831 T GBH1526
NUR FÜR INTERNEN GEBRAUCH
FOR INTERNAL USE ONLY
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Es gelten die Vorschriften und Sicherheitshinweise
gemäß dem Service Manual "Sicherheit", Materialnummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!
Inhaltsverzeichnis
Seite
Allgemeiner Teil .................................. 1-2…1-20
Allgemeine Hinweise .....................................................................1-2
Geräte- und Displayvarianten ........................................................1-3
Technische Daten ..........................................................................1-4
Bedienhinweise ...........................................................................1-13
Service- und Sonderfunktionen ...................................................1-19
Platinenabbildungen
und Schaltpläne .................................. 2-1…2-44
Chassisplatte YCR190R-3/4:
- Netzteil ........................................................................................2-1
- Eingänge .....................................................................................2-3
- Tuner ...........................................................................................2-7
- COFDM Demodulator................................................................2-11
- Scaler ........................................................................................2-12
- SUB_MCU .................................................................................2-20
- PCMCIA ....................................................................................2-21
- Audio Verstärker........................................................................2-22
- Leiterplatte YCR190R-3 ............................................................2-23
- Leiterplatte YCR190R-4 ............................................................2-32
Netzteilplatte (Prinzipschaltplan) .................................................2-40
Bedienplatten XGA191, XGE191, XSV191, XVQ191..................2-42
IR-/LED-Platte XVS192, XYN191, XYN192 ................................2-43
The regulations and safety instructions shall be
valid as provided by the "Safety" Service Manual, part number 720108000001, as well as the
respective national deviations.
Table of Contents
Page
General Section .................................. 1-2…1-20
General Notes ...............................................................................1-2
Product and Display Variants ........................................................1-3
Technical Data...............................................................................1-4
Operating Hints............................................................................1-16
Service and Special Functions ....................................................1-19
Layout of the PCBs
and Circuit Diagrams ......................... 2-1…2-44
Chassis Board YCR190R-3/4:
- Power Supply ..............................................................................2-1
- Inputs...........................................................................................2-3
- Tuner ...........................................................................................2-7
- COFDM Demodulator................................................................2-11
- Scaler ........................................................................................2-12
- SUB_MCU .................................................................................2-20
- PCMCIA ....................................................................................2-21
- Audio Amplifier ..........................................................................2-22
- PCB YCR190R-3.......................................................................2-23

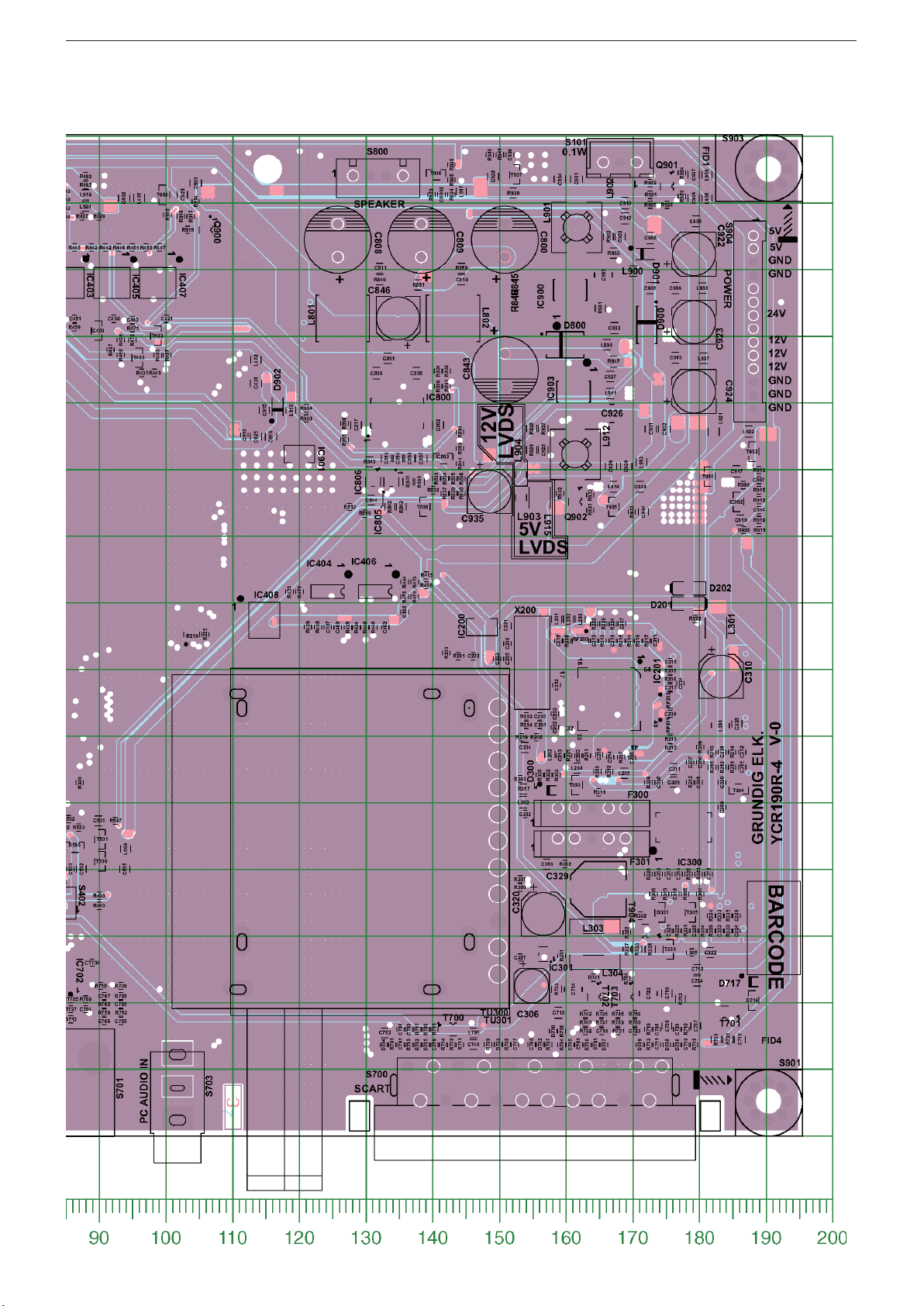

- PCB YCR190R-4.......................................................................2-32
Power Supply Board (Principal Circuit) .......................................2-40

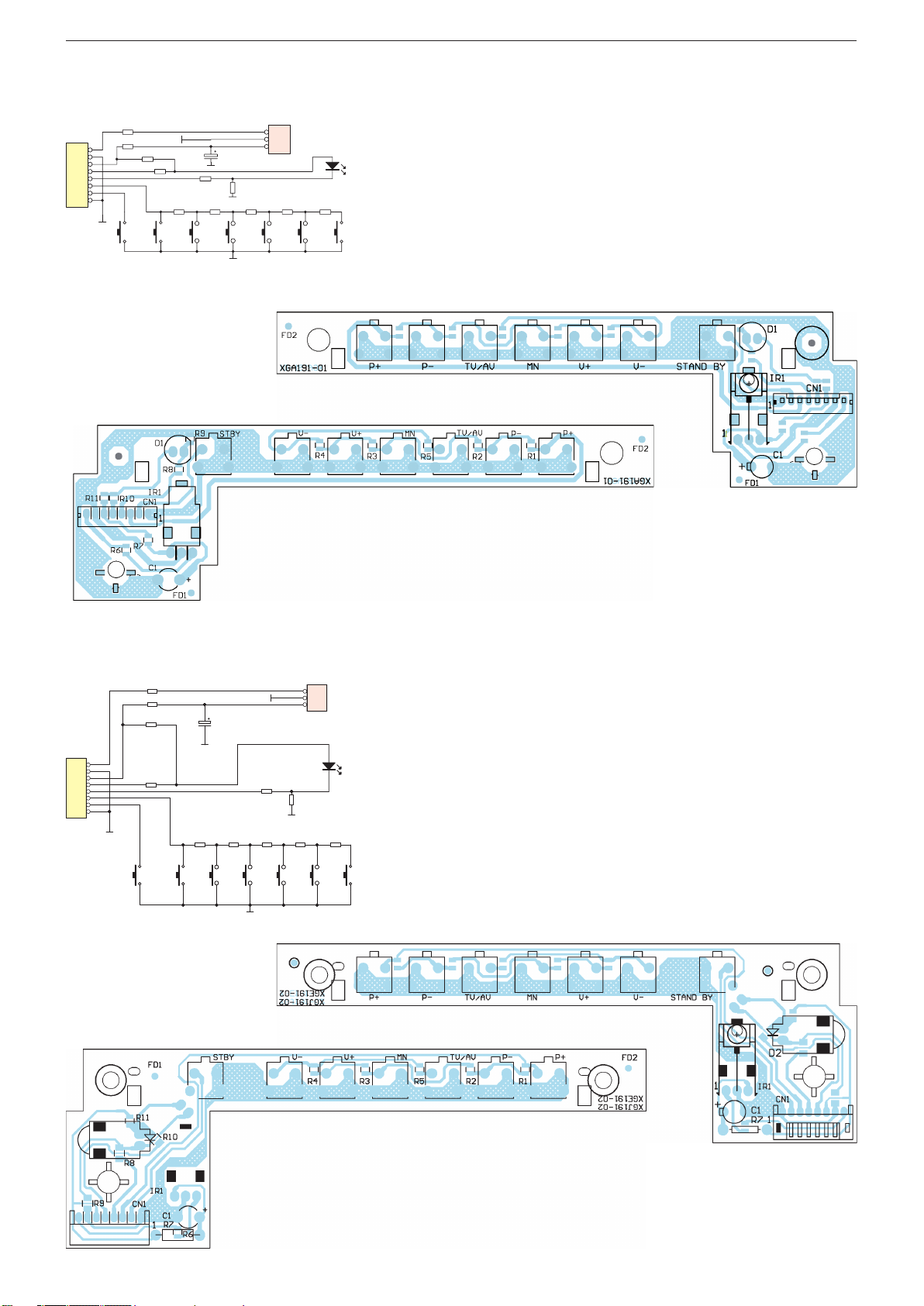

Keyboards XGA191, XGE191, XSV191, XVQ191 ......................2-42
IR/LED Boards XVS192, XYN191, XYN192................................2-43
Ersatzteillisten ........................................... 3-1…
Allgemeiner Teil
Allgemeine Hinweise
Vor dem Öffnen des Gehäuses den Netzstecker ziehen!
Achtung: ESD-Vorschriften beachten
Leitungsverlegung
Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
muss die Leitungsverlegung zu den einzelnen Baugruppen beachtet
werden.
Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder
in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle
oder Störungen zu vermeiden.
Durchführen von Messungen
Bei Messungen mit dem Oszilloskop an Halbleitern sollten Sie nur Tastköpfe mit 10:1 - Teiler verwenden. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopplung der Koppelkondensator
des Oszilloskops aufgeladen sein kann. Durch die Entladung über
das Messobjekt können Bauteile beschädigt werden.
Messwerte und Oszillogramme
Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!
Kindersicherung
Mit der Master-Pin "1453" kann die Einstellung der persönlichen Pin
geändert werden.
Hotel-Mode
Bei aktivierter Funktion ist die maximale Lautstärke begrenzt und das
Menü "Installation" ist nicht mehr anwählbar.
Aufruf: " i " –> "8500" –> 3 / 4 "OPTION 1" –> OK ( ) –> 3 / 4 "HOTEL" –> + "AVAIL".
Maximale Lautstärke: " i " –> "8500" –> 3 / 4 "OPTION 1" –> OK ( )
–> 3 / 4 "HOTEL VOLUME" –> +/- Wert 0…63.
Spare Parts Lists ....................................... 3-1…
General Section
General Notes
Before opening the cabinet disconnect the mains plug!
Attention: Observe the ESD safety regulations
Wiring
Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.
Carrying out Measurements
When making measurements on semi-conductors with an oscilloscope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.
Measured Values and Oscillograms
The measured values given in the circuit diagrams and oscillograms
are approximates!
Parental Control
The personal pin can be changed with master pin "1453".
Hotel Mode
Maximum volume is limited and there is no access to Menu "Channel
Setup" at activated hotel mode.
Call up: " i " –> "8500" –> 3 / 4 "OPTION 1" –> OK ( ) –> 3 / 4
"HOTEL" –> + "AVAIL".
Maximum volume: " i " –> "8500" –> 3 / 4 "OPTION 1" –> OK ( ) –>
3 / 4 "HOTEL VOLUME" –> +/- Value 0…63.
1 - 2
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Aktivierten Hotel-Mode kurzzeitig ausschalten
Bei dieser Funktion ist der Hotel-Mode bis zum nächsten Ausschalten
(Standby) des Gerätes deaktiviert.
Aufruf: " i " –> "4658"
Switching off the activated Hotel Mode temporarily
At this function the activated hotel mode is deactivated until the set
is switched off (standby).
Call up: " i " –> "4658"
Geräte- und Display-Varianten
Display- und Product Code
Je nach Verfügbarkeit werden
Displays verschiedener Hersteller eingebaut. Dies führt zu unterschiedlichen Chassis-Bestückungen, sowie zu Änderungen in der
Software. Bei Ersatzteilbestellungen und Software-Updates achten Sie bitte auf das eingebaute
Display, sowie auf den "Product
Code". Angaben dazu finden
Sie auf der Geräterückseite.
Sollte in der Ersatzteilliste des
Service Manuals Ihr "Product
Code" oder Ihre Display-Variante
nicht aufgeführt sein, können Sie
eine aktualisierte Version auf
dem GRUNDIG Service-Portal
"http://service.grundig.de" finden.
Überprüfen Sie vor Austausch der
Hauptplatte, ob die Aufkleber der
Platinen identisch sind.
Product and Display Variants
Display- und Product Code
Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders
as well as software updates take
care of the fitted display as well as
of the "Product Code". Therefore
you can find information on the
labels on the rear side. If your
"Product Code" or display variant is not mentioned in the spare
parts list of the service manual,
please look for a current version
at the GRUNDIG service portal
"http://service.grundig.de".
Before changing the main board
please check whether the labels
on the boards are identical.
1 - 3
Technische Daten / Technical Data
O
Vorabversion
Preliminary Version
Vision 6 42-6831 T Vision 6 37-6831 T Vision 6 32-6831 T Vision 6 32-6831 T ECO Vision 6 26-6831 T
Order No.
Product Code
Destination
Approbations
IM-Languages
Remote control
EAN
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical / horizontal (ca.)
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction (DNR)
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
TV-Norm
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
G.BH 1342
U6D
All NSOs
CE
TP 2 TP 2
40 13833-61497 5
glossy black/silver
42" / 107cm
Active Matrix
TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 1.500:1
12.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft[user, natural, rich, soft
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
\
Sapphire Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
OEM-style OEM-style
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L\PAL/SECAM/BG/DK/I/L'/L
[
[
G.BH 1337
U6C
All NSOs
CE
G.BH 1332
U6A
All NSOs
CE
G.BH 1232
V1C
All NSOs
CE,I
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
TP 2 TP 2
40 13833-61496 8
glossy black/silver
37" / 94cm
Active Matrix
TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
10.000:1
178° / 178°
\
3D DeInterlacer
\
\
[
[
3D
[
\
\
[
\
\
\
[
\
[
[
SE
\
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
[
Presets (user changeable) for sound and picture in HDMI, Component and PC mode
40 13833-61495 1
glossy black/silver
32" / 81cm
Active Matrix
TFT-LC-Display
[
ca. 6ms
ca. 500cd/m2
ca. 2000:1
12.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft[user, natural, rich, soft
Auto (WSS), 4:3/14:9/16:9/Panorama/Cinema Zoom/Sky Top
min. 17 Languages: D,GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
\
PLL frequency synthesizer tuning
Sapphire Sapphire
6 keys: menu, ± programme, ±volume, source
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
OEM-style OEM-style
[[
40 13833-61462 3
glossy black/silver
32" / 81cm
Active Matrix
TFT-LC-Display
[
ca. 6.5ms
ca. 450cd/m2
ca. 2.500:1
10.000:1
178° / 178°
\
3D DeInterlacer
\
\
[
[
3D
[
\
\
[
\
\
\
[
\
[
[
SE
\
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
Simple hotel mode possible via service adjustment
full automatic sorting
[
[
\
[
[
[
[
full automatic sorting[full automatic sorting[full automatic sorting[full automatic sorting
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L\PAL/SECAM/BG/DK/I/L'/L
[
[
[
\
[
[
[
[
PAL/SECAM/BG/DK/I/L'/L\PAL/SECAM/BG/DK/I/L'/L
Chassis SEGRUNDIG Service
Vision 6 26-6832 T ECO
Vision 6 26-6832F T EC
G.BH 1326
FXF/FXG
All NSOs
CE
TP 2
40 13833-61494 4
glossy black/silver
26" / 66cm
Active Matrix
TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
10.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft[user, natural, rich, soft
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
\
Sapphire Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
OEM-style OEM-style
[[
[
\
[
[
\
[
[
G.BH 1226
G.BH 1227
V1B
???
All NSOs
F
CE,I
CE
D,GB,F,I,NL,DK,N,S,FIN,
E,P,PL,CZ,H
F
TP 2
40 13833-61497 5
40 13833-61744 0
glossy black/silver
26" / 66cm
Active Matrix
TFT-LC-Display
[
ca. 6.5ms
ca. 450cd/m2
ca. 2.500:1
10.000:1
176° / 176°
\
3D DeInterlacer
\
\
[
[
3D
[
\
\
[
\
\
\
[
\
[
[
SE
\
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
[
[
\
[
[
[
[
1 - 4
O
Chassis SEGRUNDIG Service
Vorabversion
Preliminary Version
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
USB part
Screen saver
Supported menu languages
Fast picture search
Slow motion
Still picture
Picture by picture playback
Repeat
File browser
File editing
Upload from PC
External HDD connection
Supported files
DVB reception
Fully compliant to
Autmatic/manual channel search
EPG (SI based)
- 8 Day Electronic Programme Guide
- now/next
- scheduled
- Exdended Event Info
- Short Event Info
TV/Radio programmes
OSD languages
Parental control
Teletext VBI insertion
VPS - VBI insertion
Programme table
Factory station list
DVB-T Front end
Tuner inputs (Hyperband)
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC
Hierarchical modulation
Activ antenna support
Embedded Conditional Access
Common Interface
Smart Card Reader
Video Decoder
MPEG profiles
Data rate
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Decoding
AC 3 Output
Modes
Processor
CPU
RAM (MB)
Flash (MB)
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
API
Last station memory
Favourite mode
Timer / Sleep timer
Clock
Volume
Mute function
Swap function
Vision 6 42-6831 T Vision 6 37-6831 T Vision 6 32-6831 T Vision 6 32-6831 T ECO Vision 6 26-6831 T
[
/ [ /
[[
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
[
Supported TV languages[Supported TV languages
2x, 4x, 8x, 16x, 32x
(forward and reverse)
1/2, 1/4, 1/8, 1/16
(forward and reverse)
[
1/2, 1/4, 1/8, 1/16
(forward)
Title, chapter,
sequence A-B
[
Delete, splitting, playlist,
multi delete (Title)
[
[
MP3, WAV, WMA, JPG,
BMP, PNG, GIF, TIFF,
3GP, MOV, DivX
(3,4,5,6x), MPG, AVI,
MP4
[[
[
[
If broadcasted
If broadcasted
If broadcasted
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
Other possible modules - not tested yet: Conax CAM 2.01, 3.03, 4.0 Eurocam - Viaccess V1.20, Professional made by Aston - Irdeto Ver 2.05 (CI),
SE 4.60 Ver 2.06 (CI) - Aston Crypt V 1.03, made by Aston - Nageravision 1.2 SCM 2.30 - Crypto Works by Philips - Alpha Crypt - NDS Video guard CI
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
SP/DIF
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
DVB enhanced profile[DVB enhanced profile
via menu
from stand-by, as TV
4x free
\
\
[
\
\\
\
[
\
\
\
\
[
[[
/ [ /
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
[
/ [ /
[[
[
[[
2 wide band at the front side
[
\
\
\
\
\
[
\
[
[
\
5 Band
[[[[
cinema, music, sport, speech, user
/ [ /
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
2 x 10/20 W nominal/music power (R/L)
[
2x, 4x, 8x, 16x, 32x
(forward and reverse)
1/2, 1/4, 1/8, 1/16
(forward and reverse)
[
1/2, 1/4, 1/8, 1/16
(forward)
Title, chapter,
sequence A-B
[
Delete, splitting, playlist,
multi delete (Title)
[
[
MP3, WAV, WMA, JPG,
BMP, PNG, GIF, TIFF,
3GP, MOV, DivX
(3,4,5,6x), MPG, AVI,
MP4
EN 300 744 & revided NorGig II spec (regarding DVB-T front end performance)
[
[
If broadcasted
If broadcasted
If broadcasted
400
20 Languages: D, GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER
[
, or decoding
PDC based
full automatic sorting
[
177 - 862 VHF & UHF /
\
[
\
Depends on Terracom approval, implemented according to EN 50221 specification;
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
SP/DIF
32MB
2MB
via menu
\
from stand-by, as TV
4x free
\
\
\
[
Supported TV languages
2x, 4x, 8x, 16x, 32x
(forward and reverse)
1/2, 1/4, 1/8, 1/16
(forward and reverse)
[
1/2, 1/4, 1/8, 1/16
(forward)
Title, chapter,
sequence A-B
[
Delete, splitting, playlist,
multi delete (Title)
[
[
MP3, WAV, WMA, JPG,
BMP, PNG, GIF, TIFF,
3GP, MOV, DivX
(3,4,5,6x), MPG, AVI,
MP4
ATS type sorting & LCN type sorting
[[[[
[
[
If broadcasted
If broadcasted
If broadcasted
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
\
-80.0dBm to -20dBm (at 16 QAM 2/3) / 75Ω
COFDM 2/8 QPSK 16/64 QAM
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
\
\
[
\\
Tested modul: Viaccess 1.4 red Label (Sweden);
\\
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
4:3, 16:9, pan scan, letter box
MPEG 2 layer I & II
\
SP/DIF SP/DIF
Mono, Dual Mono, Stereo, Joint Stereo
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
[
DVB enhanced profile[DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[[
\
\
\
\
\
\
\
\
\
\
\
\
[
[
If broadcasted
If broadcasted
If broadcasted
400
[
, or decoding
PDC based
full automatic sorting
[
177 - 862 VHF & UHF /
\
[
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II\MPEG 2 layer I & II\MPEG 2 layer I & II
32MB
2MB
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[
/ [ /
[[
[
\
\
\
\
\
[
\
[
[
\
5 Band
2 x 7/14 W nominal/music power (R/L)
[
Supported TV languages
2x, 4x, 8x, 16x, 32x
(forward and reverse)
1/2, 1/4, 1/8, 1/16
(forward and reverse)
[
1/2, 1/4, 1/8, 1/16
(forward)
Title, chapter,
sequence A-B
[
Delete, splitting, playlist,
multi delete (Title)
[
[
MP3, WAV, WMA, JPG,
BMP, PNG, GIF, TIFF,
3GP, MOV, DivX
(3,4,5,6x), MPG, AVI,
MP4
[
[
If broadcasted
If broadcasted
If broadcasted
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
\
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
\
[
\\
\\
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
SP/DIF SP/DIF
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
[
DVB enhanced profile[DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[[
Vision 6 26-6832 T ECO
Vision 6 26-6832F T EC
[[
full automatic sorting
\
177 - 862 VHF & UHF /
Up to 15 Mbit/sec.
Fitting to TV-OSD
from stand-by, as TV
/ [ /
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
\
\
\
\
\
\
\
\
\
\
\
\
[
[
If broadcasted
If broadcasted
If broadcasted
400
[
, or decoding
PDC based
[
\
[
MP@ML
720 x 576
\
32MB
2MB
via menu
\
4x free
\
\
\
[
\
1 - 5
GRUNDIG Service
O
Vorabversion
Preliminary Version
Chassis SE
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB 2.0
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Instruction manual
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
Cables
Circuit diagram
Vision 6 42-6831 T Vision 6 37-6831 T Vision 6 32-6831 T Vision 6 32-6831 T ECO Vision 6 26-6831 T
230V, 50Hz; in accordance to IEC 65
140V - 265V 140V - 265V
[[
\
210W, standby <1W
in accordance to IEC
62087-2002
104.2 x 73.5 x 11.1cm
(31.7cm with stand) / ca.
23.2kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
[
\
[
TP 2 TP 2
[
(grounded)
[
Prepared for VESA standard adaptor
swivel type
200 x 200
[[
[
[
\
\\
\
180W, standby <1W
in accordance to IEC
62087-2002
93.0 x 67.1 x 11.2cm
(25.2cm with stand) / ca.
18.5kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
[
\
[
[
(grounded)
[
[
[
[
\
140V - 265V 140V - 265V
\
, Tact switch, side - close to keyboard
[[
\
140W, standby <1W
in accordance to IEC
62087-2002
80.0 x 59.2 x 10.8cm
(20.0cm with stand) / ca.
11.8kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\\
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
1x Coaxial-socket for TV-tuner-in, according to DIN 45325
[\
\
[
TP 2 TP 2
[
(non grounded)
[
[[
[
[
[
\
\[\[
\
76W, standby <1W
in accordance to
IEC 62087-2002
Zero standby (<0.09W)
from 12/2008 onwards
80.0 x 59.2 x 10.8cm
(20.0cm with stand) / ca.
11.8kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
\
[
[
(grounded)
[
Prepared for VESA standard adaptor
100 x 100 + 100
[
[
[
\
140V - 265V 140V - 265V
[[
\
110W, standby <1W
in accordance to IEC
62087-2002
66.5 x 49.0 x 10.0cm
(17.8cm with stand) / ca.
8.82kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\\
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
[\
\
[
TP 2 TP 2
(non grounded)
[
[
[[
[
[
[
\
Vision 6 26-6832 T ECO
Vision 6 26-6832F T EC
\
57W, standby <1W
in accordance to
IEC 62087-2002
Zero standby (<0.09W)
from 12/2008 onwards
66.5 x 49.0 x 10.0cm
(17.8cm with stand) / ca.
8.82kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
\
[
[
(grounded)
[
[
[
[
\
1 - 6
Order No.
Vorabversion
Preliminary Version
Product Code
Destination
Approbations
IM-Languages
Remote control
EAN
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical / horizontal (ca.)
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction (DNR)
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
TV-Norm
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
Vision 4 42-4831 T Vision 4 37-4831 T Vision 4 32-4831 T Vision 4 32-4806 T Vision 4 26-4806 T
G.BH 2442
V1T
D, CH, NL, Nordic, PL, CZ, HCED, CH, NL, Nordic, PL, CZ, H
TP 2 TP 2
40 13833-61584 2
glossy black
42" / 107cm
Active Matrix TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 1.500:1
8.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
\
Sapphire Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
\
250 pages
[
OEM-style OEM-style
[
G.BH 2437
V1S
CE
D,GB,F,I,NL,DK,N,S,FIN,PL,CZ,H
40 13833-61585 9
glossy black
37" / 94cm
Active Matrix TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
8.000:1
178° / 178°
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
Auto (WSS), 4:3/14:9/16:9/Panorama/Cinema Zoom/Sky Top
\
\
[
\
\
\
[
\
[
[
SE
\
6 keys: menu, ± programme, ±volume, source
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
\
250 pages
[
min. 17 Languages: D,GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
[
Presets (user changeable) for sound and picture in HDMI, Component and PC mode
G.BH 2432
V1R
D, CH, NL, Nordic, PL, CZ, H
CE
TP 2
40 13833-61586 6
40 13833-61588 0
glossy black
32" / 81cm
Active Matrix TFT-LC-Display
[
ca. 6ms
ca. 500cd/m2
ca. 2000:1
8.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
PLL frequency synthesizer tuning
\
Sapphire Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
\
250 pages
[
OEM-style OEM-style
[[
Active Matrix TFT-LC-Display
3D DeInterlacer
user, natural, rich, soft
G.BH 2332
S5C
F, I, E, P
CE,I
F, I, E, P
TP 2
glossy black
32" / 81cm
ca. 6ms
ca. 500cd/m2
ca. 2000:1
8.000:1
178° / 178°
3D
SE
blue LED
99 / 8
[
/ [ /
250 pages
G.BH 2326
S4S
F, I, E, P
CE,I
F, I, E, P
TP 2
40 13833-61589 7
glossy black
26" / 66cm
[
\
\
\
[
[
[
[
\
\
[
\
\
\
[
\
[
[
\
Active Matrix TFT-LC-Display
ca. 8ms
ca. 500cd/m2
ca. 800:1
8.000:1
178° / 178°
WXGA 1366 x 768
3D DeInterlacer
3D
user, natural, rich, soft
SE
Sapphire
\
\
\
[
[
[
[
[
\
\
[
blue LED
99 / 8
[
/ [ /
250 pages
OEM-style
Simple hotel mode possible via service adjustment
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L\PAL/SECAM/BG/DK/I/L'/L
[
[
full automatic sorting
[
[
\
[
[
[
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L\PAL/SECAM/BG/DK/I/L'/L
[
[
full automatic sorting
[
[
\
[
[
[
[
full automatic sorting
PAL/SECAM/BG/DK/I/L'/L
Chassis SEGRUNDIG Service
[
\
\
\
[
[
[
[
\
\
\
[
\
\
\
[
\
[
[
\
\
\
\
\
[
[
[
[
[
\
\
[
[
[
[
\
[
[
\
[
[
1 - 7
AUDIO
Vorabversion
Preliminary Version
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
USB part
Screen saver
Supported menu languages
Fast picture search
Slow motion
Still picture
Picture by picture playback
Repeat
File browser
File editing
Upload from PC
External HDD connection
Vision 4 42-4831 T Vision 4 37-4831 T Vision 4 32-4831 T Vision 4 32-4806 T Vision 4 26-4806 T
[
/ [ /
[[
2 wide band at the front side[2 wide band at the front side
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
\
\
\
\
\
\
\
\
\
\
\
/ [ /
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
nominal/music power (R/L)
\
\
\
\
\
\
\
\
\
\
\
cinema, music, sport, speech, user
2 x 10/20 W
[
/ [ /
[[
2 wide band at the front side[2 wide band at the front side
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[[
\
\
\
\
\
\
\
\
\
\
\
/ [ /
[
\
\
\
\
\
[
\
[
[
\
5 Band
\
\
\
\
\
\
\
\
\
\
\
[
/ [ /
[
2 wide band at the front side
nominal/music power (R/L)
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
2 x 7/14 W
\
\
\
\
\
\
\
\
\
\
\
Chassis SEGRUNDIG Service
[
Supported files
DVB reception
Fully compliant to
Autmatic/manual channel search
EPG (SI based)
- 8 Day Electronic Programme Guide
- now/next
- scheduled
- Exdended Event Info
- Short Event Info
TV/Radio programmes
OSD languages
Parental control
Teletext VBI insertion
VPS - VBI insertion
Programme table
Factory station list
DVB-T Front end
Tuner inputs (Hyperband)
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC
Hierarchical modulation
Activ antenna support
Embedded Conditional Access
Common Interface
Smart Card Reader
Video Decoder
MPEG profiles
Data rate
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Decoding
AC 3 Output
Modes
Processor
CPU
RAM (MB)
Flash (MB)
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
API
Last station memory
Favourite mode
Timer / Sleep timer
Clock
Volume
Mute function
Swap function
\
[[[[
[
[
If broadcasted
If broadcasted
If broadcasted
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
COFDM 2/8 QPSK 16/64 QAM
1/2, 2/3, 3/4, 5/6, 7/8
Other possible modules - not tested yet: Conax CAM 2.01, 3.03, 4.0 Eurocam - Viaccess V1.20, Professional made by Aston - Irdeto Ver 2.05 (CI), SE 4.60 Ver 2.06
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
4:3, 16:9, pan scan, letter box 4:3, 16:9, pan scan, letter box
MPEG 2 layer I & II
SP/DIF
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
DVB enhanced profile
via menu
from stand-by, as TV
4x free
\
COFDM 2/8 QPSK 16/64 QAM
\
[
\
(CI) - Aston Crypt V 1.03, made by Aston - Nageravision 1.2 SCM 2.30 - Crypto Works by Philips - Alpha Crypt - NDS Video guard CI
\\
\
[
\
\
\
\
[
[[
\
EN 300 744 & revided NorGig II spec (regarding DVB-T front end performance)
[
[
If broadcasted
If broadcasted
If broadcasted
400
20 Languages: D, GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER
[
, or decoding
PDC based
full automatic sorting
[
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
\
[
\
Depends on Terracom approval, implemented according to EN 50221 specification;
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
SP/DIF
32MB
2MB
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
ATS type sorting & LCN type sorting
\
-80.0dBm to -20dBm (at 16 QAM 2/3) / 75Ω
COFDM 2/8 QPSK 16/64 QAM
Tested modul: Viaccess 1.4 red Label (Sweden);
4:3, 16:9, pan scan, letter box 4:3, 16:9, pan scan, letter box
Mono, Dual Mono, Stereo, Joint Stereo
\
[
[
If broadcasted
If broadcasted
If broadcasted
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
SP/DIF SP/DIF
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
DVB enhanced profile
via menu
from stand-by, as TV
4x free
\
COFDM 2/8 QPSK 16/64 QAM
\
[
\\
\\
\
[
\
\
\
\
[
[[
\
[
[
If broadcasted
If broadcasted
If broadcasted
400
[
, or decoding
PDC based
full automatic sorting
[
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
\
[
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
32MB
2MB
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
\
[
[
[
If broadcasted
If broadcasted
If broadcasted
400
\
[
, or decoding
PDC based
full automatic sorting
[
1
177 - 862 VHF & UHF /
\
COFDM 2/8 QPSK 16/64 QAM
1/2, 2/3, 3/4, 5/6, 7/8
\
[
\
\
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
4:3, 16:9, pan scan, letter box
MPEG 2 layer I & II
\
SP/DIF
32MB
32MB
2MB
Dynamic PMT
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[
\
1 - 8
POWER SUPPLY / CABINET
Vorabversion
Preliminary Version
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB 2.0
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Instruction manual
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
Cables
Circuit diagram
Vision 4 42-4831 T Vision 4 37-4831 T Vision 4 32-4831 T Vision 4 32-4806 T Vision 4 26-4806 T
140V - 265V 140V - 265V
[[
\
210W, standby <1W
in accordance to
IEC 62087-2002
104.3 x 73.7 x 11.4cm (31.6cm
with stand) / ca. 23.2kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\
\
[
TP 2 TP 2
[
(grounded)
[
Prepared for VESA standard adaptor
[[
[
[
\
\
\\\[
93.0 x 67.1 x 11.2cm (25.2cm
200 x 200
\
180W, standby <1W
in accordance to
IEC 62087-2002
with stand) / ca. 18.5kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\
1x Coaxial-socket for TV-tuner-in, according to DIN 45325
\
[
[
(grounded)
[
[
[
\
\
230V, 50Hz; in accordance to IEC 65
\
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
140V - 265V 140V - 265V
, Tact switch, side - close to keyboard
80.0 x 59.4 x 11.0cm (20.0cm
[[
\
140W, standby <1W
in accordance to
IEC 62087-2002
with stand) / ca. 11.4kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\\
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\\
\
[
TP 2 TP 2
(non grounded)
[
[
[[
[
[
\
\
80.0 x 59.4 x 11.0cm (20.0cm
Prepared for VESA standard adaptor
\
140W, standby <1W
in accordance to
IEC 62087-2002
with stand) / ca. 11.4kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\
[
[
(non grounded)
[
100 x 100 + 100
[
[
[
\
140V - 265V
110W, standby <1W
in accordance to
IEC 62087-2002
65.5 x 49.0 x 9.9cm (17.8cm
with stand) / ca. 9.5kg
Full wired
Hosiden
3x Cinch socket in
WXGA
via HDMI
1 slot
3.5mm jack
[
(non grounded)
[
\
\
\
\
\
\
\
\
[
\
2x
[
\
\
\
\
[
TP 2
[
[
[
[
[
\
[
Chassis SEGRUNDIG Service
1 - 9
Chassis SEGRUNDIG Service
Vorabversion
Preliminary Version
Order No.
Product Code
Destination
Approbations
IM-Languages
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
Remote control
EAN
Color
DISPLAY
Panel
Wide-screen format
Response time
Brightness
Contrast ratio (Panel)
Dynamic contrast plus
Viewing angle vertical / horizontal (ca.)
Physical display resolution max. pixel
Motion Picture Improvement
Motion Adaptive Deinterlacing
Natural view HD Reference
Full HD
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction (DNR)
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
Scaler
Keyboard
ELECTRONIC
Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock
Menue languages OSD
OSD-style
Service mode
Game mode
Hotel mode
TUNING
Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection
TV-Norm
NTSC-Playback via Scart (3,58/4,43)
Cable TV / Hyperband (S1-S41)
Vision 3 37-3831 T
G.BH 1537
NK5
All NSOs
CE,I,ME67
TP 2
40 13833-61513 2
black/silver
37" / 94cm
Active Matrix TFT-LC-Display
PLL frequency synthesizer tuning
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
5.000:1
178° / 178°
WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\
\
\
[
\
\
\
[
\
[
[
\
SE
\
Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
\
100 pages
[
OEM-style
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
Vision 3 32-3831 T
Vision 3 32-3831F T
G.BH 1532
G.BH 1533
N1T
???
All NSOs
F
CE,I,ME67
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
Active Matrix TFT-LC-Display
PLL frequency synthesizer tuning
min. 17 Languages: D,GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,HR,CZ,SK
Presets (user changeable) for sound and picture in HDMI, Component and PC mode
CE
F
TP 2
40 13833-61500 2
40 13833-61743 3
black/silver
32" / 81cm
[
ca. 6ms
ca. 500cd/m2
ca. 2000:1
5.000:1
178° / 178°
WXGA 1366 x 768 WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
Auto (WSS), 4:3/14:9/16:9/Panorama/Cinema Zoom/Sky Top
\\
\
\
[
\
\
\
[
\
[
[
\\
SE
\
Sapphire
6 keys: menu, ± programme, ±volume, source
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
\
100 pages
[
OEM-style OEM-style
[[
Vision 3 26-3831 T Toronto 26-7831 T
G.BH 1526
MN2
All NSOs
CE,I,ME67
D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,CZ,H
TP 2
40 13833-61501 9
black/silver
26" / 66cm
Active Matrix TFT-LC-Display
[
ca. 8ms
ca. 500cd/m2
ca. 800:1
5.000:1
178° / 178°
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\
\
[
\
\
\
[
\
[
[
SE
PLL frequency synthesizer tuning
\
Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 8
[
/ [ /
100 pages
[
\
Active Matrix TFT-LC-Display
PLL frequency synthesizer tuning
Simple hotel mode possible via service adjustment
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
G.BH 3126
Y3A
D, CH, Nordic
CE
D, F, I, DK, N, S, FIN
TP 2
40 13833-61694 8
glossy black
26" / 66cm
[
6,5ms
ca. 450cd/m2
2500:1
10.000:1
176° / 176°
WXGA 1366 x 768
\
3D DeInterlacer
\
\
[
[
3D
[
[
user, natural, rich, soft
\
\
\
[
\
\
\
[
\
[
[
\
SE
\
Sapphire
blue LED
\
\
\
[
[
[
[
[
\
99 / 9
[
/ [ /
[
1000 pages
[
OEM-style
[
full automatic sorting
[
[
\
[
[
\
PAL/SECAM/BG/DK/I/L'/L
[
[
1 - 10
Chassis SEGRUNDIG Service
Vorabversion
Preliminary Version
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
SRS
Virtual Dolby
Magic Fidelity Sound System
Soundprojector
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
USB part
Screen saver
Supported menu languages
Fast picture search
Slow motion
Still picture
Picture by picture playback
Repeat
File browser
File editing
Upload from PC
External HDD connection
Supported files
Vision 3 37-3831 T
[
/ [ /
[
2 wide band at the front side
cinema, music, sport, speech, user
[
\
\
\
\
\
\
[
\
[
[
\
5 Band
[
2 x 10/20 W nominal/music power (R/L)
\
\
\
\
\
\
\
\
\
\
\
\
Vision 3 32-3831 T
Vision 3 32-3831F T
[
/ [ /
[[
2 wide band at the front side
cinema, music, sport, speech, user[cinema, music, sport, speech, user
[
\
\
\
\
\
\
[
\
[
[
\
5 Band
[
Vision 3 26-3831 T Toronto 26-7831 T
/ [ /
[
2 wide band at the front side
[
\
\
\
\
\
\
[
\
[
[
\
5 Band
2 x 10/20 W nominal/music power (R/L) 2 x 7/14 W nominal/music power (R/L)
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
[
/ [ /
[
2 wide band at the front side
cinema, music, sport, speech, user
[
[
\
\
\
\
\
[
\
[
[
\
5 Band
[
2 x 7/14 W
nominal/music power (R/L)
\
\
\
\
\
\
\
\
\
\
\
\
DVB reception
Fully compliant to
Autmatic/manual channel search
EPG (SI based)
- 8 Day Electronic Programme Guide
- now/next
- scheduled
- Exdended Event Info
- Short Event Info
TV/Radio programmes
OSD languages
Parental control
Teletext VBI insertion
VPS - VBI insertion
Programme table
Factory station list
DVB-T Front end
Tuner inputs (Hyperband)
Input frequency (MHz) / Loop through
Input level / Impedance
Modulation
FEC
Hierarchical modulation
Activ antenna support
Embedded Conditional Access
Common Interface
Smart Card Reader
Video Decoder
MPEG profiles
Data rate
Resolution
OSD colors
Picture formats
Audio Decoder
Profiles
AC 3 Decoding
AC 3 Output
Modes
Processor
CPU
RAM (MB)
Flash (MB)
Software
Service information processing
DVB subtitling
Over air download (OTA)
Navigator
API
Last station memory
Favourite mode
Timer / Sleep timer
Clock
Volume
Mute function
Swap function
ATS type sorting & LCN type sorting
COFDM 2/8 QPSK 16/64 QAM
4:3, 16:9, pan scan, letter box
Mono, Dual Mono, Stereo, Joint Stereo
[
[
[
If broadcasted
If broadcasted
If broadcasted
400
\
[
, or decoding
PDC based
full automatic sorting
[
1
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
\
[
\
Other possible modules - not tested yet: Conax CAM 2.01, 3.03, 4.0 Eurocam - Viaccess V1.20, Professional made by Aston - Irdeto Ver 2.05 (CI),
SE 4.60 Ver 2.06 (CI) - Aston Crypt V 1.03, made by Aston - Nageravision 1.2 SCM 2.30 - Crypto Works by Philips - Alpha Crypt - NDS Video guard CI
\
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
SP/DIF
32MB
32MB
2MB
Dynamic PMT
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[
EN 300 744 & revided NorGig II spec (regarding DVB-T front end performance)
ATS type sorting & LCN type sorting[ATS type sorting & LCN type sorting
[
[
If broadcasted
If broadcasted
If broadcasted
20 Languages: D, GB,F,I,E,NL,TR,DK,FIN,N,S,SI,PL,H,RUS,RO,HR,CZ,SK,BG,SER
\
COFDM 2/8 QPSK 16/64 QAM
Depends on Terracom approval, implemented according to EN 50221 specification;
4:3, 16:9, pan scan, letter box 4:3, 16:9, pan scan, letter box
Mono, Dual Mono, Stereo, Joint Stereo
400
\\
[
, or decoding
PDC based
full automatic sorting
[
11
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
\
-80.0dBm to -20dBm (at 16 QAM 2/3) / 75Ω
\
[
\\
COFDM 2/8 QPSK 16/64 QAM
Tested modul: Viaccess 1.4 red Label (Sweden);
\\
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
SP/DIF
32MB 32MB
32MB
2MB
Dynamic PMT Dynamic PMT
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
[[
Mono, Dual Mono, Stereo, Joint Stereo
[
[
[
If broadcasted
If broadcasted
If broadcasted
400
[
, or decoding
PDC based
full automatic sorting
[
177 - 862 VHF & UHF /
1/2, 2/3, 3/4, 5/6, 7/8
\
[
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
MPEG 2 layer I & II
\
SP/DIF
32MB
2MB
[
DVB enhanced profile
via menu
\
from stand-by, as TV
4x free
\
\
\
[
ATS type sorting & LCN type sorting
If broadcasted
If broadcasted
If broadcasted
400
[
, or decoding
PDC based
full automatic sorting
\
177 - 862 VHF & UHF /
COFDM 2/8 QPSK 16/64 QAM
1/2, 2/3, 3/4, 5/6, 7/8
MP@ML
Up to 15 Mbit/sec.
720 x 576
Fitting to TV-OSD
4:3, 16:9, pan scan, letter box
MPEG 2 layer I & II
Mono, Dual Mono, Stereo, Joint Stereo
SP/DIF
32MB
32MB
2MB
Dynamic PMT
DVB enhanced profile
via menu
from stand-by, as TV
4x free
[
[
[
\
[
1
\
[
\
\
\
[
\
\
\
\
[
[
\
1 - 11
Chassis SEGRUNDIG Service
Vorabversion
Preliminary Version
POWER SUPPLY / CABINET
Power voltage
Range of regulation
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption
Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS
HDMI
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Common Interface
Headphones
Digital Audio out coaxial (SPDIF)
Video out
Audio out
USB 2.0
Antenna for terrestrial reception
DC-connector
Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)
Power cord
Instruction manual
Wall fixture
Warning sticker in rear panel
Stand
Warranty info
Cleaning tissue
Cables

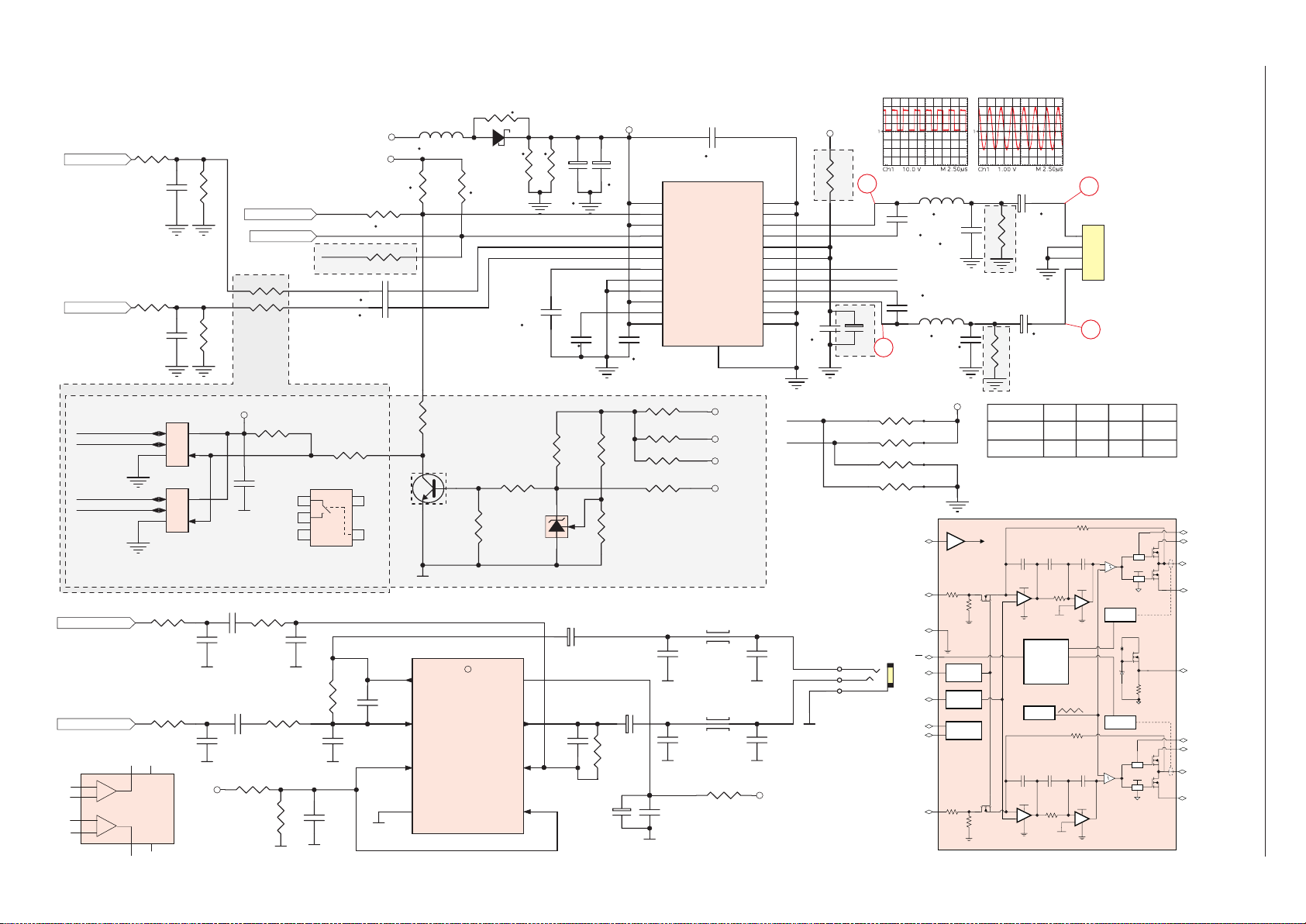

Circuit diagram
Vision 3 37-3831 T
230V, 50Hz; in accordance to IEC 65
\
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
140V - 265V
, Tact switch, side - close to keyboard
in accordance to IEC 62087-2002
93.0 x 67.1 x 11.2cm (25.1cm with
Prepared for VESA standard adaptor
[
\
180W, standby <1W
stand) / ca. 20.0kg
\
\
\
\
Full wired
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\
\
[
TP 2
[
(grounded)
[
200 x 200
[
[
[
\
\
[\\
1x Coaxial-socket for TV-tuner-in, according to DIN 45325
Vision 3 32-3831 T
Vision 3 32-3831F T
230V, 50Hz; in accordance to IEC 65
\
Video-in: 3 x Cinch, Audio-in: 2 x Cinch\Video-in: 3 x Cinch, Audio-in: 2 x Cinch
140V - 265V
, Tact switch, side - close to keyboard
in accordance to IEC 62087-2002
80.0 x 59.4 x 11.0cm (20.0cm with
[
\
140W, standby <1W
stand) / ca. 11.4kg
\
\
\
\
Full wired Full wired
\
\
Hosiden
3x Cinch socket in
\
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\\
\
[
TP 2 TP 2
(non grounded)
[
[
[[
[
[
\
\
Vision 3 26-3831 T Toronto 26-7831 T
230V, 50Hz; in accordance to IEC 65
\
140V - 265V
, Tact switch, side - close to keyboard
in accordance to IEC 62087-2002
65.5 x 49.0 x 9.9cm (17.8cm with
Prepared for VESA standard adaptor
[
\
110W, standby <1W
stand) / ca. 9.5kg
\
\
\
\
\
\
Hosiden
3x Cinch socket in
WXGA
[
\
2x
via HDMI
1 slot
3.5mm jack
[
\
\
\
[
[
(non grounded)
[
100 x 100 + 100
[
[
\
\
230V, 50Hz; in accordance to IEC 65
\
140V - 265V
, Tact switch, side - close to keyboard
[
\
57W, zero standby <0.09W
66.5 x 49.0 x 10.0cm (17.8cm with
stand) / ca. 8.82kg
\
\
\
\
Full wired
\
\
Hosiden
3x Cinch socket in
Video-in: 3 x Cinch, Audio-in: 2 x Cinch
\
WXGA
[
\
3x
via HDMI
1 slot
3.5mm jack
[
\
\
\
\
[
TP 2
[
(non grounded)
[
[
[
[
[
\
[
1 - 12
Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung.
Vorabversion
Preliminary Version
Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, deren Materialnummer Sie in der entsprechenden Ersatzteilliste finden.
1 - 13
Chassis SEGRUNDIG Service
1 - 14
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
1 - 15
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
Hinweis – Kindersicherung:
Mit dem Master-Code 1453 können die Einstellungen geändert werden.
1 - 16
Vorabversion
Preliminary Version
1 - 16
Chassis LX IDTV (iX)GRUNDIG Service
Chassis SEGRUNDIG Service
1 - 17
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
1 - 18
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
Note – Parental control:
With master code 1453 settings can be changed if pin code is lost.
y
N
prog
HDCP im EEPROM
M
Chassis L5C-26"…32"GRUNDIG Service
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
Service- und Sonderfunktionen
Tastenfunktionen
i
3333
+ / –
Z
Service-Mode aktivieren
– Tast e "
– Zahlenfolge "8500" eingeben.
Service-Mode beenden
– Tast e "
1. Grundeinstellwerte
Die Grundeinstellwerte im Service Mode sind in der Tabelle enthalten.
Aufrufen/Beenden des Dialog Centers /
Beenden des Service Mode
44
44
/
Menü-Zeile (Menüpunkt) wählen
(OK)
Aufrufen der Menüs
Wert ändern
Untermenü: Zurück zum Hauptmenü
Hauptmenü: Beenden des Service Mode
i
" (INFO) drücken.
i
" drücken.
Menü
Menu
3333 /
Menü-punkt
Point of Menu
44
44
(OK)
STANDBY
TEXT
TEXT PAGE
OPTIONS 0OPTIONS 1OPTIONS 2
TUNER
PLUG PLAY
HDCP VERIFY
BLUE BACK
PANORAMA
REMOTE CONTROL
KEYPAD
HOTEL
HOTEL VOL
PC
HDMI 1
HDMI 2
HDMI 3
AV
S-Video
Scart
YPBPR
USB
Einstellung
Adjustment
+ / –
CUSTOMER
FACTORY
FAST TOP
FAST
TOP
NONE
10
250
1000 X
ON
OFF
ON X
OFF
AVAIL X
NAVAIL
6 BUTTON+1STD
AVAIL
NAVAIL
0…63
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
Vision 6 42-6831 T
Vision 6 37-6831 T
Vision 6 32-6831 T
Vision 6 32-6832 T ECO
Vision 6 26-6831 T
XXXXXXXXXXX
X
XXXXX
XX
Eingebauten Tuner wählen
Select used tuner
X
XX
XX
XX
Fernbedienung wählen
Select used remote control
X
XX
X
X20X
20
X
XX
X
XX
X
XX
X
XX
X
XX
X
XX
X
XX
X
XX
XXX
XXXX
XX
XX
XXXX
XX
X20X
20
20
XX
XX
XX
XX
XX
XX
XX
XX
X
X
Service and Special Functions
Functions of the buttons
i
3333 /
+ / –
Z
Calling up the Service Mode
– Press button "
– Enter the code number "8500".
Exit the Service Mode
– Press button "
1. Basic Settings
The table shows all basic specific settings in the service mode.
Vision 6 26-6832 T ECO
Vision 4 42-4831 T
XXXXX
ATS Reset
XX
XX
XX
X20X
20
XX
XX
XX
X
X
XX
XX
XX
XX
XXXXXX
Call up/exit the Dialog Center / exit the Service Mode
4444Call up the dialogue line (point of menu)
(OK)
Call up the Menus
Changing the settings
Submenu:
Main menu: Exit the Service Mode
i
" (INFO).
i
".
Hinweis
Vision 4 37-4831 T
Vision 4 32-4831 T
Vision 4 32-4806 T
Vision 4 26-4806 T
Vision 3 37-3831 T
Vision 3 32-3831 T
Vision 3 26-3831 T
Toronto 26-7831 T
Netz-Ein –> Standby /
Power on –> standb
etz-Ein –> Programm 1 /
Power on –> Programme 1
X
X
Netz ein –> Automatischer
Sendersuchlauf
Power on –> automatic
XX
XX
XX
X20X
XX
XX
XX
X
XX
XX
XX
XX
ramme search
prüft
verifies HDCP in EEPROM
TP2 = TP170
Hotel-Mode
ax. Lautstärke
im Hotel-Mode
20
Hotel mode –
volume maximum
X
Audio/Video-Eingang /
Audio/Video Input
S-Video-Eingang /
S-Video Input
XXXX
XX
XX
XXXX
XX
X20X
XX
XX
XX
XX
XX
XX
XX
XX
20
XX
XX
XX
X20X
20
XX
XX
XX
XX
XX
XX
XX
XX
XXXX
XXX
XXX
XX
XX
XXXX
XX
X20X
20
XX
XX
XX
XX
XX
XX
XX
XX
XXXX
Hint
/
1 - 19
1 - 19
e
m
e
Chassis L5C-26"…32"GRUNDIG Service
Vorabversion
Preliminary Version
Chassis SEGRUNDIG Service
Menü
Menu
3333 /
IF
Alle weiter
All other
Menü-punkt
Point of Menu
44
44
(OK)
L
Headphone
ATS
SOUND OPTIONS
SRS TruSurround XT
HIDEV MONO
AGC VHF
AGV UHF
SET-
TINGS
AGC LPRIME
n Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.
enus are programmed by the software of the set and must not be adjusted.
Einstellung
Adjustment
+ / –
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL
AVAIL
NAVAIL X
0…31
0…31
0…31
Vision 6 42-6831 T
Vision 6 37-6831 T
XXX
X
X
X
Vision 6 32-6831 T
XX
XX
XX
XX
Vision 6 32-6832 T ECO
Vision 6 26-6831 T
XXXX
XX
XX
XX
XX
14
14
14
2. Software-Versionsnummer
Die Software-Versionsnummer wird unten im Service-Menü angezeigt, z.B.:
SSEGE.F4M.R64M.V00.T02
08/06/08 18:49:38
3. Programmsuchlauf
– Tast e "
– "Installation" mit den Tasten
i
" (INFO) drücken.
"+ / –"
anwählen und mit der Taste
"OK" ( ) bestätigen.
– "Programmsuchlauf" mit den Tasten "
ʺ / ɶ" anwählen und mit
der Taste "+" bestätigen.
– Gewünschtes Land mit den Tasten
– "Suchtyp" mit den Tasten "
+ / –
auswählen.
ʺ / ɶ"
anwählen und mit den Tasten
"+ / –" einstellen.
ʺ / ɶ"
– "Zeitzone" mit den Tasten "
anwählen und mit den Tasten
"+ / –" einstellen.
OK
– "Programmsuchlauf" mit der Taster "
" ( ) starten.
Das automatische Sendersuchsystem stoppt bei jedem emp-
fangswürdigen Sender (AFC und Koinzidenz) und speichert auto-
matisch die entsprechenden Senderdaten mit dem jeweiligen
Standard. Danach wird der Suchlauf fortgesetzt.
Zum Abbrechen des Suchlaufes die Taste "
i
" drücken.
Hinweis
Hint
Vision 6 26-6832 T ECO
Vision 4 42-4831 T
Vision 4 37-4831 T
Vision 4 32-4831 T
Vision 4 32-4806 T
Vision 4 26-4806 T
Vision 3 37-3831 T
Vision 3 32-3831 T
Vision 3 26-3831 T
Toronto 26-7831 T
XX
Kopfhörer / Headphone
Autom. Programmsortie-
XX
rung nach Suchlauf
Autom. programme sorting at autoprogram operation
X
X
XX
XX
XX
XX
XX
XXXX
XX
XX
XX
XX
XX
XX
XX
XX
XXXX
XX
XX
XX
XX
2. Software Version Number
The software version number is shown on the lower part of the service menu, e.g.:
SSEGE.F4M.R64M.V00.T02
08/06/08 18:49:38
3. Channel Search
– Press button "
– Select "Channel setup" with the buttons
i
" (MAIN MENU).
"+ / –"
and confirm with
button "OK" ( ).
– Select "Auto Tuning" with the buttons "
ʺ / ɶ"
button "+".
– Select the required Country with the buttons
– Select "Scan Type" with the buttons "
+ / –
ʺ / ɶ"
and adjust with but-
tons + / –.
ʺ / ɶ"
– Select "Time Zone" with the buttons "
and adjust with but-
ton "+".
OK
– Start "Channel setup" with the button "
" ( ).
The auto programme system stops at every station of acceptable
reception quality (AFC and coincidence) and stores the station
data and the respective standard automatically. The system then
continues searching.
Pressing the "
i
" button stops the programme search.
and confirm with
.
1 - 20
1 - 20
R918
4K7
C900
1u/16V
R917
4K7
5
4
3
2
1 6
Q900
BC847BDW1T1
C920
100n
L904
NC
R916
1K
R914
10K
L903
FERRIT
R919
1K
Panel_ON_OFF
PANEL-VCC+5V_ST
+12V
+5V_ST
VCC3.3V-ST
Panel Power
Hi: Off
Lo: On
L900
120R/100MHz
C905
10u
GND
GND
VCC3.3V-ST
C903
4u7
GND
R903
15K %1
R901
5K36 %1
C902
4n7
GND
L901
3u3
C912
22u
C913
22u
R902
1K8 %1
GND
+12V
+5V_ST
VCC3.3V-ST
+5V_ST
D900 S2A
T903
PMV65XP
CB902
470n
R920
4K7
R922
4K7
R921
4K7
R923
1K
BRI_ADJ-PWM2
VBLCTRL
+5V_ST
+5V_ST
Power
Hi: Off
Lo: On
C922
220u/16V
L905
120R/100MHz
L907
120R/100MHz
C924
220u/16V
+5V_ST +12V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
S904
POWER
L906
120R/100MHz
C923
10u/35V
P24V
L: Power OFF
H: Power ON
Power-ON/OFF
R924
4K7
R926
4K7
R925
4K7
+5V_ST
+5V_ST
Hi: Off
Lo: On
L908
300R/100MHz
L909
300R/100MHz
VIN_A
1
INH (EN)
2
VFB
3
AGND4SYNC
5
VIN_SW
6
SW
7
PGND
8
9
IC900
ST1S10
C901
22u
L902
120R/100MHz
VCC5V
C904
NC
C906
1u/16V X7R
GND
C908
1u/16V
C909
100n/50V
C910
1u/16V
D901
PMEG2020EH
5
4
3
2
1
6
Q901
BC847BDW1T1
L915 1u
Only for
Analog Dimming
C935
220u/16V
R934
10K
R935
*
T906
2N7002
R936
1K
VCC5V
S907
To Panel Inverter
Vbr-A
L917
120R/100MHz
C936
100n/50V
C937
100n/50V
From Tcon
when using DCR
NC when using
DCR from Tcon
EXT_DIM_IN
EXT_D IM_OUT
+12V_ST
Power-ON/OFF
+12V_ST
EXT_DIM_OUT
EXT_DIM_OUT
EXT_DIM_IN
EXT_DIM_IN
R940
10K
C939
100 nF
VCC3.3VVCC3.3V-ST
T907
PMV56XN
+12V
R941
100 K
VCC3.3V
R939
*
SUB-MICRO
C938
1uF
PCB Index R-4
1
1
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams
Netzteil / Power Supply
2 - 1
GRUNDIG Service Chassis SE
PCB Index R-3
R913
10K
C907
100n
VCC5V
C914
NC
VCC2.5V-ST
VCC2.5V-ST
VCC3.3V-ST
GND
R910
NC
R909
0R
R912
NC
C919
NC
GND
GND
C917
22u/6.3V X5R
T901
PMV56XN
Pd=0.6W
R911
100R
+5V_ST
2
3
1
IC902
ZTL431AFFTA
C915
1u
VCC1.2V-ST
VCC2.5V-ST
VCC1.2V-ST
450mA
C916
22u/6.3V
C918
100n
GND
GND
ADJ
1
VOUT
2
VIN
3
TAB
4
IC901
AP1117YL-13
Pd=0.6W
Thermal pad required
T902
PMV56XN
+12V
R915
100K
VCC5V
R900 NC
R904 0R
R905
NC
VCC5V
L910
NC
VCC3.3V-ST
C925
NC
D902
PMEG2020EH
CB900
470n
R938
1K
R937
1K
P1
1
P2
2
S907
To Panel Inverter
Vbr-A
DCR OPTION
EXT_DIM_OUT
C926
10u/16V
GND
GND
+5V_DC
C927
4u7/16V
GND
R928
18K %1
R927
5K36 %1
C928
4n7
GND
L912
3u3
C929
22u
C930
22u
R929
10K %1
GND
+5V_DC
VIN_A
1
INH (EN)
2
VFB
3
AGND4SYNC
5
VIN_SW
6
SW
7
PGND
8
9
IC903
ST1S10
C931
22u
L913
120R/100MHz
C932
NC
+12V_ST
L911
120R/100MHz
C933
1u/16V
R932
47k
5
4 3
2
1 6
Q902
BC847BDW1T1
C934
100n
R931
1K
R930
10K
L914
FERRIT
R933
47K
Power-ON/OFF
+12V+12V_ST
+5V_ST
T905
PMV65XP
+5V_DC
+5V_ST
L921
120R/100MHz
L922
PBY2012
+5V_DC VCC5V
Optomosfet
To "0" power relay board
GND
P1
1
P2
2
S908
Optomosfet
P1
1
P2
2
S909
GND
T907
PMV65XP
GND
D903
PMEG2010
To battery board or 0.1W board
Vdd_Z-Touch
Battery+
+5V_ST
R939
100K
R940
10K
Vdd_Z-Touch
1
2
3
S910
Optomosfet
GND
Battery+
AP1117
3
Thermal
Shutdown
1
2
V
out
Adj
1.25V
+
+
CURRENT
LIMIT
V
in
-
+
+
1
GND
(FIXED)
-
PCB Index R-4
2
2
Vorabversion
Preliminary Version
Netzteil / Power Supply
2 - 2
Eingänge / Inputs
SCART1_BLUE
SCART1_RED
SCART1_GREEN
SC1-B
SC1-G
SCART1-Rout
SCART1-Lout
SCART1-Lin
SCART1-CVBS_IN
SCART1_CVBSO
SC1-VSYNC
SCART1-Rin
SC1_CVBS+
SC1-HSYNC
SC1_CVBSO
SCART1-Rin
SCART1-Lin SC1-Lin
SC1-Rin
SC1_CVBS-
SC1-R
C705
47p
R707
75R %1
R704 10K
C760
100n
C710
220p(330p)
C700
47n
D705
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
R713
10K
R702
47R
R715
10K
D707
R705
2K7
C703
47n
R719
12K
2
4
6
8
10
12
14
16
18
20
1
3
5
7
9
11
13
15
17
19
21
22
23
S700
SCART
C701
NC/330p
D709
C717
100n
D701
AVLC18S02003
R718
12K
R701
75R %1
R700
47R
D703
AVLC18S02003
C706
2u2
C761
100n
C708
680p/560p
R708
75R %1
D704
C709
680p/560p
D706
C707
2u2
R709
75R %1
D708
C711
220p(330p)
D700
R703
47R
R706
75R %1
C704
47n
D702
AVLC18S02003
SC1-R
SC1-G
SC1-B
SC1_Lout
SC1_Rout
SC1_CVBS+
SC1-VSYNC
SC1-HSYNC
SC1-Rin
SC1-Lin
SC1_CVBS-
SC1-C
Full SCART
SCART_FB_SUB
SCART_MODE
SC1_Lout
SC1_Rout
SC1_Lout
SC1_Rout
R746
1K
C721
1n
R745
1K
C720
1n
R733
470R
R742
220R
R732
47K
GND
+9V_L
R740
8K2
C718
2u2
C713
4u7/16V
GND
C715
1u/16V
C716
4n7
R730
0R
R735
270R
R737
33K
5
4
3
2
1
6
T702
BC847BDW1T1
C722
10u
R752
470R
R765
220R
R751
47K
GND
+9V_R
R763
8K2
C724
2u2
C719
4u7/16V
GND
C723
4n7
R756
270R
R760
33K
5
4
3
2
1
6
T703
BC847BDW1T1
R741
33K
R764
33K
5
43
16
2
T701
BC847BDW1T1
D717
BZX384-C8V2
GND
D716
BAV99
R731
330R
+12V
+9V_L
+9V_R
GND
AU_DACO_SR
AU_DACO_SL
AU_DACO_SR
AU_DACO_SL
C714
10u
MUTE_S
MUTE_S
MUTE_S
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 3
Eingänge / Inputs
SC1_CVBSO
Q7_B
Q6_C
R717
39K
R710
470R
C759
47p
C746
1u/10V
R720
68R
R716
220R
L701
300R/100MHz
R711
100K
R714
75R %1
SC1_CVBS_OUT
VCC5V
2
6
1
5
4
3
T700
BC847BPDW1T1
DDC_SCL_D
R
VGA5V
B
VGA-SCL
VGA5V
DDC_SDA_D
VGA-SDA
G
VGA_VSYNC1
VGA_HSYNC1
UART-RX
UART-TX
VGA_VSYNC
VGA_HSYNC
VGA-VCLK
VGA_GIN+
VGA_RIN+
VGA_BIN+
VGA-TX
VGA-RX
VGA-TX
VGA-RX
CB702
100n
R736
510R
R738
NC/2K4
R759
NC
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
16
17
S701
DSUB-15
D715
D713
R729
D710
D720
BAT54C
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC703
24C21
R739
NC/10K
R747 NC/0R
R757 NC/0R
CT705
100n
D718
D712
CT706
100n
R728
D719
R734
510R
R753
100R
R754
100R
R755
NC/0R
R748
NC/0R
CT707
100n
D711
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
AVLC18S02003
R744
4K7
R743
4K7
R727
75R %1
75R %1
75R %1
D714
R761
10K
VGA_HSYNC1
VGA_VSYNC1
UART-RX
UART-TX
VGA_RIN+
VGA_GIN+
VGA_BIN+
VCC5V
VCC5V
R-
G-
B-
VGA_RIN+
VGA_BIN+
RGB0_SW
SC1-B
SC1-R
SC1-G
VGA_GIN+
RGB0_RIN+
RGB0_GIN+
RGB0_BIN+
RGB0_SOG
R721 47R
L702
300R/100MHz
R723 47R
R726
NC
C712
100n
R722 47R
R725
100R
R724
47R
VGA_RIN+
VGA_GIN+
VGA_BIN+
SC1-R
SC1-G
SC1-B
RGB0_SW
RGB0_RIN+
RGB0_GIN+
RGB0_BIN+
RGB0_SOG
VCC5V
1B
1
1C
2
2B
3
2C
4
3B
5
3C
6
4B
7
4C8GND
9
4A
10
3A
11
2A
12
1A
13
S
14
OE_N
15
VCC
16
IC702
STMAV340
CT704
100n
C752
2u2
C764 2u2
C767
680p/560p
R758 0R
R762
12K
R750
10K
C765
220p(330p)
VGA_ARIN
VGA_ALIN
VGA_ALIN
VGA_ARINC763 2u2
R749 0R
R712
10K
C768
680p/560p
R788
12K
C766
220p(330p)
RIGHT
LEFT
GND
Right
Left
GND
S703
VGA_Audio
STMAV340
Flow Control
A
A
A
A
1B
1C
2B
2C
3B
3C
4B
4C
OE_N
1
2
3
4
S
Vorabversion
Preliminary Version
2 - 4
GRUNDIG Service Chassis SE
RGB1_PR-
RGB1_PR+
RGB1_Y-
RGB1_Y+
SOY_YUV
RGB1_PB+
RGB1_PB-
COMP_LIN
COMP_RIN
Pb-IN
Pr-IN
Y-IN
R781
75R %1
R773
0R
R783
47R
C737
47n
C729
47n
C741
47n
R772
10K
R771
75R %1
R776
47R
C738
47n
C739
NC/10p
C736
NC/10p
C728
1n
C725
2u2
C735
47n
R778
47R
C731
NC/10p
C734
220p(330p)
C726
680p/560p
C732
47n
R767
0R
R768
12K
R770
47R
R769
470R
R766
10K
R775
12K
R777
75R %1
C733
680p/560p
R779
47R
C730
2u2
C727
220p(330p)
R774
47R
SOY_YUV
RGB1_Y+
RGB1_Y-
RGB1_PB+
RGB1_PB-
RGB1_PR+
RGB1_PR-
COMP_ARIN
COMP_ALIN
Pr
Y
Pb
USB_DM
USB_DP
VBUS
USB_OCD_N-GPIO3
C762
10u
R782
100K
VBUS
1
D-
2
D+
3
GND
4
SHELL
5
S702
USB-A
R780
100
L704
300R/100MHz
1 2
F700
(SMD1206P100TF)
USB_DM
USB_DP
USB_OCD_N-GPIO3
+5V_ST
0,5A
C740
1u
GND
GND
C742
100n
GND
VCC5V
VCC5V_USB
R785
1K
GND
SIDE_C
SIDE_Y
R_EDISL_EDIS
SIDE_V
5
9
8
6
7
R
L
1
3
4
2
S202
DASW-19D
(White)Left
(Red)Right
(Black)SPDIF
SPDIFOUT
Pr
Pb
Y
COMP_LIN
COMP_RIN
Pr-IN
Pb-IN
Y-IN
SIDE_L
SIDE_R
R796
0R
R795
10K
C756
2u2
C755
220p(330p)
C757
680p/560p
R799
0R
R824
12K
R798
10K
R797
12K
C754
680p/560p
C753
2u2
C758
220p(330p)
SIDE_ARIN
SIDE_ALIN
SIDE_V CVBS2
C744
NC/10p
R786
47R
R787
75R %1
C743
47n
CVBS2
SIDE_C+
SIDE_Y+SIDE_Y
SIDE_C
R793
75R %1
R789
47R
C750
47n
C751
NC/10p
C748
NC/10p
C747
47n
R790
75R %1
R792
47R
SIDE_Y+
SIDE_C+
CVBS
SIDE_Y
SIDE_C
SIDE_ALIN
SIDE_ARIN
D721
AVLC18S02003
D723
AVLC18S02003
D725
AVLC18S02003
D727
AVLC18S02003
D729
AVLC18S02003
D722
AVLC18S02003
D724
AVLC18S02003
D726
AVLC18S02003
D733
AVLC18S02003
D732
AVLC18S02003
D728
AVLC18S02003
D730
AVLC18S02003
GND
GND
GND
BP1
2
BG1
1
BP2
3
BG2
1
BP3
4
BG3
1
S200A
EMBASE_PHONO_3X2
BP1
5
BG1
1
BP2
6
BG2
1
BP3
7
BG3
1
S200B
EMBASE_PHONO_3X2
Vin
5
EN
4
GND
2
Fault
3
Vout
1
IC701
STMPS2171
VCC3.3V-ST
SPDIF_OUT
2
6
1
5
43
T704
BC847BPDW1T1
R794
47R
R791
2.2K
R807
100R %1
R808
220R
C770 10n
C769
100n
VCC3.3V-ST
L703
300R/100MHz
SPDIFOUT
D731
AVLC18S02003
STMPS2171
Driver
UVLO
Fault
Fault blanking/reporting
driver control unit
Thermal
sense
Current
sense
V
OUT
V
IN
EN
Eingänge / Inputs
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 5
GRUNDIG Service Chassis SE
PCB Index R-4
HDMI-CLKP
HDMI-RX0P
HDMI-CLKN
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
Power-ON/OFF
HI: Standby
LO: Power ON
HDMI-RX0P
HDMI-RX0N
HDMI-RX1P
HDMI-RX1N
HDMI-RX2P
HDMI-RX2N
HDMI-CLKP
HDMI-CLKN
HDMI-SDA
HDMI-SCL
1ST_HDMI_RX2_P
1ST_HDMI_RX2_N
1ST_HDMI_RX1_N
1ST_HDMI_RX0_P
1ST_HDMI_RX1_P
1ST_HDMI_RX0_N
1ST_HDMI_CLK_P
1ST_HDMI_CLK_N
1st HDMI
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
20
21
22
23
S602
HDMI Input Socket
GND
GND
GND
CEC_A
1ST_HDMI_DET
1ST_HDMI_SDA
1ST_HDMI_SCL
GND
GND
GND
GND
1ST_HDMI_5V
2ND_HDMI_CLK_N
2ND_HDMI_CLK_P
2ND_HDMI_RX0_N
2ND_HDMI_RX0_P
2ND_HDMI_RX1_N
2ND_HDMI_RX1_P
2ND_HDMI_RX2_N
2ND_HDMI_RX2_P
2nd HDMI
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
20
21
22
23
S601
HDMI Input Socket
GND
GND
GND
CEC_B
2ND_HDMI_DET
2ND_HDMI_SDA
2ND_HDMI_SCL
GND
GND
GND
GND
2ND_HDMI_5V
C601
100n
C602
100n
C603
100n
C604
100n
GND
VCC3.3V-ST
L600
300R/100MHz
I2C-SDA
I2C-SCL
3rd HDMI
3RD_HDMI_CLK_N
3RD_HDMI_RX0_N
3RD_HDMI_RX1_N
3RD_HDMI_RX2_N
3RD_HDMI_CLK_P
3RD_HDMI_RX0_P
3RD_HDMI_RX1_P
3RD_HDMI_RX2_P
3RD_HDMI_SDA
3RD_HDMI_SCL
VCC3.3V-ST
(PCB Index R-3)
VCC3.3V
(PCB Index R-4)
VCC3.3V-ST
(PCB Index R-3)
VCC3.3V
(PCB Index R-4)
RX2+
1
GND2
2
RX2-
3
RX1+
4
GND1
5
RX1-
6
RX0+
7
GND0
8
RX0-
9
CLK+
10
GND_CLK
11
CLK-
12
CEC
13
N.C.
14
SCL
15
SDA
16
CEC_GND
17
5V
18
HP_DETECT
19
20
21 22
23
S600
HDMI Input Socket
GND
GND
GND
CEC_C
3ND_HDMI_DET
GND
GND
GND
GND
3ND_HDMI_5V
I2C_RST1SDA12SCL1
3
GND
4
B115A11
6
VCC
7
B128A12
9
GND10B13
11
A13
12
Vcc13B1414A1415GND
16
VCC17REXT
18NC19
POWDN
20
SDA_CTL
21
SCL_CTL
22
I2CADDR
23
GND
24
Y4
25
Z4
26
VCC
27
Y3
28
Z3
29
GND
30
Y2
31
Z2
32
VCC
33
Y1
34
Z1
35
GND
36
I2C_CTL_EN = HIGH
37
SCL_SYNK
38
SDA_SYNK
39
HPD_SYNK
40
POW_SINK
41
STANDBY
42
POW3
43
HPD3
44
SDA3
45
SCL3
46
GND
47
B31
48
A31
49
VCC
50
B32
51
A32
52
GND
53
B33
54
A33
55
VCC
56
B34
57
A34
58
GND
59
CEXT
60
POW2
61
HPD2
62
SDA2
63
SCL2
64
EDID_BRG_EN
65
GND
66
B21
67
A21
68
VCC
69
B22
70
A22
71
GND
72
B23
73
A23
74
VCC
75
B24
76
A24
77
GND
78
POW1
79
HPD1
80
IC600
PS321
HDMI-SDA
HDMI-SCL
R620 100R
R621 100R
R624
36K
R618 36K
R604 36K
R616
47K
R617
47K
R601
10K
R602
10K
R607
10K
R608
10K
R628
10K
R629
10K
VCC3.3V-HDMI
VCC3.3V-HDMI
R630
510R %1
R622 10K
R623 0R
VCC3.3V-ST
Addres select
R615
4K7
R609
4K7
C600
2u2
R619 1K
R603 1K
R633 100R
R625
1K
R613
4K7
R600
3K6
R611
3K6
R626
3K6
C605
1u
R627
100R
Power-ON/OFF
Hi: Off
Lo: On
HPD_CTRL
2ND_HDMI_5V
1ST_HDMI_5V
3ND_HDMI_5V
3ND_HDMI_5V
1ST_HDMI_5V
HDMI-CECR614 200R
R610 (0R)
R606
27K
R612
100R
HDMI-CEC
VCC5V
VCC3.3V-ST
For CEC Leakage Protect
T600
2N7002
R605 0R
R631 0R
R632 0R
CEC_A
CEC_B
CEC_C
3
4
5
6
7
7
3
4
6
5
Vorabversion
Preliminary Version
Eingänge / Inputs
2 - 6
GRUNDIG Service Chassis SE
RFin
VDD33
VDD33
XTALB
VDD33
N10
VDD33
SDAT_1
N04
VDD33
VDD33
VCTRLVCO3
VDD33
N01
N02
N03
RFLBOUT_N
VDD33
VCTRL1
TR1_1
TR1_3
VCTRL3
SCLK_1
RFHBOUT_N
RFLBIN_N
RFLBIN_P
RFLBOUT_P
VDD33
RFAGC_CP
ON
RFHBIN_N
RFHBOUT_P
VDD33
VDD33
OUTPSAW
VDD33
RFHBIN_P
RFin1
VDD33
VDD33
TR1_5
VDD33
VDD33
TR1_4
N05
N06
N07
N08
ESD
XTALOUT
XTALA
VDD33
VDD33
R103
150R
X100
16MHz XTAL
C146
220p
C109
8p2
R102
150R
R121 100R
C152
22p
C133
680p
C155
2u2
C136
1u
C165
100n
C137
4u7
C131
NC
L104
39n
C102
22p
R115
2K2
L107
39n
C113
2p2
C147
33p
R108
10K
L112
220n
C114
2p2
3
2
1
D100
BAV99
C103
100n
C106
2p2 C167
2p2
C116
22p
C128
10n
R116
100R
R106
NC/75K
C127
680p
C117
15p
C115
8p2
R105
NC/75K
L103
27n
C163
1u
C132
1n
C166
15p
C156
5p6
C107
8p2
R122 100R
C142
680p
C154
220p
L110
39n
C150
2u2
C153
22p
C159
100n
C108
22p
R101
150R
2
34
1
TR100
DXW21BN7511T
C164
1u
C157
1n8
R100
150R
C104
68p
C143
1u
C160
680p
L109
27n
C118
8p2
C126
56p
L106
47n
RSSI
5
VDD3V_PDT
4
LNAINN
2
LNAINP
3
VDD3V_LNAVGA
1
VDD3V_LOOP
10
LOOPOUTN
9
LOOPOUTP
8
VDD3V_CMP
7
RFAGC_CP
6
VCTRL1
12
VDDPLL1
11
VDDVCO1
13
VDD_PFDCP1
14
VCCXTAL
15
XTALOUT
16
XTALB
17
XTALA
18
VCCDIO
19
VDDPFD3
21
VDDVCO3
24
VDDPLL3
20
VCTRL322VCTRLVCO3
23
DVDD
25
SCLK26SDAT27ASIN28ON
29
OUTPSA W
52
VDDSA W
53
VDDMX
54
RFLBin_ n
60
RFLBin_ p
61
VDD_HRM
57
RFLBou t _n
63
RFLBou t _p
64
RFHBin_ n55RFHBin_ p
56
VDD_NotchDRV
62
RFHBou t _n59RFHBou t _p
58
IC100
MSR1200
C141
680p
L113
120R/100MHz
R114
4K3
C144
100n
C170
100n
C125
68p
R112
100R
XTALOUT
RSSI
VDD33
PLL3 Loop Filt er
49mA
16mA
0.47mA
45mA
45mA
11mA
2mA
2mA
29mA
2mA
11mA
1mA
20mA
1.5mA
64mA
50mA
37mA
12mA
12mA
0.16mA
0.16mA
H.P.F
3rd @40MHz H.P.F can attenuate 40dB @ 250KHz
L111
220n
C120
56p
VDD_Antena
VDD33
C119
1n
VDD_Antena
R123
NP/0R
TU_RSSI
R126 130K
R127
750K
C172 56p
C173 33p
C175
270p
C174
82p
L114
1u
L116
150n
L117
330n
R124 22K
C177
NC
S100
RFIN
i
PCB Rule
L118
220n
C178
56p
C183
1u
VDD33_LDO
VCC3.3-Sil_T
600mA
C184
100n
GND
GND
ADJ
1
VOUT
2
VIN
3
TAB
2
IC101
NCP1117DTAT5G
Pd=1W
Thermal pad required
R140 91R
R141 150R
C186
4.7u
VCC5V
C185
220u/16V
VDD33_LDO
RSSI/AMBILIGHT/2ND LED
AP1117
3
Thermal
Shutdown
1
2
V
out
Adj
1.25V
+
+
CURRENT
LIMIT
V
in
-
+
+
1
GND
(FIXED)
-
Vorabversion
Preliminary Version
Tuner (Onboard, PCB Index R-3)
2 - 7
GRUNDIG Service Chassis SE
SDAT_1
VDD33
IFAGC
VCTRL2
N11
VDD33
VDD33
LNA_IP
LNA_IN
VDD33
IP
IN
VDD33
VCTRLVCO3
SCLK_1
OP
VCTRL
SAW_OP2
ON
RFHBIN_N
RFHBOUT_P
LR49A_6
OUTNSAW
VDD33
LR49A_5
VDD33
OUTPSAW
LR49A_1
LR49A_2
ASIN
VDD33
VDD33
VDD33
VDD33
RFHBIN_P
SAW_OP1
SAW_ON1
3CGAFRPC_CGA
IF-
IF+
VDD33
XTALOUT
S_C_01
F5_2
F5_1
VDD33
SAW_ON2
C161
10n
C111
68p
R121 100R
C169
NC
R110
5K6
L108
5n6
R113
NP/0R
C162
1u
C100
68p
C135
100n
C130
100n
C138
10n
C122
100n
C121
100n
R104
10K
T100
BC847B
R107
2K2
D101
BA591
C140
10n
L100
39n
L101
39n
C124
39p
R118
10K
C156
5p6
C149
330n
R122 100R
L105
NC
C158
10n
R111
5K6
C112
10p
C134
680p
C171
100n
L102
5n6
C123
1n
1
2
3
4
5
6
7
8
F100
LR49A(1575MHz)
C101
68p
C110
10p
C105
68p
C129
68p
C145
NC/10n
R109
2K2
2
3
4
5
1
F101
X7251D
R125
5K6
C151
4u7
R119
NP/10K
R120
10K
C139
10n
VDDVCO324VCTRLVCO3
23
DVDD
25
SCLK26SDAT27ASIN28ON29OP
30
VDD_IFVGA
32
VCTRL
31
VCTRL2
48
VDDVCO2
49
VDD3V_LNABS
43
LNA_IP
45
LNA_IN
44
VDD3V_LNA
46
VDD3V_MIX
42
VDD3V_SAW1
41
SAW_OP1
40
SAW_ON1
39
SAW_OP2
38
SAW_ON2
37
AGC_CP
35
VDD3V_AGC
36
IP
33
IN
34
OUTPSA W
52
OUTNSAW
51
VDDPFD2
47
VCO2_BYPASS
50
VDDSA W
53
VDDMX
54
VDD_HRM
57
RFHBin_ n55RFHBin_ p
56
RFHBou t _p
58
GND
65
MSR1200
C168
100n
R117
NP/8K2
C148
100n
AIFP
AIFN
RFAGC3
I2C-SDA-Tuner
I2C-SCL-Tuner
IFAGC
IF-
IF+
VDD33
VDD33
Zin = 200 Ohm
PLL2 Loop Filter
11mA
1mA
23mA
0.18mA
19mA
25mA
5.5mA
38mA
3.8mA
39mA
16mA
20mA
20mA
1.5mA
64mA
50mA
12mA
1
2 3
4
5
F102
LV01A 1575MHz)
C181
33p
C182
68p
L119
5.6nH
C180
2.2p
C179
2.2p
L120
4.7nH
Single ended SAW
in case of single ended SAW
place 68pF capacitor on L102 and L108
8
5 6
8
8
6
5
Vorabversion
Preliminary Version
Tuner (Onboard, PCB Index R-3)
2 - 8
APW
1
RAG
2
CAS
3
SCL
4
SDA
5
33V( 4MHz)
6
5V
7
IFA
8
IAG9IF2
10
IF1
11
GND
12
GND13GND14GND
15
TU300
NXP
GND
RFAGC3
T300
BC807-40
R323
10R
R326
10R
R332
1K
L305
SBY1005
L304
(33u)
C319
100n
C320
220u/16V
GND
ANTPOWER: L- OFF, H- ON
R327
3K3
R328
51K
L303
NR3015T1RON
C322
1u
AIFP
AIFP
IFAGC
IF-
IF+
VDD_Antena
REF4MHZ
SIF_IN-
SIF_IN+
SIF
SIF_E
R325
820R
C325
NC
C324
100n
C323
100n
C326
100n
R334
820R
R335
47R
C321
100n
R330
47R
R329
0R
R324
10R
R331
820R
T305
BC847B
R333
2K2
SIF_IN-
SIF_IN+
5V-VIF
AGND
GND_POWER
GND_POWERGND
VCC
GND
1
2
43
5
IC301
74LVC1G66GW
C327
100n
A/D
VCC5V
ANTPOWER
RFAGC3
R301
(0R)
APW1RAG2CAS3SCL4SDA533V( 4MHz)
65V7
IFA8IAG9IF210IF1
11
GND12GND13GND14GND
15
TU301
DTT75407
1
2
GND
4
5
VCC-T uner
1
2
GND
4
5
GND
IFAGC
IF-
IF+
VDD_Antena
I2C-SCL-Tuner
I2C-SDA-Tuner
R307
100R
R300
100R
IFAGC
IF-
IF+
REF4MHZ
REF4MHZ
I2C-SCL-Tuner
I2C-SDA-Tuner
VCC-Tuner
5V-VIF
VCC-T uner
R339
51K
2
6
1
5
4
3
T904
BC847BPDW1T1
C329
470u/16V
R340
*
AIF
AIF
1
2
3
5
4
V
CC
Z
E
GND
Y
74LVC1G66GW
8
5 6
8
6
5
Tuner (Modul)
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 9
SIOMAD
SIF2
OUT2
AIFN VIF2
SDA-01
REF
VIF1
DEEM
AFD VPPL-0 1
NC5_VAGC6
SCL-01
Q1-01
F6-02
F6-01
FMPLL
TAGC
SIF1
Q2-01
RFAGC3
AIFP
C308
10n
R322 100R
X300
4MHz XTAL
Option
D300
BA591
2
3
4
51
F300
K9656M
C313
10n
R321 100R
C307
220n
C314
470n
C317
390p
R312
100R
R311
4K7
R315
220R
C305
470n
C316
10n
DGND
7
TOP
9
VIF1
1
VIF2
2
REF
15
NC(5)/ VAGC(6)
16
DEEM
5
SCL
11
OUT1
3
NC
13
AUD_OUT
8
SDA
10
FMPLL
4
TAGC
14
AFD
6
SIOMAD
12
CVBS
17
AGND
18
VPLL
19
VPP
20
AFC
21
OUT2
22
SIF1
23
SIF2
24
IC300
TDA9885
C310
220u/16V
C309
100n
R308
2K2
R304
NC/12K
C306
10u/16V
C318
100n
C300
22p
R313
75R %1
2
3
4
51
F301
K3958M
C304
1n5
R320
5K6
R309
330R
T304
BC847B
R310
100K
T303
BC848B
C301
NC/100p
C303
10n
R303
2K2
R302
6K8
AIFP
AIFN
5V-VIF
VCC3.3V-ST
5V-VIF
L300
4u7
C311
10u
L301
1u
VCC5V
R318
0R
R317
NC
L302
1u
REF4MHZ
R319
47R
C315
100n
R316
75R %1
R314
47R
TV_CVBS-
TV_CVBS+
R305
12K*
5V-VIF
CAN Tuner için
TV_CVBS+
TV_CVBS-
SIF
I2C-SCL-Tuner
I2C-SDA-Tuner
C312
100n
RFAGC3
R306
10K
D301
4148
C328
1u
R336
100K
5V-VIF
I2C-SCL-Tuner
I2C-SDA-Tuner
C330
NC
C331
NC
DIGITAL VCO CONTROL
AFC DETECTOR
RC VCO
VIF-PLL
VIF-AGC
TUNER AGC
SUPPLY
SIF-AGC
AUDIO PROCESSING
AND SWITCHES
NARROW-BAND
FM-PLL DEMODULATOR
SINGLE REFERENCE QSS MIXER
INTERCARRIER MIXER
AND AM DEMODULATOR
SOUND CARRIER
TRAPS
4.5 to 6.5 MHz
TAGC
C
AGC(neg)
C
BL
VAGC
TOP
14
VPLL
19
12 51619
410
11
12 1820
2
1
17
8
5
6
REF AFC
AUD
CVBS
SIOMADSDASCL
MAD
V
P
C
AGC
13
n.c.AGND
7
DGND
OUTPUT
PORTS
I2C-BUS TRANSCEIVER
22
3
LLPM
F
2PO1PO
DEEM
AFD
VIF2
VIF1
24
23
SIF2
SIF1
TDA9885
TDA9886
5 6
6
5
9
8
9
8
Tuner
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 10
BKERR
Lock
IFind
#IFind
OSC_Mod e
REF1
TS_MIVALID
TS_MISYNC
GPIO_0
Lock
#IRQ
Sleep
SAD_1
SAD_0
SAD_3
SAD_2
XIN
TS_MICLK
TS_MDI0
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
RESET
BKERR
Test_12
TS_MDI[1..7]
R203 100R
C206
33p
C215
100n
1
TP1
1
TP3
C212
100n
C218
100n
7531
8
6
4
2
RP202 4*33R
R204 100R
R223
100R
R220 4K7
C203
22p
7
5
31
8642
RP201 4*33R
C223
100n
R213 4K7
R205
0R
C217
100n
R202
10K/NC
R217 100R
R206 47R
D201
LED(R)
R215 33R
R221
4K7
1
TP2
C210
100n
C219
100n
C201 100n
X200
20.48MHZ
C208
100n
C222
100n
R212 33R
C204
10u
R216 100R
R222
100R
7531
8642
RP200 4*33R
C216
100n
C220
100n
R209
10K
C211
100n
R210 33R
C200 100n
VIN
30
VIN
31
AGC1
42
AGC2/GPP2
41
VDD_ADC
28
DVSS_ADC
29
AGND
32
AVDD
33
RFLEV
34
VDD_SAD
21
PLL1TEST
26
TEST_IN
22
GPP3
43
CLK2/GPP0
35
DATA2/GPP1
36
XTO24XTI23OSCMODE
27
VSS1VSS3VSS8VSS14VSS20VSS_SA D25VSS38VSS40VSS
46
VSS
55
VSS
60
RESET
9
CLK1
4
DATA1
5
IRQ
6
SLEEP
10
STATUS
11
BKERR
62
MOSTRT
47
MOVAL
48
MDO7
58
MDO6
57
MDO5
56
MDO4
53
MDO3
52
MDO2
51
MDO1
50
MDO0
49
MOCLK
61
MICLK
63
SADD018SADD117SADD216SADD315SADD4
12
TEST_EN
44
CVDD64CVDD59CVDD39CVDD37CVDD19CVDD
7
VDD54VDD
45
VDD
13
VDD
2
IC201
MSB-1200
R211 0R/NC
C214
100n
R214 8K2
C213
100n
R208
10K
C209
100n
R218 4K7
C202
22p
D202
LED(G)
C205
33p
R207
8K2
IF-
IF+
IFAGC
I2C-SCL
I2C-SDA
TS_MICLK
TS_MIVALID
TS_MISYNC
TS_MDI0
I2C-SCL-Tuner
I2C-SDA-Tuner
TS_MDI[1..7]
VDD_ADC
VDD_SAD
VDD Vcore
AVDD
VCC3.3V-ST
VCC3.3V-ST
VDDVCC3.3V-ST
VCC1.8V
VCC1.8V VDD_ADC
VDD_SAD
AVDDVCC3.3V-ST
VCC1.8V Vcore
VCC3.3V-ST
VCC3.3V-ST
VDD
VCC1.8VVCC3.3V-ST
MSB1200
ADJ
1
VOUT
2
VIN
3
TAB
4
IC200
AP1117YL-13
R200 120R
R201 56R
C221
22u
L201
300R/100MHz
L202
300R/100MHz
L204
300R/100MHz
L200
300R/100MHz
L203
300R/100MHz
RESET
R224 100R
C207
100n
7
5
31
8
642
R219 4*33R
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS1_SYNC
TS1_D0
TS1_CLK
TS1_VALID
TS_MDI0
TS_MICLK
TS_MISYNC
TS_MIVALID
R225 33R
I2C-SCL-Tuner
I2C-SDA-Tuner
C224
10p
L205
300R/100MHz
R226 100R
Power-ON/OFF
HI : OFF
LOW : ON
5 6
6
5
11
8
8
!
Mains plug in
Trigger @ (VCC3.3V-ST)
12
5 6
6
5
COFDM Demodulator
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 11
GRUNDIG Service Chassis SE
HDMI-CLKN
HDMI-CLKP
HDMI-RX0P
HDMI-RX0N
HDMI-RX2P
HDMI-RX1N
HDMI-RX2N
HDMI-RX1P
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1-VSYNC
SC1-HSYNC
RGB0_BIN+
RGB0_SOG
RGB0_GIN+
RGB0_RIN+
VGA_VSYNC1
VGA_HSYNC1
RGB1_Y+
RGB1_Y-
RGB1_PB+
RGB1_PB-
RGB1_PR+
RGB1_PR-
SIF_IN-
SIF_IN+
SC1-Rin
COMP_ALIN
COMP_ARIN
SC1-Lin
XTALOXTALI
SPDIF_OUT
SPDIF_IN
USB_DP
USB_DM
SOY_YUV
HDMI-CEC
PCM_CE_N
PCM_IRQA_N
PCM_CD_N
PCM_A[14..0]
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_D[7..0]
BRI_ADJ-PWM2
ADJ_Volumn-PWM0
TS1_D0
TS1_VALID
TS1_CLK
TS1_SYNC
TS_MDO[7..0]
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
CVBS1+
CVBS_OUT
TV_CVBS+
TV_CVBS-
PCMCIA_ON
CVBS1-
CVBS2
SC1-C
R401
1M
R420 NC
C401
20p
C400
20p
Y400
12MHz
HDMI-CLKP
HDMI-CLKN
HDMI-RX0P
HDMI-RX0N
HDMI-RX1P
HDMI-RX1N
HDMI-RX2P
HDMI-RX2N
HPD_CTRL
HDMI-SDA
HDMI-SCL
SC1-HSYNC
SC1-VSYNC
RGB0_BIN+
RGB0_SOG
RGB0_GIN+
RGB0_RIN+
RGB1_PB+
RGB1_PB-
VGA_HSYNC1
VGA_VSYNC1
RGB1_Y+
RGB1_Y-
RGB1_PR+
RGB1_PR-
SIF_IN+
SIF_INSC1-Lin
SC1-Rin
COMP_ALIN
COMP_ARIN
USB_DP
USB_DM
SOY_YUV
AU_DACO_L
AU_DACO_R
HDMI-CEC
PCM_RESET
PCM_A[14..0]
PCM_WAIT_N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CE_N
PCM_IRQA_N
PCM_D[7..0]
BRI_ADJ-PWM2
ADJ_Volumn-PWM0
TS1_SYNC
TS_MDO[7..0]
TS1_D0
TS1_CLK
TS1_VALID
PCM_CD_N
G7_RXO3_N
G6_RXO3_P
R0_RXOC_P
R3_RXO2_N
R2_RXO2_P
R1_RXOC_N
R4_RXO1_P
R7_RXO0_N
R6_RXO0_P
R5_RXO1_N
G0_RXE1_P
G3_RXE0_N
G2_RXE0_P
G1_RXE1_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B3_RXE3_N
B7_RXE2_N
B6_RXE2_P
SC1_CVBS_OUT
SC1_CVBS+
TV_CVBS+
TV_CVBS-
PCMCIA_ON
SC1_CVBS-
CVBS2
SC1-C
HDMI Block
RGB Block
Audio Block
System XTAL
USB Block
CL=20pF ; C0max=5pF
PCMCIA
PWM
Transport Stream
LVDS Block
CVBS Block
AU_DACO_ML
AU_DACO_MR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
SPDIF_OUT
SPDIF_OUT
VGA_ARIN
VGA_ALIN
VGA_ALIN
VGA_ARIN
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MOCLK
TS_MOSTART
TS_MOVAL
I2C-SDA
I2C-SCL
UART-TX
UART-RX
USB_OCD_N-GPIO3
RGB0_SW
MUTE_S
Panel_ON_OFF
VBLCTRL
Power-ON/OFF
A/D
I2C-SCL
I2C-SDA
UART-TX
UART-RX
RGB0_SW
USB_OCD_N-GPIO3
Panel_ON_OFF
VBLCTRL
MUTE_S
Power-ON/OFF
RSSI
I2C / UART
GPIO
SIDE_ARIN
SIDE_ALIN
SIDE_Y+
SIDE_C+
SIDE_AV
SIDE_Y+
SIDE_C+
SIDE_ALIN
SIDE_ARIN
A/D
ANTPOWER
ANTPOWER
Audio-ON/OFF
Audio-ON/OFF
RSSI/AMBILIGHT/2ND LED
System-RST
AUVRM
AUCOM
AUVRP
AUVAG
RGB0_SW
C450
4u7
C448
100n
C447
10u
R436NCR437
NC
C432
100n
L401
300R/100MHz
C449
1u
VCC3.3V-ST
Jupiter Reset
Close to IC
with width trace
C406
100n
GND
VCC3.3V-ST
GND
R426
NC
R459
100R
T400
BC847B
R458
100K
GND
R457
10K
RESET
Vcc
3
GND_1
1
RESET
2
IC400
STM810SWX6F
R483
*/100R
COFDM_RST
RSSI/AMBILIGHT/2ND LED
STM809/810/811 /812
COMPARE
V
RST
V
CC
DEBOUNCE
t
rec
Generator
MR
(1)
RST
(2)
5 6
6
5
11
10
12
Trigger @ (VCC3.3V-ST)
0
!
Mains plug in
Vorabversion
Preliminary Version
Scaler
2 - 12
REFM
REFP
VCLP
Audio-ON/OFFA/D
UART-RX
UART-TX
VDDC
SPI_CSN0
SPI_CSN1
SPI_CSN2
C421
100n
C452
100n
C423
100n
C429
10u/6.3V
C422
100n
C457
100n
123
4
S402
2.0mm/Male_wafer
L403
300R/100MHz
C431
10u/6.3V
C442
100n
C445
10u/6.3V
C438
100n
R446
NC
L402
300R/100MHz
R440
1K
C446
10u/6.3V
C437
100n
C443
100n
C454
100n
R441
NC
R447
NC
C453
100n
C436
100n
C417
100n
C428
100n
C459
10u/6.3V
C444
100n
R430
NC
C434
100n
C455
100n
C435
100n
C426
100n
C418
100n
R431
1K
C433
100n
C439
100n
C440
100n
C425
100n
C419
NC/100n
C456
100n
C424
100n
C420
100n
C430
100n
C441
100n
L404
300R/100MHz
R445
NC
VCC3.3V-ST VCC3.3V-ST
AVDD_LPLL
AVDD_MEMPLL
AVDD_OTG AVDD_MPLLAVDD_SIFAVDD_AU
VCC3.3V-ST AVDD_MEMPLLAVDD_LPLL
VCC3.3V-ST VDDP
AVDD_ADC
AVDD_DVI
AVDDL_DVI
VDDCVCC1.2V-ST
AVDD_DDR
VCC2.5V-ST
VCC3.3V-ST
AVDD_AU
AVDD_SIF
AVDD_MPLLAVDD_OTG
AVDD_ADC
AVDD_DVI
Close to IC
as close
as possible
with width tr ace
IC Configuration Selection
Using power plane
PWM0 PWM1
VCC3.3V-ST
R471
1K
VCC3.3V-Flash
+5V_ST
T403
FDV301N
R472
100K
VCC3.3V-Flash
L406
300R/100MHz
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
Scaler
2 - 13
GRUNDIG Service Chassis SE
Option
HDMI-CLKP
HDMI-CLKN
HPD_CTRL
HDMI-RX1P
HDMI-RX1N
HDMI-RX0P
HDMI-RX0N
AVDD_DVI
HDMI-RX2N
HDMI-RX2P
AUCOM
SC1-Rin
COMP_ALIN
COMP_ARIN
SC1-Lin
AUVRP
AUVAG
TESTPIN
VDDC
VDDP
AVDD_AU
AU_DACO_M L
AU_DACO_M R
HDMI-SCL
HDMI-SDA
HDMI-REXT
RGB0_BIN+
RGB0_SOG
RGB0_GIN+
RGB0_RIN+
VCLP
REFP
REFM
AVDD_ADC
RGB1_Y+
RGB1_PB-
RGB1_PR-
RGB1_PR+
RGB1_PB+
SOY_YUV
RGB1_Y-
CVBS_OUT
AVDD_ADC
CVBS1+
SIF_IN-
SIF_IN+
VDDC
AVDD_SIF
TS_MDO0
TS_MDO1
TS_MDO2
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
VDDP
PCM_D7
PCM_D6
PCM_D5
PCM_D4
PCM_D3
PCM_D2
PCM_D1
PCM_D0
PCM_A14
PCM_A13
PCM_A12
PCM_A11
PCM_A10
PCM_A9
PCM_A8
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
VDDC
PCM_A2
PCM_A1
AVDD_MPLL
XTALI
XTALO
USB_DM
USB_DP
AVDD_OTG
OTG_REXT
AVDD_DDR
MDATA1
DQM0
DQS0
MDATA0
WEZ
BA0
BA1
CASZ
RASZ
MDATA5
MDATA6
MDATA7
MDATA4
AVDD_DDR
MDATA2
MDATA3
VDDC
AVDD_DDR
AVDD_MEMPLL
MCLK+
CKE
MCLK-
MVREF-1
USB_OCD_N- GPIO3
HDMI-CEC
M_ADR10
M_ADR11
M_ADR7
M_ADR12
M_ADR8
M_ADR9
M_ADR5
M_ADR0
M_ADR1
M_ADR6
M_ADR2
M_ADR3
M_ADR4
BA0
BA1
CASZ
RASZ
M_ADR10
M_ADR11
M_ADR7
M_ADR12
M_ADR8
M_ADR9
M_ADR5
M_ADR0
M_ADR1
M_ADR6
M_ADR2
M_ADR3
M_ADR4
VGA_HSYNC1
VGA_VSYNC1
SC1-VSYNC
SC1-HSYNC
AVDDL_DVI
AUVRM
SPI_CSN2
MUTE_S
TV_CVBS+
TV_CVBS-
CVBS1-
CVBS2
SC1-C
R418
390R %1
RX1P
10
AVSS_DVI
11
RX2N
12
RX2P
13
HOTPLUGA
14
REXT
15
DDCDA_DA
16
DDCDA_CK
17
HSYNC1
18
VSYNC1
19
VCLP
20
REFP
21
REFM
22
BIN1P
23
SOGIN1
24
GIN1P
25
RIN1P
26
BIN0M
27
BIN0P
28
GIN0M
29
GIN0P
30
SOGIN0
31
RIN0M
32
AVDD_ADC2
34
AVSS_ADC2
35
HSYNC0
36
VSYNC0
37
CVBS3P
42
CVBS2P
43
CVBS1P
44
VCOM1
45
CVBS0P
46
VCOM0
47
AVDD_ADC
48
CVBS_OUT
49
AVSS_CVBSO
50
AVDD_SIF
51
SIF_IN1P
52
SIF_IN1M
53
VDDC
54
LINE_IN_0L
56
LINE_IN_0R
57
LINE_IN_1L
58
LINE_IN_1R
59
LINE_IN_2L
60
LINE_IN_2R
61
LINE_IN_3L
62
LINE_IN_3R
63
VIM0
64
AVSS_AU
65
AVDD_AUSDM
69
AUVRM66AUVRP67AUVAG
68
LINE_O UT_1L
72
VDDP
76
SDR_BA 0
229
SDR_WE_N
230
SDR_RAS_N
231
SDR_CAS_N
232
SDR_DQ7
234
SDR_DQ6
235
SDR_DQ5
236
SDR_DQ4
237
SDR_DQ3
239
SDR_DQ2
240
GNDM
241
SDR_DQM0
242
SDR_DQ1
243
SDR_DQ0
244
AVDDL_DVI
247
XTALI
254
TESTPI N
256
RXCP
5
RX0N
6
RX1N
9
RX0P
7
AVDD_DVI
8
RXCN
4
RIN0P
33
AVDD_DDR
245
GNDC90VDDC
91
DDR_DQS0
246
AVDD_DDR
238
XTALO
253
LINE_O UT_2L70LINE_O UT_2R
71
GNDP77VDDC
78
PCM_D7/CI_D7
92
PCM_D6/CI_D6
93
PCM_D5/CI_D594PCM_D4/CI_D4
95
PCM_D3/CI_D3
96
PCM_D2/CI_D297PCM_D1/CI_D198PCM_D0/CI_D099PCM_A1 4/CI_A14
100
PCM_A1 3/CI_A13
101
PCM_A1 2/CI_A12
102
PCM_A1 1/CI_A11
103
PCM_A1 0/CI_A10
104
PCM_A9 /CI_A9
105
PCM_A8/CI_A8
106
VDDP
107
PCM_A7/CI_A7
108
PCM_A6 /CI_A6
109
PCM_A5/CI_A5
110
PCM_A4 /CI_A4
111
PCM_A3 /CI_A3
112
PCM_A2 /CI_A2
113
114
207
Jupiter GPIO 3/UART_TX1/C EC
208
MVREF
209
DDR_CK O_N
210
DDR_CKO
211
SDR_CK E
212
AVDD_MEMPLL
213
SDR_AD0
214
SDR_AD1
215
SDR_AD2
216
SDR_AD3
217
SDR_AD4
218
SDR_AD5
219
SDR_AD6
220
AVDD_DDR
221
SDR_AD7
222
SDR_AD8
223
SDR_AD9
224
SDR_AD 10
225
SDR_AD 11
226
SDR_AD 12
227
SDR_BA 1
228
OTG_REXT
248
AVDD_OTG
249
USB_DM
250
USB_DP
251
AVSS_OTG
252
AVDD_MPLL
255
CEC/UART_RX1
1
GPIO1/UART_TX1
2
GPIO2
3
C1(CVBS7P)
38
Y1(CVBS5P)
39
C0(CVBS6P)
40
Y0(CVBS4P)
41
VDDC
233
LINE_OUT_1R(DACO _S)73LINE_OUT_0L(DACO_L)74LINE_OUT_0R(DACO _R)
75
GNDC
55
TS_D0/BT656_D0/FDSP_IMS79TS_D1/BT656_D1/DSP_ICLK80TS_D2/ B T656_D2/FDSP_IDI81TS_D3/ B T656_D3/FDSP_IDO82TS_D4/BT656_D483TS_D5/BT656_D584TS_D6/ B T656_D685TS_D7/BT656_D786TS_VLD87TS_SYN C
88
TS_CLK/BT656_CLK
89
COOLER
266
IC402
MSD2338AL
R403
0R
R402
910R %1
AVDD_DVI
SIDE_Y+
SIDE_C+
SIDE_ALIN
SIDE_ARIN
AU_DACO_HL
AU_DACO_HR
AU_DACO_SL
AU_DACO_SR
VGA_ALIN
VGA_ARIN
TS_MOCLK
TS_MOVAL
TS_MOSTART
R494
0R/NC
R495
NC/0R
MST_HDMI-CEC
Z_HDMI-CEC
MST_HDMI-CEC
6
3
4
3
4
9
9
Vorabversion
Preliminary Version
Scaler
2 - 14
GRUNDIG Service Chassis SE
System-RST
VDDC
I2C-SCL
I2C-SDA
FLASH2_WP N -GPIO45
SPDIF_OUT
VDDP
FLASH1_WP N -GPIO44
SPDIF_IN
Power-ON/OF F
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
PCM_A2
PCM_A1
PCM_A0
UART-T X
UART-RX
SAR0
FLASH_WPN- SAR3
SAR1
A/D
LED_R-GPIO 1
BRI_ADJ-PW M2
AVDD_MEMPLL
MCLK+
CKE
MCLK-
MVREF-1
USB_OCD_N- GPIO3
MADR0
BA0
BA1
CASZ
RASZ
M_ADR10
M_ADR11
M_ADR7
M_ADR12
M_ADR8
M_ADR9
M_ADR5
M_ADR0
M_ADR1
M_ADR6
M_ADR2
M_ADR3
M_ADR4
MADR12
MADR11
MADR10
MADR9
MADR8
MADR7
MADR6
MADR5
MADR4
MADR3
MADR2
MADR1
MDATA12
MDATA15
DQS1
MDATA9
AVDD_DDR
MDATA11
MDATA14
DQM1
Panel_ON_OFF
VDDC
MDATA8
MDATA10
AVDD_DDR
TS1_VALID
MDATA13
IRIN
SPI-SDI
SPI_CSN0
SPI-SCK
SP_SDO
SPI_SDI
SPI_SCK
SPI-CS0N
VDDP
SPI-SDO
PCM_RESET
PCM_CD_N
SPI-CS1N SPI_CSN1
PCM_CE_N
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_REG_N
PCM_IRQA_N
PCM_OE_N
PCM_WE_N
EEPROM_W PN
TS1_CLK
TS1_D0
TS1_SYNC
VDDP
AVDD_LPLL
RGB0_SW
PCMCIA_ON
VBLCTRL
7 5 3 1
8 6 4 2
R33*4604PR
Jupiter GPIO2/CEC
134
I2C_SDA(DDCR_DA)
205
I2C_SCL(DDCR_CK)
206
SAR0
120
SAR1
121
SAR2
122
SAR3
123
PWM0
124
PWM1
125
PWM2
126
PWM3
127
HWRESE T
128
SPI_CK
129
SPI_DI
130
SPI_DO
131
SPI_CZ
132
VDDP
133
AVDD_DDR
191
SDR_DQ15
180
SDR_DQ14
181
SDR_DQ13
182
SDR_DQ12
183
DDR_DQS1
192
SDR_DQ11
185
SDR_DQ10
186
SDR_DQM1
188
SDR_DQ9
189
SDR_DQ8
190
UART_TX(DDCA_DAT)
118
UART_R X(DDCA_CLK)
119
B2_RXE3+
143
B3_RXE3-
144
B4_RXEC+
145
B5_RXEC-
146
B6_RXE2+
147
B7_RXE2-
148
G0_RXE1+
149
G1_RXE1-
150
G2_RXE0+
151
G3_RXE0-
152
VDDP
153
GNDC
166
G6_RXO3+
154
G7_RXO3-
155
R0_RXOC+
156
R1_RXOC-
157
R2_RXO2+
158
R3_RXO2-
159
R4_RXO1+
160
R5_RXO1-
161
R6_RXO0+
162
R7_RXO0-
163
AVDD_LPLL
164
AVSS_LPLL
165
VDDC
167
LCK/Jupiter GPIO
168
LDE/Jupiter GPIO
169
LHSYNC/Jupiter GPIO
170
LVSYNC/Jupiter GPIO
171
PCM_A7/CI_A7
108
PCM_A6 /CI_A6
109
PCM_A5/CI_A5
110
PCM_A4 /CI_A4
111
PCM_A3 /CI_A3
112
PCM_A2 /CI_A2
113
PCM_A1 /CI_A1
114
PCM_A0 /CI_A0
115
Jupiter_GPIO0
116
Jupiter_GPIO1
117
PCM_IORD_N/CI_RD
135
PCM_IOWR_N/CI_WR
136
PCM_OE_N
137
PCM_WE_N
138
PCM_REG_N/CI_CLK
139
PCM_CE_N/CI_CS
140
PCM_IRQA_N/CI_INT
141
PCM_WAIT_N/CI_WACK
142
CI_RESET
172
CI_CD
173
TS1_D0/FDSP_IMS
174
TS1_VLD/FDSP_ICLK
175
TS1_SYNC/FDSP_IDI
176
TS1_CLK/FDSP_IDO
177
IRIN
178
INT
179
AVDD_DDR
184
GNDM
187
I2S_IN_WS
193
I2S_IN_BCK
194
I2S_IN_SD
195
SPDIF_ I N
196
I2S_OUT_MCK
197
I2S_OUT_WS
198
VDDP
199
GNDC
200
VDDC
201
I2S_OUT _BCK
202
I2S_OUT _SD
203
SPDIF_ OUT
204
I2S_OUT _MUTE
207
Jupiter GPIO 3/UART_TX1/C EC
208
MVREF
209
DDR_CK O_N
210
DDR_CKO
211
SDR_CK E
212
AVDD_MEMPLL
213
R65004R
7 5 3 1
8 6 4 2
R33*4304PR
7 5 3 1
8 6 4 2
RP407 4*33R
7 5 3 1
8 6 4 2
R33*4504PR
R421
33R
8 bit/10 bit different area
MADR[12..0]
7 5 3 1
8 6 4 2
R456
4*33R
7 5 3 1
8 6 4 2
R455
4*33R
7 5 3 1
8 6 4 2
R454
4*33R
7 5 3 1
8 6 4 2
R453 4*33R
7 5 3 1
8 6 4 2
R452 4*33R
ANTPOWER
Audio-ON/OFF
7531
8642
R405
4*33R
RASZM0
CASZM0
MBA0
MBA1
RXE3_P
RXE3_N
RXOC_N
RXO2_P
RXO2_N
RXE1_N
RXE1_P
RXE0_N
RXE0_P
RXOC_P
RXO0_N
RXO0_P
RXEC_P
RXEC_N
RXE2_P
RXE2_N
RXO1_N
RXO1_P
RXO3_N
RXO3_P
COFDM_RST
C465
*
R497
NC/100
RSSI/AMBIL IGHT/2ND LED
11
10
Trigger @ (VCC3.3V-ST)
0
!
Mains plug in
14
13
#
$
5
6
5
6
Vorabversion
Preliminary Version
Scaler
2 - 15
GRUNDIG Service Chassis SE
24C04_I2C-SCL
24C04_I2C-SDA I2C-SDA
24C32_I2C-SCL
I2C-SCL
24C32_I2C-SDA
SPI_CSN0
SP_SDO
SPI_SCK
SPI_SDI
FLASH_WPN-SAR3
SPI_CSN1
SP_SDO
SPI_SCK
SPI_SDI
FLASH1_WPN-GPIO44
SPI_CSN2
SP_SDO
SPI_SCK
SPI_SDI
FLASH2_WPN-GPIO45
R439 100R
R438 100R
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
IC403
F25L032A-100PA
R444
4K7
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
IC405
(NC/F25L016A-100PA)
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
IC407
(NC/F25L016A-100PA)
R434
4K7
R427
4K7
R442
4K7
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC406
24C32
R450
4K7
R429
NC
R433
0R
NC/0R
4K7
R443
NC
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC404
24C512K
R451
NC
R449 100R
C451
100n
R448 100R
C461
100n
C462
100n
C463
100n
C460
100n
R435
4K7
+5V_ST
VCC5V
VCC3.3V
VCC3.3V-Flash
VCC3.3V-ST
VCC3.3V-Flash
VCC3.3V-ST
VCC3.3V-Flash
VCC3.3V-ST
EEPROM
*100MHz, No any VIA hole!
Boot Loader SPI Flash
*100MHz, No any VIA hole!
2nd SPI Flash
*100MHz, No any VIA hole!
3rd SPI Flash
A0
1
A1
2
A2
3
GND4SDA
5
SCL
6
WP
7
VCC
8
IC408
24C512K
R473
0R
R474
0R
R476 100R EEPROM_WPN
R475 100R
R415
R406
C188
100n
C187
100n
Index R-4
Index R-3
5
6
5
6
Vorabversion
Preliminary Version
Scaler
2 - 16
GRUNDIG Service Chassis SE
R6_RXO0_P
R7_RXO0_N
R4_RXO1_P
R5_RXO1_N
R2_RXO2_P
R3_RXO2_N
B3_RXE3_N
B2_RXE3_P
B5_RXEC_N
B4_RXEC_P
B7_RXE2_N
B6_RXE2_P
R0_RXOC_P
R1_RXOC_N
G6_RXO3_P
G7_RXO3_N
G2_RXE0_P
G3_RXE0_N
G0_RXE1_P
G1_RXE1_N
DQS0 MVREF-1
DQS1
MADR7
MADR1MADR1
MADR5
MADR6
MADR3
MADR4
MADR8
MADR2
MADR9
MADR[12..0]
WEZ
RASZM0
MADR12
LDQS
DQM1
MDATA[15..0]
MCLK-
MCLK+
WEZM0
UDM0
CASZM0
MADR0
MADR11
MADR10
UDQS
LDM0
DQM0 CLK0
CLKN0
CKEMCKE
MBA0
MBA1
MDATA4
MDATA0
MDATA7
MDATA2
MDATA1
MDATA3
MDATA6
MDATA5
MDATA10
MDATA13
MDATA9
MDATA11
MDATA14
MDATA15
MDATA12
MDATA8
DATA11
DATA10
DATA9
DATA8
DATA15
DATA14
DATA13
DATA12
DATA0
DATA4
DATA7
DATA6
DATA5
DATA1
DATA3
DATA2
7
5
3
1
8
6
4
2
RP402 4*33R
R410
22R
R414 56R
R408 56R
R407 56R
R411
150R %1
7
5
3
1
86
4
2
RP401 4*33R
A0
29
A1
30
A2
31
A3
32
A4
35
A5
36
A6
37
A7
38
A8
39
A9
40
A10/AP
28
A11
41
DQ0
2
DQ1
4
DQ2
5
DQ3
7
DQ4
8
DQ5
10
DQ6
11
DQ7
13
DQ8
54
DQ9
56
DQ10
57
DQ11
59
DQ12
60
DQ13
62
DQ14
63
DQ15
65
BA0
26
BA1
27
CS
24
RAS
23
CAS
22
WE
21
LDM
20
UDM
47
LDQS
16
UDQS
51
CKE
44
CLK
45
CLK
46
MVDD
1
MVDD
18
MVDD
33
VDDQ
3
VDDQ
9
VDDQ
15
VDDQ
55
VDDQ
61
VSS
34
VSS
48
VSS
66
VSSQ
6
VSSQ
12
VSSQ
58
VSSQ
64
VREF
49
VSSQ
52
NC
14
NC
17
NC
19
NC
25
NC
43
NC
53
NC
50
NC
42
IC401
M13S2561616A-5TG_128Mb_TSOP66
R409
22R
7
5
3
1
8
6
42
RP404 4*33R
R404
56R
R413
22RR412 22R
7
5
3
1
8
6
4
2
RP400 4*33R
DMQC0
4M X 16bit X 4BK
DDR-SDRAM DATA[15:0]
C408
1u
L405
120R/100MHz
R133
10K *
R138
0R
8/10 bit LVDS PANEL
PANEL-VCC
LVDS I/F
GND
GND
GND
R492
1K
VCC3.3V-ST
R493
*
VCC3.3V-ST
GND
GND
BIT_SEL
VESA
JEIDA
41
41
42
42
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
131314
14
151516
16
171718
18
191920
20
212122
22
232324
24
252526
26
272728
28
292930
30
313132
32
333334
34
353536
36
373738
38
393940
40
S400
40pLVDS
DCR
VESA
EXT_DIM_IN
EXT_DIM_OUT
BIT_SEL
R134 1K
VCC3.3V-ST
R193
0R *
GND
DCR
BIT_SEL: H-10bit
ASEV-L:ASEVtib8-L:LES_TIB
VESA: H-JEIDA
DCR: L-OFF
DCR: H-ON
30P - 8bit LVDS
40p - 10bit LVDS or 8bit with DCR
L920 600R/100MHz
L916 600R/100MHz
EXT_DIM_IN
EXT_DIM_OUT
MVREF-1
C403
100n
R417
1K
C402
100n
R419
1K
DMQC0
C412
100n
C415
100n
C404
10u
C411
100n
C405
100n
C416
100n
C414
100n
C413
100n
VCC2.5V-ST DMQC0
390mA
L400
300R/100MHz
14
13
#
$
Vorabversion
Preliminary Version
Scaler
2 - 17
To Keypad Board
LED_R-GPIO1
IRIN
SAR0
SAR1
R480
470R
VCC3.3V-ST
R465
100R
R462
1K
R460
10K
1
2
3
4
5
6
7
8
S401
Keyboard
#LED0
#LED1
R481
0R
R461
4K7
R482
47K
C409
100p
C410
100p
C407
100p
R466
1K
+5V_ST
LED_R-GPIO1 - for Led Blink
One color LED
RSSI/AMBILIGHT/2ND LED for 2nd LED
LED_R-GPIO1 - for LED 1
Two color LED ( CA )
Prevent both active from SW
or
T404
2N7002
R479 *
R478
*
R477
0R
I2C-SCL
I2C-SDA
C468
100p
C467
100p
C471
100p
C466
100n
C470
100p
C469
100p
006BF014L
006BF214L
006BF904L
006BF114L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
S403
TOUCH
L408
FB600
+5V_ST
Power-ON/OFF
Hi: Off
Lo: On
T405
NC/2N7002
R484
NC/1k
VCC3.3V-ST
R485
NC/100
To Z-Touch Board
Optomosfet
IR_CYPRESS_IN
R486
0R/NC
"Z-power" option. NC when Z-power.
"Z-power" option.
NC when Z-power.
R496
0R/NC
AMBILIGHT/2nd_LED
R487
0R/NC
Z_STBY
Z_STBY
Ambient light sensor option.
NC when Ambient light sensor or
"Z-power" option.
NC when "Z-power".
Z_HDMI-CEC
VCC3.3V-ST
R488
1K
R489
47K
AMBILIGHT/2nd_LED
2nd LED is used.
RSSI/AMBILIGHT/2ND LED
T406
2N7002
R490
0R/NC
Two color LED ( 2 pin Reverse conn. )
LED_R-GPIO1 - for LED 1
RSSI/AMBILIGHT/2ND LED for 2nd LED
2nd LED option
R498
*
Optomosfet
L407
FB600
Vdd_Z-Touch
Vdd_Z-Touch
R491
NC/0R
RSSI/AMBILIGHT/2ND LED
C472
10u
Ambient light sensor option.
Cannot be used with Si Tuner option
AMBILIGHT/2nd_LED
or bicolor LED option.
5
6
5
6
Scaler (PCB Index R-3)
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 18
Scaler (PCB Index R-4)
To Keypad Board
LED_R-GPIO1
IRIN
SAR0
SAR1
R480
1K
R462
1K
R460
10K
1
2
3
4
5
6
7
8
S401
Keybo ard
#LED0
#LED1
R481
(0 R blue)
R461
4.7 K
R482
4.7 K
C409
100 pF
C410
100 pF
C407
100 pF
R466
470 R
+5V_ST
LED_R-GPIO1 - for Led Blink
One color LED
AMBILIGHT/2ND LED for 2nd LED
LED_R-GPIO1 - for LED 1
Two color LED ( CA )
Prevent both active from SW
or
1
32
T404
2N70 02
R479 NC
R478 NC
R477
0R
I2 C-SCL
I2 C-SDA
C468
100 pF
C467
100 pF
C470
100 pF
C469
100 pF
L410 60R/10 0MHz
L412 60R/ 100MHz
L409 60R/10 0MHz
L411 60R/ 100MHz
L408
60R/ 100MHz
Power-ON/OFF
Hi: Off
Lo: On
R484
(1 k)
VCC3.3V-ST
R485
(1 00R)
Optomosfet
R491
NC/0 R
AMBILI GHT/2ND LED
C472
10u F
Ambient light sensor option.
Cannot be used with
R486
0R
"TB" option. NC when TB
R496
0R
AMBILIGHT
Ambient light sensor option.
NC when Ambient light sensor or
VCC3.3V-ST
R488
(1 K)
R489
(4 7K)
AMBILIGHT
2nd LED is used.
R490
(0 R)
bicolor LED option.
Two color LED ( 2 pin Reverse conn. )
LED_R-GPIO1 - for LED 1
AMBILIGHT/2ND LED for 2nd LED
2nd LED option
R498
NC
Optomosfet
LED_R
R142 ( 0R)
R139 0R
IRIN
IROUT
R140 0R
R141 0R
SAR0
SAR1
SAR_0
SAR_1
R467
(0 R)
R470
NC
#LED0
AMBILI GHT/2ND LED
VCC3.3V-ST
R469
0R
R468 NC/ 0R
Vbat
(0,1W option)
(TB+0,1W option)
(0,1W not used)
IRIN
System-RST
SAR_1
SAR_0
LED_R
IROUT
SAR1
SAR0
System-RST
SAR1
SAR_1
SAR_0
SAR0
IRIN
IROUT
LED_R
2
1
6
T405B
BC847BDW1 T1_A
5
4
3
T405A
BC847BDW1 T1_A
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 19
System-RST
C105
100pF
C101
1uF
R110 220R
C106
100pF R109 220R
R111 NC/0R
R101 33R
L100
FB/60R/3A
R100 33R
R108
4.7K
R102 NC/0R
R112
NC/0R
R107
4.7K
C107
100nF
C100
100nF
IRIN
System-RST
SAR_1
SAR_0
uP_VCC
ISSP
R103 NC
LED_R
P1
1
P2
2
P3
3
P4
4
P5
5
S100
CON5
GND
uP_VCC
GND
P0[1]
1
SMP
2
XRES
14
P1[6]
13
P1[
4
],EXT
C
LC
K
1
2
P1[
2]
11
P1[0]
,SDA
1
0
Vs
s
9
P1[7],SCL
4
P1[5],SDA
5
NC
8
P0[0]
16
Vss
3
P1[3]
6
P
1
[
1
]
,S
CL
7
NC
15
P0[2]
17
P0[4]
18
P
0
[
6
]
1
9
V
d
d
2
0
Vss
2
1
P0
[7]
22
P
0
[
5]
2
3
P0
[3]
24
GN
D
25
IC100
CY8C21323
GND
SCL2
SDA2
IRIN
SAR_1
GND
IROUT
uP_VCC
0,1W farkı
uP_VCC
SAR_0
IROUT
LED_R
SAR0
SAR1
SAR1
SAR0
GND
XRes
I2 C-SDA
I2 C-SCL
I2C-SCL
I2C-SDA
I2 C-SCL
I2 C-SDA
VCC3.3V-ST
C102
47pF
C103
100p F
C104
100n F
X100
3276 8Hz
R104
1.5M
R105
5.1M
R106
300K
T101
BC817
uP_VCC
1
2
3
S101
CON3
Optomosfet
GND
Vbat
Vbat
Optomosfet
Optomosfet
SUB_MCU
Vorabversion
Preliminary Version
nur PCB-Index R-4 / only PCB Index R-4
GRUNDIG Service Chassis SE
2 - 20
PCM_A10
PCM_A11
PCM_A9
PCM_A8
PCM_A13
PCM_A14
PCM_A12
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
PCM_A2
PCM_A1
PCM_A0
PCM_D0
PCM_D1
PCM_D2
PCM_D7
PCM_D4
PCM_D5
PCM_D6
PCM_D3
PCM_CE_N
PCM_WE_N
PCM_IRQA_N
PCM_REG_N
PCM_WAIT_N
PCM_RESET
PCM_IORD_N
PCM_IOWR_N
PCM_CD1_N
TS_MISYNC
TS_MICLK
TS_MDI0
TS_MDI1
TS_MDI2
TS_MDI3
TS_MDI4
TS_MDI5
TS_MDI6
TS_MDI7
TS_MIVALID
TS_MDO3
TS_MDO4
TS_MDO5
TS_MDO6
TS_MDO7
TS_MDO2
TS_MOVAL
TS_MOSTART
TS_MDO0
TS_MDO1
PCM_A[14..0]
PCM_D[7..0]
TS_MICLK
TS_MIVALID
TS_MISYNC
TS_MOCLK
TS_MOVAL
TS_MOSTART
TS_MDO[7..0]
PCM_IORD_N
PCM_IOWR_N
PCM_WAIT_N
PCM_RESET
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_CD_N
PCM_CE_N
PCM_IRQA_N
TS_MDI0
PCM_CD2_N
PCM_CD2_N
PCM_CD1_N
PCM_CD_N
MOCLKTS_MOCLK
PCM_OE_N
TS_MDI[1..7]
L500
300R/100MHz
C506
NC
R501
100K
R500
1k
C505
100n
C502
1u
C501
100n
C500
10p
R504
10K
R503
33R
R505
10K
GND
A1
D3
A2
D4
A3
D5
A4
D6
A5
D7
A6
CE1#
A7
A10
A8
OE#
A9
A11
A10
A9
A11
A8
A12
A13
A13
A14
A14
WE#
A15
READY
A16
VCC
A17
VPP1
A18
MIVAL
A19
MICLK
A20
A12
A21
A7
A22
A6
A23
A5
A24
A4
A25
A3
A26
A2
A27
A1
A28
A0
A29
D0
A30
D1
A31
D2
A32
WP
A33
GND
A34
GND
A35
CD1#
A36
MDO3
A37
MDO4
A38
MDO5
A39
MDO6
A40
MDO7
A41
CE2#
A42
VS1#
A43
IORD#
A44
IOWR#
A45
MISTRT
A46
MDI0
A47
MDI1
A48
MDI2
A49
MDI3
A50
VCC
A51
VPP2
A52
MDI4
A53
MDI5
A54
MDI6
A55
MDI7
A56
MOCLK
A57
RESET
A58
WAIT#
A59
INPACK
A60
REG#
A61
MOVAL
A62
MOSTART
A63
MDO0
A64
MDO1
A65
MDO2
A66
CD2#
A67
GND
A68
SHIELD
A69
SHIELD
A70
S501
PCMCIA CONN
VCC
GND
1
2
43
5
IC500
NL17SZ32
C504
100n
L501
PCB Index R-3
NC/60R/100MHz
C503
100n
R502
1K
PCM_A[14..0]
PCM_D[7..0]
TS_MICLK
TS_MISYNC
TS_MIVALID
PCM_RESET
PCM_WAIT_N
PCM_REG_N
PCM_OE_N
PCM_WE_N
PCM_IORD_N
PCM_IOWR_N
PCM_CD_N
TS_MOCLK
TS_MOSTART
TS_MOVAL
TS_MDO[7..0]
PCM_CE_N
PCM_IRQA_N
TS_MDI0
PCMCIA_ON
TS_MDI[1..7]
VCC-PCMCIA
VCC3.3V-ST
PCMCIA_VCCIN
+5V_ST
VCC3.3V-ST
VCC-PCMCIA
VCC-PCMCIA
Hi: Off
Lo: On
D
G
S
T500
PMV56XN
R507
10K
+12V
T501
2N7002
R506
10K
R508
10K
TS_MDI0
TS_MICLK
R509 33R
7 5 3 1
8 6 4 2
R510 4*33R
R511 33R
7 5 3 1
8 6 4 2
R512 4*33R
7 5 3 1
8 6 4 2
R515 4*1K
7 5 3 1
8 6 4 2
R513 4*1K
R514 1K
VCC3.3V-ST
D500
(BAT54C)
CI_PCM_WAIT_N
PCM_IRQA_N
CI_PCM_IRQA_N
R522
4K7
R523
4K7
PCMCIA
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
2 - 21
Audio-Verstärker / Audio Amplifier
PCB Index R-4
PCB Index R-4
PCB Index R-4
PCB Index R-4
PCB Index R-4
R813
47K
R816
470R
C826
3n3
R819
47K
C824
3n3
R811
470R
R801
10K
C811
470n
R803
10K
R800
10K
P24V_AMP
P24V_AMP
GAIN2
GAIN1
AMP-Gain 20dB
LLL
26dB
H
L
30dB
H H
36dB
H
TO SPEAKER
R804
NC
C817
1u
C814
2u2
C813
2u2
R802
NC
L801
33uH
C808
470u/35V
L802
33u
C809
470u/35V
C807
1u/25V
C806
220n
SP_RIGHT
C805
220n
SP_LEFT
C803
1u/6.3V
C800
470u/35V
P24V
C810
470n
GAIN1
GAIN0
GAIN1
GAIN0
1
2
3
4
S800
SPEAKER
C835
2n2
GND
R826
4K7
C841
2n2
C842
3n3
C840
1u
GNDGND
C827
100u/16V
C834
100u/16V
C830
1n
C837
1n
GND
GND
GND
OUTA
1
INA(NEG)
2
INA(POS)
3
VSS
4
INB(POS)
5
INB(NEG)
6
OUTB
7
VDD
8
IC802
PT2308
GND
C839
100n
R822
10K
R823
10K
GND
C832
1n5
R814
22K
C536
1n5
R521
22K
R818
4K7
C836
3n3
C833
1u
GND
VCC5V
GND
VCC5V
C820
1u
HPL
HPR
AU_DACO_HL
AU_DACO_HR
R815
470R
R825
470R
L803
300R/100MHz
L804
300R/100MHz
C831
220p
C838
220p
GND
GND
GND
RIGHT
LEFT
GND
Right
Left
GND
S500
Headphone
R810
0R
AU_OP_L
AU_OP_R
AU_DACO_L
AU_DACO_R
PVCCL
1
#SD
2
PVCCL
3
MUTE
4
LIN
5
RIN
6
BYPASS
7
AGND
8
AGND
9
PVCCR
10
VCLAMP
11
PVCCR12PGNDR
13
PGNDR
14
ROUT
15
BSR
16
GAIN1
17
GAIN0
18
AVCC
19
AVCC
20
BSL
21
LOUT
22
PGNDL
23
PGNDL
24
THERMAL
25
IC800
TPA3121D2
MUTE_S
POP
VCC3.3V-ST
VCC3.3V-ST
R805
10K
Audio-ON/OFF
R806
100R
R853
(2.2K)
Audio-ON/OFF
MUTE_S
C801 C846
100u/35V
1u
C802
1u
C843
NC
R830
*
R836
2K 1%
2
3 1
IC803
ZTL431AFFTA
T800
BC847B
GND
R832
4.7k
R833
22K
R834
*
R835
1.2k %1
R837
*
R838
*
R839
330R %1
+12V
+5V_ST
P24V
AU_SW_L
AU_SW_R
VCC
GND
1
2
43
5
IC806
74LVC1G66GW
VCC
GND
1
2
43
5
IC805
74LVC1G66GW
AU_SW_L
AU_SW_R
AU_OP_L
AU_OP_R
GND
C844
1u
+5V_ST
R844
22K
P24V
R843
100R
R842
4.7k
R841
*
R840
*
D800
30V 3A
C845
100u/16V
R846
10K
R845
10K
R849
4.7K
R849
4.7K
R851
220R
L800
120R/10 0MHz
R847
2.2K
1
2
3
5
4
V
CC
Z
E
GND
Y
74LVC1G66GW
LS
HS
OSC/RAMP
BYPASS
AVDDAVCC
LIN
RIN
MUTE
BYPASS
GAIN1
GAIN0
SD
BSL
PVCCL
LOUT
PGNDL
VCLAMP
BSR
PVCCR
ROUT
PGNDR
VCLAMP
AVDD
AVDD
AVDD/2
AVDD
AVDD
AVDD/2
REGULATOR
AGND
+
+
–
–
CONTROL
BIAS
THERMAL
MUTE
CONTROL
AV
CONTROL
SC
DETECT
SC
DETECT
LS
HS
VCLAMP
TPA3124D2
PT2308
-
-
+
+
2
3
5
6
V
IN 1
V
IN 2
V
R EF
V
R EF
1 8
7 4
V
D D
G ND
V
O UT 1
V
O UT 2
16
16
15
15
% ^
Vorabversion
Preliminary Version
2 - 22
GRUNDIG Service Chassis SE
Chassisplatte / Chassis Board - YCR190R-3
Vorabversion
Preliminary Version
2 - 23
Sicht auf Bestückungsseite / View on Component Side
GRUNDIG Service Chassis SE
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-3
Sicht auf Bestückungsseite / View on Component Side
2 - 24
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-3
Sicht auf Bestückungsseite / View on Component Side
2 - 25
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Koordinaten für die Bauteile der Chassisplatte YCR190R-3
Coordinates of the Components of Chassis Board YCR190R-3
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
C100 100 106
C101 100 112
C102 108 113
C103 106 113
C104 104 112
C105 96 109
C106 115 110
C107 114 106
C108 104 105
C109 105 110
C110 94 117
C111 96 110
C112 96 115
C113 112 110
C114 111 108
C115 113 106
C116 107 105
C117 107 108
C118 106 110
C119 127 121
C120 127 122
C121 102 114
C122 103 115
C123 98 116
C124 99 115
C125 112 113
C126 126 118
C127 114 116
C128 111 114
C129 100 118
C130 98 118
C131 114 118
C132 118 119
C133 116 119
C134 98 120
C135 101 120
C136 119 121
C137 118 122
C138 90 124
C139 92 124
C140 94 124
C141 114 121
C142 114 122
C143 115 127
C144 116 122
C145 96 124
C146 116 125
C147 115 125
C148 98 126
C149 100 131
C150 117 127
C151 99 126
C152 116 131
C153 114 130
C154 108 132
C155 112 130
C156 108 130
C157 109 132
C158 87 148
C159 111 129
C160 112 134
C161 89 148
C162 101 135
C163 102 142
C164 106 133
C165 106 130
C166 103 108
C167 114 108
C168 96 120
C169 97 124
C170 114 127
C171 103 131
C172 123 118
C173 121 118
C174 120 116
C175 122 116
C177 127 116
C178 118 117
C179 99 108
C180 99 110
C181 96 110
C182 92 112
C183 43 125
C184 55 111
C185 75 116
C186 55 113
C187 74 124
C188 72 136
C200 87 156
C201 88 156
C202 89 158
C203 87 158
C204 92 154
C205 78 151
C206 76 151
C207 73 168
C208 93 170
C209 87 175
C210 76 164
C211 76 173
C212 82 158
C213 93 159
C214 93 166
C215 79 175
C216 76 158
C217 83 175
C218 93 165
C219 76 167
C220 93 162
C221 74 151
C222 78 146
C223 78 149
C224 82 177
C300 97 179
C301 99 185
C303 102 154
C304 93 178
C305 97 177
C306 128 155
C307 95 176
C308 97 171
C309 97 174
C310 81 183
C311 95 174
C312 93 185
C313 111 171
C314 111 174
C315 94 185
C316 114 173
C317 111 173
C318 111 178
C319 109 157
C320 117 156
C321 119 175
C322 121 179
C323 119 183
C324 119 185
C325 119 179
C326 117 185
C327 123 153
C328 91 186
C329 113 165
C330 94 182
C331 93 182
C400 53 43
C401 53 39
C402 29 46
C403 44 26
C404 26 22
C405 27 32
C406 28 92
C407 18 54
C408 10 94
C409 4 48
C410 5 51
C411 44 30
C412 28 17
C413 27 37
C414 28 26
C415 44 34
C416 28 29
C417 56 58
C418 59 58
C419 56 60
C420 58 60
C421 33 46
C422 47 83
C423 21 77
C424 35 83
C425 26 46
C426 20 67
C428 57 71
C429 54 29
C430 21 63
C431 29 117
C432 56 77
C433 49 83
C434 57 69
C435 49 45
C436 54 49
C437 53 46
C438 56 65
C439 41 46
C440 48 46
C441 28 46
C442 41 83
C443 46 83
C444 57 73
C445 54 31
C446 18 45
C447 52 83
C448 51 83
C449 56 83
C450 54 83
C451 28 86
C452 21 62
C453 46 46
C454 36 46
C455 24 46
C456 24 47
C457 44 46
C459 16 49
C460 74 125
C461 28 100
C462 74 133
C463 28 95
C465 24 81
C466 5 36
C467 18 50
C468 5 41
C469 5 44
C470 5 47
C471 5 53
C472 26 121
C500 110 78
C501 103 90
C502 110 87
C503 110 85
C504 60 79
C505 110 94
C506 65 80
C536 78 32
C600 96 16
C601 96 18
C602 115 35
C603 113 35
C604 115 28
C605 95 31
C700 134 135
C701 136 135
C703 134 136
C704 131 88
C705 136 160
C706 133 175
C707 133 179
C708 134 173
C709 134 176
C710 136 178
C711 136 173
C712 121 81
C713 132 159
C714 128 161
C715 136 186
C716 134 165
C717 136 152
C718 125 179
C719 129 175
C720 59 79
C721 56 81
C722 129 172
C723 134 170
C724 127 179
C725 128 40
C726 133 39
C727 135 41
C728 130 49
C729 130 48
C730 128 38
C731 134 49
C732 130 46
C733 131 36
C734 135 37
C735 129 44
C736 133 44
C737 129 43
C738 130 57
C739 134 57
C740 5 29
C741 130 55
C742 9 26
C743 55 21
C744 55 17
C746 136 146
C747 57 21
C748 57 18
C750 59 21
C751 59 18
C752 135 133
C753 49 22
C754 49 20
C755 50 16
C756 52 22
C757 51 18
C758 51 16
C759 136 140
C760 136 155
C761 136 162
C762 11 28
C763 119 84
C764 121 84
C765 133 93
C766 133 91
C767 129 91
C768 130 93
C769 128 54
C770 134 52
C800 18 151
C801 34 134
C802 44 140
C803 49 136
2 - 26
C805 36 137
C806 36 131
C807 49 138
C808 18 126
C809 18 138
C810 27 136
C811 27 133
C813 49 133
C814 49 135
C817 44 128
C820 75 37
C824 62 81
C826 63 81
C827 64 23
C830 63 14
C831 60 14
C832 66 33
C833 64 35
C834 71 23
C835 64 31
C836 60 81
C837 64 10
C838 60 10
C839 65 31
C840 83 33
C841 80 33
C842 59 81
C843 34 151
C844 55 131
C845 81 38
C900 7 104
C901 10 149
C902 17 167
C903 29 167
C904 10 147
C905 21 165
C906 23 172
C907 52 189
C908 16 172
C909 23 176
C910 33 176
C912 9 156
C913 9 154
C914 56 189
C915 25 29
C916 19 41
C917 50 185
C918 19 37
C919 58 186
C920 9 102
C922 18 179
C923 28 179
C924 38 179
C925 19 38
C926 42 167
C927 36 166
C928 42 156
C929 50 166
C930 50 169
C931 44 172
C932 44 174
C933 53 171
C934 57 171
C935 53 148
C936 10 179
C937 6 179
CB702 132 70
CB900 9 23
CB902 11 141
CT704 124 89
CT705 130 86
CT706 130 83
CT707 130 81
D100 124 119
D101 95 126
D201 70 178
D202 68 178
D300 98 157
D301 116 174
D500 106 86
D700 134 158
D701 136 164
D702 136 156
D703 136 150
D704 136 132
D705 136 139
D706 136 176
D707 136 165
D708 136 175
D709 136 171
D710 129 70
D711 131 81
D712 131 83
D713 133 86
D714 126 68
D715 128 68
D716 130 187
D717 127 187
D718 131 62
D719 132 64
D720 131 67
D721 134 46
D722 41 14
D723 135 44
D724 30 14
D725 134 54
D726 27 14
D727 135 36
D728 35 14
D729 135 39
D730 43 14
D731 134 51
D732 22 17
D733 22 15
D800 32 160
D900 29 171
D901 18 172
D902 22 32
D903 12 167
F100 93 110
F101 98 129
F102 94 113
F300 101 163
F301 106 163
F700 5 33
IC100 101 128
IC101 48 120
IC200 74 147
IC201 85 166
IC300 104 175
IC301 123 156
IC400 29 90
IC401 36 27
IC402 38 64
IC403 22 85
IC404 68 124
IC405 22 92
IC406 68 131
IC407 22 99
IC408 68 114
IC500 63 78
IC600 105 25
IC701 5 25
IC702 126 82
IC703 131 75
IC800 42 134
IC802 72 32
IC803 49 141
IC805 52 134
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Koordinaten für die Bauteile der Chassisplatte YCR190R-3
Coordinates of the Components of Chassis Board YCR190R-3
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
IC806 52 131
IC900 23 160
IC901 19 28
IC902 55 185
IC903 38 161
L100 100 108
L101 100 110
L102 92 117
L103 115 108
L104 105 108
L105 91 116
L106 113 109
L107 105 106
L108 92 116
L109 113 108
L110 106 108
L111 129 120
L112 125 117
L113 72 110
L114 121 119
L116 122 114
L117 120 114
L118 119 116
L119 97 109
L120 94 115
L200 73 162
L201 73 158
L202 93 157
L203 73 160
L204 95 161
L205 96 168
L300 88 184
L301 74 182
L302 100 153
L303 121 164
L304 121 164
L305 123 178
L400 26 24
L401 58 83
L402 29 115
L403 54 27
L404 18 43
L405 10 96
L406 16 47
L407 15 42
L408 13 42
L409 5 37
L410 5 39
L411 5 42
L412 5 45
L500 107 94
L501 110 96
L600 95 34
L701 135 146
L702 119 80
L703 126 54
L704 8 28
L800 31 166
L801 29 128
L802 29 141
L803 62 14
L804 62 10
L900 20 170
L901 11 161
L902 9 151
L903 54 153
L904 51 153
L905 13 179
L906 23 180
L907 34 180
L908 10 181
L909 6 181
L910 24 26
L911 39 166
L912 48 161
L913 49 171
L914 53 167
L915 54 156
L916 9 88
L917 9 145
L920 11 88
L921 45 182
L922 45 187
Q900 14 106
Q901 8 175
Q902 55 161
R100 115 106
R101 102 108
R102 111 106
R103 107 110
R104 100 116
R105 120 124
R106 119 124
R107 92 131
R108 115 124
R109 95 131
R110 101 133
R111 101 131
R112 118 127
R113 101 125
R114 108 129
R115 109 130
R116 112 132
R117 97 135
R118 100 135
R119 99 135
R120 105 137
R121 106 137
R122 107 137
R123 120 121
R124 115 130
R125 93 131
R126 114 132
R127 114 131
R133 9 85
R134 12 85
R138 10 85
R140 54 124
R141 54 126
R193 11 85
R200 78 142
R201 78 144
R202 76 160
R203 87 154
R204 88 154
R205 80 175
R206 82 175
R207 93 168
R208 90 155
R209 90 153
R210 91 175
R211 93 163
R212 92 175
R213 76 165
R214 76 169
R215 76 168
R216 76 170
R217 76 172
R218 95 166
R219 75 104
R220 95 164
R221 93 160
R222 73 179
R223 73 164
R224 73 167
R225 75 106
R226 73 165
R300 113 153
R301 123 159
R302 96 157
R303 96 158
R304 114 177
R305 114 176
R306 116 171
R307 112 153
R308 96 156
R309 95 178
R310 114 174
R311 98 164
R312 97 176
R313 95 183
R314 93 183
R315 96 182
R316 92 182
R317 98 153
R318 109 160
R319 95 185
R320 113 171
R321 111 177
R322 111 176
R323 122 170
R324 117 181
R325 119 176
R326 122 172
R327 122 169
R328 120 169
R329 119 181
R330 119 184
R331 119 178
R332 117 171
R333 117 183
R334 119 180
R335 117 184
R336 98 170
R339 97 87
R340 97 153
R400 39 46
R401 53 41
R402 48 42
R403 54 48
R404 41 39
R405 40 42
R407 28 28
R408 44 29
R409 31 46
R410 28 25
R411 44 24
R412 47 28
R413 32 46
R414 30 41
R417 43 22
R418 57 48
R419 44 28
R420 26 43
R421 19 80
R426 31 93
R427 12 87
R429 12 90
R430 114 89
R431 36 96
R433 67 120
R434 74 128
R435 74 127
R436 116 89
R437 119 77
R438 74 123
R439 74 121
R440 113 89
R441 36 98
R442 17 91
R443 17 89
R444 67 136
R445 17 86
R446 17 93
R447 17 99
R448 74 131
R449 74 130
R450 17 97
R451 17 95
R452 17 62
R453 17 65
R454 17 67
R455 17 70
R456 17 73
R457 33 100
R458 33 93
R459 29 86
R460 18 52
R461 5 48
R462 4 51
R465 18 51
R466 7 52
R471 29 95
R472 31 95
R473 67 137
R474 69 137
R475 69 120
R476 69 136
R477 4 55
R478 13 45
R479 13 46
R480 7 53
R481 4 53
R482 13 51
R483 33 99
R484 13 48
R485 13 49
R486 13 53
R487 5 49
R488 17 118
R489 23 118
R490 24 118
R491 26 118
R492 8 88
R493 6 88
R494 89 11
R495 88 11
R496 22 120
R497 32 92
R498 24 120
R500 85 77
R501 90 77
R502 103 85
R503 110 77
R504 60 77
R505 59 77
R506 83 77
R507 103 92
R508 93 77
R509 70 77
R510 68 81
R511 108 78
R512 105 77
R513 73 81
R514 76 78
R515 105 80
R521 78 34
R522 104 84
R523 104 87
R600 71 14
R601 69 14
R602 70 14
R603 73 14
R604 71 16
R605 91 4
R606 88 9
R607 97 13
R608 96 13
R609 99 16
R610 89 6
2 - 27
R611 98 13
R612 89 9
R613 99 34
R614 91 9
R615 99 38
R616 99 37
R617 99 35
R618 99 13
R619 101 14
R620 112 38
R621 113 38
R622 111 38
R623 110 38
R624 116 11
R625 116 12
R626 118 10
R627 115 38
R628 120 10
R629 120 11
R630 115 29
R631 91 6
R632 89 4
R700 136 136
R701 136 134
R702 136 137
R703 130 88
R704 136 159
R705 134 159
R706 136 163
R707 136 157
R708 136 151
R709 136 148
R710 136 142
R711 136 144
R712 132 93
R713 136 172
R714 136 141
R715 136 179
R716 134 140
R717 134 137
R718 134 178
R719 134 172
R720 134 139
R721 127 77
R722 125 77
R723 124 77
R724 122 77
R725 121 79
R726 121 78
R727 131 86
R728 133 83
R729 133 81
R730 136 182
R731 136 184
R732 134 163
R733 128 158
R734 129 62
R735 132 165
R736 129 64
R737 133 165
R738 132 62
R739 131 64
R740 133 163
R741 126 164
R742 132 163
R743 128 66
R744 128 65
R745 56 80
R746 56 78
R747 126 65
R748 126 66
R749 128 93
R750 132 91
R751 134 167
R752 129 177
R753 127 70
R754 126 70
R755 127 73
R756 132 170
R757 125 73
R758 128 90
R759 131 70
R760 133 170
R761 130 70
R762 130 91
R763 133 167
R764 126 169
R765 132 167
R766 133 41
R767 131 41
R768 131 39
R769 132 49
R770 132 48
R771 134 48
R772 133 37
R773 131 37
R774 132 46
R775 133 36
R776 131 44
R777 133 43
R778 131 43
R779 132 57
R780 4 22
R781 134 55
R782 7 22
R783 132 55
R785 5 28
R786 55 20
R787 55 18
R788 129 93
R789 57 20
R790 57 17
R791 128 52
R792 59 20
R793 59 17
R794 28 43
R795 48 16
R796 50 18
R797 48 18
R798 53 16
R799 53 18
R800 38 140
R801 38 142
R802 35 142
R803 47 129
R804 35 140
R805 46 127
R806 43 127
R807 132 53
R808 132 51
R810 75 38
R811 62 84
R813 56 127
R814 65 33
R815 60 84
R816 63 84
R818 64 33
R819 57 130
R822 78 30
R823 66 31
R824 51 20
R825 59 84
R826 81 33
R830 52 138
R832 53 140
R833 52 140
R834 52 141
R835 52 142
R836 52 144
R837 53 141
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Koordinaten für die Bauteile der Chassisplatte YCR190R-3
Coordinates of the Components of Chassis Board YCR190R-3
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
R838 53 144
R839 53 142
R840 49 130
R841 52 136
R842 56 133
R843 56 135
R844 50 144
R845 25 152
R846 27 152
R847 34 167
R900 20 24
R901 26 165
R902 16 167
R903 17 164
R904 23 24
R905 59 186
R909 52 186
R910 58 189
R911 59 189
R912 55 189
R913 50 189
R914 10 104
R915 53 189
R916 12 104
R917 11 106
R918 12 102
R919 14 103
R920 9 177
R921 9 172
R922 7 172
R923 11 139
R924 6 177
R925 11 172
R926 11 175
R927 38 155
R928 40 155
R929 42 154
R930 57 170
R931 56 163
R932 54 159
R933 54 163
R934 11 143
R935 9 143
R936 7 143
R937 9 25
R938 9 22
R939 9 170
R940 12 170
RP200 76 162
RP201 89 175
RP202 85 175
RP400 25 40
RP401 22 40
RP402 46 39
RP403 37 42
RP404 44 39
RP405 35 41
RP406 32 41
RP407 21 81
S100 129 117
S200 141 38
S202 36 10
S400 10 71
S401 9 40
S402 116 81
S403 9 39
S500 55 7
S501 91 39
S600 77 6
S601 104 6
S602 131 6
S700 142 155
S701 139 77
S702 14 13
S703 143 102
S800 8 132
S900 145 5
S901 145 190
S902 5 5
S903 5 190
S904 28 188
S905 128 26
S906 5 13
S907 14 21
S908 4 169
S909 4 162
S910 4 163
T100 97 132
T300 122 175
T303 97 161
T304 98 182
T305 116 179
T400 33 96
T403 30 99
T404 11 52
T405 15 52
T406 20 118
T500 109 90
T501 106 90
T600 93 8
T700 134 143
T701 131 183
T702 129 164
T703 129 169
T704 130 52
T800 56 138
T901 51 181
T902 48 188
T903 9 99
T904 119 172
T905 56 167
T906 8 140
T907 8 167
TR100 116 118
TU300 106 130
TU301 106 130
X100 119 137
X200 79 154
X300 107 183
Y400 56 40
2 - 28
Chassisplatte / Chassis Board - YCR190R-3
Vorabversion
Preliminary Version
2 - 29
Sicht auf Bestückungsseite Bestückung/DC-Layer / View on Component Side Component/DC Layer
GRUNDIG Service Chassis SE
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-3
Sicht auf Bestückungsseite Bestückung/DC-Layer / View on Component Side Component/DC Layer
2 - 30
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-3
Sicht auf Bestückungsseite Bestückung/DC-Layer / View on Component Side Component/DC Layer
2 - 31
Chassisplatte / Chassis Board - YCR190R-4
Vorabversion
Preliminary Version
2 - 32
Sicht auf Bestückungsseite / View on Component Side
GRUNDIG Service Chassis SE
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-4
Sicht auf Bestückungsseite Bestückung/DC-Layer / View on Component Side Component/DC Layer
2 - 33
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-4
Sicht auf Bestückungsseite Bestückung/DC-Layer / View on Component Side Component/DC Layer
2 - 34
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Koordinaten für die Bauteile der Chassisplatte YCR190R-4
Coordinates of the Components of Chassis Board YCR190R-4
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
C100 29 129
C101 31 126
C102 31 137
C103 31 139
C104 25 138
C105 34 139
C106 34 135
C107 37 131
C187 124 76
C188 136 79
C200 156 63
C201 156 62
C202 158 61
C203 158 63
C204 154 58
C205 151 72
C206 151 74
C207 168 77
C208 170 57
C209 175 63
C210 164 74
C211 173 74
C212 158 68
C213 159 57
C214 166 57
C215 175 71
C216 158 74
C217 175 67
C218 165 57
C219 167 74
C220 162 57
C221 151 76
C222 146 72
C223 149 72
C224 177 68
C300 183 49
C303 154 48
C304 180 56
C305 180 53
C306 155 23
C307 178 56
C308 174 53
C309 176 53
C310 183 69
C311 176 55
C312 186 58
C313 174 39
C314 177 39
C315 186 55
C316 176 36
C317 175 39
C318 181 39
C319 157 41
C320 156 33
C321 175 31
C322 181 28
C323 183 31
C324 185 31
C325 179 31
C326 185 33
C327 153 27
C328 185 62
C329 165 37
C330 183 53
C331 183 58
C400 43 97
C401 39 97
C402 46 121
C403 26 106
C404 20 123
C405 32 123
C406 92 122
C407 37 144
C408 94 141
C409 52 138
C410 49 140
C411 30 106
C412 17 123
C413 37 123
C414 26 122
C415 34 106
C416 29 122
C417 58 94
C418 58 91
C419 60 94
C420 60 92
C421 46 117
C422 83 103
C423 77 129
C424 83 115
C425 46 124
C426 67 130
C428 71 93
C429 29 96
C430 63 129
C431 113 113
C432 77 94
C433 83 101
C434 69 93
C435 45 101
C436 49 96
C437 46 97
C438 65 94
C439 46 109
C440 46 103
C441 46 122
C442 83 109
C443 83 104
C444 73 93
C445 31 96
C446 46 133
C447 83 98
C448 83 99
C449 83 94
C450 83 96
C451 86 122
C452 62 129
C453 46 104
C454 46 114
C455 46 126
C456 47 126
C457 46 106
C459 44 132
C460 125 76
C461 100 122
C462 133 76
C463 95 122
C465 81 126
C467 38 142
C468 49 142
C469 52 142
C470 52 140
C472 53 133
C500 78 40
C501 90 47
C502 87 40
C503 85 40
C504 79 90
C505 94 40
C506 80 85
C536 32 72
C600 16 54
C601 18 54
C602 35 36
C603 35 37
C604 28 35
C605 31 55
C700 135 16
C701 135 14
C703 136 16
C704 88 19
C705 160 14
C706 175 17
C707 179 17
C708 173 16
C709 176 16
C710 178 14
C711 173 14
C712 81 30
C713 159 19
C714 161 22
C715 186 14
C716 165 16
C717 152 14
C718 179 25
C719 175 21
C720 79 91
C721 81 94
C722 172 21
C723 170 16
C724 179 23
C725 40 22
C726 39 18
C727 41 16
C728 49 21
C729 48 21
C730 38 22
C731 49 16
C732 46 21
C733 36 20
C734 37 16
C735 44 22
C736 44 18
C737 43 22
C738 57 21
C739 57 16
C740 24 127
C741 55 21
C742 25 130
C743 21 95
C744 17 95
C746 146 14
C747 21 93
C748 18 93
C750 21 91
C751 18 91
C752 133 16
C753 22 101
C754 20 101
C755 16 100
C756 22 98
C757 18 99
C758 16 99
C759 140 14
C760 155 14
C761 162 14
C762 18 126
C763 84 31
C764 84 29
C765 93 17
C766 91 17
C767 91 21
C768 93 20
C769 54 23
C770 52 16
C800 151 134
C801 133 117
C802 141 107
C803 136 102
C805 137 114
C806 131 114
C807 138 102
C808 126 134
C809 138 134
C810 144 128
C811 132 130
C813 133 102
C814 135 102
C817 128 107
C820 37 76
C824 81 88
C826 81 87
C827 23 86
C830 14 87
C831 14 90
C832 33 84
C833 35 86
C834 23 79
C835 31 86
C836 81 90
C837 10 87
C838 10 90
C839 31 85
C840 33 68
C841 33 71
C842 81 91
C843 151 115
C844 131 95
C845 38 69
C846 135 123
C900 104 143
C901 161 143
C902 168 135
C903 167 121
C904 159 143
C905 165 129
C906 172 127
C907 189 98
C908 172 135
C909 176 127
C910 176 117
C912 169 138
C913 169 140
C914 189 94
C915 115 109
C916 116 105
C917 185 100
C918 112 105
C919 186 92
C920 102 141
C922 179 132
C923 179 122
C924 179 112
C925 113 105
C926 167 108
C927 166 114
C928 156 103
C929 166 100
C930 169 100
C931 172 106
C932 174 106
C933 171 97
C934 171 94
C935 148 97
C936 179 141
C937 179 144
C938 149 144
C939 151 147
CB702 70 18
CB900 22 142
CB902 141 141
CT704 89 26
CT705 86 21
CT706 83 21
CT707 81 21
D201 178 80
D202 178 82
D300 157 52
D301 174 34
D500 86 44
D700 158 16
D701 164 14
D702 156 14
D703 150 14
2 - 35
D704 132 14
D705 139 14
D706 176 14
D707 165 14
D708 175 14
D709 171 14
D710 70 22
D711 81 19
D712 83 19
D713 86 18
D714 68 25
D715 68 23
D716 187 20
D717 187 23
D718 62 19
D719 64 18
D720 67 19
D721 46 16
D722 14 109
D723 44 16
D724 14 121
D725 54 16
D726 14 123
D727 36 16
D728 14 115
D729 39 16
D730 14 107
D731 51 16
D732 17 128
D733 15 128
D800 160 119
D900 172 122
D901 172 132
D902 117 109
F300 164 49
F301 164 44
F700 27 127
IC100 29 132
IC200 147 76
IC201 166 65
IC300 177 46
IC301 156 27
IC400 90 121
IC401 27 114
IC402 64 112
IC403 85 128
IC404 124 82
IC405 92 128
IC406 131 82
IC407 99 128
IC408 115 77
IC500 78 87
IC600 25 45
IC701 22 130
IC702 82 24
IC703 75 19
IC800 134 108
IC802 32 78
IC803 141 102
IC805 134 98
IC806 131 98
IC900 160 127
IC901 120 103
IC902 185 95
IC903 161 112
L100 39 131
L200 162 77
L201 158 77
L202 157 57
L203 160 77
L204 161 55
L205 168 54
L300 183 62
L301 182 76
L302 153 50
L303 164 29
L304 164 29
L305 179 28
L400 22 123
L401 83 92
L402 113 116
L403 27 96
L404 49 133
L405 96 141
L406 42 132
L408 41 142
L409 45 142
L410 48 142
L411 51 142
L412 53 140
L500 94 43
L600 34 55
L701 146 15
L702 80 31
L703 54 24
L704 21 127
L800 166 119
L801 126 123
L802 143 123
L803 14 88
L804 10 88
L900 170 130
L901 161 136
L902 166 142
L903 153 96
L904 153 99
L905 179 137
L906 180 127
L907 180 117
L908 181 141
L909 181 144
L910 119 109
L911 166 111
L912 161 102
L913 171 101
L914 167 97
L915 156 96
L916 88 141
L917 144 142
L920 88 139
L921 182 106
L922 187 106
Q900 106 136
Q901 175 142
Q902 161 95
R100 34 131
R101 34 132
R102 25 133
R103 36 131
R104 29 137
R105 29 139
R106 25 139
R107 32 137
R108 34 134
R109 34 136
R110 34 137
R111 25 134
R112 25 131
R133 85 141
R134 85 138
R138 85 140
R139 36 144
R140 51 140
R141 51 138
R142 36 142
R193 85 139
R200 142 72
R201 144 72
R202 160 74
R203 154 63
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Koordinaten für die Bauteile der Chassisplatte YCR190R-4
Coordinates of the Components of Chassis Board YCR190R-4
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
Pos.-Nr./ Koordinaten/
Pos. No. Coordinates
X Y
R204 154 62
R205 175 70
R206 175 68
R207 168 57
R208 155 60
R209 153 60
R210 175 59
R211 163 57
R212 175 58
R213 165 74
R214 169 74
R215 168 74
R216 170 74
R217 172 74
R218 166 55
R219 104 75
R220 164 55
R221 160 57
R222 179 77
R223 164 77
R224 167 77
R225 106 75
R226 165 77
R300 153 37
R301 159 27
R302 157 54
R303 158 54
R304 180 36
R305 178 36
R306 173 36
R307 153 39
R308 156 54
R309 180 58
R310 175 36
R311 165 52
R312 178 53
R313 183 55
R314 185 58
R315 182 55
R316 182 58
R317 153 52
R318 160 41
R319 185 55
R320 172 39
R321 180 39
R322 178 39
R323 170 28
R324 181 33
R325 176 31
R326 172 28
R327 169 28
R328 169 31
R329 181 31
R330 184 31
R331 178 31
R332 171 33
R333 183 33
R334 180 31
R335 184 33
R336 172 53
R339 87 53
R340 153 54
R400 46 111
R401 41 97
R402 42 102
R403 48 96
R404 39 109
R405 42 110
R406 139 83
R407 28 122
R408 29 106
R409 46 119
R410 25 122
R411 24 106
R412 28 103
R413 46 118
R414 41 120
R415 139 84
R417 22 107
R418 48 93
R419 28 106
R420 43 124
R421 80 131
R426 93 119
R427 87 138
R429 90 138
R430 90 36
R431 96 114
R433 118 82
R434 128 76
R435 127 76
R436 52 134
R437 77 31
R438 123 76
R439 121 76
R440 90 35
R441 98 114
R442 91 133
R443 89 133
R444 136 83
R445 86 133
R446 93 133
R447 99 133
R448 131 76
R449 130 76
R450 97 133
R451 95 133
R452 62 133
R453 65 133
R454 67 133
R455 70 133
R456 73 133
R457 100 117
R458 93 117
R459 86 121
R460 37 142
R461 49 138
R462 48 140
R466 38 138
R467 46 142
R468 38 140
R469 41 140
R470 53 138
R471 95 121
R472 95 119
R473 137 83
R474 137 81
R475 120 82
R476 136 81
R477 43 142
R478 46 140
R479 45 140
R480 37 138
R481 44 142
R482 37 140
R483 99 117
R484 47 136
R485 47 137
R486 36 140
R488 44 140
R489 41 138
R490 41 136
R491 50 134
R492 88 142
R493 88 144
R494 11 61
R496 40 142
R497 92 118
R498 43 140
R500 77 65
R501 77 60
R502 85 47
R503 77 40
R504 77 90
R505 77 91
R506 77 67
R507 92 47
R508 77 57
R509 77 80
R510 81 82
R511 78 42
R512 77 45
R513 81 77
R514 78 74
R515 80 45
R521 34 72
R522 84 46
R523 87 46
R600 14 79
R601 14 81
R602 14 80
R603 14 77
R604 16 79
R605 4 59
R606 9 62
R607 13 53
R608 13 54
R609 16 52
R610 6 61
R611 13 52
R612 9 61
R613 34 51
R614 9 59
R615 38 51
R616 37 51
R617 35 51
R618 13 51
R619 14 49
R620 38 38
R621 38 37
R622 38 39
R623 38 40
R624 11 34
R625 12 34
R626 10 32
R627 38 35
R628 10 30
R629 11 30
R630 29 35
R631 6 59
R632 4 61
R633 32 59
R700 136 14
R701 134 14
R702 137 14
R703 88 21
R704 159 14
R705 159 16
R706 163 14
R707 157 14
R708 151 14
R709 148 14
R710 142 14
R711 144 14
R712 93 19
R713 172 14
R714 141 14
R715 179 14
R716 140 16
R717 137 16
R718 178 16
R719 172 16
R720 139 16
R721 77 23
R722 77 25
R723 77 26
R724 77 28
R725 79 30
R726 78 30
R727 86 19
R728 83 18
R729 81 18
R730 182 14
R731 184 14
R732 163 16
R733 158 22
R734 62 21
R735 165 18
R736 64 21
R737 165 17
R738 62 18
R739 64 19
R740 163 17
R741 164 24
R742 163 18
R743 66 23
R744 65 23
R745 80 94
R746 78 94
R747 65 25
R748 66 25
R749 93 23
R750 91 19
R751 167 16
R752 177 21
R753 70 23
R754 70 24
R755 73 24
R756 170 18
R757 73 25
R758 90 23
R759 70 19
R760 170 17
R761 70 20
R762 91 20
R763 167 17
R764 169 24
R765 167 18
R766 41 18
R767 41 20
R768 39 20
R769 49 18
R770 48 18
R771 48 16
R772 37 18
R773 37 20
R774 46 18
R775 36 18
R776 44 20
R777 43 18
R778 43 20
R779 57 18
R780 19 129
R781 55 16
R782 19 127
R783 55 18
R785 22 127
R786 20 95
R787 18 95
R788 93 21
R789 20 93
R790 17 93
R791 52 23
R792 20 91
R793 17 91
R794 43 122
R795 16 102
R796 18 100
R797 18 102
R798 16 97
R799 18 97
R800 140 112
R801 142 112
R802 142 115
2 - 36
R803 144 106
R804 140 115
R805 127 104
R806 127 107
R807 53 18
R808 51 18
R810 38 76
R811 84 88
R813 127 94
R814 33 85
R815 84 90
R816 84 87
R818 33 86
R819 130 93
R822 30 72
R823 31 84
R824 20 99
R825 84 91
R826 33 69
R830 138 98
R832 140 97
R833 140 99
R834 142 99
R835 143 99
R836 144 99
R837 142 96
R838 144 96
R839 143 96
R840 130 101
R841 136 98
R842 133 94
R843 135 94
R844 144 101
R845 152 128
R846 152 125
R847 167 116
R849 132 128
R850 144 130
R851 138 128
R853 144 103
R900 121 108
R901 165 124
R902 166 135
R903 167 132
R904 121 109
R905 186 91
R909 186 98
R910 189 92
R911 189 91
R912 189 95
R913 189 100
R914 104 140
R915 189 97
R916 102 138
R917 104 138
R918 100 138
R919 103 136
R920 177 141
R921 172 141
R922 172 143
R923 140 141
R924 177 144
R925 172 140
R926 175 140
R927 156 106
R928 155 106
R929 155 103
R930 170 94
R931 163 94
R932 159 96
R933 163 96
R934 143 141
R935 143 143
R936 143 146
R937 22 141
R938 22 144
R939 152 141
R940 148 147
R941 150 147
RP200 162 74
RP201 175 61
RP202 175 65
RP400 40 125
RP401 40 128
RP402 39 104
RP403 42 113
RP404 39 107
RP405 41 115
RP406 41 118
RP407 81 129
S100 28 146
S101 168 146
S200 38 9
S202 10 114
S400 71 140
S401 48 146
S402 81 34
S500 7 95
S501 39 59
S600 6 73
S601 6 46
S602 6 19
S700 155 8
S701 77 11
S702 13 136
S703 102 7
S800 132 144
S900 5 5
S901 190 5
S902 5 145
S903 190 145
S904 188 122
S905 26 22
S906 13 145
S907 21 136
T101 27 138
T300 175 28
T303 161 53
T304 186 52
T305 179 34
T400 96 117
T403 99 120
T404 38 135
T405 44 137
T500 90 41
T501 90 44
T600 8 57
T700 143 16
T701 183 19
T702 164 21
T703 169 21
T704 52 20
T800 138 94
T901 181 99
T902 188 103
T903 99 141
T904 172 31
T905 167 94
T906 140 144
T907 152 144
TU300 130 44
TU301 130 44
X100 30 142
X200 154 71
Y400 40 94
Chassisplatte / Chassis Board - YCR190R-4
Vorabversion
Preliminary Version
2 - 37
Sicht auf Bestückungsseite GND/DC-Layer / View on Component Side GND/DC Layer
GRUNDIG Service Chassis SE
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-4
Sicht auf Bestückungsseite GND/DC-Layer / View on Component Side GND/DC Layer
2 - 38
GRUNDIG Service Chassis SE
Vorabversion
Preliminary Version
Chassisplatte / Chassis Board - YCR190R-4
Sicht auf Bestückungsseite GND/DC-Layer / View on Component Side GND/DC Layer
2 - 39
FS2000
FUSE 3.15AT
C2003
470nF 305V
C2004
470nF 305V
VR2001
C2009
1nF 1kV
C2000
1nF 1kV
C2028
47uF 25V
C2026
470pF
R2030
150k
C2029
220nF
C2020
470nF
R2008
4M7
C2014
1nF 250Vac
C2023
680nF
CSS
1
DELAY
2
CF
3
RFmin
4
STBY
5
ISEN
6
LINE
7
DIS8PFC_STOP
9
HVG
15
OUT
14
N.C.
13
Vcc
12
LVG
11
GND
10
VBOOT
16
IC2001
L6599
R2034
1K
C2030
10nF
S1
1
S2
2
FB
3
VDD
4
D15D26D3
7
D4
8
IC2002
VIPER22A
7
10
9121
6
L2000
220uH
1
2
3
3
4
4
S2000
POWER PLUG
1
2
HS2000
~~
- +
DB2000
C2007
470nF 400V
R2012
0R47
T2000
2SK3568
D2003
MUR460
D2001
1N5406
VO_S
1
COMP
2
MULT3CS
4
ZCD
5
GND
6
DRV
7
VCC
8
IC2000
NCP1606
R2005
nc
R2004
nc
R2003
nc
R2002
nc
R2011
0R
R2009
68R
R2010
0R
D2002
1N4148
R2016
470k
R2015
470k
R2013
4K7
C2017
nc
C2021
100nF 275V
R2007
68k
R2006
12K
C2011
1uF
C2012
100nF
C2016
10nF
C2008
1nF
C2015
100nF
C2013
47uF 25V
VCC_IC
EE
E
R2031
680K
R2063
10k
C2002
220pF 2kV
C2006
220pF 2kV
C2054
nc
R2078
2,7K
1
2
S2004
nc
R2072
10K
R2012A
0R47
ZD2005
18V
D2054
1N4148
D2053
1N4148
C2099
33nF
VCC_IC
C2095
100nF
VCC_IC
R2090
0R
R2089
0R
C2065
100nF 275V
C2064
nc
L2007
C2098
470nF 400V
L2008
2x28mH 3A
R2086
220K
R2087
220K
R2088
220K
J2002
J2011
J2012
R2073
1K
R2019
nc
R2091
220K
R2092
220K
C2096
1uF
FB2001
jumper
R2094
22K
R2097
nc
R2098
0R
C2010
180uF/450V
E
R2014
1K5
C2001
22pF 500V
R2093
nc
R2071
82K
VCC_IC
VB
VB
C2018
1uF
R2041
22K
T2007
BC848
ZD2000
3V
R2050
10K
R2059
220K
R2038
220K
R2052
68k
R2032
220K
R2062
4K7
VCC
VCC
VB
R2018
100R
T2008
BC858
LVsense
LVsense
LVsense
R2065
0R
R2033
330K
D2006
1N4148
J2004
l'invertitore e il pannello sono identificati anche dal simbolo di sicurezza e devono
essere sostituiti solo con parti originali prodotte e verificate dal produttore.
Der Inverter und das Panel sind ebenfalls mit dem Sicherheitssymbol gekennzeichnet und sollten
nur durch
Inverter and panel are also designed by the safety symbol and should only be replaced
by orginal parts produced and proofed by manufacturer.
Note:
Components designated by the safety symbol should only be replac ed by original parts produced and proofed by the manufacturer
.
Sicherheitsbautelle im Sinn der sicherheitsbestimmung. Diese Teile durfen nur durch Originalteile ersetzt werden.
Vorabversion
Preliminary Version
GRUNDIG Service Chassis SE
Netzteilplatte / Power Supply Board
2 - 40
GRUNDIG Service Chassis SE
2
1
3
4
PH2000
SFH615A
C2044
1000uF 35V
IC2003
TL431CLP
R2046
27K
R2049
2K7
C2043
47nF
C2038
nc
R2042
39K
C2031
22nF 1KV
D2008
UF4007F
C2034
220pF
R2022
22R
D2007
1N4148
C2028
47uF 25V
R2020
12K
R2030
150k
C2029
220nF
CSS
1
DELAY
2
CF
3
RFmin
4
STBY
5
ISEN
6
LINE
7
DIS8PFC_STOP
9
HVG
15
OUT
14
N.C.
13
Vcc
12
LVG
11
GND
10
VBOOT
16
IC2001
L6599
R2036
1K
R2037
820R
R2027
10K
D2005
1N4148
T2002
2SK3568
12
2
5
11
9
8
10
13
14
TR2001
2
1
3
4
PH2001
TCET1100
L2003
3,3uH
C2045
470uF 25V
IC2004
TL431CLP
12V1
R2060
3K3
C2049
47nF
C2046
22nF
R2053
39K
R2028
100K
C2033
10nF 275Vac
D2009
UF4007
C2027
22uF 50V
R2035
0R
R2034
1K
C2030
10nF
C2022
100nF
S1
1
S2
2
FB
3
VDD
4
D15D26D3
7
D4
8
IC2002
VIPER22A
R2048
470R
R2045
820R
R2044
22K
2
1
3
D2010
MBRF20100CT
C2042
1000uF 35V
C2037
1000uF 25V
1
2
HS2003
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
S2002
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
P13
13
P14
14
S2003
C2047
100nF
R2055
22K
R2056
22K
R2058
3K3
1
2
HS2001
R2017
10K
R2040
nc
R2051
NC
C2021
100nF 275V
VCC_IC
SGND
SGND
SGND
SGND
SGND
SGND
SGND
R2064
22R
R2068
nc
R2067
nc
R2066
nc
R2070
nc
R2069
nc
C2050
nc
C2052
nc
24V1
C2058
100nF
P1
1
P2
2
P3
3
P4
4
P5
5
P6
6
P7
7
P8
8
P9
9
P10
10
P11
11
P12
12
S2001
DIM
BL CTRL
DIM
BL CTRL
R2072
10K
2
1
3
D2015
MBRF20100CT
T2001
2SK3568
C2060
22nF 1KV
D2044
UF4007F
24V
24V
D2054
1N4148
D2053
1N4148
C2099
33nF
12V1
D2051
SB560
D2052
SB560
R2096
68K
12V
R2095
2K2
C2095
100nF
VCC_IC
R2090
0R
R2089
0R
R2001
nc
C2075
470uF 16V
C2076
470uF 16V
L2006
3,3uH
C2074
220uF 25V
C2073
100nF
R2099
nc
SGND SGND
5Vstby
5Vstby
C2065
100nF 275V
C2064
nc
D2073
1N4148
VCC_AUX
12V1
5Vstby
SGND
SGND
STBY_CTRL
FB2000
J2005
J2006
J2010
J2009
J2011
SGND
24V
DIM
BL CTRL
R2073
1K
C2005
nc
R2043
10K
T2003
BC848
R2029
47R
1-Enable
R2054
82k
R2039
1K
SGND
D2012
1N4148
ZD2001
12V
ZD2004
12V
ZD2006
15V
2
1
3
4
PH2002
TCET1100
5Vstby
T2005
BC848
VCC_IC
VCC_AUX
T2006
BC848
R2084
10K
R2083
10K
R2082
56K
24V1
R2081
33K
12V1
C2061
47nF
STBY_CTRL
R2057
10k
1
3
7
5
8
11
TR2000
R2098
0R
J2001
R2047
1K
R2021
22K
R2024
22K
R2025
22K
R2026
22K
T2004
BC858
R2023
3,9K
D2004
BA157
C2019
47uF 50V
24V
24V1
L2001
?uH
C2024
1uF
R2061
82K
VB
R2062
4K7
VCC
VB
R2018
100R
D2011
SB560
D2006
1N4148
Vorabversion
Preliminary Version
Netzteilplatte / Power Supply Board
2 - 41
GRUNDIG Service Chassis SE
GND
GND
GND
GND
P+S2P-S3MNS4V+S5V-
S6
R1
180RR2330RR3470RR41K
R7
150R
R6 150R
1
2
3
4
5
6
7
8
CN1
CON8_Y8
C1
10uF/16V
TV/AV
S7
STAND BY
S1
R5
3K9
OUT
OUT
GND
GND
VS
VS
IR1
IR
D2
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10 0R
GND
GND
GND
GND
P+S2P-
S3
MNS4V+S5V-
S6
R1
180R
R2
330RR3470RR41K
R7
150R
R6 150R
1
2
3
4
5
6
7
8
CN1
CON8_Y8
C1
10uF/16V
TV/AV
S7
STAND BY
S1
R5
3K9
OUT
OUT
GND
GND
VS
VS
IR1
TSOP38238T
D1
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
Vorabversion
Preliminary Version
Bedienplatte / Keyboard - XGA191
Sicht auf Bestückungsseite / View on Component Side
Sicht auf Lötseite / View on Solder Side
Bedienplatte / Keyboard - XGE191
Sicht auf Lötseite / View on Solder Side
Sicht auf Bestückungsseite / View on Component Side
2 - 42
GRUNDIG Service Chassis SE
GND
GND
GND
GND
P+S2P-S3MNS4V+S5V-
S6
R1
180RR2330RR3470RR41K
R7
150R
R6 150R
1
2
3
4
5
6
7
8
CN1
CON8_Y8
C1
10uF/16V
SOURCE
S7
STAND BY
S1
R5
3K9
OUT
OUT
GND
GND
VS
VS
IR1
TSOP38238T
D1
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
GND
P+S2P-
S3
MN
S4
V+S5V-
S6
R1
180R
R2
330RR3470RR41K
TV/AV
S7
STAND BY
S1
R5
3K9
1
2
3
CN1
CON3_Y3
GND
GND
OUT
GND
Vs
GND
R7
150R
R6 150R
C1
10uF/16V
OUT
GND
VS
IR1
TSOP38238T
D1
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
1
2
3
4
5
CN2
5 HEADER
GND
Vorabversion
Preliminary Version
Bedienplatte / Keyboard - XSV191
Sicht auf Bestückungsseite / View on Component Side
Sicht auf Lötseite / View on Solder Side
Bedienplatte / Keyboard - XVQ191
IR-/LED-Platte / IR-/LED Board - XVS192
Sicht auf Bestückungsseite / View on Component Side
Sicht auf Lötseite / View on Solder Side
2 - 43
GRUNDIG Service Chassis SE
GND
OUT
GND
Vs
GND
R7
150R
R6 150R
C1
10uF/16V
D1
LED/WHITE
R8
270R
R9
470R
GND
R11
0R
R10
0R
1
2
3
4
5
CN2
5 HEADER
GND
D2
LED-Beko
1
2
3
CN1
CON3_Y3
GND
OUT
1
GND
2
VS
3
IR1
IR
GND
P+
S2P-S3MNS4V+S5
VS6
R1
180R
R2
330R
R3
470R
R4
1K
TV/AV
S7
STAND BY
S1
R5
3K9
1
2
3
CN1
CON3_Y3
GND
Vorabversion
Preliminary Version
IR-/LED-Platte / IR-/LED Board - XYN191
IR-/LED-Platte / IR-/LED Board - XYN192
2 - 44
Loading...
